BCS-64

< DTC/CIRCUIT DIAGNOSIS >

COMBINATION SWITCH OUTPUT CIRCUIT

COMBINATION SWITCH OUTPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000009567557

Regarding Wiring Diagram information, refer to

BCS-48, "Wiring Diagram"

.

1.

CHECK OUTPUT 1 - 5 CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM and combination switch connectors.

3. Check continuity between BCM connector and combination switch connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connectors.

2.

CHECK OUTPUT 1 - 5 CIRCUIT FOR SHORT

Check for continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> Repair harness or connectors.

NO

>> GO TO 3.

3.

CHECK BCM INPUT SIGNAL

1. Connect BCM and combination switch connectors.

2. Turn ON any switch in the system that is malfunctioning.

3. Check voltage between BCM connector and ground.

Combination switch

signal

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

OUTPUT 1

M18

6

M28

12

Yes

OUTPUT 2

5

14

OUTPUT 3

4

5

OUTPUT 4

3

2

OUTPUT 5

2

8

Combination switch

signal

BCM

Ground

Continuity

Connector

Terminal

OUTPUT 1

M18

6

No

OUTPUT 2

5

OUTPUT 3

4

OUTPUT 4

3

OUTPUT 5

2

BCS

COMBINATION SWITCH OUTPUT CIRCUIT

BCS-65

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the inspection result normal?

Yes

>> Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

No

>> Replace combination switch. Refer to

BCS-68, "Removal and Installation"

.

BCM signal

Terminals

Voltage

(+)

(

−)

BCM

Ground

Connector

Terminal

INPUT 1

M18

6

Refer to

BCS-28, "Refer-

ence Value"

.

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2

BCS-66

< SYMPTOM DIAGNOSIS >

COMBINATION SWITCH SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

COMBINATION SWITCH SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009567558

1. Perform the data monitor of CONSULT to check for any malfunctioning item.
2. Check the malfunction combinations.

Malfunction item:

×

3. Identify the malfunctioning part from the agreed combination and repair or replace the part.

Malfunction combination

Data monitor item

FR WI

PER HI

FR WIP

ER LOW

F

R

 W

A

SH

ER

 S

W

FR WI

PER INT

INT VOL

U

ME

RR

 WIPE

R

 O

N

RR WIP

E

R INT

RR W

ASHER

SW

TURN SIG

NAL R

TURN SIGNAL L

TA

IL

 LA

MP

SW

H

I BEAM SW

HEAD LAMP SW

1

HEAD LAMP SW

2

P

ASSI

N

G

 SW

FR F

O

G

SW

A

×

×

×

×

B

×

×

×

×

C

×

×

×

×

D

×

×

×

E

×

×

×

F

×

×

×

G

×

×

×

×

H

×

×

I

×

×

×

×

J

×

×

×

×

K

All Items

L

If only one item is detected or the item is not applicable to the combinations A to K

Malfunction

combination

Malfunctioning part

Repair or replace

A

Combination switch INPUT 1 circuit

Inspect the combination switch input circuit applicable to the malfunctioning
part. Refer to

BCS-62, "Diagnosis Procedure"

.

B

Combination switch INPUT 2 circuit

C

Combination switch INPUT 3 circuit

D

Combination switch INPUT 4 circuit

E

Combination switch INPUT 5 circuit

F

Combination switch OUTPUT 1 circuit

Inspect the combination switch output circuit applicable to the malfunction-
ing part. Refer to

BCS-64, "Diagnosis Procedure"

.

G

Combination switch OUTPUT 2 circuit

H

Combination switch OUTPUT 3 circuit

I

Combination switch OUTPUT 4 circuit

J

Combination switch OUTPUT 5 circuit

K

BCM

Replace BCM. Refer to

BCS-67, "Removal and Installation"

.

L

Combination switch

Replace the combination switch.

BCS

BCM (BODY CONTROL MODULE)

BCS-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

Removal and Installation

INFOID:0000000009447118

REMOVAL

CAUTION:

Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-

tion. Refer to

BCS-55, "CONFIGURATION (BCM) : Description"

.

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-69,

"Removal and Installation (Battery)"

.

2. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

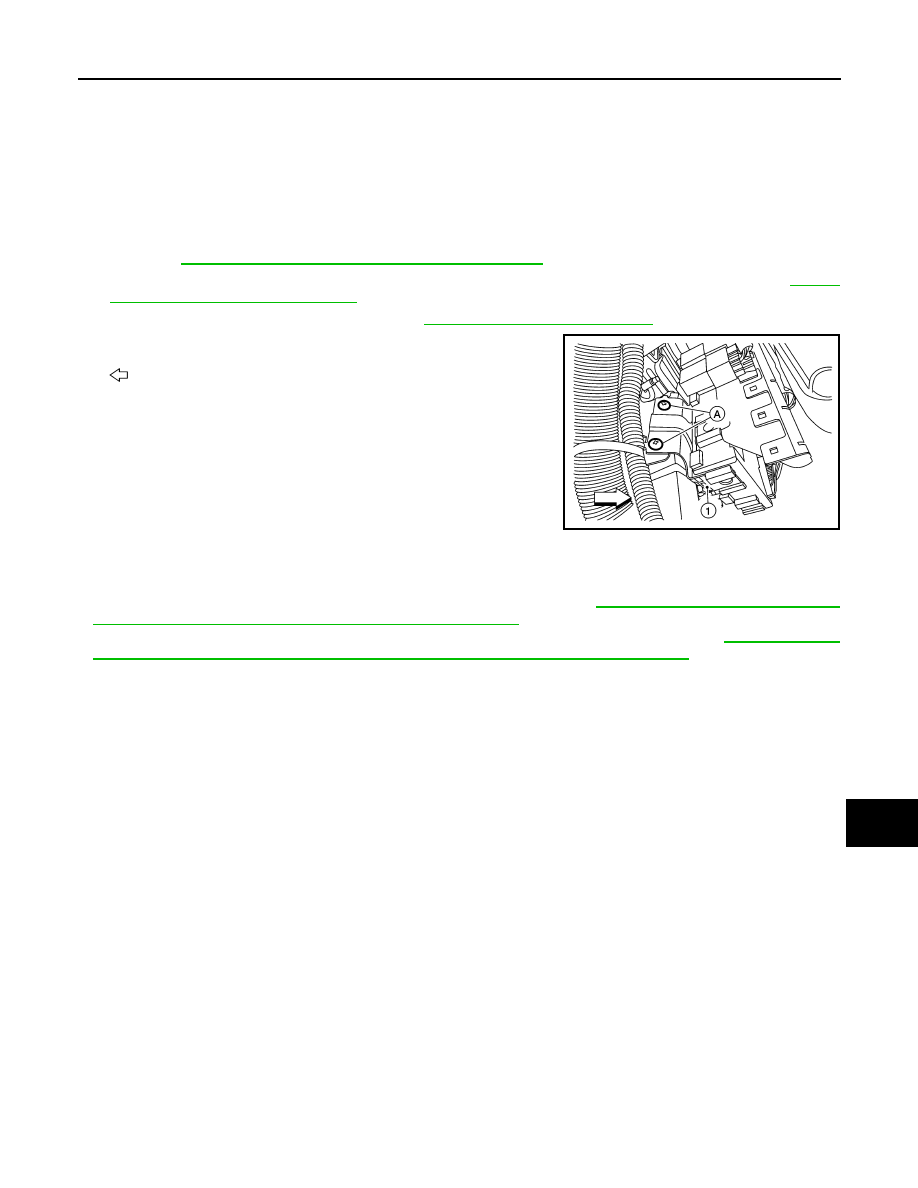

3. Remove screws (A) and remove the BCM (1) from the steering

member and position aside.

: Front

4. Disconnect the harness connectors from the BCM.
5. Remove relays from relay bracket.
6. Remove relay bracket from BCM to transfer to new BCM.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Perform “CONFIGURATION (BCM)” when replacing BCM. Refer to

BCS-54, "ADDITIONAL SERVICE

WHEN REPLACING CONTROL UNIT (BCM) : Description"

.

• Make sure to perform the system initialization (NATS) when replacing BCM. Refer to

BCS-54, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Procedure"

.

• When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be

re-registered.

ALMIA0656ZZ
