BCS-98

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM

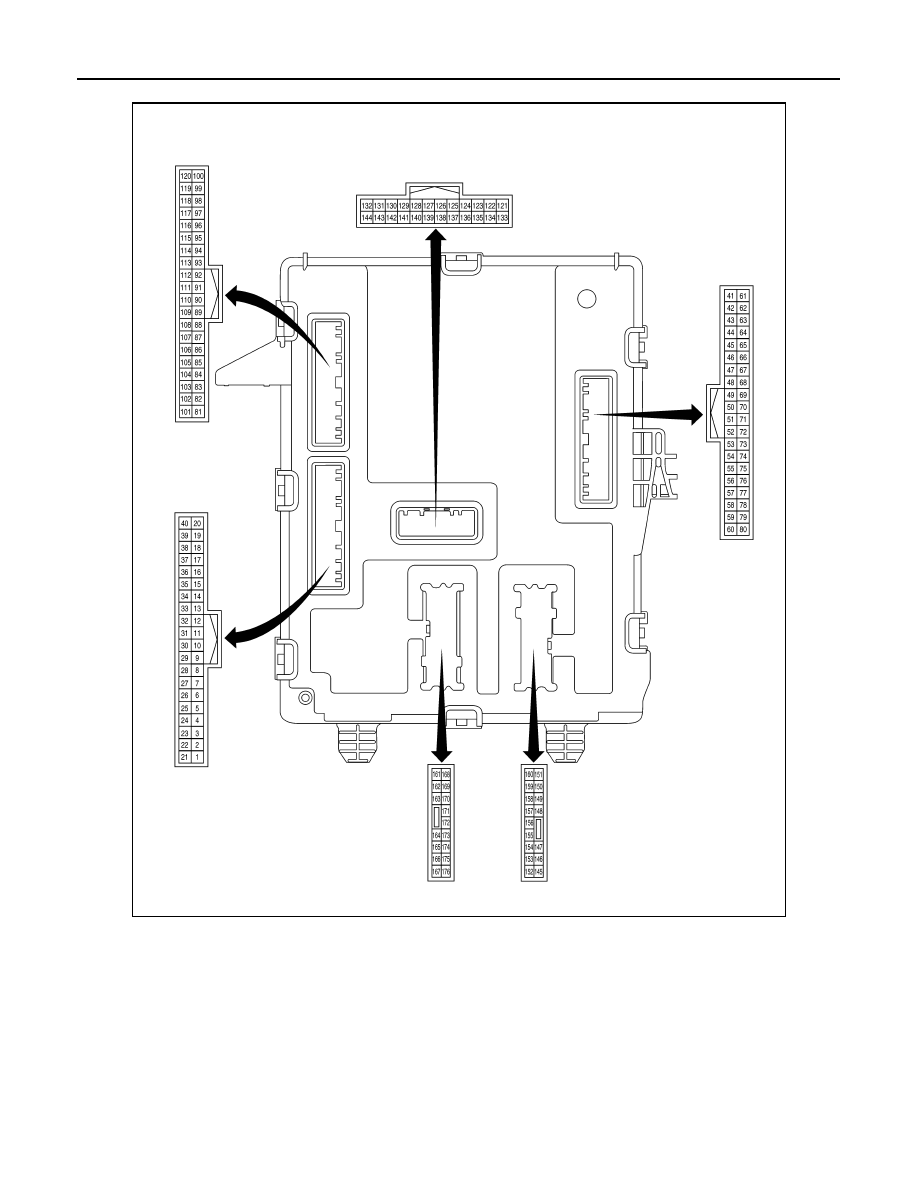

TERMINAL LAYOUT

PHYSICAL VALUES

ALMIA0710ZZ

BCS

BCM

BCS-99

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

2

(LA/G)

Ground

Door mirror LH turn signal
lamp output

Output

Ignition
switch ON

Turn signal switch
OFF

0V

Turn signal switch LH

6.5 V

3

(LA/Y)

Ground

Door mirror RH turn signal
lamp output

Output

Ignition
switch ON

Turn signal switch
OFF

0V

Turn signal switch RH

6.5 V

4

(P)

Ground Room lamp relay control

Output

Ignition
switch OFF

Interior room lamp
battery saver opera-
tion timed out

Battery voltage

Any time prior to inte-
rior room lamp bat-
tery saver operation
timed out

0V

5

(R)

Ground CAN low

Input/

Output

—

—

6

(L)

Ground CAN high

Input/

Output

—

—

8

(L)

Ground CAN high

Input/

Output

—

—

9

(R)

Ground CAN low

Input/

Output

—

—

10

(BG)

Ground

Main power window and
door lock/unlock switch
lock signal

Input

Main power
window and
door lock/un-
lock switch
(door lock/un-
lock switch)

Lock

Battery voltage

Unlock

0V

11

(Y)

Ground Hazard switch

Input

Hazard
switch

Pressed

0 V

Released

1.1V

PKID0926E

PKID0926E

JPMIA0012GB

BCS-100

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM

12

(W)

Ground Auto light power supply 5V

Output

Ignition
switch

OFF

0V

ON

5V

16

(P)

Ground Audio dongle

Input/

Output

Ignition
switch

OFF

5V

17

(L)

Ground

CVT shift selector park po-
sition switch power

Output

Selector lever

P position

0V

Except P position

Battery voltage

19

(LG)

Ground Auto light signal

Input

Ignition
switch ON

Outside of vehicle is
bright

Close to 5V

Outside of vehicle is
dark

Close to 0V

23

(G)

Ground Power window relay control

Output

Ignition
switch

OFF

Battery voltage

ON

0V

24

(LA/R)

Ground

Rear window defogger re-
lay control

Output

Rear window
defogger

Not activated

Battery voltage

Activated

0V

25

(BR)

Ground Accessory relay-1 control

Output

Ignition
switch

OFF

Battery voltage

ON

0V

27

(Y)

Ground Ignition relay-1 control

Output

Ignition
switch

OFF

Battery voltage

ON

0V

28

(LA/W)

Ground

Front blower motor relay
control

Output

Ignition
switch

OFF

Battery voltage

ON

0V

30

(V)

Ground Auto light reference ground

Output

Ignition
switch

ON

0V

33

(LG)

Ground

Combination switch output
5

Output

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

7.0 – 8.0V

INT VOLUME 2

1.2V

INT VOLUME 3

RR WIPER INT

RR WIPER ON

34

(Y)

Ground Combination switch input 5

Input

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

0V

TAIL LAMP

1.0V

TURN RH

NO LIGHT

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

PKIB4960J

PKIB4958J

PKIB4958J

BCS

BCM

BCS-101

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

35

(BG)

Ground Security indicator

Output

Security indi-
cator

ON

0V

Blinking

11.3V

OFF

Battery voltage

36

(G)

Ground

Combination switch output
3

Output

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

7.0 – 8.0V

FR WASHER

1.2V

RR WASHER

TURN LH

TURN RH

37

(GR)

Ground

Combination switch output
4

Output

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

7.0 – 8.0V

FR WIPER LOW

1.2V

FR WIPER HI

FR WIPER INT

NO LIGHT

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JPMIA0014GB

PKIB4960J

PKIB4958J

PKIB4960J

PKIB4958J
