COIL SPRING

RSU-9

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

11. Loosen the lower link nut at the rear suspension member. Remove the lower link bolt and nut from the

rear suspension arm. Separate the lower link from the rear suspension arm. Refer to

RSU-17, "Exploded

View"

.

12. Separate the brake tube from the rear suspension arm. Refer to

BR-25, "REAR : Exploded View"

.

13. Slowly lower the suitable jack supporting the rear suspension arm. Remove the upper seat, the coil spring

and the lower seat.

INSPECTION AFTER REMOVAL

Check lower link, bushing and coil spring for deformation, crack, and damage. Replace components if neces-

sary.

INSTALLATION

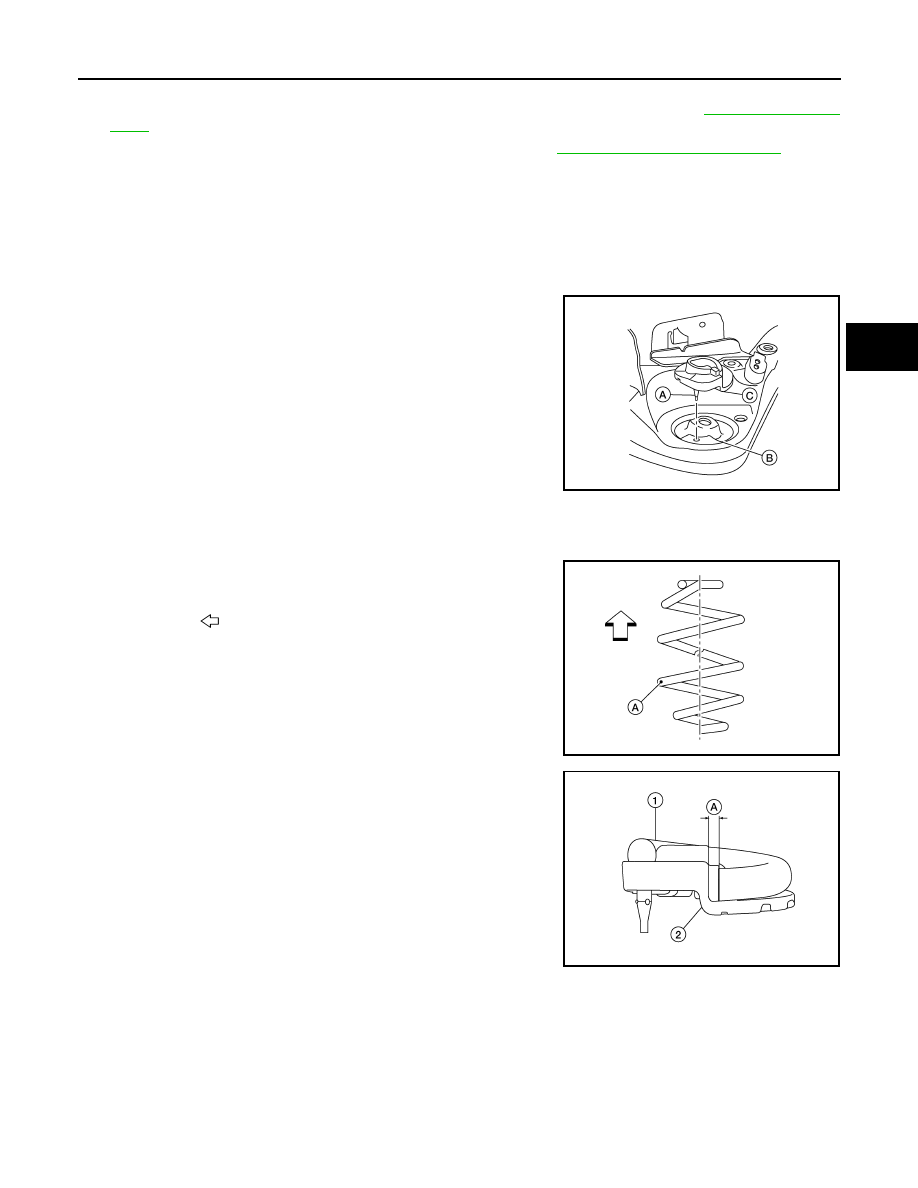

1. Align the lower seat indentations (C) with rear suspension arm

grooves (B). Install the lower seat protrusion (A) into the hole in

the rear suspension arm.

CAUTION:

The lower rubber seat protrusion must be securely inserted

into the hole of rear suspension arm.

2. Identify the upper side of the coil spring.

NOTE:

• The top of the coil spring has a flat shape.

• The paint identification mark (A) is 1.75 turns from the bottom

of the coil spring.

3. Align the coil spring (1) to the lower seat (2). Install coil spring to

lower seat.

CAUTION:

Assemble coil spring so that spring lower end is located in

the spring end holding section of lower rubber seat.

ALEIA0211ZZ

: Upper side

ALEIA0210ZZ

Maximum distance (A) : 5mm (0.20 in)

ALEIA0212ZZ

RSU-10

< REMOVAL AND INSTALLATION >

COIL SPRING

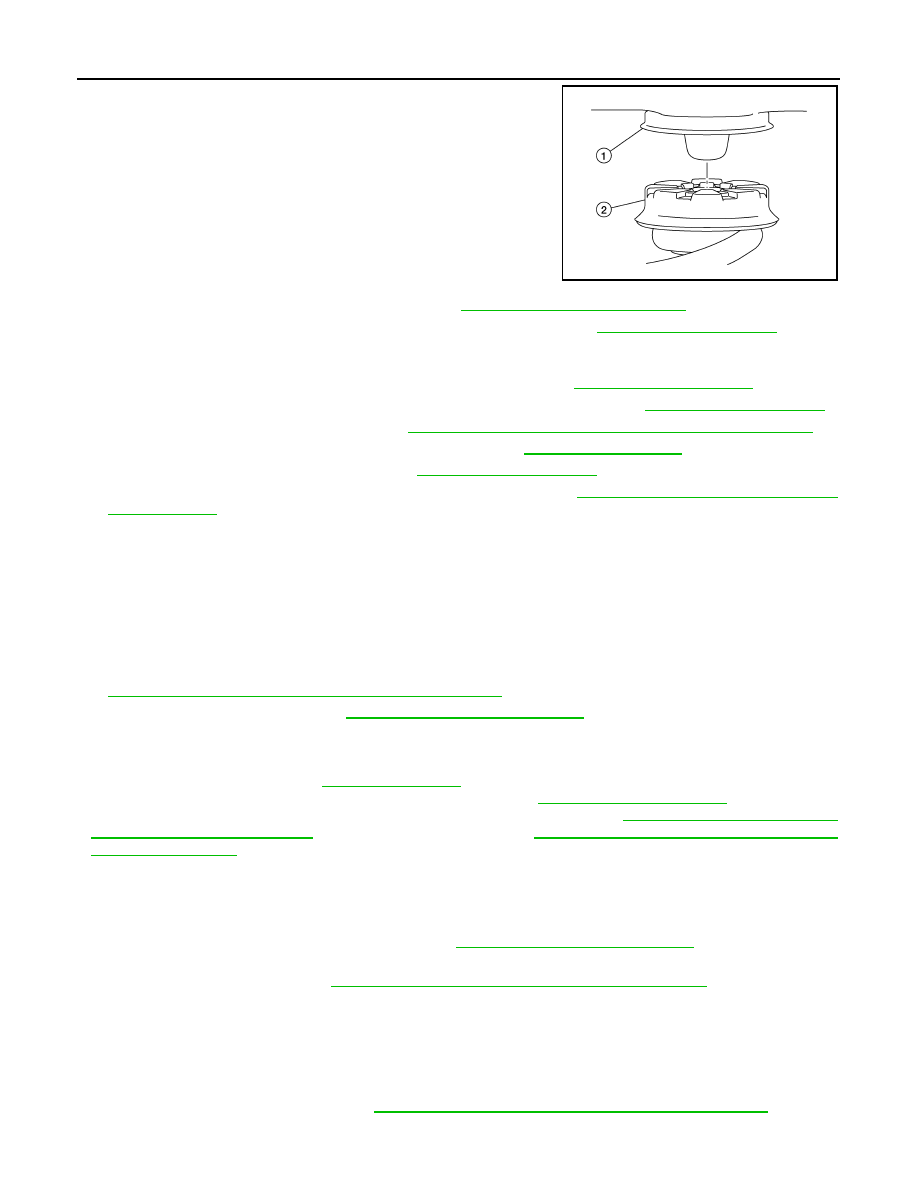

4. Align upper seat (2) to the body (1). Slowly raise the suitable

jack supporting the rear suspension arm to install the upper seat

to the body.

5. Install brake tube to rear suspension arm. Refer to

BR-25, "REAR : Exploded View"

.

6. Install lower link with bolt and nut to the rear suspension arm. Refer to

RSU-17, "Exploded View"

.

NOTE:

The final tightening of nuts and bolts is under unladen conditions with tires on level ground.

7. Install upper link with bolt and nut to rear suspension arm. Refer to

RSU-17, "Exploded View"

.

8. Install rear shock absorber with bolt and nut to rear suspension arm. Refer to

RSU-14, "Exploded View"

.

9. Install height sensor (if equipped). Refer to

EXL-268, "Removal and Installation - Rear Height Sensor"

.

10. Install parking brake cable to rear suspension arm. Refer to

PB-7, "Exploded View"

.

11. Install the stabilizer connecting rod. Refer to

RSU-23, "Exploded View"

.

12. Install the rear wheel sensor to the wheel hub and bearing. Refer to

BRC-131, "REAR WHEEL SENSOR :

Exploded View"

.

CAUTION:

• Before installing, make sure there is no foreign material such as iron fragments adhered to the

pick-up part of the rear wheel sensor.

• When installing, make sure there is no foreign material such as iron fragments on and in the hole

in the wheel hub and bearing for the rear wheel sensor. Make sure no foreign material has been

caught in the sensor rotor. Remove and foreign material and clean the mount.

13. Align the matching marks on the disc brake rotor and on the wheel hub and bearing. Install the disc brake

rotor.

14. Position the brake caliper on the disc brake rotor. Install the brake caliper torque member bolts. Refer to

BR-47, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

15. Install the wheel and tire. Refer to

WT-67, "Removal and Installation"

.

16. Perform the final tightening of nuts and bolts under unladen conditions with tires on level ground.

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

RSU-6, "Inspection"

.

• Adjust the neutral position of the steering angle sensor. Refer to

BRC-68, "Work Procedure"

.

• Perform the sensor initialize of the headlamp aiming control system. Refer to

EXL-84, "SENSOR INITIALIZE

: Special Repair Requirement"

 (HALOGEN HEADLAMP) or

EXL-221, "SENSOR INITIALIZE : Special

Repair Requirement"

 (LED HEADLAMP).

Removal and Installation - AWD

INFOID:0000000011276537

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-67, "Removal and Installation"

2. Remove the bolt and separate the rear wheel sensor from the axle housing. Position the rear wheel sen-

sor and harness aside. Refer to

BRC-131, "REAR WHEEL SENSOR : Exploded View"

.

CAUTION:

• Failure to remove the rear speed sensor from the axle housing may result in damage to the rear

wheel sensor.

• Pull out the rear wheel sensor, being careful to turn it as little as possible. Do not pull on wheel

sensor harness.

3. Remove brake caliper torque member bolts using power tool, leaving the brake hose attached. Position

brake caliper aside with wire. Refer to

BR-47, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

CAUTION:

ALEIA0213ZZ

COIL SPRING

RSU-11

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

Do not depress brake pedal while brake caliper is removed.

4. Put alignment marks on the disc brake rotor and on the wheel hub and bearing. Remove the disc brake

rotor.

CAUTION:

Do not drop disc brake rotor.

5. Remove the cotter pin.
6. Loosen, but do not remove, the wheel hub lock nut from the drive shaft using power tool.

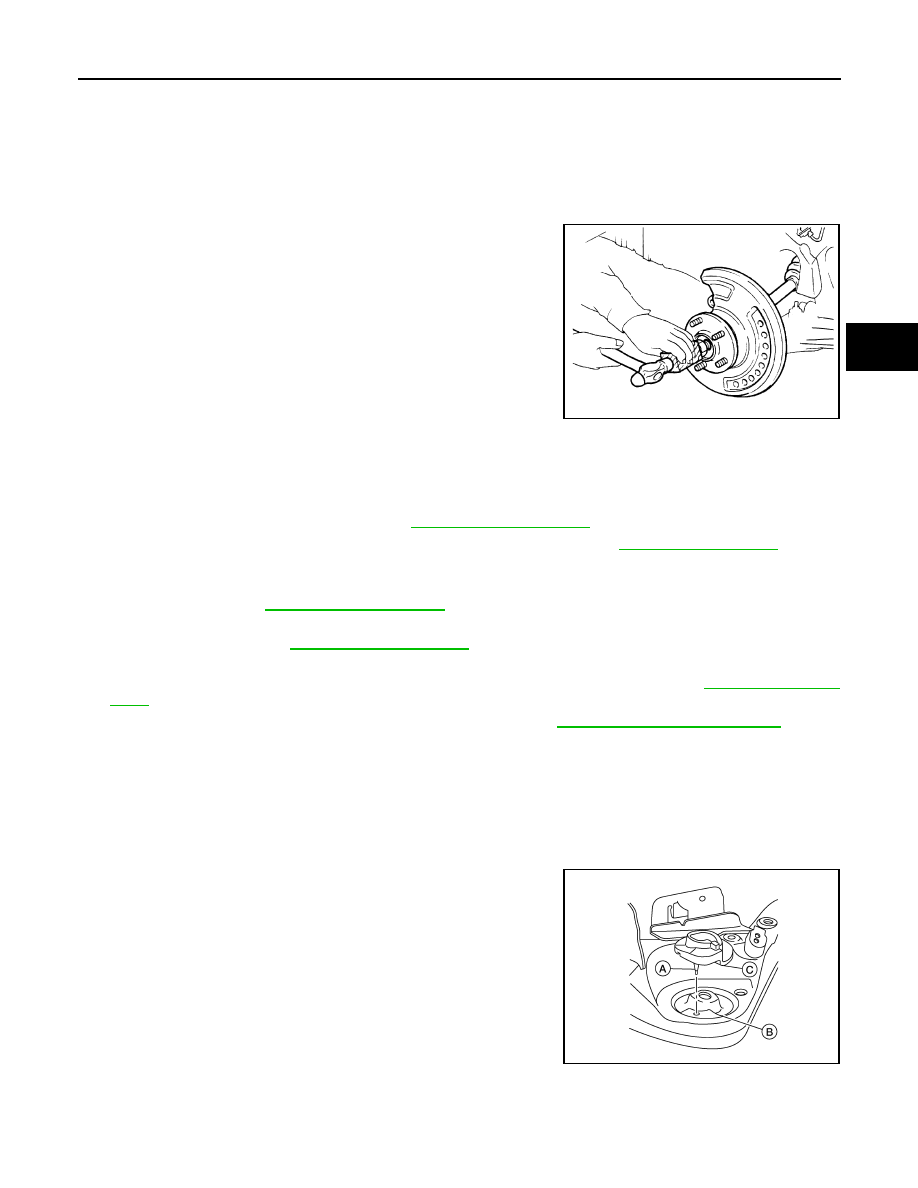

7. Tap the wheel hub lock nut with a piece of wood and a suitable

tool to disengage the drive shaft from the wheel hub and bear-

ing.

CAUTION:

• Do not place the drive shaft joint at an extreme angle. Be

careful not to overextend the slide joint.

• Do not allow the drive shaft to hang without support.

NOTE:

Use a suitable puller if the drive shaft cannot be separated from

the wheel hub and bearing.

8. Remove the wheel hub lock nut.
9. Support the rear suspension arm using a suitable jack.

CAUTION:

Do not damage the rear suspension arm with suitable jack.

10. Remove stabilizer connecting rod. Refer to

RSU-23, "Exploded View"

.

11. Separate the parking brake cable from the rear suspension arm. Refer to

PB-7, "Exploded View"

.

12. Separate the rear height sensor arm from the bracket (if equipped).
13. Remove the rear shock absorber lower bolt and nut. Separate the rear shock absorber from the rear sus-

pension arm. Refer to

RSU-14, "Exploded View"

.

14. Remove the upper link bolt and nut from the rear suspension arm. separate the upper link from the rear

suspension arm. Refer to

RSU-20, "Exploded View"

.

15. Loosen the lower link nut at the rear suspension member. Remove the lower link bolt and nut from the

rear suspension arm. Separate the lower link from the rear suspension arm. Refer to

RSU-18, "Exploded

View"

.

16. Separate the brake tube from the rear suspension arm. Refer to

BR-25, "REAR : Exploded View"

.

17. Slowly lower the suitable jack supporting the rear suspension arm. Remove the upper seat, coil spring

and lower seat.

INSPECTION AFTER REMOVAL

Check lower link, bushing and coil spring for deformation, crack, and damage. Replace components if neces-

sary.

INSTALLATION

1. Align the lower seat indentations (C) with rear suspension arm

grooves (B). Install the lower seat protrusion (A) into the hole in

the rear suspension arm.

CAUTION:

The lower rubber seat protrusion must be securely inserted

into the hole of rear suspension arm.

2. Identify the upper side of the coil spring.

NOTE:

• The top of the coil spring has a flat shape.

JPDIG0070ZZ

ALEIA0211ZZ

RSU-12

< REMOVAL AND INSTALLATION >

COIL SPRING

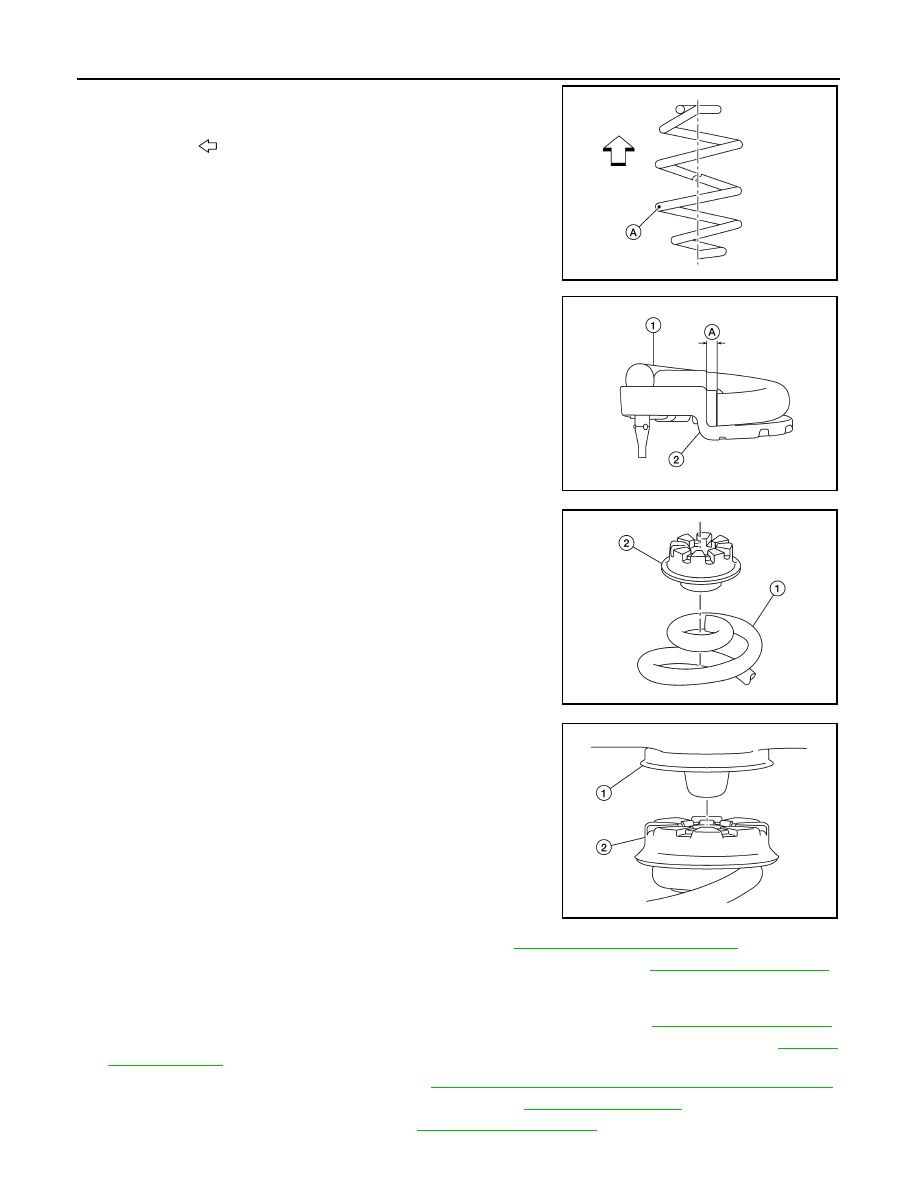

• The paint identification mark (A) is 1.75 turns from the bottom

of the coil spring.

3. Align the coil spring (1) to the lower seat (2). Install coil spring to

lower seat.

CAUTION:

Assemble coil spring so that spring lower end is located in

the spring end holding section of lower rubber seat.

4. Align the coil spring (1) to the upper seat (2). Install the upper

seat to the coil spring.

5. Align upper seat (2) to the body (1). Slowly raise the suitable

jack supporting the rear suspension arm to install the upper seat

to the body.

6. Install the brake tube to the rear suspension arm. Refer to

BR-25, "REAR : Exploded View"

.

7. Install the lower link with the bolt and nut to the rear suspension arm. Refer to

RSU-18, "Exploded View"

.

NOTE:

The final tightening of nuts and bolts is under unladen conditions with tires on level ground.

8. Install the upper link with the bolt and nut to the rear suspension arm. Refer to

RSU-20, "Exploded View"

.

9. Install the rear shock absorber with the bolt and nut to the rear suspension arm. Refer to

RSU-14,

"Exploded View"

.

10. Install the height sensor (if equipped). Refer to

EXL-268, "Removal and Installation - Rear Height Sensor"

.

11. Install parking brake cable to rear suspension arm. Refer to

PB-7, "Exploded View"

.

12. Install the stabilizer connecting rod. Refer to

RSU-23, "Exploded View"

.

: Upper side

ALEIA0210ZZ

Maximum distance (A) : 5mm (0.20 in)

ALEIA0212ZZ

ALEIA0223ZZ

ALEIA0213ZZ
