PG-46

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

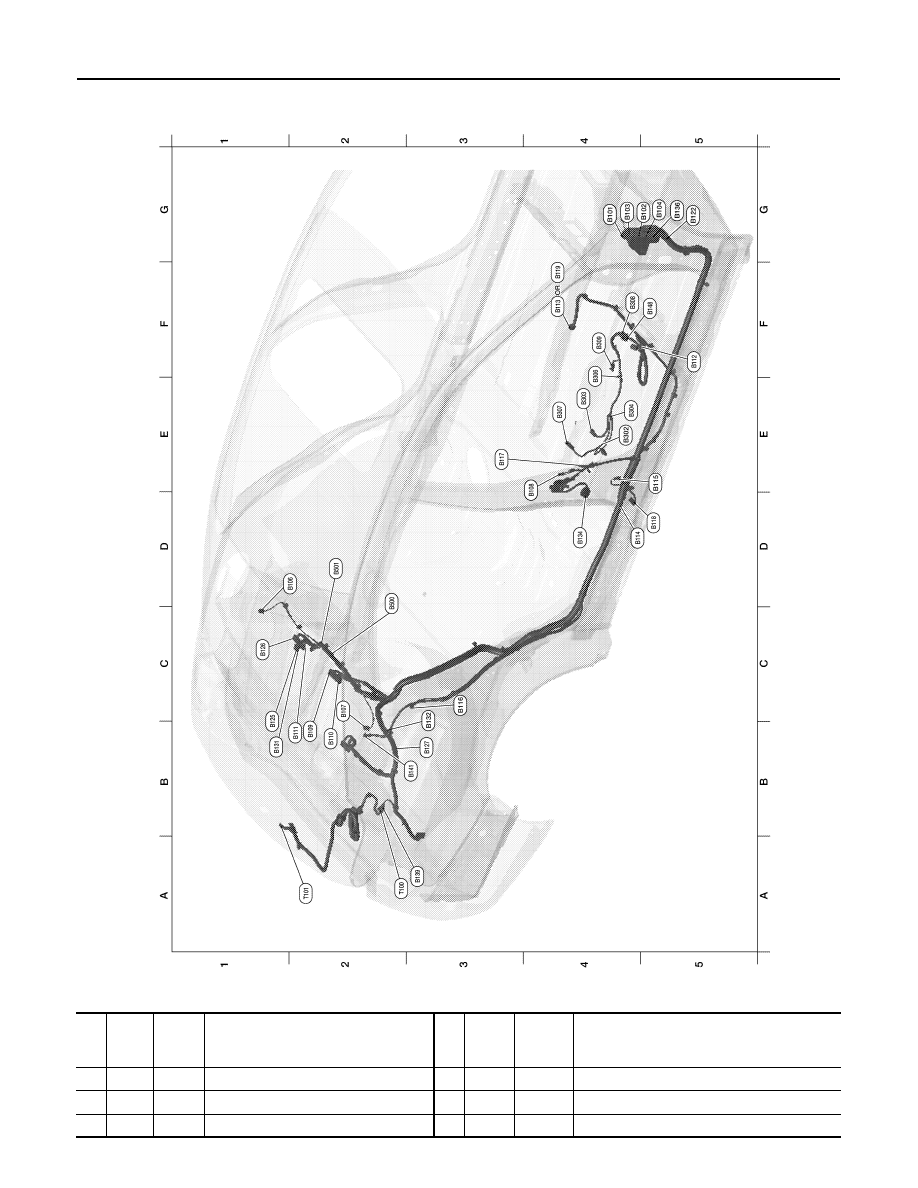

BODY NO. 2 HARNESS

ABMIA4036GB

G4 B101

W/24

: To M2

B1

B131

W/32

: Bluetooth® control unit (except
  monochrome display without BOSE
  audio system)

G5 B102

W/32

: To M8

B3

B132

—

: Body ground

G4 B103

BR/16

: To M9

D4 B134

W/10

: To D306

G5 B104

W/16

: To M10

G5 B136

W/16

: To M110

PG

HARNESS

PG-47

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

D2 B106

W/2

: Rear subwoofer LH

A3

B139

W/4

: To T100

C2 B107

W/2

: Rear subwoofer RH

B3

B141

Y/2

: RH side curtain air bag module

E4

B108

W/3

: Front door switch RH

F5

B148

W/8

: To B308

B2

B109

BR/23

: BOSE speaker amp.

Front seat RH harness

B2

B110

BR/14

: BOSE speaker amp.

E4

B302

W/3

: Seat belt buckle switch RH

B2

B111

W/16

: Satellite radio tuner

E4

B303

W/8

: Occupant classification system control unit

F5

B112

Y/2

: Front RH side air bag module

E4

B304

W/3

: Front seat heater RH

F4

B113

Y/12

: Air bag diagnosis sensor unit (for
  Mexico)

F4

B306

GR/3

: Sliding motor RH

D4 B114

—

: Body ground

E4

B307

B/2

: Reclining motor RH

E5

B115

Y/2

: Front RH seat belt pre-tensioner

F4

B308

W/8

: To B148

C3 B116

W/3

: Rear door switch RH

F4

B309

W/10

: Power seat switch RH

E3

B117

—

: Body ground

Rear parcel shelf harness

D5 B118

Y/2

: RH side air bag (satellite) sensor

D2 B500

W/3

: To B28

F4

B119

Y/22

: Air bag diagnosis sensor unit (except
  for Mexico)

D2 B501

GR/2

: High-mounted stop lamp (with rear
  sunshade)

G5 B122

W/4

: Joint connector-B21

Tail sub-harness

B1

B125

W/8

: Bluetooth® control unit

A2

T100

W/4

: To B139

C1 B126

W/32

: Bluetooth® control unit (with
  monochrome display without BOSE
  audio system)

A2

T101

W/4

: Rear view camera

B3

B127

—

: Body ground

PG-48

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

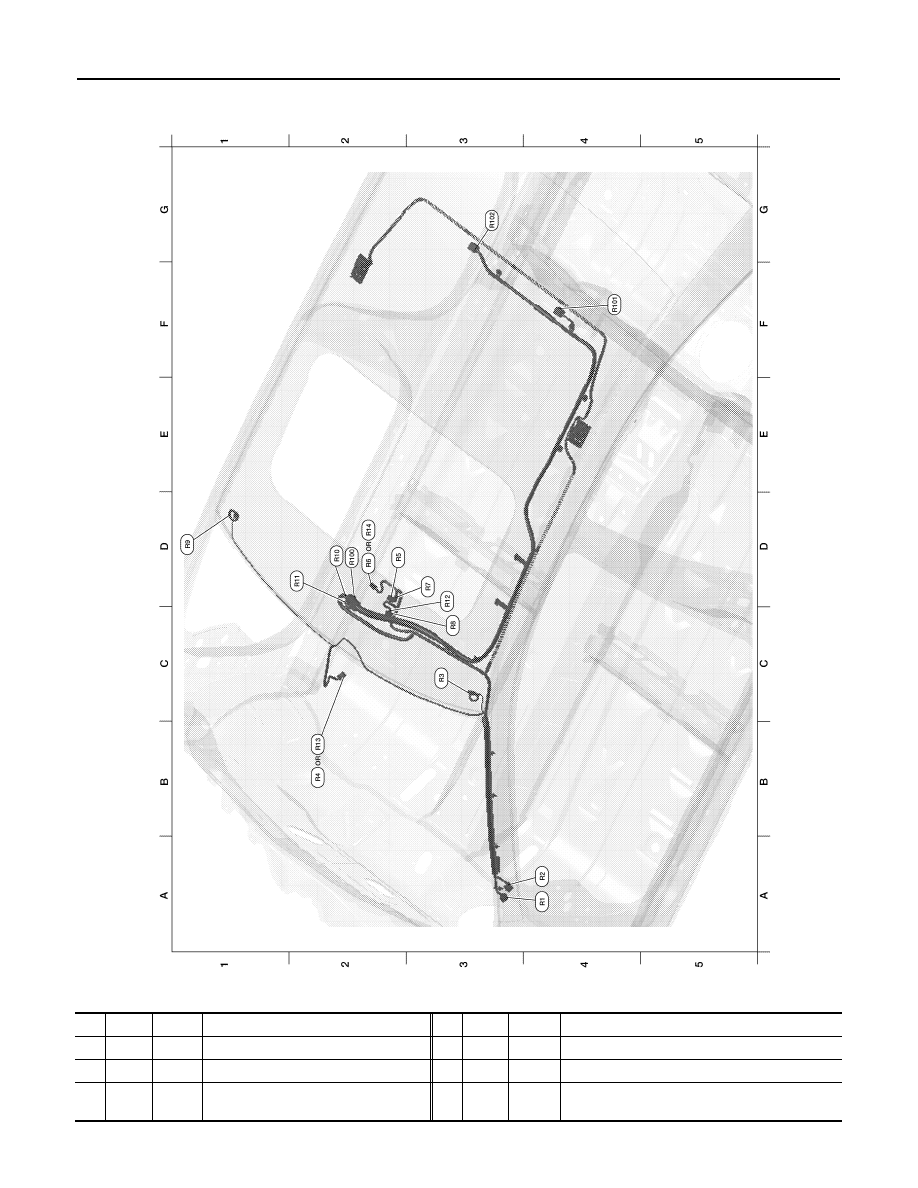

ROOM LAMP HARNESS

ABMIA4048GB

A4

R1

W/16

: To M7

D2 R10

W/12

: To R100

A4

R2

W/6

: To M13

D2 R11

W/8

: Personal lamp rear RH

C3 R3

W/2

: Vanity mirror lamp LH

D3 R12

W/8

: Personal lamp rear LH

B2

R4

B/10

: Auto anti-dazzling inside mirror (with
  homelink universal transceiver)

B2

R13

B/7

: Auto anti-dazzling inside mirror (without
  homelink universal transceiver)

PG

HARNESS

PG-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

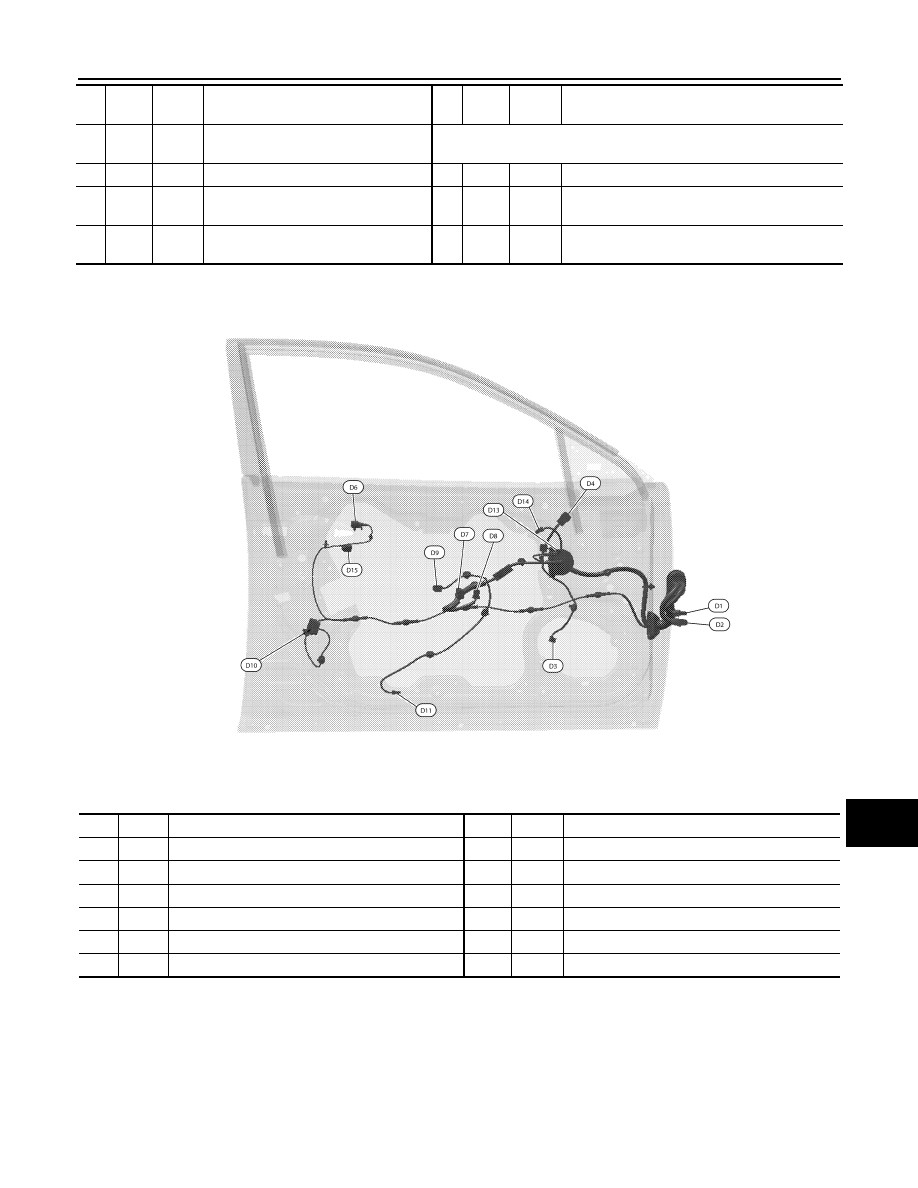

FRONT DOOR LH HARNESS

D2 R5

W/10

: Sunroof motor assembly (without
  dual panel sunroof)

D2 R14

W/8

: Sunroof switch (with dual panel sunroof)

D2 R6

W/3

: Sunroof switch (without dual panel
  sunroof)

Sunroof sub-harness

D3 R7

W/4

: Microphone

D2 R100

W/12

: To R10

C3 R8

GR/6

: Front room/map lamp assembly

F4

R101

GR/10

: Sunroof motor assembly (with dual panel
  sunroof)

D1 R9

W/2

: Vanity mirror lamp RH

G3 R102

GR/10

: Sunshade motor assembly (with dual panel
  sunroof)

ABMIA0294GB

D1

W/16

: To M11

D9

W/6

: Front power window motor LH

D2

W/24

: To M12

D10

GR/6

: Front door lock assembly LH

D3

W/2

: Front door speaker LH

D11

W/2

: Front step lamp LH

D4

W/16

: Door mirror LH

D13

W/8

: Seat memory switch

D6

GR/2

: Front outside handle LH (outside key antenna)

D14

GR/2

: Front door inside handle illumination LH

D7

W/16

: Main power window and door lock/unlock switch

D15

B/2

: Front outside handle LH (request switch)

D8

W/3

: Main power window and door lock/unlock switch
