PG-38
< DTC/CIRCUIT DIAGNOSIS >

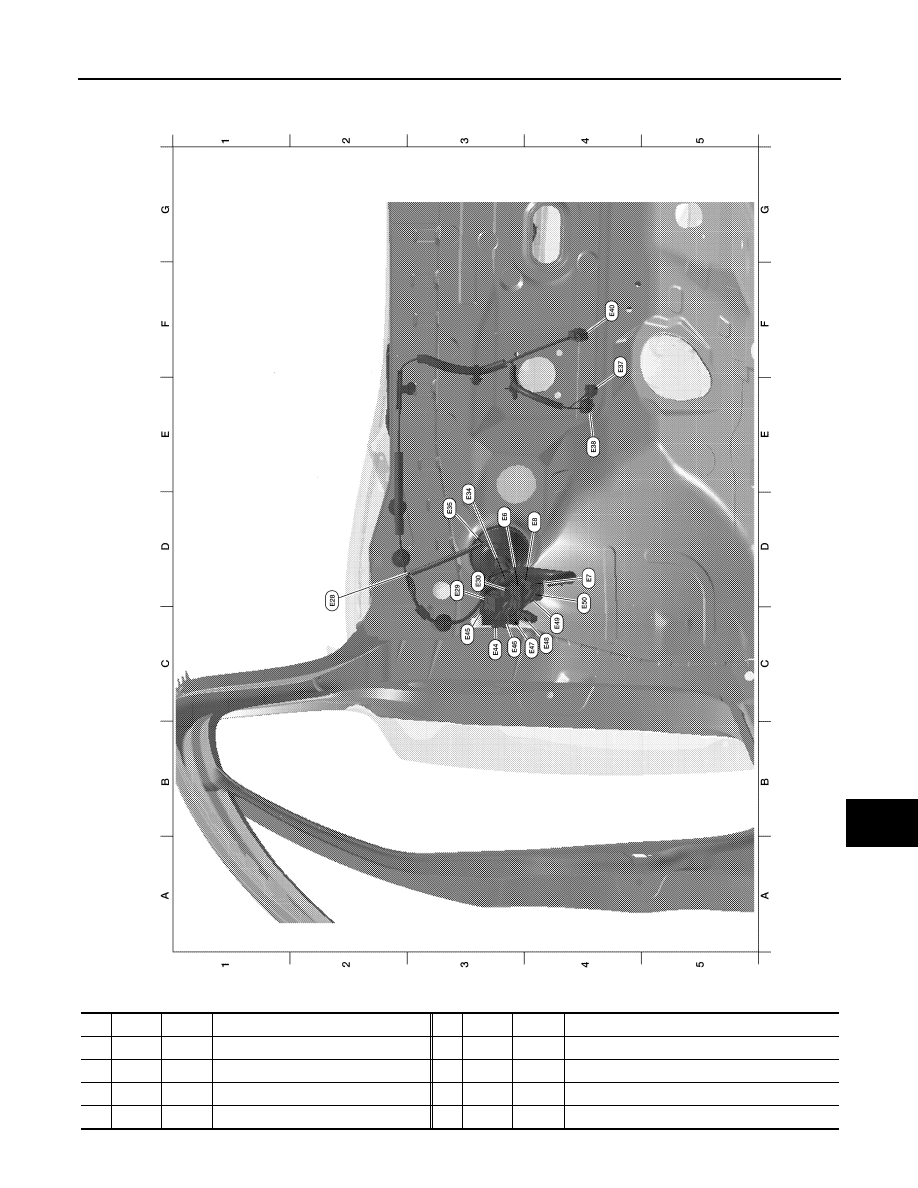

HARNESS
B2
M40
W/12
: Key slot
D2
M152
W/20
: AV control unit (color display - with BOSE
audio system without navigation system)
D5 M41
GR/2
: Front console antenna
C2
M153
W/12
: AV control unit (color display - with BOSE
audio system without navigation system)
E5
M43
Y/28
: Air bag diagnosis sensor unit (except
for Mexico)
D2
M154
W/24
: AV control unit (color display - with BOSE
audio system without navigation system)
B1
M51
BR/2
: Tweeter LH (with BOSE audio system)
E3
M155
W/16
: AV control unit (color display - with BOSE
audio system without navigation system)
F1
M52
BR/2
: Tweeter RH (with BOSE audio system)
D2
M156
W/32
: AV control unit (color display - with BOSE
audio system without navigation system)
C3 M53
W/8
: Steering angle sensor
D3
M157
W/12
: AV control unit (color display - with BOSE
audio system without navigation system)
D2 M54
W/4
: Hazard switch
D2
M158
GR/3
: AV control unit (color display - with BOSE
audio system without navigation system)
E5
M55
B/4
: Yaw rate/side/decel G sensor
D3
M159
G/4
: AV control unit (color display - with BOSE
audio system without navigation system)
B1
M56
B/2
: Sunload sensor
C3
M160
W/20
: AV control unit (color display - with BOSE
audio system and navigation system)
F2
M57
—
: Body ground
D2
M161
G/4
: AV control unit (color display - with BOSE
audio system and navigation system)
C3 M58
L/4
: Climate controlled seat relay
E2
M163
W/32
: AV control unit (color display - with BOSE
audio system and navigation system)
E2
M59
W/12
: Power steering control unit
E3
M164
W/40
: AV control unit (color display - with BOSE
audio system and navigation system)
A2
M61
—
: Body ground
D2
M166
GR/3
: AV control unit (color display - with BOSE
audio system and navigation system)
B2
M62
W/2
: Tire pressure warning check connector
E3
M167
G/4
: AV control unit (color display - with BOSE
audio system and navigation system)
E3
M63
W/24
: Automatic drive positioner control unit
D3
M168
W/28
: AV control unit (color display - with BOSE
audio system and navigation system)
C1 M64
W/4
: Joint connector-M01
B2
M169
L/4
: Accessory relay-2
C1 M65
GR/6
: Joint connector-M02
Console sub-harness
F1
M66
W/3
: Optical sensor
F2
M200
W/24
: To M85
D2 M67
W/6
: Automatic drive positioner control unit
E3
M202
B/3
: Front power socket
F2
M68
BR/2
: Glove box lamp
D4
M203
BR/2
: CVT shift selector
E3
M69
W/2
: Intake sensor
E5
M204
B/3
: Front console power socket
C2 M70
W/4
: Tire pressure receiver
E4
M205
BR/16
: To M87
B2
M71
W/6
: Tilt motor
E3
M208
W/16
: To M305
B3
M72
GR/6
: VDC OFF switch
D4
M209
W/8
: Aux in jack
C2 M73
W/6
: Telescopic motor
E4
M210
GR/6
: To M112
E2
M74
W/2
: Trunk lid opener cancel switch
D4
M211
G/4
: USB interface
A3
M75
B/2
: Trunk lid opener switch
Console switch sub-harness
E2
M77
Y/4
: Front passenger air bag module
E4
M300
BR/6
: Front heated seat switch RH
D4 M78
W/10
: CVT shift selector
D4
M301
W/6
: Front heated seat switch LH
D1 M79
—
: Body ground
C3
M302
W/10
: Climate controlled seat switch
D1 M80
B/2
: Diode-3
E3
M305
W/16
: To M208
C3 M82
W/4
: Paddle shifter (shift up)
C3
M308
W/6
: Rear sunshade switch
B3
M83
W/3
: Paddle shifter (shift down)
