REAR DOOR GLASS

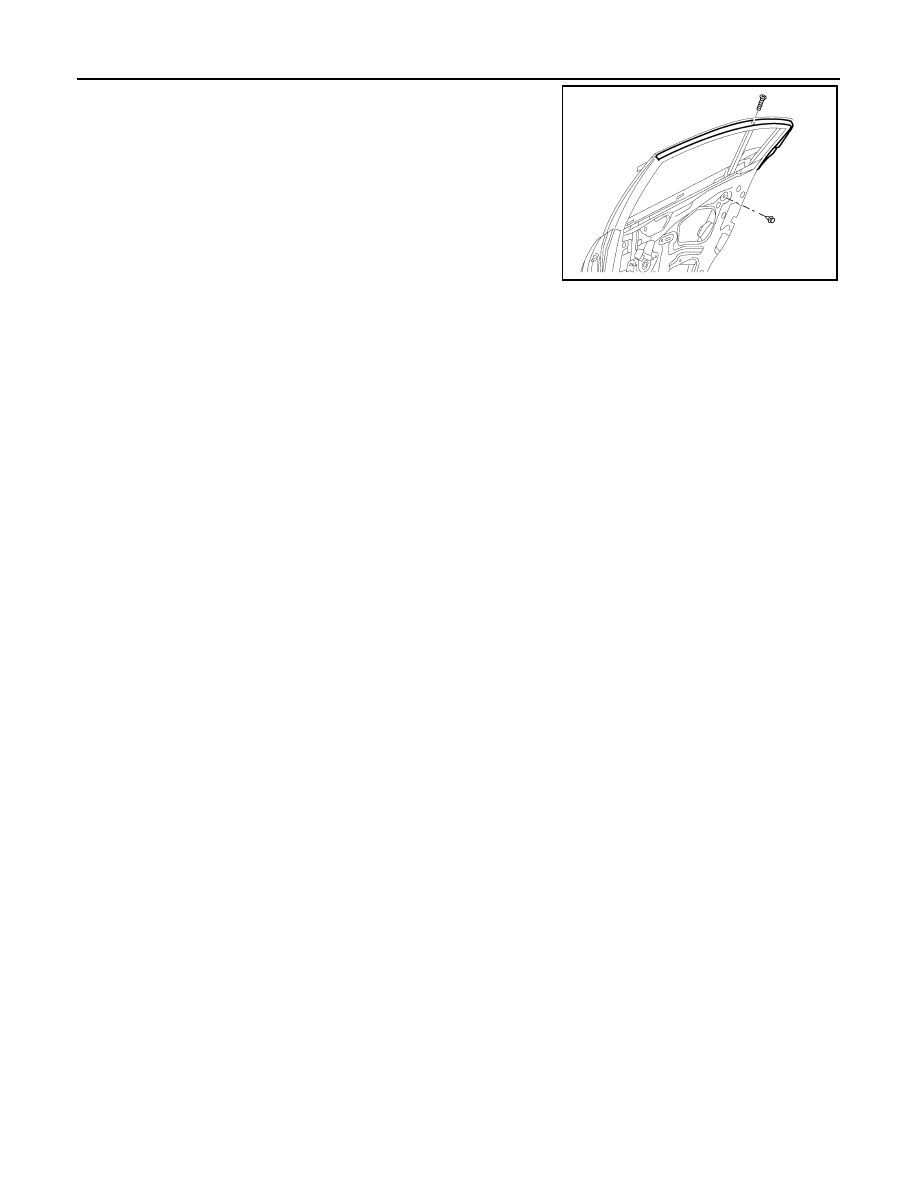

5. Remove the partition sash from the glass run.
6. Remove the partition sash bolt (lower) and screw (upper) to

remove the sash.

7. Remove the partition glass and door glass from the inside of the

panel.

INSTALLATION

Installation is in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000009471573

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and carrier plate bolts to correct the glass position.

ALKIA1630GB

REAR REGULATOR

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR REGULATOR

Rear Door Glass Regulator

INFOID:0000000009471574

REMOVAL

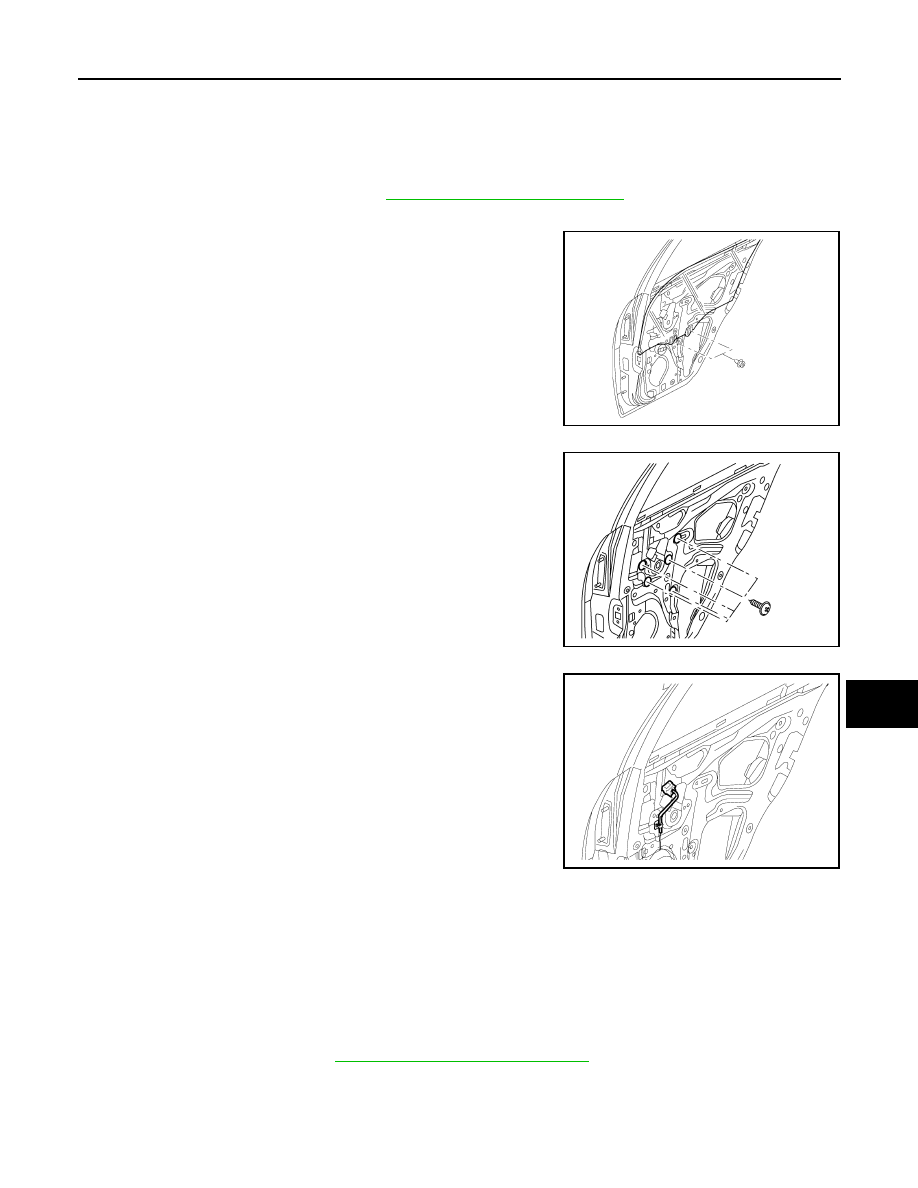

1. Remove the rear door finisher. Refer to

INT-21, "Removal and Installation"

.

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch and raise/lower

the door window until the glass bolts can be seen.

4. Remove the glass bolts.
5. Raise the door glass and hold with a suction lifter.

6. Remove the bolts and the regulator and guide channel from the

panel.

7. Disconnect the harness connector from the regulator assembly.
8. Remove the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Spring damage

• Grease contact areas for each sliding part

INSTALLATION

Installation is in the reverse order of removal.

• Perform fitting inspection. Refer to

GW-22, "Inspection and Adjustment"

.

ALKIA1629GB

ALKIA1631GB

ALKIA1632GB

GW-24

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT REGULATOR

UNIT DISASSEMBLY AND ASSEMBLY

FRONT REGULATOR

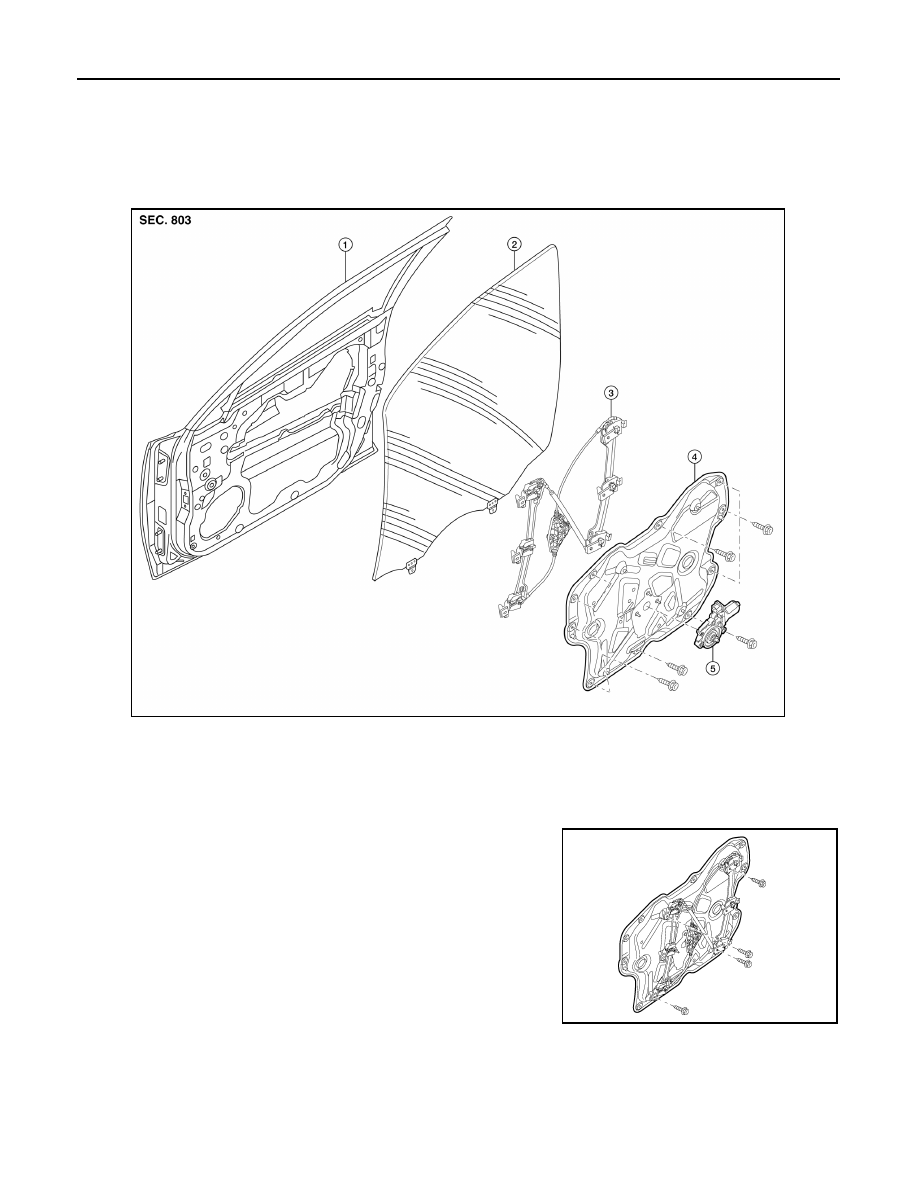

Exploded View

INFOID:0000000009471575

Disassembly

INFOID:0000000009471576

1. Remove the window motor from the door module assembly.
2. Remove the four window regulator bolts from the door module

assembly.

3. Remove the window regulator from the door module assembly.

Assembly

INFOID:0000000009471577

Assembly is in the reverse order of disassembly.

1.    Door panel

2.

Door glass

3.

Regulator assembly

4.

Door module assembly

5.

Window motor

AWKIA1770ZZ

ALKIA1633GB

HA-1
