FRONT REGULATOR

FRONT REGULATOR

Exploded View

INFOID:0000000009471568

Removal and Installation

INFOID:0000000009471569

REMOVAL

1. Remove the front door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove the adhesive bolt hole covers.
3. Reconnect the window switch to raise/lower the door glass until

the door glass bolts (A) can be seen.

4. Remove the door glass bolts (A).

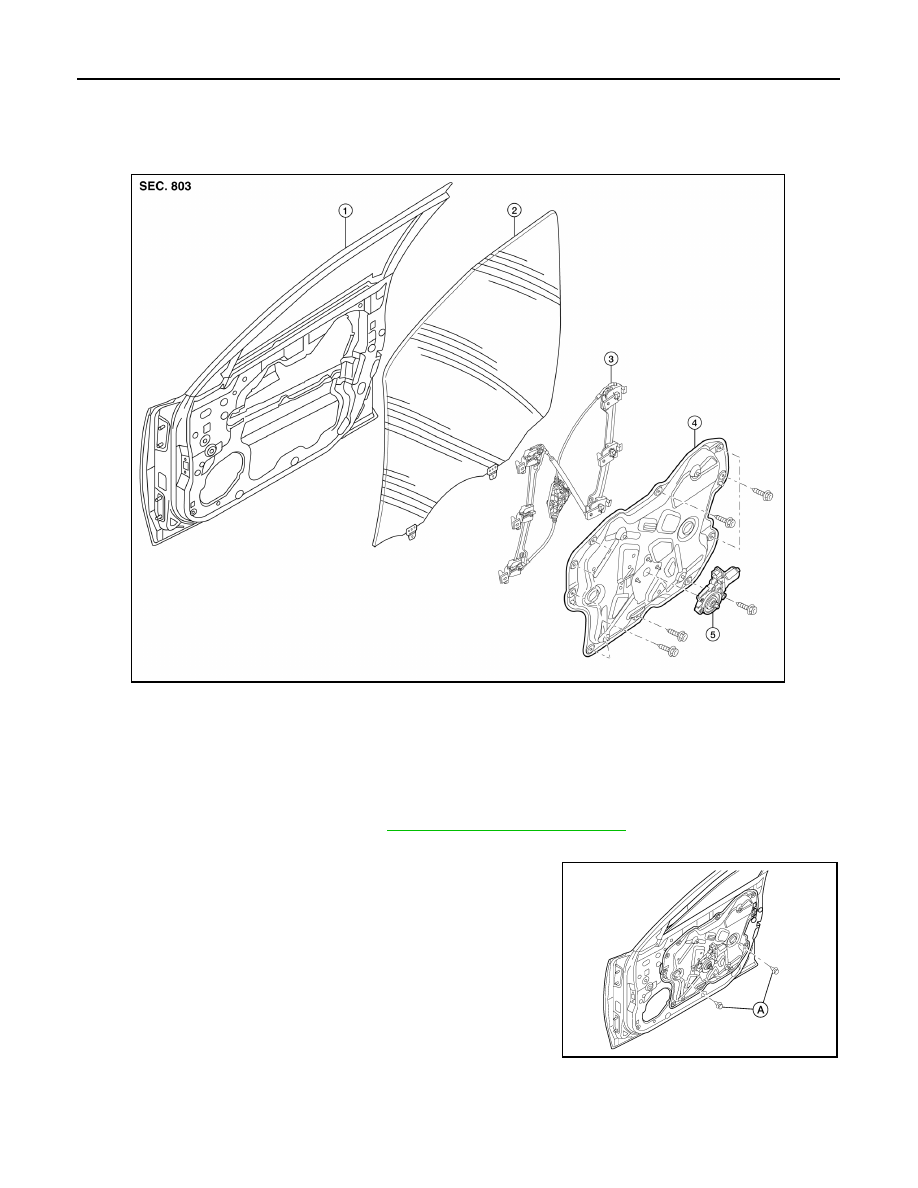

1.    Door panel

2.

Door glass

3.

Regulator assembly

4.

Door module assembly

5.

Window motor

AWKIA1770ZZ

ALKIA1623GB

FRONT REGULATOR

GW-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

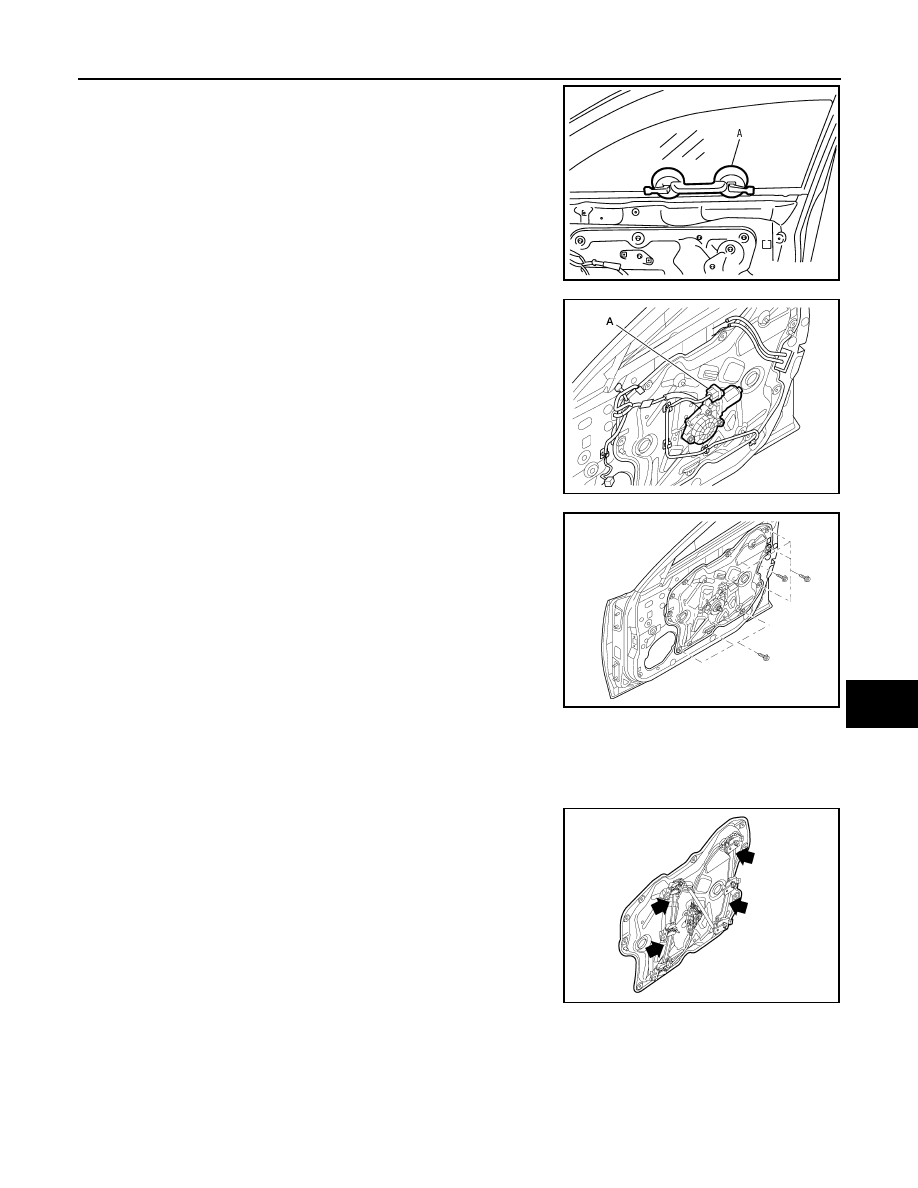

5. Raise the door glass and hold with a suction lifter (A).

6. Disconnect the harness connector (A) from the window motor.

7. Remove the door module assembly mounting bolts.
8. Remove the door module assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

Apply multi-purpose grease at the locations shown.

INSTALLATION

Installation is in the reverse order of removal.

• Make sure the glass is securely set into the glass run groove.

• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is

parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,

guide rail mounting bolts, and glass and guide rail mounting bolts to adjust the glass position.

PIIB3510J

ALKIA1624GB

ALKIA1625GB

ALKIA1627GB

GW-20

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

Inspection and Adjustment

INFOID:0000000009471570

SYSTEM INITIALIZATION

If any of the following work has been done, initialize the system. Refer to

PWC-7, "ADDITIONAL SERVICE

WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement"

.

• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.

• Removal and installation of the motor from the regulator assembly.

• Removal and installation of the harness connector of the power window switch.

• Operate the regulator assembly as a unit.

• Removal and installation of the door glass.

• Removal and installation of the door glass run.

• Window is partly opened and/or closed many times without being fully closed.

Initialization

After installing each component to the vehicle, follow the steps below.
1. Disconnect the negative battery terminal or disconnect the power window switch harness connector tem-

porarily, then reconnect after at least 1 minute.

2. Turn ignition switch ON.
3. Open the window fully by operating the power window switch. (Exclude this procedure if the window is

already fully opened.)

4. Fully raise the power window switch in up direction (auto close position) and hold. Keep holding the switch

even when window is completely closed and then release after 3 seconds have passed.

5. Inspect the anti-pinch system function.

NOTE:

Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the

system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM

To inspect the anti-pinch system, refer to

PWC-7, "ADDITIONAL SERVICE WHEN REMOVING BATTERY

NEGATIVE TERMINAL : Special Repair Requirement"

.

REAR DOOR GLASS

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

Exploded View

INFOID:0000000009471571

Removal and Installation

INFOID:0000000009471572

REMOVAL

1. Remove the rear door finisher. Refer to

INT-21, "Removal and Installation"

.

2. Position the vapor barrier aside.
3. Temporarily reconnect the power window switch and raise/lower

the door window until the glass bolts can be seen.

4. Remove the glass bolts, and place the glass on the inner bottom

of the panel.

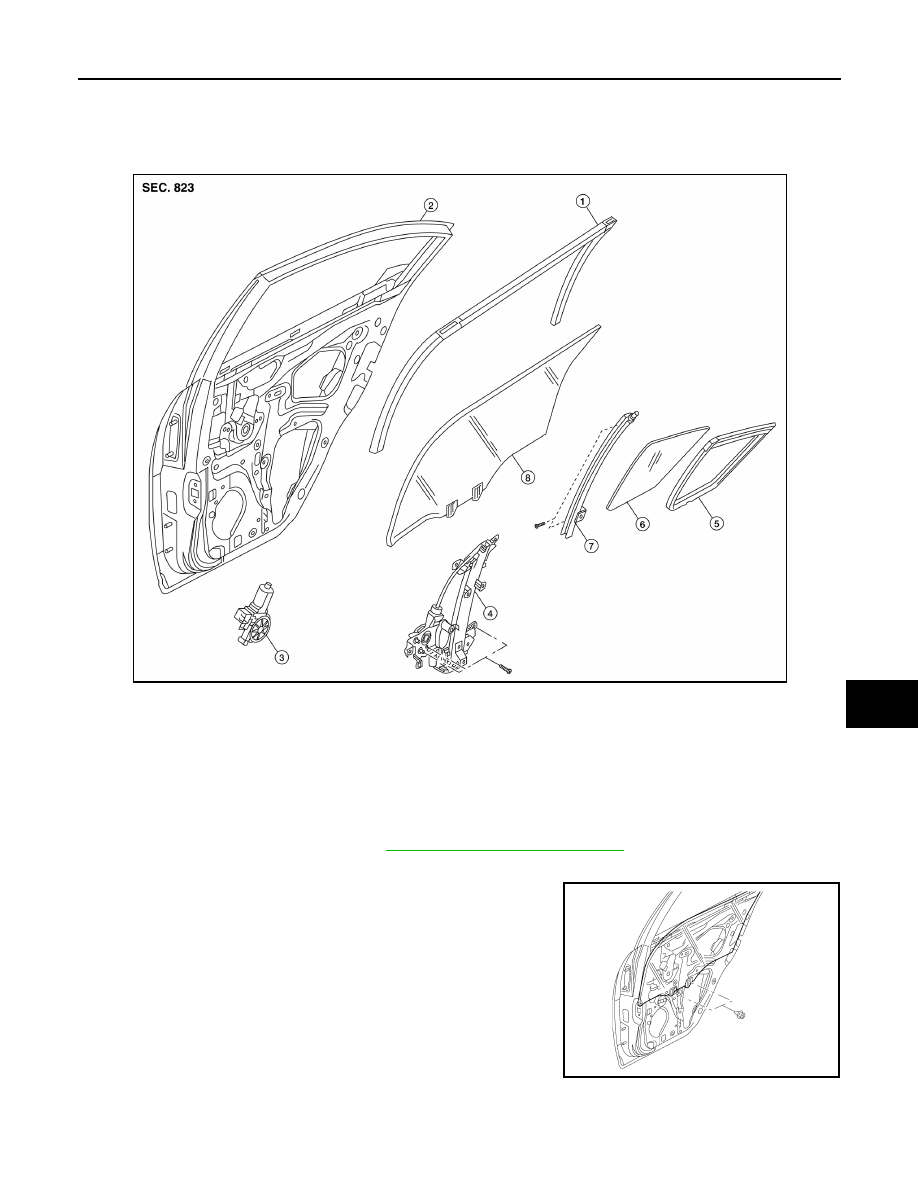

1.    Door  glass  run

2.    Door  panel

3.    Window  motor

4. Regulator assembly

5. Partition glass run

6. Partition glass

7. Partition sash

8. Door glass

AWKIA1771ZZ

ALKIA1629GB
