Nissan Maxima. Manual - part 284

BRM-48

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

REINFORCEMENT

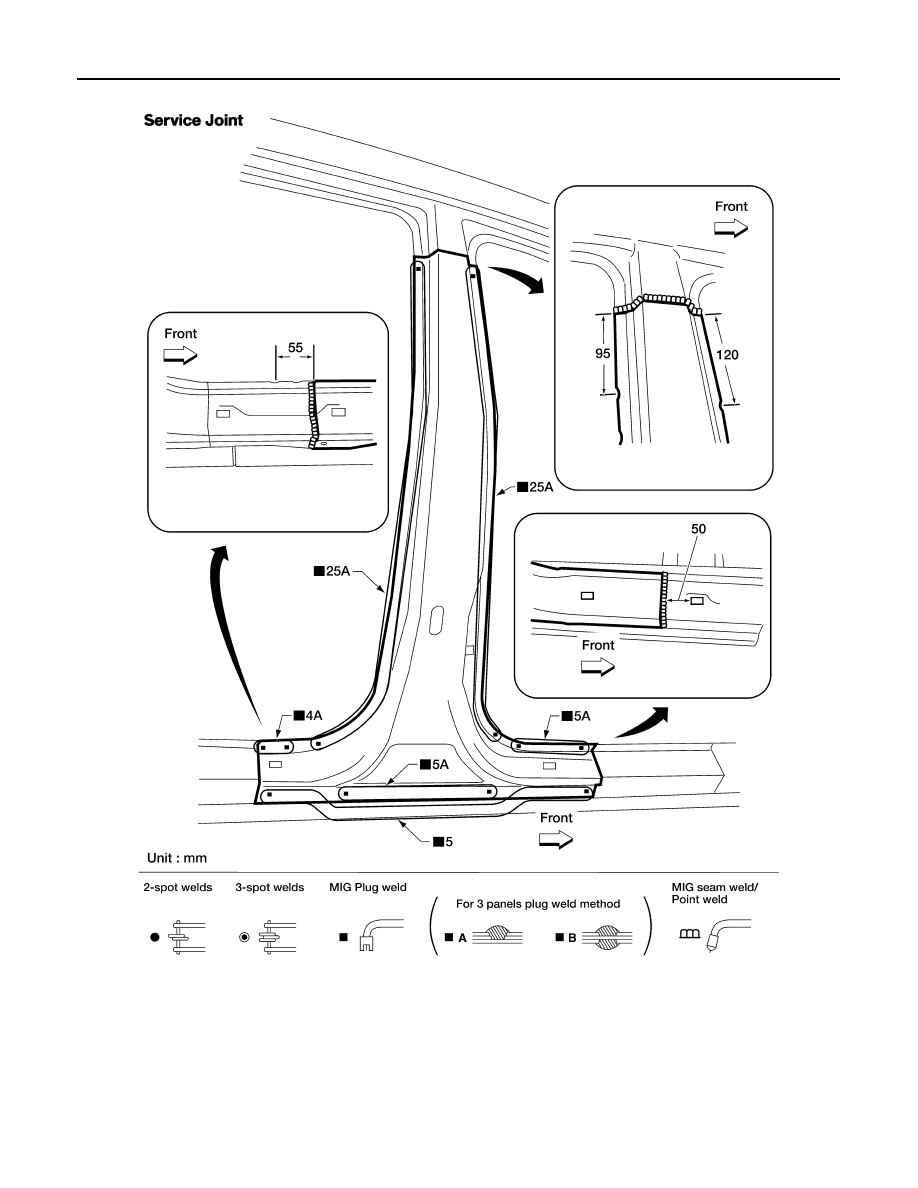

Work after center pillar portion of front body side outer has been removed.

Replacement parts

z

Center pillar portion of front body side outer

AWKIA1372GB

REPLACEMENT OPERATIONS

BRM-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

INNER

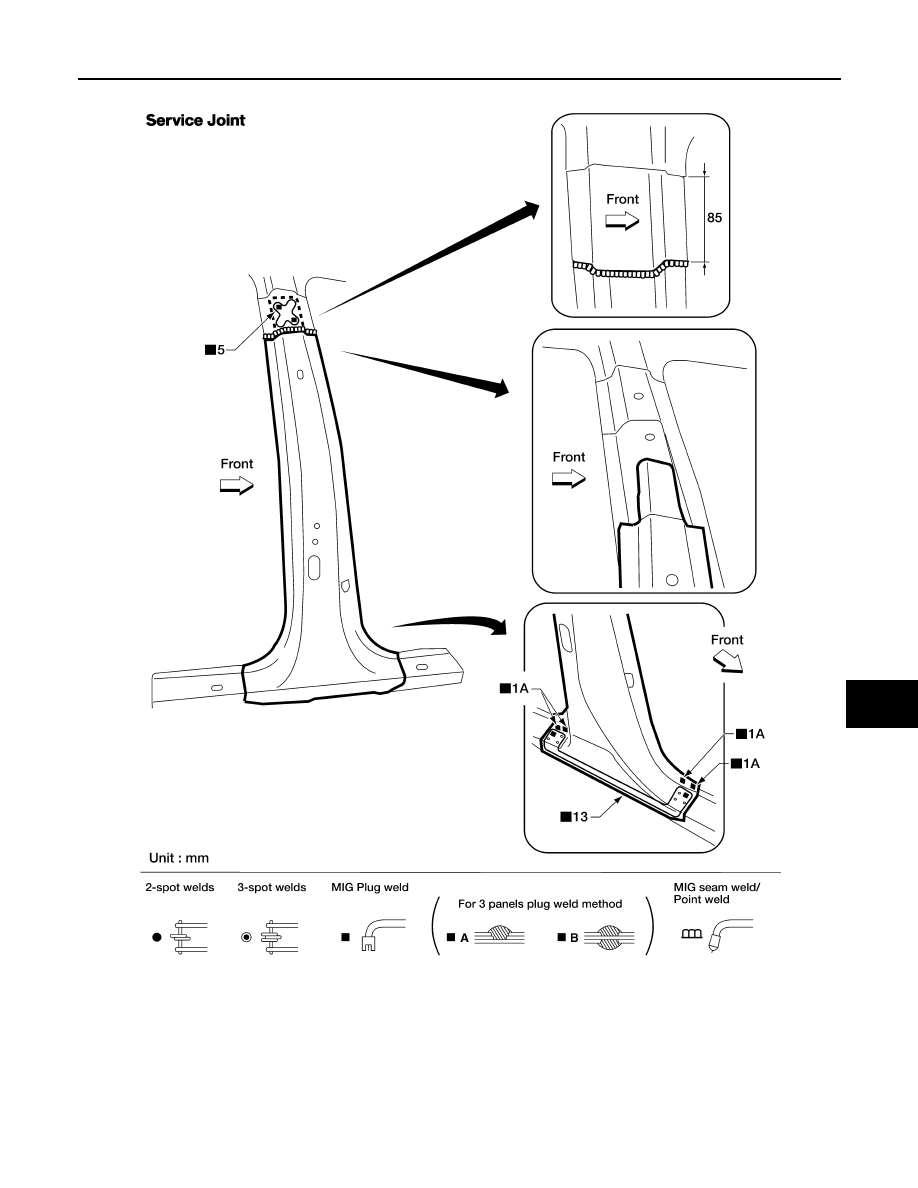

Work after center pillar reinforcement has been removed.

Replacement parts

z

Center pillar reinforcement

AWKIA1373GB

BRM-50

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Front Body Side Outer

INFOID:0000000009465853

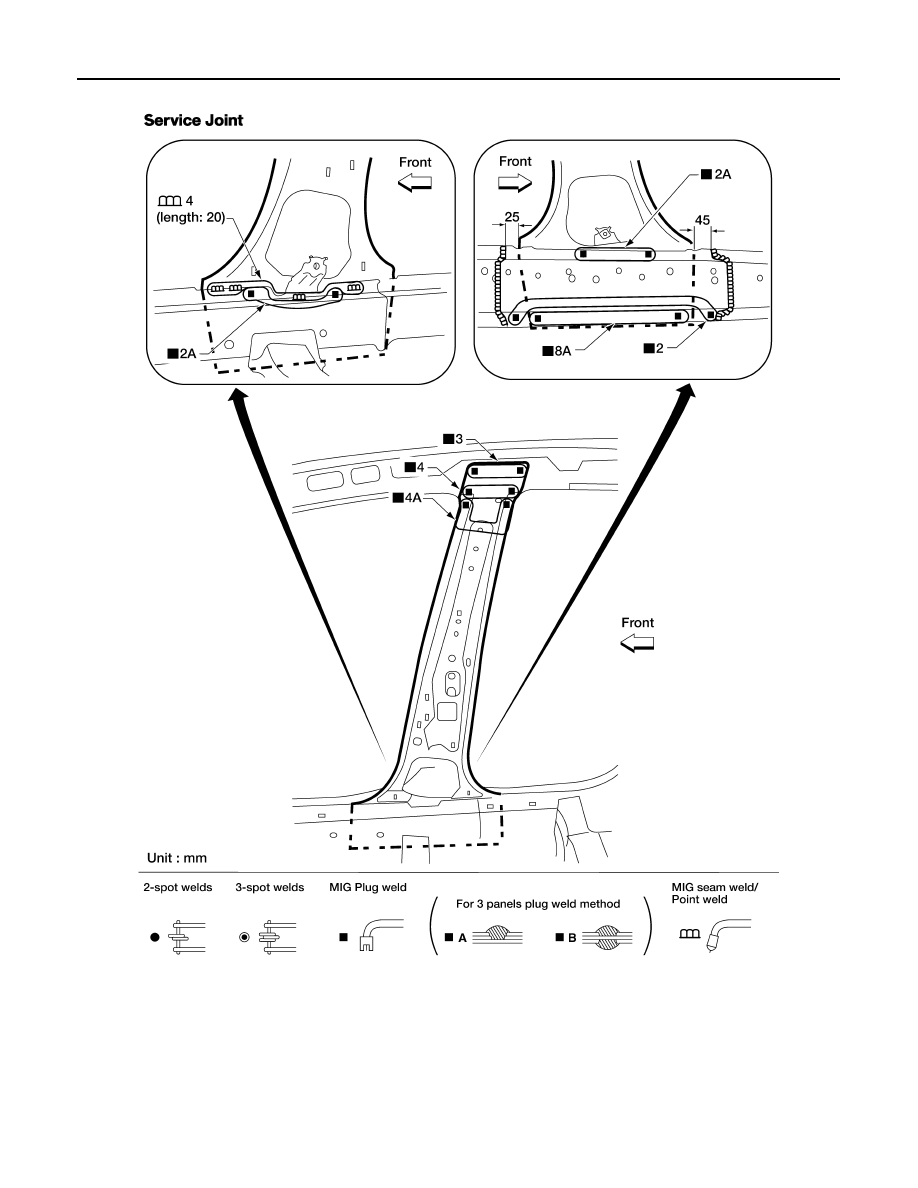

• Work after hoodledge reinforcement and front roof rail have been removed.

Replacement parts

z

Center pillar inner reinforcement

AWKIA1374GB

REPLACEMENT OPERATIONS

BRM-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Body Side Outer

INFOID:0000000009465854

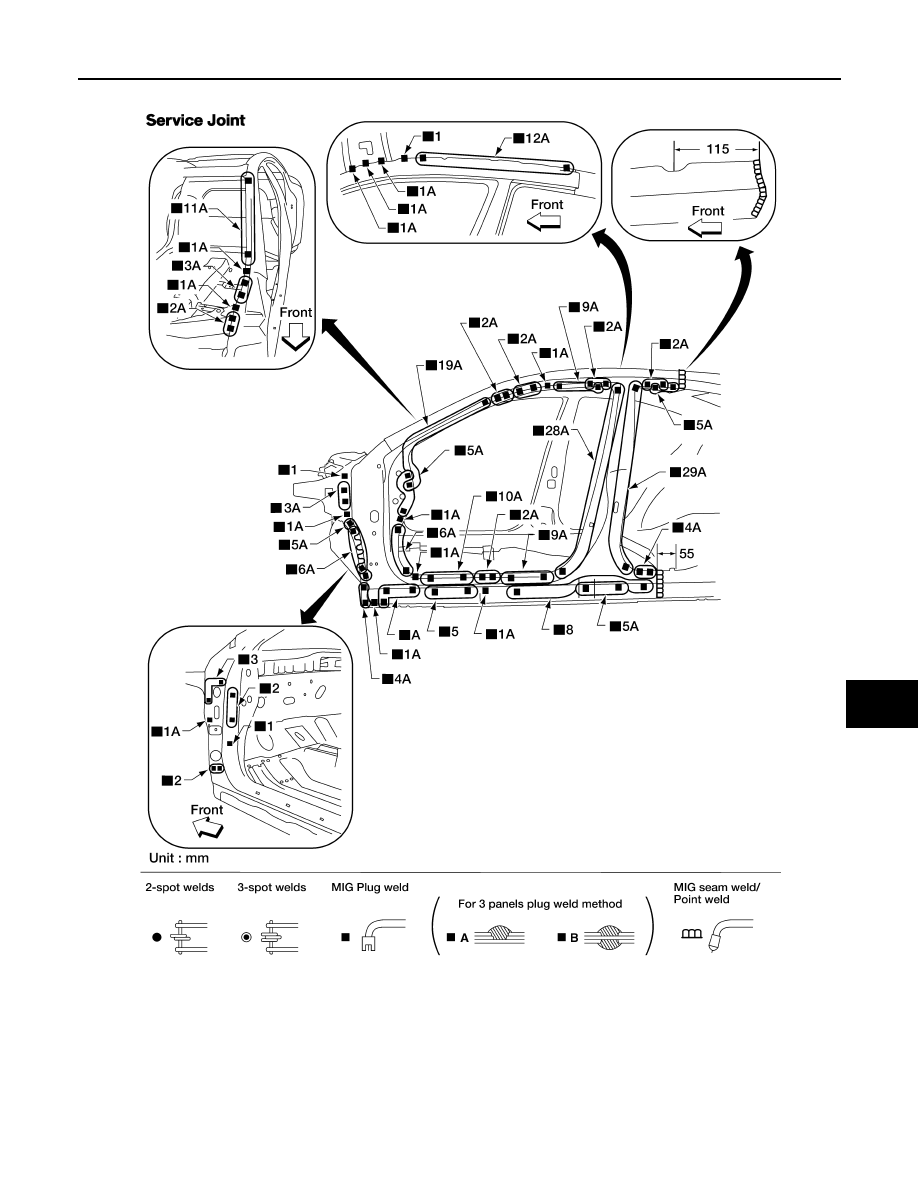

• Work after the tail lamp housing base and rear roof rail have been removed.

Replacement parts
z

Front body side outer

AWKIA1375GB
