BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

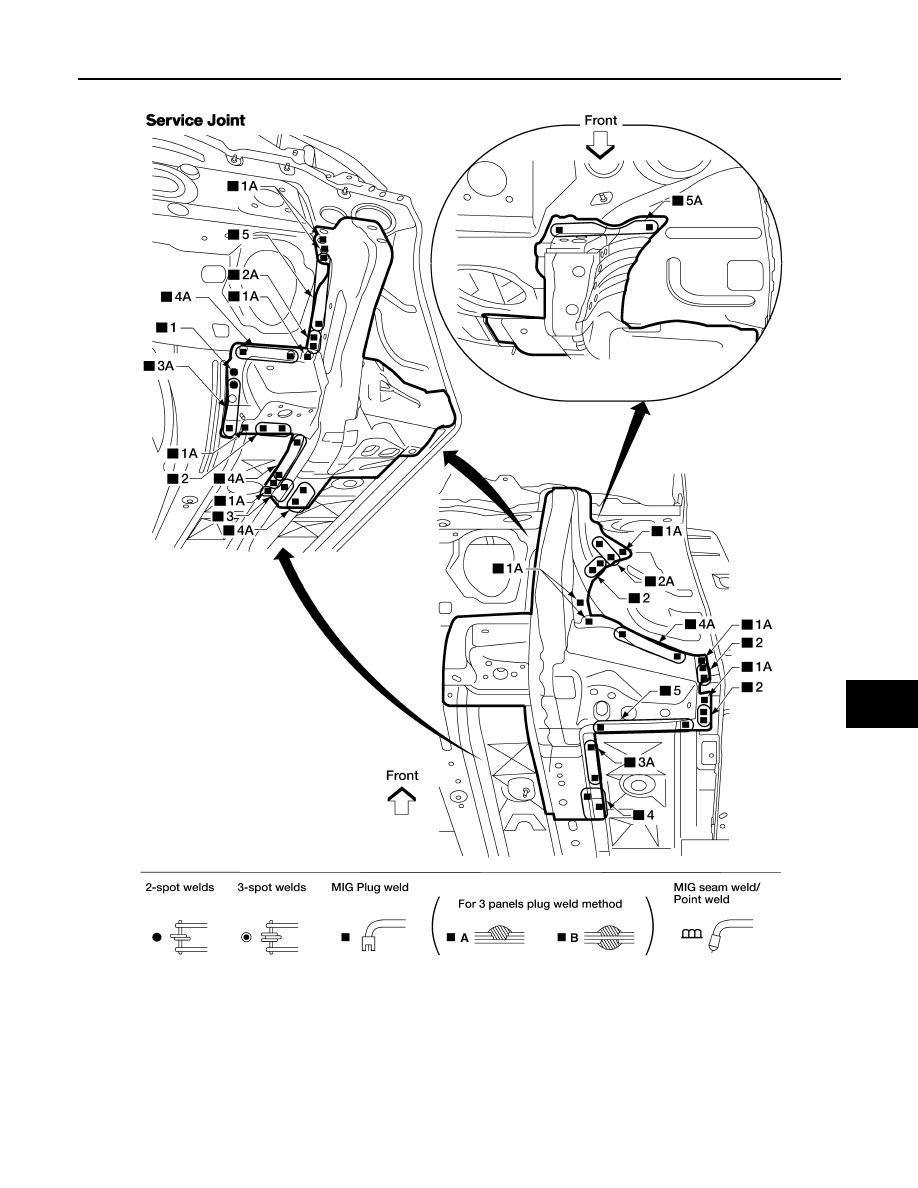

Front Side Member (Partial Replacement)

INFOID:0000000009465848

Work after the hoodledge has been removed.

• Work after front side member and closing plate assembly have been removed.

Replacement parts

z

Front side member

z

Closing plate assembly

z

Radiator core side support

z

Front suspension member weld nut plate

AWKIA1364GB

REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

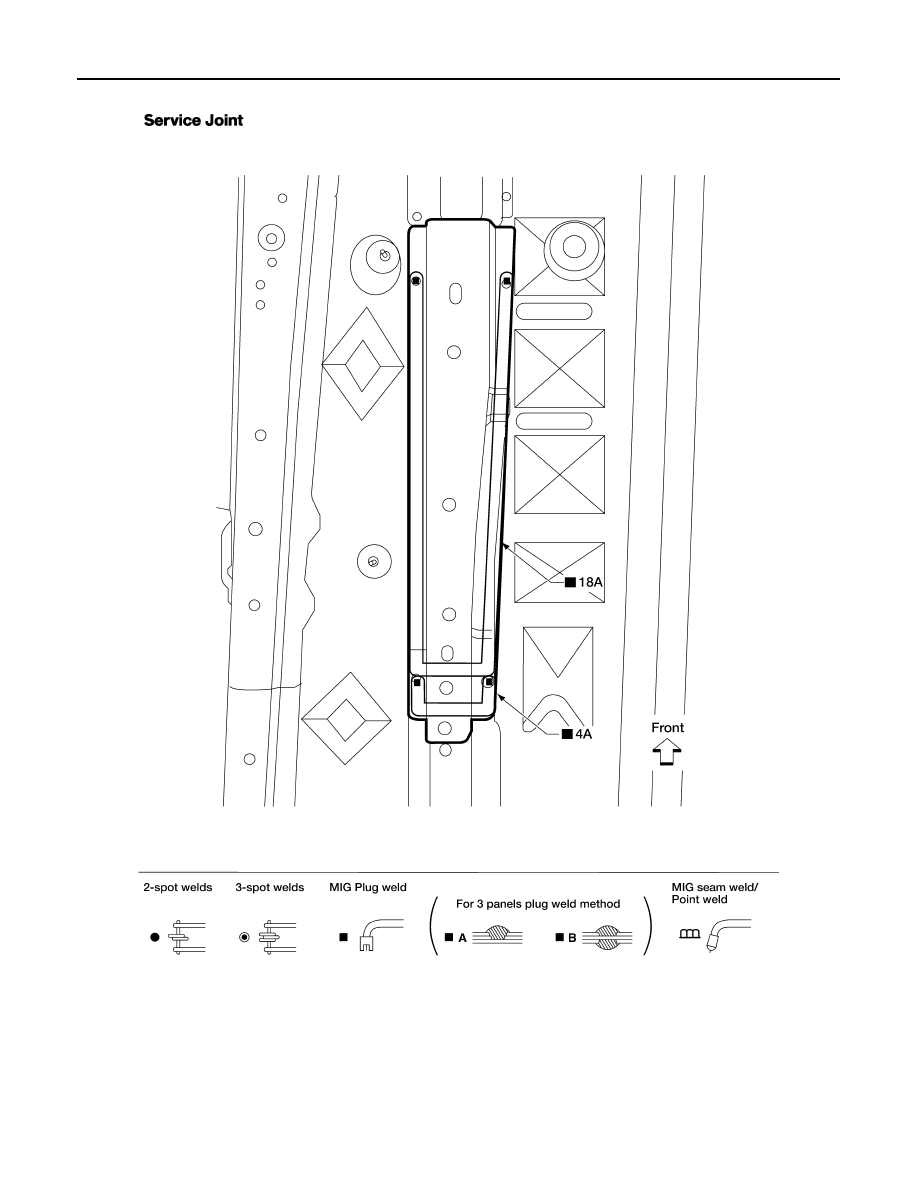

• Shown with front side member extension removed.

Replacement parts

z

Front side member extension



AWKIA1365GB

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

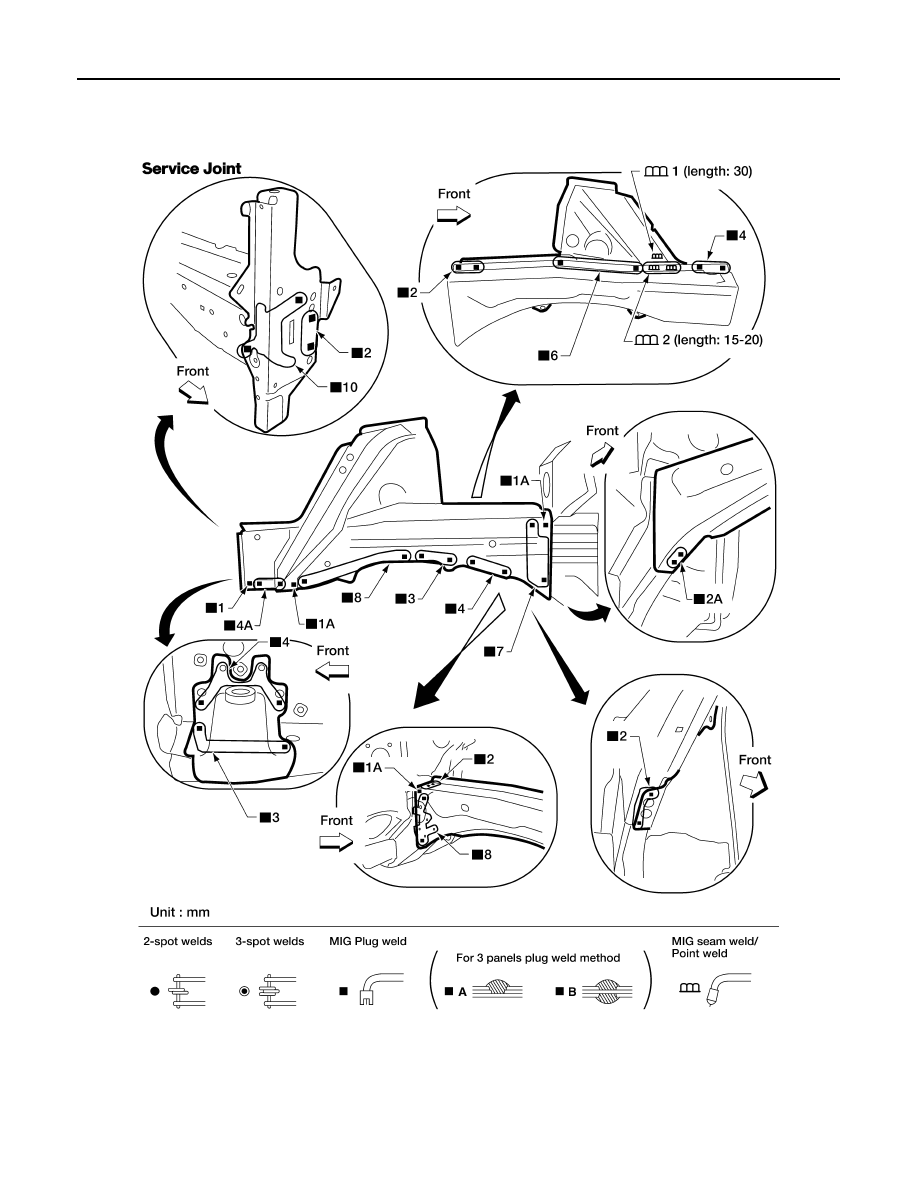

Front Side Member Assembly

INFOID:0000000009465849

• Work after hoodledge has been removed.

Replacement parts

z

Front side member center extension



AWKIA1366GB

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

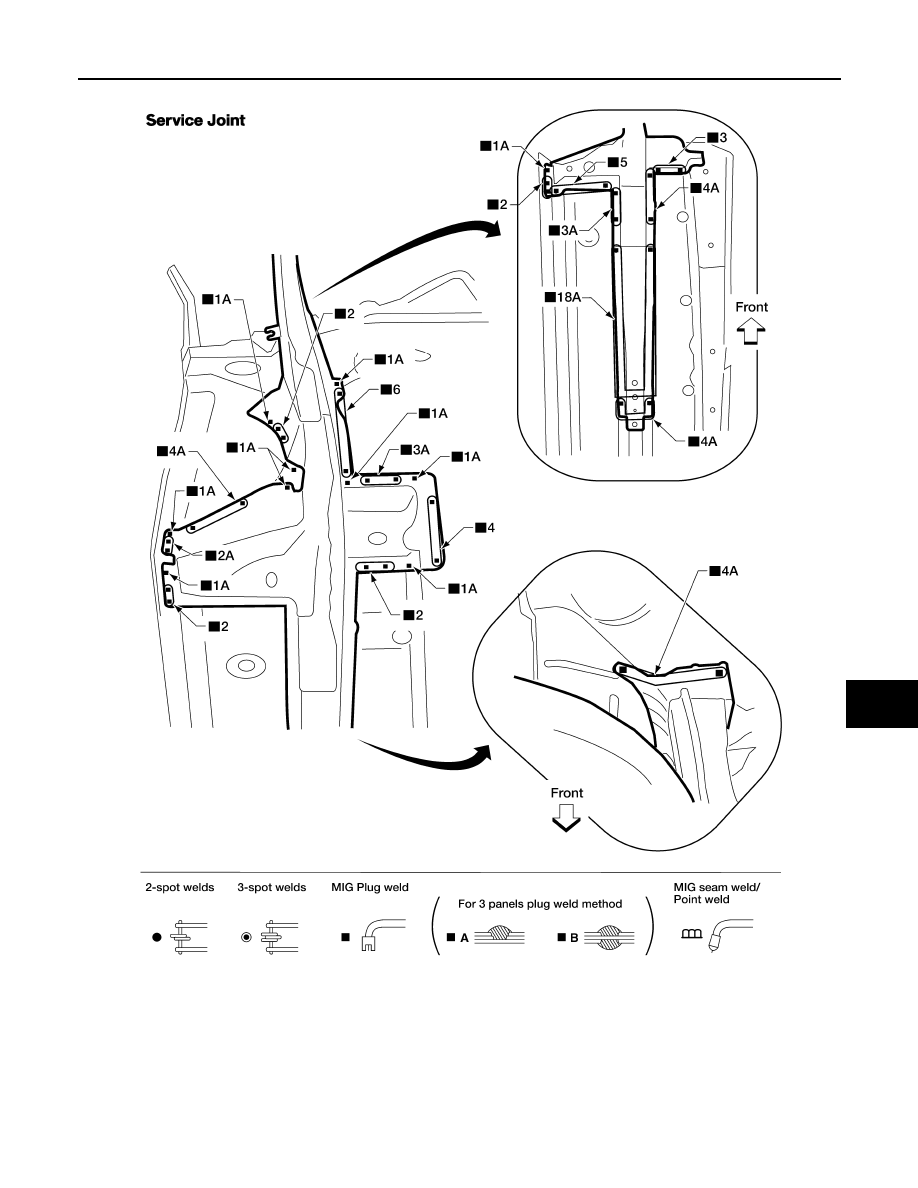

Front Pillar

INFOID:0000000009465850

OUTER

• Work after the upper hoodledge has been removed.

Replacement parts

z

Front side member assembly

AWKIA1367GB
