SR-1

RESTRAINTS

SECTION

CONTENTS

SRS AIRBAG

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Service ......................................................................

Occupant Classification System ..............................

Precaution for Work ..................................................

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tool .................................................

BASIC INSPECTION ....................................

COLLISION DIAGNOSIS ....................................

FOR USA AND CANADA ............................................

FOR USA AND CANADA : For Frontal Collision ......

FOR USA AND CANADA : For Side and Rollover
Collision .....................................................................

REMOVAL AND INSTALLATION ...............

DRIVER AIR BAG MODULE ..............................

Exploded View ........................................................

Removal and Installation .........................................

SPIRAL CABLE ................................................

Removal and Installation .........................................

FRONT PASSENGER AIR BAG MODULE ......

Removal and Installation .........................................

SIDE CURTAIN AIR BAG MODULE ................

Component ..............................................................

Removal and Installation .........................................

SIDE AIR BAG MODULE ..................................

Removal and Installation .........................................

CRASH ZONE SENSOR ...................................

Component ..............................................................

Removal and Installation .........................................

SIDE AIR BAG (SATELLITE) SENSOR ...........

Removal and Installation .........................................

DIAGNOSIS SENSOR UNIT .............................

Removal and Installation .........................................

OCCUPANT CLASSIFICATION SYSTEM
CONTROL UNIT ................................................

Removal and Installation .........................................

SR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009471837

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Service

INFOID:0000000009471838

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-

utes.

For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-

tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have

passed.

• Diagnosis sensor unit must always be installed with their arrow marks “

⇐” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-

tion and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Do not turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.

• After air bag inflates, the front instrument panel assembly should be replaced if damaged.

• Always replace instrument panel pad following front passenger air bag deployment.

Occupant Classification System

INFOID:0000000009471839

• Replace occupant classification system control unit and passenger front seat cushion as an assembly.

Refer to

SE-77, "DRIVER SIDE : Disassembly and Assembly"

with climate controlled seat, and

SE-134,

"DRIVER SIDE : Disassembly and Assembly"

without climate controlled seat.

PRECAUTIONS

SR-3

< PRECAUTION >

Precaution for Work

INFOID:0000000009749273

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

SR-4

< PREPARATION >

PREPARATION

PREPARATION

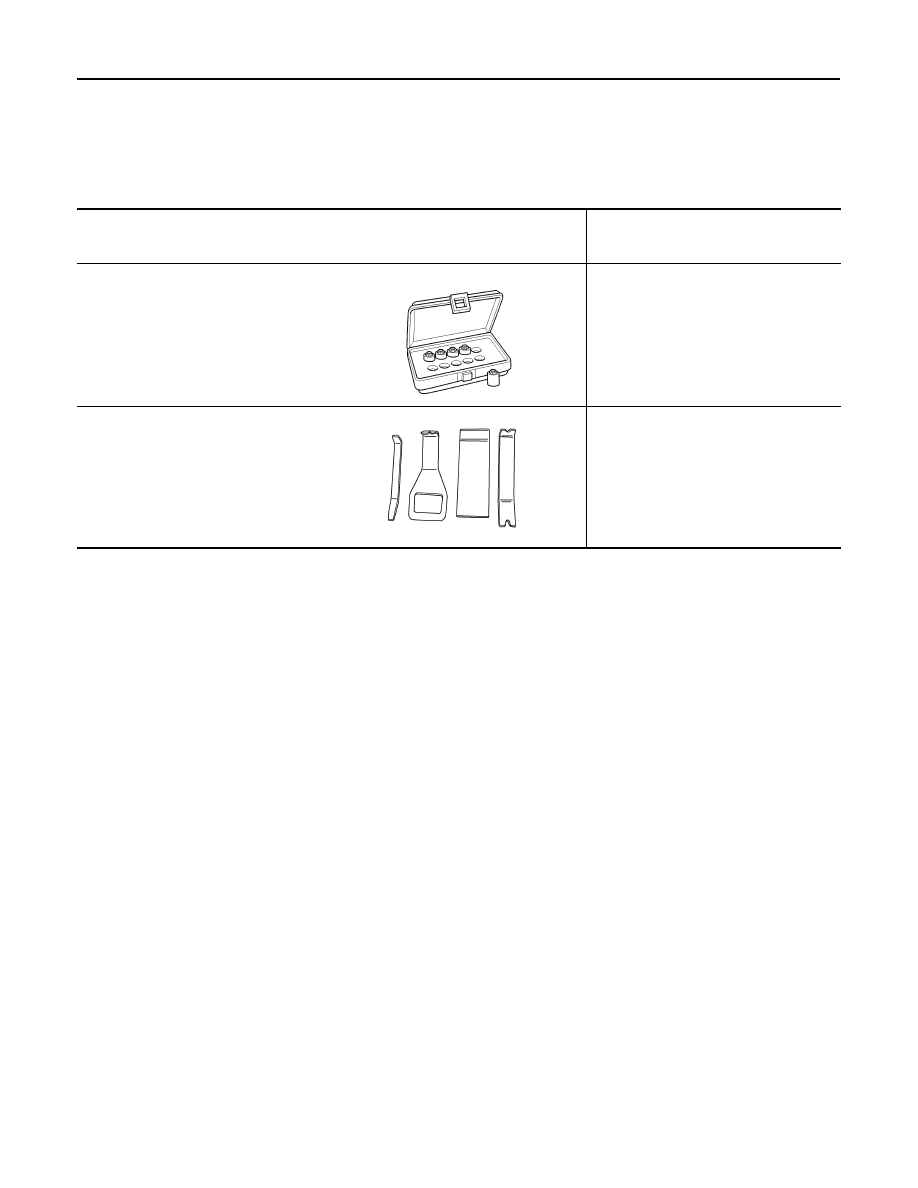

Special Service Tool

INFOID:0000000009749274

The actual shapes of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

(J-44615)
Air bag lock master key set

Removing and installing air bag lock

—

(J-46534)
Trim Tool Set

Removing trim components

LRS191

AWJIA0483ZZ
