Nissan Sentra. Manual - part 506





PLEASE HELP MAKE THIS SERVICE MANUAL BETTER!

Your comments are important to NISSAN and will help us to improve our Service Manuals.

Use this form to report any issues or comments you may have regarding our Service Manuals.

Please print this form and type or write your comments below. Mail or fax to:

Nissan North America, Inc.
Technical Service Information
39001 Sunrise Drive, P.O. Box 9200
Farmington Hills, MI USA 48331
FAX: (248) 488-3880

SERVICE MANUAL:

Model:

Year:

PUBLICATION NO. (Refer to Quick Reference Index ):

Please describe any Service Manual issues or problems in detail:

Page number(s)

Note: Please include a copy of each page, marked with your comments.

Are the trouble diagnosis procedures logical and easy to use? (circle your answer)

YES

NO

If no, what page number(s)?

Note: Please include a copy of each page, marked with your comments.

Please describe the issue or problem in detail:

Is the organization of the manual clear and easy to follow? (circle your answer)

YES

NO

Please comment:

What information should be included in NISSAN Service Manuals to better support you in servicing or
repairing customer vehicles?

DATE:

YOUR NAME:

POSITION:

DEALER:

DEALER NO.:

ADDRESS:

CITY:

STATE/PROV./COUNTRY:

ZIP/POSTAL CODE:

2014

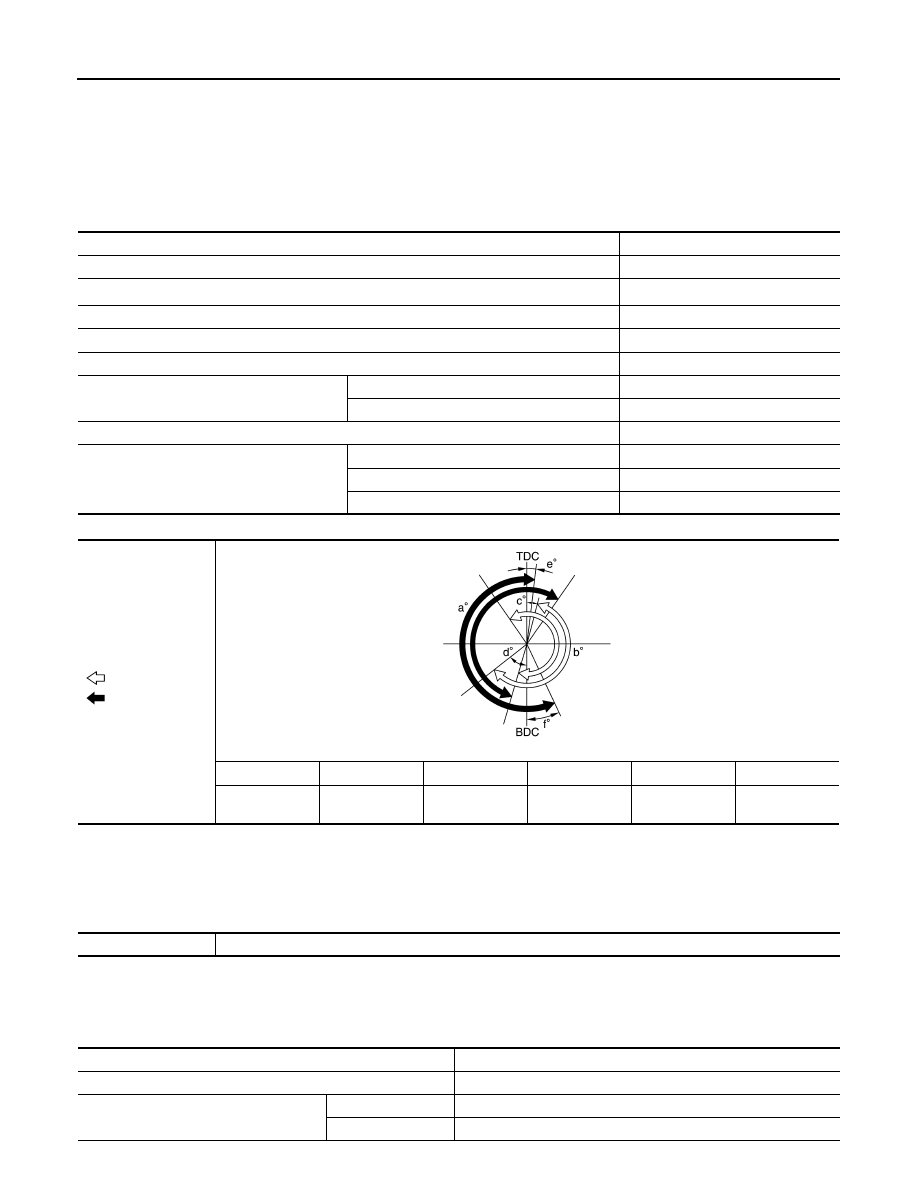

QUICK REFERENCE CHART: 2014 SENTRA NAM

QUICK REFERENCE CHART: 2014 SENTRA NAM

Engine Tune-up Data

INFOID:0000000010409363

GENERAL SPECIFICATIONS

Unit: degree

( ): Valve timing control “ON”

Drive Belt

INFOID:0000000010409362

DRIVE BELT

Spark Plug

INFOID:0000000010409361

SPARK PLUG

Unit: mm (in)

Engine type

MRA8DE

Cylinder arrangement

In-line 4

Displacement    cm

3

 (cu. in)

1,798 (109.7)

Bore and stroke    mm (in)

79.7x90.1 (3.138x3.547)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.9

Compression pressure
kPa (bar, kg/cm

2

, psi)/250 rpm

Standard

1,380 (13.8, 14.1, 200.2)

Minimum

1,220 (12.2, 12.4, 176.9)

Differential limit between cylinders

100 (1.0, 1.0, 14.5)

Valve timing

 Intake valve
 Exhaust valve

a

b

c

d

e

f

220

228

−4 (35)

ATDC

52 (13)

ABDC

4 (64)
ATDC

36 (-24)

BBDC

JPBIA4228ZZ

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

Make

NGK

Standard type*

DILKAR6A-11 (California) or PLZKAR6A-11 (except California)

Gap (Nominal)

Standard

0.9 (0.035)

Limit

1.1 (0.043)

QUICK REFERENCE CHART: 2014 SENTRA NAM

2014

*:Always check with the Parts Department for the latest parts information.

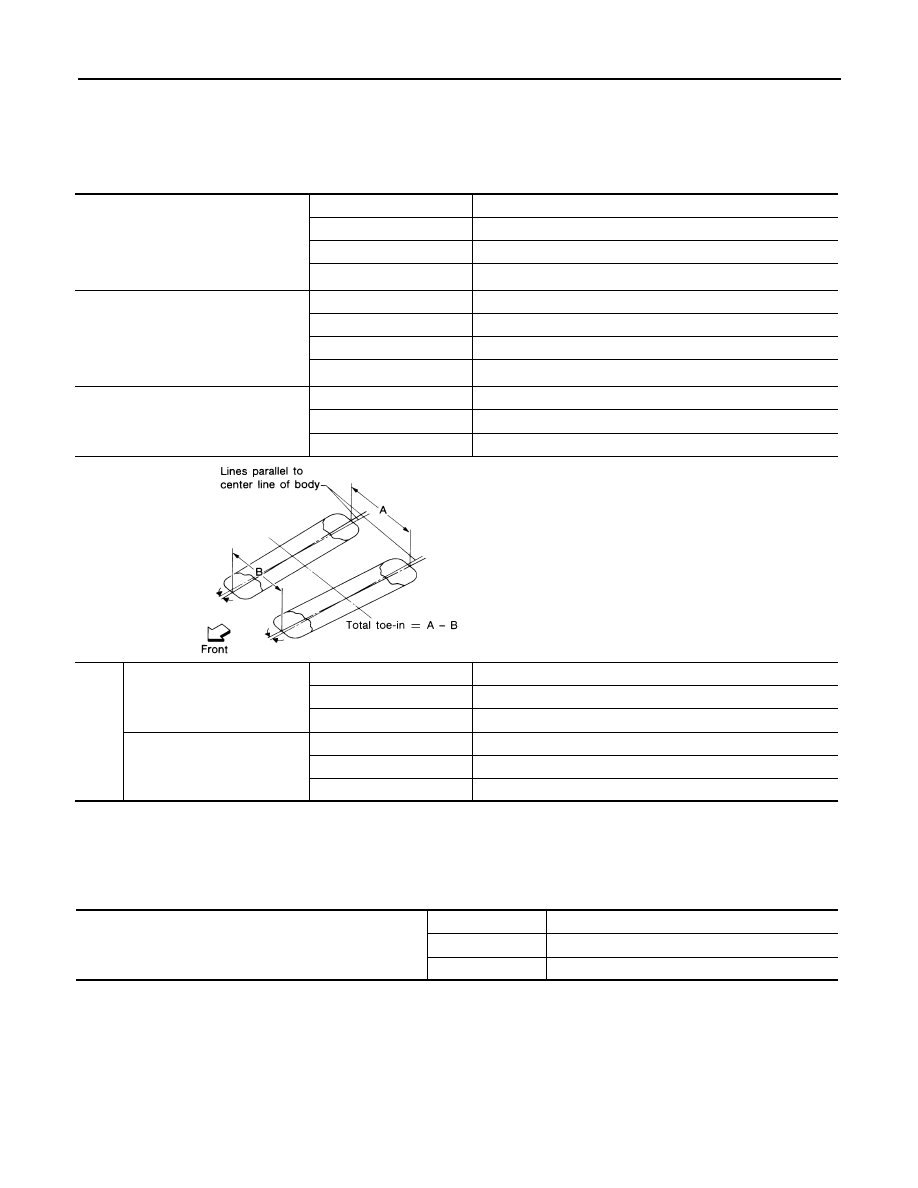

Front Wheel Alignment (Unladen*

1

)

INFOID:0000000010409360

UNITED STATES and CANADA

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
*2: The difference when assuming the (LH) side is the standard.

Rear Wheel Alignment (Unladen*

1

)

INFOID:0000000010409359

Camber
Degree minute (Decimal degree)

Minimum

–1

° 04′ (–1.07°)

Nominal

–0

° 25′ (–0.42°)

Maximum

0

° 14′ (0.23°)

(LH) and (RH) difference*

2

–0

° 35′ (–0.58°) - 0° 35′ (0.58°)

Caster
Degree minute (Decimal degree)

Minimum

4

° 05′ (4.08°)

Nominal

4

° 50′ (4.83°)

Maximum

5

° 35′ (5.58°)

(LH) and (RH) difference*

2

–0

° 45′ (–0.75°) - 0° 45′ (0.75°)

Kingpin inclination
Degree minute (Decimal degree)

Minimum

11

° 20′ (11.33°)

Nominal

12

° 05′ (12.08°)

Maximum

12

° 50′ (12.83°)

Total
toe-in

Distance (A - B)

Minimum

In 1 mm (In 0.04 in)

Nominal

In 2 mm (In 0.08 in)

Maximum

In 3 mm (In 0.12 in)

Angle (LH and RH)
Degree minute
(Decimal degree)

Minimum

In 0

° 04′ (In 0.07°)

Nominal

In 0

° 10′ (In 0.17°)

Maximum

In 0

° 16′ (In 0.27°)

SFA234AC

Camber
Degree minute (Decimal degree)

Minimum

−2° 00′ (−2.00°)

Nominal

−1° 30′ (−1.50°)

Maximum

−1° 00′ (−1.00°)

2014

QUICK REFERENCE CHART: 2014 SENTRA NAM

*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
*2: Since an adjustment mechanism is not included, the value of the left and right wheels (both wheels) must be used as the standard
value.

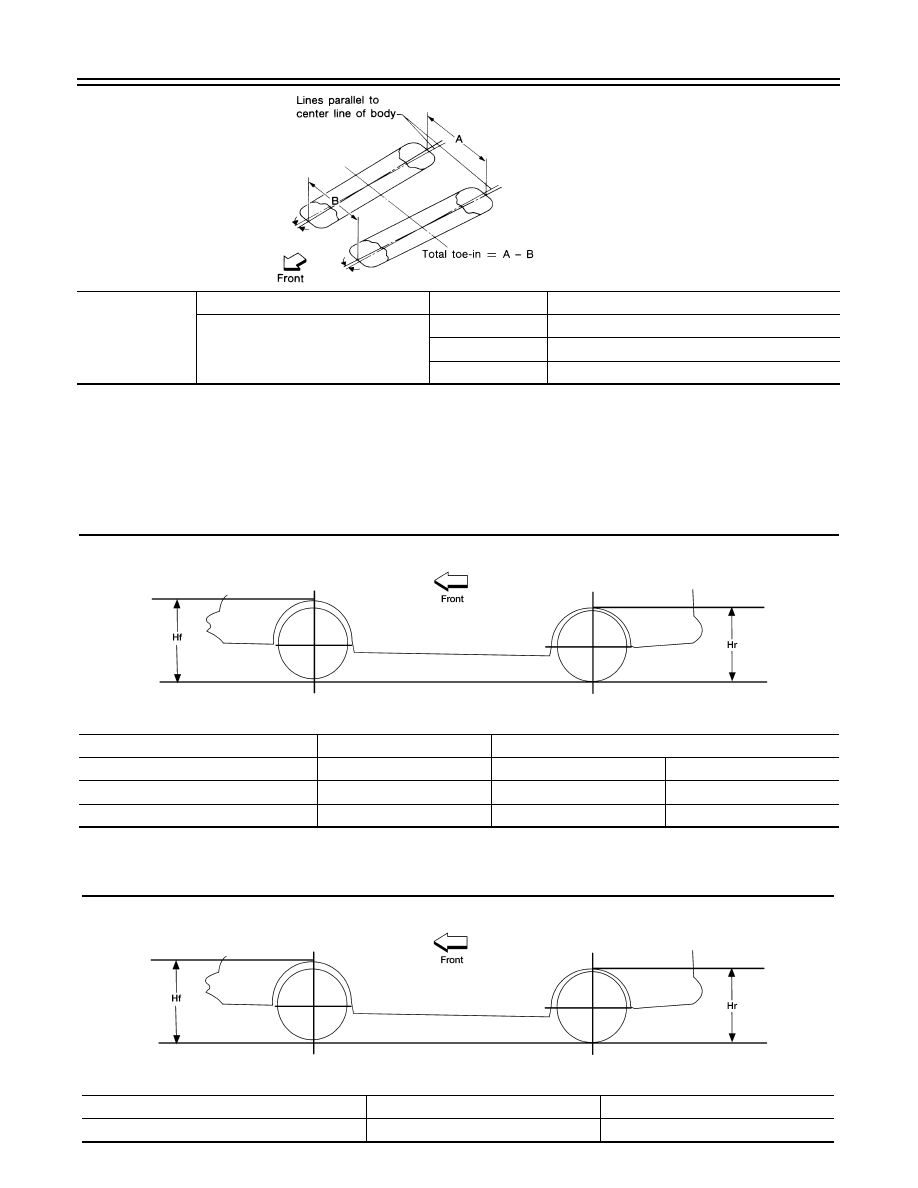

Wheelarch Height (Unladen*)

INFOID:0000000010409357

UNITED STATES

Unit: mm (in)

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

CANADA

Unit: mm (in)

Total toe-in

Distance (A - B)

Nominal

In 3.5 mm (In 0.138 in)

Angle (LH and RH)

*2

Degree minute (Decimal degree)

Minimum

Out 0

° 03′ (Out 0.05°)

Nominal

In 0

° 20′ (In 0.33°)

Maximum

In 0

° 43′ (In 0.71°)

SFA234AC

Transaxle

6M/T or CVT

CVT

Tire size

205/55R16 (Except FE)

205/55R16 (FE)

205/50R17

Front (Hf)

703 (27.68)

706 (27.80)

708 (27.87)

Rear (Hr)

703 (27.68)

706 (27.80)

707 (27.83)

LEIA0085E

Transaxle

6M/T or CVT

CVT

Tire size

205/55R16

205/50R17

LEIA0085E
