DMS-40

< PRECAUTION >

[SPORT MODE (M/T)]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010291075

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

DMS

COMPONENT PARTS

DMS-41

< SYSTEM DESCRIPTION >

[SPORT MODE (M/T)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM DESCRIPTION

COMPONENT PARTS

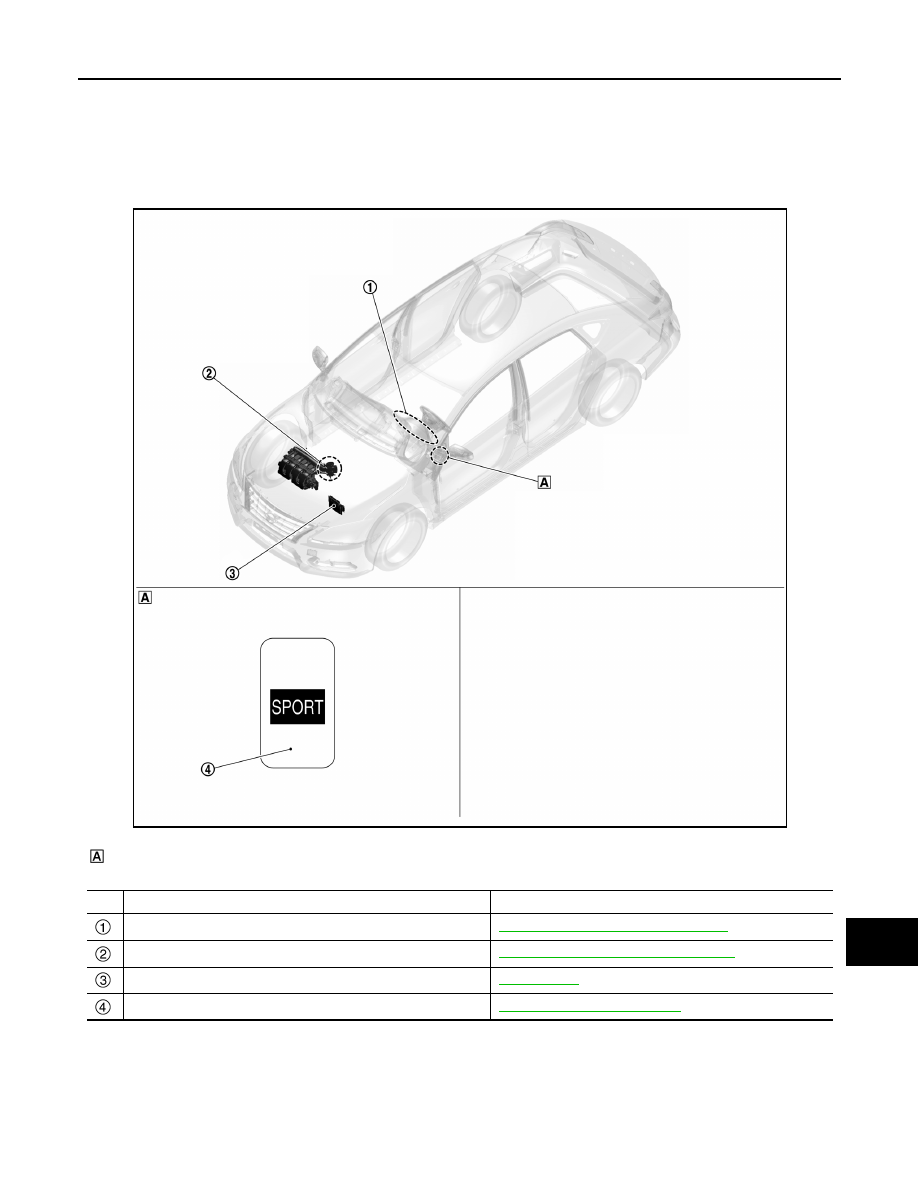

Component Parts Location

INFOID:0000000009755922

Instrument lower finisher

No.

Component

Function

SPORT mode indicator lamp

DMS-42, "SPORT Mode Indicator Lamp"

Electric throttle control actuator

EC-22, "Electric Throttle Control Actuator"

ECM

EC-22, "ECM"

SPORT mode switch

DMS-42, "SPORT Mode Switch"

JSOIA0685ZZ

DMS-42

< SYSTEM DESCRIPTION >

[SPORT MODE (M/T)]

COMPONENT PARTS

SPORT Mode Switch

INFOID:0000000009755923

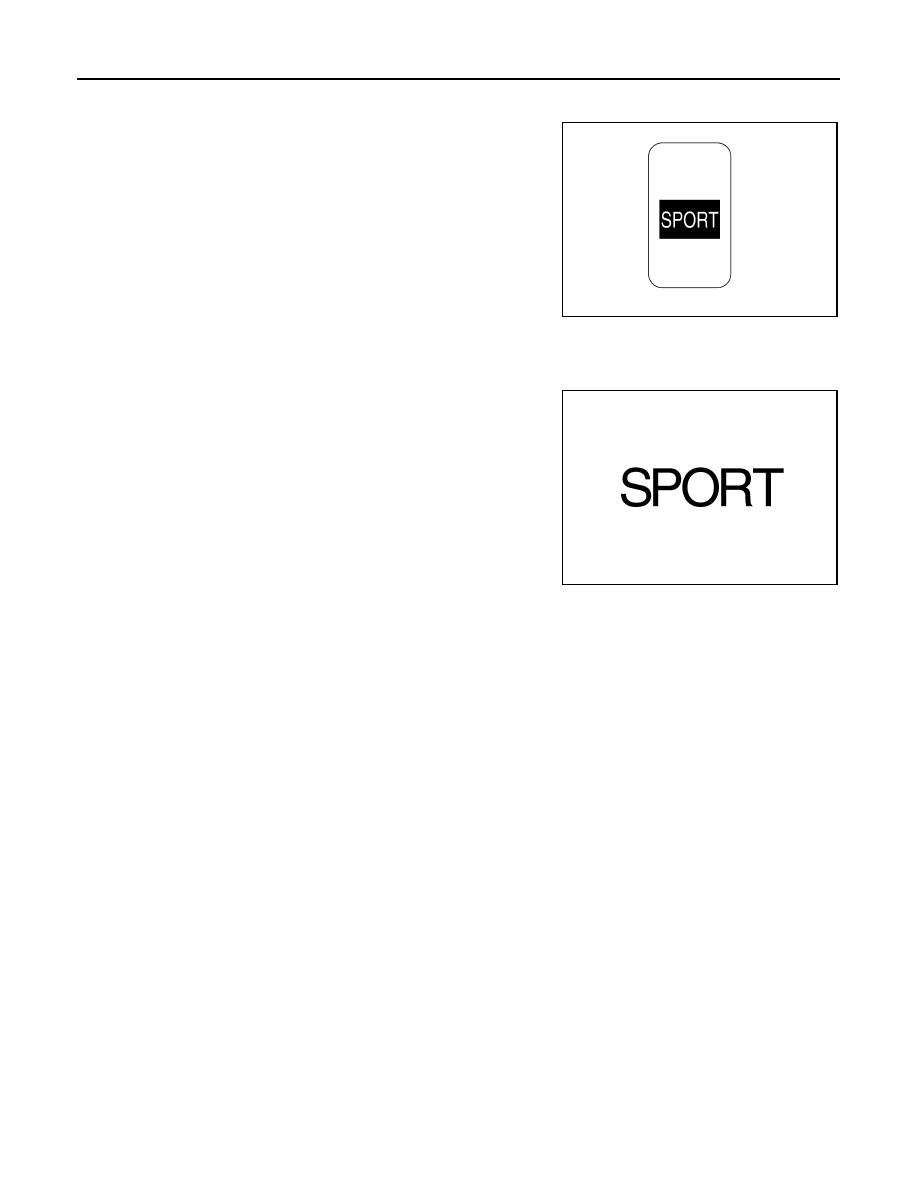

• The SPORT mode switch is installed to the instrument lower fin-

isher.

• When the SPORT mode indicator lamp on the combination meter

is OFF and the SPORT mode switch is pressed, the SPORT mode

is active and the SPORT mode indicator lamp is ON.

• When the SPORT mode indicator lamp on the combination meter

is ON and the SPORT mode switch is pressed, the SPORT mode

is cancelled and the SPORT mode indicator lamp is OFF.

SPORT Mode Indicator Lamp

INFOID:0000000009755924

DESIGN/PURPOSE

The SPORT mode indicator lamp inform the driver that the vehicle is

in SPORT mode.

BULB CHECK

Not applicable

SIGNAL PATH

• ECM receives SPORT mode switch signal (ON/OFF) from combination meter via CAN communication.

• ECM transmits SPORT mode indicator signal to combination meter via CAN communication. Based on the

signal, combination meter illuminates SPORT mode indicator lamp.

LIGHTING CONDITION

When all of the following conditions are satisfied.

• Ignition switch: ON

• The SPORT mode switch is pressed when the SPORT mode indicator lamp is OFF

SHUTOFF CONDITION

When any of the condition listed below is satisfied.

• Ignition switch: Other than ON

• The SPORT mode switch is pressed when the SPORT mode indicator lamp is ON.

• The ECO mode switch is pressded when the SPORT mode indicator lamp is ON.

JSOIA0686ZZ

JPNIA1895ZZ

DMS

SYSTEM

DMS-43

< SYSTEM DESCRIPTION >

[SPORT MODE (M/T)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM

SPORT MODE CONTROL
SPORT MODE CONTROL : System Description

INFOID:0000000009755925

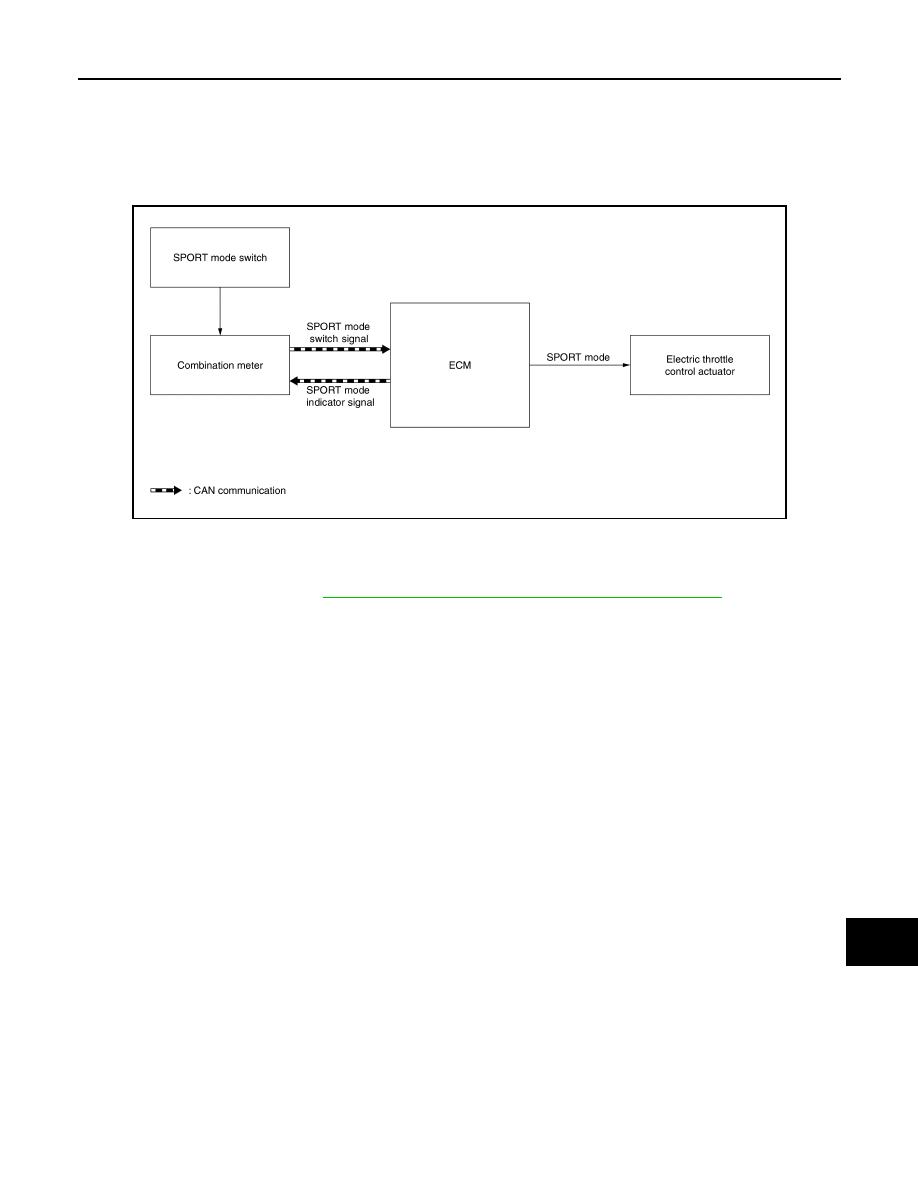

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• ECM transmits SPORT mode indicator signal to combination meter via CAN communication. Combination

meter illuminates SPORT mode indicator lamp according to the signal.

• For ECM Control details, refer to

EC-53, "SPORT MODE CONTROL : System Description"

.

FAIL-SAFE

If ECM detects a malfunction during SPORT mode, the SPORT mode indicator lamp turns OFF and the con-

trol switches to the normal mode control.

JSOIA0684GB
