BODY ALIGNMENT

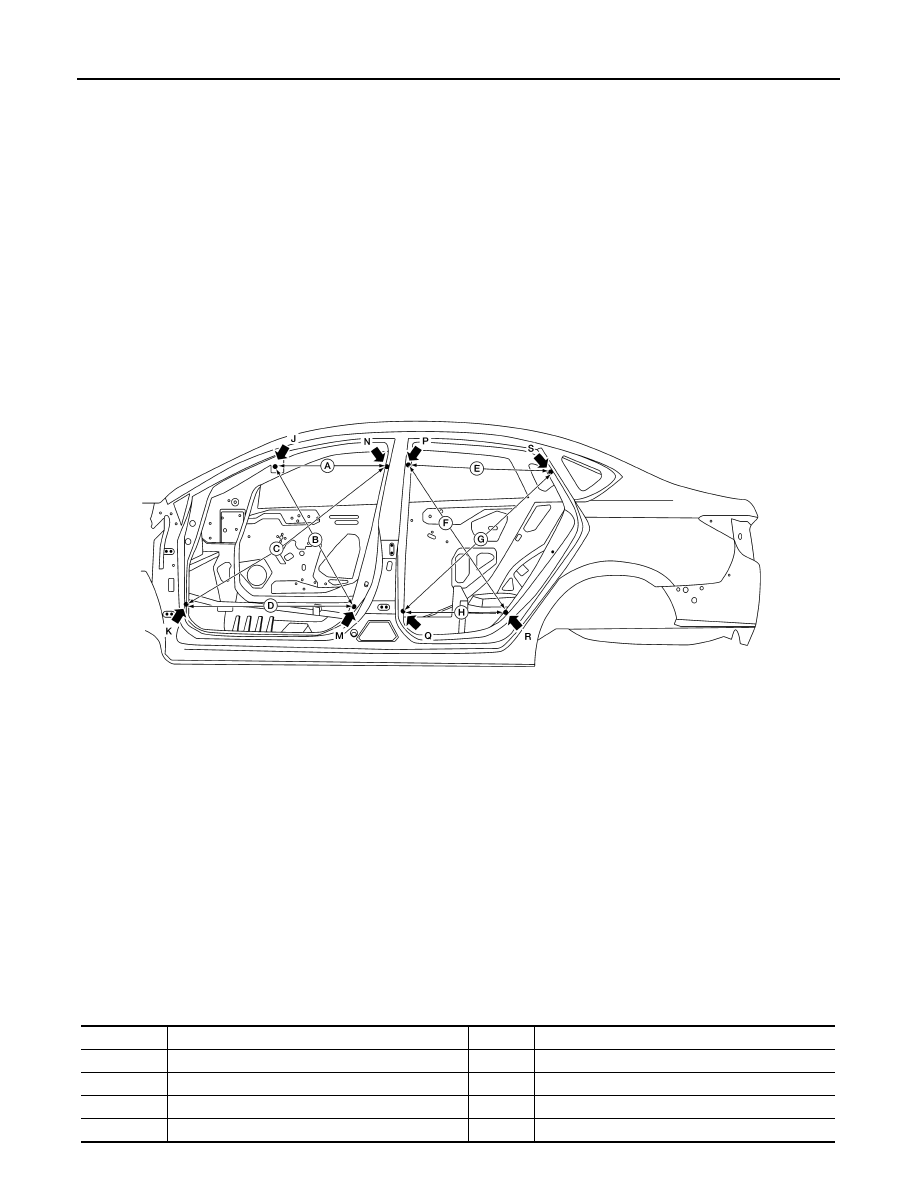

Measurement Points

Unit: mm (in)

Position Measurement

Position

Measurement

A

780 (30.7)

E

730 (28.7)

B

1280 (50.4)

F

920 (36.2)

C

850 (33.5)

G

1020 (40.2)

D

890 (35.0)

ALKIA2765ZZ

BODY ALIGNMENT

BRM-51

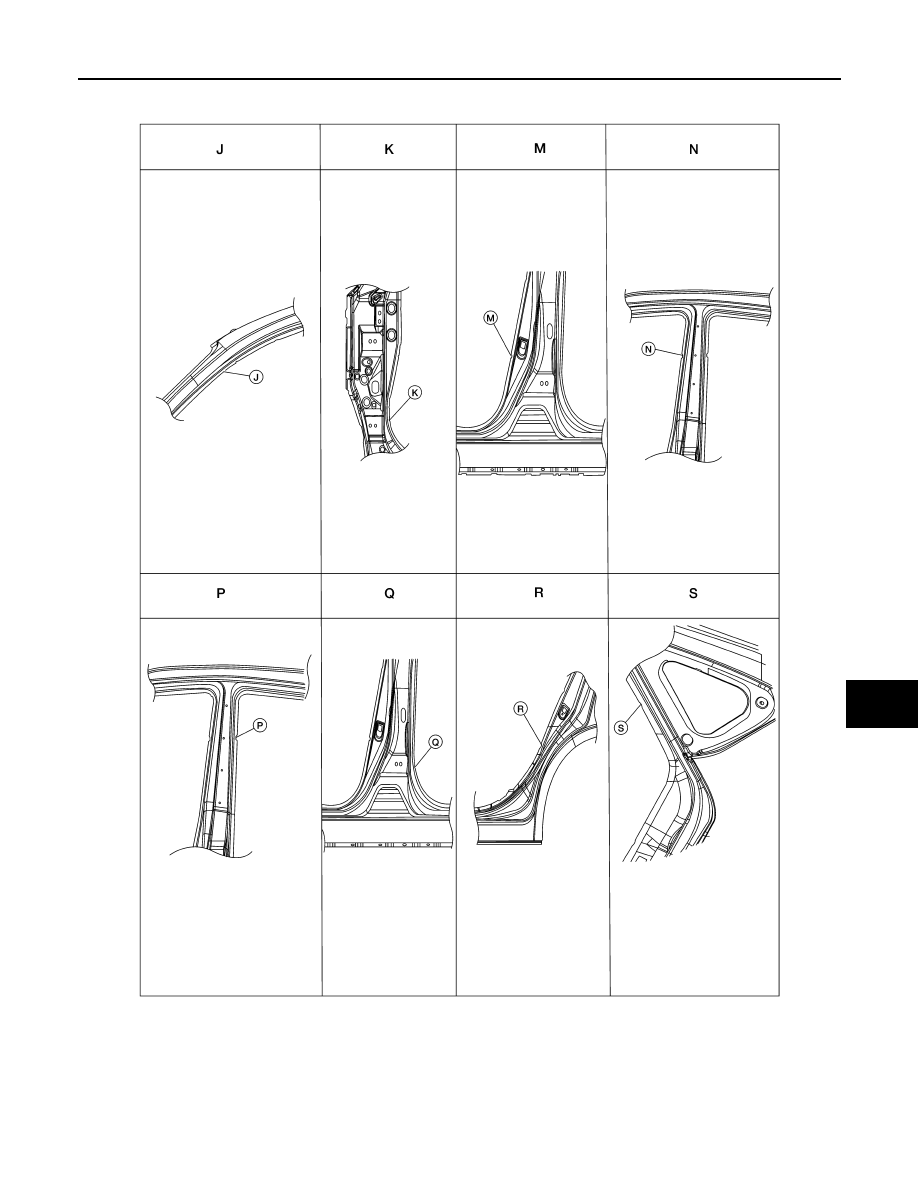

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.

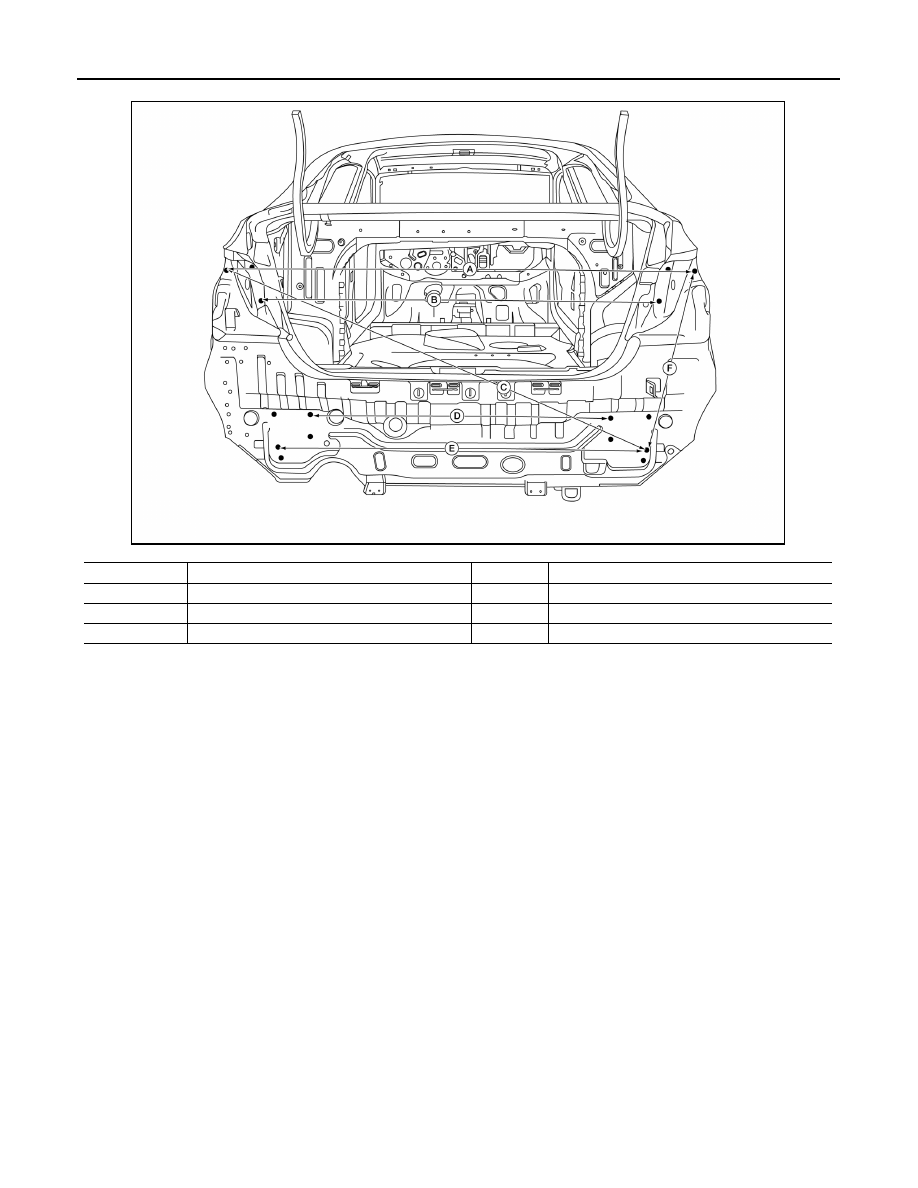

Rear End Panel

INFOID:0000000009758092

Measurement

ALKIA2766ZZ

BRM-52

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit:mm (in)

Position

Measurement

Position

Measurement

A

1485 (58.5)

D

890 (35.0)

B

1190 (46.9)

E

1115 (43.9)

C

1425 (56.1)

F

570 (22.4)

ALKIA2767ZZ

HANDLING PRECAUTIONS FOR PLASTICS

BRM-53

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

HANDLING PRECAUTIONS FOR PLASTICS

Precautions For Plastics

INFOID:0000000009758093

1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics

(influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.

2. Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

LOCATION OF PLASTIC PARTS

Abbre-

viation

Material name

Heat resisting

temperature

°C(°F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60(140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe up quickly).

Flammable

PVC

Poly Vinyl Chloride

80(176)

Same as above.

Poison gas is emitted
when burned.

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80(176)

Same as above.

Flammable

PP

Polypropylene

90(194)

Same as above.

Flammable, avoid bat-
tery acid.

UP

Unsaturated Polyester

90(194)

Same as above.

Flammable

PS

Polystyrene

80(176)

Avoid solvents.

Flammable

ABS

Acrylonitrile Butadiene Styrene

80(176)

Avoid gasoline and solvents.

PMMA

Poly Methyl Methacrylate

85(185)

Same as above.

EVAC

Ethylene Vinyl Acetate

90(194)

Same as above.

ASA

Acrylonitrile Styrene Acrylate

100(222)

Same as above.

Flammable

PPE

Poly Phenylene Ether

110(230)

Same as above.

PC

Polycarbonate

120(248)

Same as above.

PAR

Polyarylate

180(356)

Same as above.

PUR

Polyurethane

90(194)

Same as above.

POM

Poly Oxymethylene

120(248)

Same as above.

Avoid battery acid.

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120(248)

Same as above.

Flammable

PA

Polyamide

140(284)

Same as above.

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140(284)

Same as above.

PET

Polyester

180(356)

Same as above.

PEI

Polyetherimide

200(392)

Same as above.
