BODY ALIGNMENT

Unit: mm (in)

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.

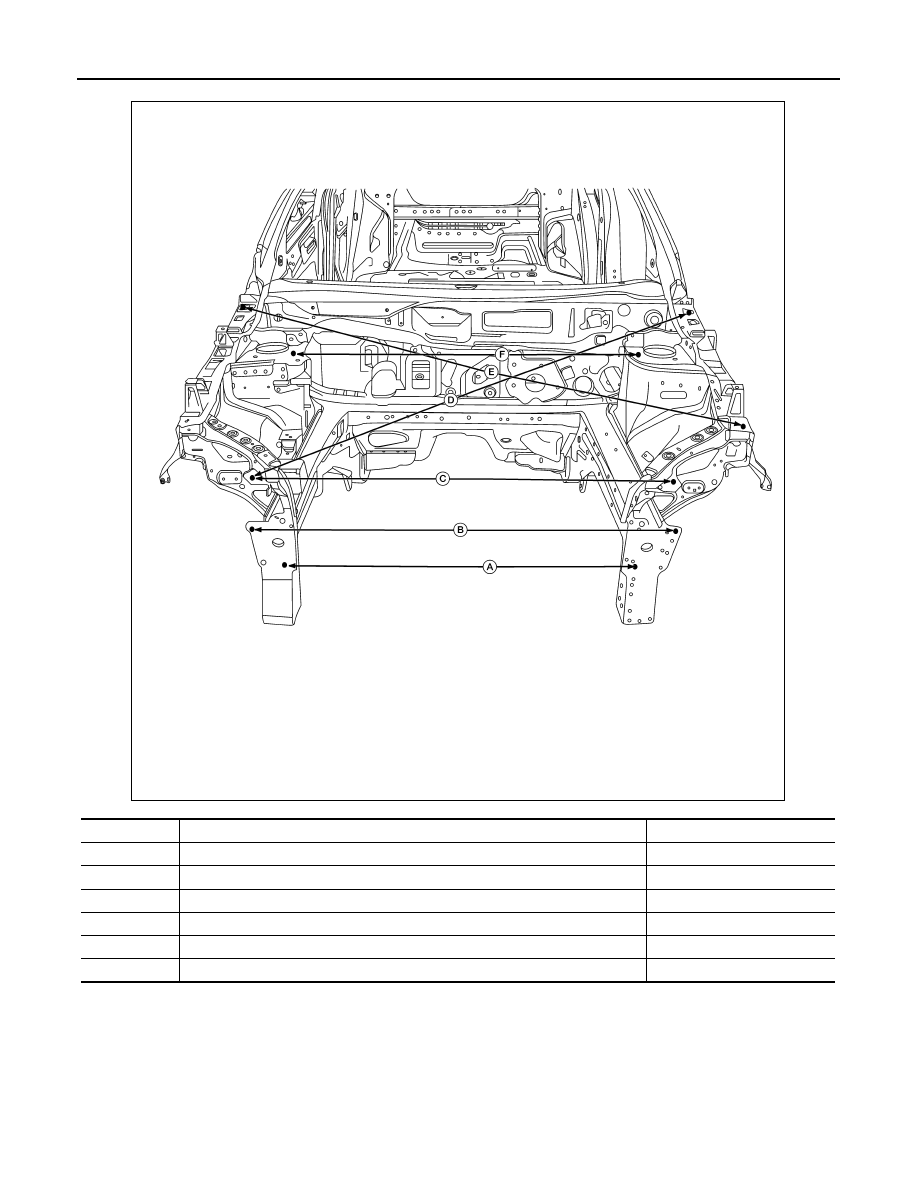

Underbody

INFOID:0000000009758090

Measurement

Position

Description

Measurement

 A

Lower bumper reinforcement hole 10 (0.4).

950 (37.4)

B

Upper outer bumper reinforcement retaining hole 10 (0.4).

1090 (42.9)

C

Upper front radiator support retaining hole 8 (0.3).

990 (39.0)

D

Upper front radiator support retaining hole to rear hood hinge bolt hole 8 (0.3).

1480 (58.3)

E

Rear hood hinge bolt to front fender bolt 8 (0.3).

1590 (62.6)

F

Slotted inboard strut hole 15x10 (0.6x0.4).

1040 (40.9)

ALKIA2762ZZ

BODY ALIGNMENT

BRM-47

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:

• All dimensions indicated in the figure are actual.

• As viewed from underside.

Front

ALKIA2763ZZ

BRM-48

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.

Passenger Compartment

INFOID:0000000009758091

Measurement

Position

Description

Measurement

A

Distance between both lower radiator bolts 10 (0.4) hole.

975 (38.4)

B

Distance between lower radiator bolt 10 (0.4) hole and front suspension member
rear bolt 30 (1.2).

820 (32.3)

C

Distance between both front suspension member rear bolts 30 (1.2) hole.

610 (24.0)

D

Diagonal distance between lower radiator bolt 10 (0.4) and front suspension
member rear bolt 30 (1.2) hole.

1145 (45.1)

E

Distance between front suspension member rear bolt 30 (1.2) and rear suspen-
sion member rear bolt 12 (0.5) hole.

2100 (82.7)

F

Distance between rear suspension member rear bolt 12 (0.5)

1080 (42.5)

G

Diagonal distance between front suspension member rear bolt 30 (1.2) hole and
rear suspension member rear bolt 12 (0.5).

2160 (85.0)

H

Diagonal distance between front suspension member rear bolt 12 (0.5) and 15
(0.6) locator hole.

1050 (41.3)

J

Distance between 15 (0.6) locator hole.

1015 (40.0)

K

Distance between rear suspension member rear bolt 12 (0.5)and 15 (0.6) locator
hole.

1460 (57.5)

BODY ALIGNMENT

BRM-49

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

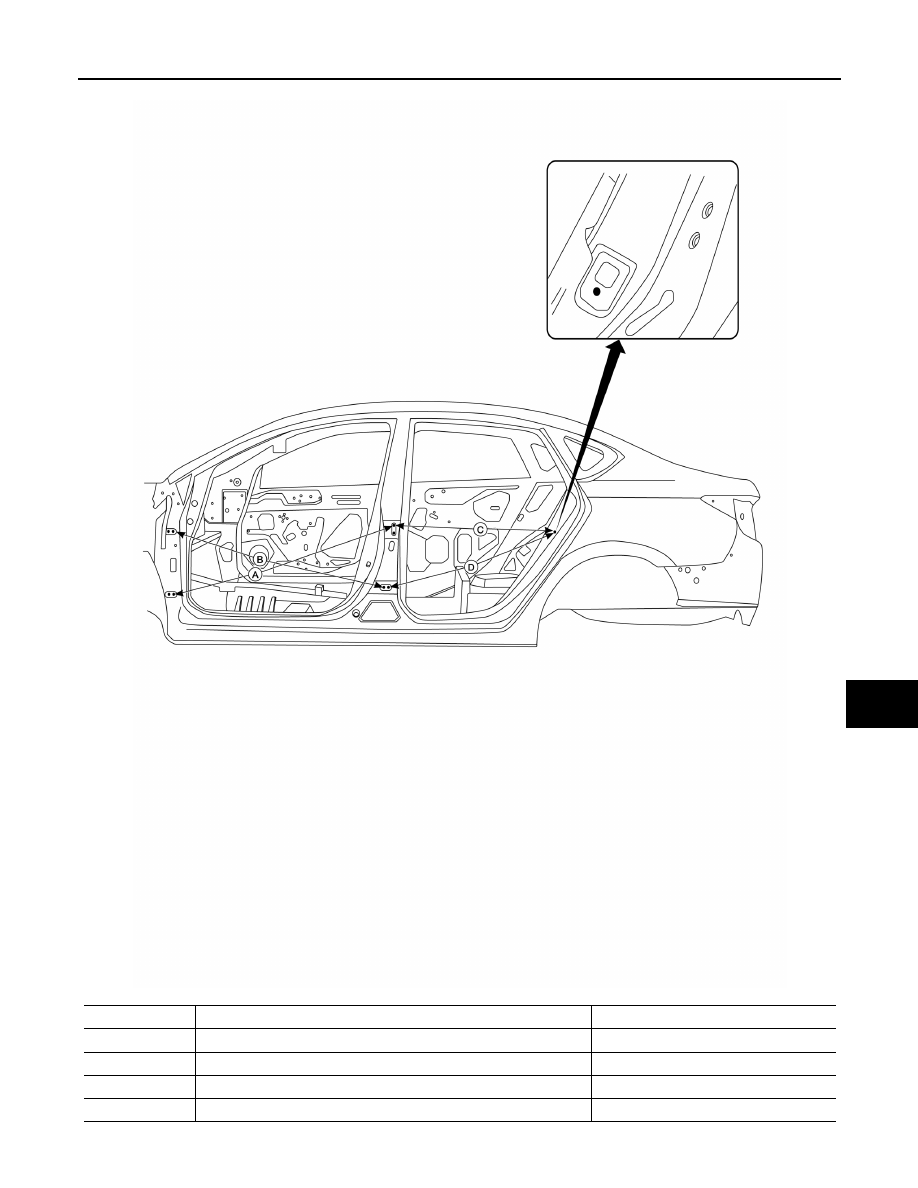

Unit: mm (in)

The dimensions are symmetrically identical on both the RH and LH sides of the vehicle.

Position

Description

Measurement

A

Front door lower hinge rear bolt to rear door upper hinge bolt.

1190 (46.9)

B

Front door upper hinge rear bolt to rear door lower hinge front bolt.

1125 (44.3)

C

Rear door upper hinge bolt to rear door switch retaining screw.

810 (31.9)

D

Rear door lower hinge rear bolt to rear door switch retaining screw.

880 (34.6)

ALKIA2764ZZ
