AV-212

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH BOSE]

ANTENNA AMP.

ANTENNA AMP.

Removal and Installation

INFOID:0000000009758921

REMOVAL

1. Remove the rear pillar finisher (RH). Refer to

INT-29, "REAR PILLAR FINISHER : Removal and Installa-

tion"

.

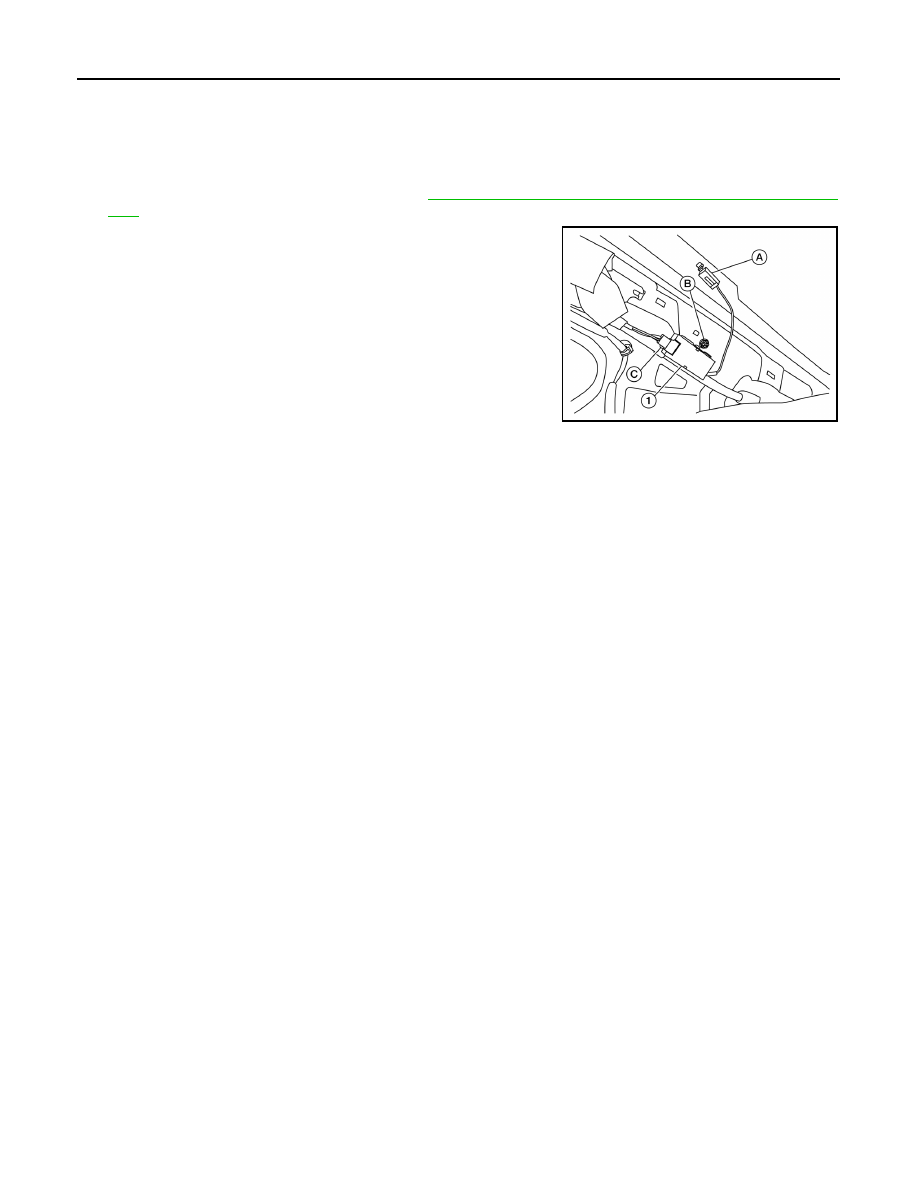

2. Disconnect the antenna amp. harness connector (A) from the

rear window glass.

3. Disconnect the harness connector (C) from the antenna amp.

(1).

4. Remove the antenna amp. screw (B) and the antenna amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1410ZZ

AV

WINDOW ANTENNA

AV-213

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WINDOW ANTENNA

Removal and Installation

INFOID:0000000010296647

The window antenna is serviced as an assembly with the filament. Refer to

DEF-47, "Inspection and Repair"

.

AV-214

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH BOSE]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000009758922

REMOVAL

1. Open the trunk lid.

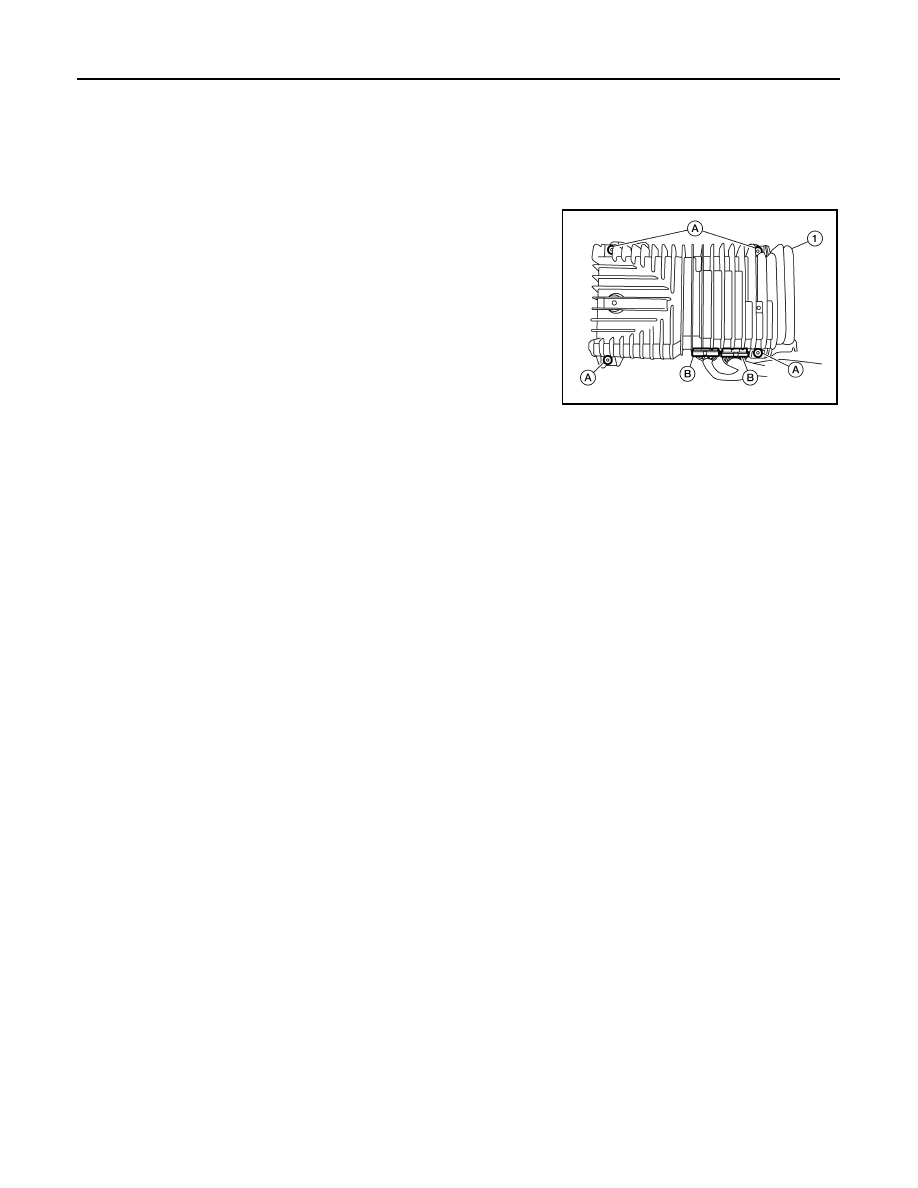

2. Remove the Bose speaker amp. screws (A).
3. Disconnect the harness connectors (B) from the Bose speaker

amp. (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1020ZZ

AV

USB CONNECTOR

AV-215

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR

Removal and Installation

INFOID:0000000009758923

Removal

1. Remove the center console rear finisher cover. Refer to

TM-253, "Exploded View"

.

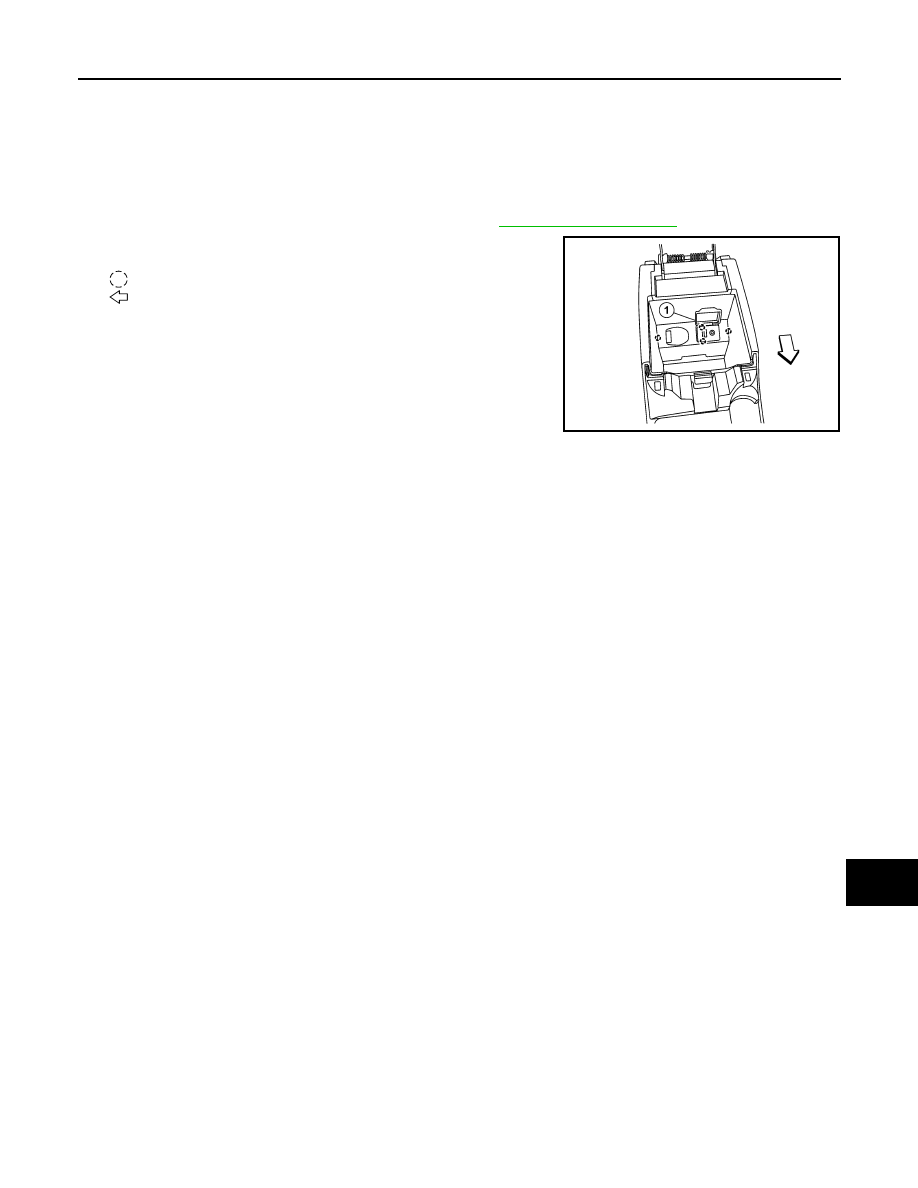

2. Release the pawls and remove the USB connector (1) from the

center console rear finisher cover.

: Pawl

: Front

Installation

Installation is in the reverse order of removal.

ALNIA1411ZZ
