STEERING SWITCH

STEERING SWITCH

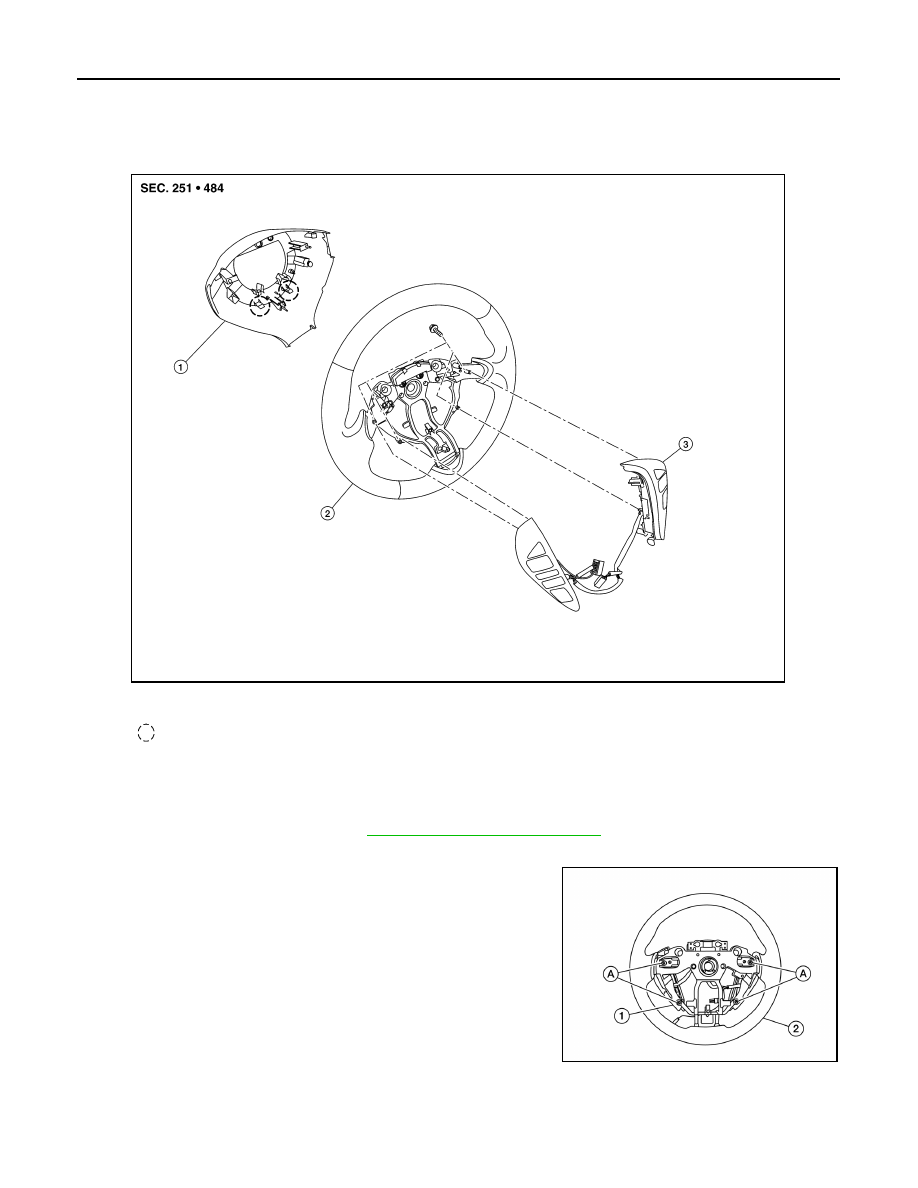

Exploded View

INFOID:0000000009758917

Removal and Installation

INFOID:0000000009758918

REMOVAL

1. Remove the steering wheel. Refer to

ST-10, "Removal and Installation"

.

2. Release the pawls on the steering wheel rear finisher and remove.
3. Remove the steering switches screws (A).
4. Remove the steering switches (1) from steering wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering wheel rear finisher

2.

Steering wheel

3.

Steering switches

Pawl

AWNIA2816ZZ

ALNIA1409ZZ

AV

ANTENNA FEEDER

AV-209

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER

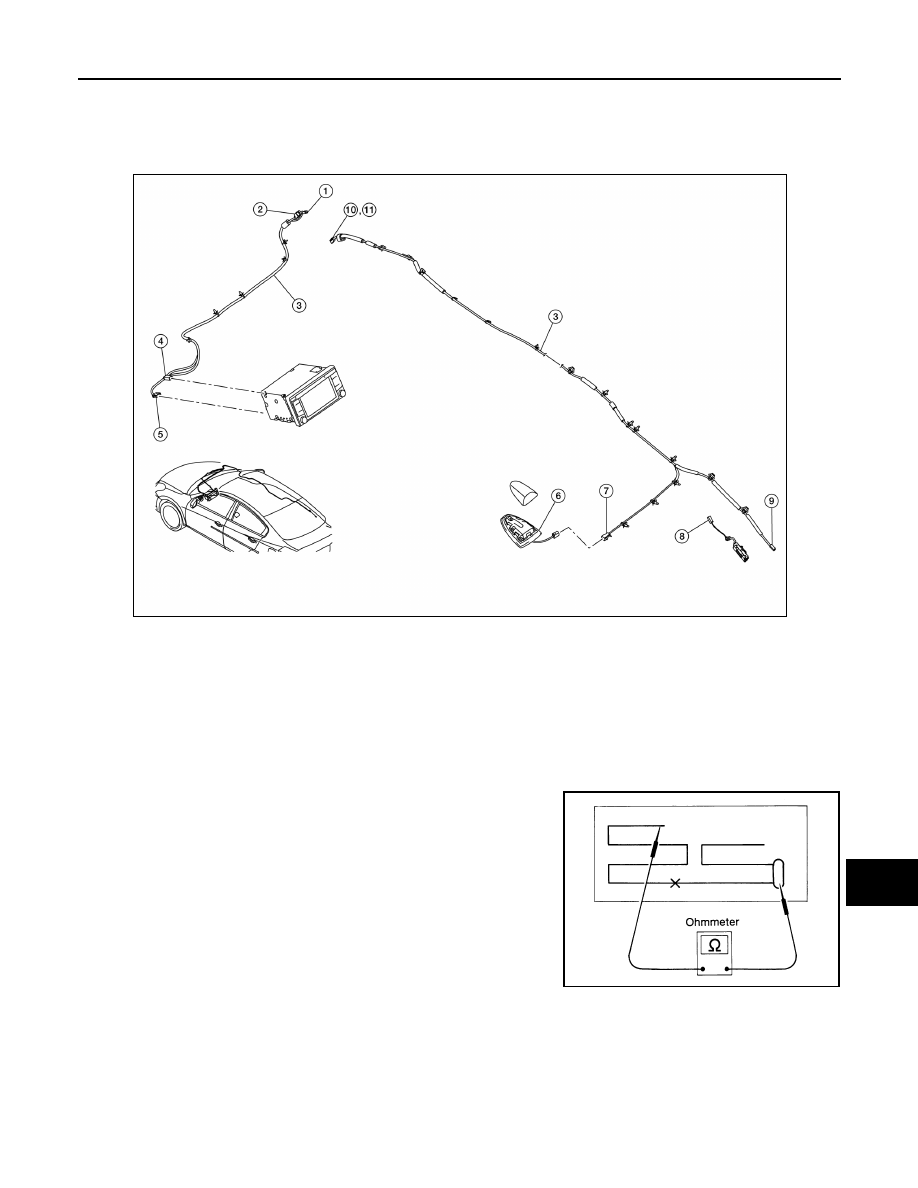

Location of Antenna

INFOID:0000000009758919

Window Antenna Repair

INFOID:0000000009758920

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

ALNIA1457ZZ

1.

M112

2.

M107

3.

Antenna feeder

4.

M141

5.

M140

6.

Satellite antenna

7.

M504

8.

M503

9.

M502

10. M500

11. M501

SEL250I

AV-210

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH BOSE]

ANTENNA FEEDER

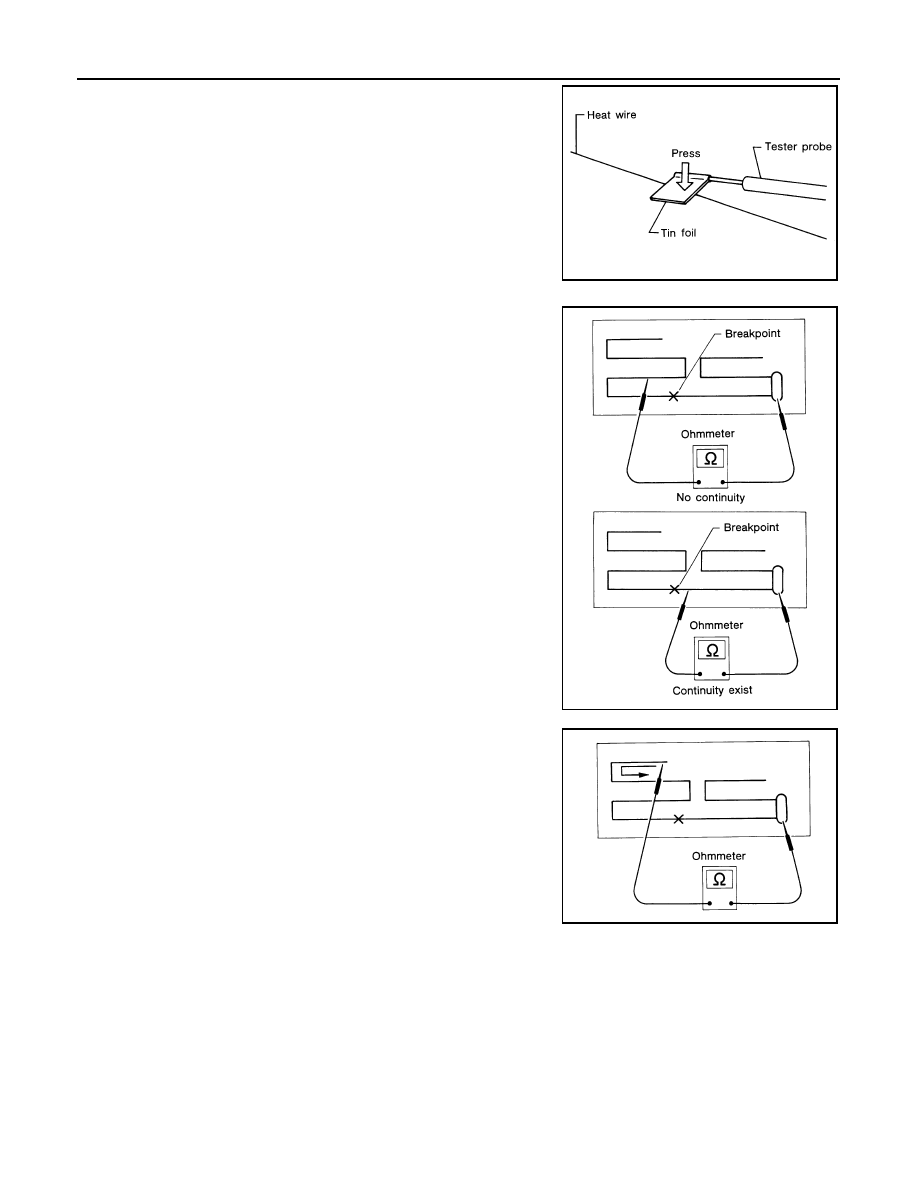

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

REPAIR EQUIPMENT

• Conductive silver composition (DuPont No. 4817 or equivalent)

• Ruler 30 cm (11.8 in) long

• Drawing pen

• Heat gun

• Alcohol

• Cloth

REPAIRING PROCEDURE

SEL122R

SEL252I

SEL253I

AV

ANTENNA FEEDER

AV-211

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

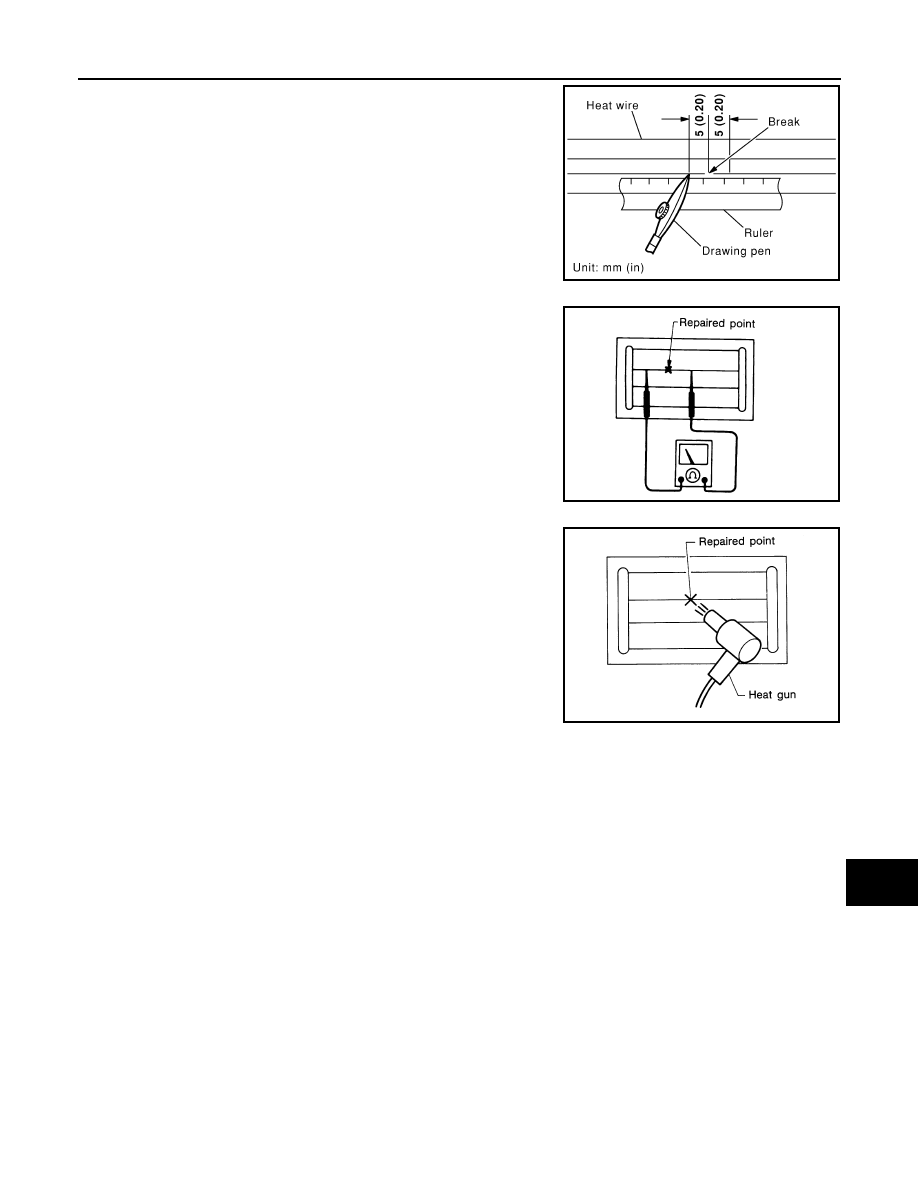

1. Wipe broken heat wire and its surrounding area clean with a

cloth dampened in alcohol.

2. Apply a small amount of conductive silver composition to tip of

drawing pen.

Shake silver composition container before use.

3. Place ruler on glass along broken line. Deposit conductive silver

composition on break with drawing pen. Slightly overlap existing

heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4. After repair has been completed, check repaired wire for conti-

nuity. This check should be conducted 10 minutes after silver

composition is deposited.

Do not touch repaired area while test is being conducted.

5. Apply a constant stream of hot air directly to the repaired area

for approximately 20 minutes with a heat gun. A minimum dis-

tance of 3 cm (1.2 in) should be kept between repaired area and

hot air outlet.

If a heat gun is not available, let the repaired area dry for 24

hours.

PIIA0215E

SEL012D
