CENTER CONSOLE ASSEMBLY

IP-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

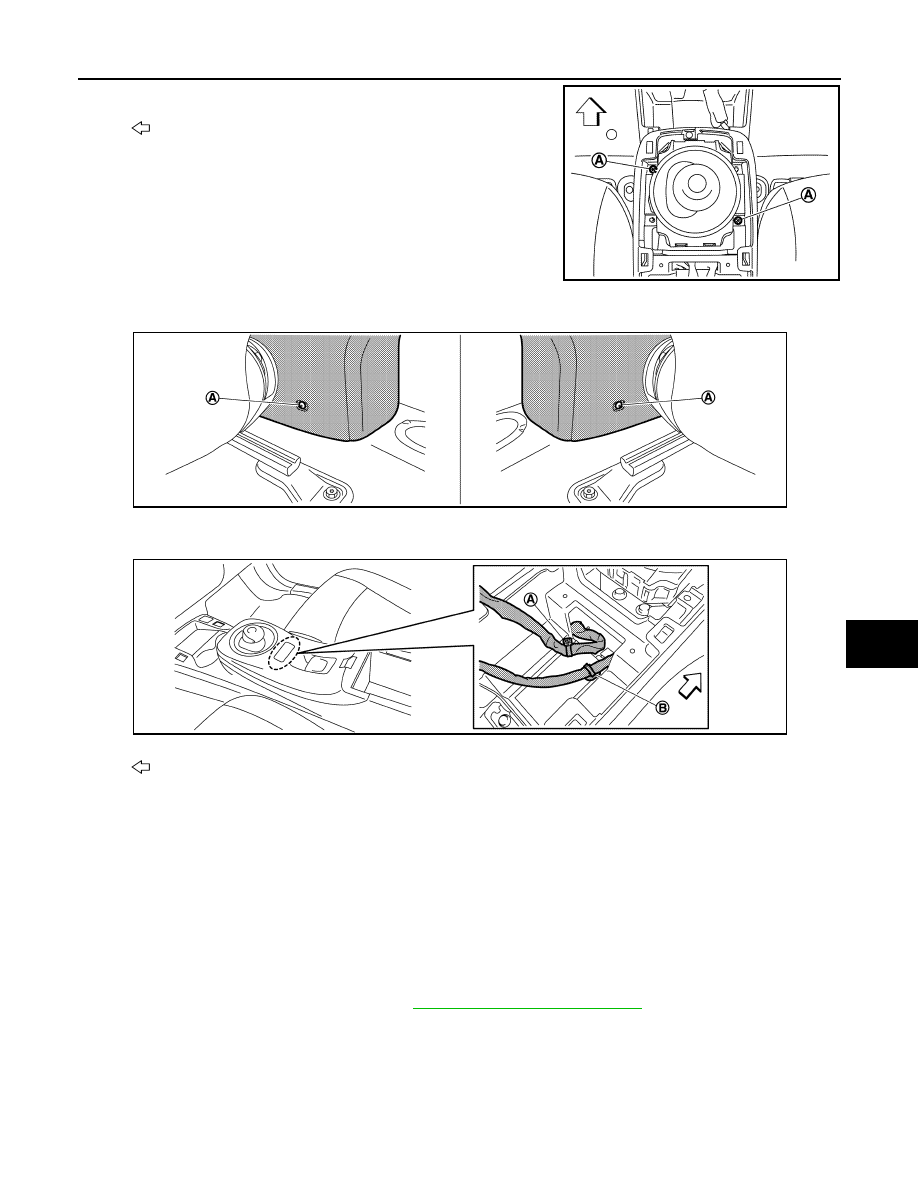

7. Remove center console assembly screws (A).

8. Put front seat to frontmost position.
9. Remove center console assembly screws (A).

10. Put front seat to rearmost position.
11. Remove console harness clip (A) and (B).

12. Lift up center console assembly back side, then remove center console assembly.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000010120164

CAUTION:

To prevent damage to the parts, when disassembling, always use a suitable tool that is made of plas-

tic.

DISASSEMBLY

1. Remove center console assembly. Refer to

IP-28, "Removal and Installation"

.

2. Remove console mask.

1. Open the console lid assembly.

: Vehicle front

JMJIA5029ZZ

JMJIA5863ZZ

: Vehicle front

JMJIA7009ZZ

IP-32

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

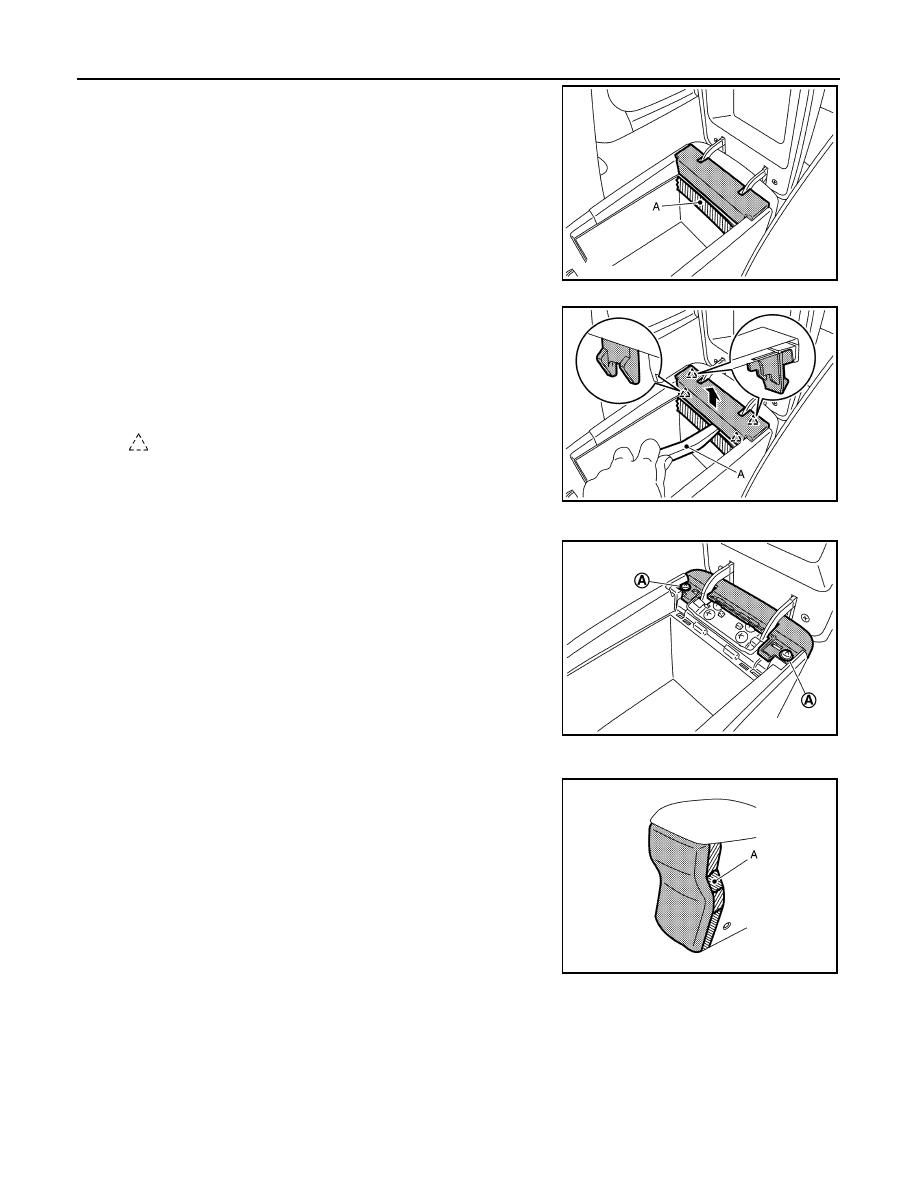

2. Apply protective tape (A) around the part to protect from

damage.

3. Insert suitable tool (A) between console mask and console

body assembly to disengage the pawls as shown.

4. Pull up console mask.

CAUTION:

Disengage slowly so that pawls in front end of console

mask are not damaged.

3. Remove console rear finisher.

1. Remove screws (A).

2. Close the console lid assembly.

3. Apply protective tape (A) around the part to protect from

damage.

JMJIA7005ZZ

: Pawl

JMJIA7006ZZ

JMJIA5031ZZ

JMJIA7007ZZ

CENTER CONSOLE ASSEMBLY

IP-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

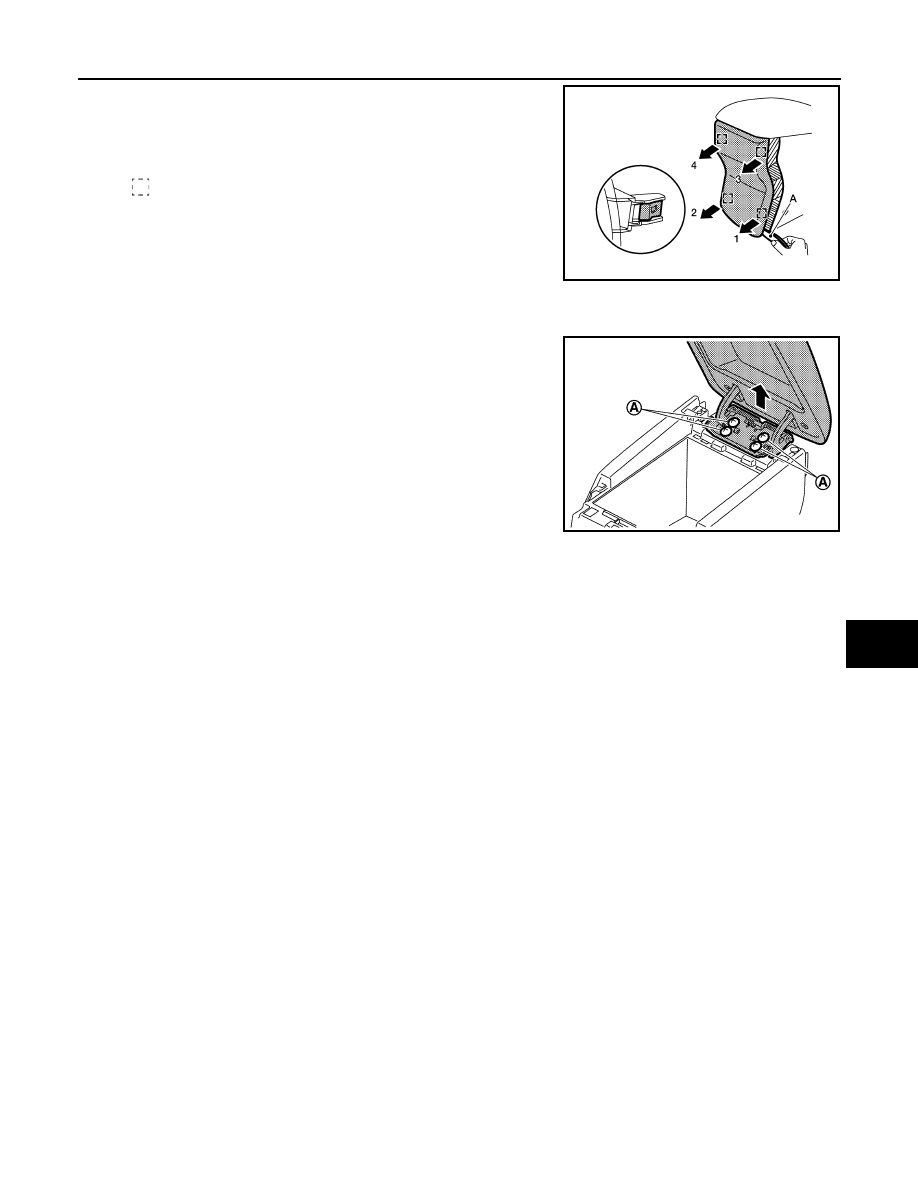

4. Insert suitable tool (A) between console rear finisher and

console body assembly to disengage the metal clips

according to the numerical order 1

→ 4 as shown.

5. Pull back console rear finisher.

4. Remove console lid assembly.

1. Open the console lid.

2. Remove console lid assembly screws (A) and console lid

assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

: Metal clip

AWJIA1335ZZ

JMJIA5034ZZ
