LICENSE PLATE LAMP CIRCUIT

EXL-241

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

YES

>> Check corresponding bulb socket and harness. Repair or replace if necessary.

NO

>> Repair or replace harness.

EXL-242

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN HEADLAMP]

FRONT FOG LAMP CIRCUIT

FRONT FOG LAMP CIRCUIT

Component Function Check

INFOID:0000000010121462

1.

CHECK FRONT FOG LAMP OPERATION

CONSULT ACTIVE TEST

1. Select “EXTERNAL LAMPS” in “Active Test” of “IPDM E/R”.

2. While operating the test items, check that the front fog lamp is turned ON.

Is the measurement normal?

YES

>> Front fog lamp circuit is normal.

NO

>> Refer to

EXL-242, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010121463

Regarding Wiring Diagram information. Refer to

EXL-54, "Wiring Diagram"

.

1.

CHECK FRONT FOG LAMP FUSE

1. Turn power switch OFF.

2. Check that the following fuse is not blown:

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK FRONT FOG LAMP SHORT CIRCUIT

1. Disconnect front fog connector and IPDM E/R connector.

2. Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> Replace fuse. (Replace IPDM E/R if the fuse is blown again.)

NO

>> Replace the blown fuse after repairing the affected circuit.

3.

CHECK FRONT FOG LAMP BULB

Check the applicable lamp bulb.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace bulb.

4.

CHECK FRONT FOG LAMP OUTPUT VOLTAGE

CONSULT ACTIVE TEST

1. Disconnect front fog lamp connector.

2. Turn power switch ON.

3. Select “EXTERNAL LAMPS” in “Active Test” of “IPDM E/R”.

Fog

: Front fog lamp ON

Off

: Front fog lamp OFF

Unit

Location

Fuse No.

Capacity

Front fog lamp

IPDM E/R

50

15 A

IPDM E/R

Ground

Continuity

Connector

Terminal

RH

E12

19

No

LH

20

FRONT FOG LAMP CIRCUIT

EXL-243

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

4. While operating the test items, check the voltage between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace IPDM E/R. Refer to

PCS-29, "Removal and Installation"

.

5.

CHECK FRONT FOG LAMP OPEN CIRCUIT

1. Turn power switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between IPDM E/R harness connector and front fog lamp harness connector.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK FRONT FOG LAMP GROUND CIRCUIT OPEN CIRCUIT

Check continuity between front fog lamp harness connector and ground.

Is the inspection result normal?

YES

>> Refer to

GI-53, "Intermittent Incident"

.

NO

>> Repair or replace harness.

(+)

(

−)

Test item

Voltage

(Approx.)

IPDM E/R

Connector

Terminal

RH

E12

19

Ground

EXTERNAL

LAMPS

Fog

Battery voltage

Off

0 V

LH

20

Fog

Battery voltage

Off

0 V

IPDM E/R

Front fog lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

E12

19

E48

1

Yes

LH

20

E30

Front fog lamp

Ground

Continuity

Connector

Terminal

RH

E48

2

Yes

LH

E30

EXL-244

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN HEADLAMP]

TURN SIGNAL LAMP CIRCUIT

TURN SIGNAL LAMP CIRCUIT

Component Function Check

INFOID:0000000010121464

1.

CHECK TURN SIGNAL LAMP

CONSULT ACTIVE TEST

1. Select “FLASHER” in “Active Test” of “BCM (FLASHER)”.

2. While operating the test items, check that the turn signal lamps is turned ON.

Is the inspection result normal?

YES

>> Turn signal lamp circuit is normal.

NO

>> Refer to

EXL-244, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010121465

Regarding Wiring Diagram information. Refer to

EXL-59, "Wiring Diagram"

.

1.

CHECK TURN SIGNAL LAMP BULB

Check the applicable lamp bulb.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace bulb.

2.

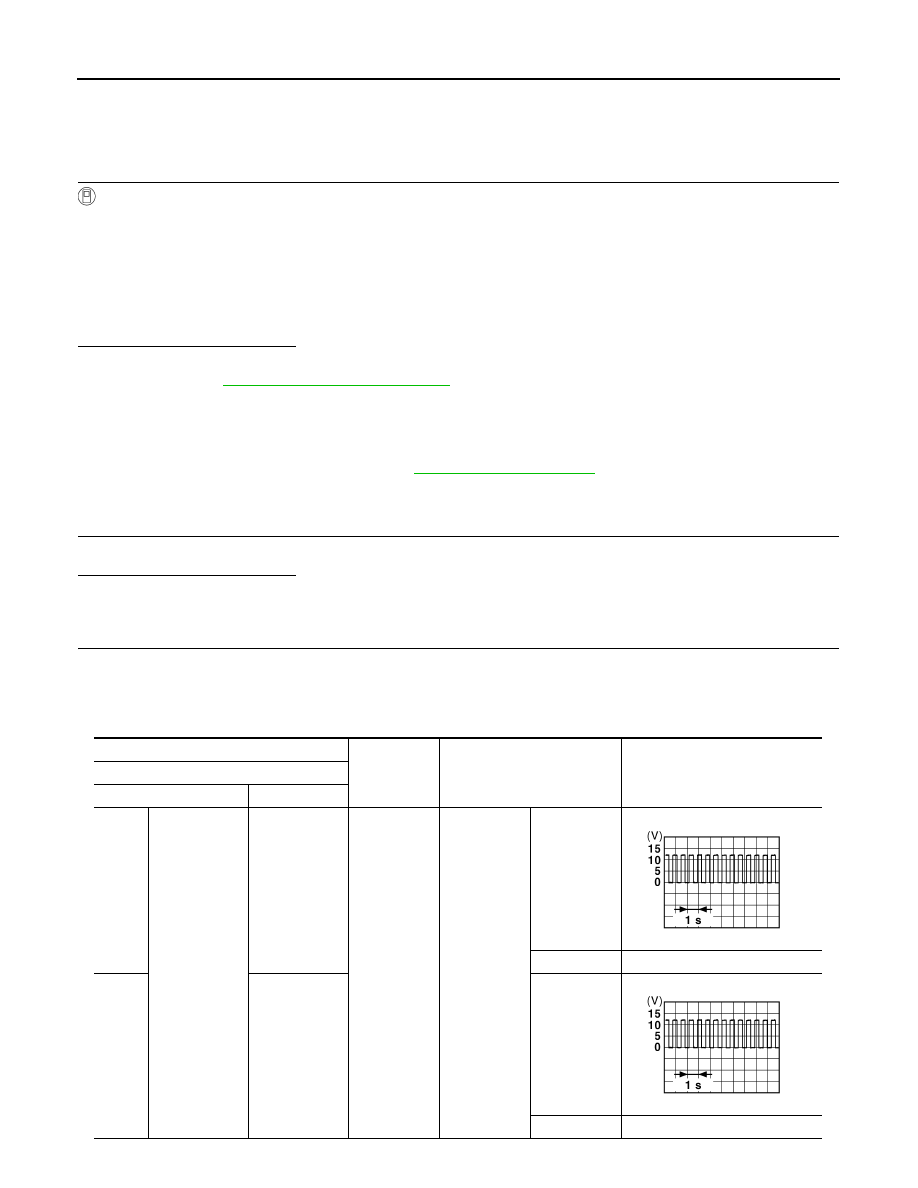

CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE

1. Turn power switch OFF.

2. Disconnect front combination lamp connector and rear combination lamp connector.

3. Turn power switch ON.

4. While operating the turn signal switch, check voltage between BCM harness connector and ground.

LH

: Turn signal lamps (LH) ON

RH

: Turn signal lamps (RH) ON

Off

: Turn signal lamps OFF

(+)

(–)

Condition

Voltage

(Approx.)

BCM

Connector

Terminal

LH

M25

60

Ground

Turn signal
switch

LH

OFF

0 V

RH

61

RH

OFF

0 V
