FMT060

Gears

NMMT0051S02

I

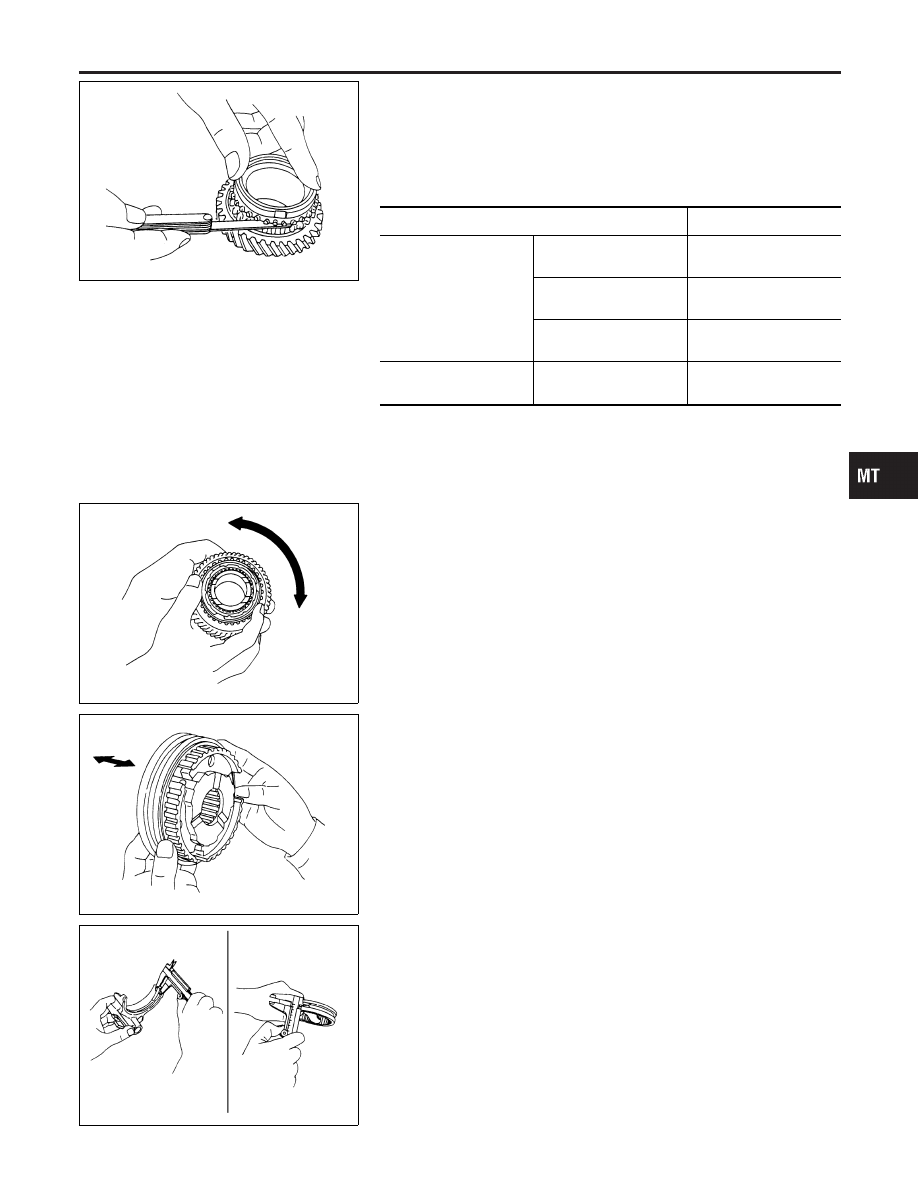

Check each gear for damage, wear, or flaking.

I

Install the inner baulk ring, synchronizer cone and outer baulk
ring to the main gear.
Press the outer baulk ring closely to the main gear and check
if each clearance is within the specified value given below.

Unit: mm (in)

Application

Clearance

1st or 2nd main gear

Inner baulk ring

0.98 - 1.62

(0.0386 - 0.0638)

Synchronizer cone

0.68 - 1.92

(0.0268 - 0.0756)

Outer baulk ring

0.88 - 1.72

(0.0346 - 0.0677)

Reverse main gear

Baulk ring

0.88 - 1.52

(0.0346 - 0.0598)

FMT061

I

Install the inner baulk ring, synchronizer cone and outer baulk
ring to the main gear. Make sure that, when trying to rotate the
outer baulk ring pressed closely to the main gear, the baulk
ring does not slip.

FMT062

Coupling Sleeve and Synchronizer Hub

NMMT0051S03

I

Check the synchronizer hub and coupling sleeve for worn out
splines at the tip.

I

Install the coupling sleeve to the synchronizer hub to check for
smooth sliding.

FMT063

I

Measure the thickness of the claw of the shift fork and the
width of the coupling sleeve groove to calculate the clearance
to the shift fork. Check the clearance.

Calculation formula:
Width of coupling sleeve groove [mm (in)] – Thickness of claw
of shift fork [mm (in)]

Standard: 0.15 - 0.35 mm (0.0059 - 0.0138 in)

GI

MA

EM

LC

EC

FE

CL

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Mainshaft (Cont’d)

MT-33

FMT064

FMT065

ASSEMBLY

NMMT0052

1.

Install the needle bearing, reverse main gear and reverse
baulk ring to the mainshaft.

2.

Install the 5th & reverse synchronizer hub, insert key and insert
spring to the 5th & reverse coupling sleeve. Then install the
insert ball.

3.

Fit the assembled 5th & reverse coupling sleeve and 5th &
reverse synchronizer hub to the mainshaft, and install them
with a drift (SST) and a press.

4.

After installation, make sure the baulk rings move co-axially.

5.

Select a snap ring from those shown in the table to allow the
clearance specified below.

Allowable clearance:

0 - 0.1 mm (0 - 0.004 in)

5th & reverse synchronizer hub snap ring

Unit: mm (in)

Snap ring thickness

Part number

Discriminated

mark

1.80 (0.0709)

32115 - 89F06

A

1.85 (0.0728)

32115 - 89F07

B

1.90 (0.0748)

32115 - 89F08

C

1.95 (0.0768)

32115 - 89F09

D

2.00 (0.0787)

32115 - 89F10

E

2.05 (0.0807)

32115 - 89F11

F

FMT066

6.

Install the needle bearing and 2nd main gear to the mainshaft.

7.

Install the 1st & 2nd synchronizer hub, insert key and insert
spring to the 1st & 2nd coupling sleeve. Then install the insert
ball.

8.

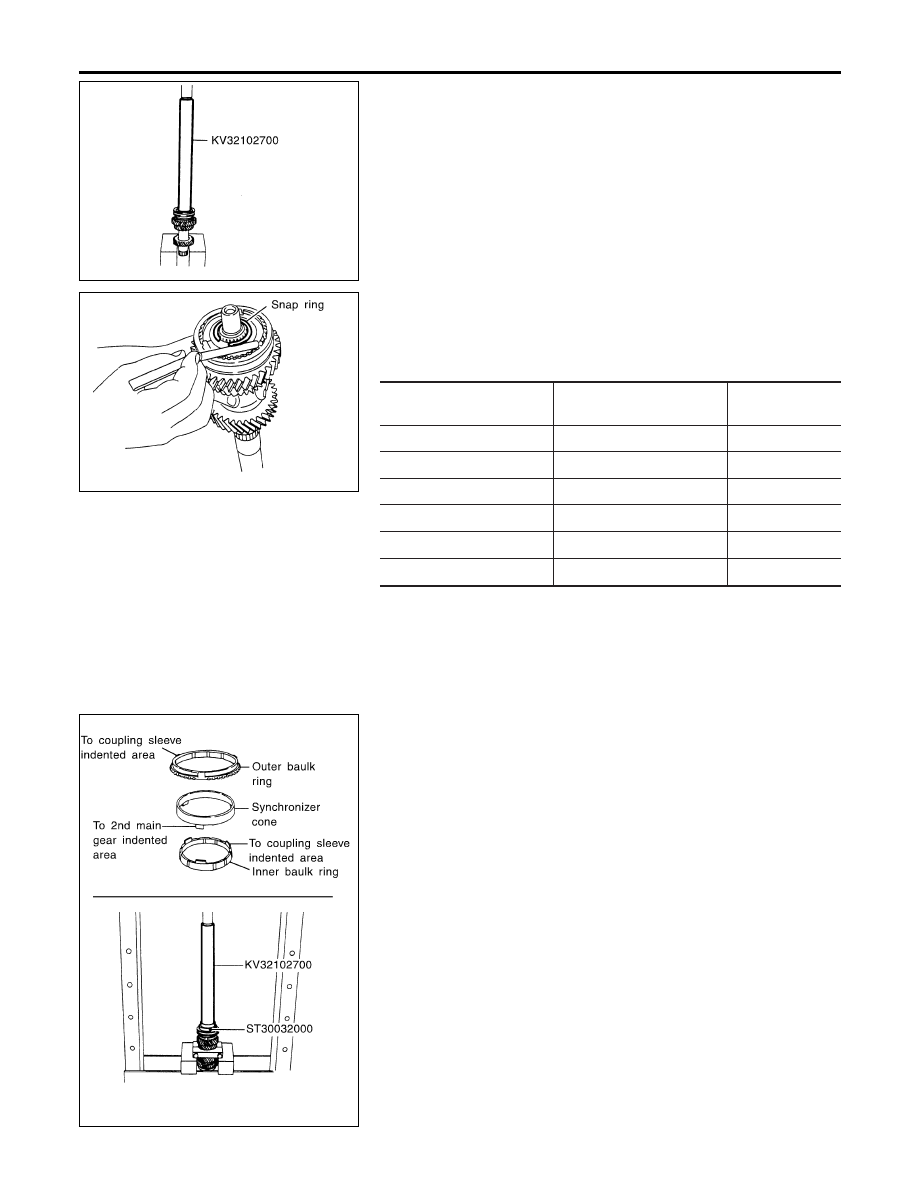

Aligning the projecting tabs of the inner baulk ring, synchro-
nizer cone and the outer baulk ring with the indented area of
the 2nd main gear and of the 1st & 2nd synchronizer hub.
Install them to the mainshaft with a drift (SST) and a press.

9.

After installation, make sure the baulk rings move co-axially.

REPAIR FOR COMPONENT PARTS

Mainshaft (Cont’d)

MT-34

FMT067

10. Install the outer baulk ring, synchronizer cone, inner baulk ring,

steel ball, 1st main gear and inner race to the mainshaft. At this
time, align the projecting tabs of the inner baulk ring, synchro-
nizer cone and of the outer baulk ring with the cutouts of the
1st main gear and of the 1st & 2nd synchronizer hub.

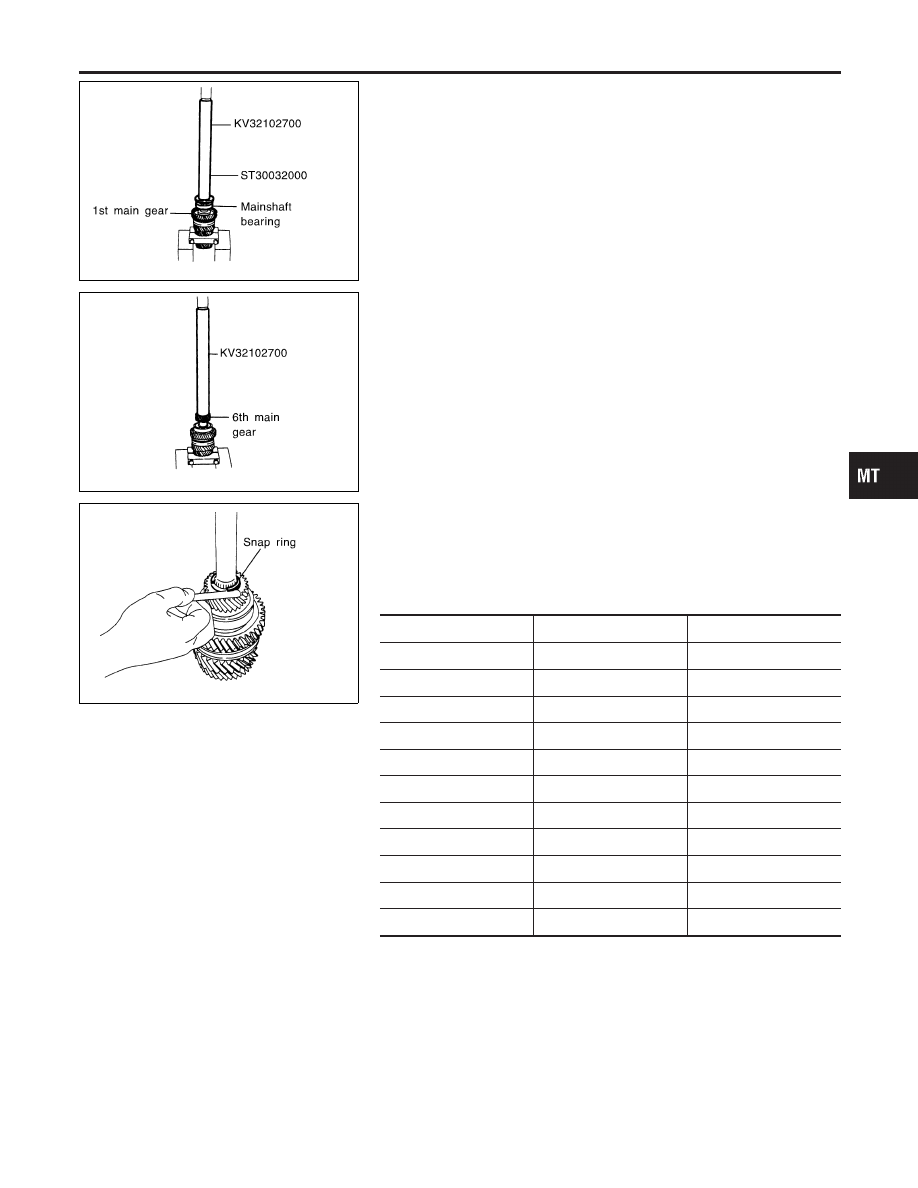

11. Place a drift (SST) onto the inner lace of the mainshaft bearing,

and install the mainshaft bearing to the mainshaft with a press.

FMT068

12. Place a drift (SST) onto the 6th main gear, and install it to the

mainshaft with a press.

FMT069

13. Select a snap ring from the table to allow the clearance speci-

fied below.

Allowable clearance:

0 - 0.1 mm (0 - 0.004 in)

6th main gear rear snap ring

Unit: mm (in)

Snap ring thickness

Part No.

Discriminated mark

2.67 (0.1051)

32204 - 89F11

A

2.73 (0.1075)

32204 - 89F12

B

2.79 (0.1098)

32204 - 89F13

C

2.85 (0.1122)

32204 - 89F14

D

2.91 (0.1146)

32204 - 89F15

E

2.97 (0.1169)

32204 - 89F16

F

3.03 (0.1193)

32204 - 89F17

G

3.09 (0.1217)

32204 - 89F18

H

3.15 (0.1240)

32204 - 89F19

J

3.21 (0.1264)

32204 - 89F20

K

3.27 (0.1287)

32204 - 89F21

L

GI

MA

EM

LC

EC

FE

CL

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Mainshaft (Cont’d)

MT-35

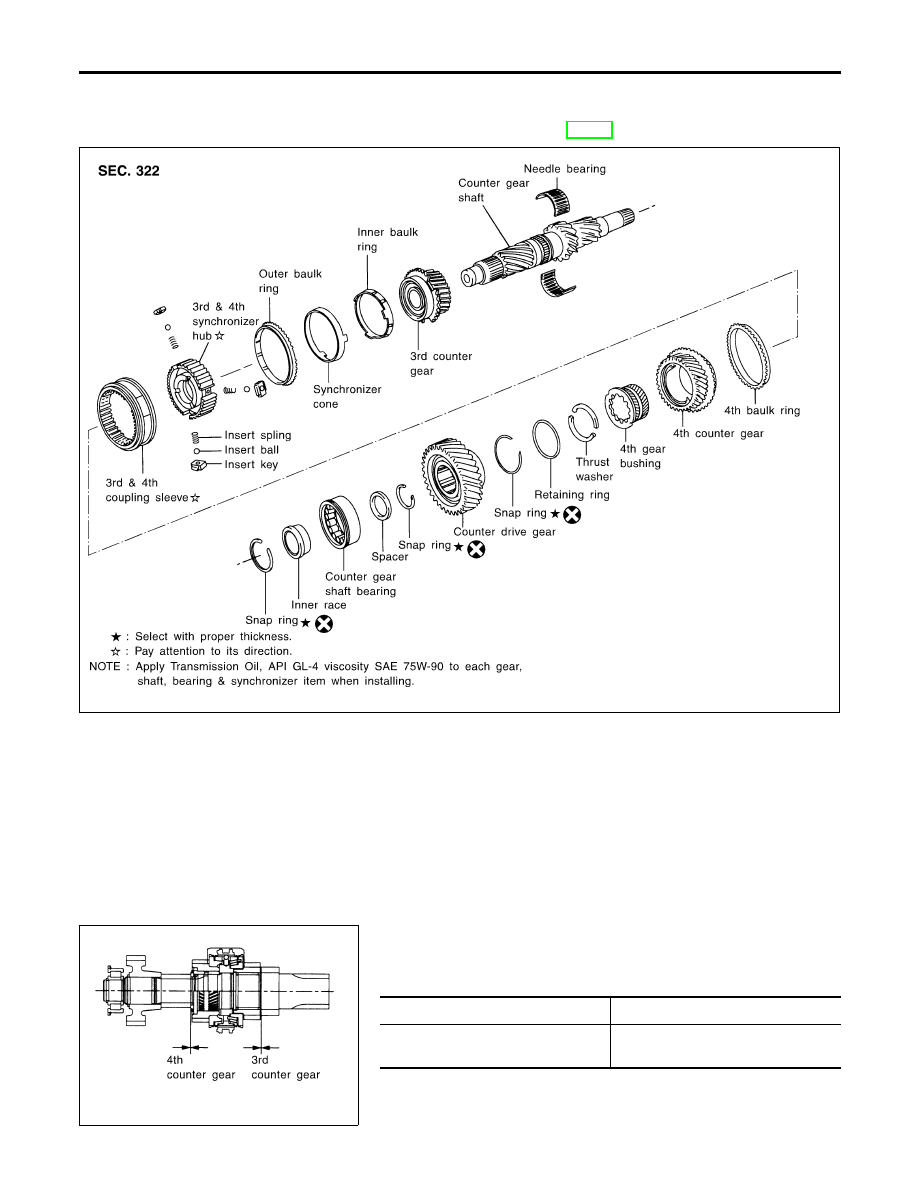

Counter Gear

REMOVAL AND INSTALLATION

NMMT0053

Refer to “Clutch Housing”, MT-25.

FMT070

FMT071

INSPECTION BEFORE DISASSEMBLY

NMMT0054

1.

Measure the end play of each gear. Replace the snap ring if
the measurement is out of the specified range.

Unit: mm (in)

Gear

End play

3rd counter gear
4th counter gear

0.10 - 0.35 (0.0039 - 0.0138)

REPAIR FOR COMPONENT PARTS

Counter Gear

MT-36
