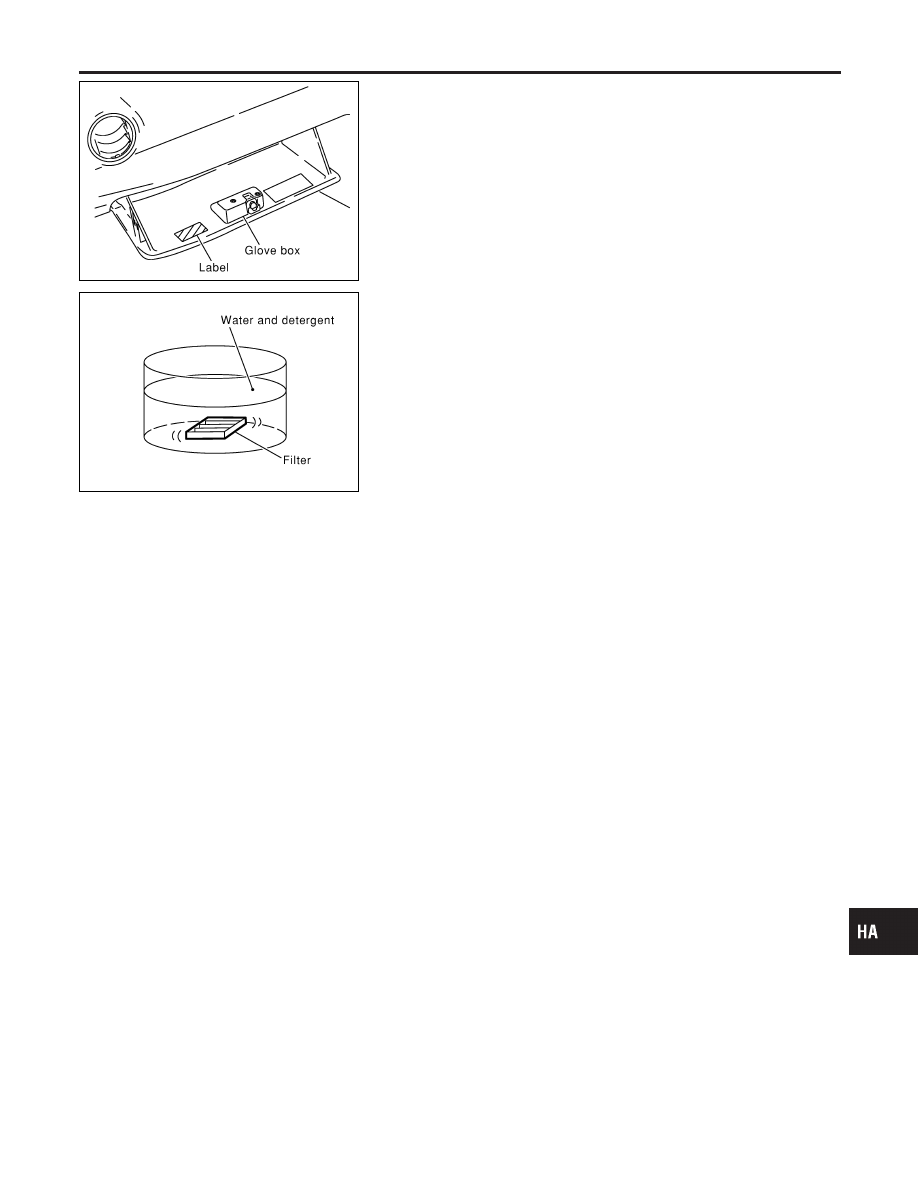

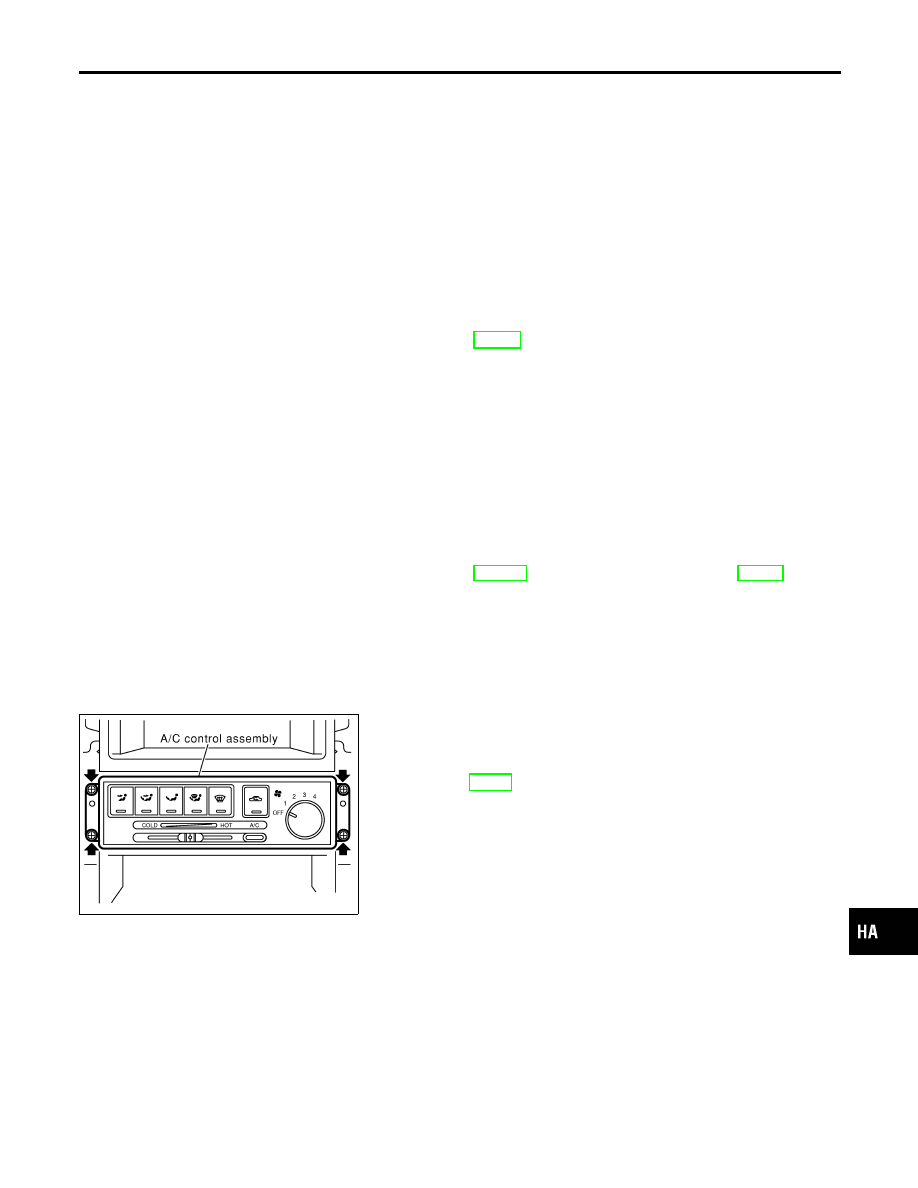

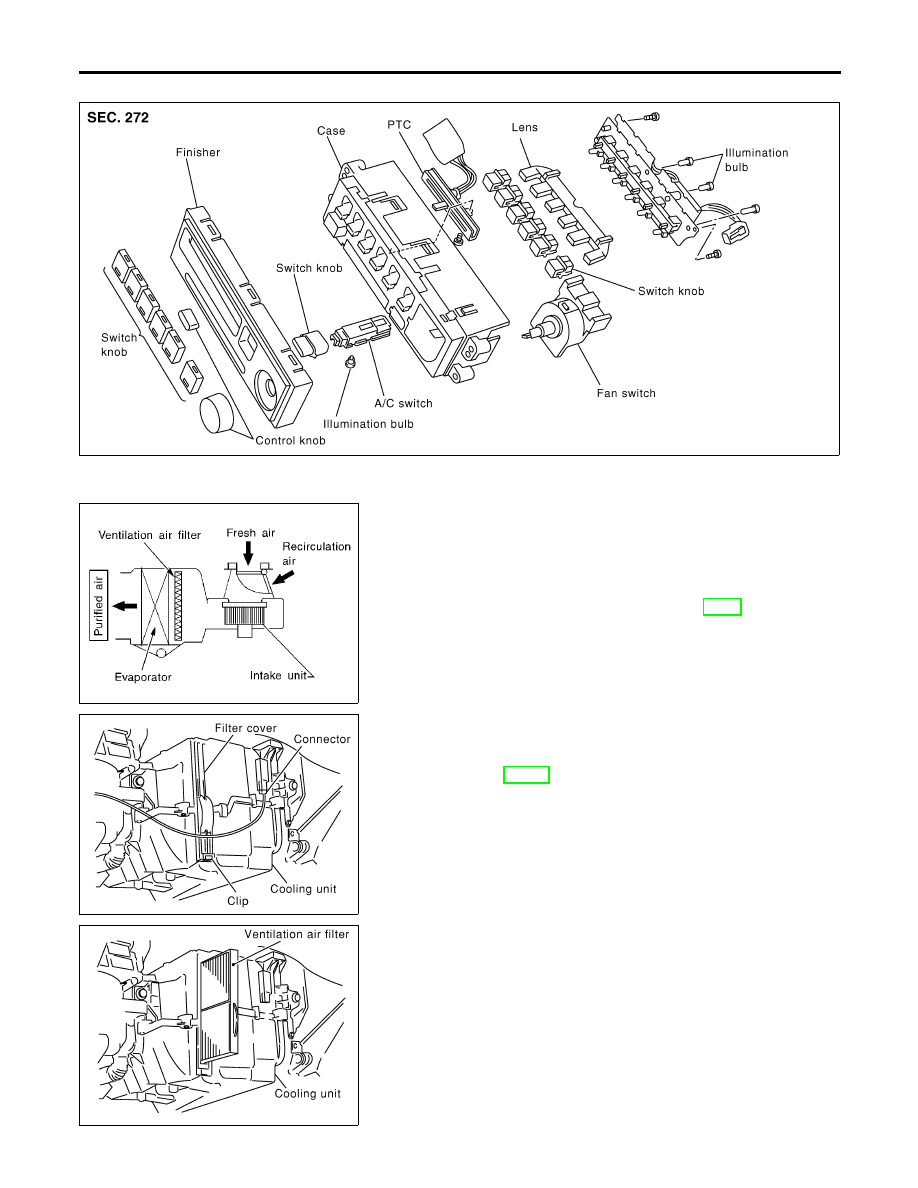

the dye with the system oil. Depending on the leak size, oper- Belt TENSION ADJUSTMENT NMHA0103 I Refer to EM-16, “Checking Drive Belt”. Idle Air Control Valve (IACV) — Auxiliary Air INSPECTION NMHA0104 I Refer to EC-209, “System Description” and HA-14. ZHA028H A/C Control System REMOVAL AND INSTALLATION NMHA0290 1. Remove cluster lid C. I Refer to BT-22, “Removal and Installation”. 2. Remove audio (radio). 3. Remove four screws of A/C control unit. 4. Disconnect A/C control unit harness connectors. 5. Remove A/C control unit. 6. Installation is the reverse order of removal. GI MA EM LC EC FE CL MT AT PD AX SU BR ST RS BT SC EL IDX SERVICE PROCEDURE Fluorescent Dye Leak Detector (Cont’d) HA-95 |
