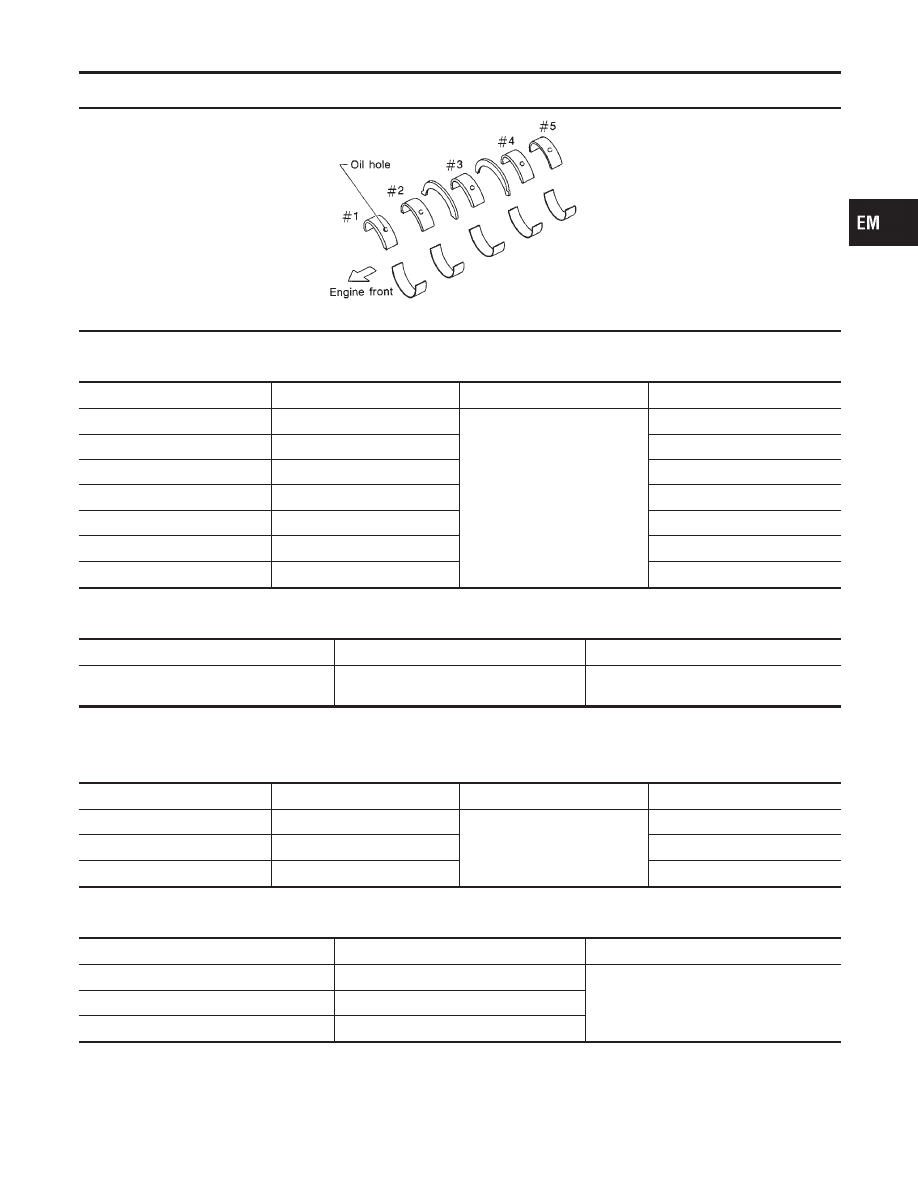

Main Bearing NMEM0037 SEM685D STANDARD NMEM0037S01 Unit: mm (in) Grade number Thickness “T” Width “W” Identification color (mark) 0 1.977 - 1.980 (0.0778 - 0.0780) 18.9 - 19.1 (0.744 - 0.752) Black (A) 1 1.980 - 1.983 (0.0780 - 0.0781) Brown (B) 2 1.983 - 1.986 (0.0781 - 0.0782) Green (C) 3 1.986 - 1.989 (0.0782 - 0.0783) Yellow (D) 4 1.989 - 1.992 (0.0783 - 0.0784) Blue (E) 5 1.992 - 1.995 (0.0784 - 0.0785) Pink (F) 6 1.995 - 1.998 (0.0785 - 0.0787) No color (G) UNDERSIZE NMEM0037S02 Unit: mm (in) Undersize Thickness “T” Main journal diameter “Dm” 0.25 (0.0098) 2.109 - 2.117 (0.0830 - 0.0833) Grind so that bearing clearance is the specified value. Connecting Rod Bearing NMEM0038 STANDARD SIZE NMEM0038S01 Unit: mm (in) Grade number Thickness “T” Width “W” Identification color (mark) 0 1.500 - 1.503 (0.0591 - 0.0592) 16.9 - 17.1 (0.665 - 0.673) No color (A) 1 1.503 - 1.506 (0.0592 - 0.0593) Black (B) 2 1.506 - 1.509 (0.0593 - 0.0594) Brown (C) UNDERSIZE NMEM0038S02 Unit: mm (in) Undersize Thickness “T” Crank pin journal diameter “Dp” 0.08 (0.0031) 1.541 - 1.549 (0.0607 - 0.0610) Grind so that bearing clearance is the specified value. 0.12 (0.0047) 1.561 - 1.569 (0.0615 - 0.0618) 0.25 (0.0098) 1.626 - 1.634 (0.0640 - 0.0643) GI MA LC EC FE CL MT AT PD AX SU BR ST RS BT HA SC EL IDX SERVICE DATA AND SPECIFICATIONS (SDS) Main Bearing EM-93 |
