Nissan Silvia. Manual - part 172





System Description

NMEC0777

Sensor

Input Signal to ECM

ECM func-

tion

Actuator

Camshaft position sensor

Engine speed

Fuel pump
control

Fuel pump relay

Ignition switch

Ignition signal and start signal

The ECM activates the fuel pump for several seconds after the ignition switch is turned on to improve engine
startability. If the ECM receives a 180° signal from the camshaft position sensor, it knows that the engine is
rotating, and causes the pump to perform. If the 180° signal is not received when the ignition switch is on, the
engine stalls. The ECM stops pump operation and prevents battery discharging, thereby improving safety. The
ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump relay, which in turn controls the
fuel pump.

Condition

Fuel pump operation

Ignition switch is turned to ON.

Operates for 1 second

Engine running and cranking

Operates

When engine is stopped (Signal is not sent from camshaft position sensor.)

Stops in 1 second

Except as shown above

Stops

SEF476P

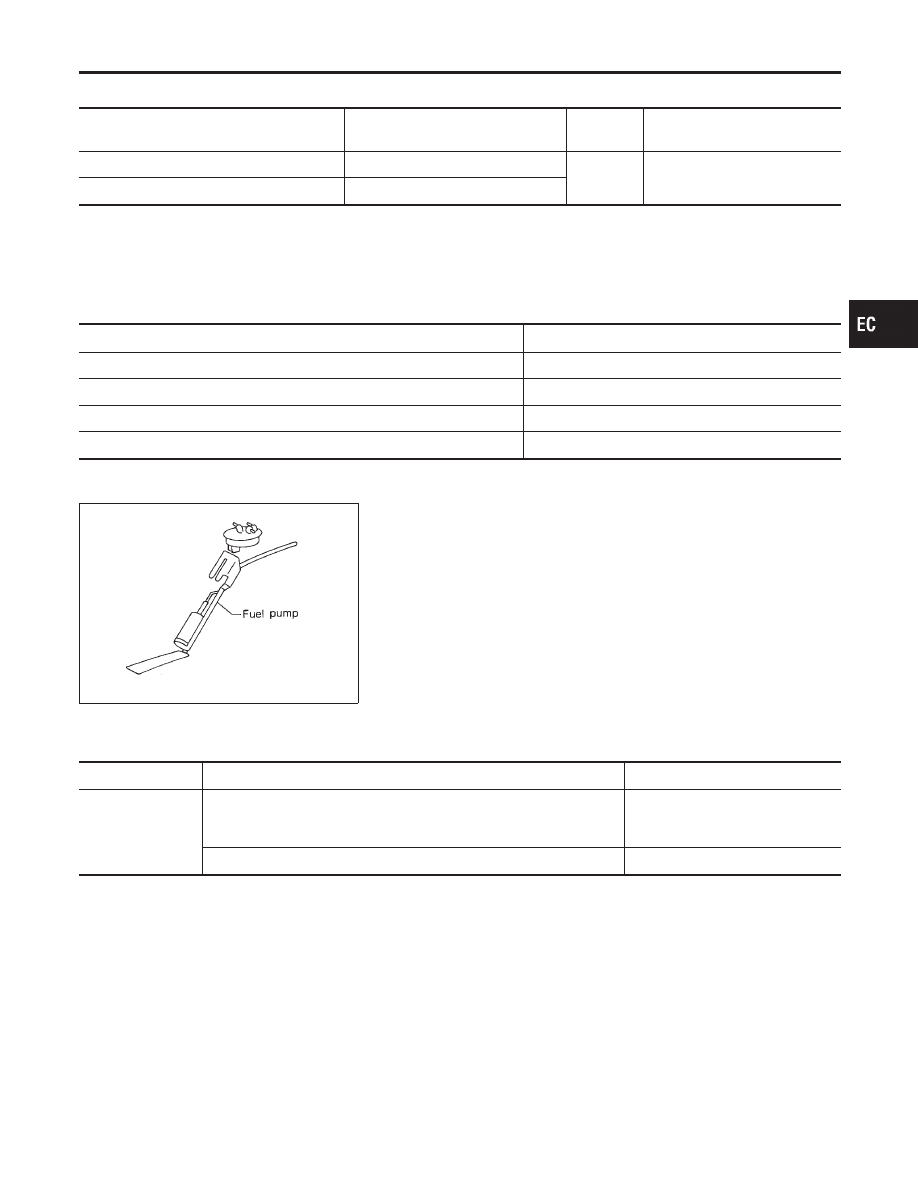

Component Description

NMEC0778

A turbine type design fuel pump is used in the fuel tank.

CONSULT-II Reference Value in Data Monitor
Mode

NMEC0779

MONITOR ITEM

CONDITION

SPECIFICATION

FUEL PUMP RLY

I

Ignition switch is turned to ON (Operates for 1 second)

I

Engine running and cranking

I

When engine is stopped (stops in 1 second)

ON

I

Except as shown above

OFF

GI

MA

EM

LC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

FUEL PUMP

System Description

EC-203

ECM Terminals and Reference Value

=NMEC0780

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

106

B/P

Fuel pump relay

[Ignition switch “ON”]

I

For 1 second after turning ignition switch “ON”

[Engine is running]

0 - 1V

[Ignition switch “ON”]

I

More than 1 second after turning ignition switch
“ON”

BATTERY VOLTAGE
(11 - 14V)

FUEL PUMP

ECM Terminals and Reference Value

EC-204

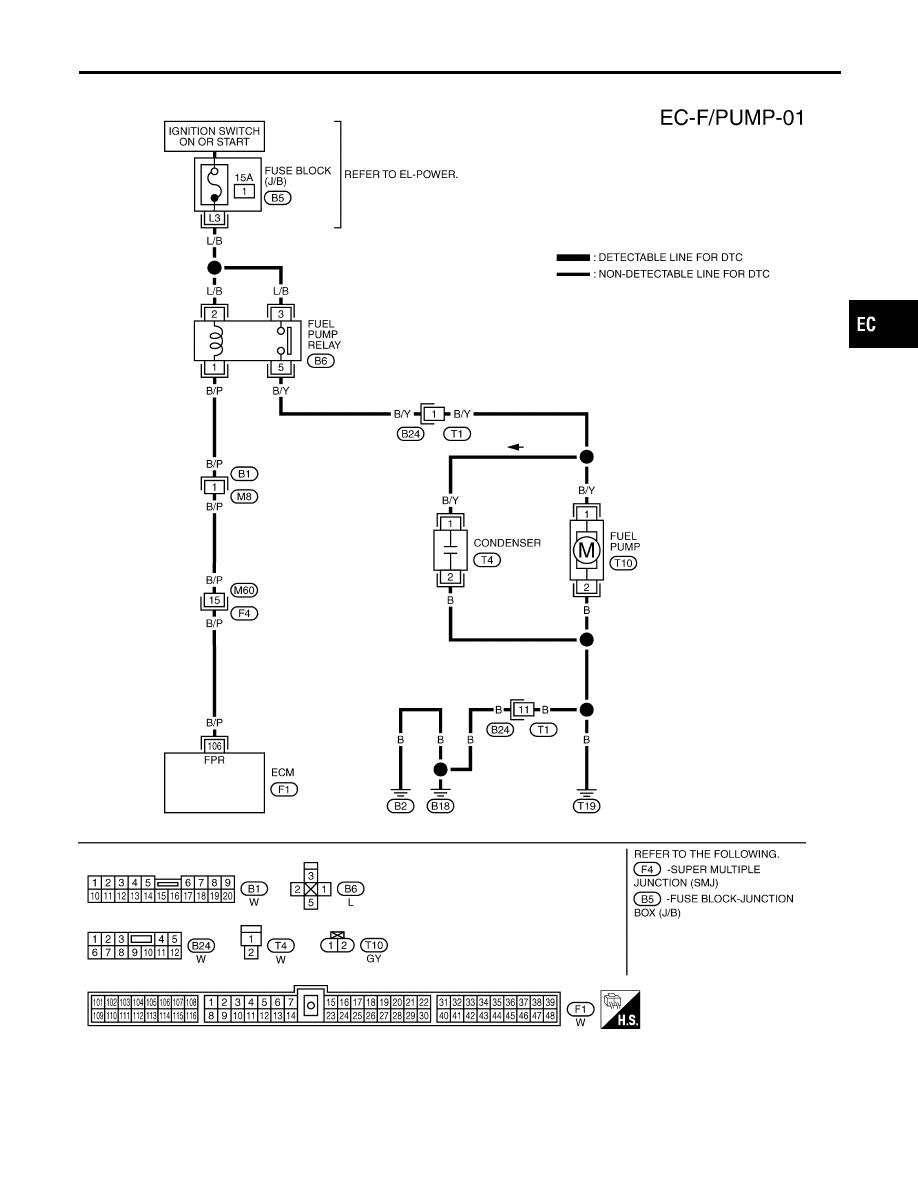

Wiring Diagram

NMEC0781

TEC812

GI

MA

EM

LC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

FUEL PUMP

Wiring Diagram

EC-205

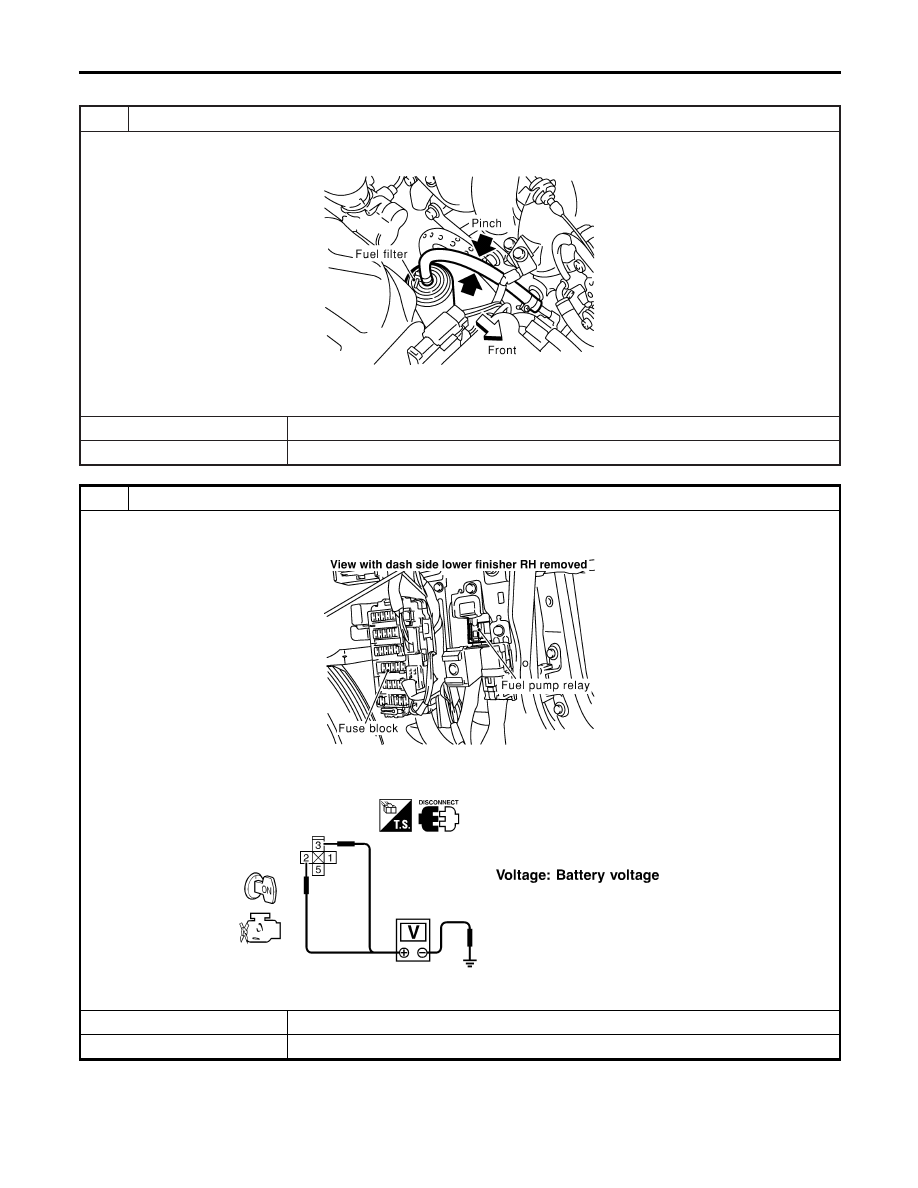

Diagnostic Procedure

NMEC0782

1

CHECK OVERALL FUNCTION

1. Turn ignition switch “ON”.
2. Pinch fuel feed hose with fingers.

SEC387C

Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned “ON”.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 2.

2

CHECK POWER SUPPLY

1. Turn ignition switch “OFF”.
2. Disconnect fuel pump relay.

SEC388C

3. Turn ignition switch “ON”.
4. Check voltage between terminals 2, 3 and ground with CONSULT-II or tester.

SEC424C

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

FUEL PUMP

Diagnostic Procedure

EC-206
