Nissan Silvia. Manual - part 144





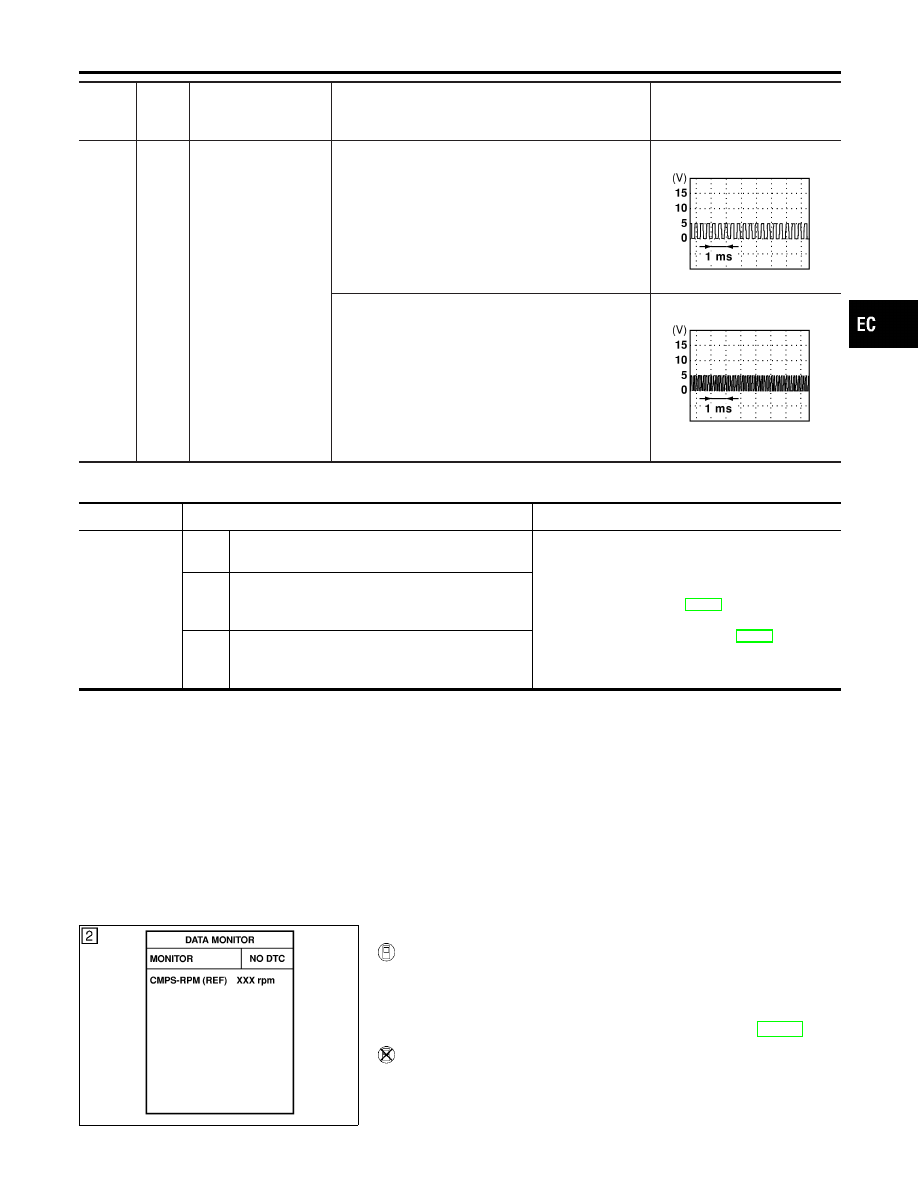

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

30

B/Y

Camshaft position sen-
sor (Position signal)

[Engine is running]

I

Warm-up condition

I

Idle speed

Approximately 2.5V

SEC364C

[Engine is running]

I

Engine speed is 2,000 rpm

Approximately 2.4V

SEC365C

On Board Diagnosis Logic

NMEC0666

DTC No.

Malfunction is detected when ...

Check Items (Possible Cause)

0101

A)

Either 1° or 180° signal is not sent to ECM for the
first few seconds during engine cranking.

I

Harness or connectors
(The camshaft position sensor circuit is open or
shorted.)

I

Camshaft position sensor

I

Starter motor (Refer to SC-12, “STARTING
SYSTEM”.)

I

Starting system circuit (Refer to SC-12,
“STARTING SYSTEM”.)

I

Dead (Weak) battery

B)

Either 1° or 180° signal is not sent to ECM often
enough while the engine speed is higher than the
specified engine speed.

C)

The relation between 1° and 180° signal is not in
the normal range during the specified engine
speed.

DTC Confirmation Procedure

NMEC0667

Perform “Procedure for malfunction A” first. If DTC cannot be
confirmed, perform “Procedure for malfunction B and C”.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is more than 10.5V.

SEC447C

PROCEDURE FOR MALFUNCTION A

NMEC0667S01

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Crank engine for at least 2 seconds.

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-94.

Without CONSULT-II

1)

Crank engine for at least 2 seconds.

2)

Turn ignition switch “OFF”, wait at least 5 seconds and then
turn “ON”.

GI

MA

EM

LC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC 0101 CAMSHAFT POSITION SENSOR (CMPS)

ECM Terminals and Reference Value (Cont’d)

EC-91

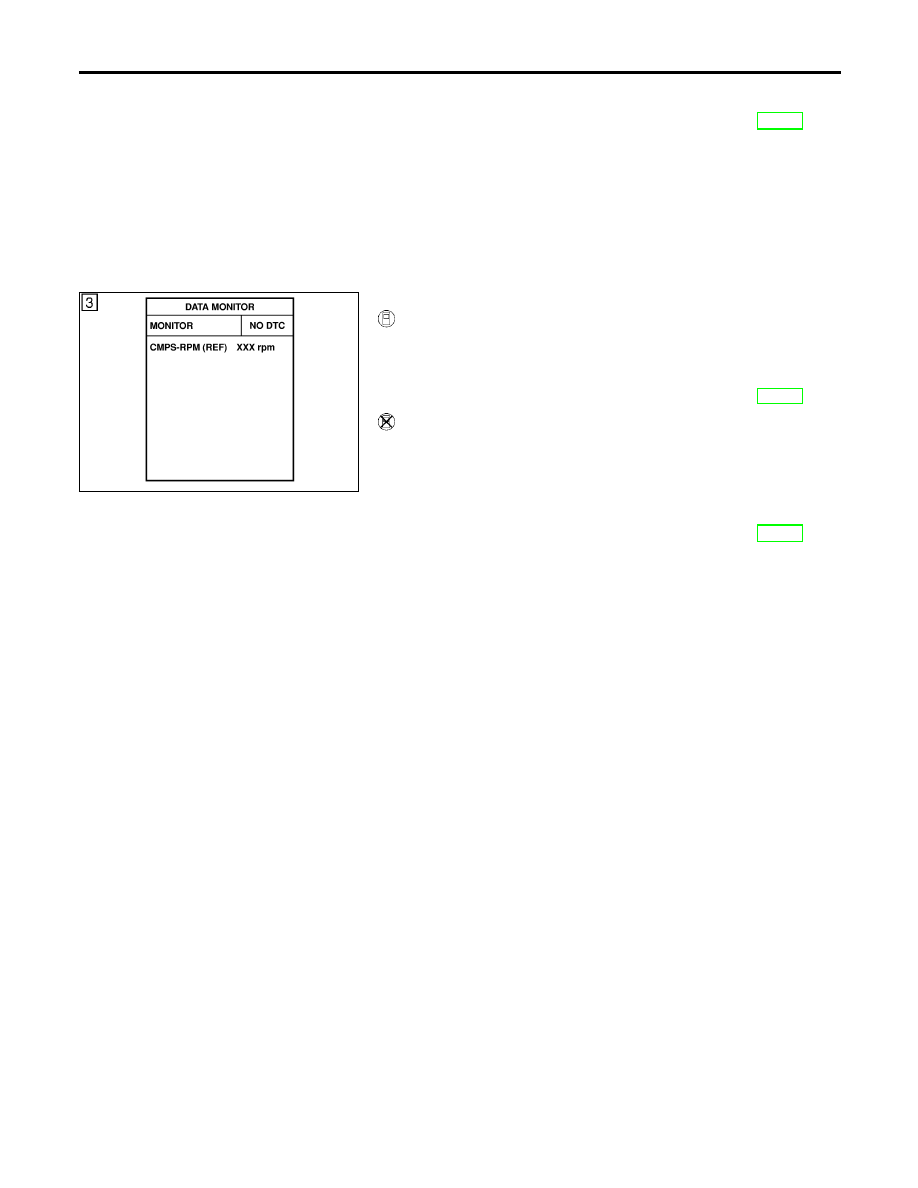

3)

Perform “Diagnostic Test Mode II” (Self-diagnostic results) with
ECM.

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-94.

SEC447C

PROCEDURE FOR MALFUNCTION B AND C

NMEC0667S02

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and run it for at least 2 seconds at idle speed.

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-94.

Without CONSULT-II

1)

Start engine and run it for at least 2 seconds at idle speed.

2)

Turn ignition switch “OFF”, wait at least 5 seconds and then
turn “ON”.

3)

Perform “Diagnostic Test Mode II” (Self-diagnostic results) with
ECM.

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-94.

DTC 0101 CAMSHAFT POSITION SENSOR (CMPS)

DTC Confirmation Procedure (Cont’d)

EC-92

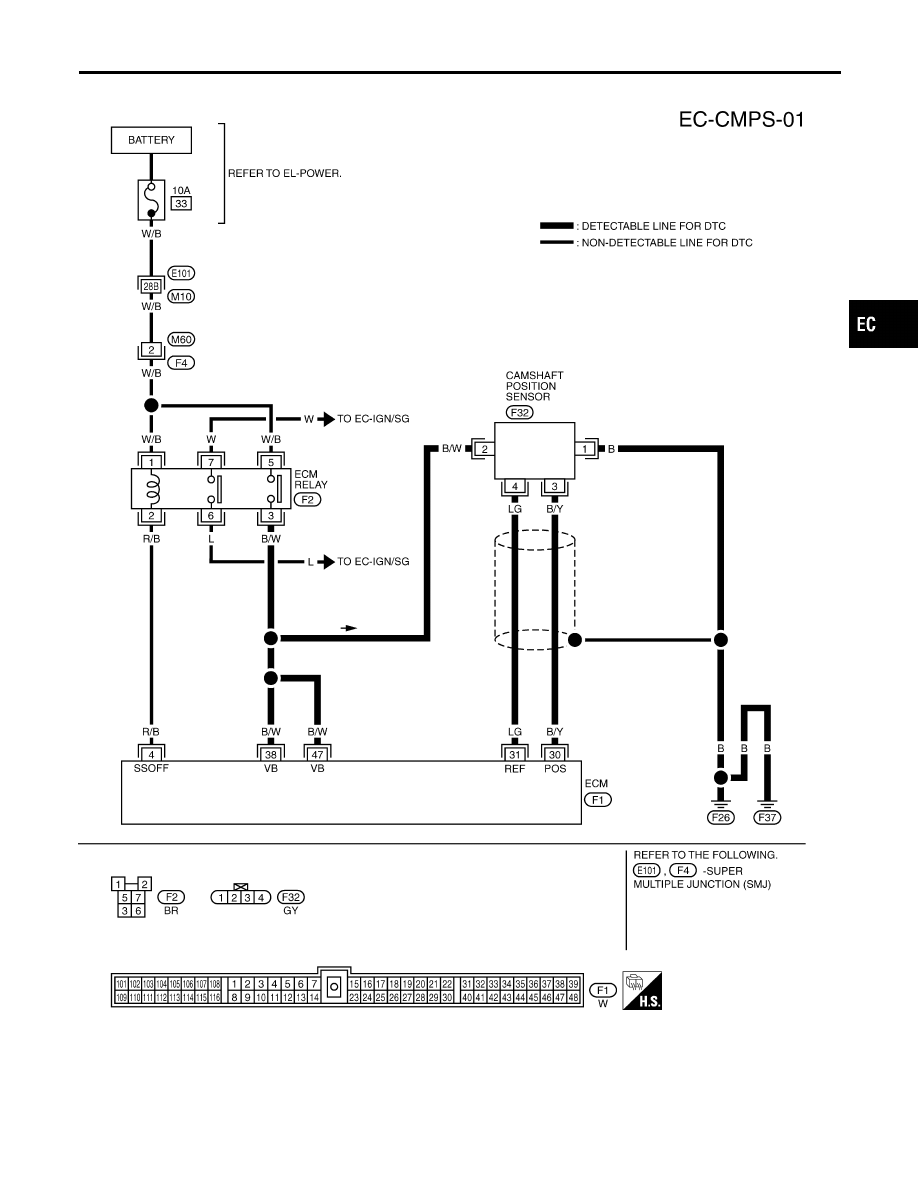

Wiring Diagram

NMEC0668

TEC799

GI

MA

EM

LC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC 0101 CAMSHAFT POSITION SENSOR (CMPS)

Wiring Diagram

EC-93

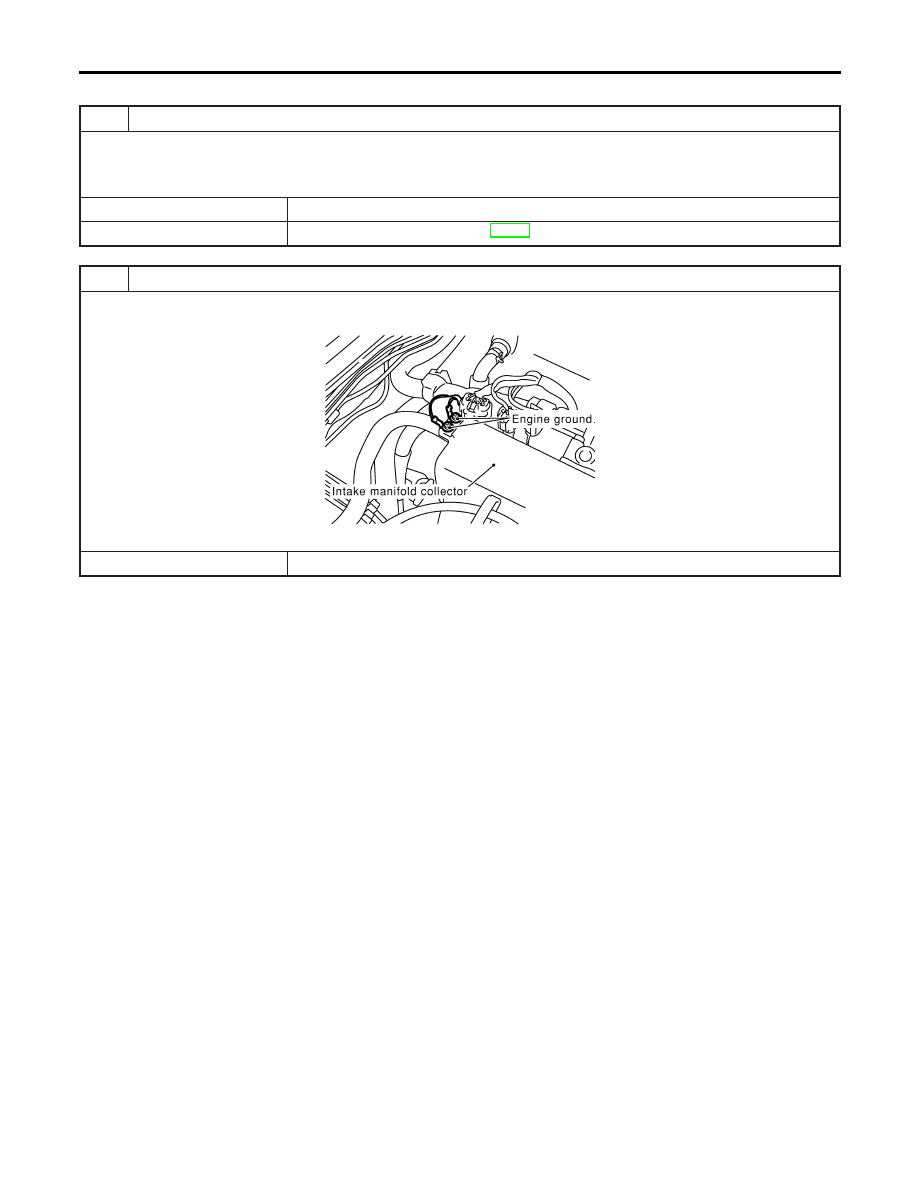

Diagnostic Procedure

NMEC0669

1

CHECK STARTING SYSTEM

Does the engine turn over?
(Does the starter motor operate?)

Yes or No

Yes

©

GO TO 2.

No

©

Check starting system. (Refer to SC-12, “STARTING SYSTEM”.)

2

RETIGHTEN GROUND SCREWS

1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.

SEC377C

©

GO TO 3.

DTC 0101 CAMSHAFT POSITION SENSOR (CMPS)

Diagnostic Procedure

EC-94
