Nissan Silvia. Manual - part 116

Measurement Points

NMBT0026S0102

SBT092A

GI

MA

EM

LC

EC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

HA

SC

EL

IDX

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-55

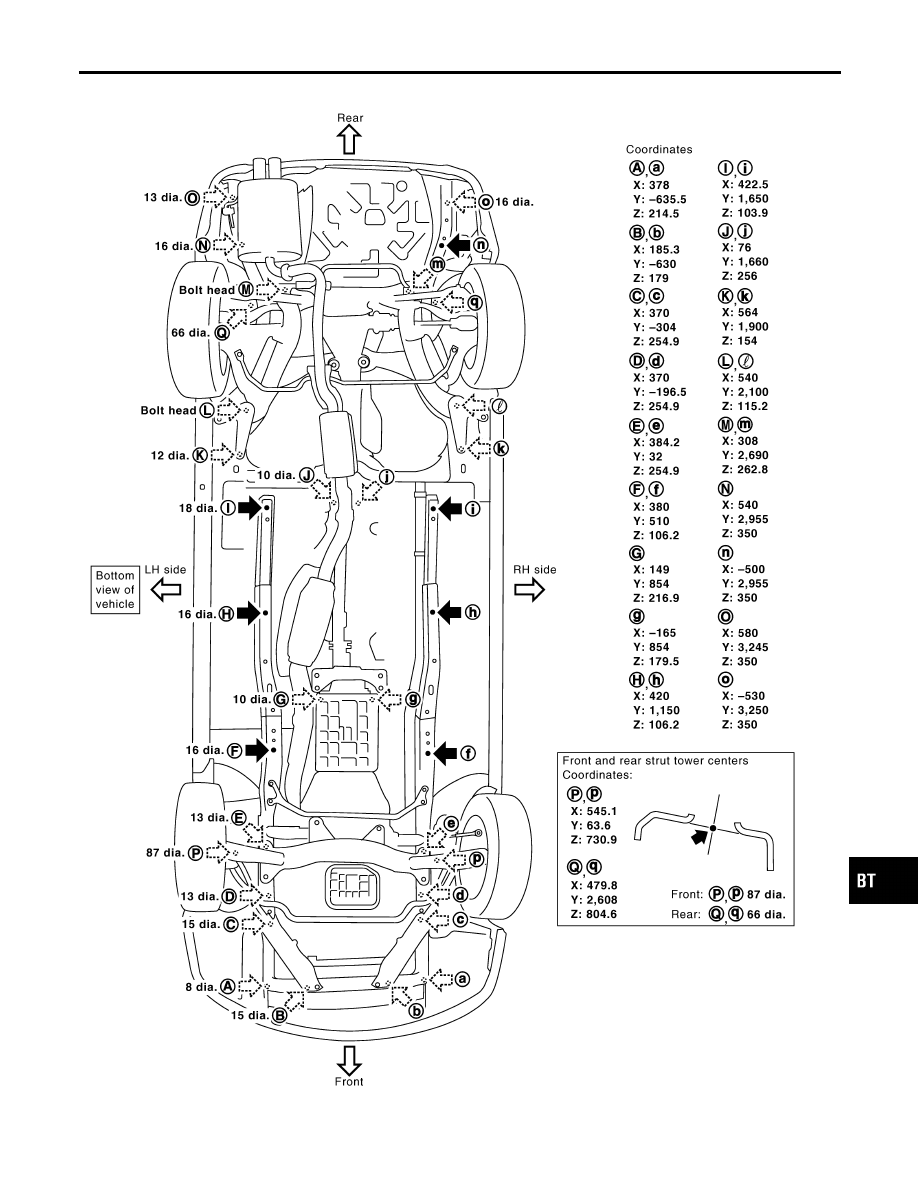

UNDERBODY

NMBT0026S02

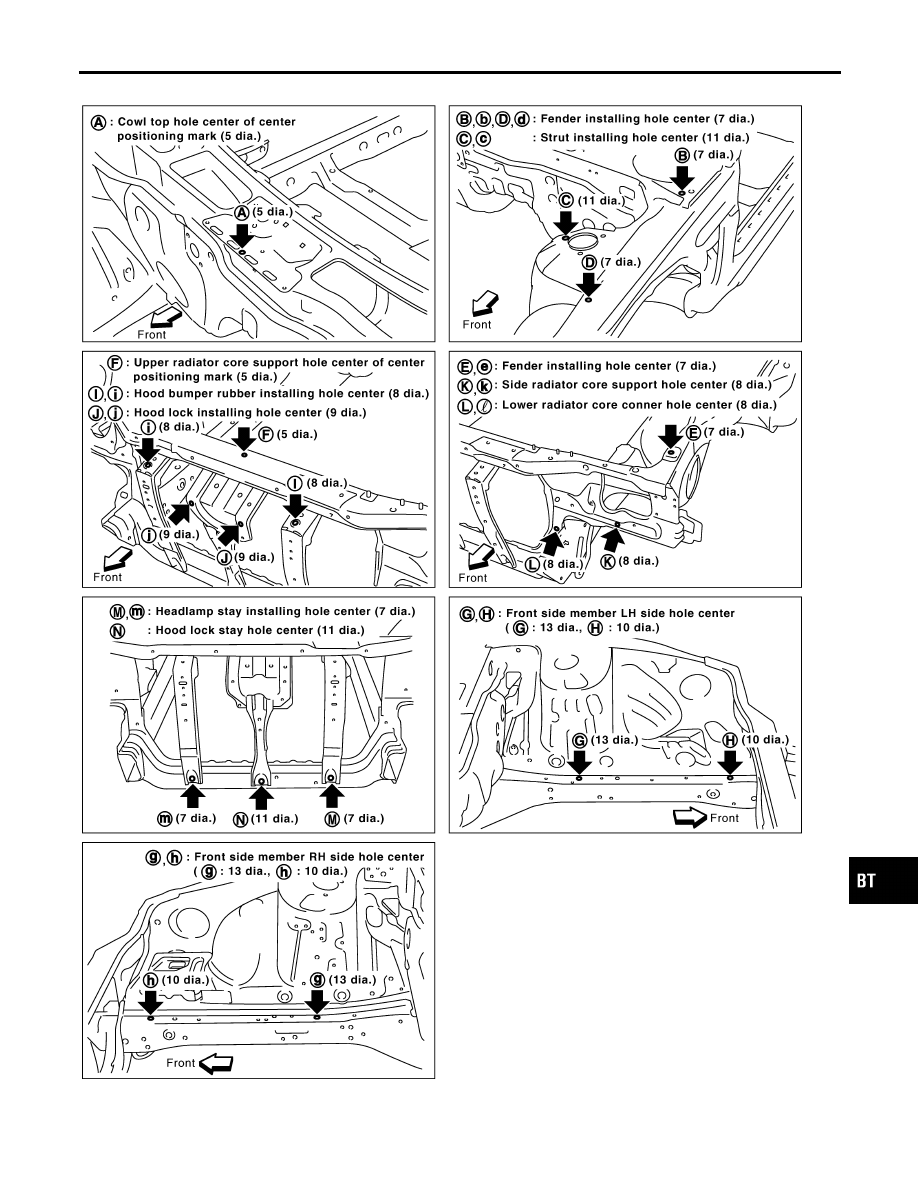

Measurement

NMBT0026S0201

SBT093A

BODY (ALIGNMENT)

Alignment (Cont’d)

BT-56

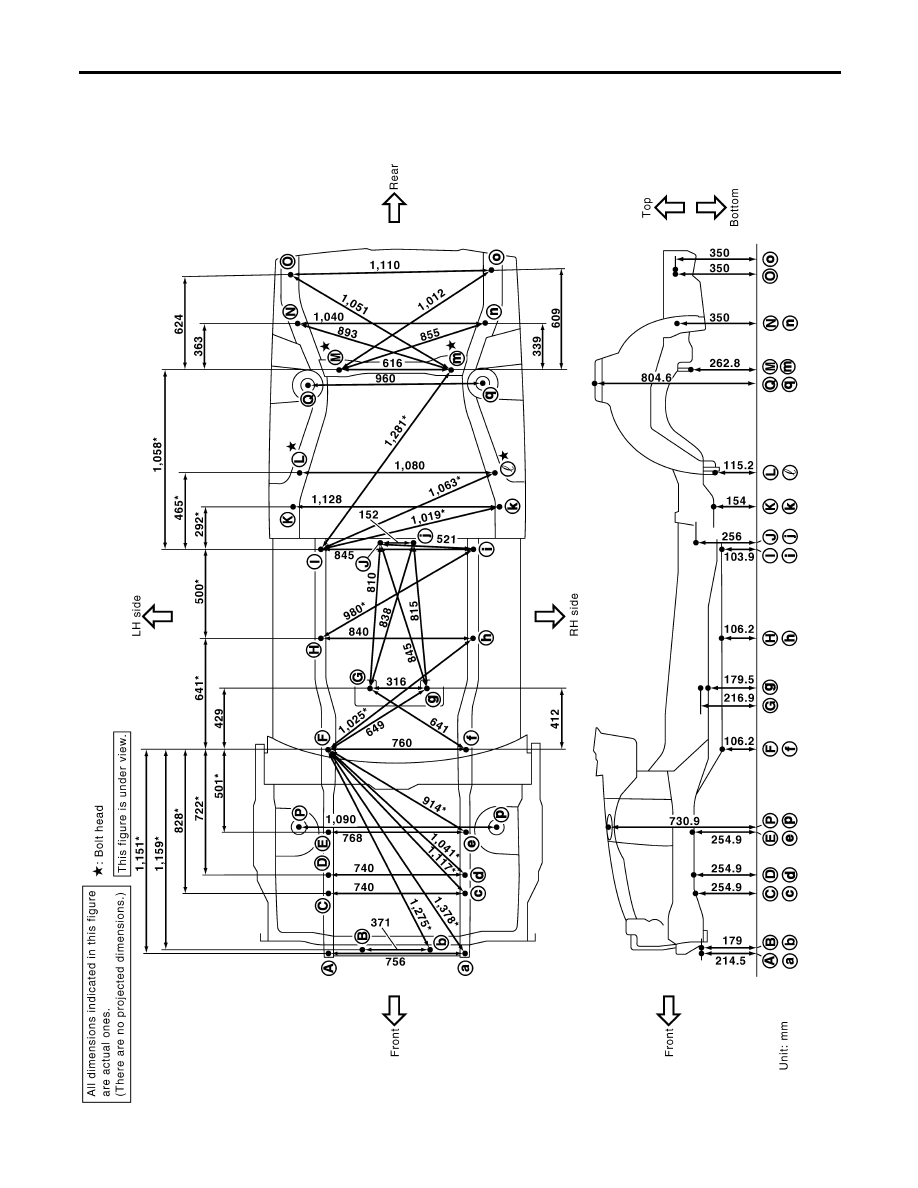

Measurement Points

NMBT0026S0202

SBT094A
