Checking Fuel Lines

NLFE0009

Inspect fuel lines and tank for improper attachment, leaks, cracks,
damage, loose connections, chafing or deterioration.
If necessary, repair or replace faulty parts.

MMA104A

CAUTION:

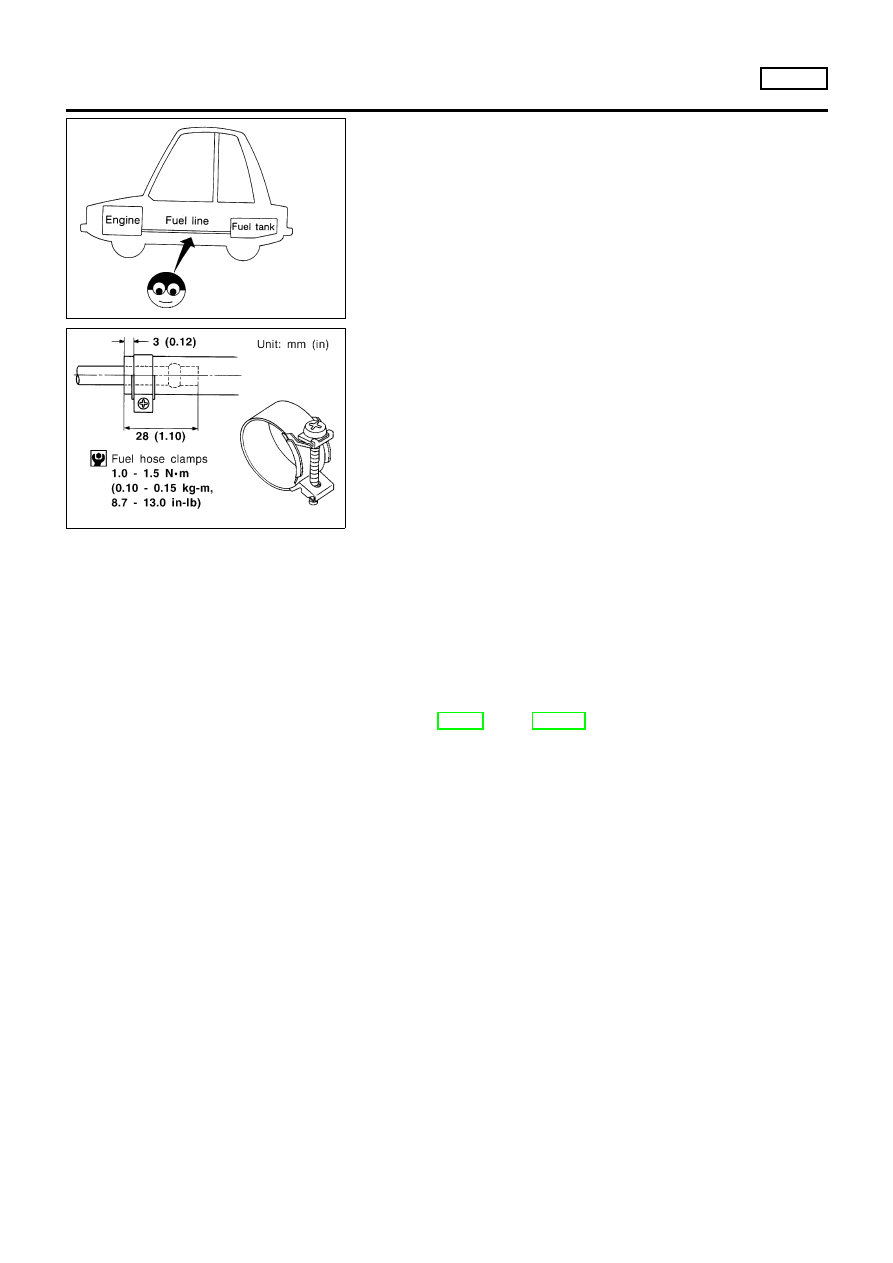

Tighten high-pressure rubber hose clamp so that clamp end is
3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber
hose clamps.
Ensure that screw does not contact adjacent parts.

Removal and Installation

NLFE0004

WARNING:

When replacing fuel line parts, be sure to observe the following.

Put a “CAUTION: FLAMMABLE” sign in workshop.

Be sure to furnish workshop with a CO

fire extinguisher.

Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

CAUTION:

Before removing fuel line parts, carry out the following procedures:

a) Put drained fuel in an explosion-proof container and put the lid on securely.
b) Release fuel pressure from fuel line. Refer to EC-43 (QG), EC-577 (SR) “Fuel Pressure Release”.
c) Disconnect battery ground cable.

Always replace O-ring and clamps with new ones.

Do not kink or twist tubes when they are being installed.

Do not tighten hose clamps excessively to avoid damaging hoses.

After installing tubes, run engine and check for fuel leaks at connections.

FUEL SYSTEM

QG/SR

Checking Fuel Lines

FE-5

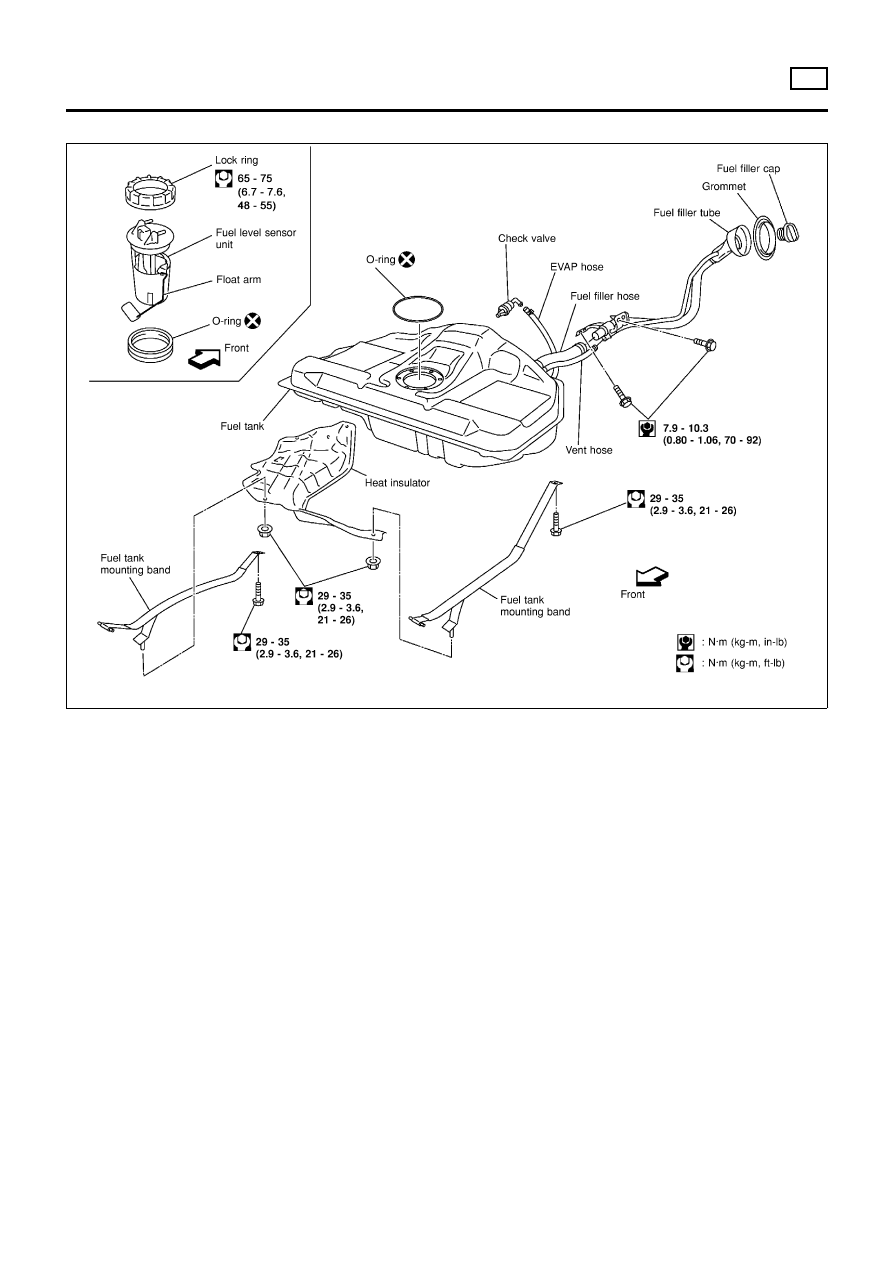

Fuel Tank

NLFE0006

YFE005

JFE613A

REMOVAL

NLFE0006S01

Disconnect battery ground cable.

Open fuel filler lid and filler cap.

Drain fuel from fuel tank.

Remove rear seat cushion. Refer to BT-49, “Removal and
Installation”.

Remove inspection hole cover under the rear seat.

FUEL SYSTEM

QG/SR

Fuel Tank

FE-6

SFE639A

SFE640A

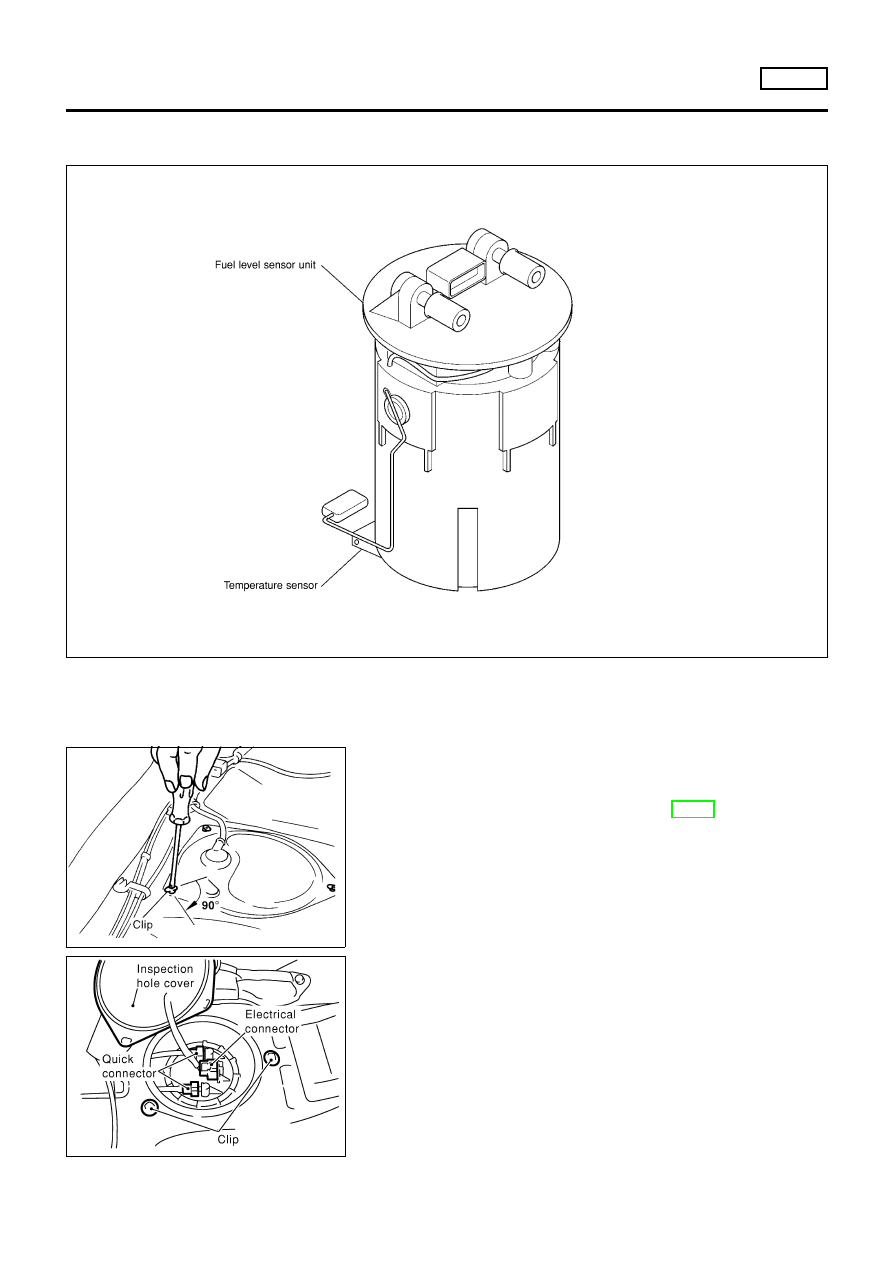

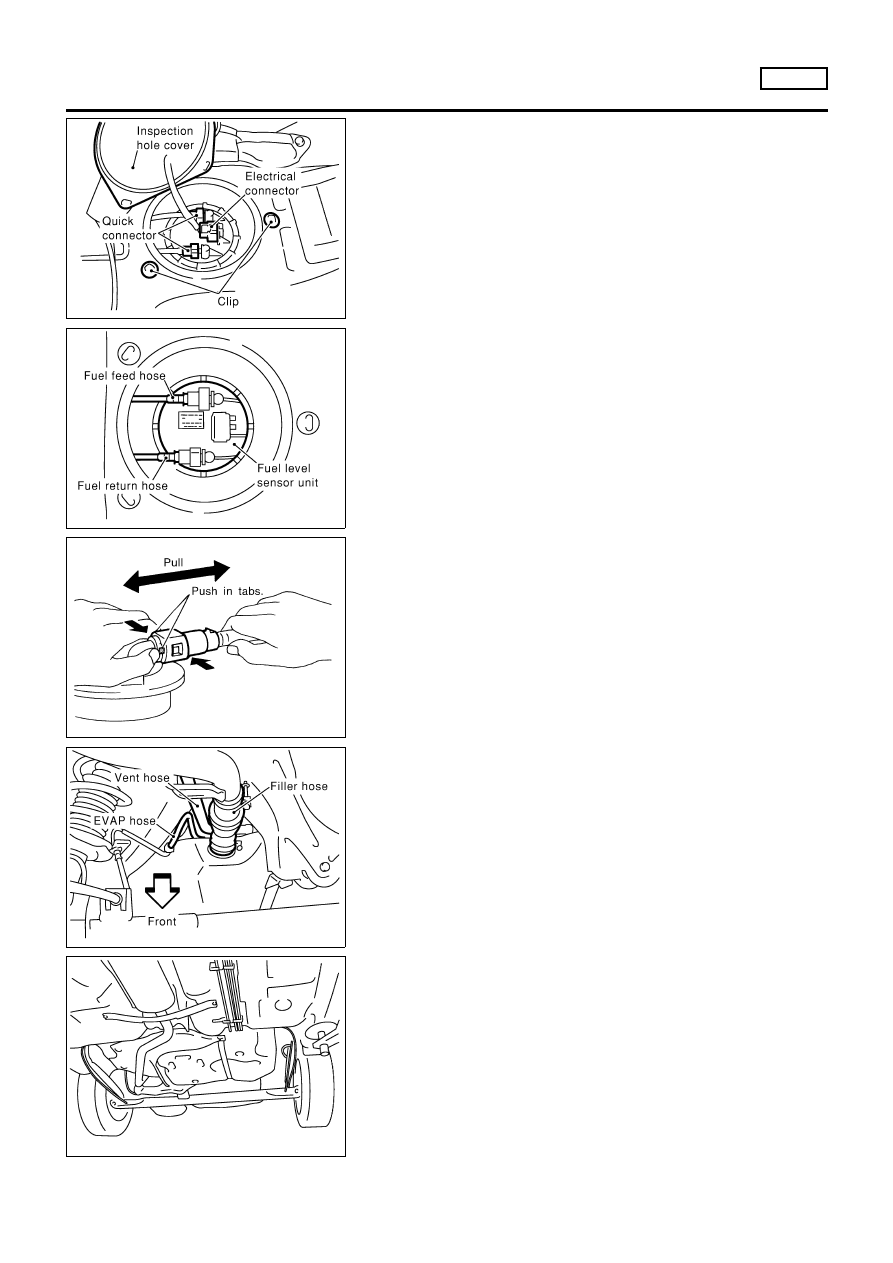

Disconnect electrical connector.

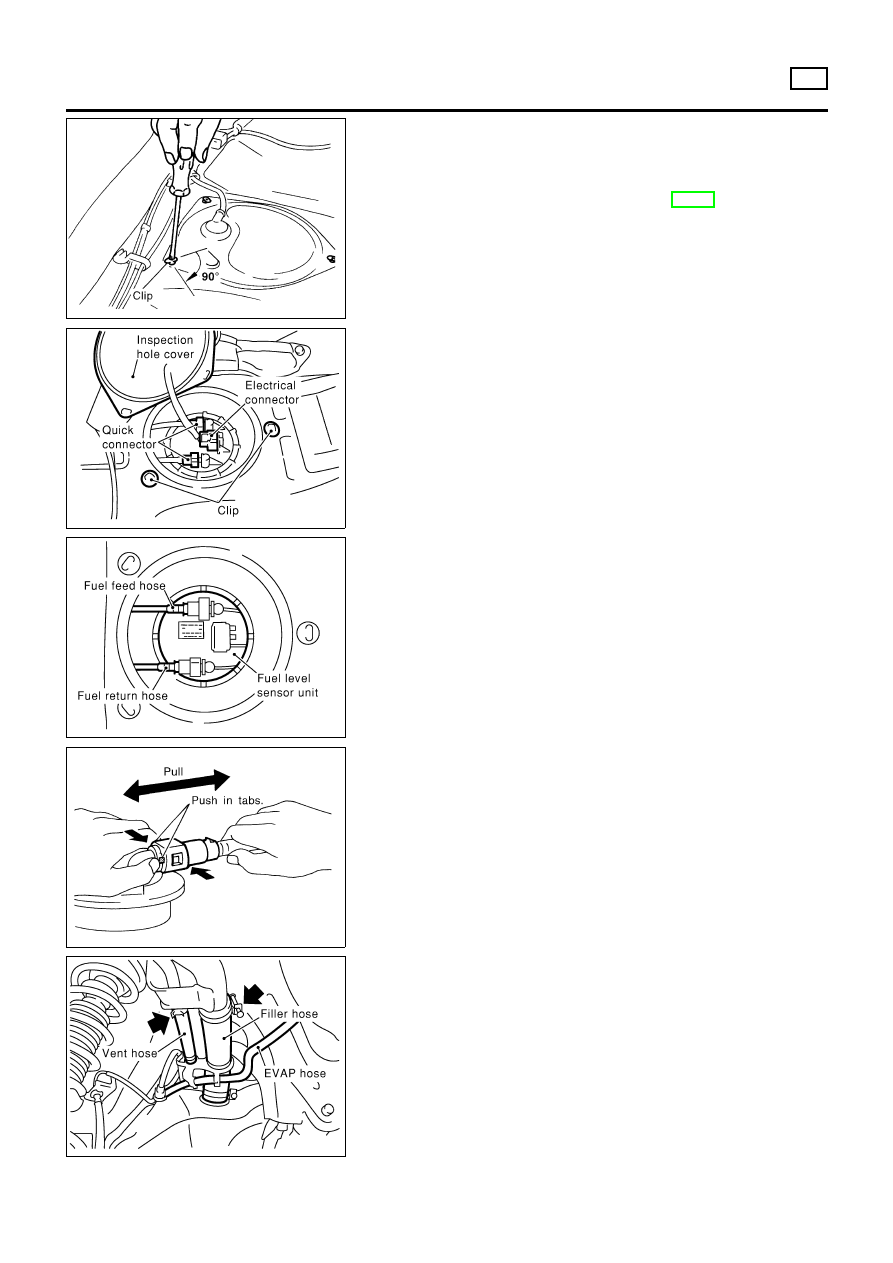

Disconnect the quick connector as follows.

Put mating marks on tubes and connectors for correct instal-
lation.

SFE562A

Hold the connector while pushing in tabs, and pull out the tube.

CAUTION:

The tube can be removed when the tabs are completely
depressed. Do not twist it more than necessary.

Do not use any tools to remove the quick connector.

Keep the resin tube away from heat. Be especially careful
when welding near the tube.

Prevent acid liquid such as battery electrolyte etc. from
getting on the resin tube.

Do not bend or twist the tube during installation and
removal.

SFE650A

From rear left area of fuel tank, remove filler hose, vent hose,
and EVAP hose.

CAUTION:

To prevent fuel from flowing out, install a blind cap immedi-
ately after the fuel hose is disconnected.

SFE642A

Remove exhaust center tube.

FUEL SYSTEM

QG/SR

Fuel Tank (Cont’d)

FE-7

SFE643A

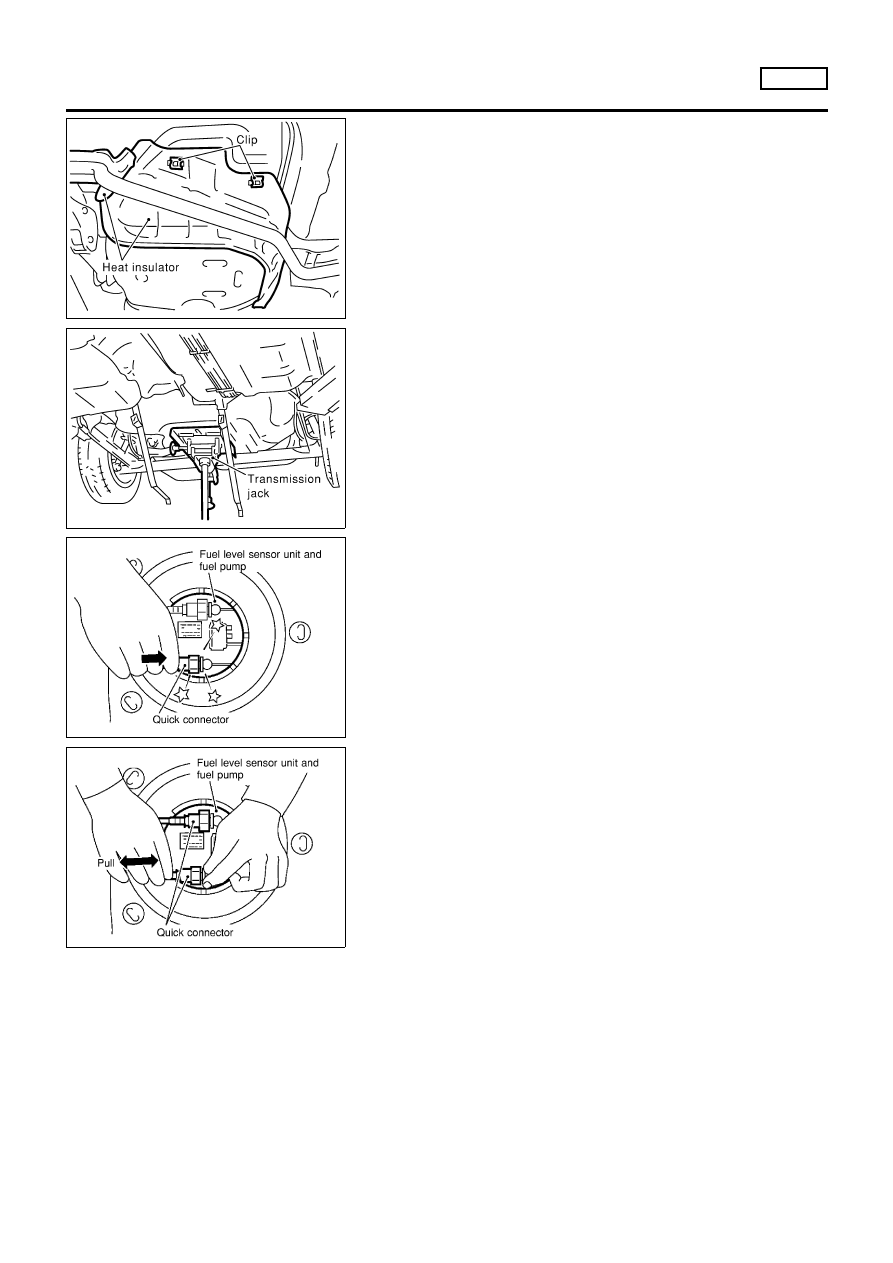

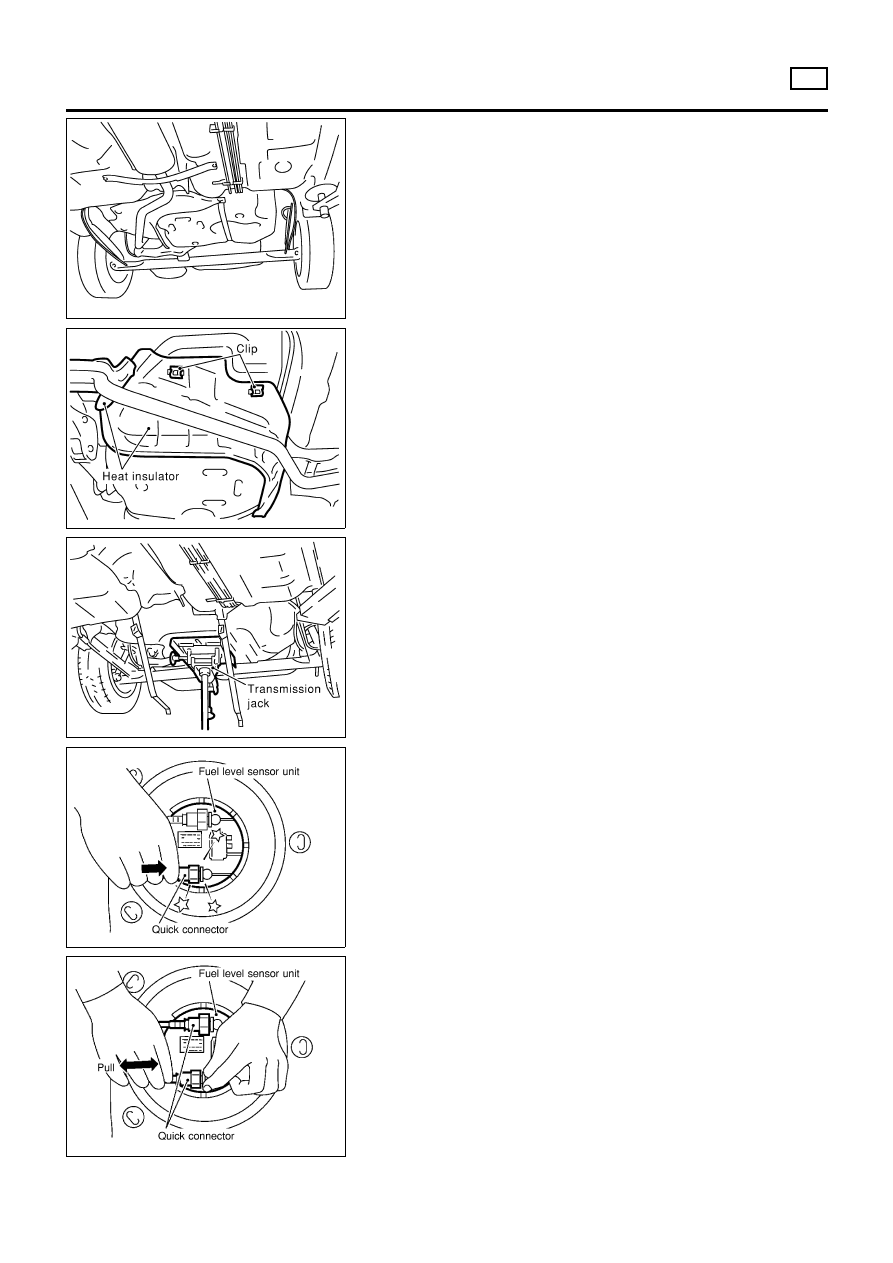

10. Remove heat insulators from fuel tank side.

SFE644A

11. Set a suitable transmission jack under fuel tank.
12. Remove fuel tank mounting band bolts while supporting fuel

tank.

13. Remove fuel tank.

NFE069

INSTALLATION

NLFE0006S02

To install, reverse the removal procedure. Connect the quick con-
nector as follows:

Align mating marks on tubes and connectors for correct instal-
lation.

Insert tube into the center of the connector until you hear a
click.

NFE070

After connecting quick connector, make sure the connection is
firmly made using the following method.

Pull on the fuel tube and connector to make sure they are firmly
connected.

Start the engine, increase engine speed and verify that there
are no leaks.

FUEL SYSTEM

QG/SR

Fuel Tank (Cont’d)

FE-8

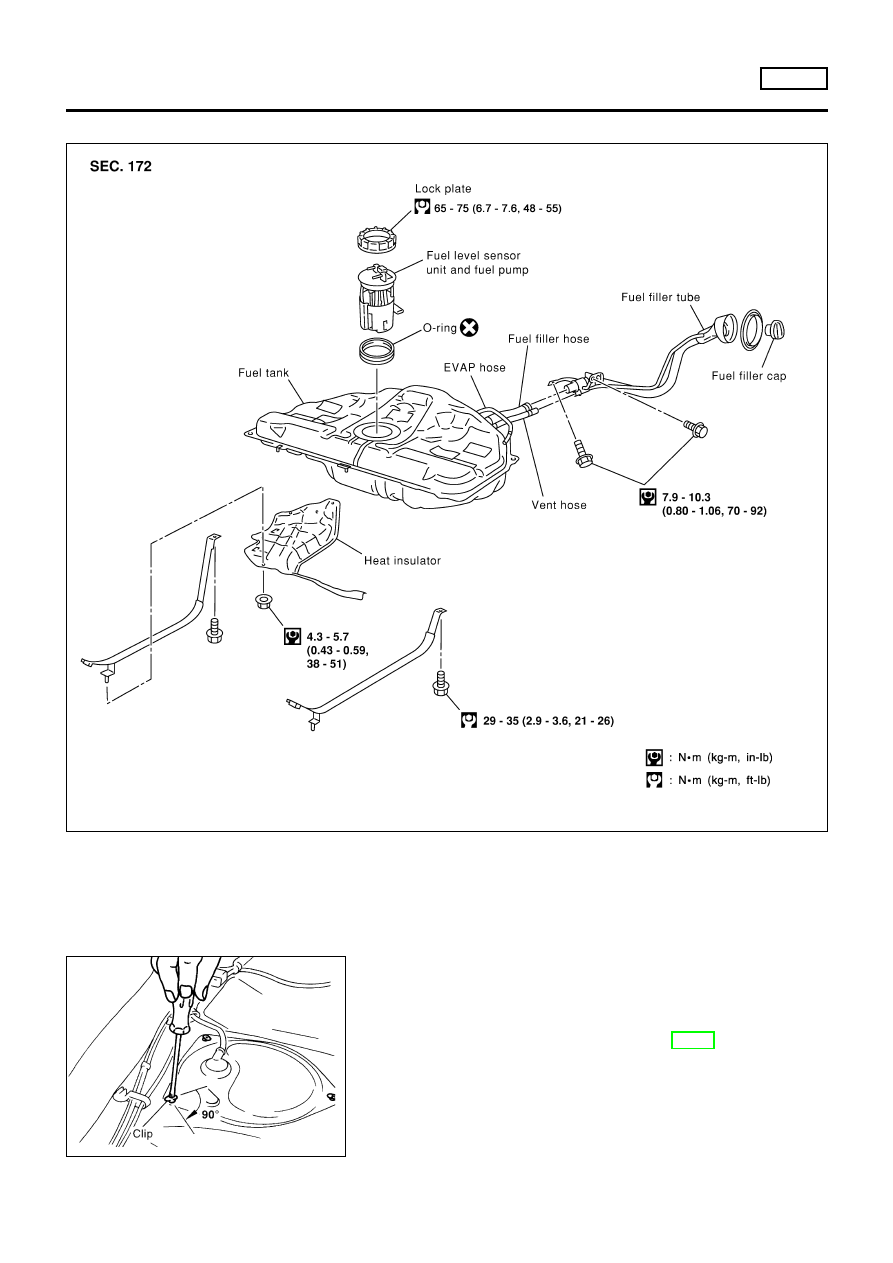

Fuel Pump, Fuel Level Sensor Unit and Fuel
Filter

NLFE0007

NFE065

JFE613A

REMOVAL

NLFE0007S01

Disconnect battery ground cable.

Open fuel filler lid and filler cap.

Remove rear seat cushion. Refer to BT-49, “Removal and
Installation”.

Remove inspection hole cover under the rear seat.

SFE639A

Disconnect electrical connector.

Disconnect the quick connectors.

For disconnect of quick connectors, refer to step 7. of “Fuel
Tank Removal”.

FUEL SYSTEM

QG/SR

Fuel Pump, Fuel Level Sensor Unit and Fuel Filter

FE-9

SFE376A

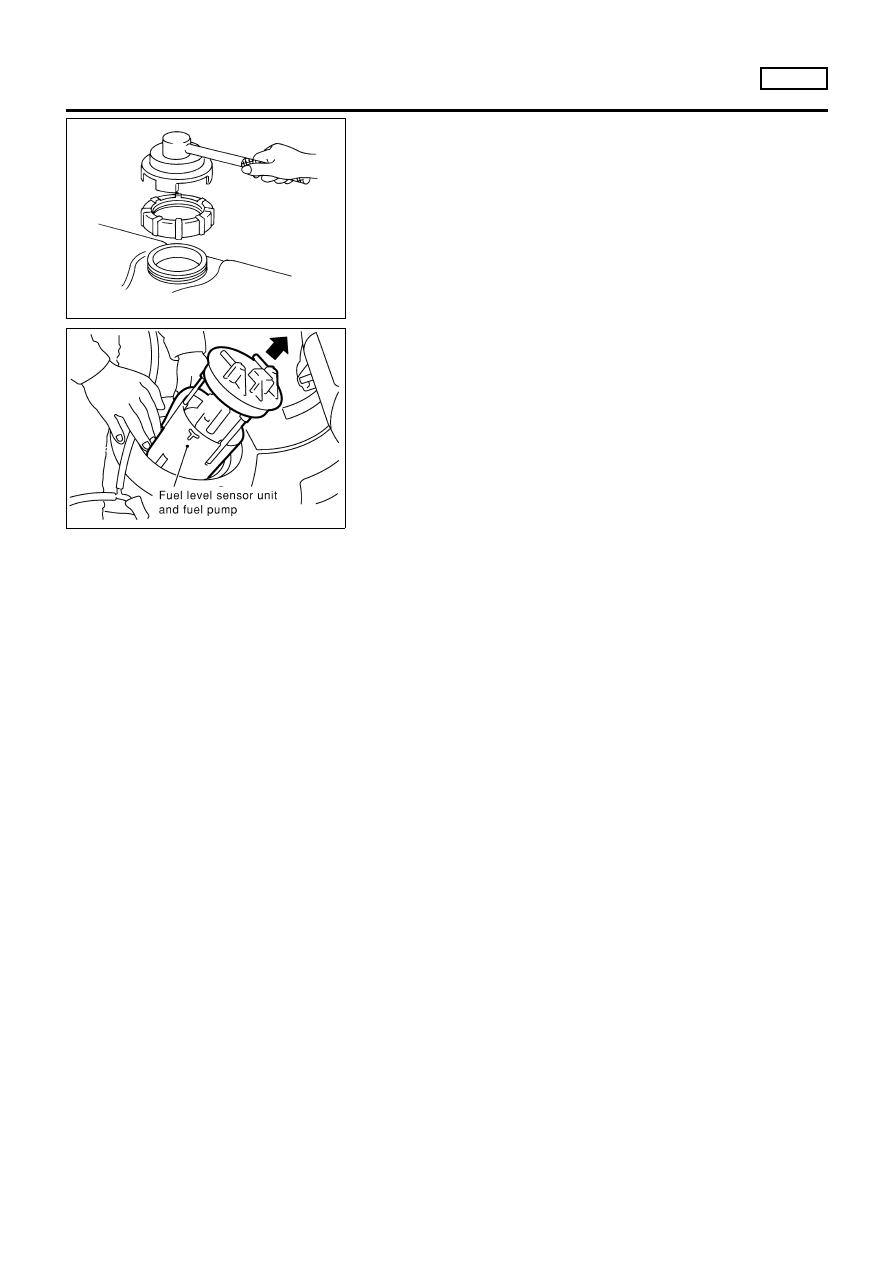

Remove lock ring using a lock ring socket (SST).

SFE648A

Pull out the fuel level sensor unit and fuel pump.

Do not damage the arm of the fuel level sensor unit and
fuel tank temperature sensor.

INSTALLATION

NLFE0007S02

Installation is in reverse order of removal.

FUEL SYSTEM

QG/SR

Fuel Pump, Fuel Level Sensor Unit and Fuel Filter (Cont’d)

FE-10

SMA211A

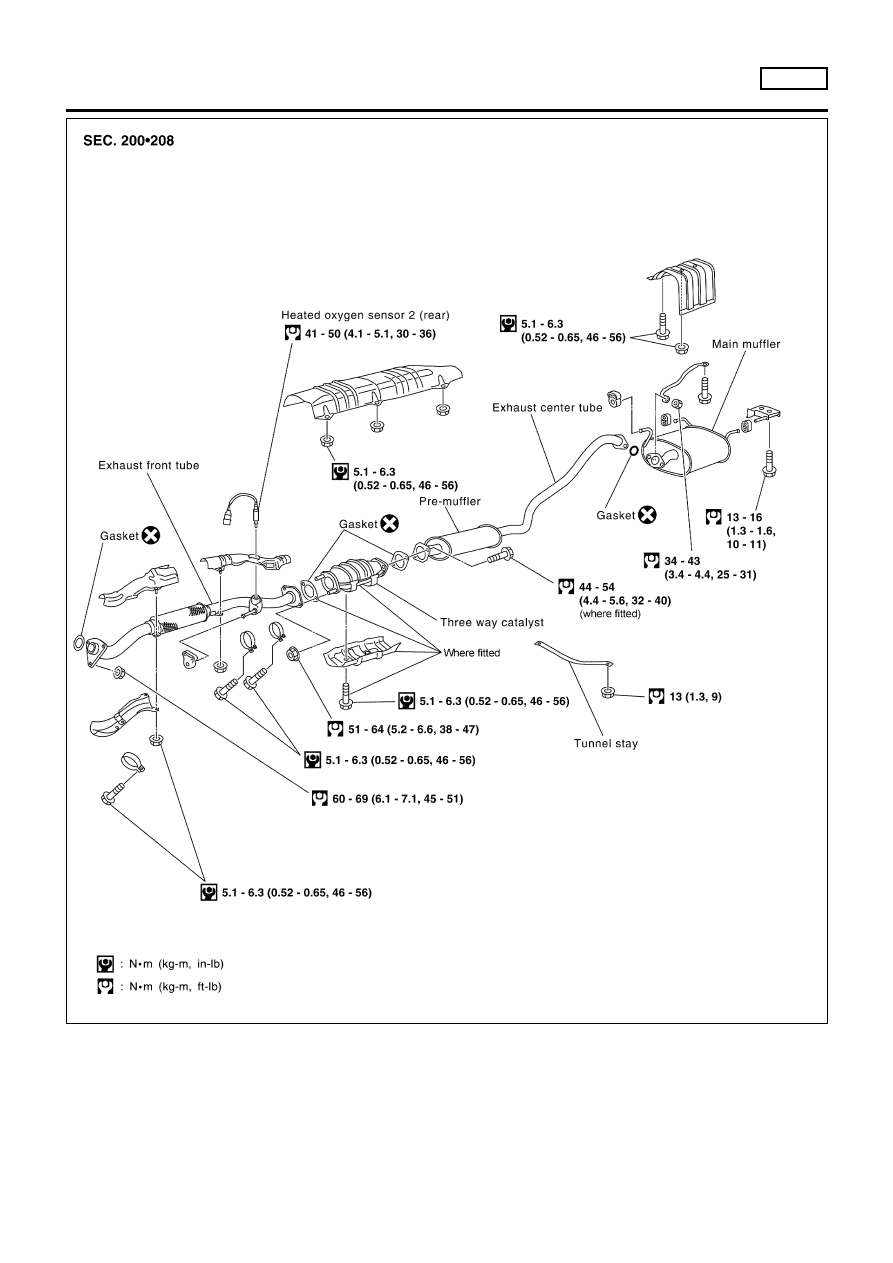

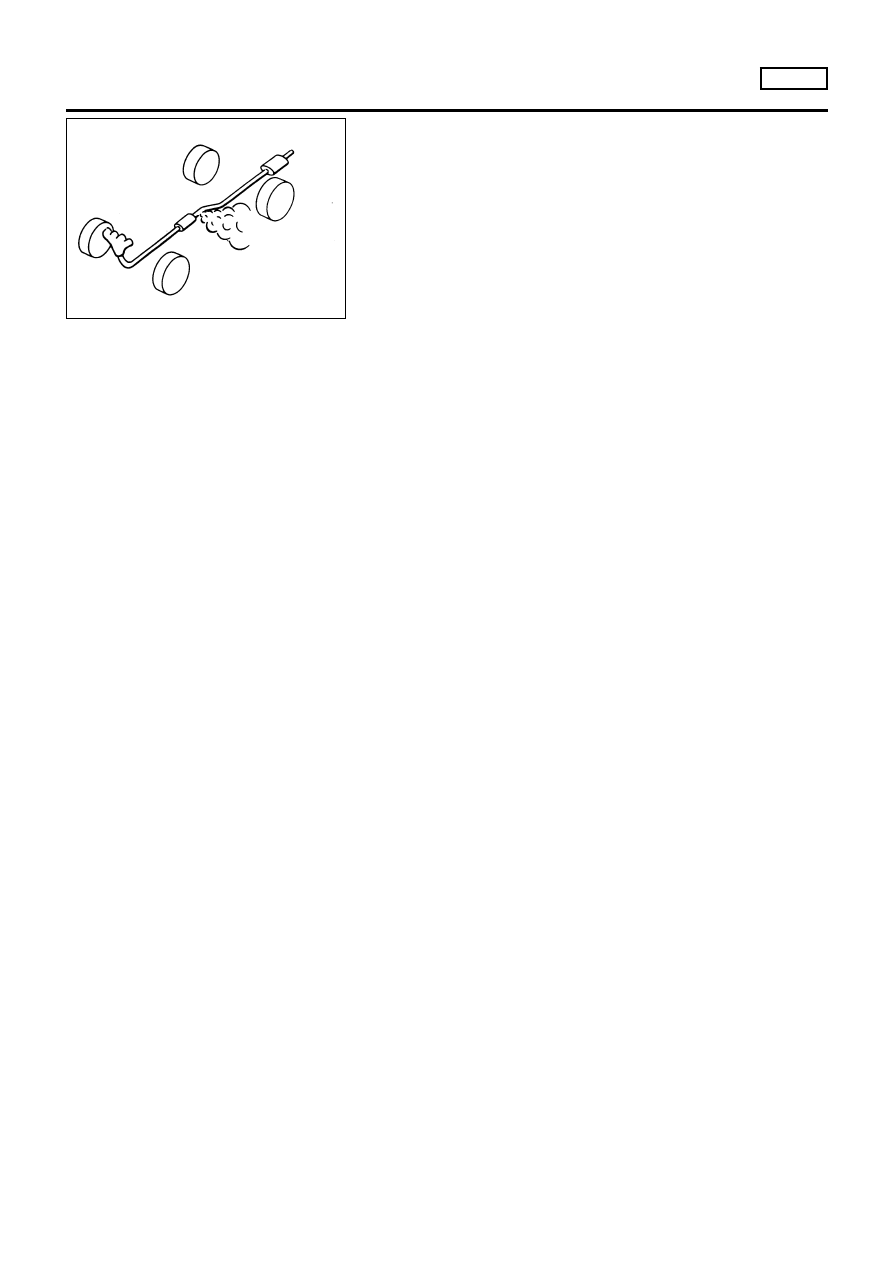

Checking Exhaust System

NLFE0010

Check

exhaust

pipes,

muffler

and

mounting

for

improper

attachment, leaks, cracks, damage, chafing or deterioration.

Removal and Installation

NLFE0005

CAUTION:

Always replace exhaust gaskets with new ones when
reassembling.

With engine running, check all tube connections for
exhaust gas leaks, and entire system for unusual noises.

Check to ensure that mounting brackets and mounting
insulators are installed properly and free from undue
stress. Improper installation could result in excessive
noise or vibration.

Discard any heated oxygen sensor which has been
dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.

Before installing a new oxygen sensor, clean exhaust sys-
tem threads using oxygen sensor thread cleaner tool and
apply anti-seize lubricant.

Do not overtorque the oxygen sensor. Doing so may
cause damage to the oxygen sensor, resulting in the MI
coming on.

Be sure to use genuine exhaust system parts which are
designed

especially

for

heat

resistance,

corrosion

resistance, and shape.

Perform the operation with the exhaust system fully
cooled down because the system will be heated just after
the engine stops.

Be careful not to cut your hand on the insulator edge.

EXHAUST SYSTEM

QG/SR

Checking Exhaust System

FE-11

YFE003

EXHAUST SYSTEM

QG/SR

Removal and Installation (Cont’d)

FE-12

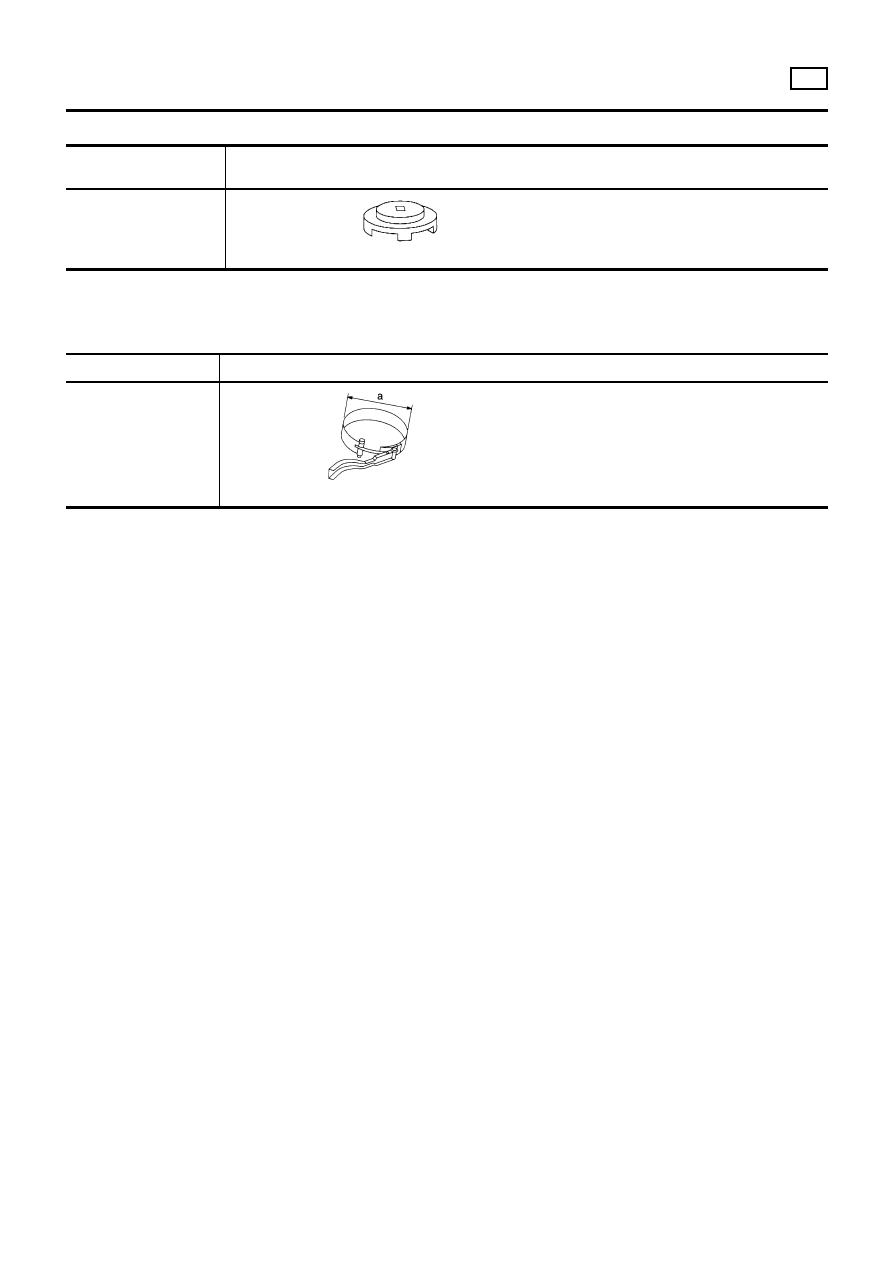

Special Service Tool

NLFE0031

Tool number
Tool name

Description

KV999G0010
Fuel tank lock ring
socket

NT057

Removing and installing fuel tank lock
ring

Commercial Service Tool

NLFE0027

Tool name

Description

Fuel filter wrench

NT553

Removing fuel filter
a: Max. 100 mm (3.94 in) dia.

PREPARATION

Special Service Tool

FE-13

Removal and Installation

NLFE0013

CAUTION:

Do not disassemble the accelerator pedal assembly. Do not remove the sensors and the switches
from the assembly.

Avoid impact from dropping etc. during handling.

Be careful to keep the assembly away from water.

Do not adjust the adjusting screw (painted white) of the accelerator work unit.

When the connector of the accelerator sensor is disconnected, reconnect the connector, and touch
“CLEAR” in “OFF ACCEL PO SIG” of the active test using the CONSULT-II. Or, warm up the engine,
then leave it idling for approximately 10 minutes.

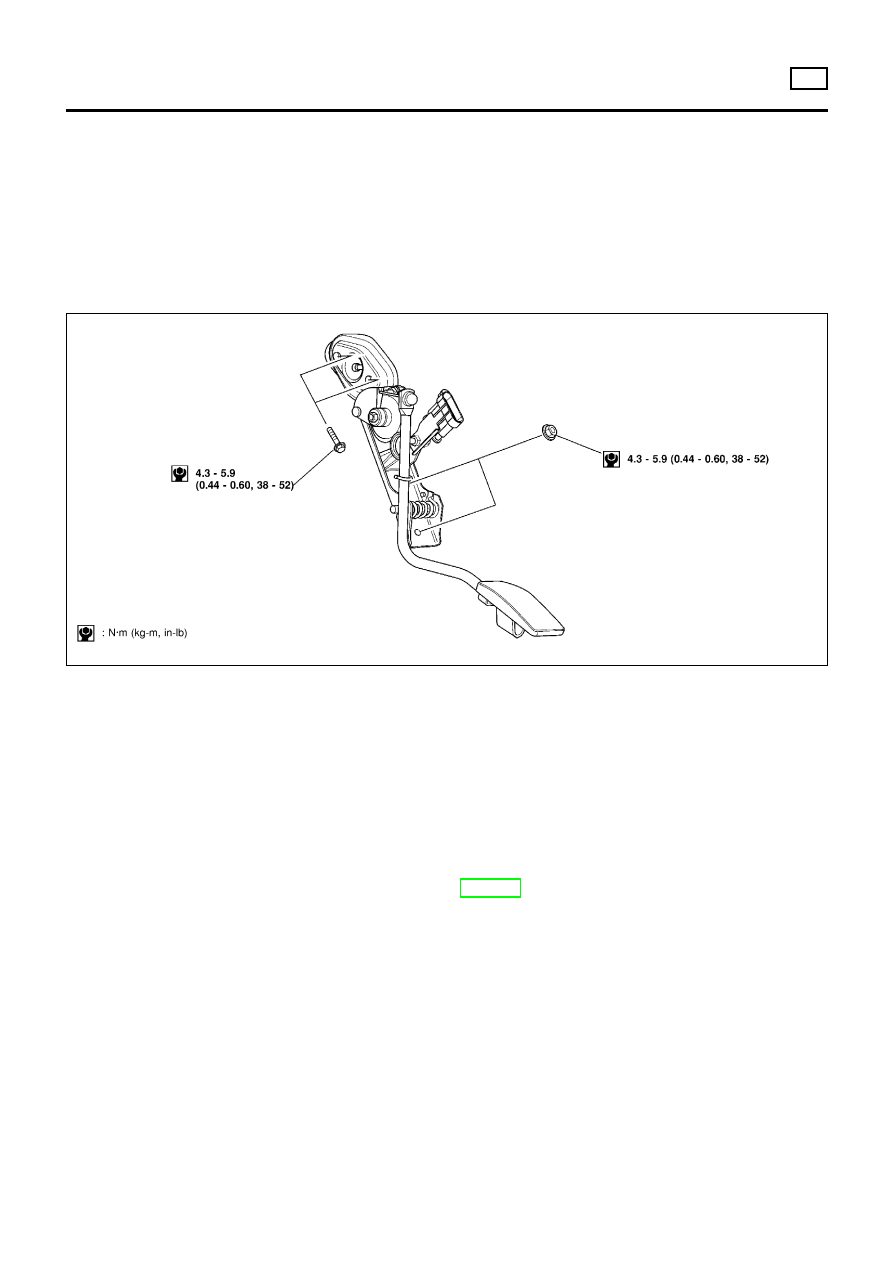

NFE067

Inspection

NLFE0020

Check that the accelerator pedal moves smoothly within the
whole operation range.

Check that the accelerator pedal securely returns to the origi-
nal position.

Check that the drum of the accelerator work unit can be fully
opened.

Refer to EC-1113, “Basic Inspection” for the inspection of the
accelerator work unit and the accelerator pedal switch.

ACCELERATOR CONTROL SYSTEM

Removal and Installation

FE-14

SMA803A

Checking Fuel Lines

NLFE0019

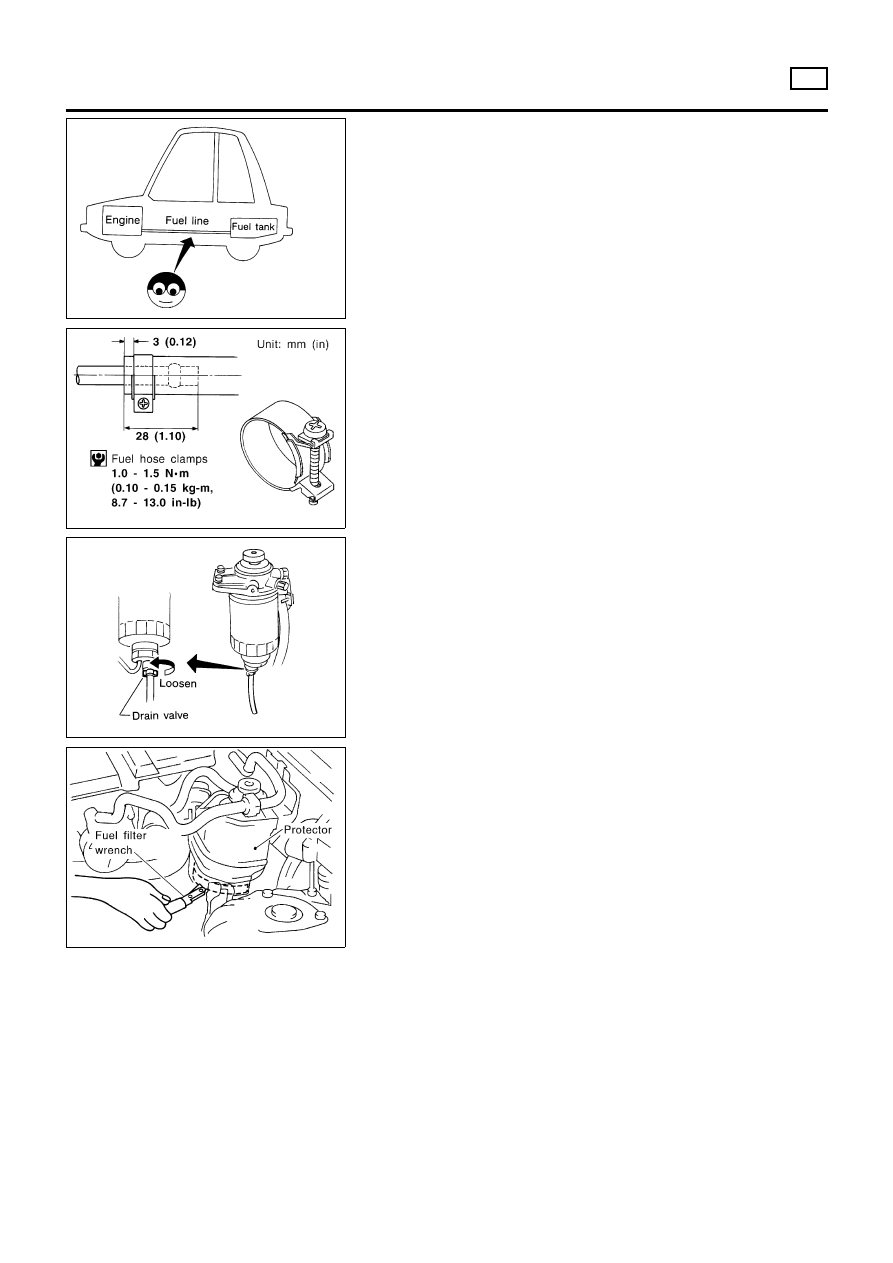

Inspect fuel lines and tank for improper attachment, leaks, cracks,
damage, chafing and deterioration.
If necessary, repair or replace.

MMA104A

CAUTION:

SMA794C

Water Draining from Fuel Filter

NLFE0028

DRAINING WATER

NLFE0028S01

Open drain valve at the bottom of fuel filter.

FUEL FILTER CHECK

NLFE0028S02

Check fuel filter for fuel leakage, damage and other abnormal
sings.

JFE598A

Changing Fuel Filter

NLFE0021

REMOVAL

NLFE0021S01

Take out air duct and upper air cleaner case.

Remove connector from water in fuel filter sensor.

Remove fuel filter using a fuel filter wrench (commercial ser-
vice tool).

CAUTION:

Do not spill the fuel during removal. If the fuel is spilt, imme-
diately wipe it off. Be especially careful to prevent the fuel
from adhering to the insulators of the engine mounts.
4.

Remove water in fuel filter sensor from fuel filter.

FUEL SYSTEM

Checking Fuel Lines

FE-15

JFE624A

INSTALLATION

NLFE0021S02

Install in the reverse order of removal.

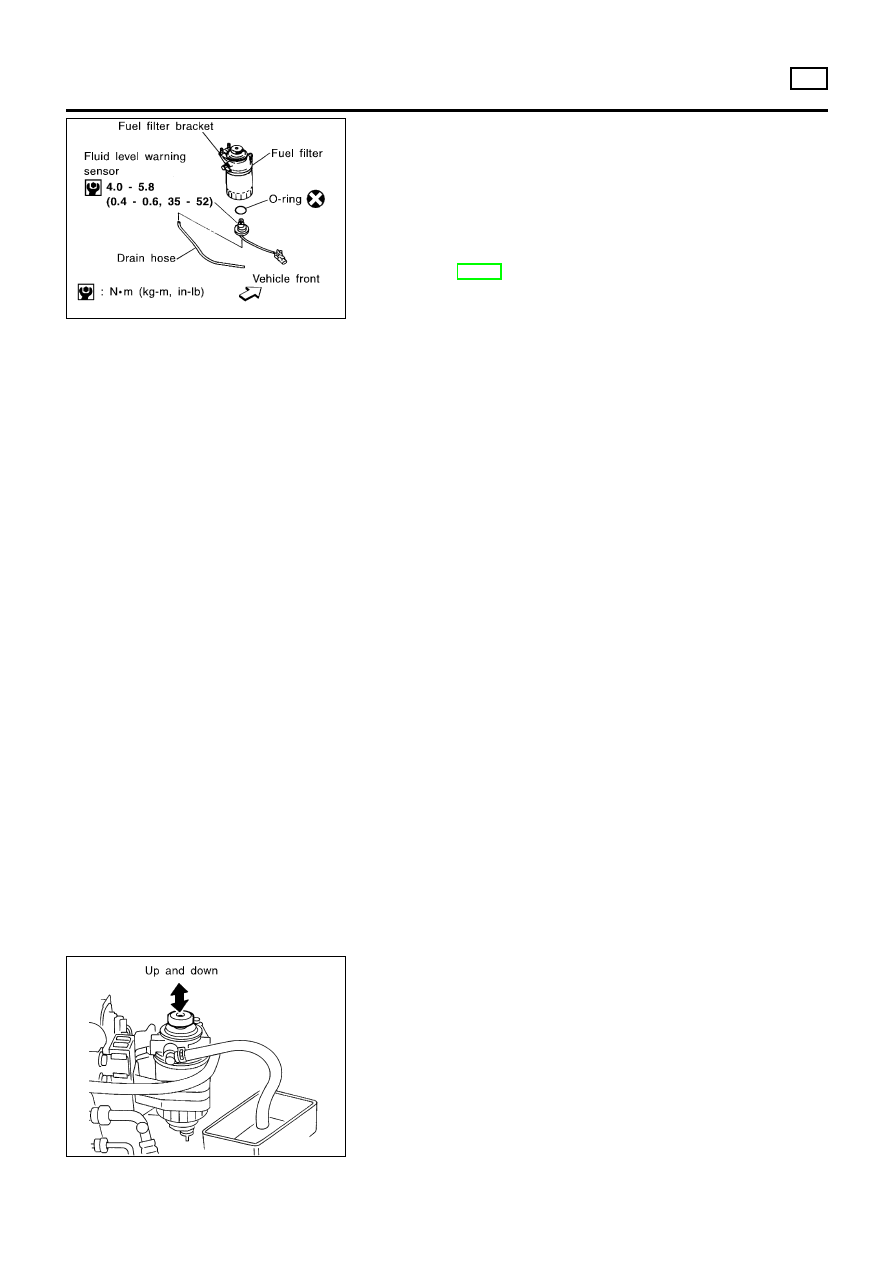

Replace the O-ring of the fuel level warning sensor with a new
one.

Tighten the fuel filter so that the sealing face contacts the
packing, then retighten it manually by approximately 2/3 turn.

After installation, operate the priming pump vertically to per-
form air bleeding.
Refer to FE-16, “Bleeding Fuel Filter”.

Bleeding Fuel Filter

NLFE0023

After the repair, bleed air from the piping by pumping the prim-
ing pump up and down until it becomes heavy.

To start the engine, rotate the starter for a maximum of 30
seconds.
To start the engine more quickly, crank the engine while pump-
ing the priming pump (requires two workers).

If the engine does not start after rotating the starter for a maxi-
mum of 30 seconds, stop it once, and pump the priming pump
again until it becomes heavy.

Rotate the starter again until the engine starts running.

After the engine starts, let it idle for at least 1 minute to stabi-
lize the behavior.

When air is bled completely, the pumping of the priming
pump suddenly becomes heavy. Stop the operation at that
time.

If it is difficult to bleed air by the pumping of the priming
pump (the pumping of the priming pump does not become
heavy), disconnect the fuel supply hose between the fuel
filter and the injection pump. Then, perform the operation
described above, and make sure that fuel comes out. (Use
a pan, etc. so as not to spill fuel. Do not let fuel get on
engine and other parts.) After that, connect the hose, then
bleed air again.

Start engine and let it idle for at least one minute after
performing air bleeding.

DEF017

Checking Priming Pump

NLFE0024

Before checking priming pump, make sure that fuel filter is
filled with fuel.
1.

Disconnect fuel return hose.

Place a suitable container beneath hose end.
2.

Pump priming pump and check that the fuel overflows from the
hose end. If not, replace priming pump.

FUEL SYSTEM

Changing Fuel Filter (Cont’d)

FE-16

SEF122U

Checking Water in Fuel Filter Sensor (where
fitted)

NLFE0025

Remove the connector from filter and water in fuel filter sen-
sor.

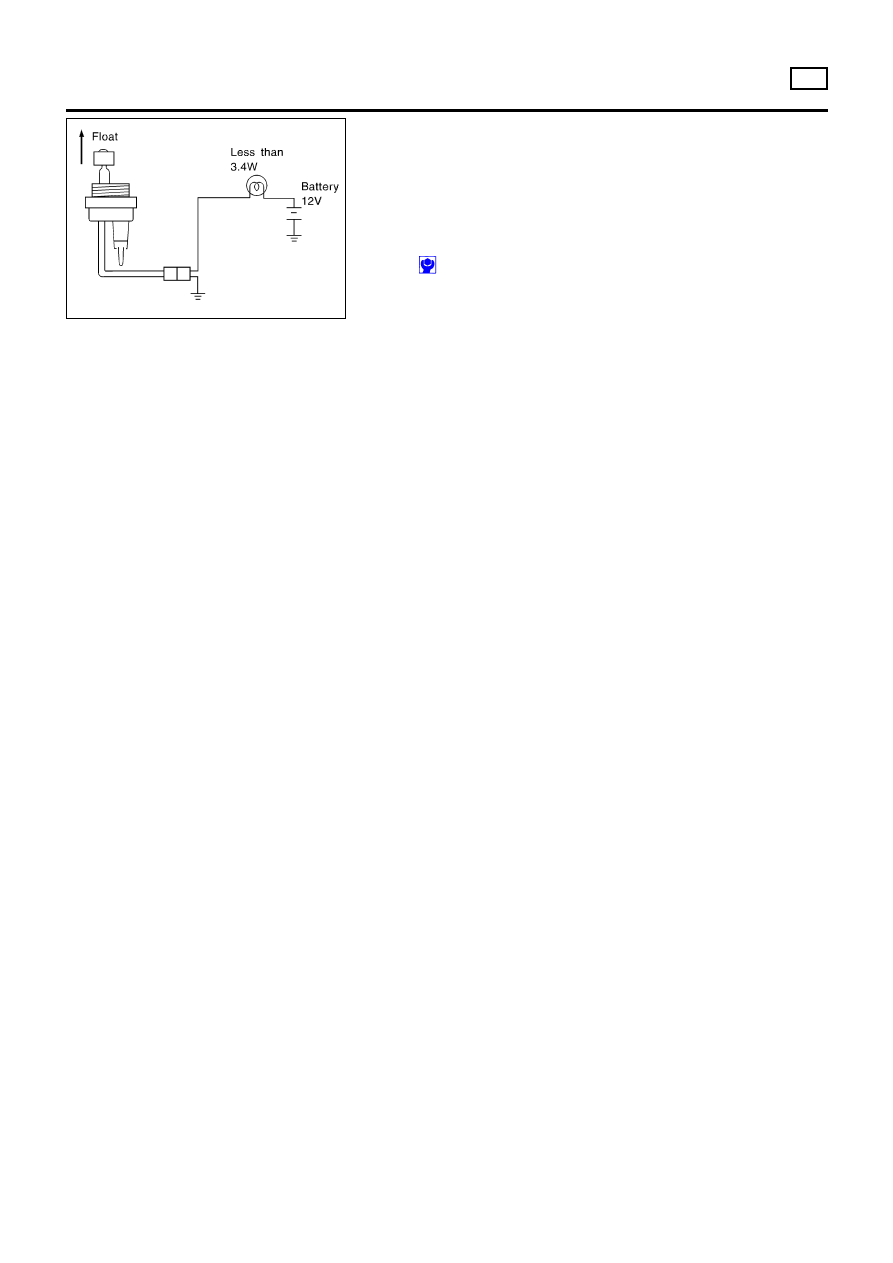

Turn the key switch “ON”. Lift the float to ensure that the
warning lamp turns on.

Water in fuel filter sensor tightening torque:

: 3.9 - 5.9 N·m (0.4 - 0.6 kg-m, 35 - 52 in-lb)

Discard the old O-ring and replace it with a new one.

Removal and Installation

NLFE0015

WARNING:

When replacing fuel line parts, be sure to observe the following.

Put a “CAUTION: FLAMMABLE” sign in workshop.

Be sure to furnish workshop with a CO

fire extinguisher.

Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

CAUTION:

Before removing fuel line parts, carry out the following procedures:

a) Put drained fuel in an explosion-proof container and put the lid on securely.
b) Disconnect battery ground cable.

Always replace O-ring and clamps with new ones.

Do not kink or twist tubes when they are being installed.

Do not tighten hose clamps excessively to avoid damaging hoses.

After installing tubes, run engine and check for fuel leaks at connections.

FUEL SYSTEM

Checking Water in Fuel Filter Sensor (where fitted)

FE-17

Fuel Tank

NLFE0016

NFE081

FUEL SYSTEM

Fuel Tank

FE-18

JFE613A

SFE639A

SFE640A

REMOVAL

NLFE0016S01

Disconnect battery ground cable.

Open fuel filler lid and filler cap.

Drain fuel from fuel tank.

Remove rear seat cushion. Refer to BT-49, “Removal and
Installation”.

Remove inspection hole cover under the rear seat.

Disconnect electrical connector.

Disconnect the quick connector as follows.

Put mating marks on tubes and connectors for correct instal-
lation.

SFE562A

Hold the connector while pushing in tabs, and pull out the tube.

CAUTION:

The tube can be removed when the tabs are completely
depressed. Do not twist it more than necessary.

Do not use any tools to remove the quick connector.

Keep the resin tube away from heat. Be especially careful
when welding near the tube.

Prevent acid liquid such as battery electrolyte etc. from
getting on the resin tube.

Do not bend or twist the tube during installation and
removal.

SFE641A

From rear left area of fuel tank, remove filler hose, vent hose,
and EVAP hose.

CAUTION:

To prevent fuel from flowing out, install a blind cap immedi-
ately after the fuel hose is disconnected.

FUEL SYSTEM

Fuel Tank (Cont’d)

FE-19

SFE642A

Remove exhaust center tube.

SFE643A

10. Remove heat insulators from fuel tank side.

SFE644A

11. Set a suitable transmission jack under fuel tank.
12. Remove fuel tank mounting band bolts while supporting fuel

tank.

13. Remove fuel tank.

NFE072

INSTALLATION

NLFE0016S02

To install, reverse the removal procedure. Connect the quick con-
nector as follows:

Align mating marks on tubes and connectors for correct instal-
lation.

Insert tube into the center of the connector until you hear a
click.

NFE073

After connecting quick connector, make sure the connection is
firmly made using the following method.

Pull on the fuel tube and connector to make sure they are firmly
connected.

Start the engine, increase engine speed and verify that there
are no leaks.

FUEL SYSTEM

Fuel Tank (Cont’d)

FE-20

Content .. 156 157 158 159 ..
