Nissan Almera Tino V10 (2001 year). Manual - part 111

YEL399C

POWER SUPPLY ROUTING

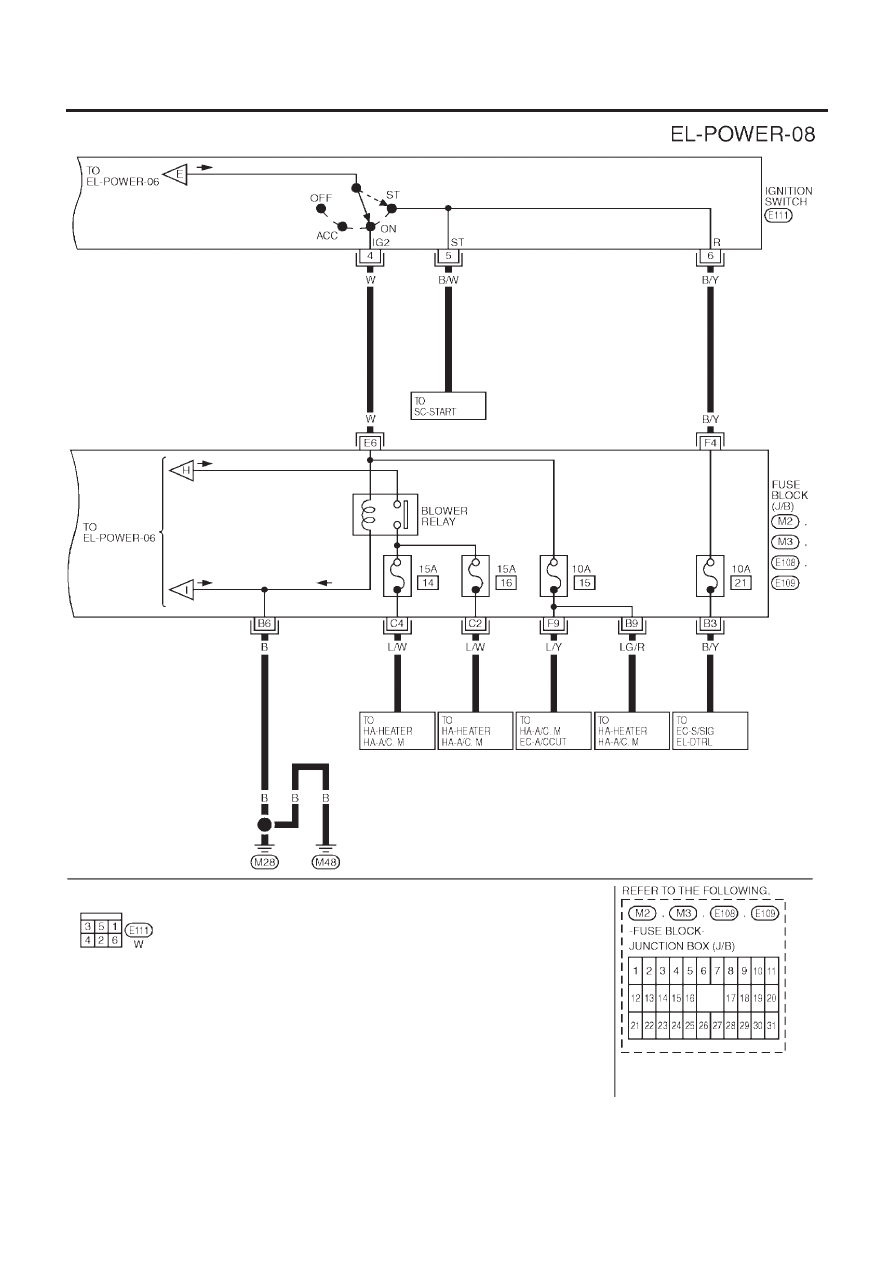

Wiring Diagram — POWER — (Models with fuse and fusible link box E90) (Cont’d)

EL-31

CEL083

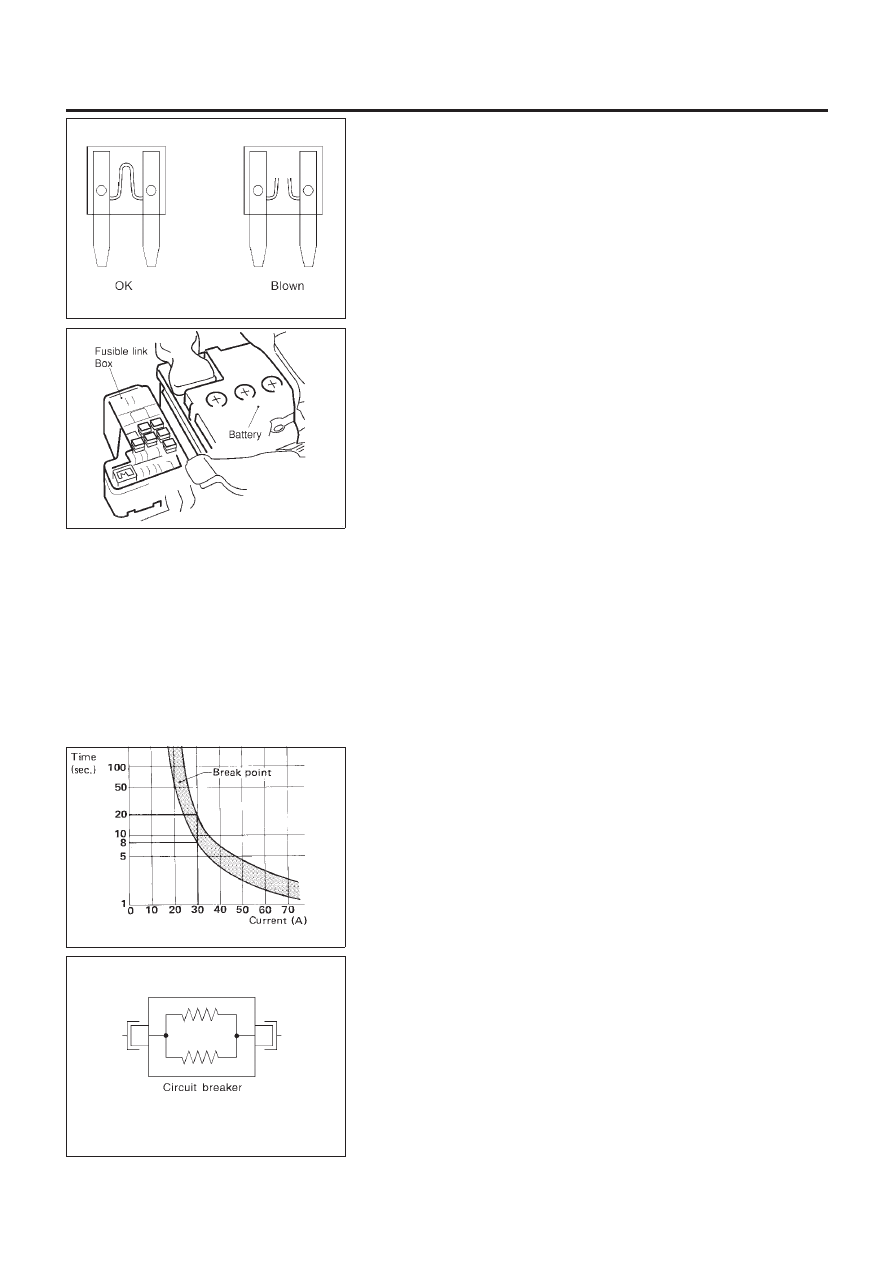

Inspection

NLEL0007

FUSE

NLEL0007S01

If fuse is blown, be sure to eliminate cause of problem
before installing new fuse.

Use fuse of specified rating. Never use fuse of more than
specified rating.

Do not partially install fuse; always insert it into fuse
holder properly.

Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is
not used for a long period of time.

NEL712

FUSIBLE LINK

NLEL0007S02

A melted fusible link can be detected either by visual inspection or
by feeling with finger tip. If its condition is questionable, use circuit
tester or test lamp.

CAUTION:

If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted.
In such a case, carefully check and eliminate cause of
problem.

Never wrap outside of fusible link with vinyl tape. Impor-
tant: Never let fusible link touch any other wiring harness,
vinyl or rubber parts.

SBF284E

CIRCUIT BREAKER

NLEL0007S03

For example, when current is 30A, the circuit is broken within 8 to
20 seconds.

SEL109W

CIRCUIT BREAKER (PTC THERMISTOR TYPE)

NLEL0007S04

The PTC thermister generates heat in response to current flow. The
temperature (and resistance) of the thermister element varies with
current flow. Excessive current flow will cause the element’s tem-
perature to rise. When the temperature reaches a specified level,
the electrical resistance will rise sharply to control the circuit cur-
rent.
Reduced current flow will cause the element to cool. Resistance
falls accordingly and normal circuit current flow is allowed to
resume.

POWER SUPPLY ROUTING

Inspection

EL-32
