Nissan Almera Tino V10 (2001 year). Manual

DTC*1

Items

(CONSULT-II screen terms)

Reference page

P1217 ENG OVER TEMP EC-882

P1336 CKP SENSOR (COG) EC-909

P1401 EGR TEMP SEN/CIRC (where fitted) EC-915

P1402 EGR SYSTEM (where fitted) EC-921

P1605 A/T DIAG COMM LINE EC-928

P1610 - 1615*2 NATS MALFUNCTION EL-334

P1705 TP SEN/CIRC A/T AT-104

P1706 P-N POS SW/CIRCUIT EC-931

P1760 O/R CLTCH SOL/CIRC —

P1777 STEP MOTR CIRC AT-112

P1778 STEP MOTR FNC AT-117

P1791 LINE PRESS SEN AT-119

*1: These numbers are prescribed by ISO 15031-6. 1st trip DTC No. is the same as DTC No.
*2: This DTC is displayed with CONSULT-II only.
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the “Revolution sensor signal” and the “Vehicle speed sensor signal” meet the fail-safe condition at the
same time.

MODELS WITHOUT EURO-OBD SYSTEM

NLEC1330S02

Alphabetical Index for DTC

NLEC1330S0201

Items

(CONSULT-II screen terms)

DTC*6

Reference page

CONSULT-II*2 ECM*1

Unable to access ECM — — EC-647

CMP SEN/CIRCUIT P0340 0340 EC-825

CLOSED TP SW/CIRC P0510 0510 EC-872

COOLANT T SEN/CIRC*3 P0115 0115 EC-694

EGR VOL CON/V CIR P0403 0403 EC-841

ENG OVER TEMP P1217 1217 EC-882

HO2S1 (B1) P0130 0130 EC-709

IGN SIGNAL-PRIMARY P1320 1320 EC-900

KNOCK SEN/CIRC-B1 P0325 0325 EC-815

MAF SEN/CIRCUIT*3 P0100 0100 EC-679

NATS MALFUNCTION P1610 - P1615 — EL-334

NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED

— 0000 —

NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED

— Flashing*5 EC-598

THRTL POS SEN/CIRC*3 P0120 0120 EC-700

VEH SPEED SEN/CIRC*4 P0500 0500 EC-858

*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6.
*3: When the fail-safe operation occurs, the MI illuminates.

TROUBLE DIAGNOSIS — INDEX

SR20DE

Alphabetical & P No. Index for DTC (Cont’d)

EC-553

*4: The MI illuminates when the “Revolution sensor signal” and the “Vehicle speed sensor signal” meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.

P No. Index for DTC

NLEC1330S0202

DTC*6

Items

(CONSULT-II screen terms)

Reference page

CONSULT-II*2

ECM*1

—

Unable to access ECM

EC-647

—

Flashing*5

NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.

EC-598

—

0000

NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.

—

P0100

0100

MAF SEN/CIRCUIT*3

EC-679

P0115

0115

COOLANT T SEN/CIRC*3

EC-694

P0120

0120

THRTL POS SEN/CIRC*3

EC-700

P0130

0130

HO2S1 (B1)

EC-709

P0325

0325

KNOCK SEN/CIRC-B1

EC-815

P0340

0340

CMP SEN/CIRCUIT

EC-825

P0403

0403

EGR VOL CON/V CIR (where fitted)

EC-841

P0500

0500

VEH SPEED SEN/CIRC*4

EC-858

P0510

0510

CLOSED TP SW/CIRC

EC-872

P1217

1217

ENG OVER TEMP

EC-882

P1320

1320

IGN SIGNAL-PRIMARY

EC-900

P1610 - 1615

—

NATS MALFUNCTION

EL-334

*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the “Revolution sensor signal” and the “Vehicle speed sensor signal” meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.

TROUBLE DIAGNOSIS — INDEX

SR20DE

Alphabetical & P No. Index for DTC (Cont’d)

EC-554

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT
PRE-TENSIONER”

NLEC1745

The Supplemental Restraint System “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a seat
belt, help to reduce the risk or severity of injury to the driver and front passenger in a frontal collision. The
Supplemental Restraint System consists of air bag modules (located in the center of the steering wheel and
on the instrument panel on the passenger side), seat belt pre-tensioners, a diagnosis sensor unit, warning
lamp, wiring harness and spiral cable.
In addition to the supplemental air bag modules for a frontal collision, the supplemental side air bag used along
with the seat belt helps to reduce the risk or severity of injury to the driver and front passenger in a side col-
lision. The supplemental side air bag consists of air bag modules (located in the outer side of front seats),
satellite sensor, diagnosis sensor unit (one of components of supplemental air bags for a frontal collision),
wiring harness, warning lamp (one of components of supplemental air bags for a frontal collision). Information
necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be performed
by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified with yellow harness connector (and with
yellow harness protector or yellow insulation tape before the harness connectors).

Precautions for On Board Diagnostic (OBD)
System of Engine and CVT

NLEC1332

The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver
of a malfunction causing emission deterioration.

CAUTION:

Be sure to turn the ignition switch “OFF” and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc.
will cause the MI to light up.

Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector.
For description and how to disconnect, refer to EL section, “Description”, “HARNESS CONNEC-
TOR”.

Be sure to route and secure the harnesses properly after work. The interference of the harness with
a bracket, etc. may cause the MI to light up due to the short circuit.

Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of fuel injection system, etc.

Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission Control Module) before returning the vehicle to the customer.

PRECAUTIONS

SR20DE

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

EC-555

SEF706Y

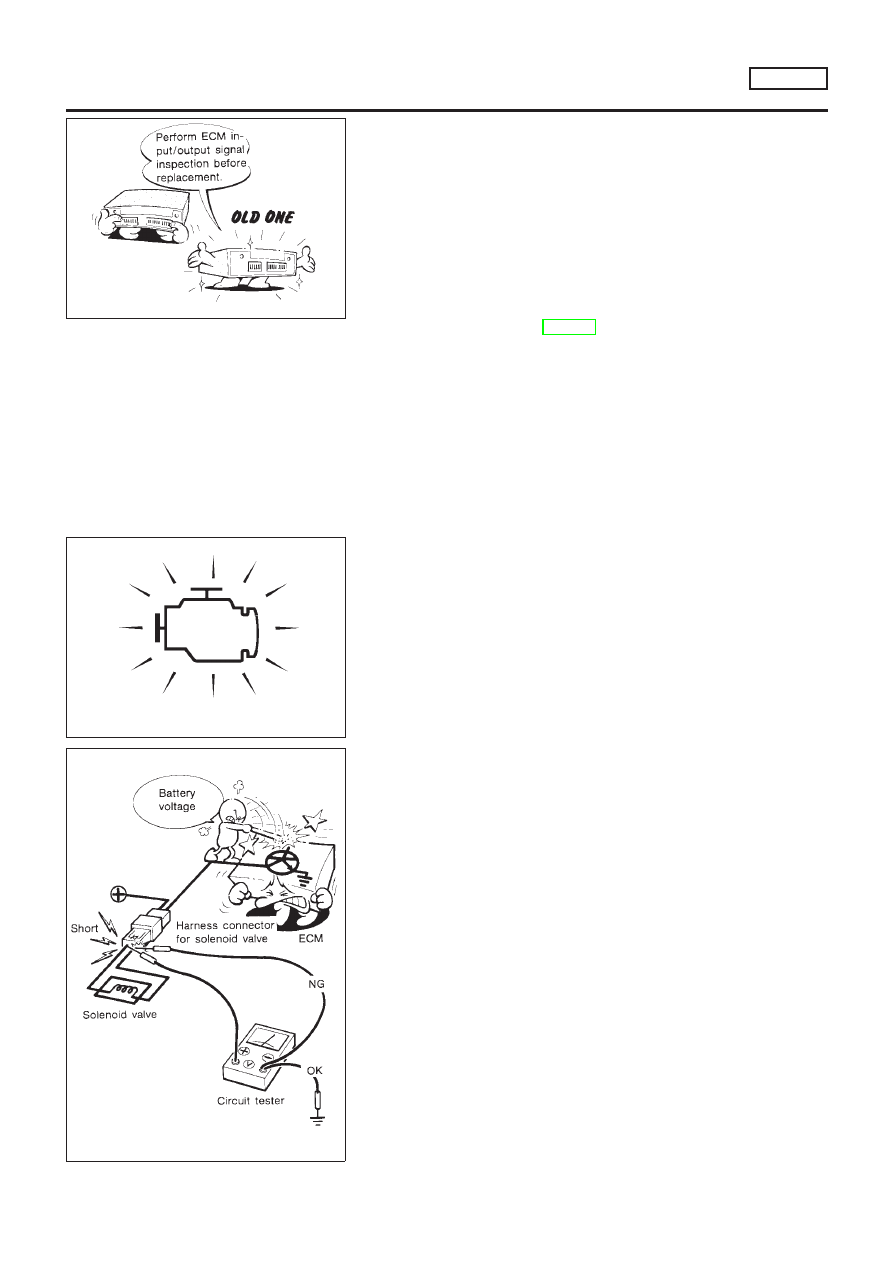

Engine Fuel & Emission Control System

=NLEC1333

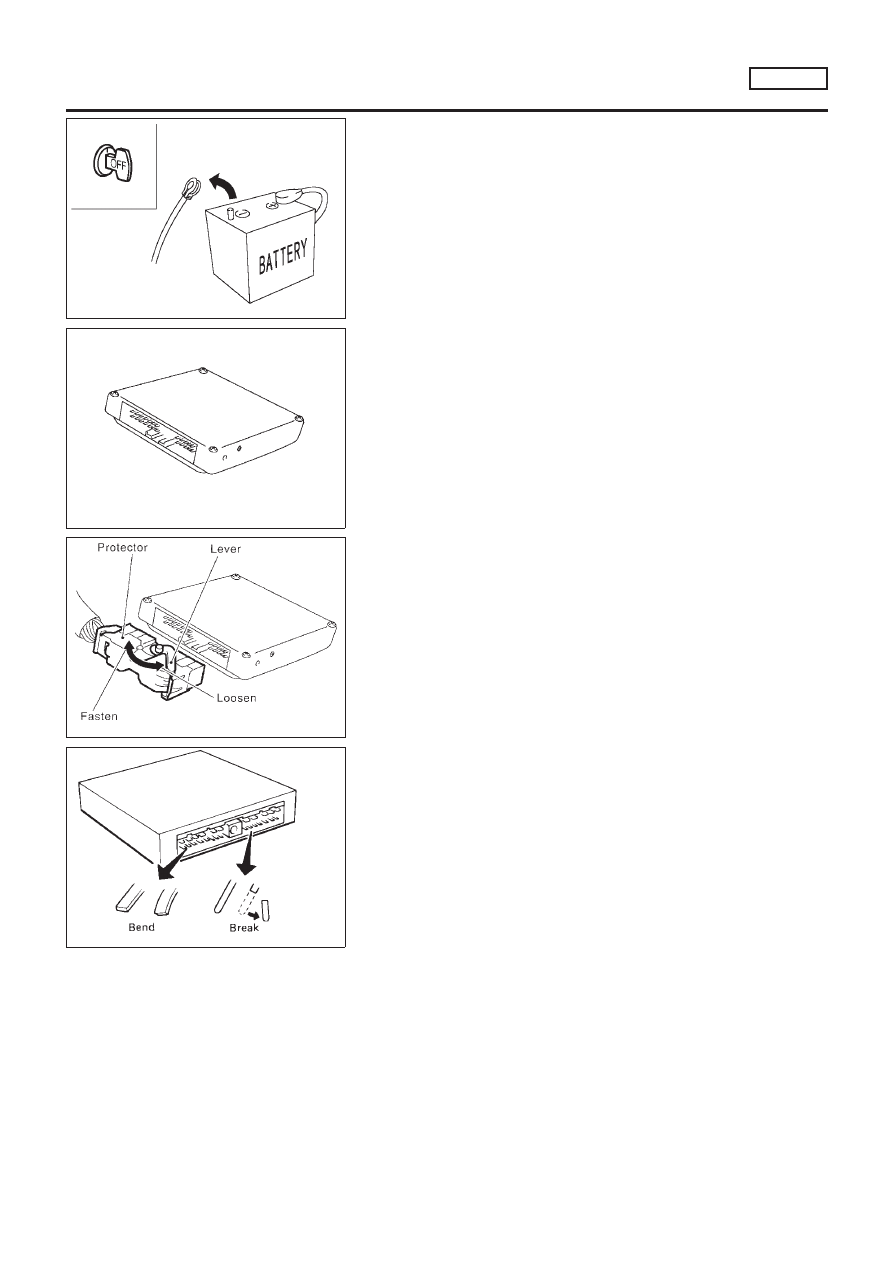

Always use a 12 volt battery as power source.

Do not attempt to disconnect battery cables while engine
is running.

Before connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the
ECM because battery voltage is applied to ECM even if
ignition switch is turned off.

SEF707Y

Do not disassemble ECM.

If a battery terminal is disconnected, the memory will
return to the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is
disconnected. However, this is not an indication of a prob-
lem. Do not replace parts because of a slight variation.

SEF908W

When

connecting

disconnecting

ECM

harness

connector, use lever as shown.
When connecting, fasten connector securely with lever
moved until it stops.

SEF291H

When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminals when connecting pin connectors.

Securely connect ECM harness connectors.
A Poor connection can cause an extremely high (surge)
voltage to develop in coil and condenser, thus resulting in
damage to ICs.

Keep ECM harness at least 10 cm (4 in) away from adja-
cent harness, to prevent an ECM system malfunctions due
to receiving external noise, degraded operation of ICs, etc.

Keep ECM parts and harness dry.

PRECAUTIONS

SR20DE

Engine Fuel & Emission Control System

EC-556

MEF040D

Handle mass air flow sensor carefully to avoid damage.

Do not disassemble mass air flow sensor.

Do not clean mass air flow sensor with any type of deter-
gent.

Do not disassemble IAC valve-AAC valve.

Even a slight leak in the air intake system can cause seri-
ous problems.

Do not shock or jar the camshaft position sensor and
crankshaft position sensor.

Before replacing ECM, perform refer to “ECM Terminals
and Reference Value” inspection and make sure ECM
functions properly, EC-657.

SAT652J

After performing each TROUBLE DIAGNOSIS, perform
“DTC Confirmation Procedure” or “Overall Function
Check”.
The DTC should not be displayed in the “DTC Confirma-
tion Procedure” if the repair is completed. The “Overall
Function Check” should be a good result if the repair is
completed.

SEF348N

When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the
ECM’s transistor. Use a ground other than ECM terminals,
such as the ground.

PRECAUTIONS

SR20DE

Engine Fuel & Emission Control System (Cont’d)

EC-557

SEF605X

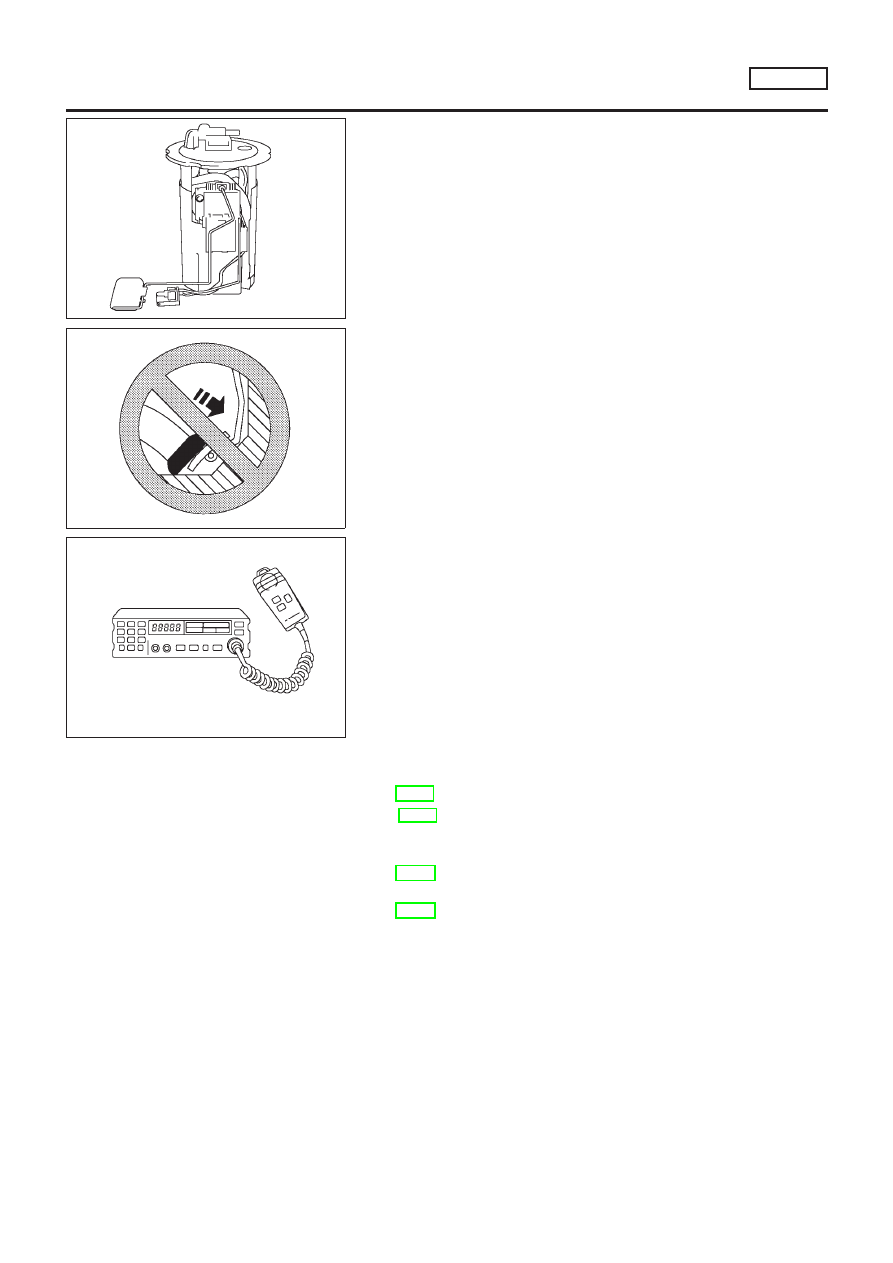

Do not operate fuel pump when there is no fuel in lines.

Tighten fuel hose clamps to the specified torque.

SEF709Y

Do not depress accelerator pedal when starting.

Immediately after starting, do not rev up engine unneces-
sarily.

Do not rev up engine just prior to shutdown.

SEF708Y

When installing C.B. ham radio or a mobile phone, be sure
to observe the following as it may adversely affect elec-
tronic control systems depending on installation location.

1) Keep the antenna as far as possible from the electronic

control units.

2) Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.
Do not let them run parallel for a long distance.

3) Adjust the antenna and feeder line so that the standing-

wave ratio can be kept smaller.

4) Be sure to ground the radio to vehicle body.

Wiring Diagrams and Trouble Diagnosis

NLEC1334

When you read Wiring diagrams, refer to the following:

GI-11, “HOW TO READ WIRING DIAGRAMS”

EL-10, “POWER SUPPLY ROUTING” for power distribution cir-
cuit

When you perform trouble diagnosis, refer to the following:

GI-32, “HOW TO FOLLOW TEST GROUPS IN TROUBLE
DIAGNOSES”

GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR
AN ELECTRICAL INCIDENT”

PRECAUTIONS

SR20DE

Engine Fuel & Emission Control System (Cont’d)

EC-558

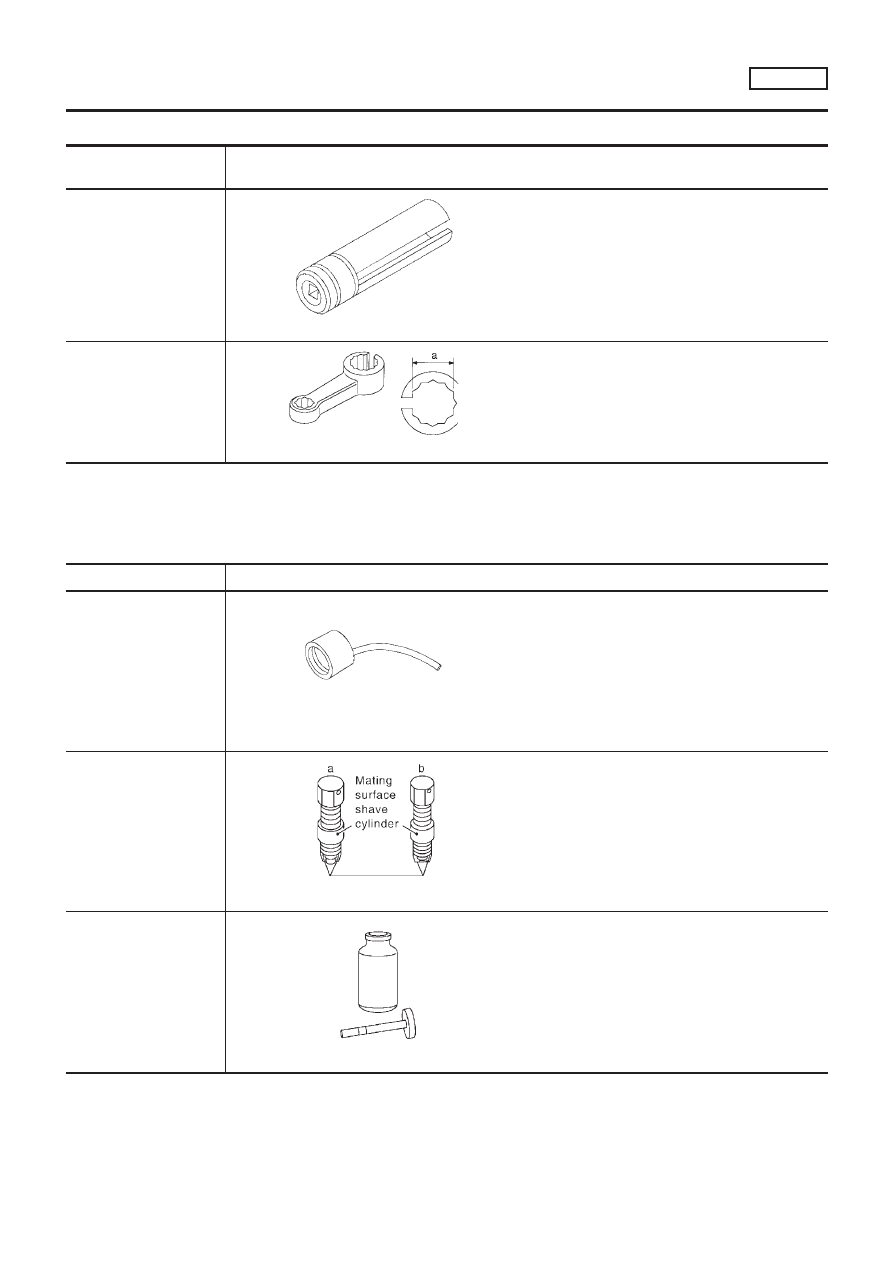

Special Service Tools

NLEC1335

Tool number
Tool name

Description

KV10117100
Heated oxygen sensor
wrench

NT379

Loosening or tightening heated oxygen sensor 1
(front) with 22 mm hexagon nut

KV10114400
Heated oxygen sensor
wrench

NT636

Loosening or tightening heated oxygen sensor 2
(rear)
a: 22 mm

Commercial Service Tools

NLEC1336

Tool name

Description

Fuel filler cap adapter

NT653

Checking fuel tank vacuum relief valve opening
pressure

Oxygen sensor thread
cleaner

NT778

Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm dia. with pitch 1.5 mm, for Zirconia
Oxygen Sensor
b: 12 mm dia. with pitch 1.25 mm, for Titania
Oxygen Sensor

Anti-seize lubricant (Per-
matex

133AR or

equivalent meeting MIL
specification MIL-A-907)

NT779

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

PREPARATION

SR20DE

Special Service Tools

EC-559

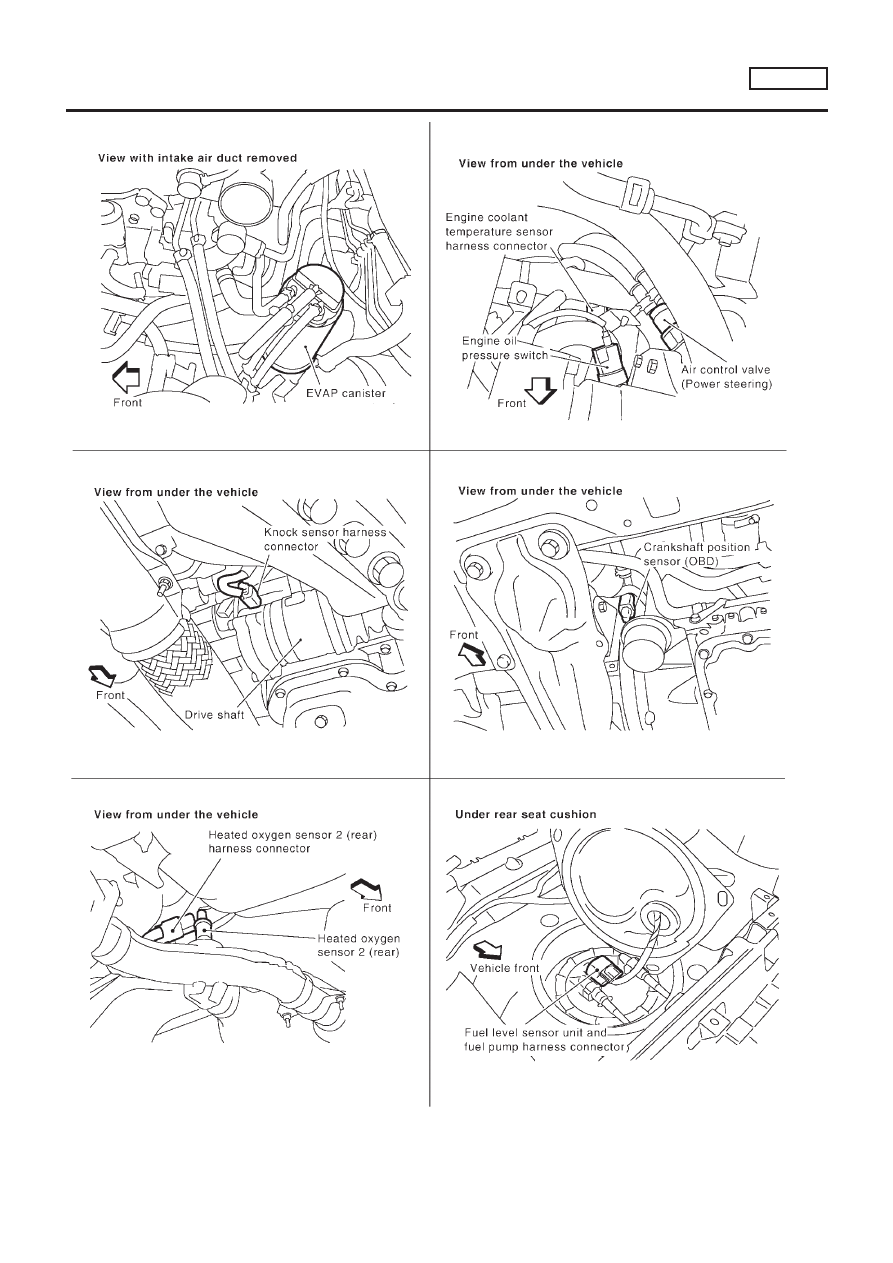

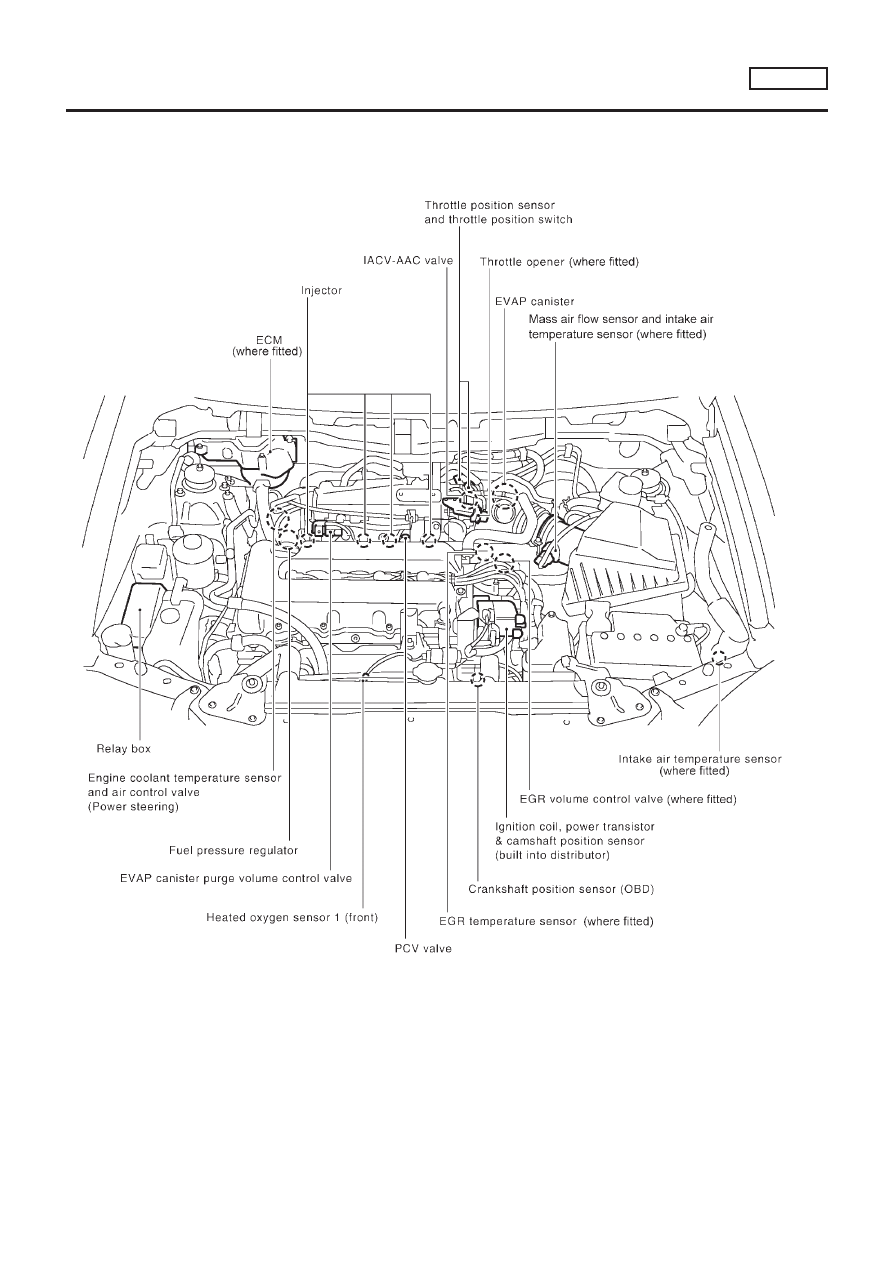

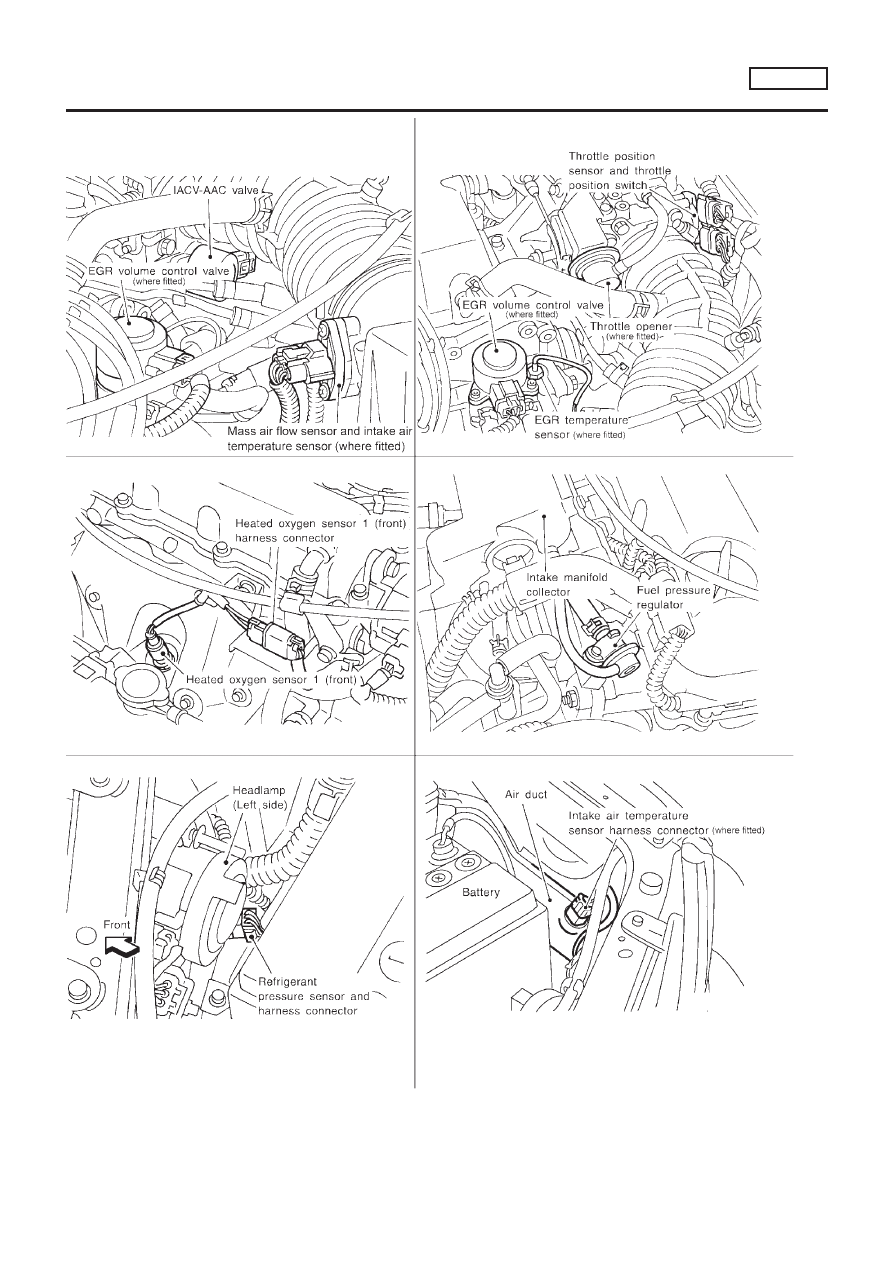

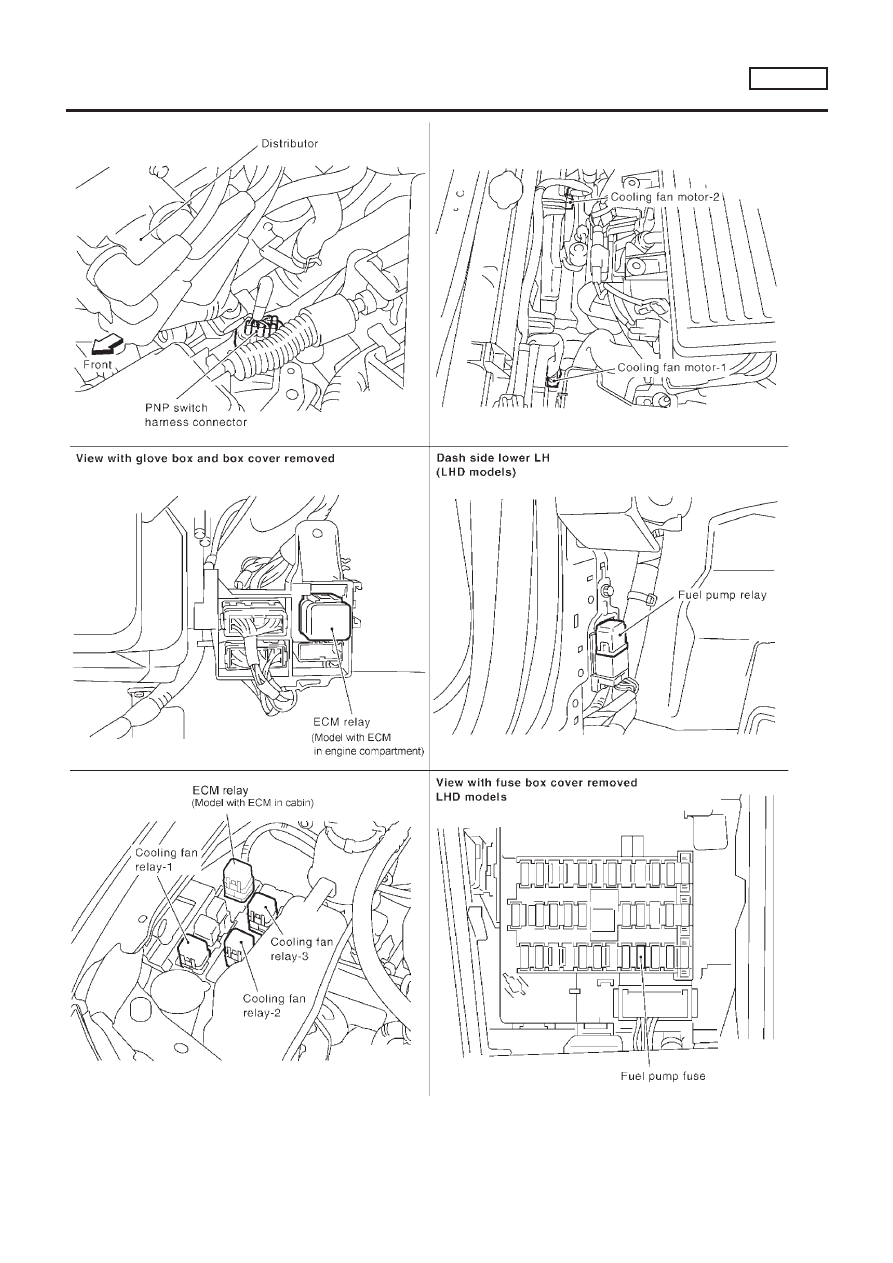

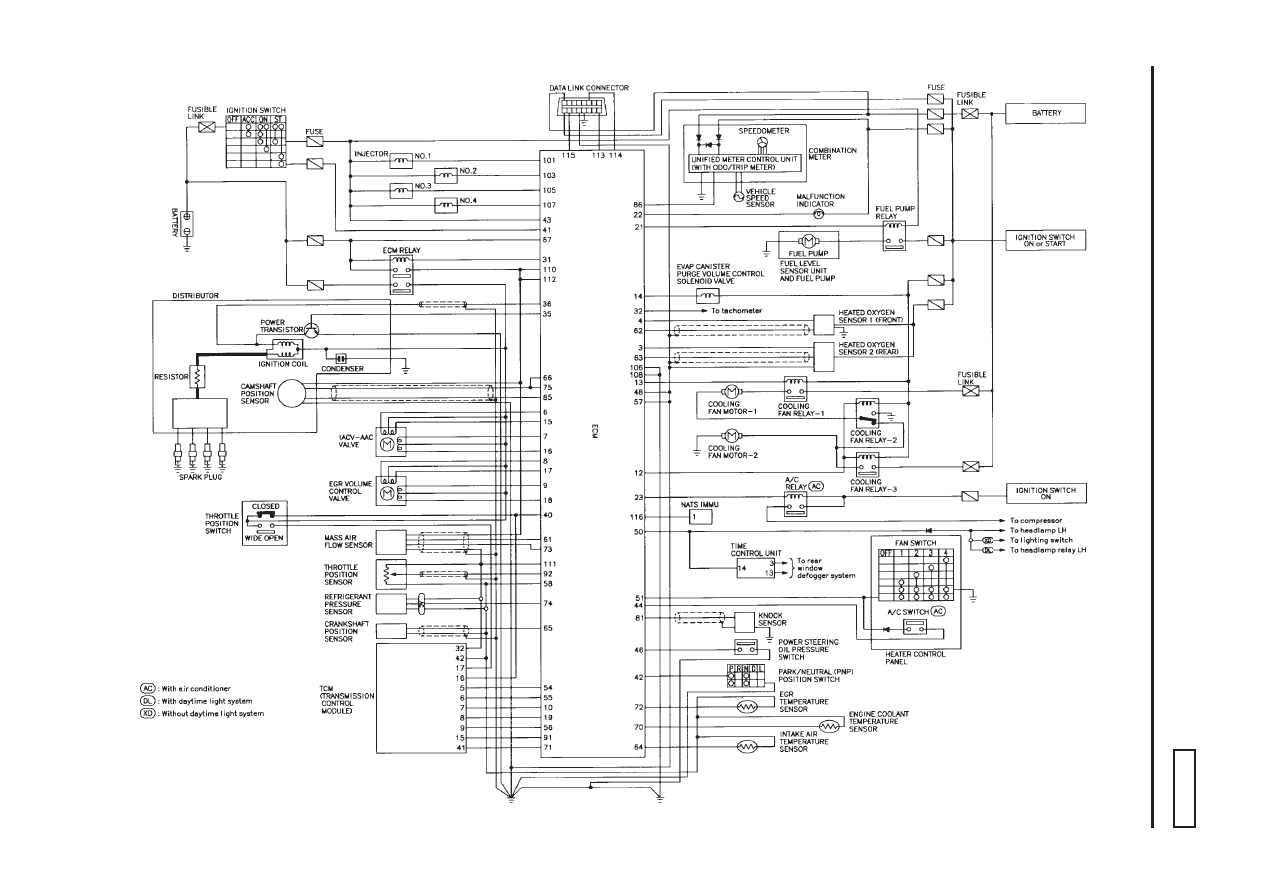

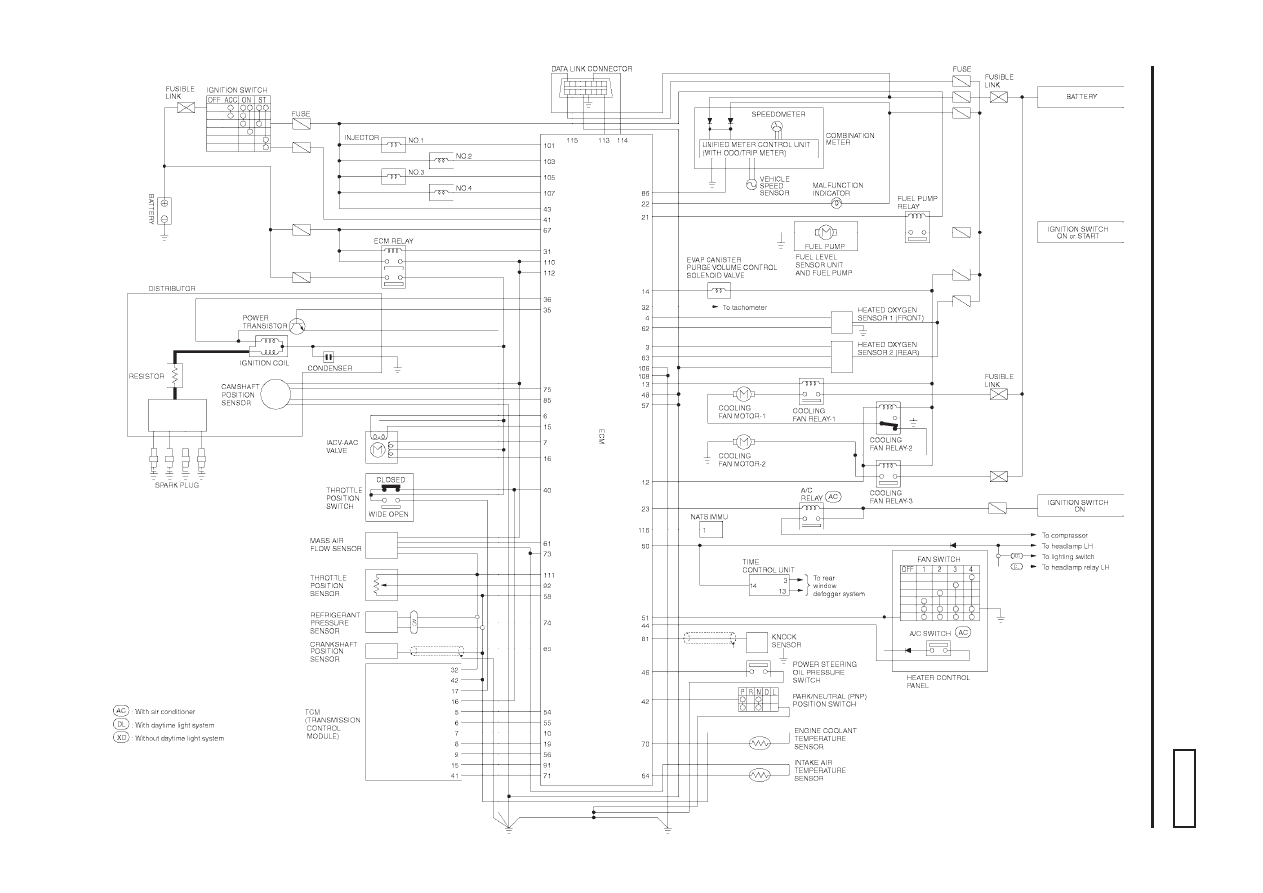

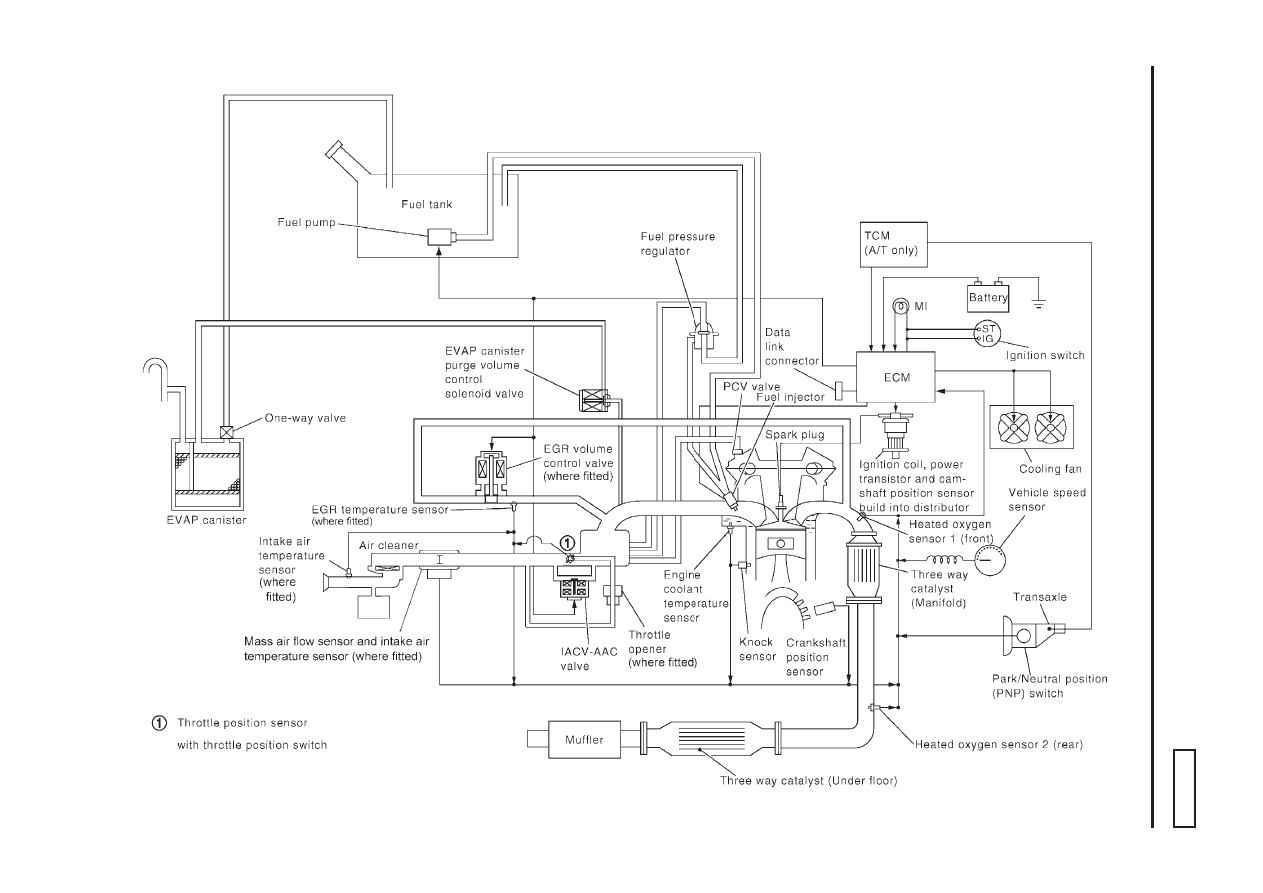

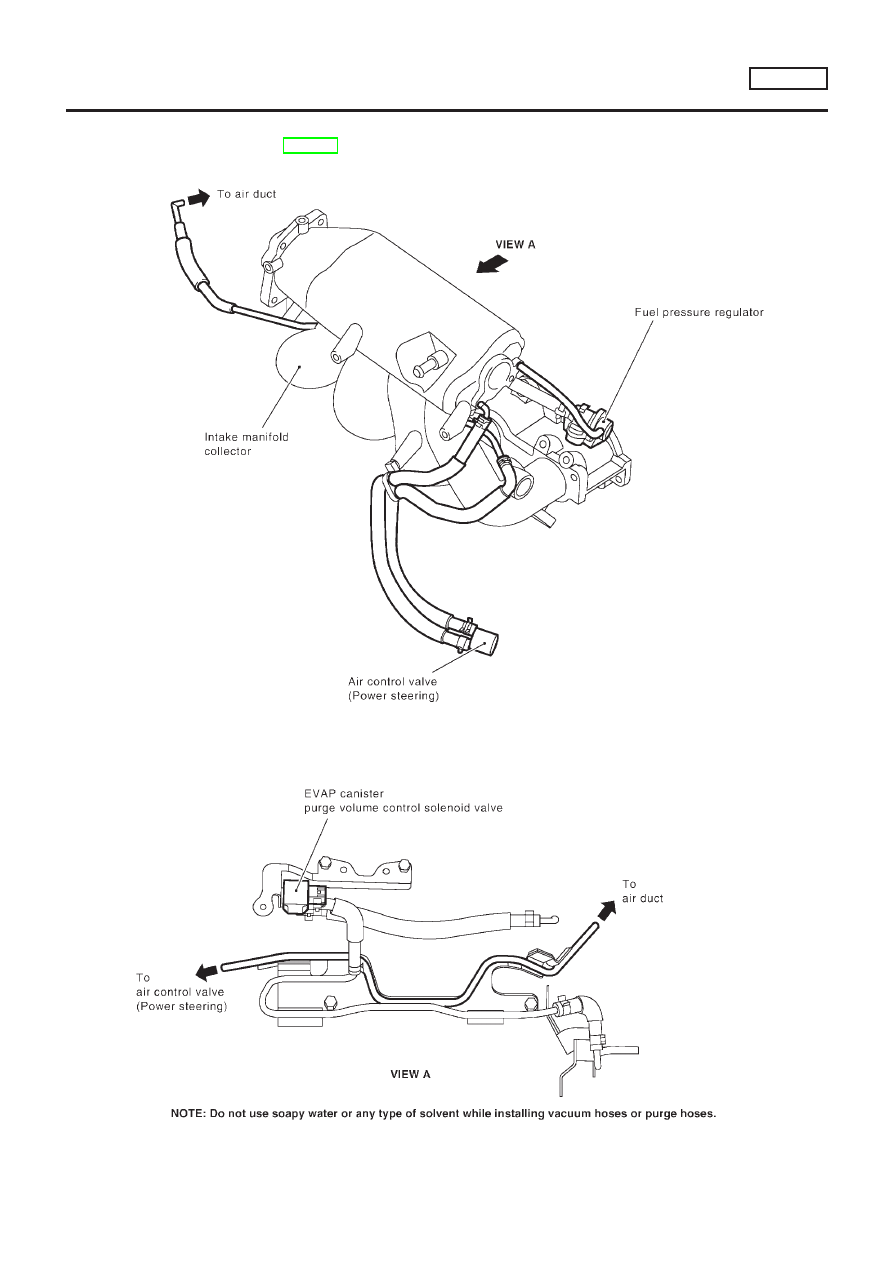

Circuit

Diagram

NLEC1338

MODELS

WITH

EGR

SYSTEM

NLEC1338S01

YEC685

ENGINE

AND

EMISSION

CONTROL

OVERALL

SYSTEM

SR20DE

Circuit

Diagram

EC-564

System Chart

NLEC1341

Input (Sensor)

ECM Function

Output (Actuator)

Camshaft position sensor

Crankshaft position sensor (OBD)

Mass air flow sensor

Engine coolant temperature sensor

Heated oxygen sensor 1 (front)

Ignition switch

Throttle position sensor

PNP switch

Air conditioner switch

Knock sensor

EGR temperature sensor*1 (where fitted)

Battery voltage

Power steering oil pressure switch

Vehicle speed sensor

Intake air temperature sensor

Heated oxygen sensor 2 (rear)*2

TCM (Transmission Control Module)*3

Closed throttle position switch

Electrical load

Refrigerant pressure sensor

Fuel injection & mixture ratio control

Injectors

Electronic ignition system

Power transistor

Idle air control system

IACV-AAC valve

Fuel pump control

Fuel pump relay

On board diagnostic system

Malfunction indicator
(On the instrument panel)

EGR control (where fitted)

EGR volume control valve (where
fitted)

Heated oxygen sensor 1/2 heater (front/
rear) control

Heated oxygen sensor 1/2 heater
(front/rear)

EVAP canister purge flow control

EVAP canister purge volume con-
trol solenoid valve

Cooling fan control

Cooling fan relay

Air conditioning cut control

Air conditioner relay

*1: These sensors are not used to control the engine system. They are used only for the on board diagnosis.
*2: Under normal conditions, this sensor is not for engine control operation.
*3: The DTC related to CVT will be sent to ECM.

ENGINE AND EMISSION CONTROL OVERALL SYSTEM

SR20DE

System Chart

EC-568

Nissan Almera Tino V10 (2001 year). Manual - part 62
