Nissan Almera Tino V10 (2001 year). Manual - part 58

SEF105X

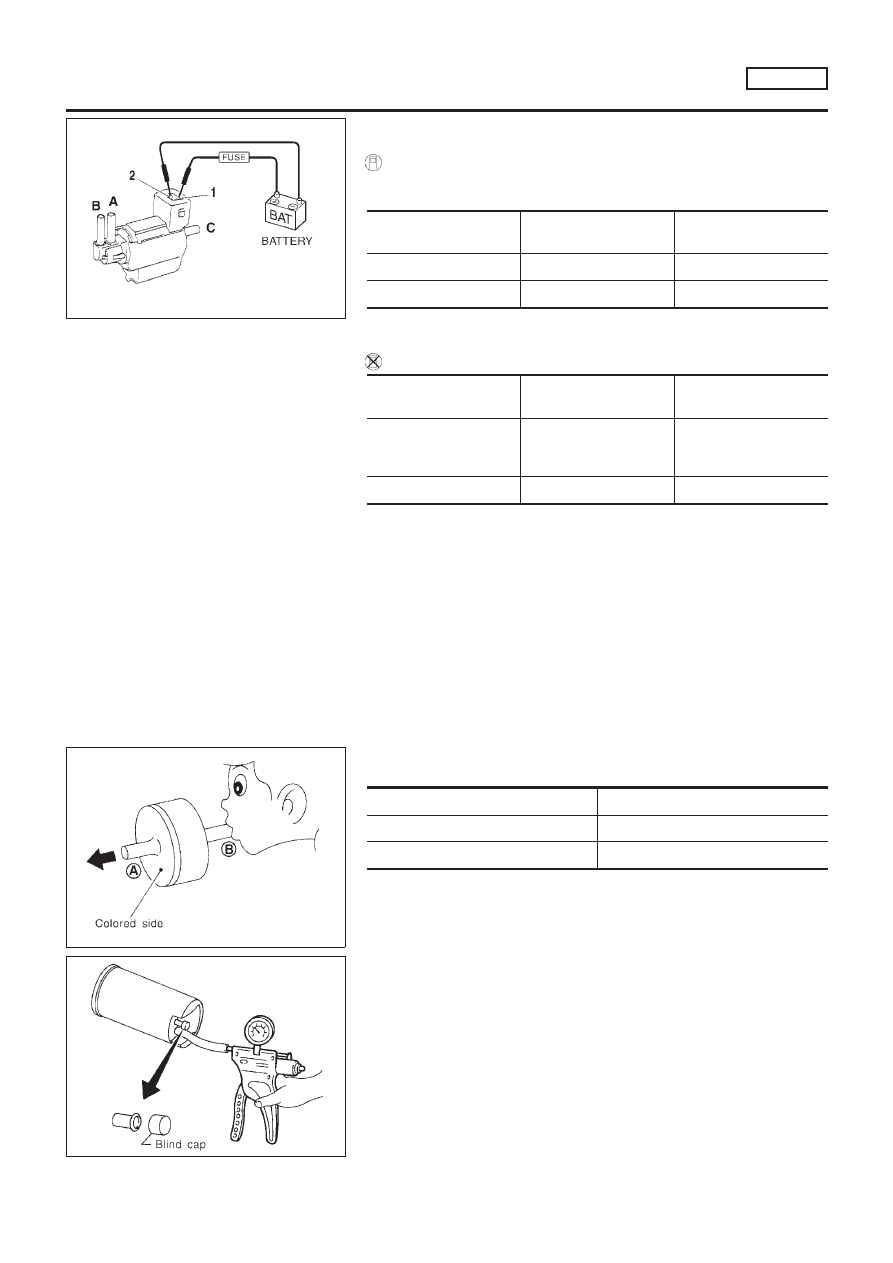

SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

NLEC1256S02

Check solenoid valve air passage continuity.

With CONSULT-II

Turn ignition switch “ON” and perform “SWIRL CONT SOL/V” in
“ACTIVE TEST” mode.

Condition

SWIRL CONT SOL/V

Air passage continuity

between A and B

Air passage continuity

between A and C

Yes

OFF

Yes

If NG or operation takes more than 1 second, replace solenoid
valve.

Without CONSULT-II

Condition

Air passage continuity

between A and B

Air passage continuity

between A and C

12V direct current supply
between terminals 1 and
2

Yes

No supply

Yes

If NG or operation takes more than 1 second, replace solenoid
valve.

SEF106X

ONE-WAY VALVE

NLEC1256S03

Check one-way valve air passage continuity.

Condition

Air passage continuity

Blow air from side B to A

Yes

Blow air from side A to B

If NG, replace one-way valve.

SEF405S

VACUUM TANK

NLEC1256S04

Check vacuum tank leakage.
Apply vacuum −80.0 kPa (−800 mbar, −600 mmHg, −23.62 inHg,
−11.60 psi). Then keep it for 10 seconds and check there is no
leakage.
If NG, replace vacuum tank.

SWIRL CONTROL VALVE CONTROL SYSTEM

(WHERE FITTED)

QG18DE

Component Inspection (Cont’d)

EC-489

SEF631Z

Component Description

NLEC1322

When the gear position is “N”, park/neutral position (PNP) switch
is “ON”.
ECM detects the park/neutral position when continuity with ground
exists.

CONSULT-II Reference Value in Data Monitor
Mode

NLEC1323

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

Ignition switch: ON

Shift lever: “N”

Except above

OFF

ECM Terminals and Reference Value

NLEC1324

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

G/OR

PNP switch

[Ignition switch “ON”]

Gear position is “Neutral position”

Approximately 0V

[Ignition switch “ON”]

Except the above gear position

Approximately 5V

PARK/NEUTRAL POSITION (PNP) SWITCH

QG18DE

Component Description

EC-490

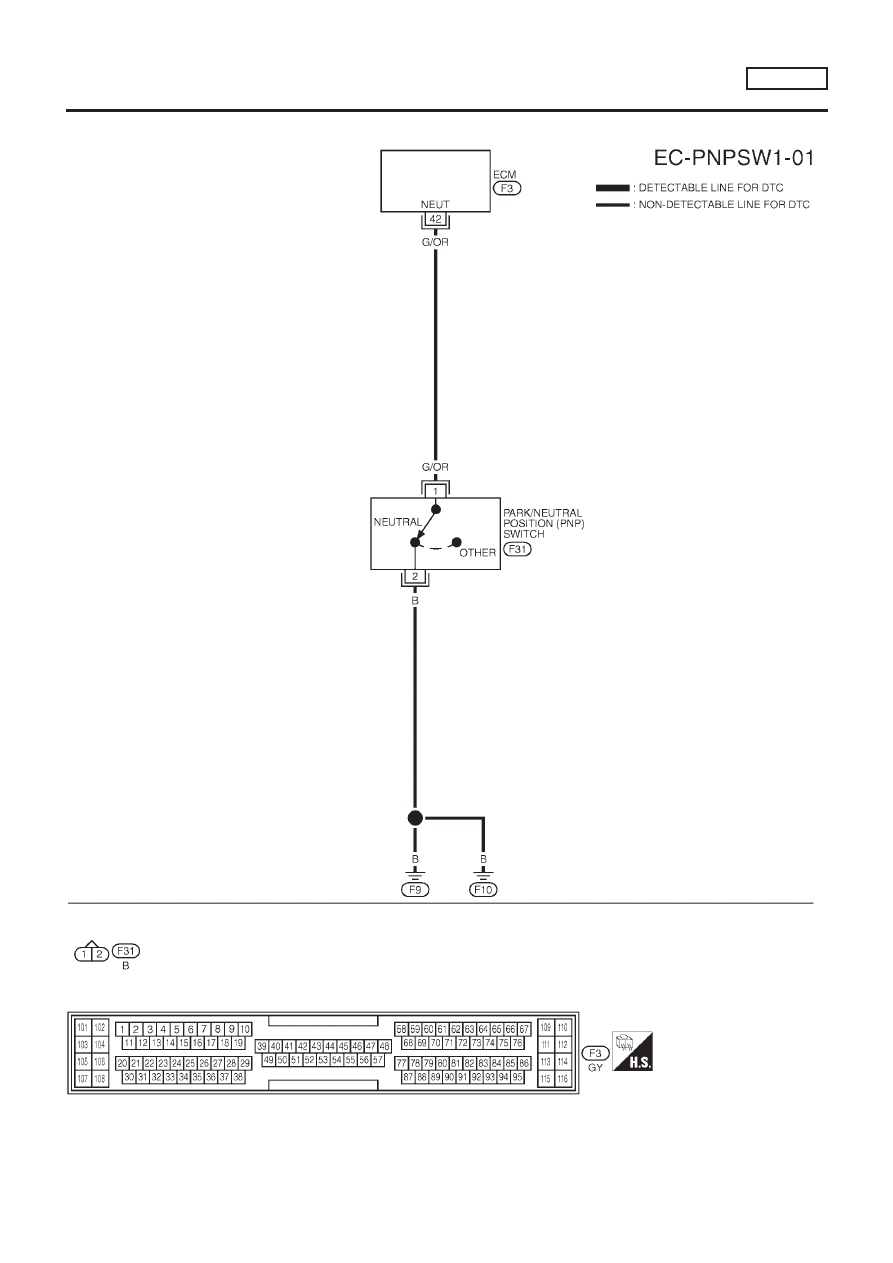

Wiring Diagram

NLEC1328

YEC753

PARK/NEUTRAL POSITION (PNP) SWITCH

QG18DE

Wiring Diagram

EC-491

Diagnostic Procedure

NLEC1329

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

GO TO 2.

GO TO 3.

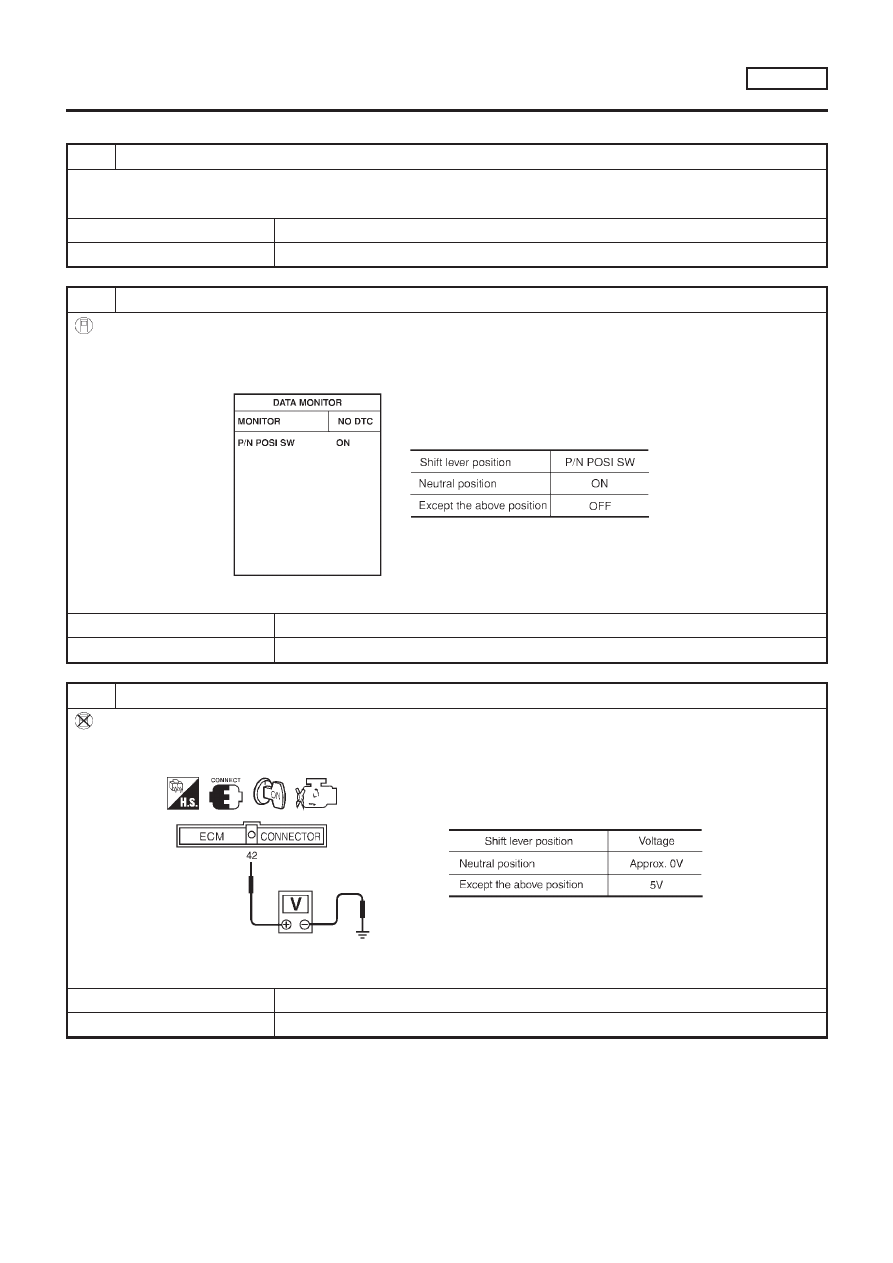

CHECK OVERALL FUNCTION

With CONSULT-II

1. Turn ignition switch “ON”.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CONSULT-II.
3. Check the “P/N POSI SW” signal under the following conditions.

SEF049Y

OK or NG

INSPECTION END

GO TO 4.

CHECK OVERALL FUNCTION

Without CONSULT-II

1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 42 and ground under the following conditions.

SEF759Z

OK or NG

INSPECTION END

GO TO 4.

PARK/NEUTRAL POSITION (PNP) SWITCH

QG18DE

Diagnostic Procedure

EC-492

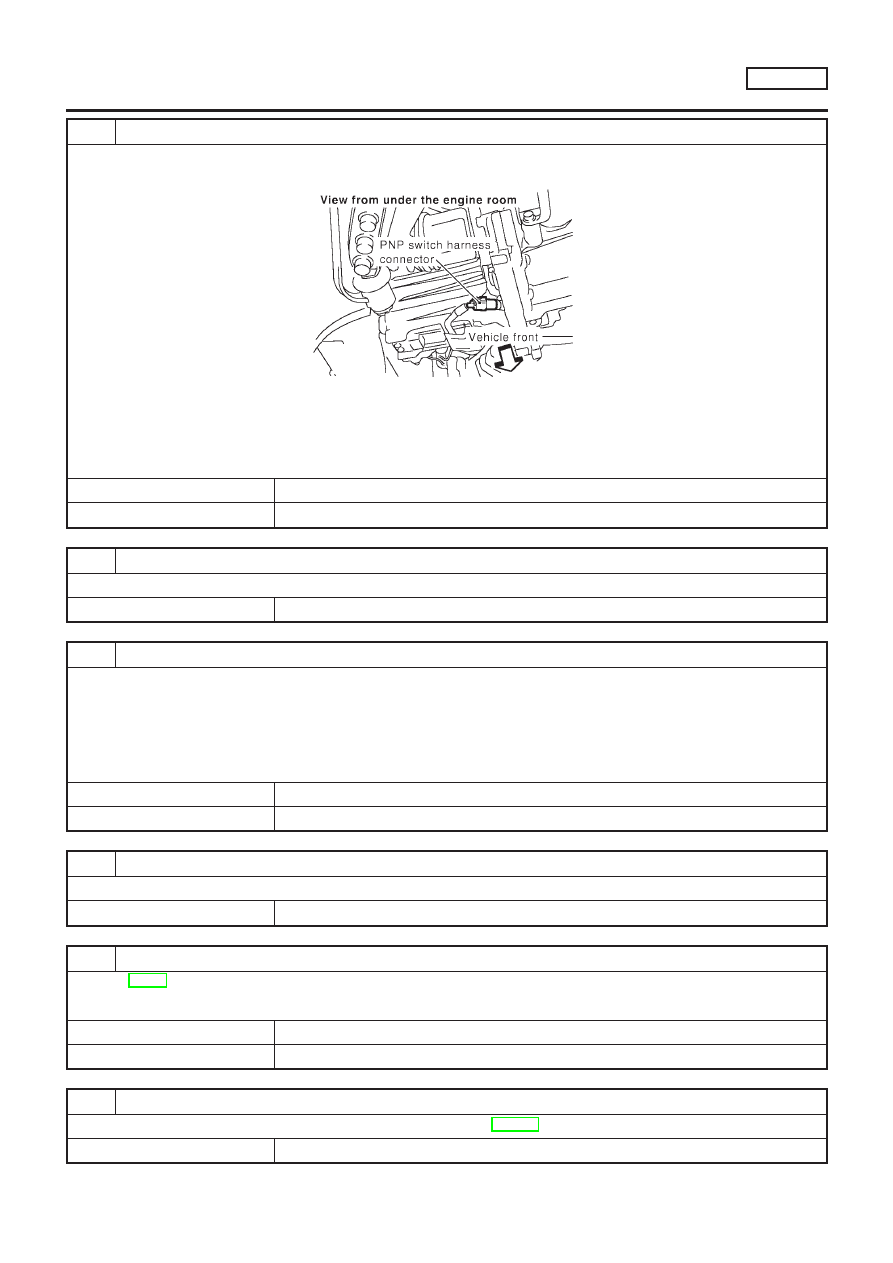

CHECK GROUND CIRCUIT

1. Turn ignition switch “OFF”.

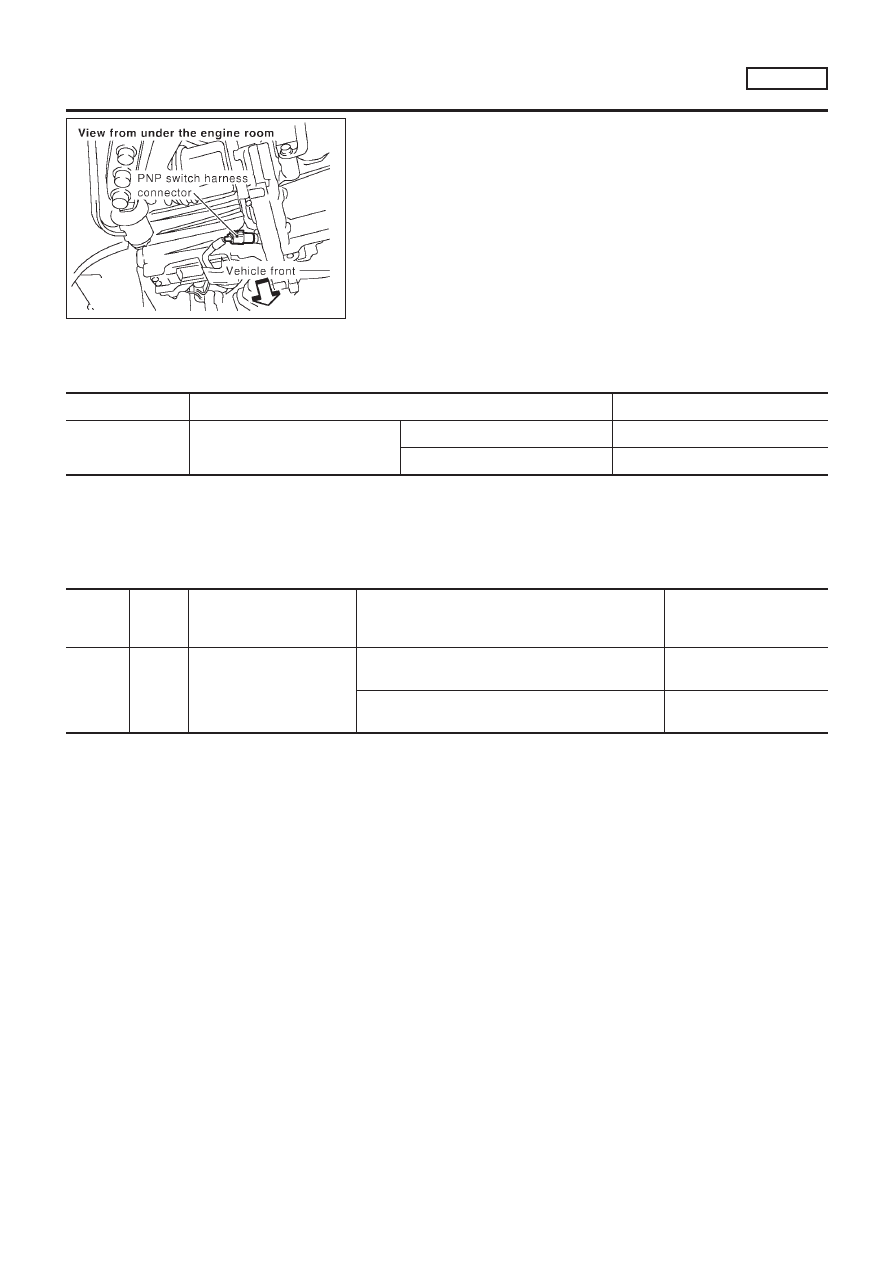

2. Disconnect PNP switch harness connector.

SEF631Z

3. Check harness continuity between PNP switch harness connector terminal 2 and body ground.

Refer to wiring diagram.

Continuity should exist.

4. Also check harness for short to power.

OK or NG

GO TO 6.

GO TO 5.

DETECT MALFUNCTIONING PART

Check the harness for open or short between PNP switch and body ground.

Repair open circuit or short to power in harness or connectors.

CHECK INPUT SIGNAL CIRCUIT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 42 and PNP switch harness connector terminal 1.

Refer to wiring diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

GO TO 8.

GO TO 7.

DETECT MALFUNCTIONING PART

Check the harness for open or short between ECM and PNP switch.

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK PNP SWITCH

Refer to MT-16, “POSITION SWITCH CHECK”.

OK or NG

GO TO 9.

Replace PNP switch.

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-145.

INSPECTION END

PARK/NEUTRAL POSITION (PNP) SWITCH

QG18DE

Diagnostic Procedure (Cont’d)

EC-493

SEF138X

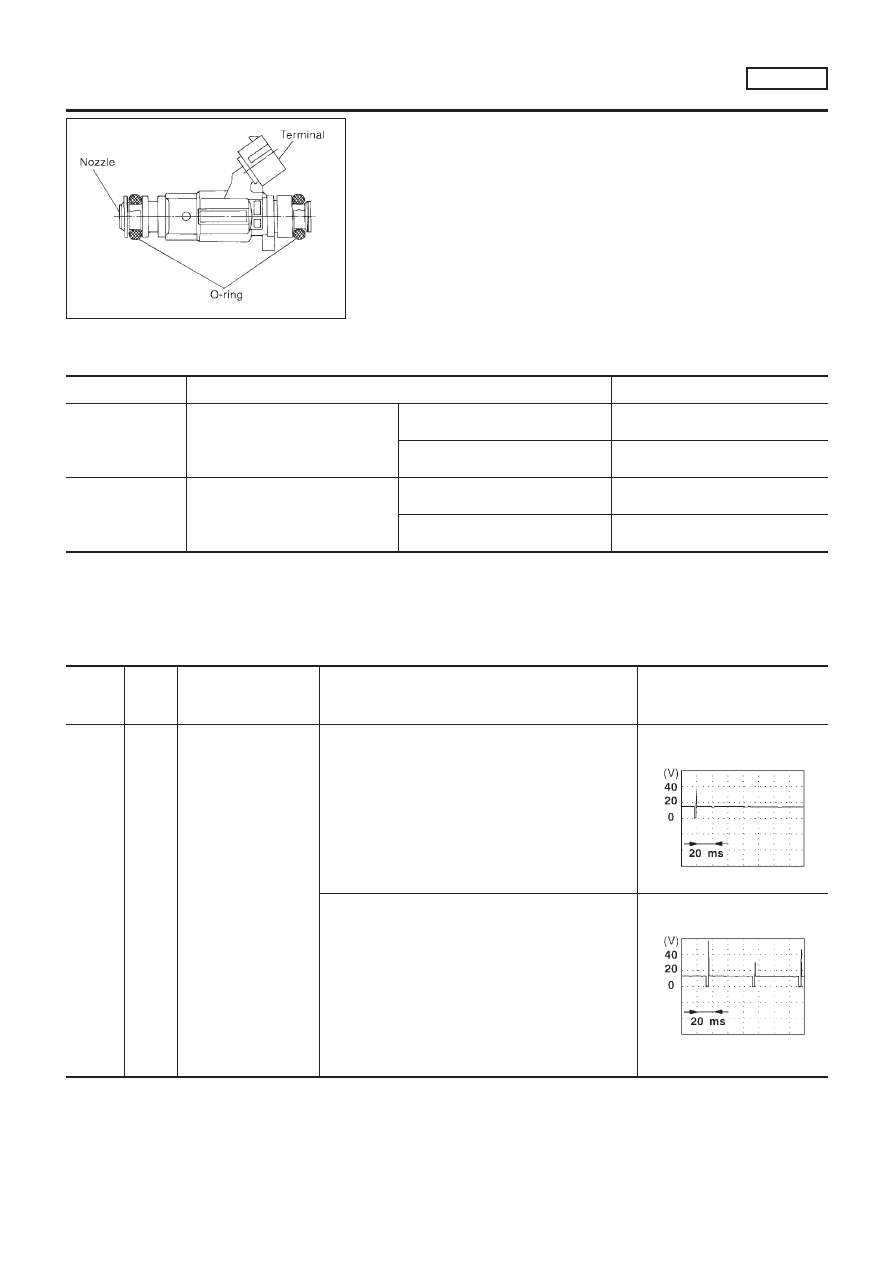

Component Description

NLEC0435

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and
allows fuel to flow through the injector into the intake manifold. The
amount of fuel injected depends upon the injection pulse duration.
Pulse duration is the length of time the injector remains open. The
ECM controls the injection pulse duration based on engine fuel
needs.

CONSULT-II Reference Value in Data Monitor
Mode

NLEC0436

MONITOR ITEM

CONDITION

SPECIFICATION

INJ PULSE-B1

Engine: After warming up

Air conditioner switch: OFF

Shift lever: “N”

No-load

Idle

2.0 - 3.5 msec

2,000 rpm

1.5 - 3.5 msec

B/FUEL SCHDL

Engine: After warming up

Air conditioner switch: OFF

Shift lever: “N”

No-load

Idle

1.5 - 3.0 msec

2,000 rpm

1.2 - 3.0 msec

ECM Terminals and Reference Value

NLEC0437

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

101
103
105
107

R/B
Y/B
G/B
L/B

Injector No. 1
Injector No. 2
Injector No. 3
Injector No. 4

[Engine is running]

Warm-up condition

Idle speed

BATTERY VOLTAGE
(11 - 14V)

SEF011W

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

BATTERY VOLTAGE
(11 - 14V)

SEF012W

INJECTOR

QG18DE

Component Description

EC-494

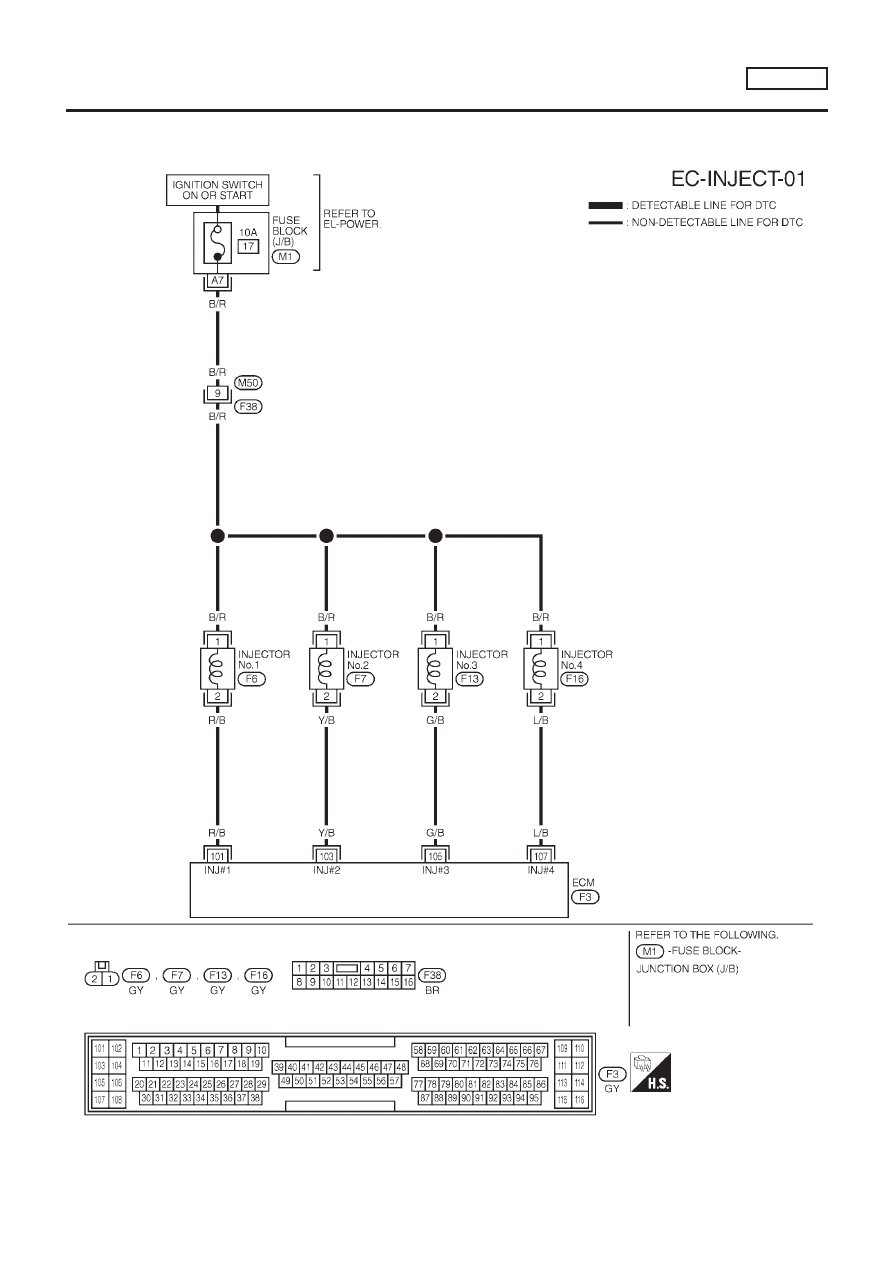

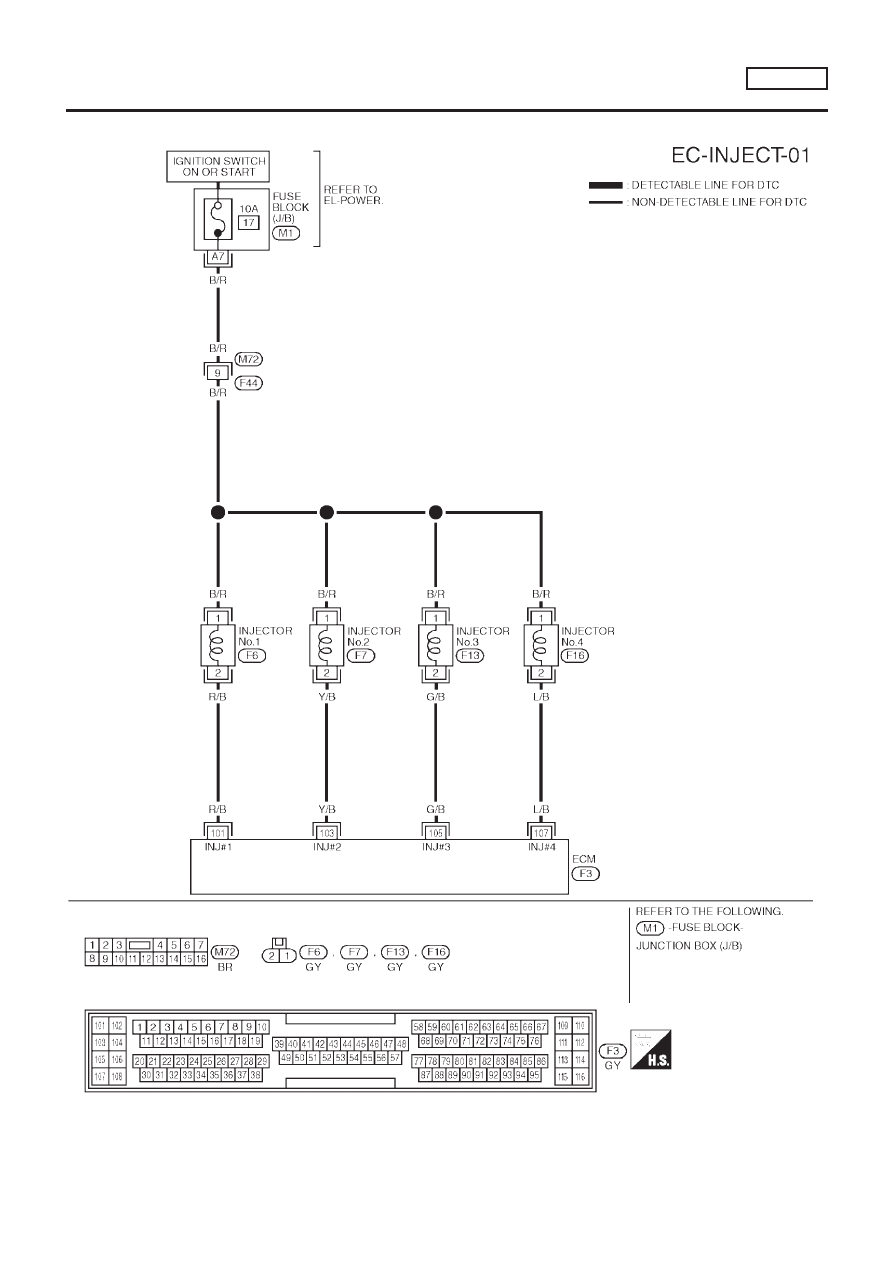

Wiring Diagram

NLEC0434

MODELS WITH ECM IN ENGINE COMPARTMENT

NLEC0434S01

YEC672

INJECTOR

QG18DE

Wiring Diagram

EC-495

MODELS WITH ECM IN CABIN

NLEC0434S02

YEC901

INJECTOR

QG18DE

Wiring Diagram (Cont’d)

EC-496

Diagnostic Procedure

NLEC0438

CHECK OVERALL FUNCTION

With CONSULT-II

1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.

SEF190Y

3. Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT-II

1. Start engine.
2. Listen to each injector operating sound.

MEC703B

Clicking noise should be heard.

OK or NG

INSPECTION END

GO TO 2.

INJECTOR

QG18DE

Diagnostic Procedure

EC-497

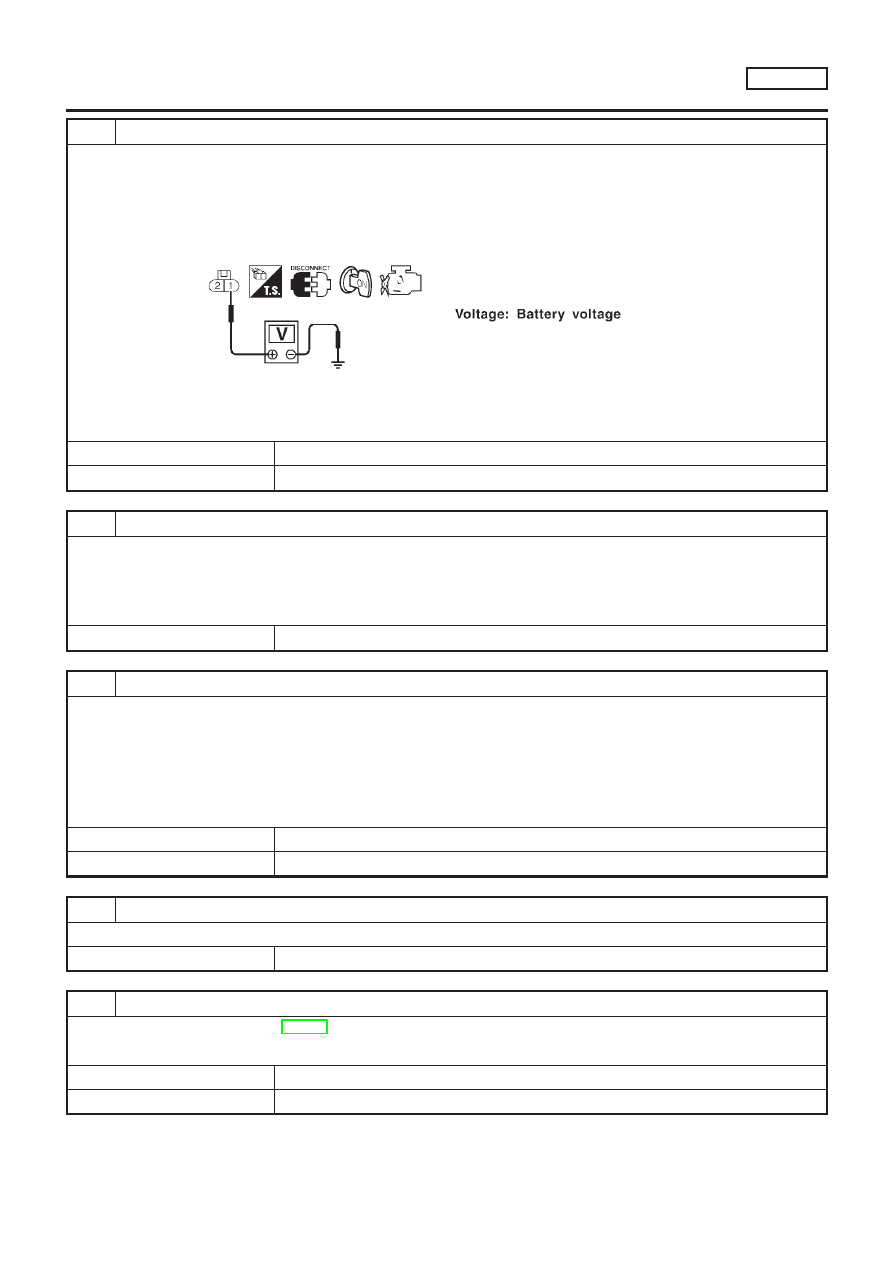

CHECK POWER SUPPLY

1. Stop engine.
2. Disconnect injector harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between terminal 1 and ground with CONSULT-II or tester.

SEF949X

OK or NG

GO TO 4.

GO TO 3.

DETECT MALFUNCTIONING PART

Check the following.

10A fuse

Harness connectors F38, M50 (where fitted)

Harness connectors F44, M72 (where fitted)

Harness for open or short between injector and fuse

Repair harness or connectors.

CHECK OUTPUT SIGNAL CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between injector harness connector terminal 2 and ECM terminals 101, 103, 105, 107.

Refer to wiring diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

GO TO 6.

GO TO 5.

DETECT MALFUNCTIONING PART

Check the harness for open or short between ECM and injector.

Repair open circuit or short to ground or short to power in harness or connectors.

CHECK INJECTOR

Refer to “Component Inspection”, EC-499.

OK or NG

GO TO 7.

Replace injector.

INJECTOR

QG18DE

Diagnostic Procedure (Cont’d)

EC-498

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-145.

INSPECTION END

SEF807Z

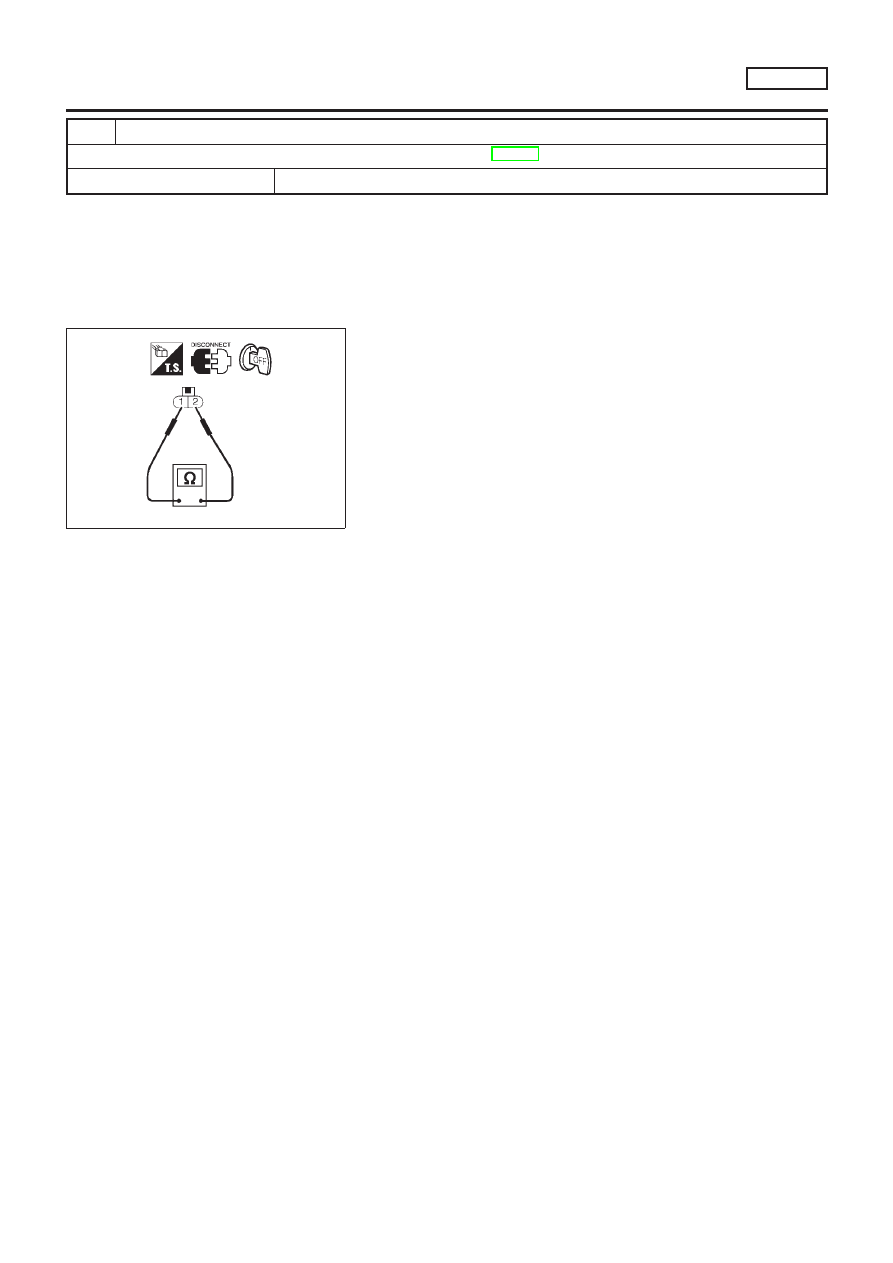

Component Inspection

NLEC0439

INJECTOR

NLEC0439S01

Disconnect injector harness connector.

Check resistance between terminals as shown in the figure.

Resistance: 13.5 - 17.5

Ω

[at 25°C (77°F)]

If NG, replace injector.

INJECTOR

QG18DE

Diagnostic Procedure (Cont’d)

EC-499

Component Description

NLEC0542

IGNITION COIL AND POWER TRANSISTOR

NLEC0542S01

The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns on and off the ignition
coil primary circuit. This on-off operation induces the proper high
voltage in the coil secondary circuit.

CONSULT-II Reference Value in Data Monitor
Mode

NLEC0543

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

IGNITION SW

Ignition switch: ON

→

OFF

→

OFF

→

ECM Terminals and Reference Value

NLEC0544

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

35
36
37
38

L/W
PU
L/R
GY/R

Ignition signal (No. 1)
Ignition signal (No. 2)
Ignition signal (No. 3)
Ignition signal (No. 4)

[Engine is running]

Warm-up condition

Idle speed

0 - 0.2V

SEF971W

[Engine is running]

Engine speed is 2,000 rpm

0.2 - 0.4V

SEF972W

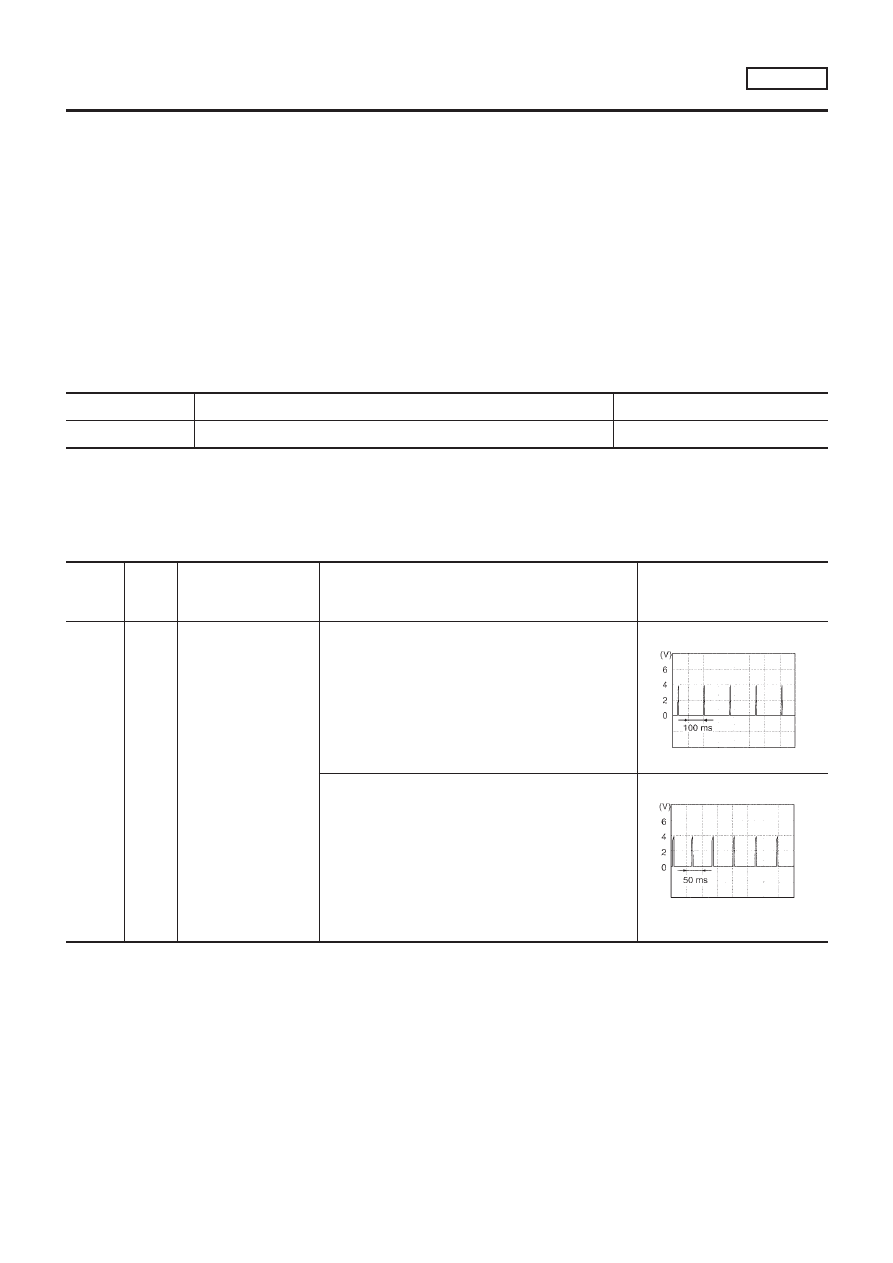

IGNITION SIGNAL

QG18DE

Component Description

EC-500

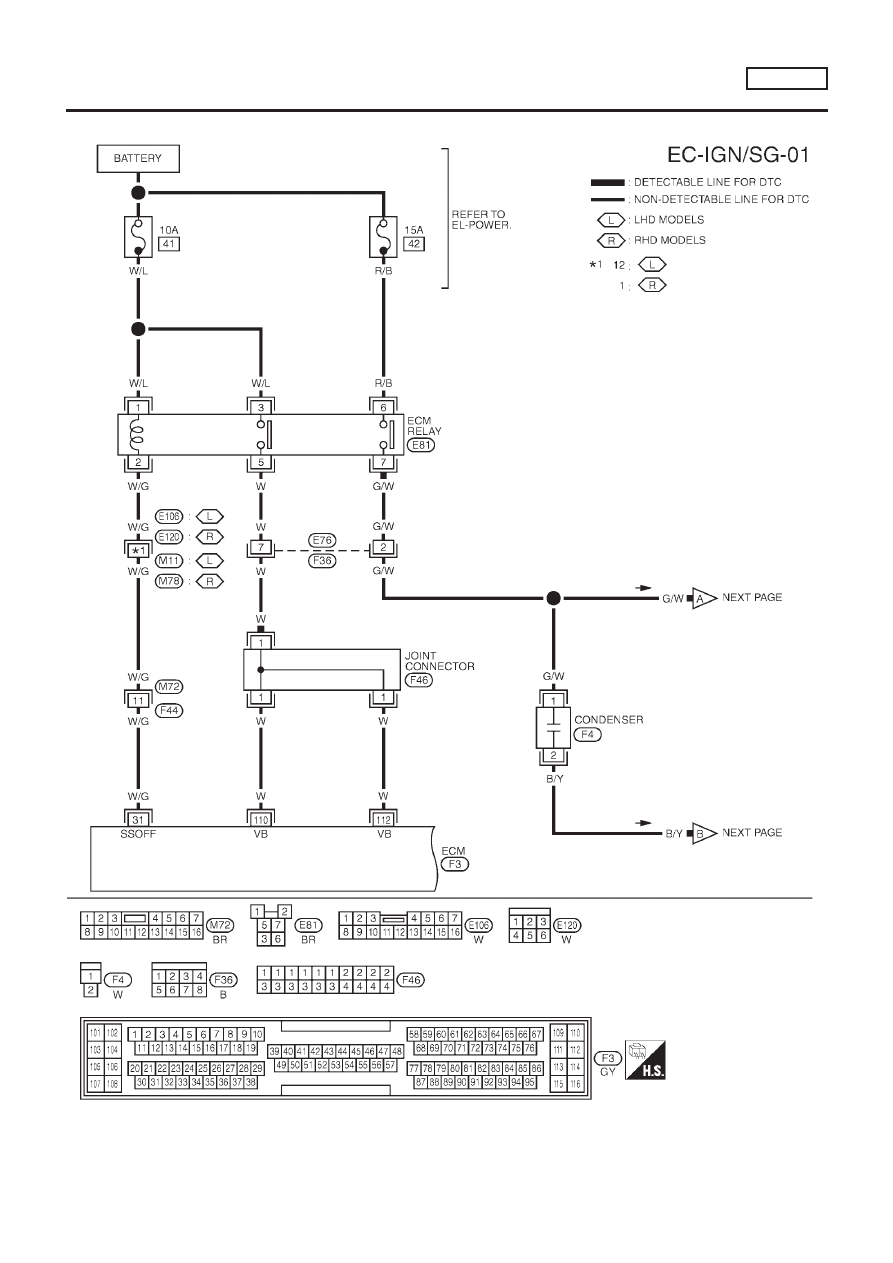

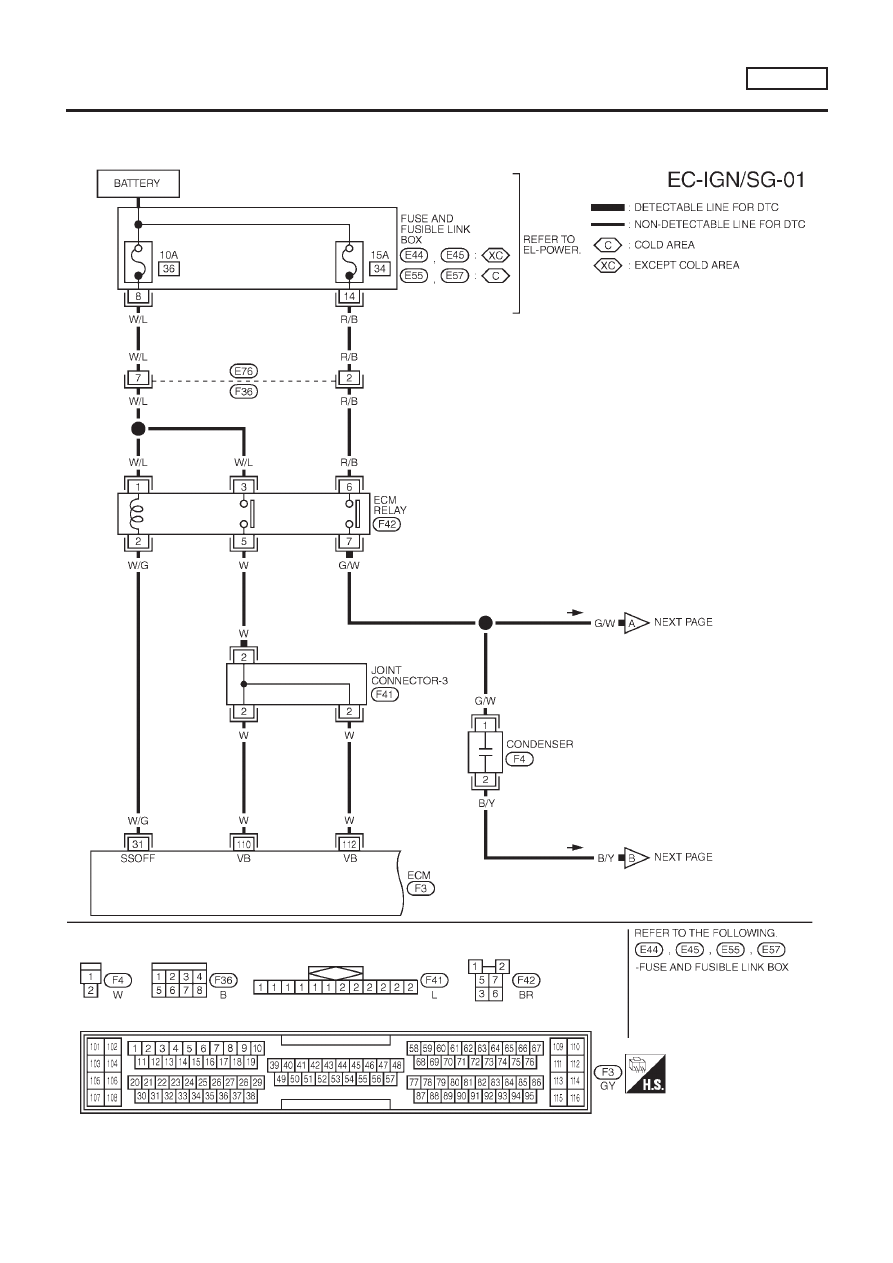

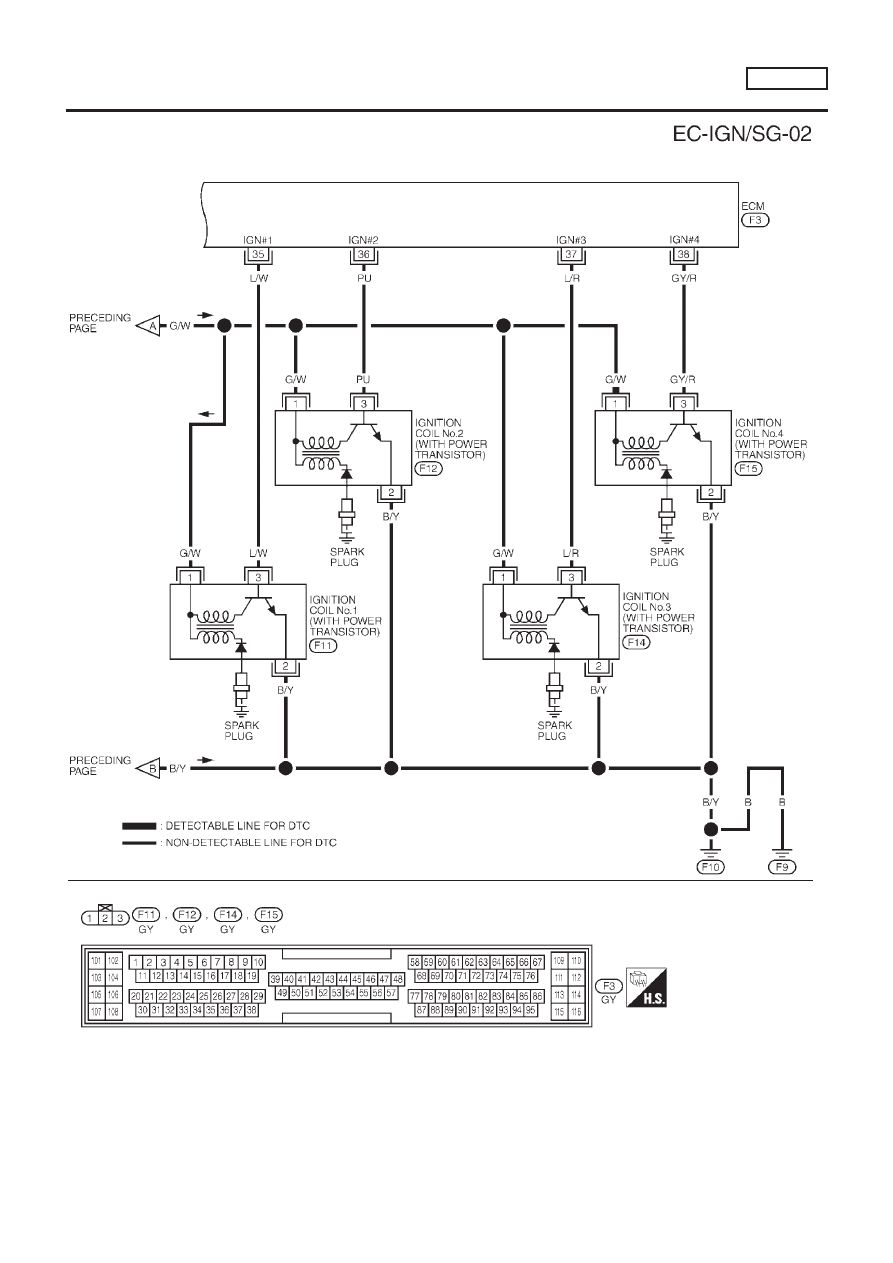

Wiring Diagram

NLEC0545

MODELS WITH ECM IN ENGINE COMPARTMENT

NLEC0545S01

YEC673

IGNITION SIGNAL

QG18DE

Wiring Diagram

EC-501

YEC674

IGNITION SIGNAL

QG18DE

Wiring Diagram (Cont’d)

EC-502

MODELS WITH ECM IN CABIN

NLEC0545S02

YEC902

IGNITION SIGNAL

QG18DE

Wiring Diagram (Cont’d)

EC-503

YEC674

IGNITION SIGNAL

QG18DE

Wiring Diagram (Cont’d)

EC-504
