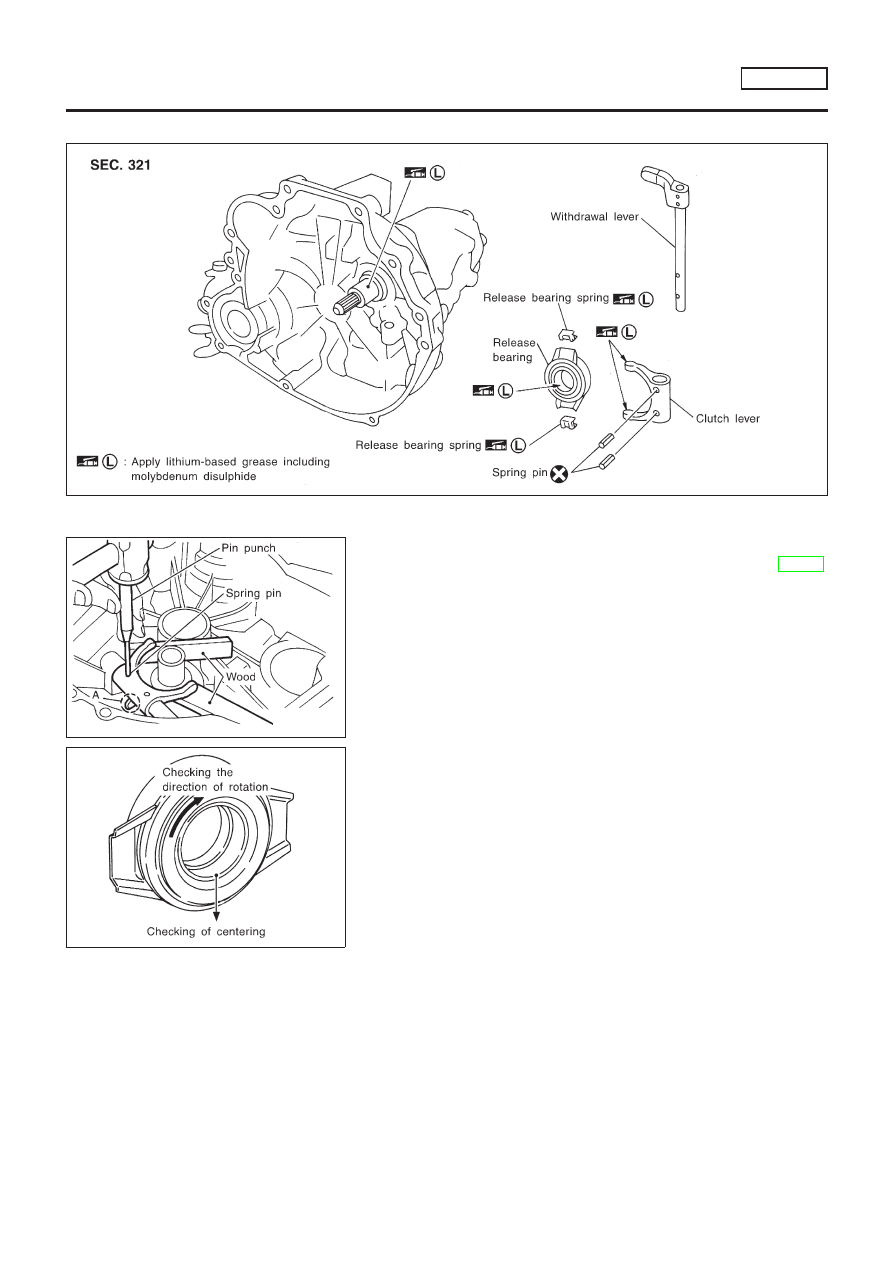

Components

NLCL0044

SCL819

SCL820

Removal

NLCL0045

Remove manual transaxle from vehicle. Refer to MT-18,
“Removal”.

Move withdrawal lever enough to remove release bearing, and
remove release bearing from clutch lever.

Support clutch lever claws with an appropriate wood block,
align retaining pin with A in the figure, and drive out spring pin
using a pin punch.

Pull out withdrawal lever and remove clutch lever.

SCL733

Inspection

NLCL0046

Replace the release bearing if it is seized, damaged, faulty in
rotation direction, or has poor aligning function.

Replace the withdrawal lever if its contact surface is worn
abnormally.

Replace the clutch lever if its contact surface is worn abnor-
mally.

Replace the dust seal if it is deformed or cracked.

Installation

NLCL0047

CAUTION:

Be sure to apply grease to the clutch components.
Otherwise, abnormal noise, poor clutch disengagement,
or clutch damage may occur. Wipe the excess grease off
completely, because it may cause the clutch components
to slip and shudder.

Keep the clutch disc facing, pressure plate, and flywheel
free of oil and grease.

CLUTCH RELEASE MECHANISM

RS5F70A

Components

CL-17

YCL002

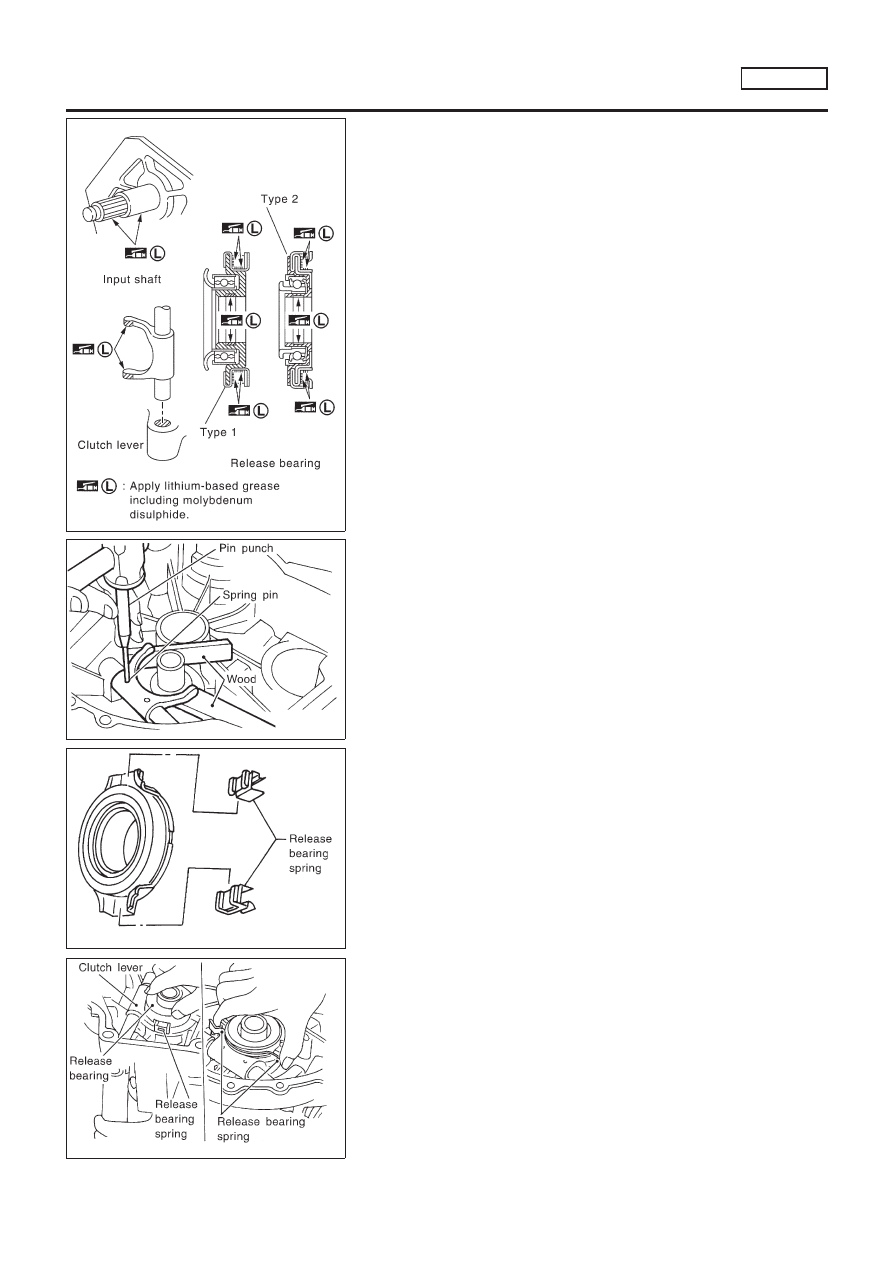

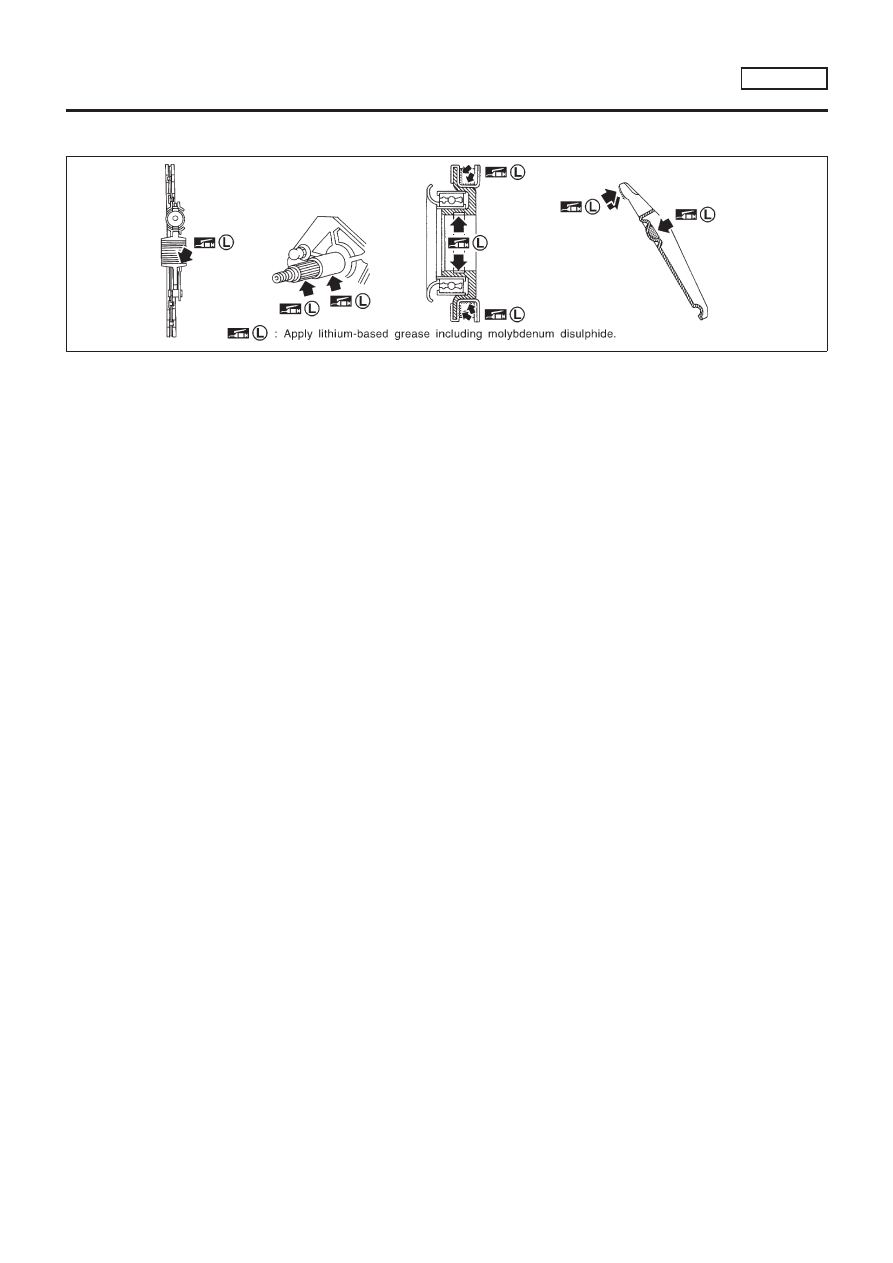

Clean old grease and abrasive materials off the grease
application area.

Apply approximately 1 mm (0.04 in)-thick clutch sleeve
grease evenly on the sliding part of the clutch lever and
the release bearing spring.

Apply just enough clutch sleeve grease to fill up the
release bearing inner groove.

Apply the clutch grease to the clutch disc and the input
shaft spline. Install the clutch disc to the input shaft,
remove the excess grease around the shaft, and remove
the clutch disc.

Lightly and evenly apply the clutch sleeve grease on the
sliding part of the release bearing, install the release
bearing, remove the excess grease around the bearing,
and remove the release bearing.

SCL822

Assemble clutch lever to clutch housing, and insert withdrawal
lever.

Support clutch lever claws with an appropriate wood block, and
install a new spring pin using a pin punch.

CAUTION:

Spring pin cannot be reused.

SCL736

Install release bearing spring to release bearing as shown in
the figure.

SCL823

Operate withdrawal lever manually, press clutch spring from
both sides, and install release bearing to clutch lever securely.

Make sure a click is heard when release bearing spring is
pressed from both sides.

CLUTCH RELEASE MECHANISM

RS5F70A

Installation (Cont’d)

CL-18

SCL738

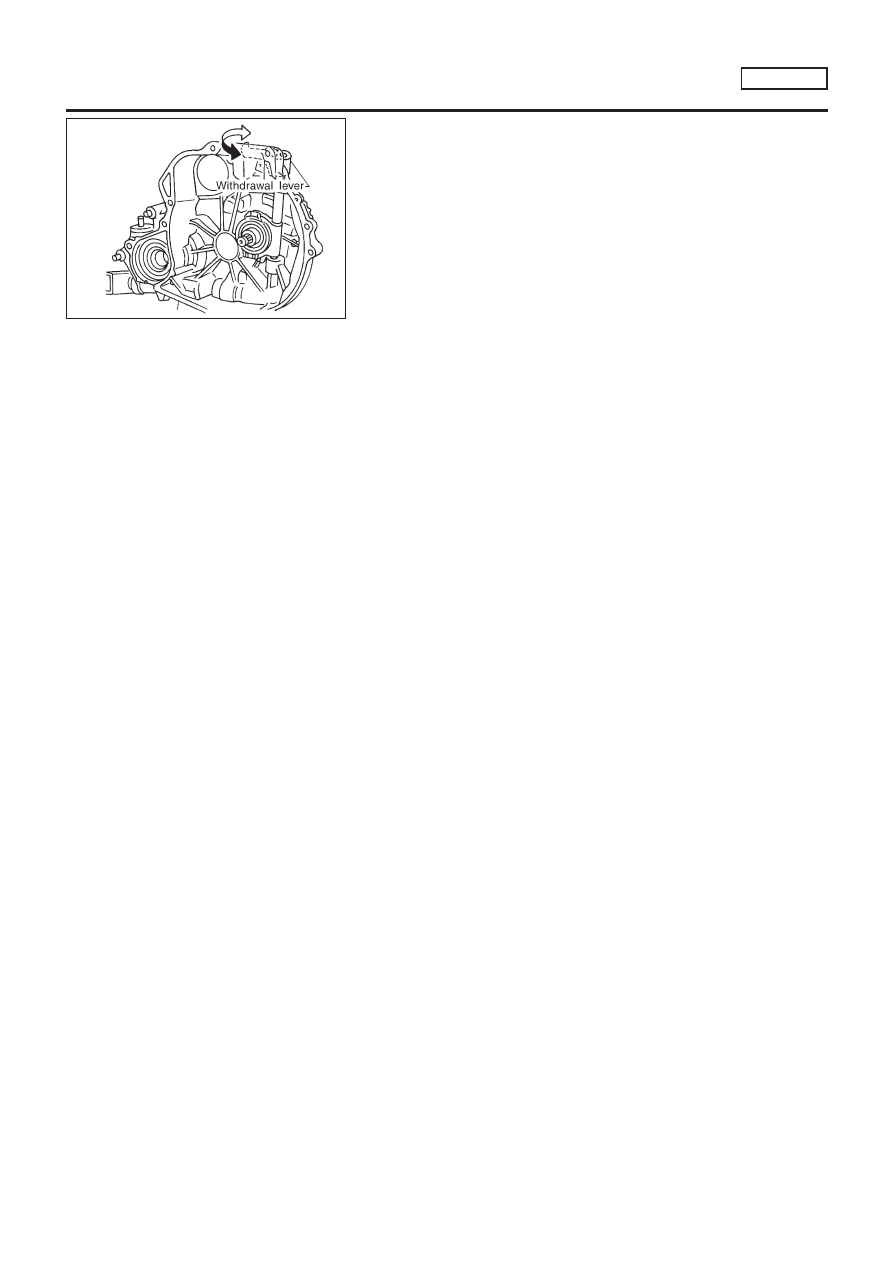

Make sure each sliding part operates smoothly when with-
drawal lever is moved.

CAUTION:

Remove any excess grease with a shop towel.

CLUTCH RELEASE MECHANISM

RS5F70A

Installation (Cont’d)

CL-19

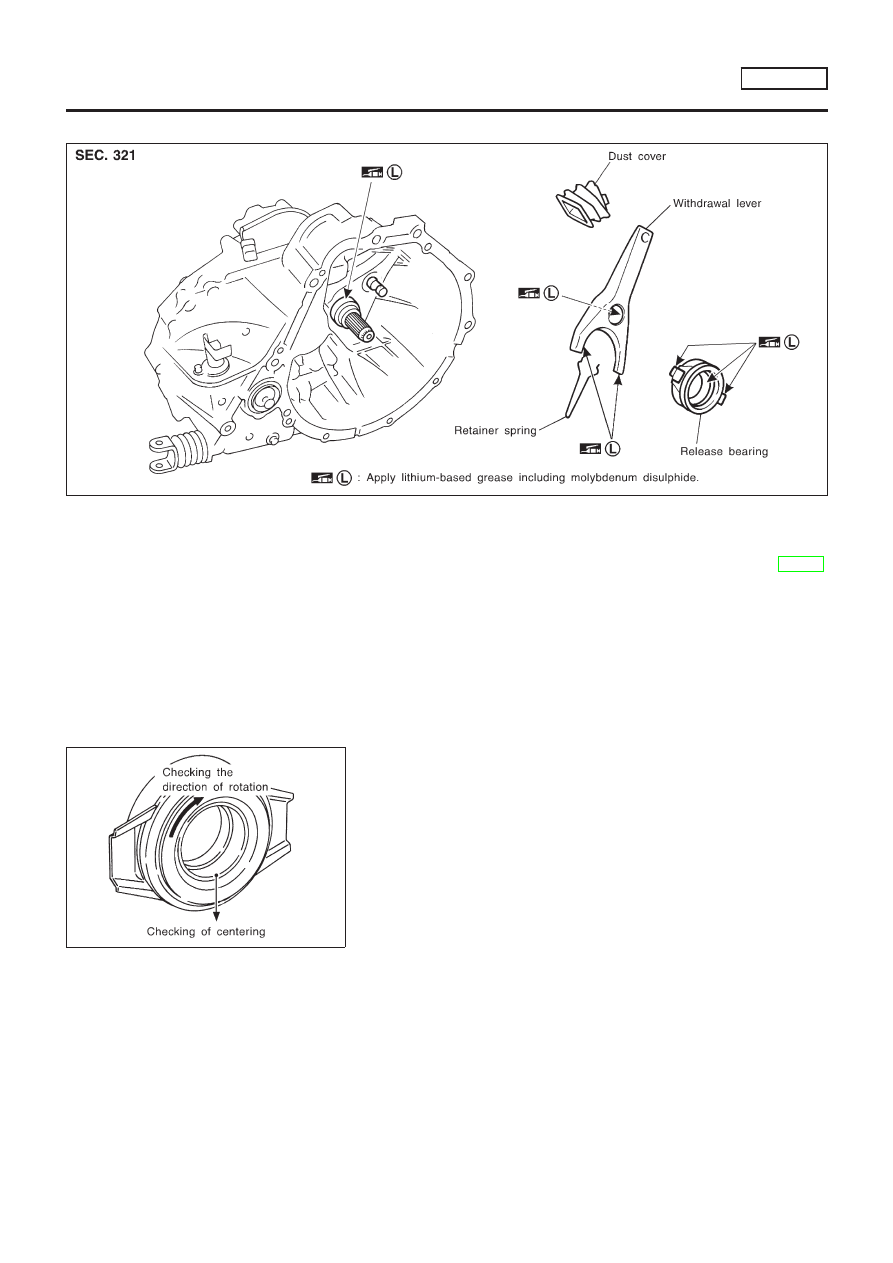

Components

NLCL0027

SCL842

Removal

NLCL0028

Remove manual transaxle from vehicle. Refer to MT-20,
“Removal”.

Move withdrawal lever enough to remove release bearing, and
remove release bearing from clutch withdrawal lever.

Remove dust cover.

Remove retainer spring from withdrawal lever.

SCL733

Inspection

NLCL0029

Replace the release bearing if it is seized, damaged, faulty in
rotation direction, or has poor aligning function.

Replace the withdrawal lever if its contact surface is worn
abnormally.

Replace the dust cover if it is deformed or cracked.

Installation

NLCL0030

Apply a coat of grease to parts as instructed in the following
cautions and notes before installation.

CAUTION:

Keep the clutch disc facing, pressure plate, and flywheel
free of oil and grease.

CLUTCH RELEASE MECHANISM

RS5F50A

Components

CL-20

Clean old grease and abrasive materials off the grease
application area.

SCL815

NOTE:

Equally apply a coat [approximately 1 mm (0.04 in) thick] of
clutch sleeve grease to withdrawal lever and holder spring
frictional surfaces.

Apply a coat of clutch sleeve grease to the grooves on contact
surfaces of the withdrawal lever ball pin and inner surface of
release bearing so that grease application, make sure that
grease is flush with grooves.

Equally apply a thin coat of clutch sleeve grease to release
bearing frictional surface. After grease application, install
release bearing. Wipe off excess grease forced out during
bearing installation. Remove release bearing.

Installation is in the reverse order of removal.

CLUTCH RELEASE MECHANISM

RS5F50A

Installation (Cont’d)

CL-21

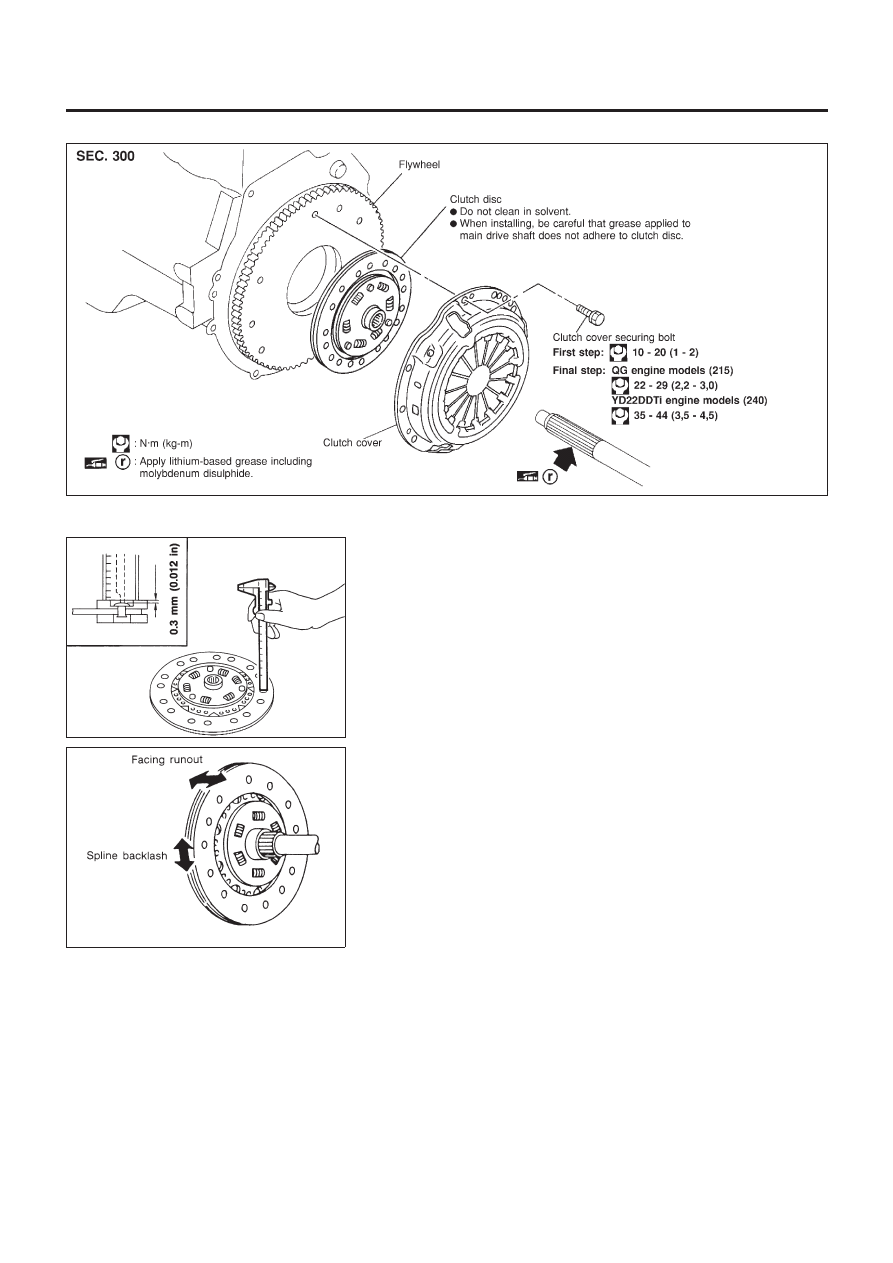

Components

NLCL0031

NCL054

SCL229

Inspection and Adjustment

NLCL0032

CLUTCH DISC

NLCL0032S01

Check clutch disc for wear of facing.

Wear limit of facing surface to rivet head:

MODEL 240, MODEL 215

(Part number 30100-

2F205)

0.3 mm (0.012 in)

Wearing thickness of facing:

MODEL 215

(Part number 30100-2F215)

1.3 mm (0.051 in)

SCL221

Check clutch disc for backlash of spline and runout of facing.

Maximum spline backlash (at outer edge of disc):

MODEL 215

0.9 mm (0.035 in)

MODEL 240

1.0 mm (0.039 in)

Runout limit:

1.0 mm (0.039 in)

Distance of runout check point (from hub center):

MODEL 215

102.5 mm (4.04 in)

MODEL 240

115 mm (4.53 in)

Check clutch disc for burns, discoloration or oil or grease leak-
age. Replace if necessary.

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

Components

CL-22

SCL466-C

CLUTCH COVER

NLCL0032S02

Check clutch cover installed on vehicle for unevenness of dia-
phragm spring toe height.

Uneven limit:

MODEL 240 0.7 mm (0.028 in)
MODEL 215 (Part number 30210-BU000)

0.7 mm (0.028 in)

MODEL 215 (Part number 30210-BU010)

0.8 mm (0.031 in)

If out of limit, adjust the height with Tool.

AEM100

FLYWHEEL

NLCL0032S03

Check contact surface of flywheel for slight burns or discolora-
tion. Repair flywheel with emery paper.

Check flywheel runout.

Maximum allowable runout:

Refer to EM-60, “Flywheel” (QG engine models),
and EM-251, “Flywheel Runout (YD engine models)”.

NCL055

NCL056

Installation

NLCL0033

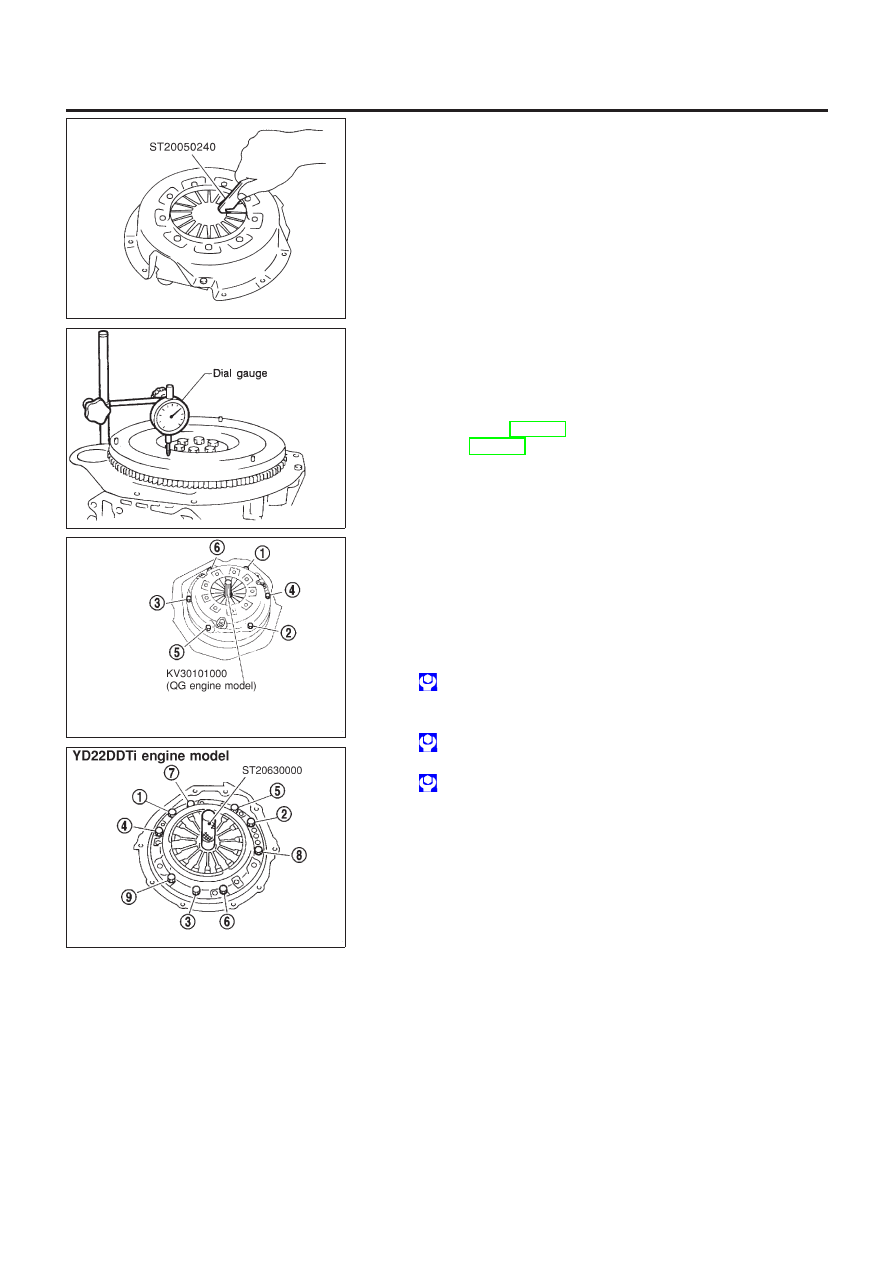

Insert Tool into clutch disc hub when installing clutch cover and
disc.

Be careful not to allow grease to contaminate clutch fac-
ing.

Tighten bolts in numerical order.

First step:

: 10 - 20 N·m (1 - 2 kg-m, 7 - 14 ft-lb)

Final step:
QG engine models (215)

: 22 - 29 N·m (2.2 - 3.0 kg-m, 15 - 21 ft-lb)

YD22DDTi engine model (240)

: 35 - 44 N·m (3.5 - 4.5 kg-m, 26 - 32 ft-lb)

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

Inspection and Adjustment (Cont’d)

CL-23

Clutch Control System

NLCL0034

Type of clutch control

Hydraulic

Clutch Master Cylinder

NLCL0035

Unit: mm (in)

Inner diameter

15.87 (5/8)

Clutch Operating Cylinder

NLCL0036

Unit: mm (in)

Inner diameter

19.05 (3/4)

Clutch Disc

NLCL0038

Unit: mm (in)

Engine

QG18DE

YD22DDTi

Model

215

240

Part number 30100-2F205

Part number 30100-2F215

Facing size (Outer dia.

inner

dia.

thickness)

215

140

3.5 (8.46

5.51

0.138)

216

153

3.45 (8.50

6.02

0.1358)

240

160

3.5 (9.45

6.30

0.138)

Thickness of disc assembly with
load

7.6 - 8.0 (0.299 - 0.315) with 4,904

N (500 kg, 1,103 lb)

7.3 - 7.9 (0.2874 - 0.3110) with

4,900 N (499.8 kg, 1102 lb)

7.3 - 7.9 (0.2874 - 0.3110) with

4,400 N (448.8 kg, 989.1 lb)

Wear limit of facing surface to
rivet head

0.3 (0.012)

—

0.3 (0.012)

Wearing thickness of facing

—

1.3 (0.051)

—

Runout limit of facing

1.0 (0.039)

Distance of runout check point
(from the hub center)

102.5 (4.04)

115 (4.53)

Maximum backlash of spline (at
outer edge disc)

0.9 (0.035)

1.0 (0.039)

Clutch Cover

NLCL0039

Unit: mm (in)

Engine

QG18DE

YD22DDTi

Model

215

240

Part number 30210-BU000

Part number 30210-BU010

Full-load

4,413 N (450 kg, 992 lb)

4,400 N (448.8 kg, 989.1 lb)

Uneven limit of diaphragm spring
toe height

0.7 (0.028)

0.8 (0.031)

0.7 (0.028)

Clutch Pedal

NLCL0040

Unit: mm (in)

Clutch pedal stroke “S”

140 - 150

(5.512 - 5.709)

Pedal free play “A”

1 - 3 (0.04 - 0.12)

SERVICE DATA AND SPECIFICATIONS (SDS)

Clutch Control System

CL-24

ENGINE CONTROL SYSTEM

SECTION

CONTENTS

QG18DE

TROUBLE DIAGNOSIS - INDEX

..................................16

Alphabetical & P No. Index for DTC .........................16

PRECAUTIONS

.............................................................21

Precautions for Supplemental Restraint System
(SRS)

....................................................21

Precautions for On Board Diagnostic (OBD)
System of Engine ......................................................21
Engine Fuel & Emission Control System ..................22
Wiring Diagrams and Trouble Diagnosis...................24

PREPARATION

.............................................................25

Special Service Tools ................................................25
Commercial Service Tools .........................................25

ENGINE AND EMISSION CONTROL OVERALL
SYSTEM

.........................................................................26

Engine Control Component Parts Location...............26
Circuit Diagram ..........................................................30
System Diagram ........................................................32
Vacuum Hose Drawing ..............................................33
System Chart .............................................................34

ENGINE AND EMISSION BASIC CONTROL
SYSTEM DESCRIPTION

...............................................35

Multiport Fuel Injection (MFI) System .......................35
Electronic Ignition (EI) System ..................................37
Air Conditioning Cut Control......................................38
Fuel Cut Control (at no load & high engine
speed) ........................................................................39
Evaporative Emission System ...................................39
Positive Crankcase Ventilation ..................................42

BASIC SERVICE PROCEDURE

...................................43

Fuel Pressure Release ..............................................43
Fuel Pressure Check .................................................43
Fuel Pressure Regulator Check ................................44
Injector .......................................................................44
How to Check Idle Speed and Ignition Timing..........46
Preparation ................................................................47
Inspection Procedure.................................................49

Idle Air Volume Learning ...........................................57

ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION

...............................................................59

Introduction ................................................................59
Two Trip Detection Logic ...........................................59
Emission-related Diagnostic Information ...................60
NATS (Nissan Anti-theft System) ..............................72
Malfunction Indicator (MI) ..........................................73
OBD System Operation Chart (With Euro-OBD
Models Only)..............................................................77
CONSULT-II ...............................................................82
Generic Scan Tool (GST) ..........................................93

TROUBLE DIAGNOSIS - INTRODUCTION

..................95

Introduction ................................................................95
Work Flow..................................................................97

TROUBLE DIAGNOSIS - BASIC INSPECTION

...........99

Basic Inspection.........................................................99

TROUBLE DIAGNOSIS - GENERAL
DESCRIPTION

.............................................................122

DTC Inspection Priority Chart..................................122
Fail-safe Chart .........................................................123
Symptom Matrix Chart.............................................124
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................128
Major Sensor Reference Graph in Data Monitor
Mode ........................................................................130
ECM Terminals and Reference Value .....................133

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

..141

Description ...............................................................141
Testing Condition .....................................................141
Inspection Procedure...............................................141
Diagnostic Procedure ..............................................142

TROUBLE DIAGNOSIS FOR INTERMITTENT
INCIDENT

.....................................................................145

Description ...............................................................145
Diagnostic Procedure ..............................................145

TROUBLE DIAGNOSIS FOR POWER SUPPLY

........146

Main Power Supply and Ground Circuit..................146

DTC P0100 MASS AIR FLOW SENSOR (MAFS)

......154

Component Description ...........................................154
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................154
ECM Terminals and Reference Value .....................154
On Board Diagnosis Logic.......................................154
Fail-safe Mode .........................................................155
DTC Confirmation Procedure ..................................155
Wiring Diagram ........................................................156
Diagnostic Procedure ..............................................158
Component Inspection.............................................160

DTC P0110 INTAKE AIR TEMPERATURE
SENSOR

......................................................................161

Component Description ...........................................161
On Board Diagnosis Logic.......................................162
DTC Confirmation Procedure ..................................162
Wiring Diagram ........................................................163
Diagnostic Procedure ..............................................165
Component Inspection.............................................167

DTC P0115 ENGINE COOLANT TEMPERATURE
SENSOR (ECTS) (CIRCUIT)

.......................................169

Component Description ...........................................169
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................169
On Board Diagnosis Logic.......................................169
Fail-safe Mode .........................................................170
DTC Confirmation Procedure ..................................170
Wiring Diagram ........................................................171
Diagnostic Procedure ..............................................173
Component Inspection.............................................174

DTC P0120 THROTTLE POSITION SENSOR

...........175

Component Description ...........................................175
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................175
ECM Terminals and Reference Value .....................176
On Board Diagnosis Logic.......................................176
Fail-safe Mode .........................................................176
DTC Confirmation Procedure ..................................176
Wiring Diagram ........................................................178
Diagnostic Procedure ..............................................180
Component Inspection.............................................182

DTC P0130 HEATED OXYGEN SENSOR 1
(FRONT) (CIRCUIT)

.....................................................184

Component Description ...........................................184
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................184
ECM Terminals and Reference Value .....................184
On Board Diagnosis Logic.......................................185
DTC Confirmation Procedure ..................................185
Overall Function Check ...........................................186
Wiring Diagram ........................................................187
Diagnostic Procedure ..............................................189

Component Inspection.............................................190

DTC P0131 HEATED OXYGEN SENSOR 1
(FRONT) (LEAN SHIFT MONITORING)

.....................192

Component Description ...........................................192
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................192
ECM Terminals and Reference Value .....................192
On Board Diagnosis Logic.......................................193
DTC Confirmation Procedure ..................................193
Overall Function Check ...........................................194
Diagnostic Procedure ..............................................194
Component Inspection.............................................196

DTC P0132 HEATED OXYGEN SENSOR 1
(FRONT) (RICH SHIFT MONITORING)

......................198

Component Description ...........................................198
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................198
ECM Terminals and Reference Value .....................198
On Board Diagnosis Logic.......................................199
DTC Confirmation Procedure ..................................199
Overall Function Check ...........................................200
Diagnostic Procedure ..............................................200
Component Inspection.............................................202

DTC P0133 HEATED OXYGEN SENSOR 1
(FRONT) (RESPONSE MONITORING)

.......................204

Component Description ...........................................204
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................204
ECM Terminals and Reference Value .....................204
On Board Diagnosis Logic.......................................205
DTC Confirmation Procedure ..................................205
Overall Function Check ...........................................206
Wiring Diagram ........................................................207
Diagnostic Procedure ..............................................209
Component Inspection.............................................212

DTC P0134 HEATED OXYGEN SENSOR 1
(FRONT) (HIGH VOLTAGE)

........................................214

Component Description ...........................................214
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................214
ECM Terminals and Reference Value .....................214
On Board Diagnosis Logic.......................................215
DTC Confirmation Procedure ..................................215
Wiring Diagram ........................................................216
Diagnostic Procedure ..............................................218
Component Inspection.............................................219

DTC P0135 HEATED OXYGEN SENSOR 1
(FRONT) HEATER

.......................................................221

Description ...............................................................221
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................221
ECM Terminals and Reference Value .....................221

CONTENTS

(Cont’d)

EC-2

On Board Diagnosis Logic.......................................221
DTC Confirmation Procedure ..................................222
Wiring Diagram ........................................................223
Diagnostic Procedure ..............................................225
Component Inspection.............................................226

DTC P0137 HEATED OXYGEN SENSOR 2
(REAR) (MIN. VOLTAGE MONITORING)

...................227

Component Description ...........................................227
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................227
ECM Terminals and Reference Value .....................227
On Board Diagnosis Logic.......................................227
DTC Confirmation Procedure ..................................228
Overall Function Check ...........................................229
Wiring Diagram ........................................................230
Diagnostic Procedure ..............................................232
Component Inspection.............................................235

DTC P0138 HEATED OXYGEN SENSOR 2
(REAR) (MAX. VOLTAGE MONITORING)

.................237

Component Description ...........................................237
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................237
ECM Terminals and Reference Value .....................237
On Board Diagnosis Logic.......................................237
DTC Confirmation Procedure ..................................238
Overall Function Check ...........................................239
Wiring Diagram ........................................................240
Diagnostic Procedure ..............................................242
Component Inspection.............................................244

DTC P0139 HEATED OXYGEN SENSOR 2
(REAR) (RESPONSE MONITORING)

.........................246

Component Description ...........................................246
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................246
ECM Terminals and Reference Value .....................246
On Board Diagnosis Logic.......................................246
DTC Confirmation Procedure ..................................247
Overall Function Check ...........................................248
Wiring Diagram ........................................................249
Diagnostic Procedure ..............................................251
Component Inspection.............................................254

DTC P0140 HEATED OXYGEN SENSOR 2
(REAR) (HIGH VOLTAGE)

..........................................256

Component Description ...........................................256
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................256
ECM Terminals and Reference Value .....................256
On Board Diagnosis Logic.......................................256
DTC Confirmation Procedure ..................................257
Overall Function Check ...........................................257
Wiring Diagram ........................................................258
Diagnostic Procedure ..............................................260

Component Inspection.............................................261

DTC P0141 HEATED OXYGEN SENSOR 2
HEATER (REAR)

.........................................................263

Description ...............................................................263
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................263
ECM Terminals and Reference Value .....................263
On Board Diagnosis Logic.......................................264
DTC Confirmation Procedure ..................................264
Wiring Diagram ........................................................265
Diagnostic Procedure ..............................................267
Component Inspection.............................................268

DTC P0171 FUEL INJECTION SYSTEM
FUNCTION (LEAN SIDE)

............................................269

On Board Diagnosis Logic.......................................269
DTC Confirmation Procedure ..................................269
Wiring Diagram ........................................................271
Diagnostic Procedure ..............................................273

DTC P0172 FUEL INJECTION SYSTEM
FUNCTION (RICH SIDE)

.............................................277

On Board Diagnosis Logic.......................................277
DTC Confirmation Procedure ..................................277
Wiring Diagram ........................................................279
Diagnostic Procedure ..............................................281

DTC P0300 - P0304 NO. 4 - 1 CYLINDER
MISFIRE, MULTIPLE CYLINDER MISFIRE

...............285

On Board Diagnosis Logic.......................................285
DTC Confirmation Procedure ..................................285
Diagnostic Procedure ..............................................286

DTC P0325 KNOCK SENSOR (KS)

...........................291

Component Description ...........................................291
ECM Terminals and Reference Value .....................291
On Board Diagnosis Logic.......................................291
DTC Confirmation Procedure ..................................291
Wiring Diagram ........................................................292
Diagnostic Procedure ..............................................293
Component Inspection.............................................294

DTC P0335 CRANKSHAFT POSITION SENSOR
(POS)

............................................................................295

Component Description ...........................................295
ECM Terminals and Reference Value .....................295
On Board Diagnosis Logic.......................................296
DTC Confirmation Procedure ..................................296
Wiring Diagram ........................................................297
Diagnostic Procedure ..............................................299
Component Inspection.............................................301

DTC P0340 CAMSHAFT POSITION SENSOR
(CMPS) (PHASE)

.........................................................302

Component Description ...........................................302
ECM Terminals and Reference Value .....................302
On Board Diagnosis Logic.......................................303
DTC Confirmation Procedure ..................................303

CONTENTS

(Cont’d)

EC-3

Wiring Diagram ........................................................304
Diagnostic Procedure ..............................................306
Component Inspection.............................................308

DTC P0400 EGR FUNCTION (CLOSED) (WHERE
FITTED)

........................................................................310

Description ...............................................................310
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................ 311
ECM Terminals and Reference Value ..................... 311
On Board Diagnosis Logic....................................... 311
DTC Confirmation Procedure ..................................312
Wiring Diagram ........................................................314
Diagnostic Procedure ..............................................316
Component Inspection.............................................318

DTC P0403 EGR VOLUME CONTROL VALVE
(CIRCUIT) (WHERE FITTED)

......................................319

Description ...............................................................319
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................320
ECM Terminals and Reference Value .....................320
On Board Diagnosis Logic.......................................320
DTC Confirmation Procedure ..................................320
Wiring Diagram ........................................................322
Diagnostic Procedure ..............................................324
Component Inspection.............................................326

DTC P0420 THREE WAY CATALYST FUNCTION

...327

On Board Diagnosis Logic.......................................327
DTC Confirmation Procedure ..................................327
Overall Function Check ...........................................328
Diagnostic Procedure ..............................................328

DTC P0443 EVAP CANISTER PURGE VOLUME
CONTROL SOLENOID VALVE (CIRCUIT)

.................332

Description ...............................................................332
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................332
ECM Terminals and Reference Value .....................333
On Board Diagnosis Logic.......................................333
DTC Confirmation Procedure ..................................333
Wiring Diagram ........................................................334
Diagnostic Procedure ..............................................336
Component Inspection.............................................337

DTC P0500 VEHICLE SPEED SENSOR (VSS)

.........338

Component Description ...........................................338
ECM Terminals and Reference Value .....................338
On Board Diagnosis Logic.......................................338
DTC Confirmation Procedure ..................................338
Wiring Diagram ........................................................340
Diagnostic Procedure ..............................................342

DTC P0505 IDLE AIR CONTROL VALVE (IACV) -
AUXILIARY AIR CONTROL (AAC) VALVE

...............343

Description ...............................................................343

CONSULT-II Reference Value in Data Monitor
Mode ........................................................................344
ECM Terminals and Reference Value .....................344
On Board Diagnosis Logic.......................................344
DTC Confirmation Procedure ..................................344
Wiring Diagram ........................................................345
Diagnostic Procedure ..............................................347
Component Inspection.............................................351

DTC P0510 CLOSED THROTTLE POSITION
SWITCH (WHERE FITTED)

.........................................352

Component Description ...........................................352
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................352
ECM Terminals and Reference Value .....................352
On Board Diagnosis Logic.......................................352
DTC Confirmation Procedure ..................................352
Overall Function Check ...........................................353
Wiring Diagram ........................................................354
Diagnostic Procedure ..............................................355
Component Inspection.............................................356

DTC P0605 ECM

.........................................................358

Component Description ...........................................358
On Board Diagnosis Logic.......................................358
DTC Confirmation Procedure ..................................358
Diagnostic Procedure ..............................................359

DTC P1111 INTAKE VALVE TIMING CONTROL
SOLENOID VALVE

......................................................360

Component Description ...........................................360
Operation .................................................................360
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................360
ECM Terminals and Reference Value .....................360
On Board Diagnosis Logic.......................................360
DTC Confirmation Procedure ..................................361
Wiring Diagram ........................................................362
Diagnostic Procedure ..............................................364
Component Inspection.............................................365

DTC P1131 SWIRL CONTROL VALVE SOLENOID
VALVE (CIRCUIT) (WHERE FITTED)

.........................366

Description ...............................................................366
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................366
ECM Terminals and Reference Value .....................367
Component Description ...........................................367
On Board Diagnosis Logic.......................................367
DTC Confirmation Procedure ..................................367
Wiring Diagram ........................................................369
Diagnostic Procedure ..............................................370
Component Inspection.............................................371

DTC P1217 OVERHEAT (COOLING SYSTEM)

.........373

System Description..................................................373

CONTENTS

(Cont’d)

EC-4

CONSULT-II Reference Value in Data Monitor
Mode ........................................................................373
ECM Terminals and Reference Value .....................374
On Board Diagnosis Logic.......................................374
Overall Function Check ...........................................375
Wiring Diagram ........................................................376
Diagnostic Procedure ..............................................378
Main 12 Causes of Overheating..............................384
Component Inspection.............................................384

DTC P1401 EGR TEMPERATURE SENSOR
(WHERE FITTED)

........................................................386

Component Description ...........................................386
On Board Diagnosis Logic.......................................386
DTC Confirmation Procedure ..................................386
Wiring Diagram ........................................................389
Diagnostic Procedure ..............................................391
Component Inspection.............................................392

DTC P1402 EGR FUNCTION (OPEN) (WHERE
FITTED)

........................................................................393

Description ...............................................................393
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................394
ECM Terminals and Reference Value .....................394
On Board Diagnosis Logic.......................................394
DTC Confirmation Procedure ..................................395
Wiring Diagram ........................................................397
Diagnostic Procedure ..............................................399
Component Inspection.............................................400

DTC P1706 PARK/NEUTRAL POSITION (PNP)
SWITCH

.......................................................................402

Component Description ...........................................402
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................402
ECM Terminals and Reference Value .....................402
On Board Diagnosis Logic.......................................402
DTC Confirmation Procedure ..................................402
Overall Function Check ...........................................403
Wiring Diagram ........................................................404
Diagnostic Procedure ..............................................405

INTAKE AIR TEMPERATURE SENSOR

....................407

Component Description ...........................................407
Wiring Diagram ........................................................409
Diagnostic Procedure .............................................. 411
Component Inspection.............................................413

HEATED OXYGEN SENSOR 1 (FRONT)

...................414

Component Description ...........................................414
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................414
ECM Terminals and Reference Value .....................414
Wiring Diagram ........................................................415
Diagnostic Procedure ..............................................417
Component Inspection.............................................419

HEATED OXYGEN SENSOR 1 HEATER (FRONT)

...421

Description ...............................................................421
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................421
ECM Terminals and Reference Value .....................421
Wiring Diagram ........................................................422
Diagnostic Procedure ..............................................424
Component Inspection.............................................425

HEATED OXYGEN SENSOR 2 (REAR)

.....................426

Component Description ...........................................426
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................426
ECM Terminals and Reference Value .....................426
Wiring Diagram ........................................................427
Diagnostic Procedure ..............................................429
Component Inspection.............................................431

HEATED OXYGEN SENSOR 2 HEATER (REAR)

.....433

Description ...............................................................433
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................433
ECM Terminals and Reference Value .....................433
Wiring Diagram ........................................................434
Diagnostic Procedure ..............................................436
Component Inspection.............................................438

CRANKSHAFT POSITION SENSOR (POS)

...............439

Component Description ...........................................439
ECM Terminals and Reference Value .....................439
Wiring Diagram ........................................................440
Diagnostic Procedure ..............................................442
Component Inspection.............................................445

EGR VOLUME CONTROL SYSTEM (WHERE
FITTED)

........................................................................446

Description ...............................................................446
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................447
ECM Terminals and Reference Value .....................448
Wiring Diagram ........................................................449
Diagnostic Procedure ..............................................451
Component Inspection.............................................456

EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE

......................................................458

Description ...............................................................458
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................458
ECM Terminals and Reference Value .....................459
Wiring Diagram ........................................................460
Diagnostic Procedure ..............................................462
Component Inspection.............................................465

IDLE AIR CONTROL VALVE (IACV) - AUXILIARY
AIR CONTROL (AAC) VALVE

....................................466

Description ...............................................................466

CONTENTS

(Cont’d)

EC-5

CONSULT-II Reference Value in Data Monitor
Mode ........................................................................467
ECM Terminals and Reference Value .....................467
Wiring Diagram ........................................................468
Diagnostic Procedure ..............................................470
Component Inspection.............................................474

INTAKE VALVE TIMING CONTROL SOLENOID
VALVE

..........................................................................475

Component Description ...........................................475
Operation .................................................................475
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................475
ECM Terminals and Reference Value .....................475
Wiring Diagram ........................................................476
Diagnostic Procedure ..............................................478
Component Inspection.............................................480

SWIRL CONTROL VALVE CONTROL SYSTEM
(WHERE FITTED)

........................................................481

Description ...............................................................481
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................481
ECM Terminals and Reference Value .....................482
Component Description ...........................................482
Wiring Diagram ........................................................483
Diagnostic Procedure ..............................................484
Component Inspection.............................................488

PARK/NEUTRAL POSITION (PNP) SWITCH

............490

Component Description ...........................................490
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................490
ECM Terminals and Reference Value .....................490
Wiring Diagram ........................................................491
Diagnostic Procedure ..............................................492

INJECTOR

...................................................................494

Component Description ...........................................494
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................494
ECM Terminals and Reference Value .....................494
Wiring Diagram ........................................................495
Diagnostic Procedure ..............................................497
Component Inspection.............................................499

IGNITION SIGNAL

.......................................................500

Component Description ...........................................500
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................500
ECM Terminals and Reference Value .....................500
Wiring Diagram ........................................................501
Diagnostic Procedure ..............................................505
Component Inspection.............................................509

START SIGNAL

........................................................... 511

CONSULT-II Reference Value in Data Monitor
Mode ........................................................................ 511

ECM Terminals and Reference Value ..................... 511
Wiring Diagram ........................................................512
Diagnostic Procedure ..............................................514

FUEL PUMP

.................................................................516

System Description..................................................516
Component Description ...........................................516
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................516
ECM Terminals and Reference Value .....................517
Wiring Diagram ........................................................518
Diagnostic Procedure ..............................................520
Component Inspection.............................................522

POWER STEERING OIL PRESSURE SWITCH

.........523

Component Description ...........................................523
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................523
ECM Terminals and Reference Value .....................523
Wiring Diagram ........................................................524
Diagnostic Procedure ..............................................526
Component Inspection.............................................527

REFRIGERANT PRESSURE SENSOR

......................529

Description ...............................................................529
ECM Terminals and Reference Value .....................529
Wiring Diagram ........................................................530
Diagnostic Procedure ..............................................532

ELECTRICAL LOAD SIGNAL

.....................................535

CONSULT-II Reference Value in Data Monitor
Mode ........................................................................535
ECM Terminals and Reference Value .....................535
Wiring Diagram ........................................................536
Diagnostic Procedure - Load Signal - .....................540
Diagnostic Procedure - Heater Control Panel
(Fan Switch) - ..........................................................544

MI & DATA LINK CONNECTORS

..............................545

Wiring Diagram ........................................................545

SERVICE DATA AND SPECIFICATIONS (SDS)

.......547

Fuel Pressure Regulator..........................................547
Idle Speed and Ignition Timing................................547
Mass Air Flow Sensor..............................................547
Intake Air Temperature Sensor................................547
Engine Coolant Temperature Sensor ......................547
Throttle Position Sensor ..........................................547
Heated Oxygen Sensor 1 Heater (Front) ................547
Heated Oxygen Sensor 2 Heater (Rear).................547
EGR Volume Control Valve (where fitted)...............548
EGR Temperature Sensor (where fitted).................548
EVAP Canister Purge Volume Control Valve ..........548
IACV-AAC Valve ......................................................548
Injector .....................................................................548
Ignition Coil with Power Transistor ..........................548
Condenser ...............................................................548
Fuel Pump ...............................................................548

CONTENTS

(Cont’d)

EC-6

Crankshaft Position Sensor (POS)..........................549
Camshaft Position Sensor (PHASE) .......................549

SR20DE

TROUBLE DIAGNOSIS - INDEX

................................550

Alphabetical & P No. Index for DTC .......................550

PRECAUTIONS

...........................................................555

Precautions for Supplemental Restraint System
(SRS)

..................................................555

Precautions for On Board Diagnostic (OBD)
System of Engine and CVT.....................................555
Engine Fuel & Emission Control System ................556
Wiring Diagrams and Trouble Diagnosis.................558

PREPARATION

...........................................................559

Special Service Tools ..............................................559
Commercial Service Tools .......................................559

ENGINE AND EMISSION CONTROL OVERALL
SYSTEM

.......................................................................560

Engine Control Component Parts Location.............560
Circuit Diagram ........................................................564
System Diagram ......................................................566
Vacuum Hose Drawing ............................................567
System Chart ...........................................................568

ENGINE AND EMISSION BASIC CONTROL
SYSTEM DESCRIPTION

.............................................569

Multiport Fuel Injection (MFI) System .....................569
Electronic Ignition (EI) System ................................571
Air Conditioning Cut Control....................................572
Fuel Cut Control (at no load & high engine
speed) ......................................................................573
Evaporative Emission System .................................573
Positive Crankcase Ventilation ................................576

BASIC SERVICE PROCEDURE

.................................577

Fuel Pressure Release ............................................577
Fuel Pressure Check ...............................................577
Fuel Pressure Regulator Check ..............................578
Injector .....................................................................578
Idle Air Volume Learning .........................................581

ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION

.............................................................583

Introduction ..............................................................583
Two Trip Detection Logic .........................................583
Emission-related Diagnostic Information .................584
NATS (Nissan Anti-theft System) ............................597
Malfunction Indicator (MI) ........................................598
OBD System Operation Chart (With Euro-OBD
Models Only)............................................................602
CONSULT-II .............................................................607
Generic Scan Tool (GST) ........................................617

TROUBLE DIAGNOSIS - INTRODUCTION

................619

Introduction ..............................................................619

Work Flow................................................................621

TROUBLE DIAGNOSIS - BASIC INSPECTION

.........623

Basic Inspection (Models with Throttle Opener) .....623
Basic Inspection (Models without Throttle
Opener)....................................................................638

TROUBLE DIAGNOSIS - GENERAL
DESCRIPTION

.............................................................646

DTC Inspection Priority Chart..................................646
Fail-safe Chart .........................................................647
Symptom Matrix Chart.............................................648
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................652
Major Sensor Reference Graph in Data Monitor
Mode ........................................................................654
ECM Terminals and Reference Value .....................657

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

..666

Description ...............................................................666
Testing Condition .....................................................666
Inspection Procedure...............................................666
Diagnostic Procedure ..............................................667

TROUBLE DIAGNOSIS FOR INTERMITTENT
INCIDENT

.....................................................................670

Description ...............................................................670
Diagnostic Procedure ..............................................670

TROUBLE DIAGNOSIS FOR POWER SUPPLY

........671

Main Power Supply and Ground Circuit..................671

DTC P0100 MASS AIR FLOW SENSOR (MAFS)

......679

Component Description ...........................................679
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................679
ECM Terminals and Reference Value .....................679
On Board Diagnosis Logic.......................................679
Fail-safe Mode .........................................................680
DTC Confirmation Procedure ..................................680
Wiring Diagram ........................................................682
Diagnostic Procedure ..............................................684
Component Inspection.............................................686

DTC P0110 INTAKE AIR TEMPERATURE
SENSOR

......................................................................687

Component Description ...........................................687
On Board Diagnosis Logic.......................................688
DTC Confirmation Procedure ..................................688
Wiring Diagram ........................................................689
Diagnostic Procedure ..............................................691
Component Inspection.............................................693

DTC P0115 ENGINE COOLANT TEMPERATURE
SENSOR (ECTS) (CIRCUIT)

.......................................694

Component Description ...........................................694
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................694
On Board Diagnosis Logic.......................................694
Fail-safe Mode .........................................................695

CONTENTS

(Cont’d)

EC-7

DTC Confirmation Procedure ..................................695
Wiring Diagram ........................................................696
Diagnostic Procedure ..............................................698
Component Inspection.............................................699

DTC P0120 THROTTLE POSITION SENSOR

...........700

Component Description ...........................................700
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................700
ECM Terminals and Reference Value .....................701
On Board Diagnosis Logic.......................................701
Fail-safe Mode .........................................................701
DTC Confirmation Procedure ..................................701
Wiring Diagram ........................................................703
Diagnostic Procedure ..............................................705
Component Inspection.............................................707

DTC P0130 HEATED OXYGEN SENSOR 1
(FRONT) (CIRCUIT)

.....................................................709

Component Description ...........................................709
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................709
ECM Terminals and Reference Value .....................709
On Board Diagnosis Logic.......................................710
DTC Confirmation Procedure ..................................710
Overall Function Check ........................................... 711
Wiring Diagram ........................................................712
Diagnostic Procedure ..............................................714
Component Inspection.............................................715

DTC P0131 HEATED OXYGEN SENSOR 1
(FRONT) (LEAN SHIFT MONITORING)

.....................717

Component Description ...........................................717
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................717
ECM Terminals and Reference Value .....................717
On Board Diagnosis Logic.......................................718
DTC Confirmation Procedure ..................................718
Overall Function Check ...........................................719
Diagnostic Procedure ..............................................719
Component Inspection.............................................721

DTC P0132 HEATED OXYGEN SENSOR 1
(FRONT) (RICH SHIFT MONITORING)

......................723

Component Description ...........................................723
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................723
ECM Terminals and Reference Value .....................723
On Board Diagnosis Logic.......................................724
DTC Confirmation Procedure ..................................724
Overall Function Check ...........................................725
Diagnostic Procedure ..............................................725
Component Inspection.............................................727

DTC P0133 HEATED OXYGEN SENSOR 1
(FRONT) (RESPONSE MONITORING)

.......................729

Component Description ...........................................729

CONSULT-II Reference Value in Data Monitor
Mode ........................................................................729
ECM Terminals and Reference Value .....................729
On Board Diagnosis Logic.......................................730
DTC Confirmation Procedure ..................................730
Overall Function Check ...........................................731
Wiring Diagram ........................................................732
Diagnostic Procedure ..............................................734
Component Inspection.............................................737

DTC P0134 HEATED OXYGEN SENSOR 1
(FRONT) (HIGH VOLTAGE)

........................................739

Component Description ...........................................739
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................739
ECM Terminals and Reference Value .....................739
On Board Diagnosis Logic.......................................740
DTC Confirmation Procedure ..................................740
Wiring Diagram ........................................................741
Diagnostic Procedure ..............................................743
Component Inspection.............................................744

DTC P0135 HEATED OXYGEN SENSOR 1
(FRONT) HEATER

.......................................................746

Description ...............................................................746
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................746
ECM Terminals and Reference Value .....................746
On Board Diagnosis Logic.......................................746
DTC Confirmation Procedure ..................................747
Wiring Diagram ........................................................748
Diagnostic Procedure ..............................................750
Component Inspection.............................................751

DTC P0137 HEATED OXYGEN SENSOR 2
(REAR) (MIN. VOLTAGE MONITORING)

...................752

Component Description ...........................................752
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................752
ECM Terminals and Reference Value .....................752
On Board Diagnosis Logic.......................................752
DTC Confirmation Procedure ..................................753
Overall Function Check ...........................................754
Wiring Diagram ........................................................755
Diagnostic Procedure ..............................................757
Component Inspection.............................................760

DTC P0138 HEATED OXYGEN SENSOR 2
(REAR) (MAX. VOLTAGE MONITORING)

.................761

Component Description ...........................................761
CONSULT-II Reference Value in Data Monitor
Mode ........................................................................761
ECM Terminals and Reference Value .....................761
On Board Diagnosis Logic.......................................761
DTC Confirmation Procedure ..................................762
Overall Function Check ...........................................763

CONTENTS

(Cont’d)

EC-8

Content .. 25 26 27 28 ..
