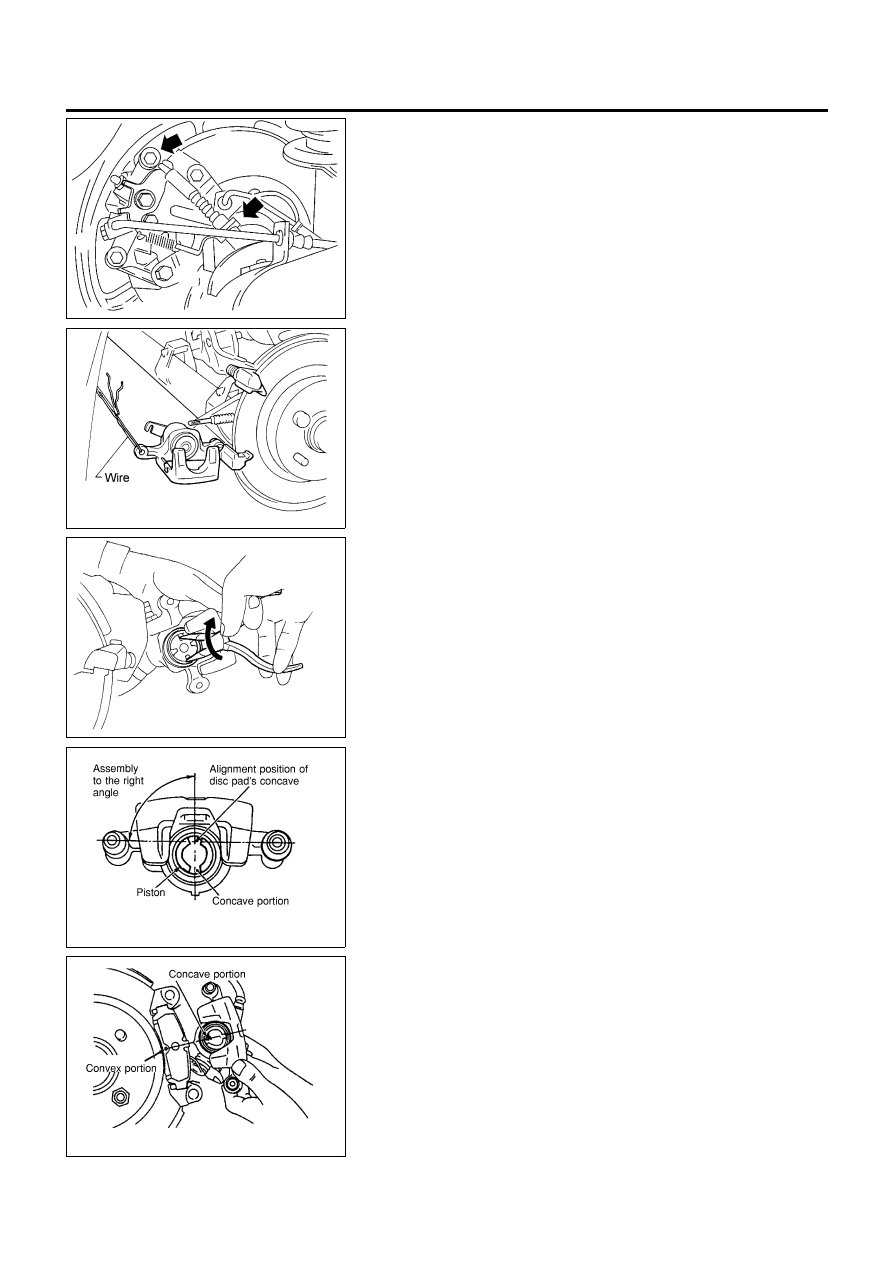

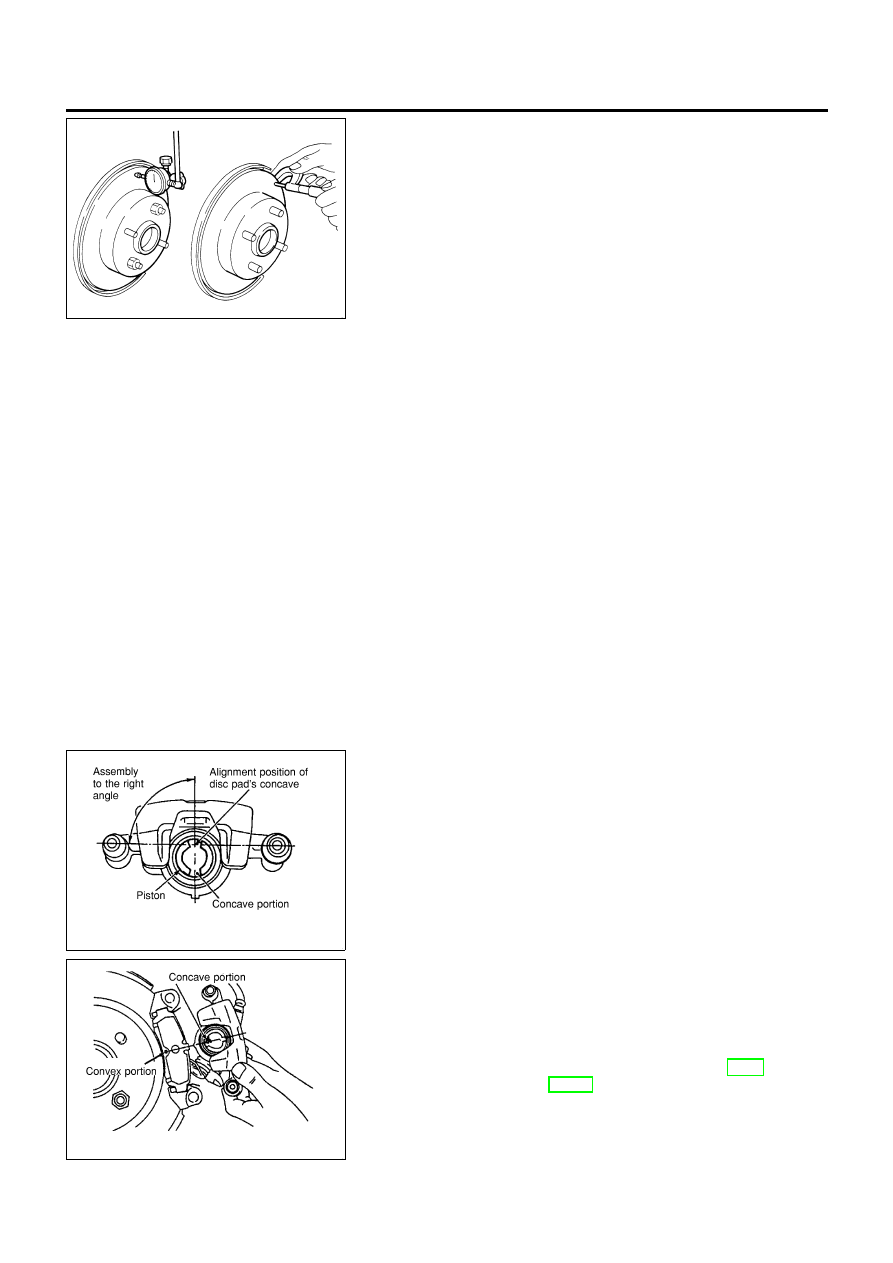

NBR423 1. Remove master cylinder reservoir cap. 2. Remove brake cable lock spring. 3. Release parking brake control lever, then disconnect cable 4. Remove upper pin bolt. NBR426 5. Open cylinder body downward. Then remove pads inner and Standard pad thickness: 9.3 mm (0.366 in) Pad wear limit: 2.0 mm (0.079 in) SBR641 6. When installing new pads, push piston into cylinder body by NBR374 7. Adjust the piston to the right angle as shown in the figure. NBR375 8. As shown in the figure, align the piston’s concave to the pad’s 9. Install brake cable, brake cable mounting bolt, lock spring and REAR DISC BRAKE (BALL & RAMP TYPE) Pad Replacement (Cont’d) BR-37 |
