Nissan Almera Tino V10 (2001 year). Manual - part 15

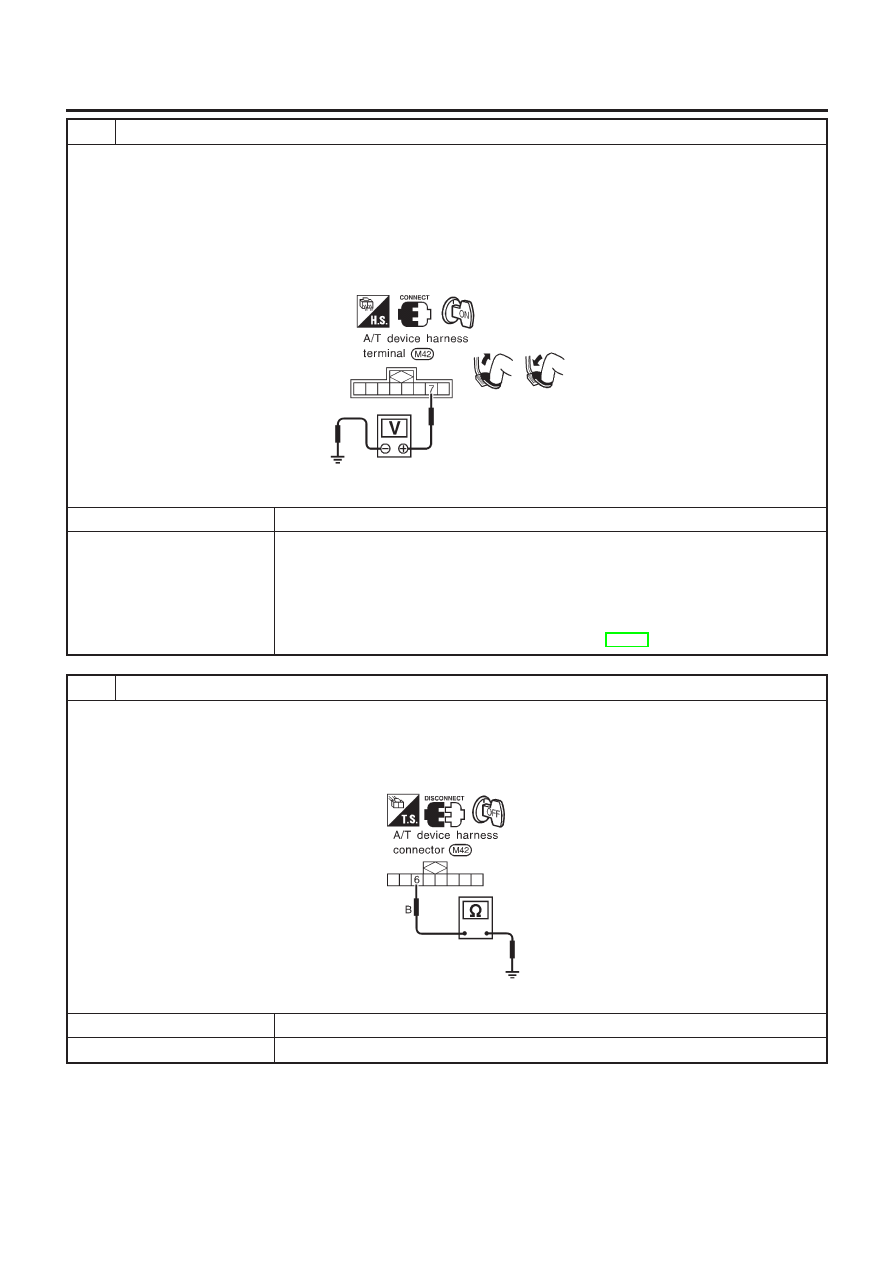

CHECK INPUT SIGNAL (A/T DEVICE)

Turn ignition switch to “ON” position.
(Do not start engine.)

Check voltage between A/T device harness terminal 7 and ground.

Voltage:

Brake pedal depressed:

Battery voltage

Brake pedal released:

SAT241K

OK or NG

GO TO 5.

Check the following items:
1. Harness for short and open between battery and stop lamp switch harness connector

2. Harness for short or open between stop lamp switch harness connector 2 and A/T

device harness connector 7.

3. Fuse
4. Stop lamp switch (Refer to “A/T DEVICE CHECK”, AT-201.)

CHECK GROUND CIRCUIT

1. Turn ignition switch to “OFF” position.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness terminal 6 and ground.

Continuity should exist.

If OK, check harness for short to ground and short to power.

SAT242K

OK or NG

GO TO 6.

Repair open circuit or short to ground or short to power in harness or connectors.

A/T SHIFT LOCK SYSTEM

Diagnostic Procedure (Cont’d)

AT-199

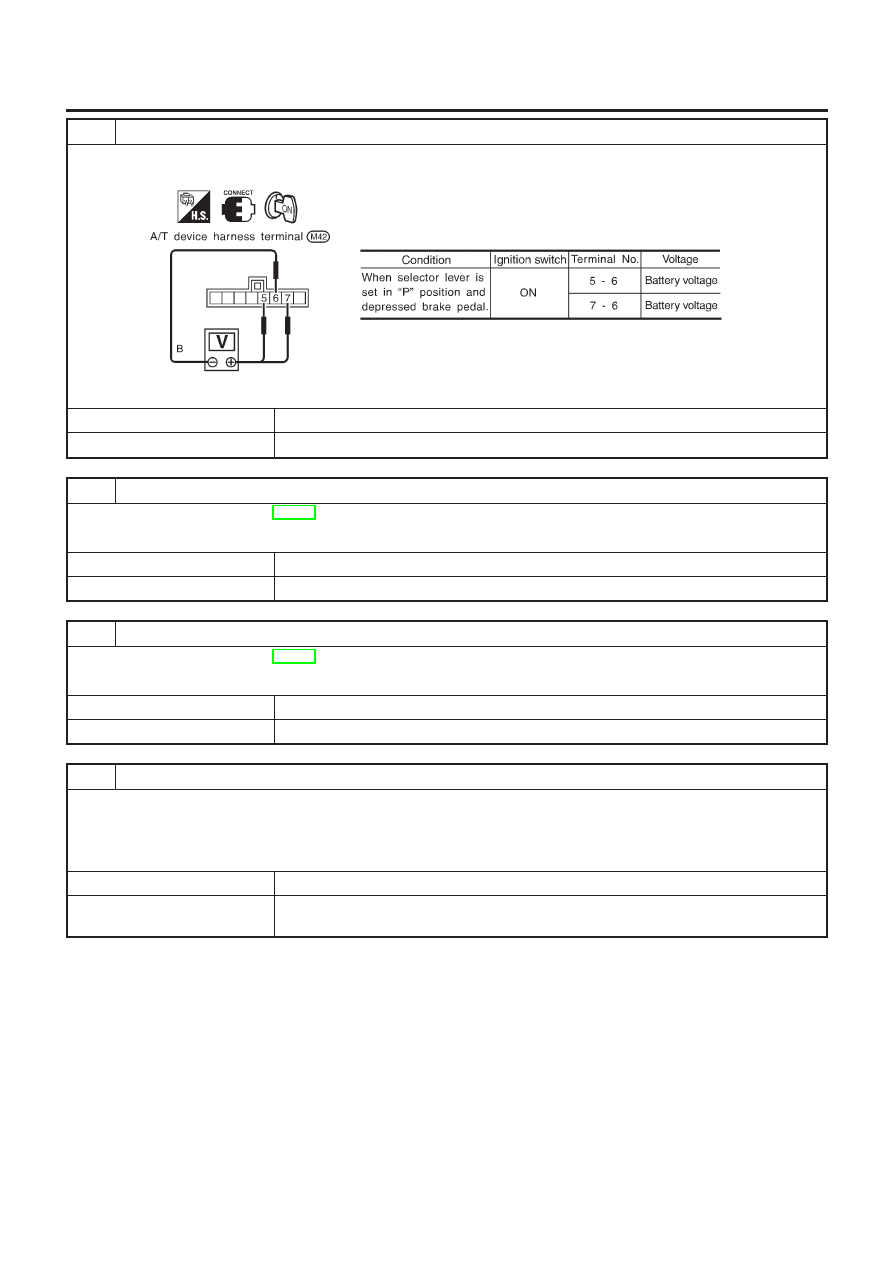

CHECK RELAY CIRCUIT

1. Turn ignition switch to ON.

Check voltage between terminal 5 - 6 and 7 - 6.

SAT243K

OK or NG

GO TO 7.

Replace A/T device.

CHECK PARK POSITION SWITCH

Refer to “A/T DEVICE CHECK”, AT-201.

OK or NG

GO TO 8.

Replace A/T device.

CHECK SHIFT LOCK SOLENOID

Refer to “A/T DEVICE CHECK”, AT-201.

OK or NG

GO TO 9.

Replace A/T device.

SHIFT LOCK OPERATION

1. Reconnect shift lock harness connector.
2. Turn ignition switch from “OFF” to “ON” position. (Do not start engine.)
3. Recheck shift lock operation.

OK or NG

INSPECTION END

1. Perform A/T device input/output signal inspection test.
2. If NG, recheck harness connector connection.

A/T SHIFT LOCK SYSTEM

Diagnostic Procedure (Cont’d)

AT-200

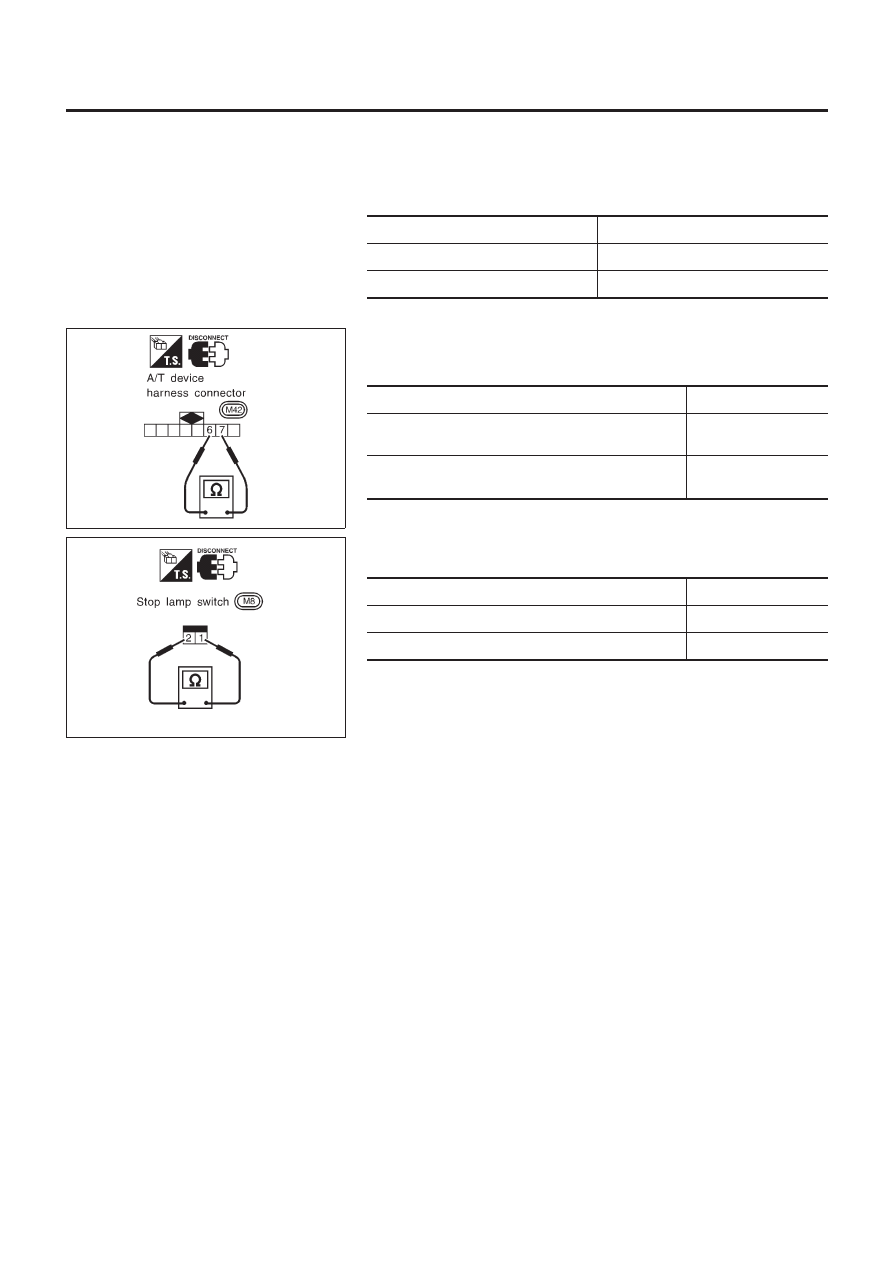

A/T DEVICE CHECK

=NLAT0319S01

1. Shift Lock Solenoid

NLAT0319S0101

Check operation sound.
When ignition switch is turned to “ON” position and selector
lever is set in “P” position.

Brake pedal

Operation sound

Depressed

Yes

Released

SAT244K

2. Park Position Switch

NLAT0319S0102

Check resistance between A/T device harness terminal 6 and
7.

Condition

Resistance

When selector lever is set in “P” position and selector
lever button is released

111

Ω

When selector lever is not set in “P” position and
selector lever button is released

Ω

SAT861JB

STOP LAMP SWITCH

NLAT0319S02

Check continuity between terminals 1 and 2.

Condition

Continuity

When brake pedal is depressed

Yes

When brake pedal is released

Check stop lamp switch after adjusting brake pedal — refer to
BR section, “BRAKE PEDAL AND BRACKET”.

A/T SHIFT LOCK SYSTEM

Diagnostic Procedure (Cont’d)

AT-201

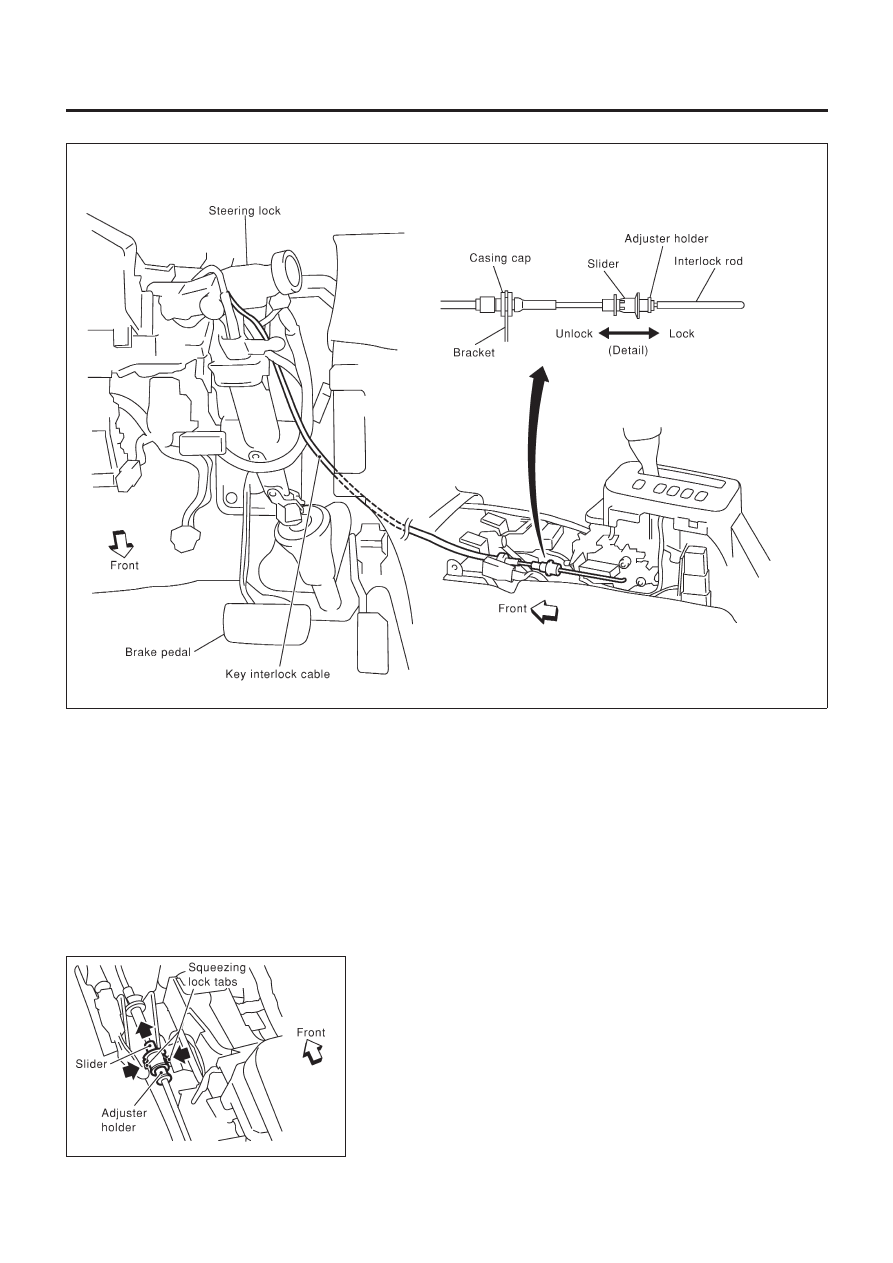

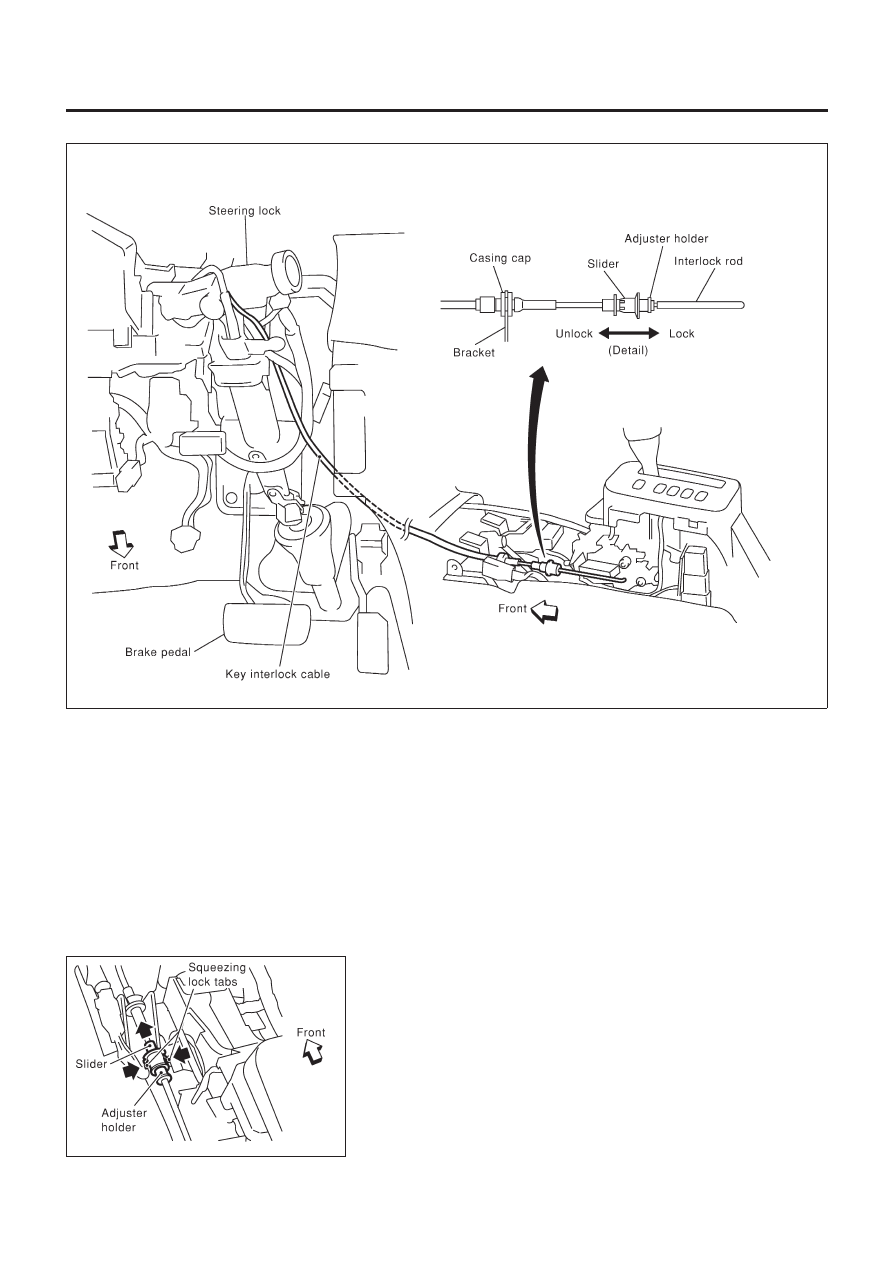

Components

NLAT0320

SAT245K

CAUTION:

Install key interlock cable in such a way that it will not be
damaged by sharp bends, twists or interference with adja-
cent parts.

After installing key interlock cable to control device, make
sure that casing cap and bracket are firmly secured in
their positions.

SAT246K

Removal

NLAT0321

Unlock slider by squeezing lock tabs on slider from adjuster
holder and remove interlock rod from cable.

KEY INTERLOCK CABLE

Components

AT-202

SAT247K

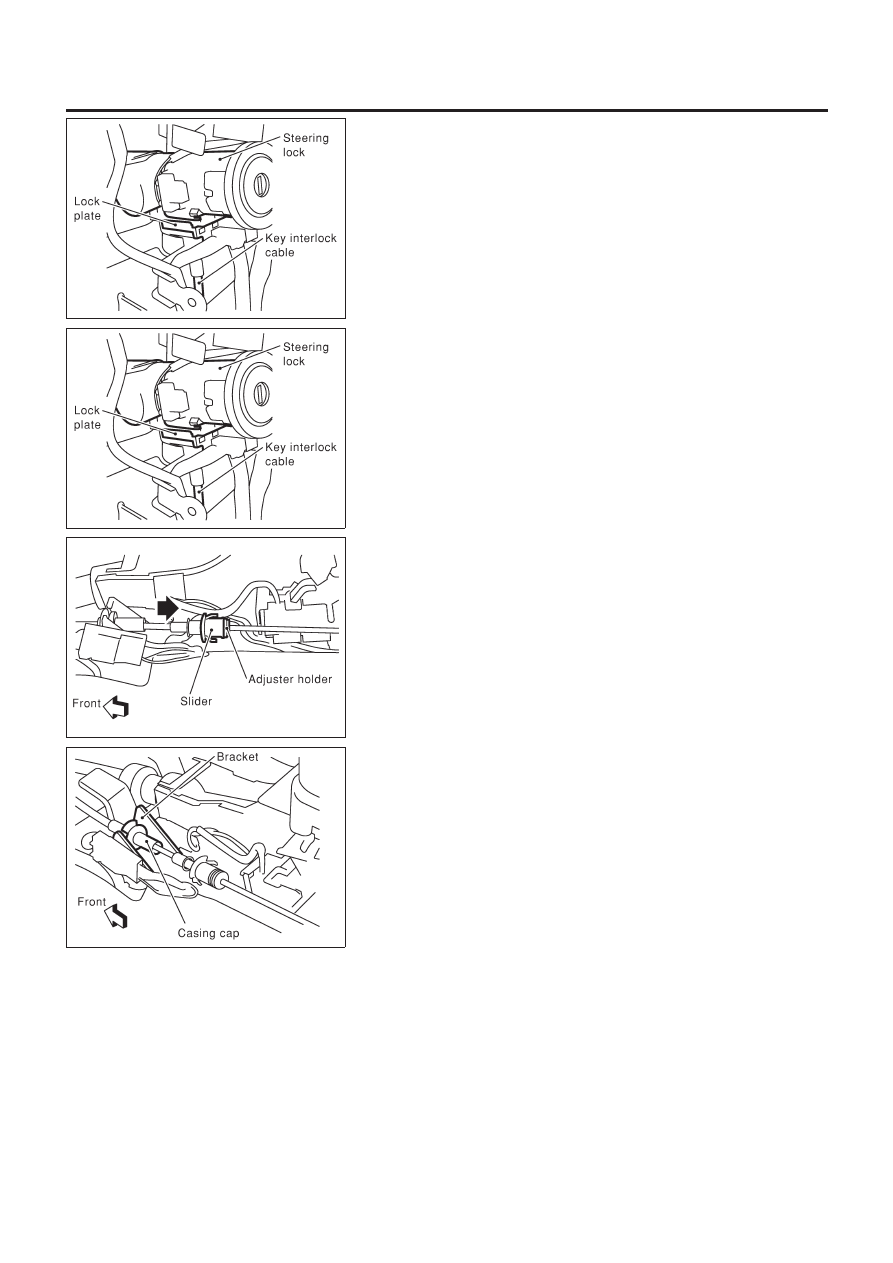

Remove lock plate from steering lock assembly and remove
key interlock cable.

SAT247K

Installation

NLAT0322

Turn ignition key to lock position.

Set A/T selector lever to P position.

Set key interlock cable to steering lock assembly and install
lock plate.

Clamp cable to steering column and fix to control cable with
band.

SAT248K

Insert interlock rod into adjuster holder.

SAT249K

Install casing cap to bracket.

Move slider in order to fix adjuster holder to interlock rod.

KEY INTERLOCK CABLE

Removal (Cont’d)

AT-203

SAT658J

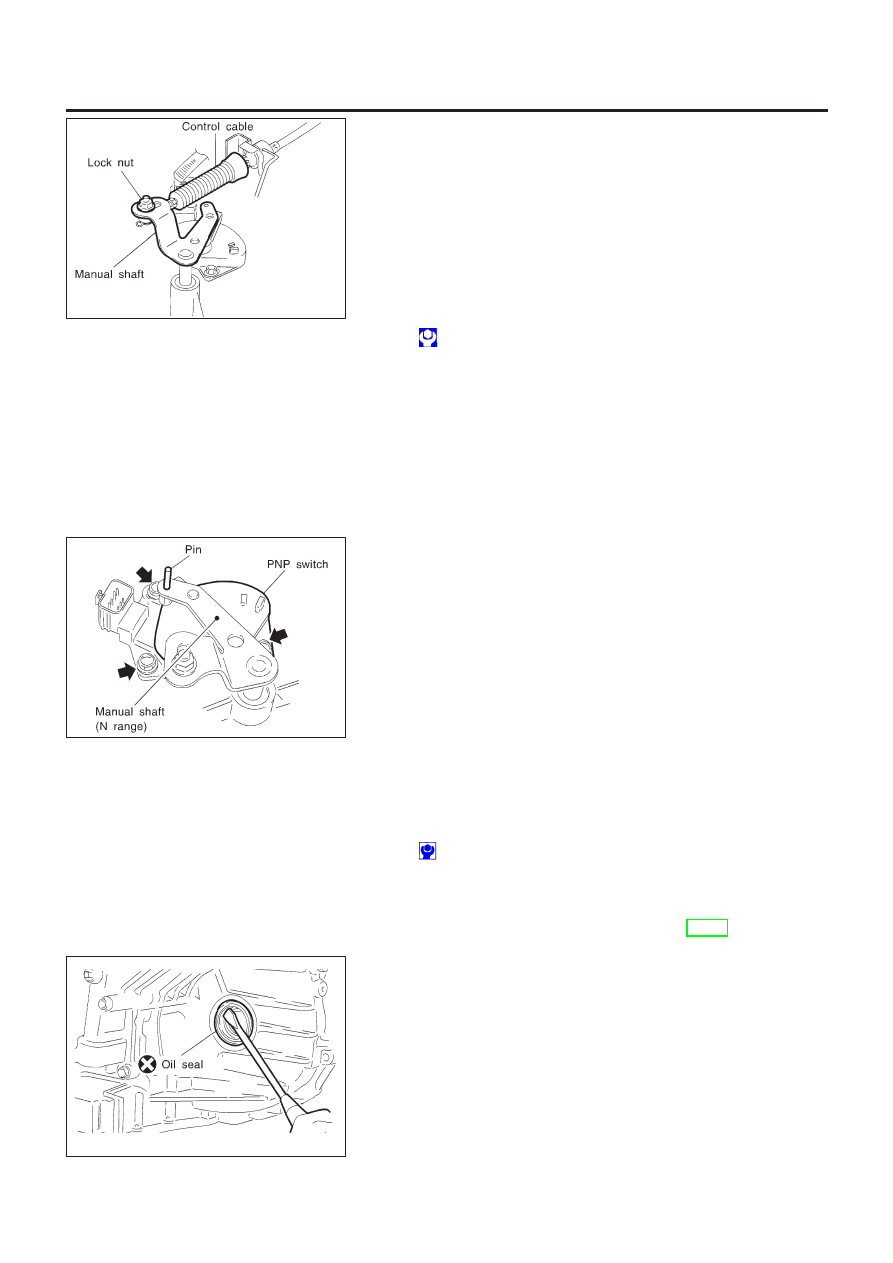

Control Cable Adjustment

NLAT0111

Move selector lever from the “P” position to the “L” position. You
should be able to feel the detents in each position. If the detents
cannot be felt or if the pointer indicating the position is improperly
aligned, the control cable needs adjustment.
1.

Place selector lever in “P” position.

Loosen control cable lock nut and place manual shaft in “P”
position.

CAUTION:

Turn wheels more than 1/4 rotations and apply the park lock.
3.

Tighten control cable lock nut.

: 12 - 14 N·m (1.2 - 1.5 kg-m, 9 - 10 ft-lb)

Move selector lever from “P” to “L” position again. Make sure
that selector lever moves smoothly.

Apply grease to contacting areas of selector lever and control
cable. Install any part removed.

SAT659J

Park/Neutral Position (PNP) Switch Adjustment

NLAT0112

Remove control cable end from manual shaft.

Set manual shaft in “N” position.

Loosen PNP switch fixing bolts.

Use a 4 mm (0.157 in) pin for this adjustment.

Insert the pin straight into the manual shaft adjustment hole.

Rotate PNP switch until the pin can also be inserted straight
into hole in PNP switch.

Tighten PNP switch fixing bolts.

: 4.9 - 6.8 N·m (0.5 - 0.7 kg-m, 44 - 60 in-lb)

Remove pin from adjustment hole after adjusting PNP switch.

Reinstall any part removed.

Adjust control cable. Refer to “Control Cable Adjustment”.

Check continuity of PNP switch. Refer to AT-72.

SAT660J

Differential Side Oil Seal Replacement

NLAT0113

Remove drive shaft assemblies. Refer to AX section (“Drive
Shaft”, “FRONT AXLE”).

Remove oil seals.

ON-VEHICLE SERVICE

Control Cable Adjustment

AT-204

SAT661JB

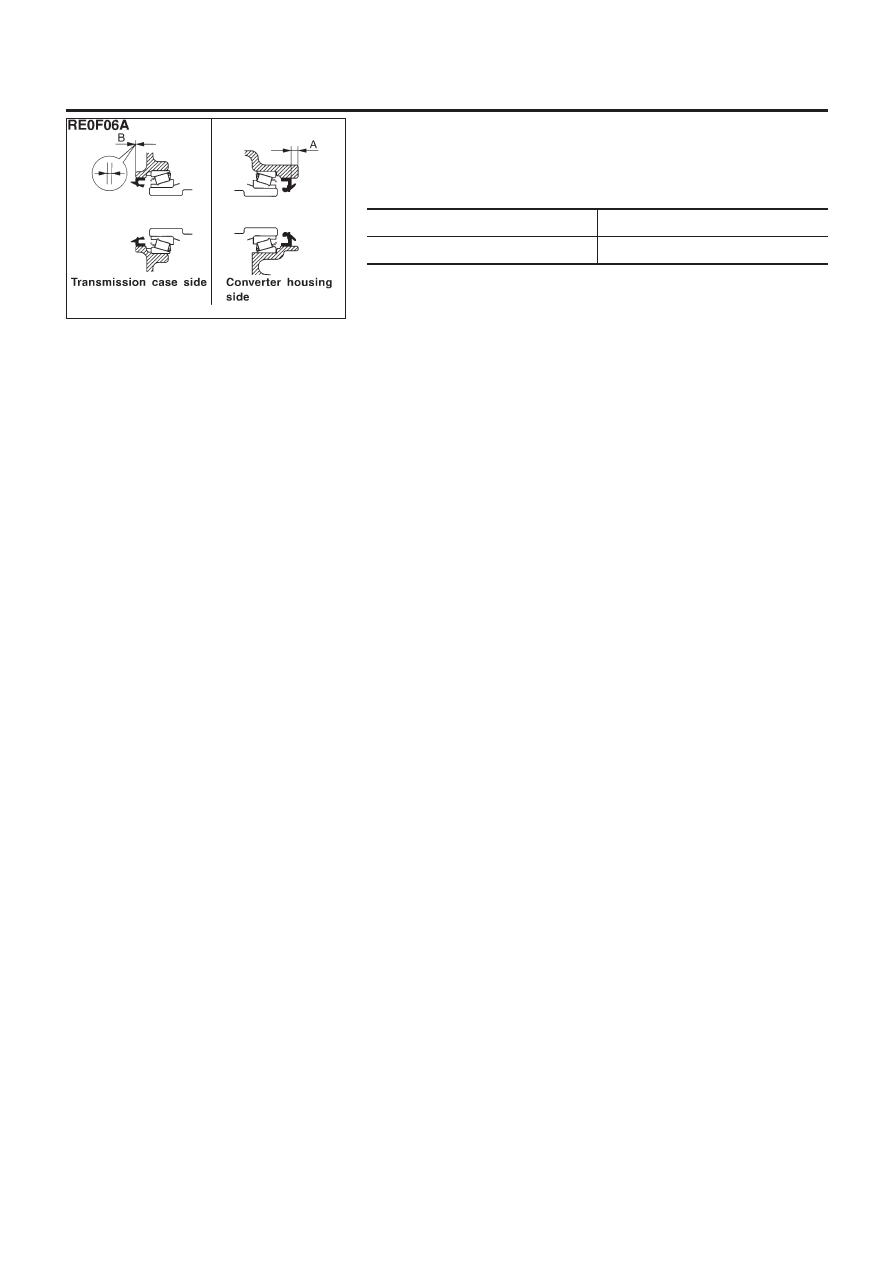

Install oil seals.

Apply CVT fluid to oil seal surface before installing.

Install oil seals so that dimensions “A” and “B” are within
specifications.

Unit: mm (in)

5.5 - 6.5 (0.217 - 0.256)

−0.5 to 0.5 (−0.020 to 0.020)

Reinstall any part removed.

ON-VEHICLE SERVICE

Differential Side Oil Seal Replacement (Cont’d)

AT-205

SAT664J

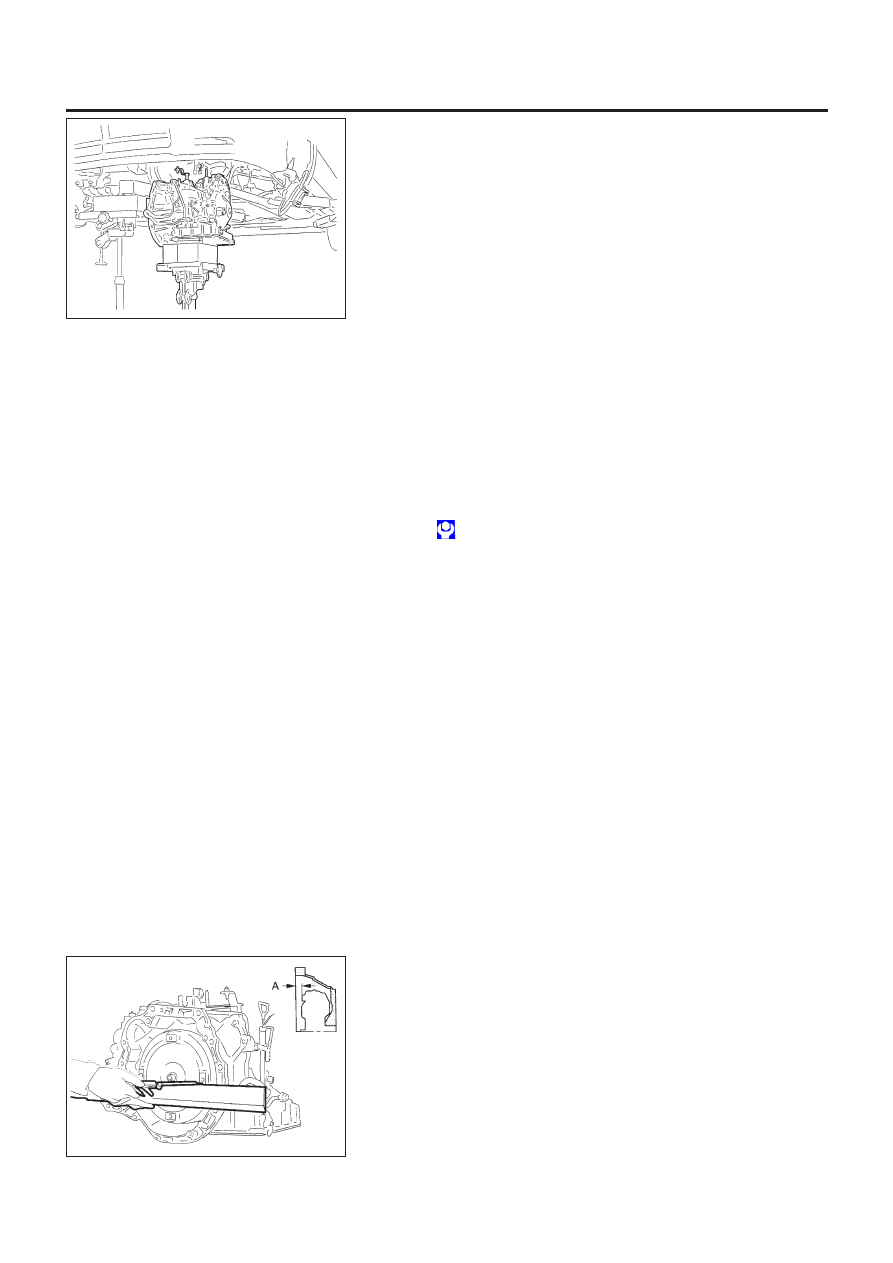

Removal

NLAT0115

CAUTION:

Before separating transaxle from engine, remove the crank-
shaft position sensor (OBD) from transaxle. Be careful not to
damage sensor.
1.

Remove battery and bracket.

Remove air duct between throttle body and air cleaner.

Disconnect control valve harness connector, PNP switch har-
ness connector, secondary speed sensor harness connector,
dropping resistor harness connector, primary speed sensor
harness connector and body earth harness connector.

Remove crankshaft position sensor (OBD) from transaxle.

Drain CVT fluid from transaxle.

Disconnect control cable from transaxle.

Remove exhaust front tube. Refer to FE section (“EXHAUST
SYSTEM”).

Remove drive shafts. Refer to AX section (“Drive Shaft”,
“FRONT AXLE”).

Disconnect oil cooler hoses.

10. Remove starter motor from transaxle.

Tighten bolts to specified torque.

: 41 - 52 N·m (4.2 - 5.3 kg-m, 30 - 38 ft-lb)

11. Support transaxle with a jack.
12. Remove center member.

Tighten center member fixing bolts to specified torque, Refer
to EM section (“ENGINE REMOVAL”).

13. Remove rear plate cover.
14. Remove torque converter bolts.

Rotate crankshaft to gain access to securing bolts.

15. Support engine with a jack.
16. Remove transaxle mount bolt. Refer to EM section (“ENGINE

REMOVAL”).

17. Remove oil cooler tube (outlet side).
18. Remove transaxle.

SAT665J

Inspection

NLAT0236

When connecting torque converter to transaxle, measure dis-
tance “A” to be certain that they are correctly assembled.

Distance “A”:

15.9 mm (0.626 in) or more

REMOVAL AND INSTALLATION

Removal

AT-206

SAT266K

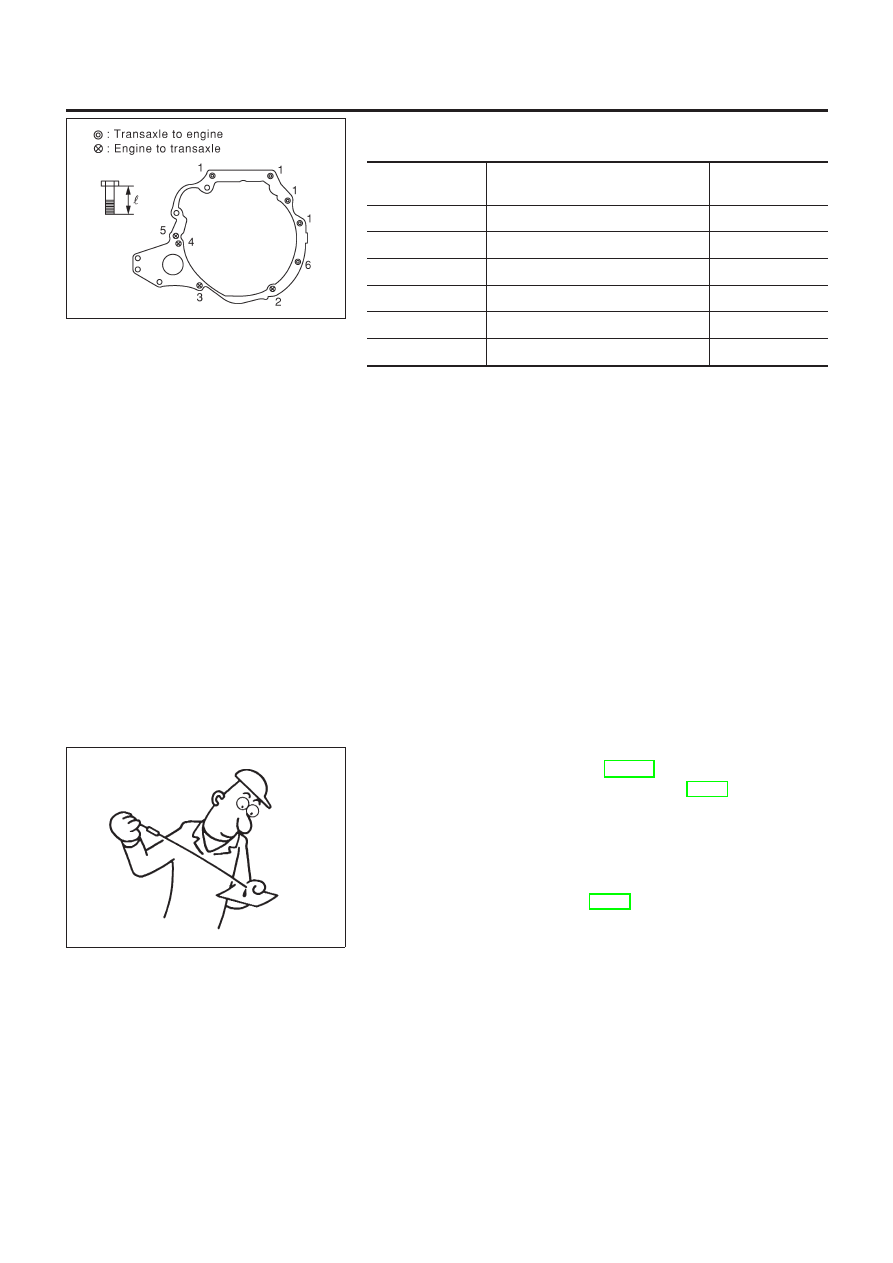

Installation

NLAT0116

Tighten bolts fixing transaxle.

Bolt No.

Tightening torque

N·m (kg-m, ft-lb)

Bolt length “

”

mm (in)

70 - 79 (7.1 - 8.1, 51 - 59)

40 (1.57)

31 - 36 (3.1 - 3.7, 23 - 26)

35 (1.38)

31 - 36 (3.1 - 3.7, 23 - 26)

47 (1.85)

70 - 79 (7.1 - 8.1, 52 - 58)

65 (2.56)

75 - 85 (7.6 - 8.7, 55 - 62)

65 (2.56)

70 - 79 (7.1 - 8.1, 52 - 58)

45 (1.77)

Install torque converter to drive plate.

With converter installed, rotate crankshaft several turns to
check that transaxle rotates freely without binding.

SAT638A

Reinstall any part removed.

Adjust control cable. Refer to AT-204.

Check continuity of PNP switch. Refer to AT-72.

Refill transaxle with CVT fluid and check fluid level.

Move selector lever through all positions to be sure that tran-
saxle operates correctly. With parking brake applied, idle
engine. A slight shock should be felt through the hand gripping
the selector each time the transaxle is shifted.

Perform road test. Refer to AT-53.

REMOVAL AND INSTALLATION

Installation

AT-207

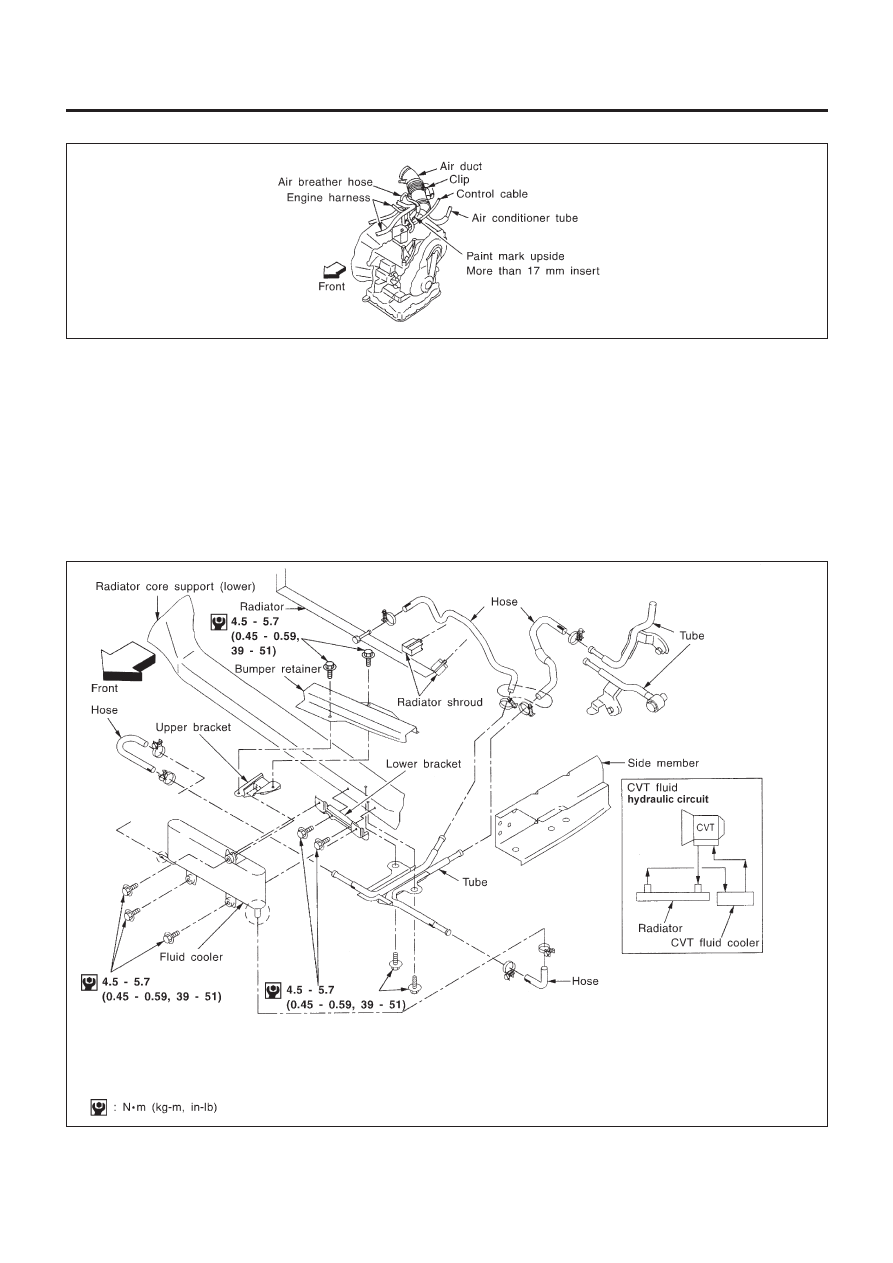

Air Breather Hose

NLAT0323

SAT283K

CVT Fluid Cooler

NLAT0324

SAT284K

REMOVAL AND INSTALLATION

Air Breather Hose

AT-208

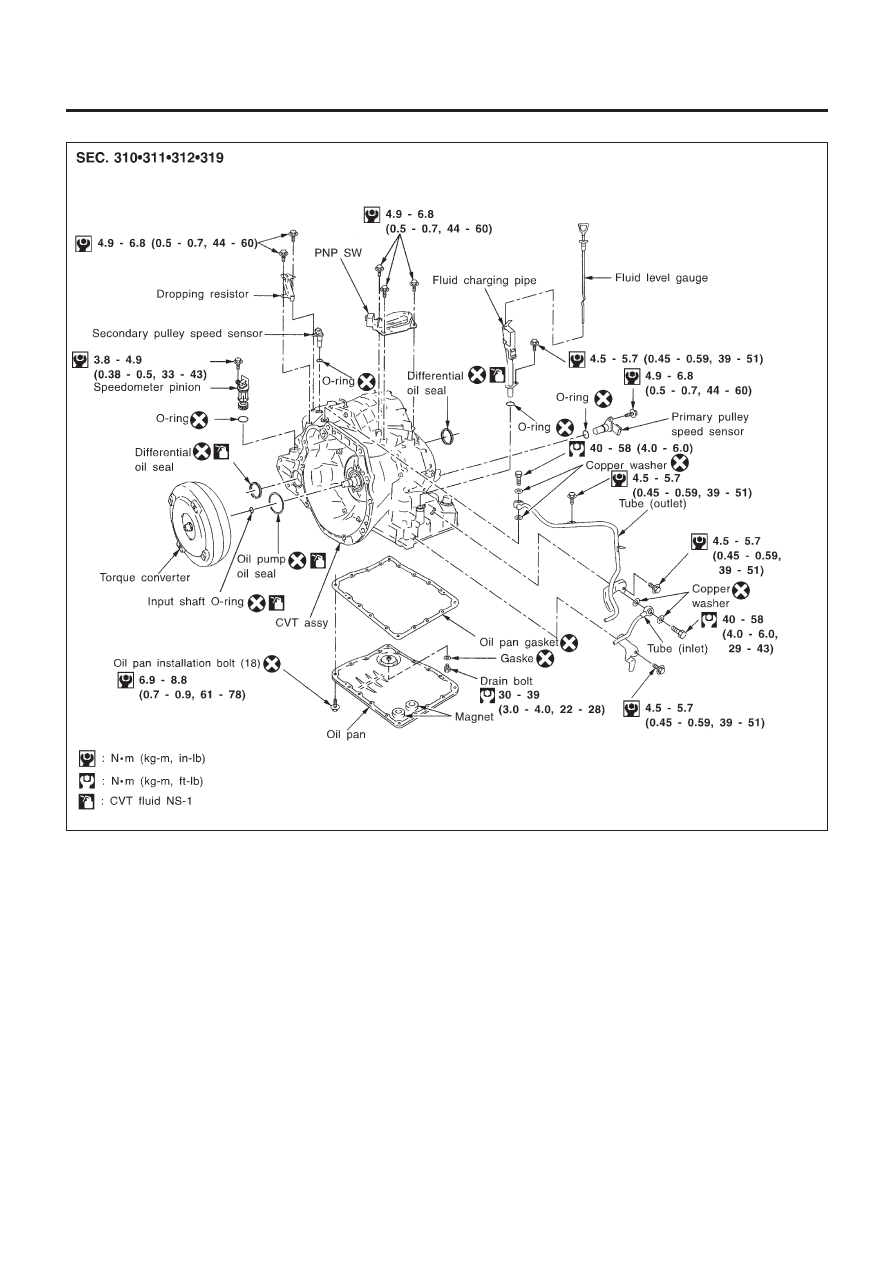

Components

NLAT0325

SAT273K

REMOVAL AND INSTALLATION

Components

AT-209

General Specifications

NLAT0179

Engine

SR20DE

Automatic transaxle model

RE0F06A

Automatic transaxle assembly

Model code number

8E020

Transaxle gear ratio

D range

Variable

Reverse

1.586

Final drive

5.473

Recommended fluid

Nissan CVT fluid NS-1*1

Fluid capacity

8.1

(7-1/8 Imp qt)

*1: Refer to MA section (“Fluids and Lubricants”, “RECOMMENDED FLUIDS AND LUBRICANTS”).
Any other fluid will damage the CVT.

Stall Revolution

NLAT0181

Engine

Stall revolution

rpm

(SR20DE)

2,350 - 2,850

Line Pressure

NLAT0182

Engine speed

rpm

Line pressure kPa (bar, kg/cm

, psi)

R position

D position

L position

Idle

598 (5.98, 6.1, 87)

Stall

4,119 (41.2, 42, 597)

Removal and Installation

NLAT0197

Unit: mm (in)

Distance between end of converter housing and torque converter

15.9 (0.626) or more

A/T Fluid Temperature Sensor

NLAT0326

Condition

Specification (Approximately)

Cold [20°C (68°F)]

↓

Hot [80°C (176°F)]

1.5V

↓

0.5V

2.5 k

Ω

↓

0.3 k

Ω

Solenoid Valves

NLAT0327

Solenoid valve

Resistance (Approx.)

Terminal number

Line pressure solenoid

2.5 - 5

Ω

Torque converter clutch solenoid

10 - 20

Ω

Dropping Resistor

NLAT0328

Resistance

11.2 - 12.8

Ω

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

AT-210

BRAKE SYSTEM

SECTION

CONTENTS

PRECAUTIONS

...............................................................3

Supplemental Restraint System (SRS)

SEAT BELT PRE-TENSIONER

″

...............3

Precautions for Brake System.....................................3
Precautions When Working On ABS...........................4
Wiring Diagrams and Trouble Diagnosis.....................4

PREPARATION

...............................................................5

Commercial Service Tools ...........................................5

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING

.....................................................6

NVH Troubleshooting Chart.........................................6

ON-VEHICLE SERVICE

..................................................7

Checking Brake Fluid Level.........................................7
Checking Brake Line ...................................................7
Changing Brake Fluid ..................................................7
Brake Burnishing Procedure........................................7
Bleeding Brake System ...............................................8

BRAKE HYDRAULIC LINE

.............................................9

Hydraulic Circuit...........................................................9
Removal.......................................................................9
Inspection.....................................................................9
Installation..................................................................10

BRAKE PEDAL AND BRACKET

.................................. 11

Removal and Installation ........................................... 11
Inspection................................................................... 11
Adjustment ................................................................. 11

MASTER CYLINDER

.....................................................13

Removal.....................................................................13
Disassembly...............................................................13
Inspection...................................................................14
Assembly ...................................................................14
Installation..................................................................15

BRAKE BOOSTER

........................................................16

On-vehicle Service.....................................................16

OPERATING CHECK

...............................................16

AIRTIGHT CHECK

...................................................16

Removal.....................................................................16
Inspection...................................................................16

OUTPUT ROD LENGTH CHECK

..............................16

Installation..................................................................17

VACUUM HOSE

.............................................................18

Removal and Installation ...........................................18
Inspection...................................................................19

HOSES AND CONNECTORS

...................................19

CHECK VALVE

........................................................19

VACUUM PUMP

............................................................20

Removal.....................................................................20
Installation..................................................................21
Inspection...................................................................21
Component ................................................................22
Disassembly...............................................................22
Assembly ...................................................................22

FRONT DISC BRAKE

...................................................24

Component ................................................................24
Pad Replacement ......................................................24
Removal.....................................................................25
Disassembly...............................................................25
Inspection...................................................................25

CALIPER

.................................................................25

ROTOR

...................................................................26

Assembly ...................................................................27
Installation..................................................................27

REAR DISC BRAKE (CAM & STRUT TYPE)

..............28

Component ................................................................28
Pad Replacement ......................................................28
Removal.....................................................................30
Disassembly...............................................................30
Inspection...................................................................31

CALIPER

.................................................................31

ROTOR

...................................................................32

Assembly ...................................................................32
Installation..................................................................35

REAR DISC BRAKE (BALL & RAMP TYPE)

..............36

Component ................................................................36
Pad Replacement ......................................................36
Removal.....................................................................38
Disassembly...............................................................38
Inspection...................................................................38

CALIPER

.................................................................38

ROTOR

...................................................................39

Installation..................................................................39

PARKING BRAKE CONTROL

......................................40

Components...............................................................40
Removal and Installation ...........................................40
Inspection...................................................................40
Adjustment .................................................................41

ABS

DESCRIPTION

...............................................................42

Purpose......................................................................42
ABS (Anti-Lock Brake System) Operation ................42
ABS Hydraulic Circuit ................................................42
System Components .................................................43
System Description....................................................43

SENSOR

.................................................................43

CONTROL UNIT

......................................................43

ABS ACTUATOR AND ELECTRIC UNIT

....................43

Component Parts and Harness Connector
Location .....................................................................45
Schematic ..................................................................46

MODELS WITH SELF-DIAGNOSIS FUNCTION
(DATA LINK CONNECTOR TERMINAL NO. 9)

...........46

MODELS WITHOUT SELF-DIAGNOSIS
FUNCTION (DATA LINK CONNECTOR TERMINAL
NO. 9)

.....................................................................47

Wiring Diagram - ABS - .............................................48

MODELS WITH SELF-DIAGNOSIS FUNCTION
(DATA LINK CONNECTOR TERMINAL NO. 9)

...........48

MODELS WITHOUT SELF-DIAGNOSIS
FUNCTION (DATA LINK CONNECTOR TERMINAL
NO. 9)

.....................................................................52

ON BOARD DIAGNOSTIC SYSTEM
DESCRIPTION

...............................................................56

Self-diagnosis (Only models with data link
connector terminal No. 9) ..........................................56

FUNCTION

..............................................................56

SELF-DIAGNOSIS PROCEDURE

..............................56

HOW TO READ SELF-DIAGNOSTIC RESULTS
(MALFUNCTION CODES)

........................................57

HOW TO ERASE SELF-DIAGNOSTIC RESULTS
(MALFUNCTION CODES)

........................................57

CONSULT-II ...............................................................58

CONSULT-II APPLICATION TO ABS

..........................58

ECU (ABS CONTROL UNIT) PART NUMBER
MODE

.....................................................................58

CONSULT-II Inspection Procedure............................58

SELF-DIAGNOSIS PROCEDURE

..............................58

SELF-DIAGNOSTIC RESULTS MODE

.......................60

DATA MONITOR PROCEDURE

................................61

ACTIVE TEST PROCEDURE

....................................62

DATA MONITOR MODE

...........................................63

ACTIVE TEST MODE

...............................................63

TROUBLE DIAGNOSIS - INTRODUCTION

..................64

How to Perform Trouble Diagnoses for Quick
and Accurate Repair ..................................................64

INTRODUCTION

......................................................64

TROUBLE DIAGNOSIS - BASIC INSPECTION

...........65

Preliminary Check......................................................65
Ground Circuit Check ................................................68

ABS ACTUATOR AND ELECTRIC UNIT GROUND

.....68

TROUBLE DIAGNOSIS - GENERAL
DESCRIPTION

...............................................................69

Malfunction Code/Symptom Chart.............................69

MODELS WITH SELF-DIAGNOSIS FUNCTION
(DATA LINK CONNECTOR TERMINAL NO. 9)

...........69

TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC
ITEMS

.............................................................................71

Wheel Sensor or Rotor..............................................71

DIAGNOSTIC PROCEDURE

.....................................71

ABS Actuator Solenoid Valve or Solenoid Valve
Relay..........................................................................74

DIAGNOSTIC PROCEDURE

.....................................74

Motor Relay or Motor.................................................77

DIAGNOSTIC PROCEDURE

.....................................77

Low Voltage ...............................................................79

DIAGNOSTIC PROCEDURE

.....................................79

Control Unit................................................................81

DIAGNOSTIC PROCEDURE

.....................................81

TROUBLE DIAGNOSES FOR SYMPTOMS

.................82

REMOVAL AND INSTALLATION

.................................90

Wheel Sensors ..........................................................90
ABS Actuator and Electric Unit..................................91

REMOVAL

...............................................................91

INSTALLATION

........................................................91

Sensor Rotor..............................................................92

REMOVAL

...............................................................92

INSTALLATION

........................................................92

SERVICE DATA AND SPECIFICATIONS (SDS)

.........93

General Specifications...............................................93
Disc Brake .................................................................93
Brake Pedal ...............................................................93
Parking Brake ............................................................93

CONTENTS

(Cont’d)

BR-2

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NLBR0081

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL V10 is as follows (The compo-
sition varies according to the destination and optional equipment.):

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

SBR686C

Precautions for Brake System

NLBR0002

Recommended fluid is brake fluid “DOT 4”.

Never reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas.

To clean or wash all parts of master cylinder, disc brake
caliper and wheel cylinder, use clean brake fluid.

Never use mineral oils such as gasoline or kerosene. They
will ruin rubber parts of the hydraulic system.

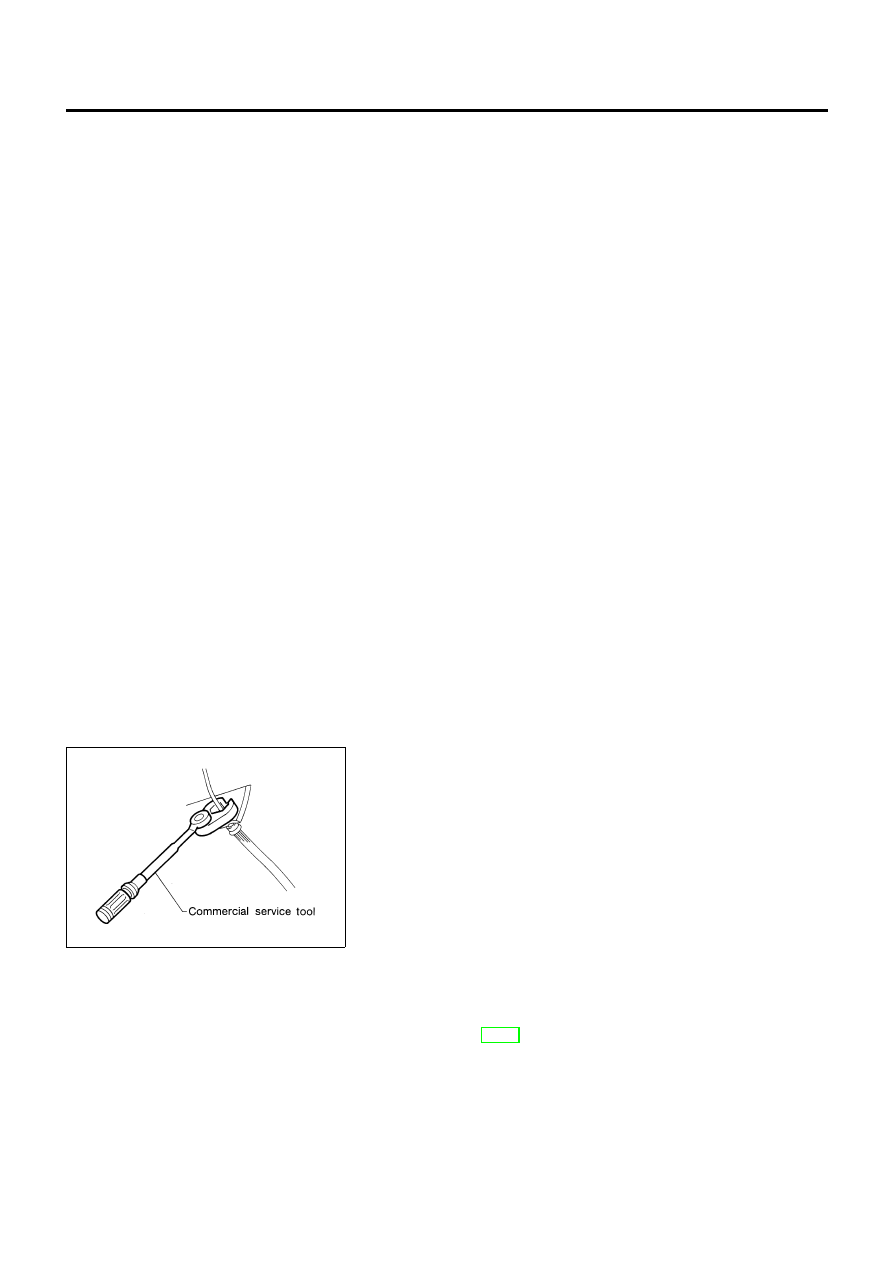

Use flare nut wrench when removing and installing brake
tube.

Always torque brake lines when installing.

Burnish the brake contact surfaces after refinishing or
replacing rotors, after replacing pads, or if a soft pedal
occurs at very low mileage.
Refer to “Brake Burnishing Procedure”, “ON-VEHICLE
SERVICE”, BR-7.

WARNING:

Clean brake pads with a waste cloth, then wipe with a dust
collector.

PRECAUTIONS

Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

BR-3

Precautions When Working On ABS

NLBR0149

Use recommended tyres in combination with ABS.

Please fit tyres or studded tyres, etc. with the same size.

If different sizes of tyres, or tyres other than the ones rec-
ommended for use with the ABS, are fitted, stopping dis-
tance will increase and control and stability could deterio-
rate.

When changing brake pads, please use Nissan genuine
parts.

When fitting radios etc, do not position the radio itself,
antenna, or antenna cables within an area of about 100
mm (3.94 in) of the control unit.

When doing any work that requires electro-welding, first
remove the control unit.

Please take care when taking a power supply for the
audio, lamps etc., not to take this from any ABS-related
harness. (Please refer to the electrical wiring diagrams for
ABS-related harnesses)

Wiring Diagrams and Trouble Diagnosis

NLBR0003

When you read wiring diagrams, refer to the following:

GI-11, “HOW TO READ WIRING DIAGRAMS”

EL-10, “POWER SUPPLY ROUTING”

When you perform trouble diagnosis, refer to the following:

GI-32, “HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSIS”

GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”

PRECAUTIONS

Precautions When Working On ABS

BR-4

Content .. 13 14 15 16 ..
