Nissan Almera Tino V10. Manual - part 866





EM-120

[YD]

AIR CLEANER AND AIR DUCT

2.

Remove clips and lift up air cleaner upper case.

3.

Remove air cleaner element.

CHARGE AIR COOLER

EM-121

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

CHARGE AIR COOLER

PFP:14461

Removal and Installation

EBS00QFC

REMOVAL

1.

Remove front bumper. Refer to BT-7, “Body Front End”.

2.

Remove battery and tray (with fusible link and fuse box).

3.

Remove air cleaner and air duct. Refer to

EM-119, "Removal and Installation"

.

4.

Remove air inlet hose and tube.

5.

Remove charge air cooler.

6.

Remove and install with bottom bracket as an assembly.

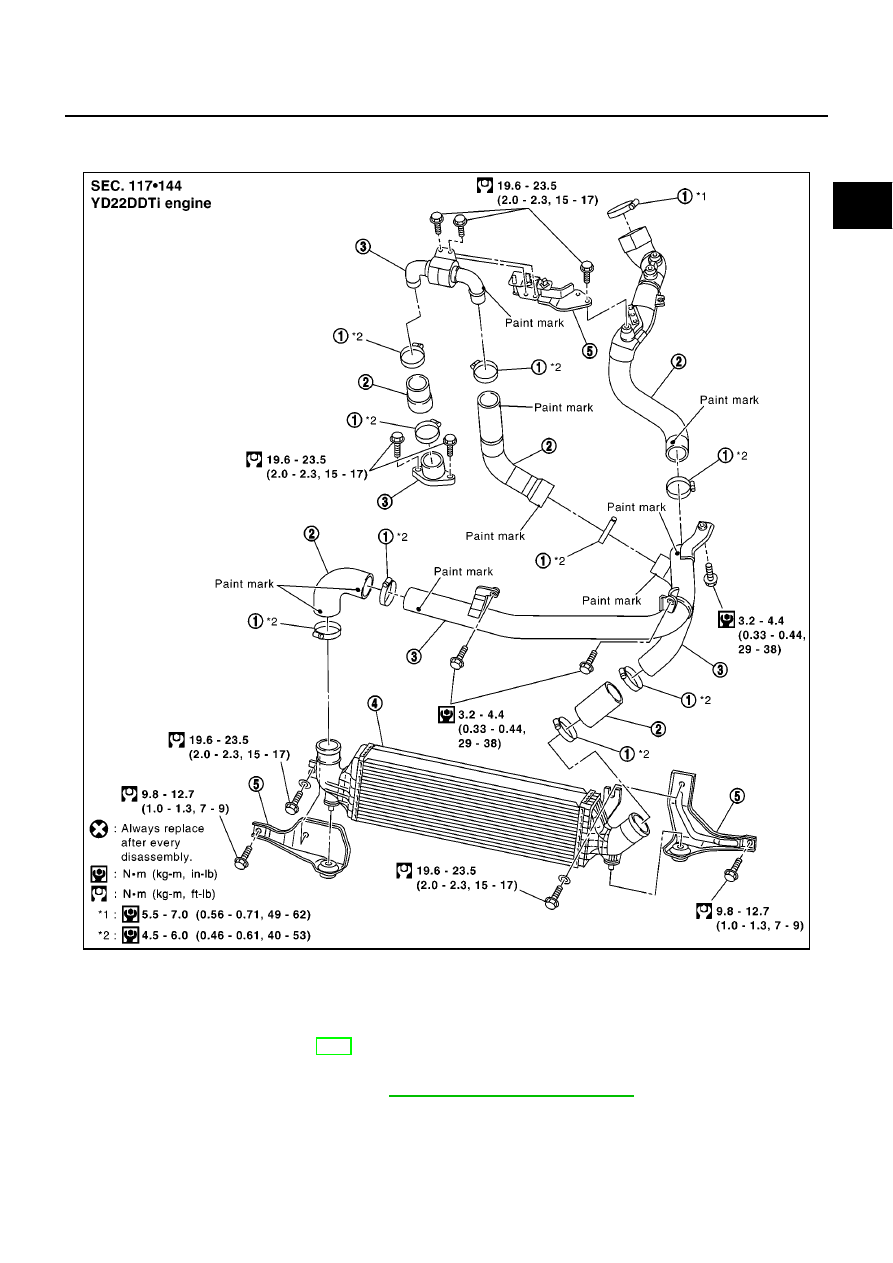

MBIA0001E

1.

Hose clamp

2.

Air inlet hose

3.

Air inlet tube

4.

Charge air cooler

5.

Bracket

EM-122

[YD]

CHARGE AIR COOLER

CAUTION:

When removing charge air cooler, close opening on turbocharger and on intake manifold with shop
cloth or other suitable material.

INSPECTION AFTER REMOVAL

Check air passages of charge air cooler core and fins for clogging, leaks or deformation. Clean or replace
charge air cooler if necessary.

Be careful not to deform core fins.

INSTALLATION

Pay attention to identification mark and direction when installing air inlet hose and tubes. Refer to

EM-121,

"Removal and Installation"

.

INTAKE MANIFOLD

EM-123

[YD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

INTAKE MANIFOLD

PFP:14003

Removal and Installation

EBS00QFD

REMOVAL

WARNING:

To avoid the danger of being scalded, never drain the coolant when the engine is hot.

1.

Drain engine coolant. Refer to LC-40, “Changing Engine Coolant”.

2.

Remove engine cover. Refer to

EM-160, "Removal and Installation"

3.

Remove air duct. Refer to

EM-119, "Removal and Installation"

.

4.

Remove air inlet hose and pipe. Refer to

EM-121, "Removal and Installation"

.

5.

Remove exhaust manifold cover.

6.

Disconnect electronic EGR volume control valve water hoses and harness.

7.

Disconnect heater hose.

8.

Remove EGR tube.

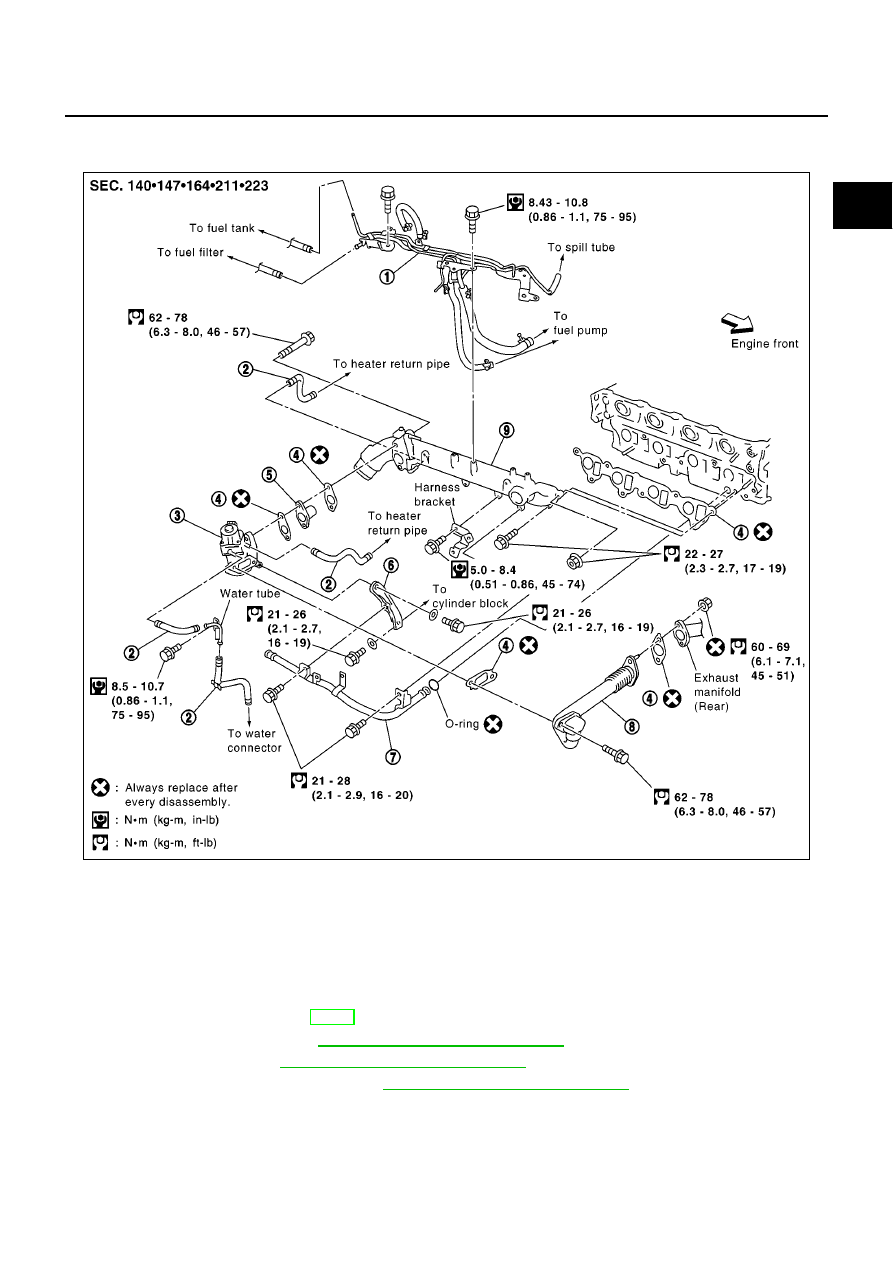

MBIA0002E

1.

Fuel gallery

2.

Water hose

3.

Electronic EGR volume control valve

4.

Gasket

5.

EGR passage

6.

EGR support

7.

Water pipe

8.

EGR tube

9.

Intake manifold
