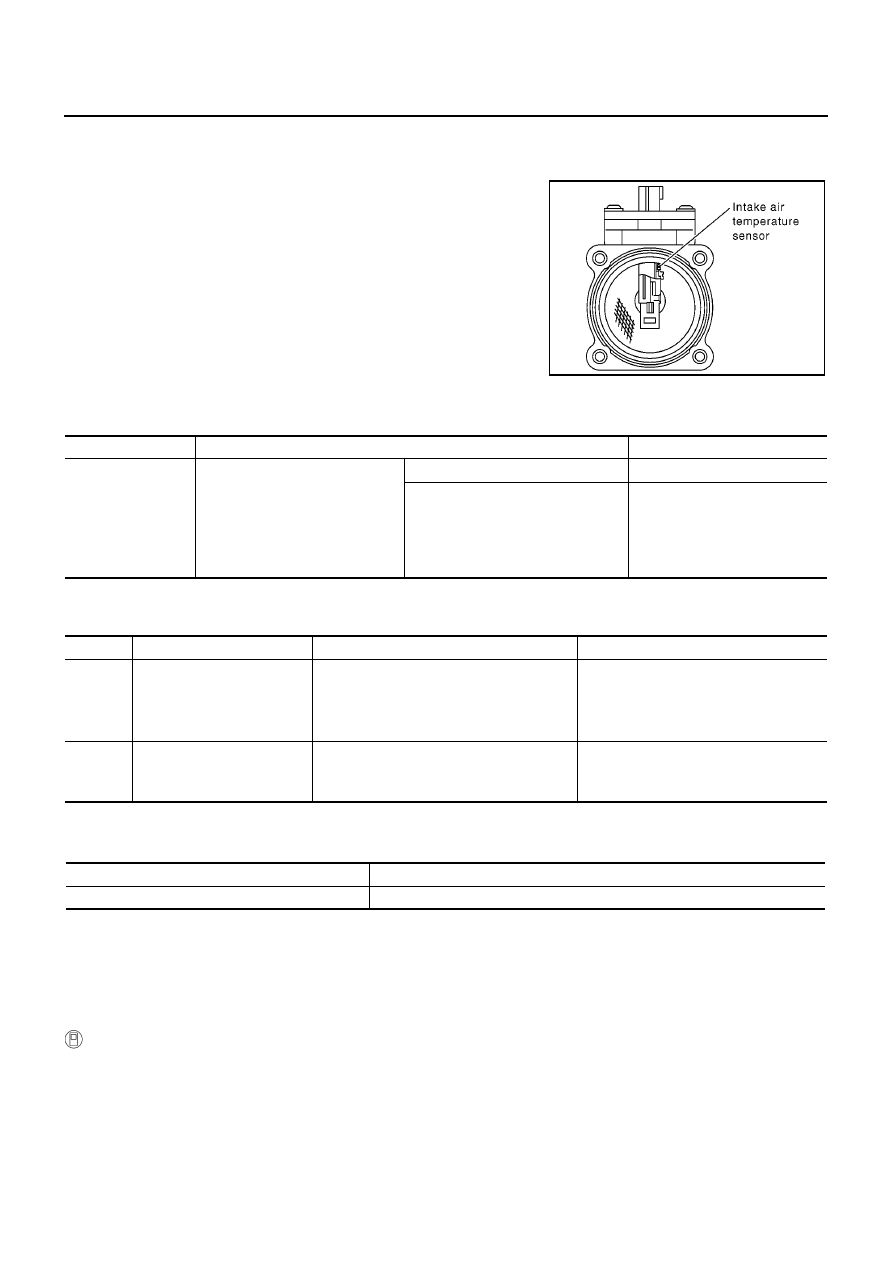

EC-654 [QG (WITHOUT EURO-OBD)] DTC P0102, P0103 MAF SENSOR DTC P0102, P0103 MAF SENSOR PFP:22680 Component Description EBS00QVW The mass air flow sensor is placed in the stream of intake air. It mea- CONSULT-II Reference Value in Data Monitor Mode EBS00QVX Specification data are reference values. On Board Diagnosis Logic EBS00QVY These self-diagnoses have the one trip detection logic. FAIL-SAFE MODE When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up. DTC Confirmation Procedure EBS00QVZ NOTE: PROCEDURE FOR DTC P0102 With CONSULT-II 1. Turn ignition switch “ON”. SEC266C MONITOR ITEM CONDITION SPECIFICATION MAS A/F SE-B1 ● Engine: After warming up ● Air conditioner switch: OFF ● Shift lever: ● No-load Idle Approx. 1.0 - 1.7V 2,500 rpm Approx. 1.5 - 2.1V DTC No. Trouble diagnosis name DTC detecting condition Possible cause P0102 Mass air flow sensor circuit An excessively low voltage from the sensor ● Harness or connectors ● Intake air leaks ● Mass air flow sensor P0103 Mass air flow sensor circuit An excessively high voltage from the sensor ● Harness or connectors ● Mass air flow sensor Detected items Engine operating condition in fail-safe mode Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut. |
