Nissan GT-R (2007-2014 year). SECURITY CONTROL SYSTEM / SRS AIRBAG. Service Manual - part 4

SR-10

< BASIC INSPECTION >

COLLISION DIAGNOSIS

Trim/headlining

1.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the interior trim on the
collision side.

2.

If damaged

−

 REPLACE the damaged trim parts.

Door-mounted curtain air bag
module LH

If the door-mounted curtain air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

−

 REPLACE the door finisher LH with new fasteners.

3.

Check for visible signs of damaged (tears etc.) of the door-mounted curtain air bag module LH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

−

 REPLACE the door finisher LH and door-mounted curtain air bag module LH with

new fasteners.

Door-mounted curtain air bag
module RH

If the door-mounted curtain air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

−

 REPLACE the door finisher RH with new fasteners.

3.

Check for visible signs of damage (tears etc.) of the door-mounted curtain air bag module RH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

−

 REPLACE the door finisher RH and door-mounted curtain air bag module RH with

new fasteners.

Pop-up roll bar

If the pop-up roll bar has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the pop-up roll bar.

2.

If damaged

−

 REPLACE the pop-up roll bar with new fasteners.

3.

Check harness and connectors for damage, and terminals for deformities.

4.

If no damage is found, reinstall the pop-up roll bar with new fasteners.

5.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the seatback support
brace assembly.

6.

If damaged

−

 REPAIR the seatback support brace assembly.

Part

Inspection

2014 GT-R

DRIVER AIR BAG MODULE

SR-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

REMOVAL AND INSTALLATION

DRIVER AIR BAG MODULE

Exploded View

INFOID:0000000009161527

Removal and Installation

INFOID:0000000009161528

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Set the steering column to the fullest extent.

2.

Remove the side lid (LH and RH).

3.

Remove the TORX bolt (LH and RH) from the steering wheel (1)
lower side using TORX bit (A).

4.

Pull out the driver air bag module.

1.

Driver air bag module

2.

Steering wheel

3.

TORX bolt

4.

Side lid

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JMHIA0713GB

JMHIA0714ZZ

2014 GT-R

SR-12

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

5.

Disconnect the driver air bag harness connector.

CAUTION:

• For installing/removing driver air bag module harness

connector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove connector.

• Install connector with lock raised, and push lock into con-

nector.

• After installing the connector, check that the lock is

pushed securely into it.

6.

Remove the driver air bag module.

CAUTION:

• Always place the driver air bag module with pad side facing

upward.

• Never impact the driver air bag module.
• Replace the driver air bag module if it is dropped or sustains

an impact.

• Never insert any foreign objects (screwdriver, etc.) into the driver air bag module.
• Never disassemble the driver air bag module.
• Never expose the driver air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the driver air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old TORX bolts after removal, replace with the new TORX bolts.
• Fix the driver air bag module harness to the harness fixing

hook (A).

PHIA0953J



: Upward

NNHIA0003ZZ

JMHIA0009ZZ

NNHIA0004ZZ

2014 GT-R

DRIVER AIR BAG MODULE

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Never damage the harness while installing.
• Tighten the TORX bolts after completely adjusting the centers of fixing holes on the driver air bag

module side and the steering wheel side. If the holes are misaligned, the bolt threads are damaged
and the module is not installed securely.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

2014 GT-R

SR-14

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

SPIRAL CABLE

Exploded View

INFOID:0000000009161529

Removal and Installation

INFOID:0000000009161530

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Set the steering column to the fullest extent.

2.

Remove the driver air bag module. Refer to

SR-11, "Removal and Installation"

.

3.

Remove the steering wheel. Refer to

ST-10, "Removal and Installation"

.

4.

Remove the steering column cover. Refer to

IP-12, "Exploded View"

.

5.

Remove the spiral cable (1) mounting screws (A).

1.

Spiral cable

2.

Steering angle sensor

3.

Steering column cover (upper)

JMHIA0715ZZ

JMHIA0716ZZ

2014 GT-R

SPIRAL CABLE

SR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

6.

Remove the spiral cable (1) fixing pawls with remover tool (A).

7.

Pull the spiral cable (1), and then disconnect the spiral cable
harness connectors (A) and steering angle sensor harness con-
nector (B).

8.

Remove the spiral cable.

CAUTION:

• Never impact the spiral cable.
• Replace the spiral cable if it is dropped or sustains an impact.

• Never disassemble the spiral cable.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent, or water to come in contact with the spiral cable.

INSTALLATION

: Pawl

JMHIA0717ZZ

JMHIA0718ZZ

JMHIA0009ZZ

2014 GT-R

SR-16

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

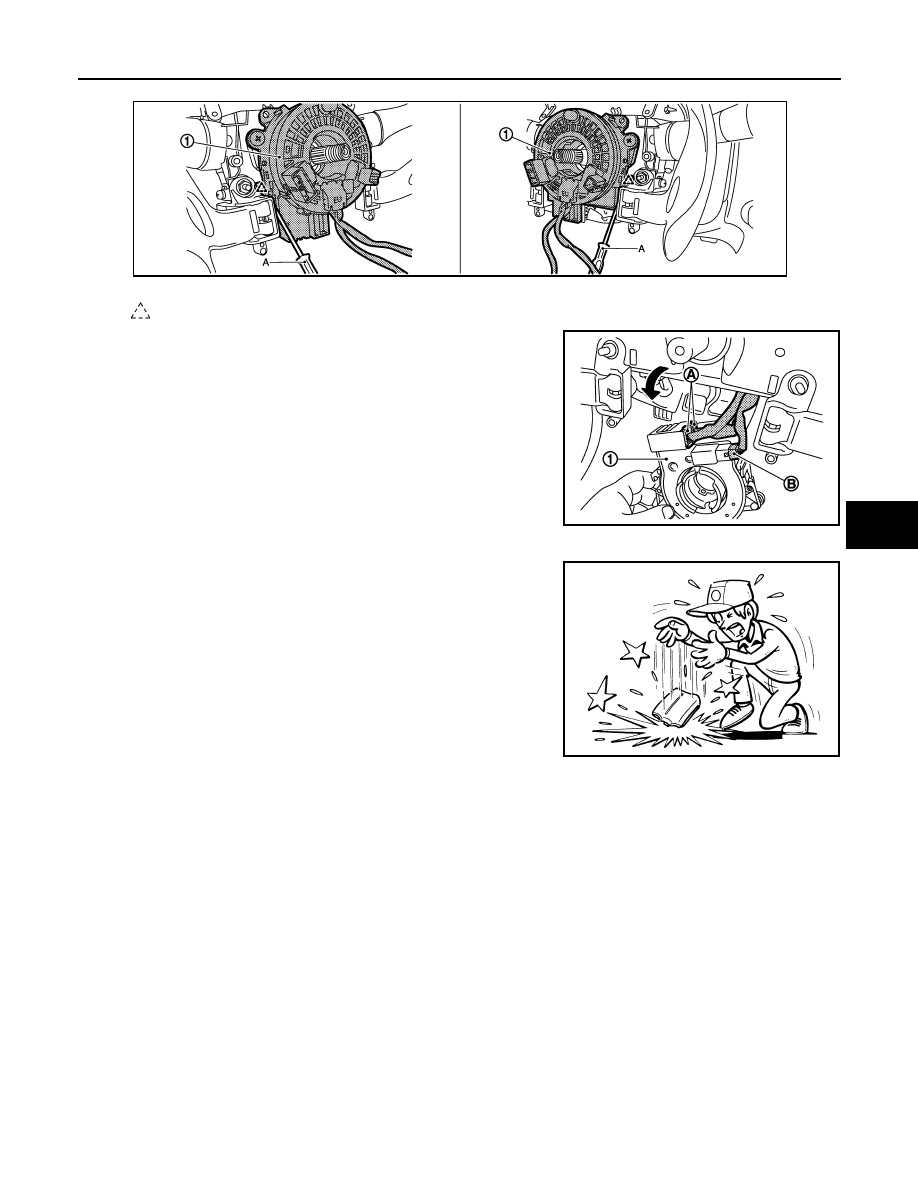

Note the following items, and then install in the reverse order of
removal.

CAUTION:

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as per the following.

• Carefully turn the spiral cable clockwise to the end posi-

tion.Then turn it counterclockwise (about 2 and a half turns)
and stop turning at the mark (B) when the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond the number of

turns required. (This causes the cable to snap)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

JMHIA0657ZZ

2014 GT-R

PASSENGER AIR BAG MODULE

SR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000009161531

Removal and Installation

INFOID:0000000009161532

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the glove box assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the passenger instrument panel (lower). Refer to

IP-13, "Removal and Installation"

.

3.

Disconnect the passenger air bag harness connector (A).

4.

Remove the passenger air bag module mounting bolt (B) and
screws (C).

1.

Instrument panel assembly

2.

Passenger air bag module

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA0719GB

JMHIA0720ZZ

2014 GT-R

SR-18

< REMOVAL AND INSTALLATION >

PASSENGER AIR BAG MODULE

5.

Disengage the metal clips (A) and (B), and then remove the pas-
senger air bag module.
• Rotate the metal clips (A) toward vehicle front to remove.
• Rotate the metal clips (B) toward vehicle rear to remove.

CAUTION:

• Always place the passenger air bag module with pad side fac-

ing upward.

• Never impact the passenger air bag module.
• Replace the passenger air bag module if it is dropped or sus-

tains an impact.

• Never insert any foreign objects (screwdriver, etc.) into passenger air bag module.
• Never disassemble the passenger air bag module.
• Never expose the passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

: Vehicle front

JMHIA0056ZZ

: Upward

JMHIA0661ZZ

JMHIA0009ZZ

2014 GT-R

CURTAIN AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000009161533

Removal and Installation

INFOID:0000000009161534

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining assembly. Refer to

INT-24, "Removal and Installation"

.

2.

Disconnect the curtain air bag harness connector.

CAUTION:

• For installing/removing curtain air bag module harness

connector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove connector.

• Install connector with lock raised, and push lock into con-

nector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove the mounting bolt, and then remove the curtain air bag module.

CAUTION:

1.

Curtain air bag inflator

2.

Curtain air bag module

3.

Strap

A

: Curtain air bag harness

B

: Ground bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

NNHIA0010GB

PHIA0953J

2014 GT-R

SR-20

< REMOVAL AND INSTALLATION >

CURTAIN AIR BAG MODULE

• Never impact the curtain air bag module.
• Replace the curtain air bag module if it is dropped or sustains

an impact.

• Never insert any foreign objects (screwdriver, etc.) into the curtain air bag module.
• Never disassemble curtain air bag module.
• Never expose the curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the curtain air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

2014 GT-R

CRASH ZONE SENSOR

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

CRASH ZONE SENSOR

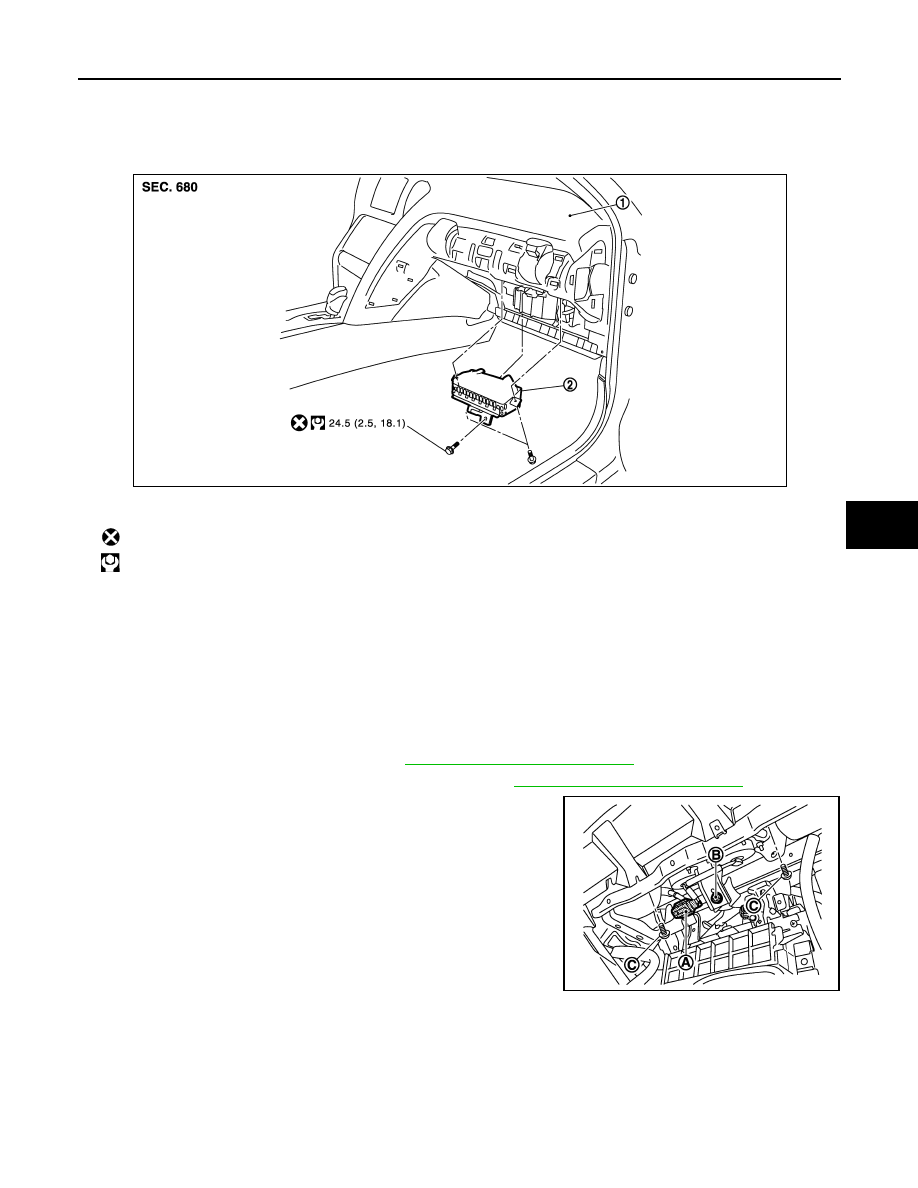

Exploded View

INFOID:0000000009161535

Removal and Installation

INFOID:0000000009161536

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the crash zone sensor mounting nut.

2.

Disconnect the crash zone sensor harness connector, and then remove the crash zone sensor.

CAUTION:

• Never impact the crash zone sensor.
• Replace the crash zone sensor if it is dropped or sustains an

impact.

• Replace the crash zone sensor of deployed driver air bag module, deployed passenger air bag mod-

ule, or seat belt pre-tensioner.

1.

Crash zone sensor

A

: Crash zone sensor harness connector

B

: Cooling fan motor

  : Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

NNHIA0023GB

JMHIA0009ZZ

2014 GT-R

SR-22

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use old fixing nuts after removal, replace with new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

2014 GT-R

SATELLITE SENSOR

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SATELLITE SENSOR

Exploded View

INFOID:0000000009161537

Removal and Installation

INFOID:0000000009161538

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the front seat belt retractor. Refer to

SB-6, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

2.

Disconnect the satellite sensor harness connector.

3.

Remove the satellite sensor mounting nut, and then remove the satellite sensor.

CAUTION:

• Never impact the satellite sensor.
• Replace the satellite sensor if it is dropped or sustains an

impact.

• Replace the satellite sensor of deployed side air bag module and deployed curtain air bag module.

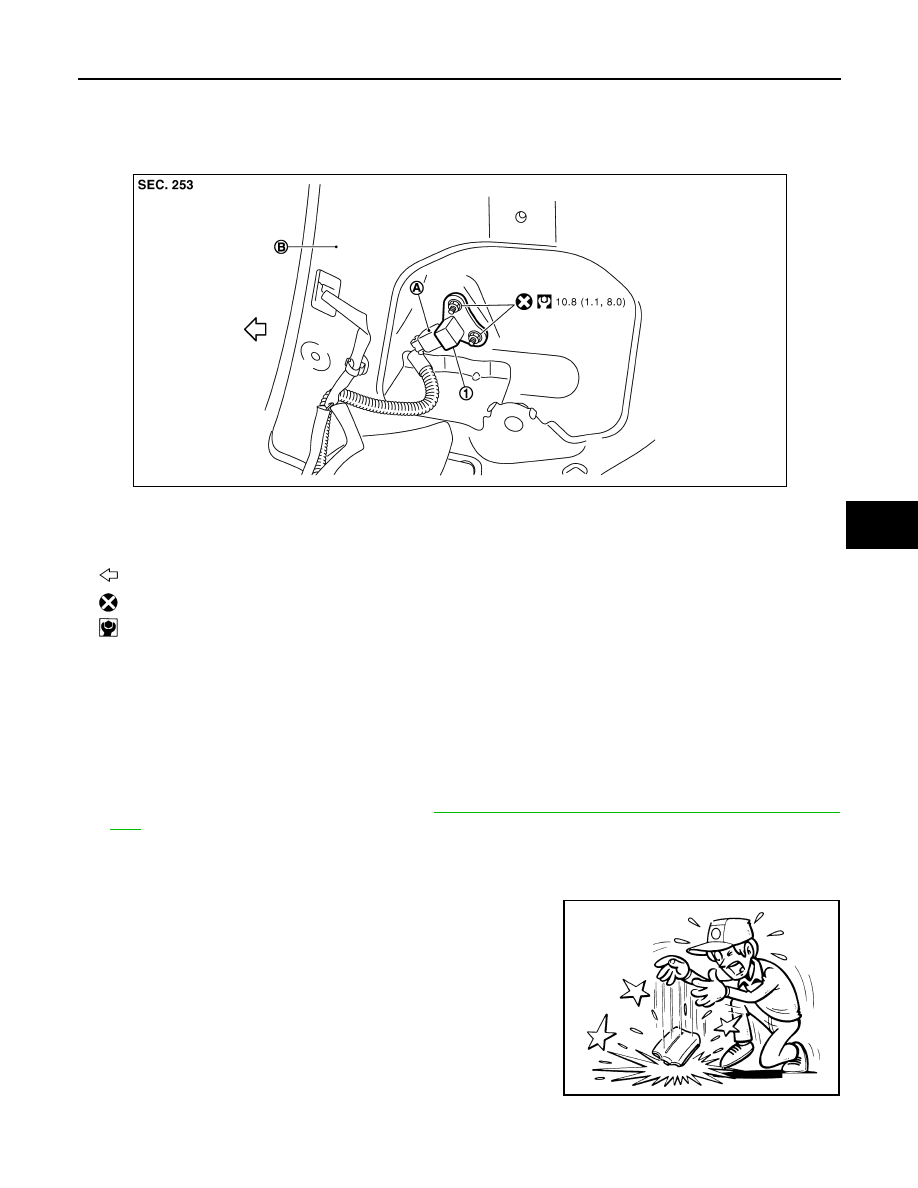

1.

Satellite sensor

A

: Satellite sensor harness connector

B

: Center pillar inner panel

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

NNHIA0013GB

JMHIA0009ZZ

2014 GT-R

SR-24

< REMOVAL AND INSTALLATION >

SATELLITE SENSOR

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing nuts after removal, replace with the new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is complete, check that no system malfunction is detected by air bag warning lamp.

2014 GT-R

DIAGNOSIS SENSOR UNIT

SR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

DIAGNOSIS SENSOR UNIT

Exploded View

INFOID:0000000009161539

Removal and Installation

INFOID:0000000009161540

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Before disconnecting the diagnosis sensor unit harness connector, always disconnect each harness

connector of the air bag module and pre-tensioner seat belt to prevent air bag deployment by static
electricity and pre-tensioner seat belt operation.

• Never use the air tools or electric tools for servicing.
• When replacing the air bag diagnosis sensor unit, always check with the parts department for the lat-

est parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the
air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags
and seat belt pre-tensioners in a collision resulting in serious personal injury or death.

REMOVAL

1.

Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) using
CONSULT.

2.

Disconnect the each harness connector for air bag module and seat belt pre-tensioner.

3.

Remove the rear console assembly. Refer to

IP-23, "Removal and Installation"

.

4.

Disconnect the air bag diagnosis sensor unit harness connector.

5.

Remove the bolts, and then remove the air bag diagnosis sensor unit.

CAUTION:

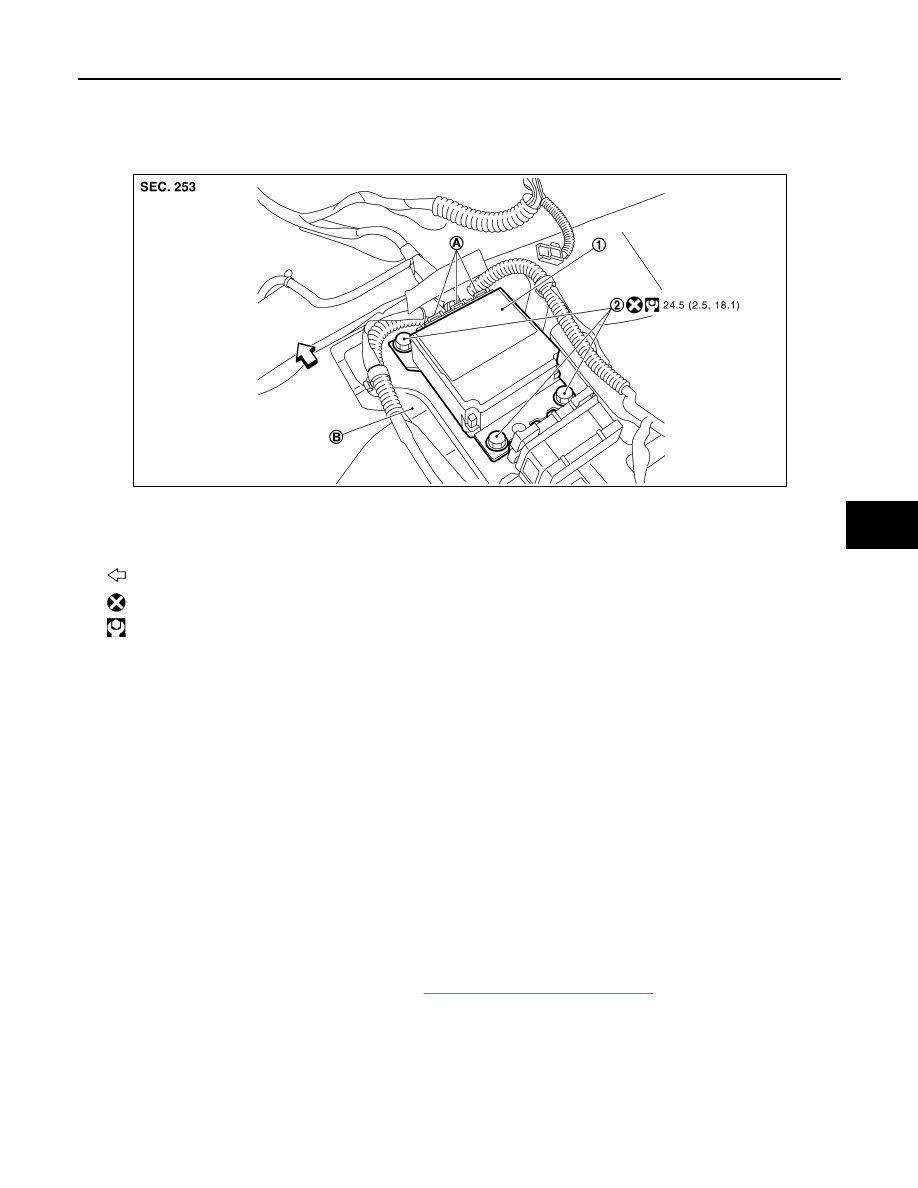

1.

Air bag diagnosis sensor unit

2.

Bolt

A

: Harness connector

B

: Floor panel center

  : Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA2575GB

2014 GT-R

SR-26

< REMOVAL AND INSTALLATION >

DIAGNOSIS SENSOR UNIT

• Never impact the diagnosis sensor unit.
• Replace the diagnosis sensor unit if it is dropped or sustains

an impact.

• Replace the diagnosis sensor unit of deployed driver air bag module, deployed passenger air bag

module, deployed side air bag module, deployed curtain air bag module, or deployed seat belt pre-
tensioner.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old TORX bolts after removal, replace with the new TORX bolts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-8, "Diagnosis

Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) of the new replacement air bag sensor unit matches the ECU
discriminated number (identification number) of the replaced (old) air bag diagnosis sensor unit.

NOTE:
If the ECU discriminated number of the new replacement air bag diagnosis sensor unit differs from the ECU
discriminated number of the replaced air bag diagnosis sensor unit, reconfirm the parts information and verify
that the correct air bag diagnosis sensor unit was installed.

JMHIA0009ZZ

2014 GT-R

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

SR-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

Removal and Installation

INFOID:0000000009161541

For removal and installation

The occupant classification system control unit and seat sensor mat are an integral part of the front passenger
seat cushion and are replaced as an assembly. Refer to

SE-46, "Exploded View"

.

2014 GT-R
