LICENSE PLATE LAMP

EXL-61

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2.

Turn the bulb socket (1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the socket.

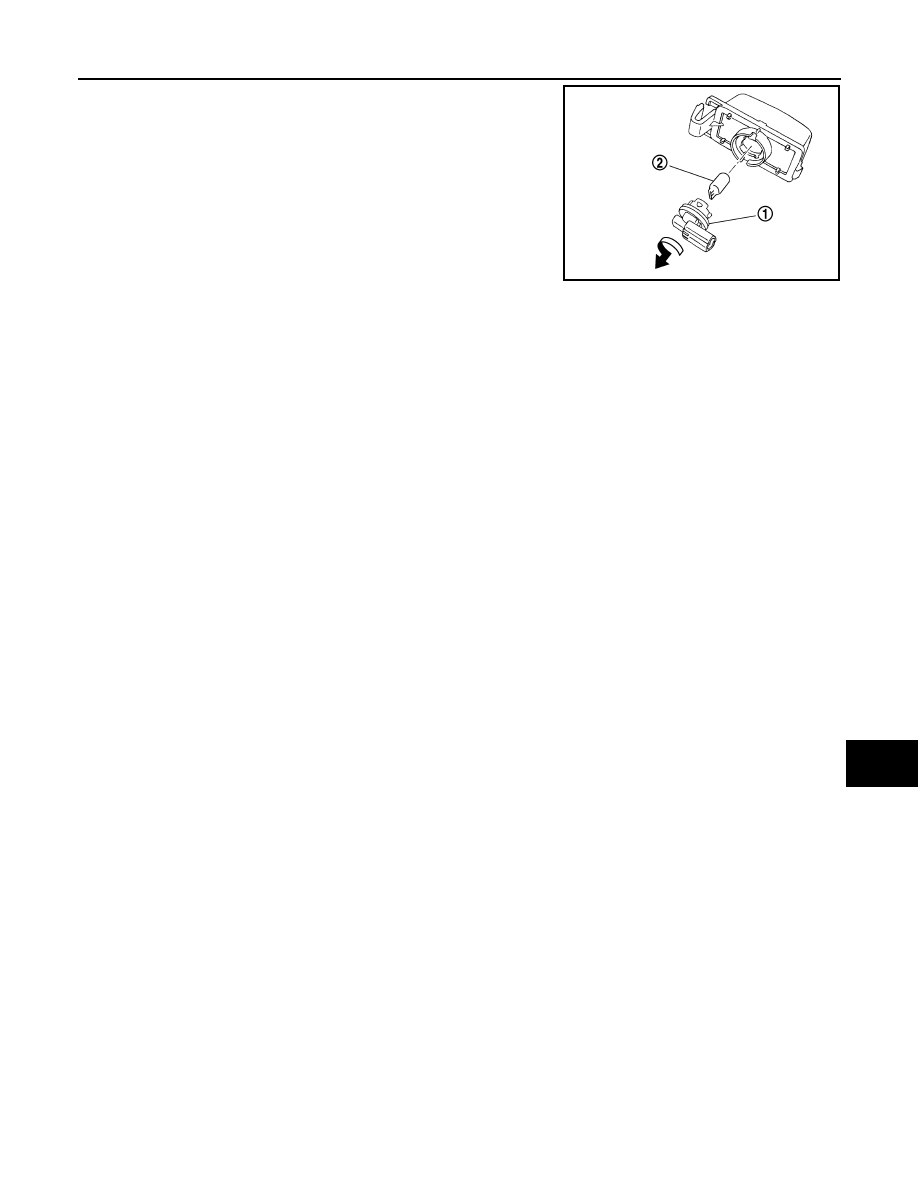

JPLIA0055ZZ

EXL-62

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR FOG LAMP

REAR FOG LAMP

Exploded View

INFOID:0000000009160401

REMOVAL

Removal and Installation

INFOID:0000000009160402

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove rear fog lamp mounting bolts from rear diffuser under side.

2.

Pull out rear fog lamp to vehicle rear, and then disconnect harness connector.

3.

Remove rear fog lamp.

INSTALLATION

Installation is the reverse order of removal.

1.

Rear bumper fascia

2.

Rear fog lamp assembly

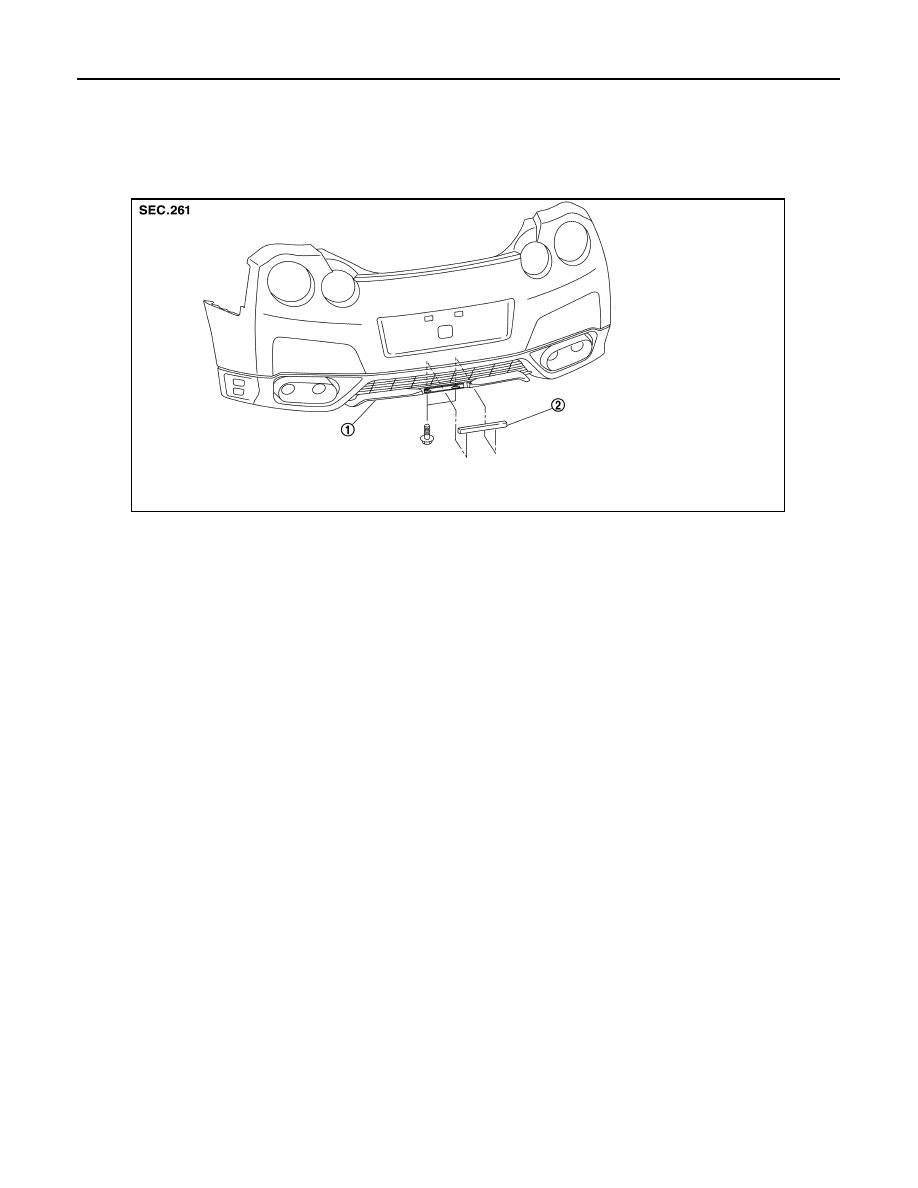

JMLIA1868ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-63

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009160403

Item

Type

Wattage (W)

Front combination lamp

Headlamp (LO)

D2S (Xenon)

35

Headlamp (HI)

H9

65

Parking lamp

W5W

5

Front turn signal lamp

7444NA

28

Daytime running light

LED

—

Front side marker lamp

W5W

5

Rear combination lamp

Stop lamp

LED

—

Tail lamp

LED

—

Rear turn signal lamp

WY21W (Amber)

21

Back-up lamp

W16W

16

Rear side marker lamp

LED

—

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

Rear fog lamp

LED

—
