FRONT SIDE MARKER LAMP

EXL-53

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1.

Remove the front side marker lamp. Refer to

EXL-52, "Exploded View"

.

2.

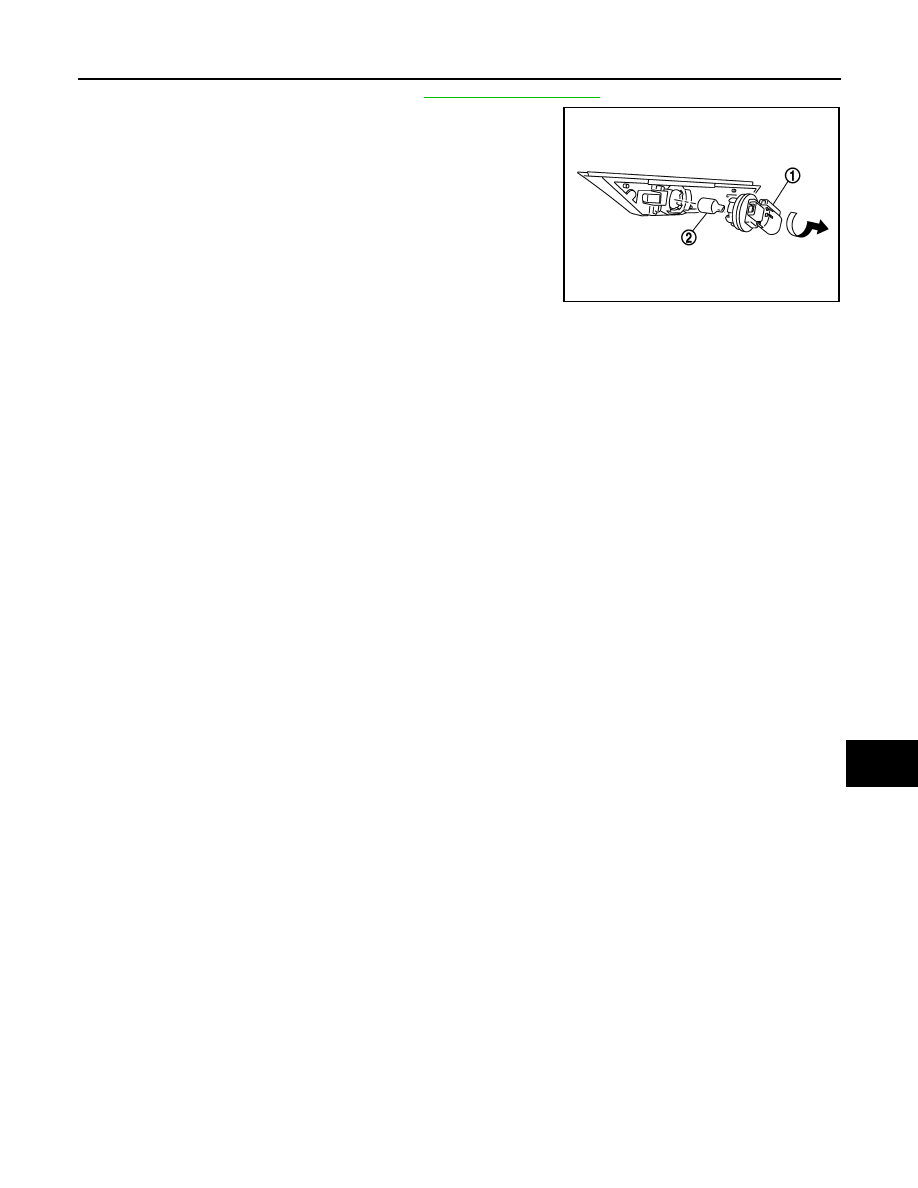

Turn the bulb socket (1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the socket.

NNLIA0025ZZ

EXL-54

< REMOVAL AND INSTALLATION >

[XENON TYPE]

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000009160389

The lighting & turn signal switch is integrated in the combination switch.

BCS-21, "Exploded View"

.

HAZARD SWITCH

EXL-55

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Exploded View

INFOID:0000000009160390

The hazard switch is integrated in the set-up switch. Refer to

IP-12, "Exploded View"

.

EXL-56

< REMOVAL AND INSTALLATION >

[XENON TYPE]

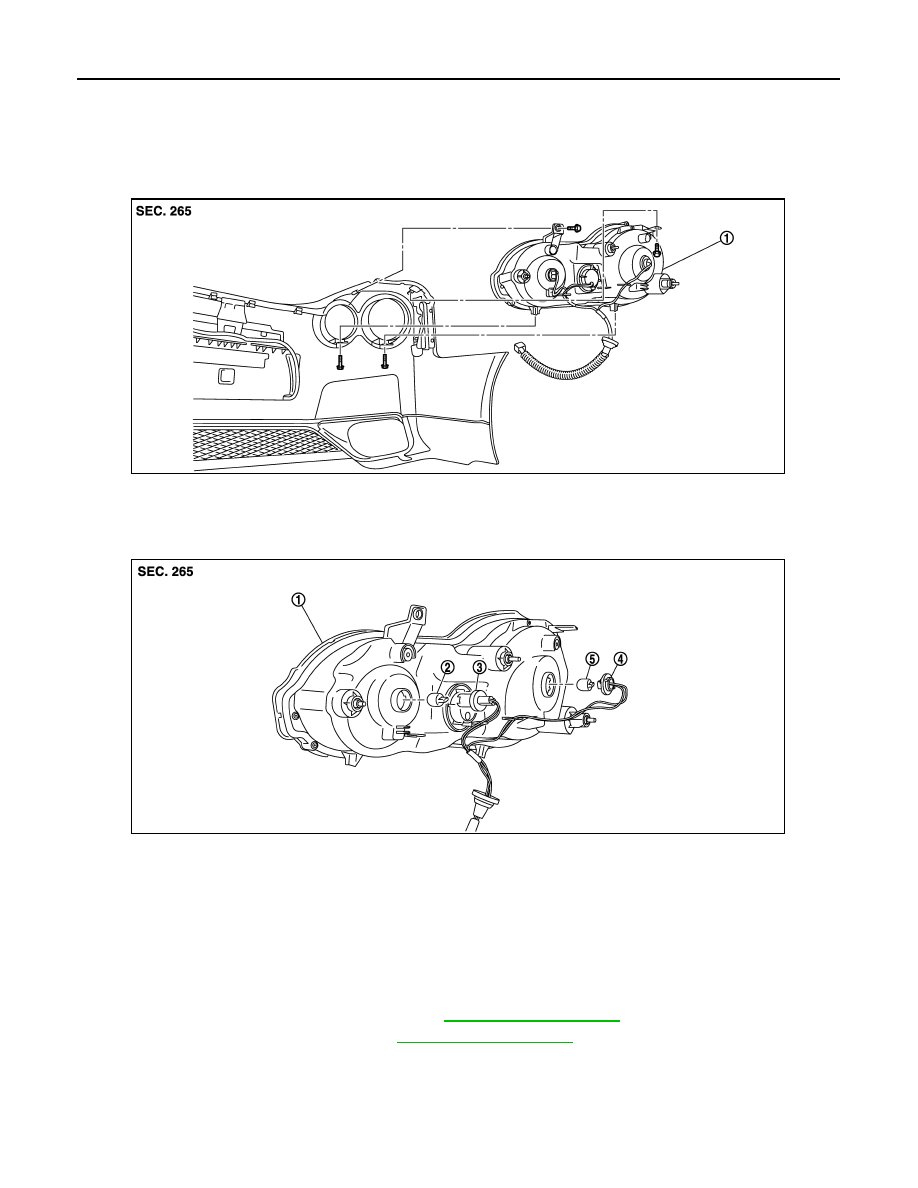

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000009160391

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009160392

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the fascia rear bumper center. Refer to

EXT-20, "Exploded View"

.

2.

Remove the rear bumper fascia. Refer to

EXT-20, "Exploded View"

.

3.

Remove the rear combination lamp mounting bolts.

4.

Disconnect the rear side marker lamp connector.

5.

Remove the rear combination lamp.

INSTALLATION

1.

Rear combination lamp assembly

NNLIA0013ZZ

1.

Rear combination lamp

2.

Back-up lamp bulb

3.

Back-up lamp bulb socket

4.

Rear turn signal lamp bulb socket

5.

Rear turn signal lamp bulb

NNLIA0079ZZ
