ENCODER

PWC-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

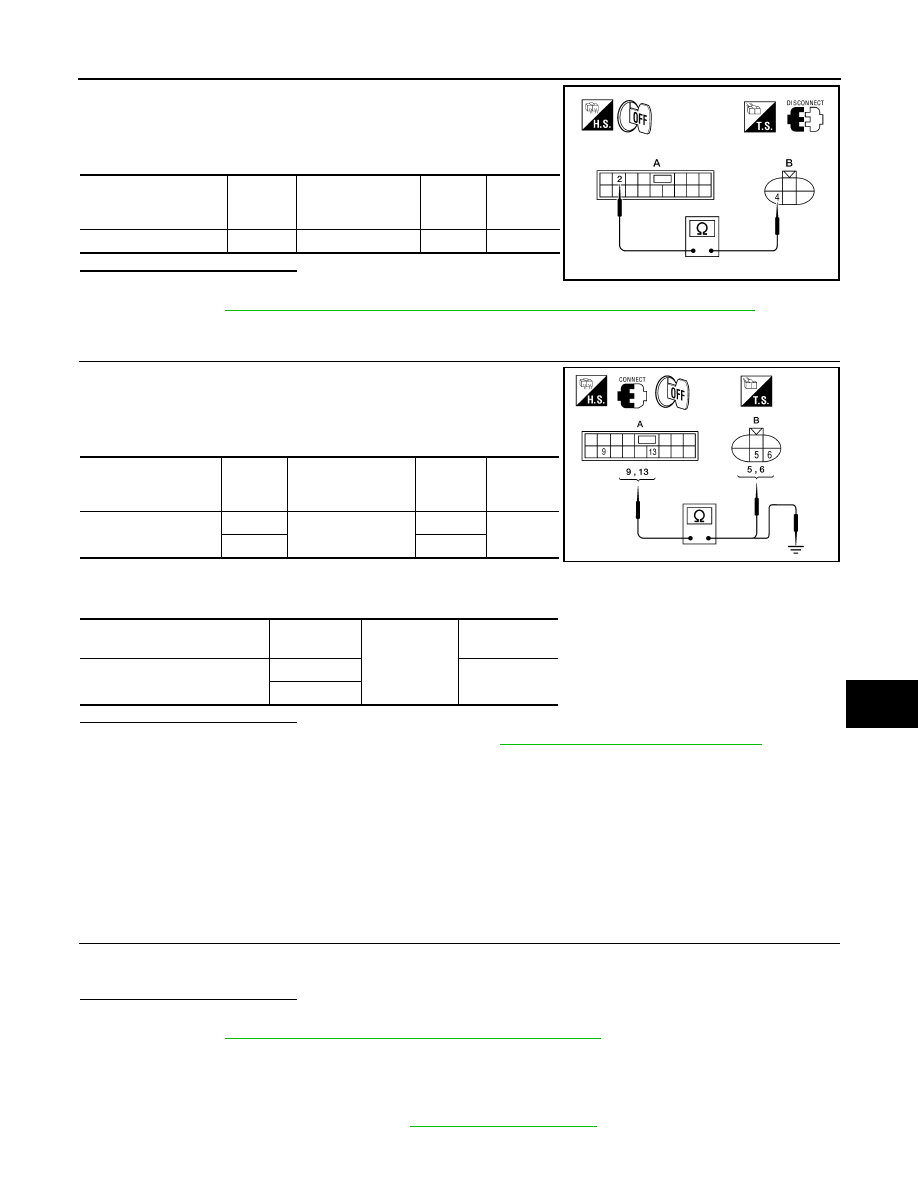

1. Disconnect main power window and door lock/unlock switch.

2. Check continuity between main power window and door lock/

unlock switch connector and front power window motor LH con-

nector.

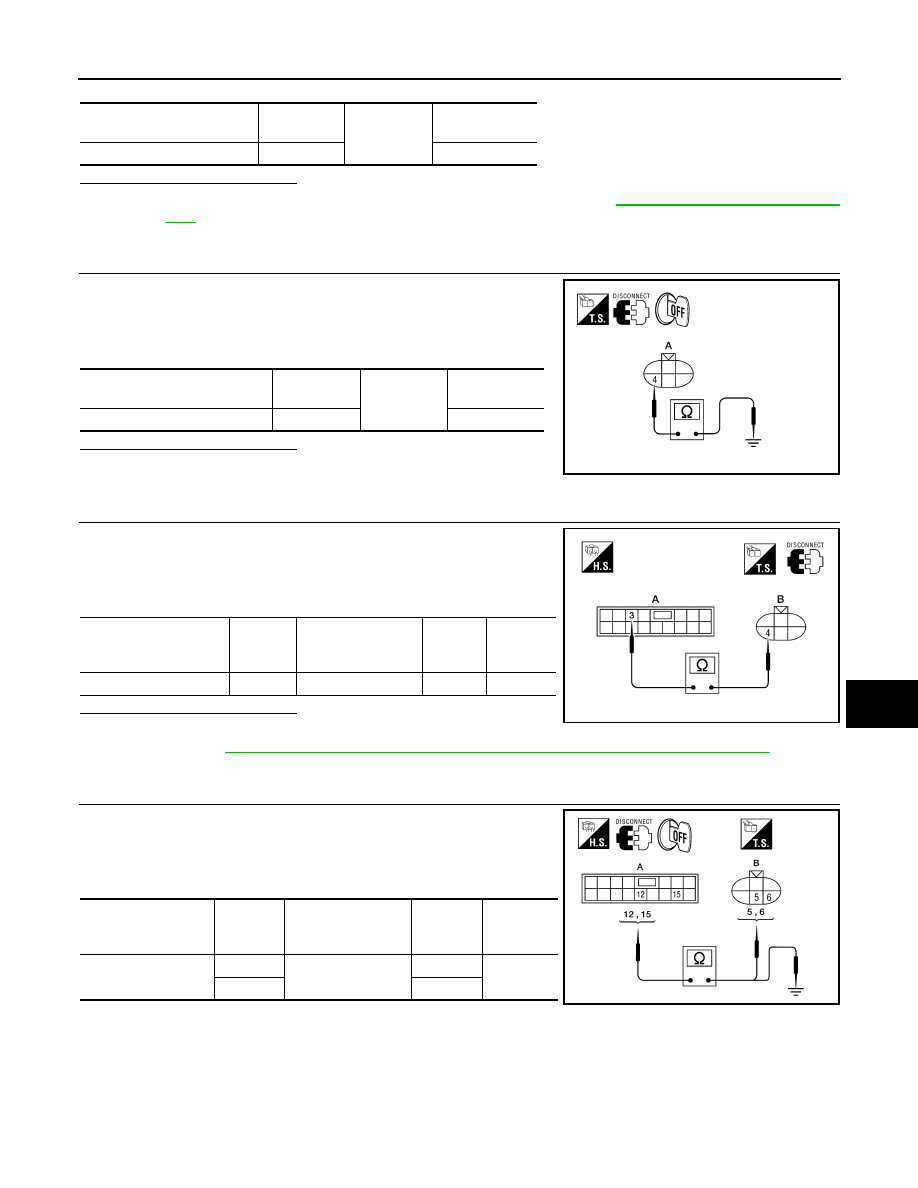

Is the inspection result normal?

YES

>> Check main power window and door lock/unlock switch.

Refer to

PWC-13, "POWER WINDOW MAIN SWITCH : Component Function Check"

.

NO

>> Repair or replace harness.

6.

 CHECK HARNESS CONTINUITY 3

1. Disconnect main power window and door lock/unlock switch.

2. Check continuity between main power window and door lock/

unlock switch connector (A) and front power window motor LH

connector (B).

3. Check continuity between main power window and door lock/

unlock switch connector (A) and ground.

Is the inspection result normal?

YES

>> Replace front power window motor LH. Refer to

GW-15, "Front Door Glass Regulator"

.

NO

>> Repair or replace harness.

PASSENGER SIDE
PASSENGER SIDE : Description

INFOID:0000000006243490

Detects condition of the front power window motor RH operation and transmits to power window and door

lock/unlock switch RH as pulse signal.

PASSENGER SIDE : Component Function Check

INFOID:0000000006243491

1.

CHECK ENCODER OPERATION

Check front door glass RH perform AUTO open/close operation normally when operating power window and

door lock/unlock switch RH.
Is the inspection result normal?

YES

>> Encoder operation is OK.

NO

>> Refer to

PWC-31, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000006243492

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

Main power window and

door lock/unlock switch

connector

Terminal

Front power win-

dow motor LH con-

nector

Terminal

Continuity

D7 2

D9

4

Yes

LIIA2784E

Main power window

and door lock/unlock

switch connector

Terminal

Front power window

motor LH connector

Terminal

Continuity

D7 (A)

9

D9 (B)

5

Yes

13

6

Main power window and door

lock/unlock switch connector

Terminal

Ground

Continuity

D7 (A)

9

No

13

ALKIA1209ZZ

2011 Pathfinder

P

W

C

- 3 2

< DTC/CIRCUIT DIAGNOSIS >

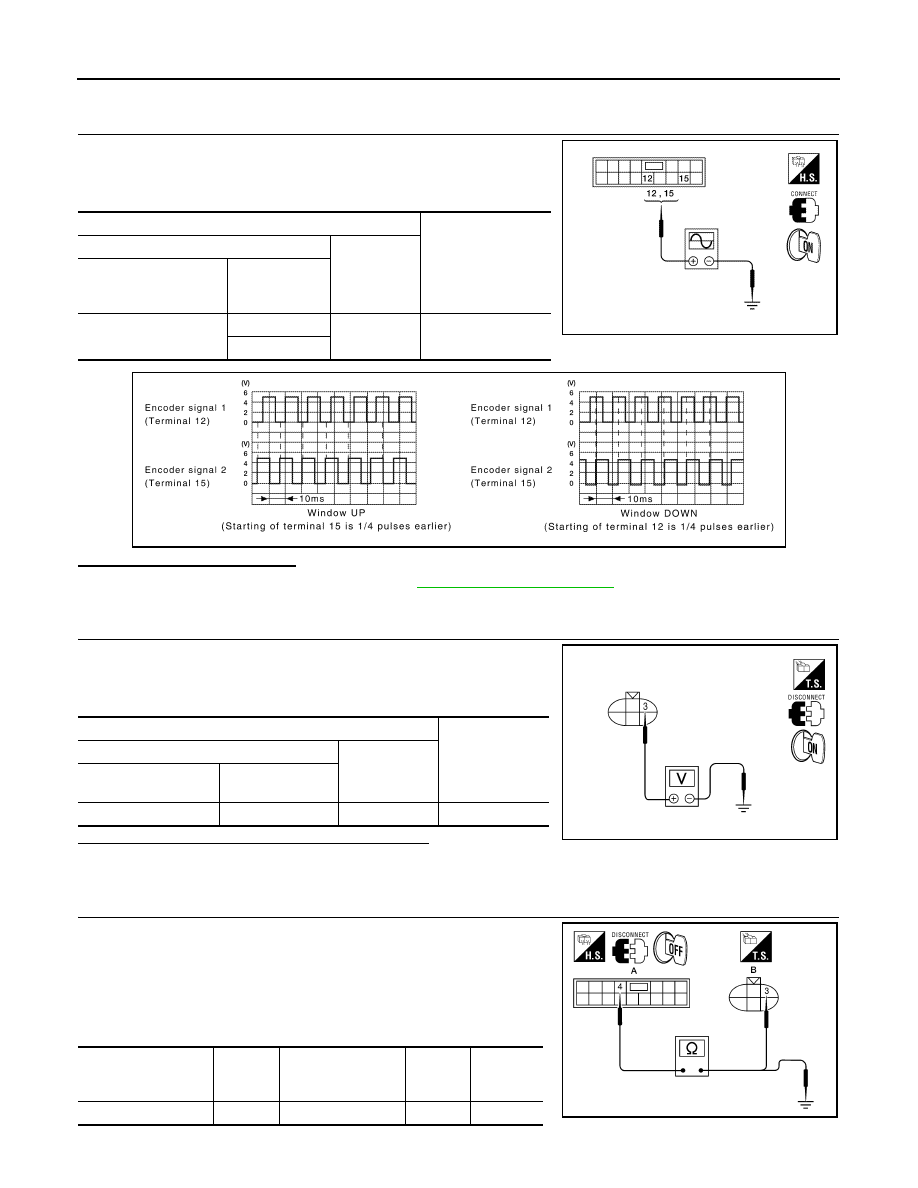

ENCODER

1.

 CHECK ENCODER SIGNAL

1. Turn ignition switch ON.

2. Check signal between power window and door lock/unlock

switch RH connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> GO TO 2

2.

 CHECK FRONT POWER WINDOW MOTOR RH POWER SUPPLY

1. Turn ignition switch ON.

2. Check voltage between front power window motor RH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 4

NO

>> GO TO 3

3.

 CHECK HARNESS CONTINUITY 1

1. Turn ignition switch OFF.

2. Disconnect power window and door lock/unlock switch RH and

front power window motor RH.

3. Check continuity between power window and door lock/unlock

switch RH connector (A) and front power window motor RH con-

nector (B).

4. Check continuity between power window and door lock/unlock switch RH connector (A) and ground.

Terminals

Signal

(Reference value)

(+)

(–)

 Power window and door

lock/unlock switch RH

connector

Terminal

D105

12

Ground

Refer to following

signal

15

ALKIA0322ZZ

ALKIA0305GB

Terminal

Voltage (V)

(Approx.)

(+)

(–)

 Front power window

motor RH connector

Terminal

D105

3

Ground

10

LIIA2782E

Power window and

door lock/unlock

switch RH connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

4

D104 (B)

3

Yes

ALKIA1210ZZ

2011 Pathfinder

ENCODER

PWC-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Replace power window and door lock/unlock switch RH. Refer to

PWC-86, "Removal and Installa-

tion"

.

NO

>> Repair or replace harness.

4.

 CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect front power window motor RH.

3. Check continuity between front power window motor RH con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 5

5.

 CHECK HARNESS CONTINUITY 2

1. Disconnect power window and door lock/unlock switch RH.

2. Check continuity between power window and door lock/unlock

switch RH connector and front power window motor RH connec-

tor.

Is the inspection result normal?

YES

>> Check power window and door lock/unlock switch RH.

Refer to

PWC-17, "FRONT POWER WINDOW SWITCH : Component Function Check"

.

NO

>> Repair or replace harness.

6.

 CHECK HARNESS CONTINUITY 3

1. Disconnect power window and door lock/unlock switch RH.

2. Check continuity between power window and door lock/unlock

switch RH connector (A) and front power window motor RH con-

nector (B).

3. Check continuity between power window and door lock/unlock

switch RH connector (A) and ground.

Power window and door lock/

unlock switch RH connector

Terminal

Ground

Continuity

D105 (A)

4

No

Front power window motor RH

connector

Terminal

Ground

Continuity

D104

4

Yes

LIIA2776E

Power window and door

lock/unlock switch RH

connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

3

D104 (B)

4

Yes

LIIA2780E

Power window and

door lock/unlock

switch RH connector

Terminal

Front power window
motor RH connector

Terminal

Continuity

D105 (A)

12

D104 (B)

6

Yes

15

5

ALKIA1211ZZ

2011 Pathfinder

PWC-34

< DTC/CIRCUIT DIAGNOSIS >

ENCODER

Is the inspection result normal?

YES

>> Replace front power window motor RH. Refer to

GW-15, "Front Door Glass Regulator"

.

NO

>> Repair or replace harness.

Power window and door

lock/unlock switch RH con-

nector

Terminal

Ground

Continuity

D105 (A)

12

No

15

2011 Pathfinder

DOOR SWITCH

PWC-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

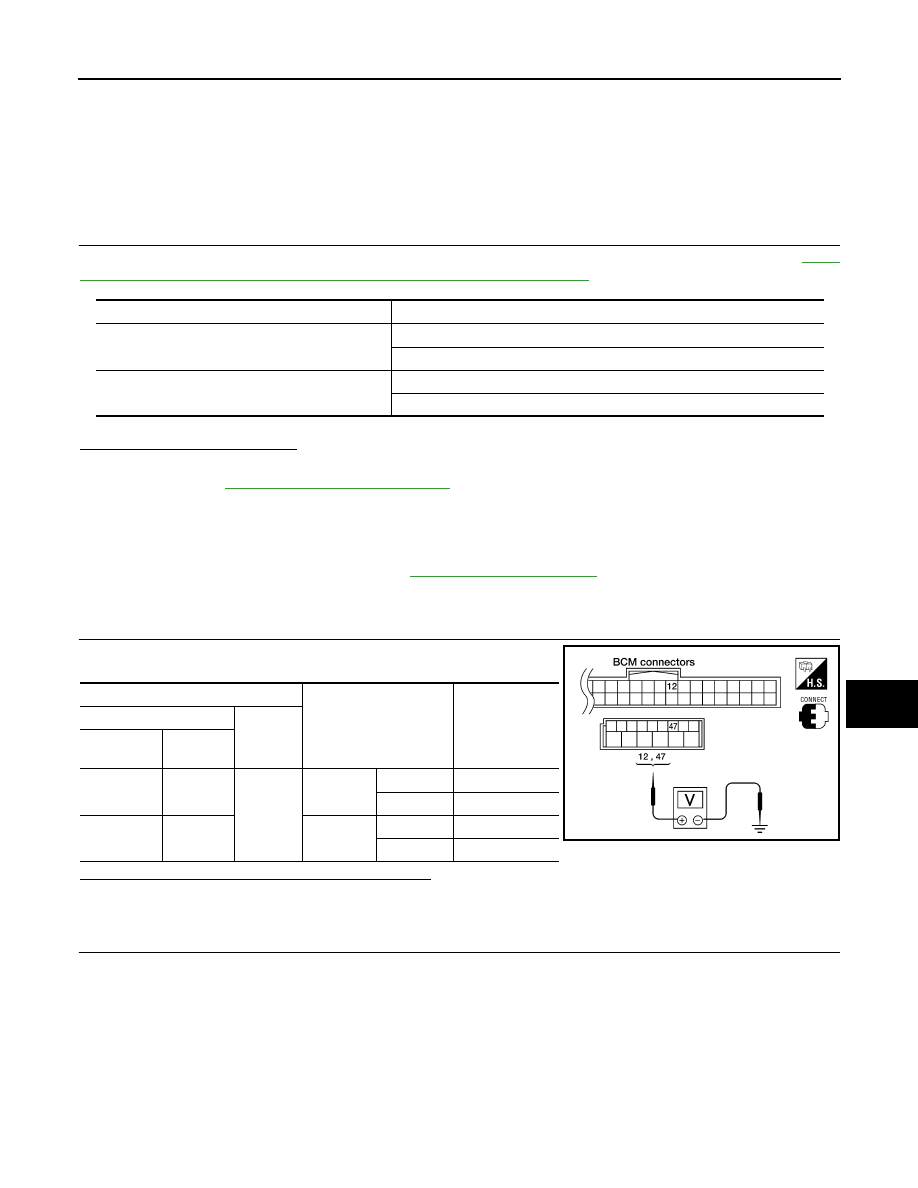

DOOR SWITCH

Description

INFOID:0000000006243493

Detects door open/close condition and transmits the signal to BCM.

Component Function Check

INFOID:0000000006243494

1.

 CHECK FRONT DOOR SWITCH INPUT SIGNAL

Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III. Refer to

BCS-

26, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)"

.

Is the inspection result normal?

YES

>> Front door switch circuit is OK.

NO

>> Refer to

PWC-35, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006243495

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

1.

 CHECK FRONT DOOR SWITCH

Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> Door switch circuit is OK.

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

Monitor item

Condition

DOOR SW-DR

OPEN

: ON

CLOSE

: OFF

DOOR SW-AS

OPEN

: ON

CLOSE

: OFF

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

 connector

Terminal

M18

12

Ground

Front door

RH

OPEN

0

CLOSE

Battery voltage

M19

47

Front door

LH

OPEN

0

CLOSE

Battery voltage

LIIA0946E

2011 Pathfinder

PWC-36

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

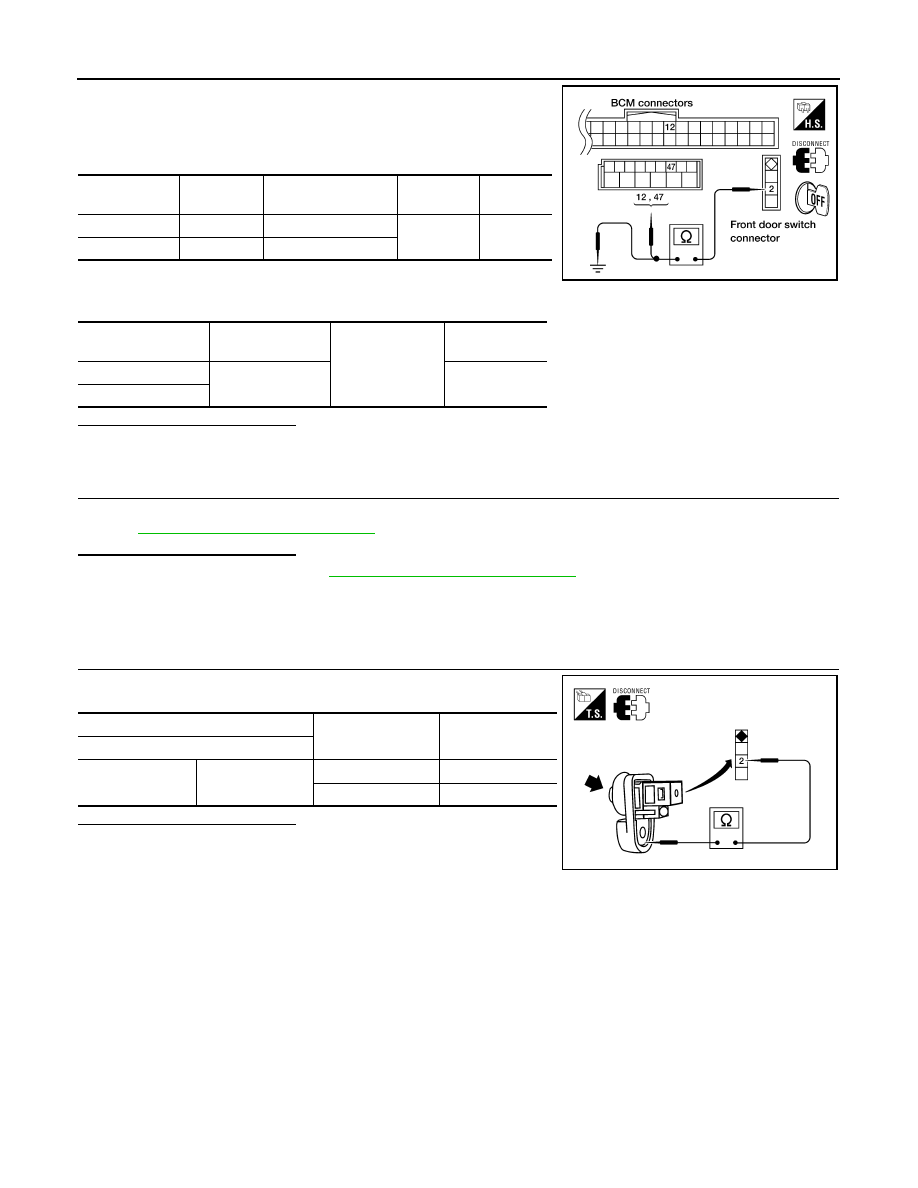

1. Turn ignition switch OFF.

2. Disconnect BCM and front door switch.

3. Check continuity between BCM connector and front door switch

connector.

4. Check continuity between front door switch connector and

ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK FRONT DOOR SWITCH

Check front door switch.

Refer to

PWC-36, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-55, "Removal and Installation"

.

NO

>> Replace front door switch.

Component Inspection

INFOID:0000000006243496

1.

 CHECK FRONT DOOR SWITCH

Check front door switches.

Is the inspection result normal?

YES

>> Front door switch is OK.

NO

>> Replace front door switch.

BCM connector

Terminal

Front door switch

 connector

Terminal

Continuity

M18

12

RH: B108

2

Yes

M19

47

LH: B8

Front door switch

connector

Terminal

Ground

Continuity

B8 (LH)

2

No

B108 (RH)

LIIA0947E

Terminal

Door switch

Continuity

Door switches

2

Ground part of

door switch

Pressed

No

Released

Yes

LIIA2377E

2011 Pathfinder

DOOR KEY CYLINDER SWITCH

PWC-37

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

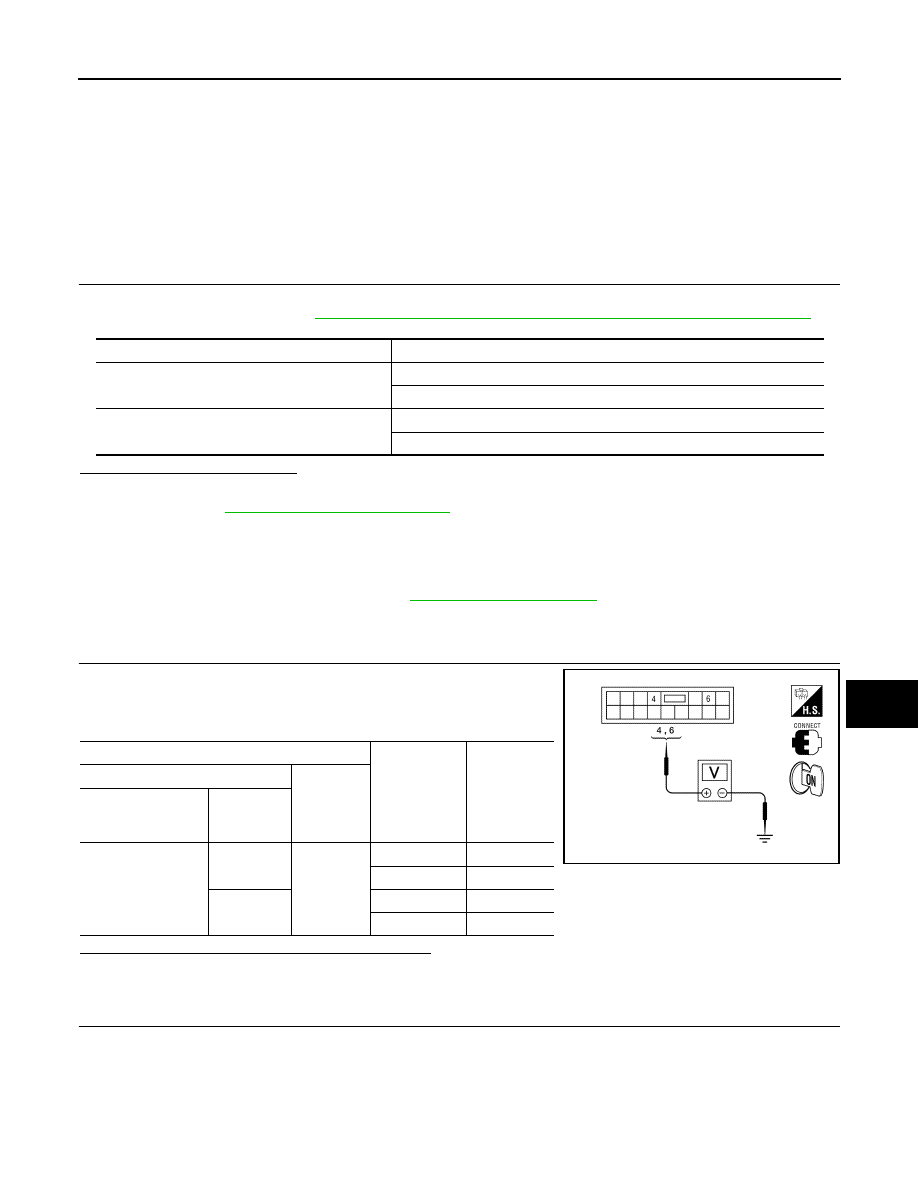

DOOR KEY CYLINDER SWITCH

Description

INFOID:0000000006243497

Main power window and door lock/unlock switch detects condition of the door key cylinder and transmits to

BCM as the LOCK or UNLOCK signals.

Component Function Check

INFOID:0000000006243498

1.

 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

Check (“KEY CYL LK-SW”, “KEY CYL UN-SW”) in “DATA MONITOR” mode for “POWER DOOR LOCK SYS-

TEM” with CONSULT-III. Refer to

BCS-17, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Is the inspection result normal?

YES

>> Key cylinder switch is OK.

NO

>> Refer to

PWC-37, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006243499

Regarding Wiring Diagram information, refer to

PWC-61, "Wiring Diagram"

.

1.

 CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage between main power window and door lock/

unlock switch connector and ground.

Is the measurement value within the specification?

YES

>> Replace main power window and door lock/unlock switch.

NO

>> GO TO 2

2.

 CHECK DOOR KEY CYLINDER SIGNAL CIRCUIT

Monitor item

Condition

KEY CYL LK-SW

Lock

: ON

Neutral / Unlock

: OFF

KEY CYL UN-SW

Unlock

: ON

Neutral / Lock

: OFF

Terminals

Key position

Voltage (V)

(Approx.)

(+)

(–)

Main power window

and door lock/unlock

switch connector

Terminal

D7

4

Ground

Lock

0

Neutral/Unlock

5

6

Unlock

0

Neutral/Lock

5

ALKIA0309ZZ

2011 Pathfinder

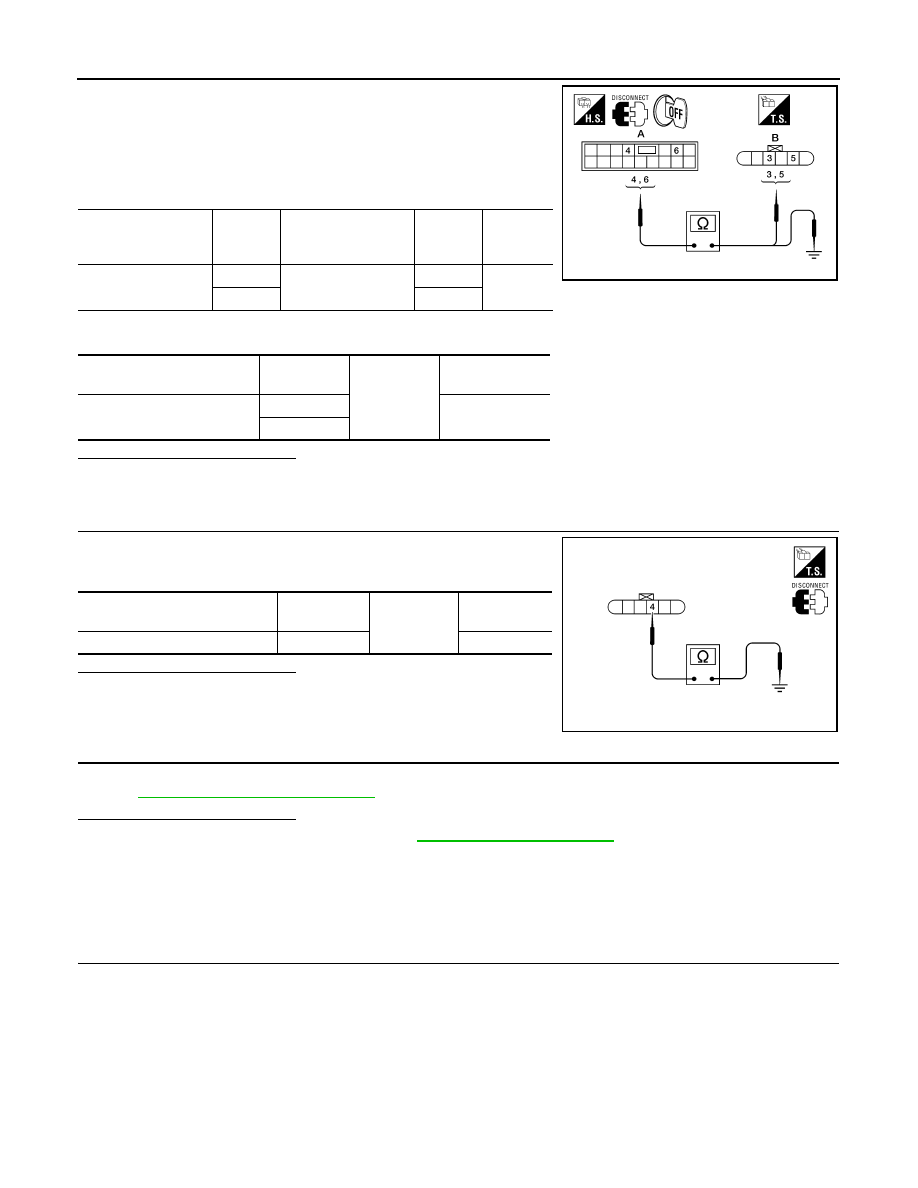

PWC-38

< DTC/CIRCUIT DIAGNOSIS >

DOOR KEY CYLINDER SWITCH

1. Turn ignition switch OFF.

2. Disconnect main power window and door lock/unlock switch and

front door lock assembly LH (key cylinder switch).

3. Check continuity between main power window and door lock/

unlock switch connector (A) and front door lock assembly LH

(key cylinder switch) connector (B).

4. Check continuity between main power window and door lock/unlock switch connector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

Check continuity between front door lock assembly LH (key cylinder

switch) connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK DOOR KEY CYLINDER SWITCH

Check door key cylinder switch.

Refer to

PWC-38, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-37, "Intermittent Incident"

.

NO

>> Replace front door lock assembly LH (door key cylinder switch).

Component Inspection

INFOID:0000000006243500

COMPONENT INSPECTION

1.

 CHECK DOOR KEY CYLINDER SWITCH

Main power window

and door lock/unlock

switch connector

Terminal

Front door lock as-

sembly LH (key cylin-
der switch) connector

Terminal

Continuity

D7 (A)

4

D14 (B)

5

Yes

6

3

Main power window and door

lock/unlock switch connector

Terminal

Ground

Continuity

D7 (A)

4

No

6

ALKIA1212ZZ

Front door lock assembly LH (key

cylinder switch) connector

Terminal

Ground

Continuity

D14

4

Yes

LIIA2806E

2011 Pathfinder
