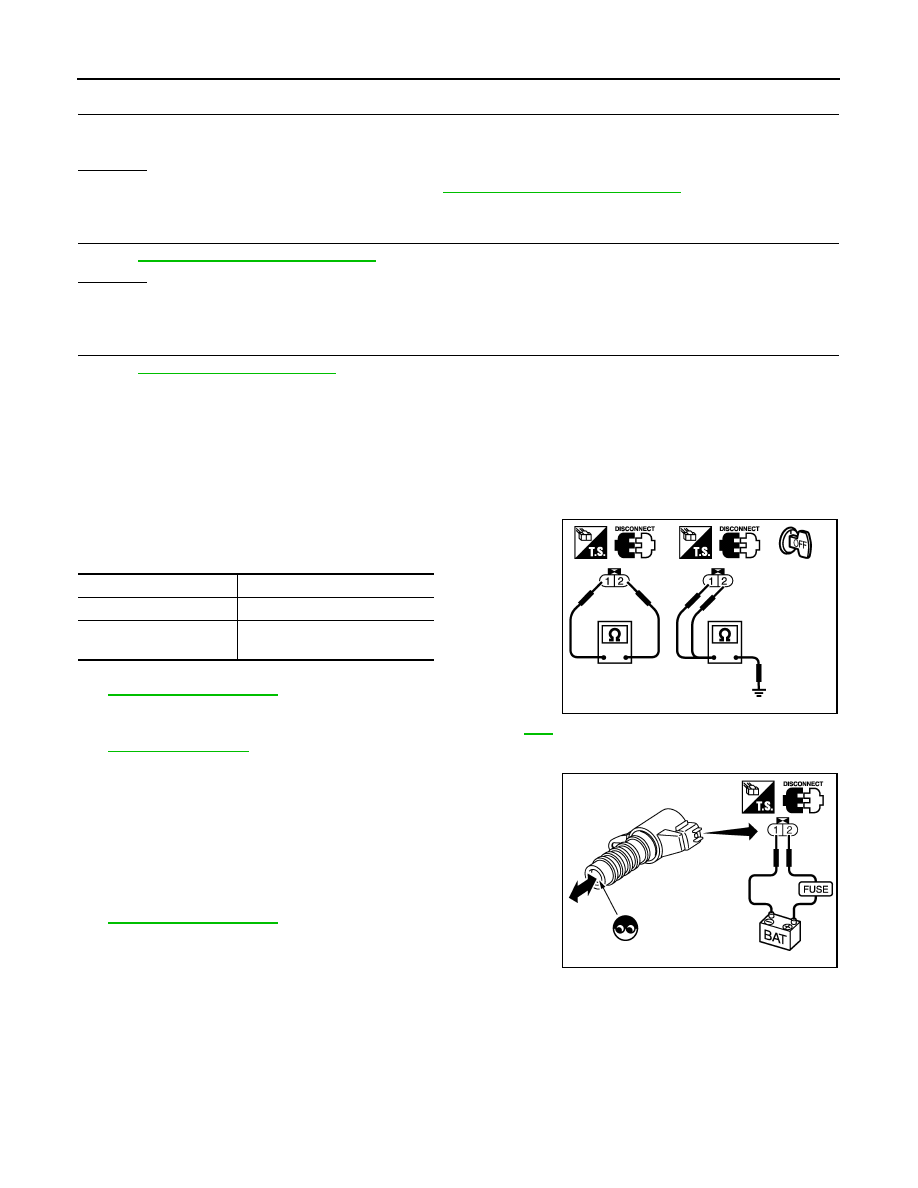

EC-102 < DTC/CIRCUIT DIAGNOSIS > [VQ40DE] P0011, P0021 IVT CONTROL 6. CHECK TIMING CHAIN INSTALLATION Check service records for any recent repairs that may cause timing chain misalignment. Are there any service records that may cause timing chain misalignment? Yes or No Yes >> Check timing chain installation. Refer to EM-61, "Removal and Installation" . No >> GO TO 7. 7. CHECK LUBRICATION CIRCUIT EM-61, "Removal and Installation" . OK or NG OK >> GO TO 8. NG >> Clean lubrication line. 8. CHECK INTERMITTENT INCIDENT GI-37, "Intermittent Incident" >> INSPECTION END Component Inspection INFOID:0000000006243787 INTAKE VALVE TIMING CONTROL SOLENOID VALVE 1. Disconnect intake valve timing control solenoid valve harness connector. valve as follows. If NG, replace intake valve timing control solenoid valve. Refer to If OK, go to next step. 3. Remove intake valve timing control solenoid valve. Refer to 4. Provide 12V DC between intake valve timing control solenoid valve terminals and then interrupt it. Make sure that the plunger moves as shown in the figure. CAUTION: Never apply 12V DC continuously for 5 seconds or more. Doing so may result in damage to the coil in intake valve timing control solenoid valve. If NG, replace intake valve timing control solenoid valve. Refer to NOTE: Always replace O-ring when intake valve timing control solenoid valve is removed. Terminal Resistance 1 and 2 7.0 - 7.7 Ω at 20 ° C (68 ° F) 1 or 2 and ground ∞Ω (Continuity should not exist.) PBIB0193E PBIB2275E 2011 Pathfinder |
