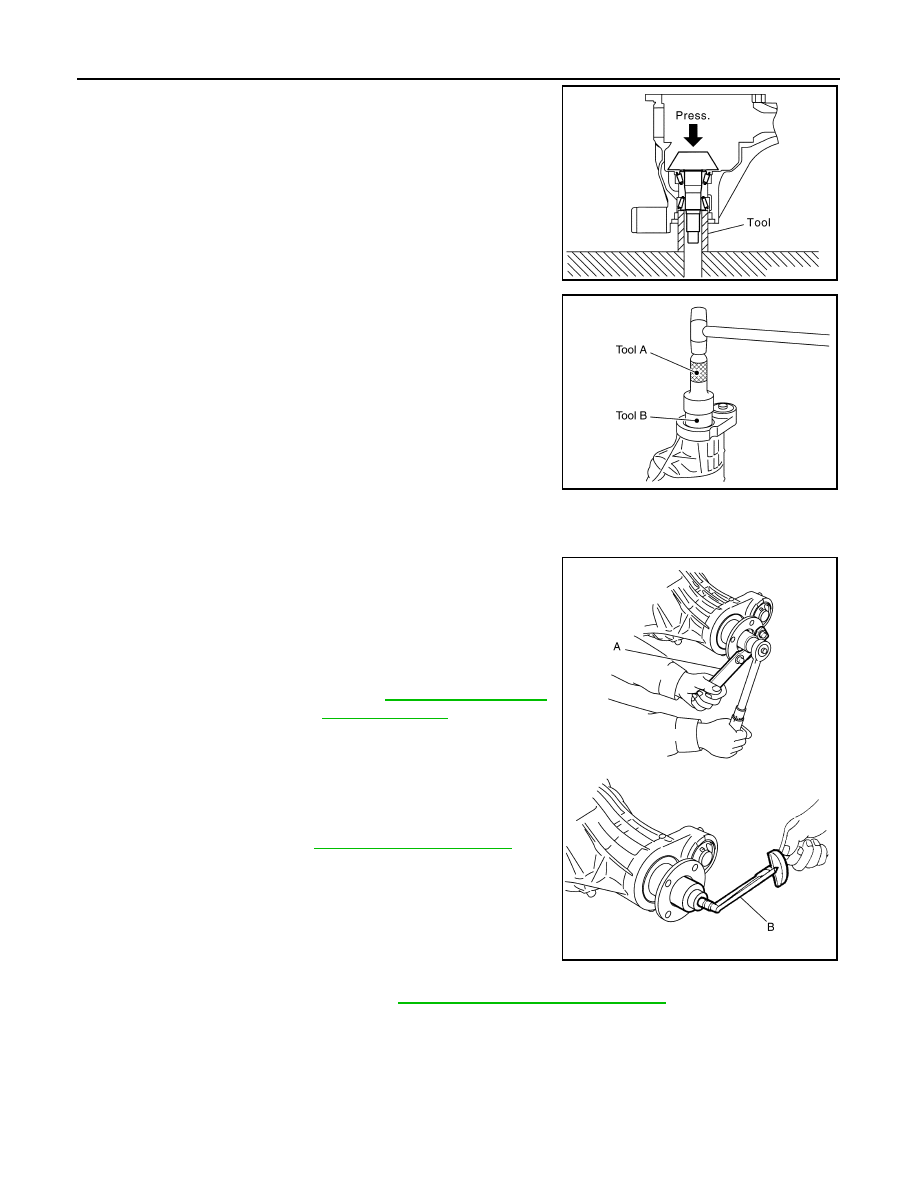

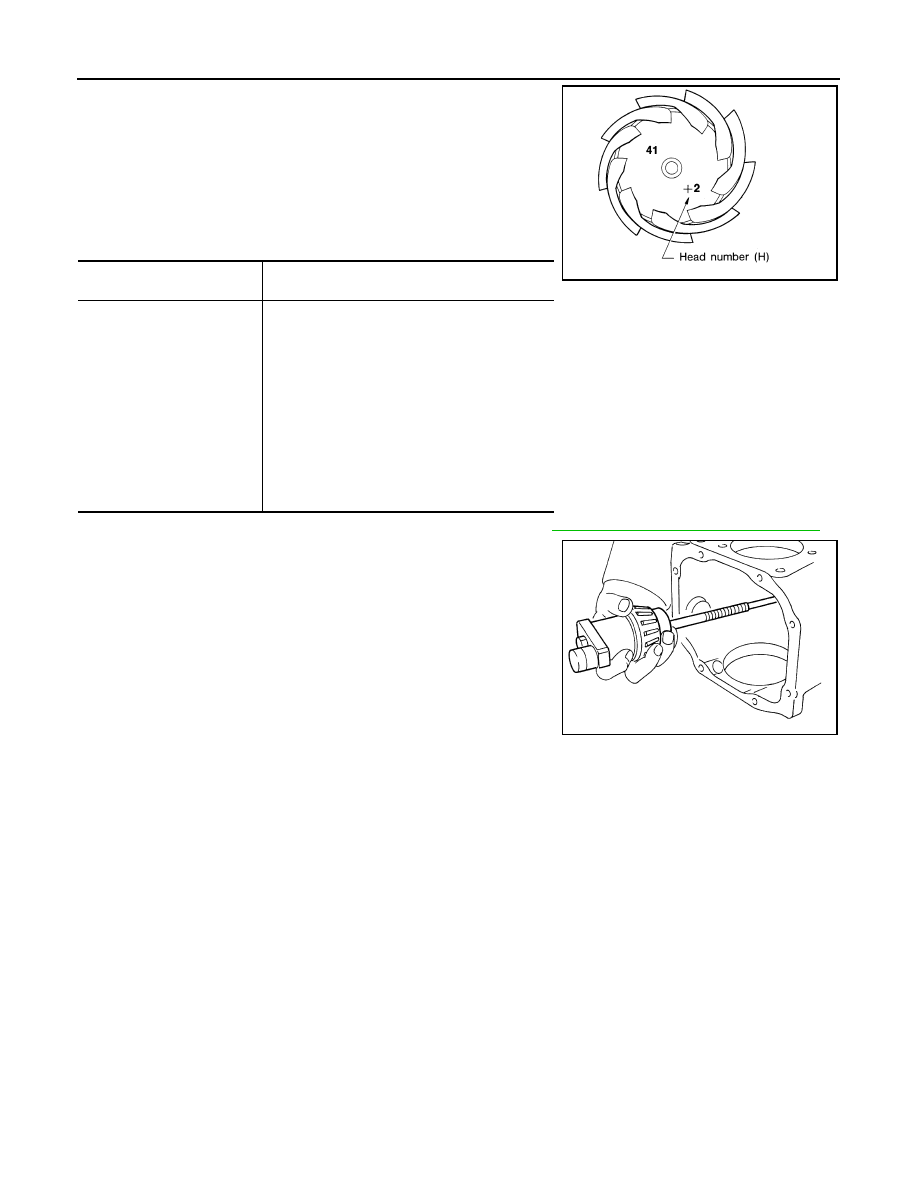

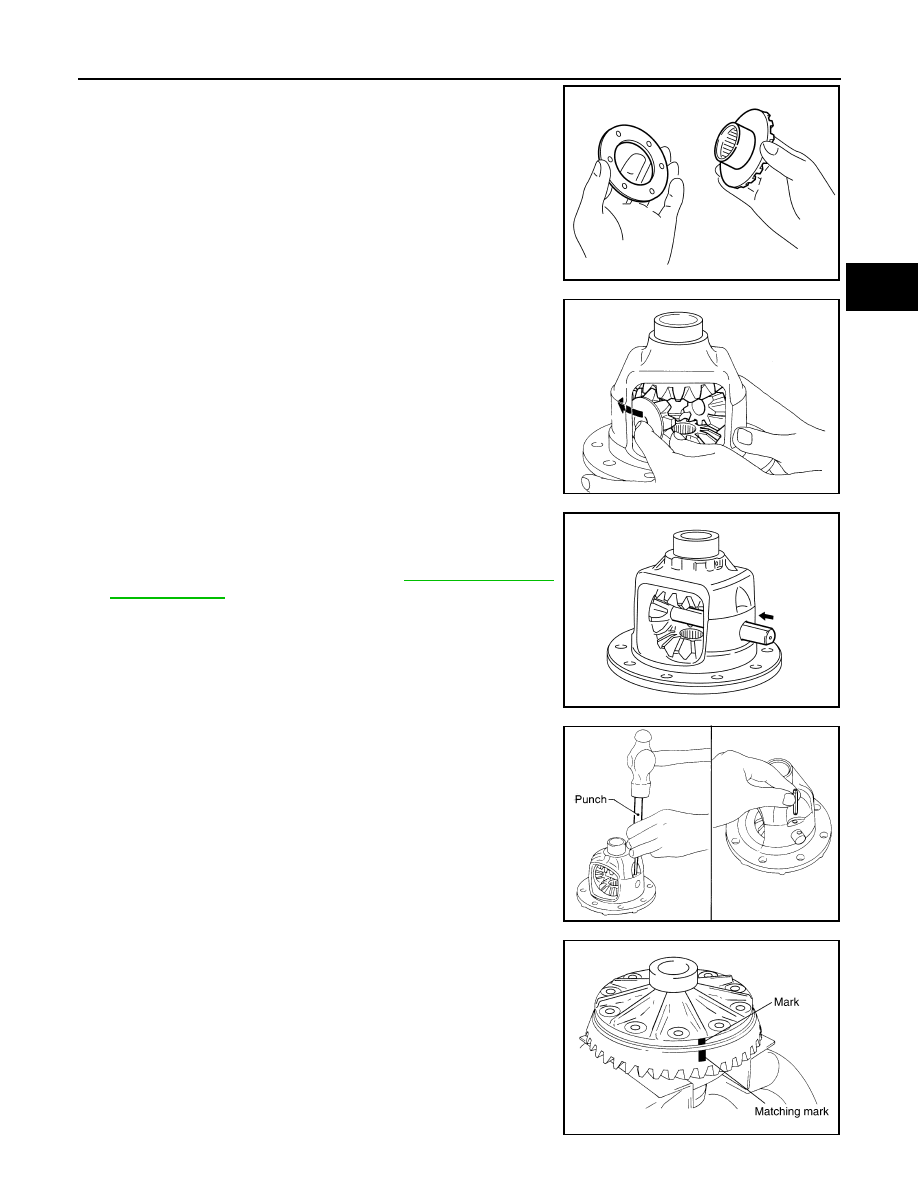

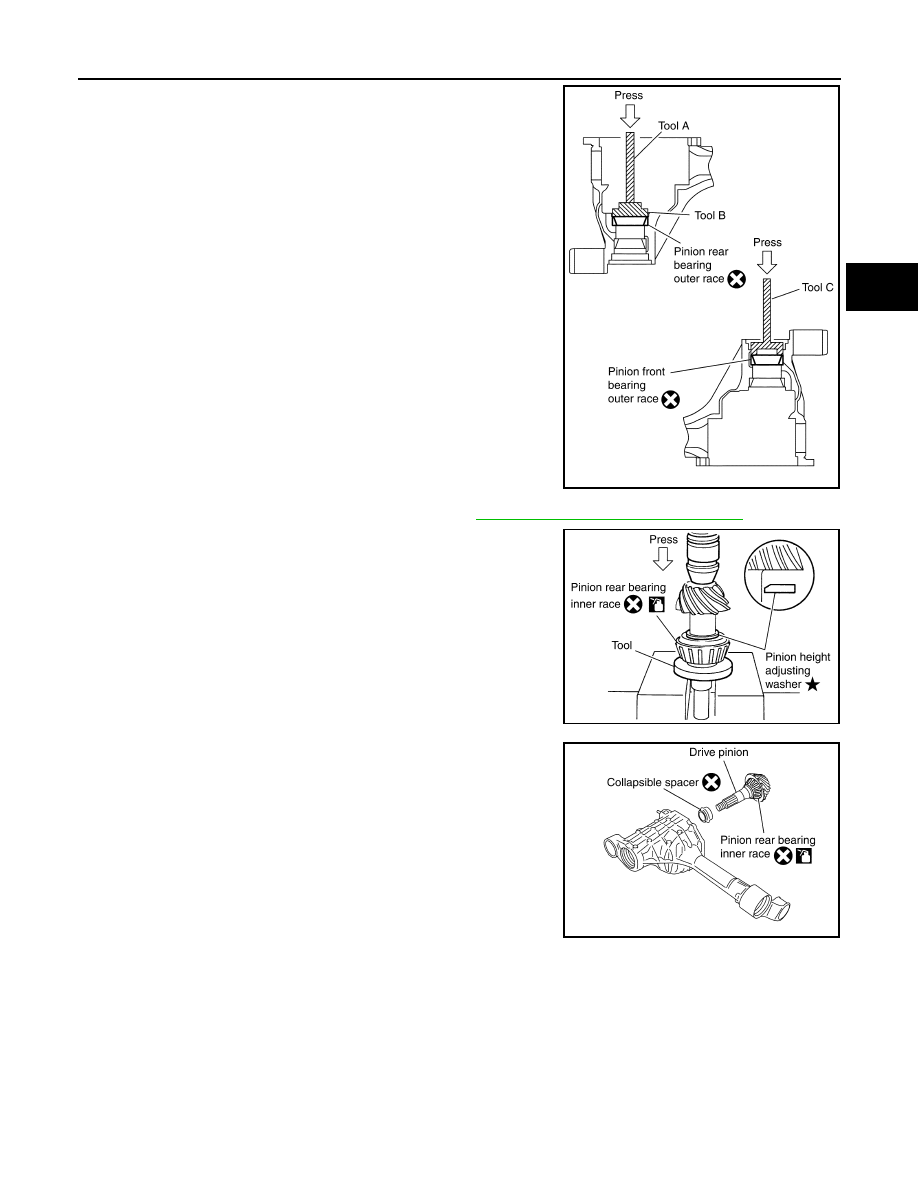

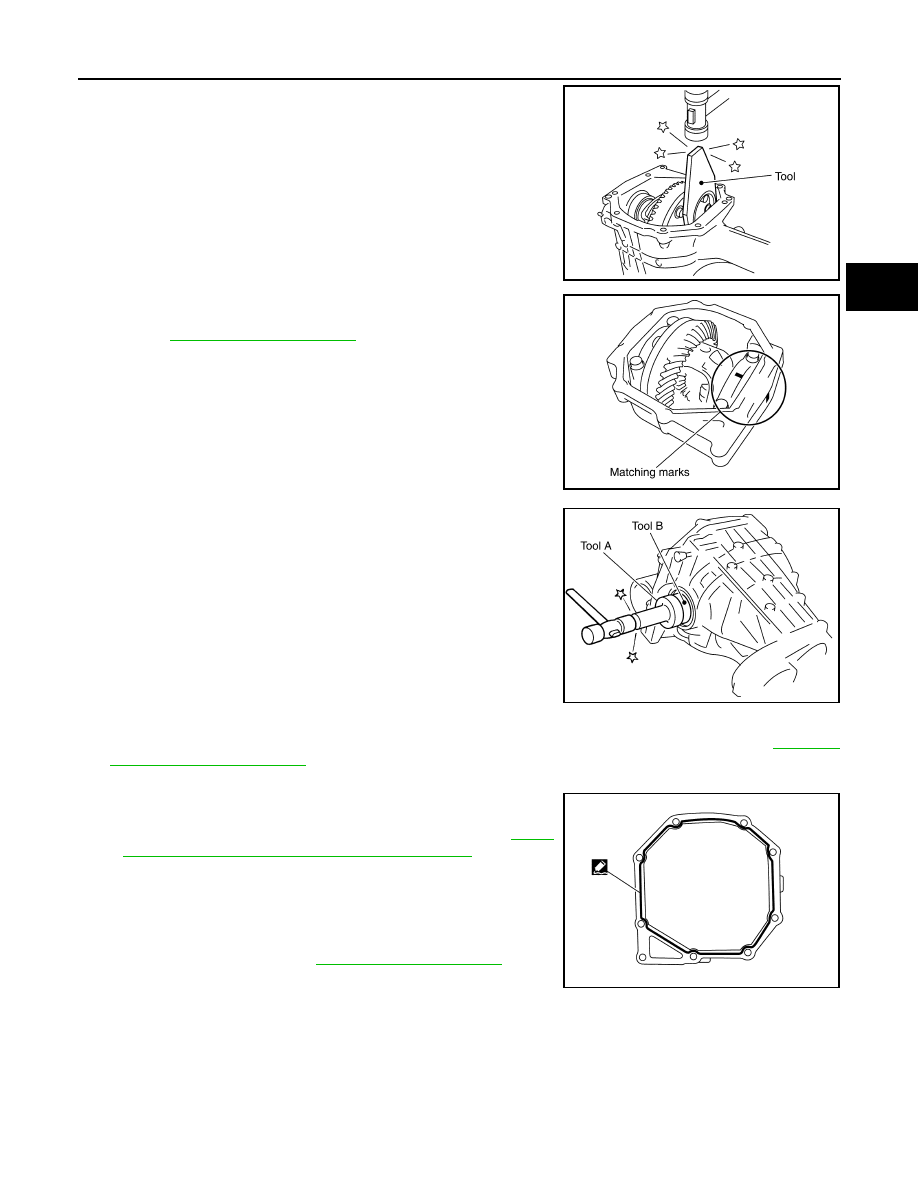

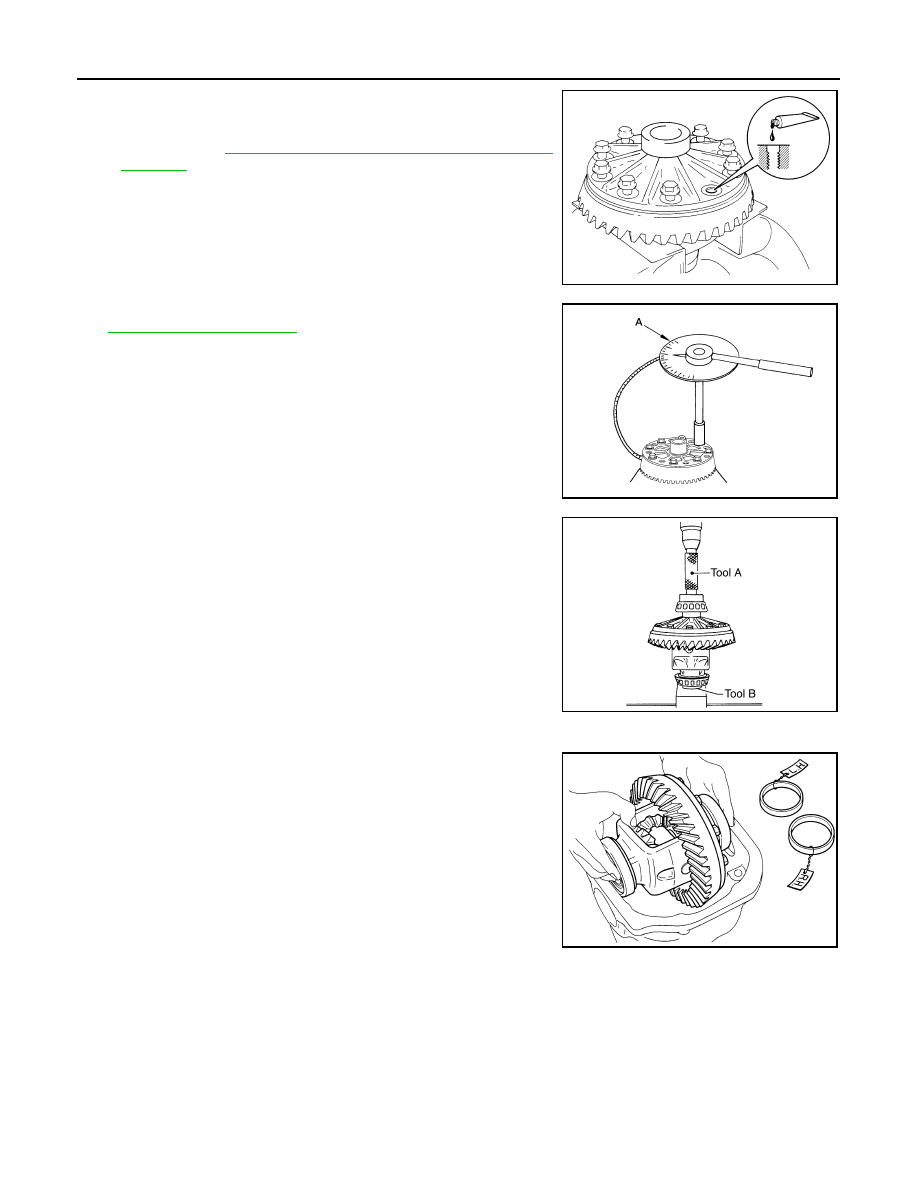

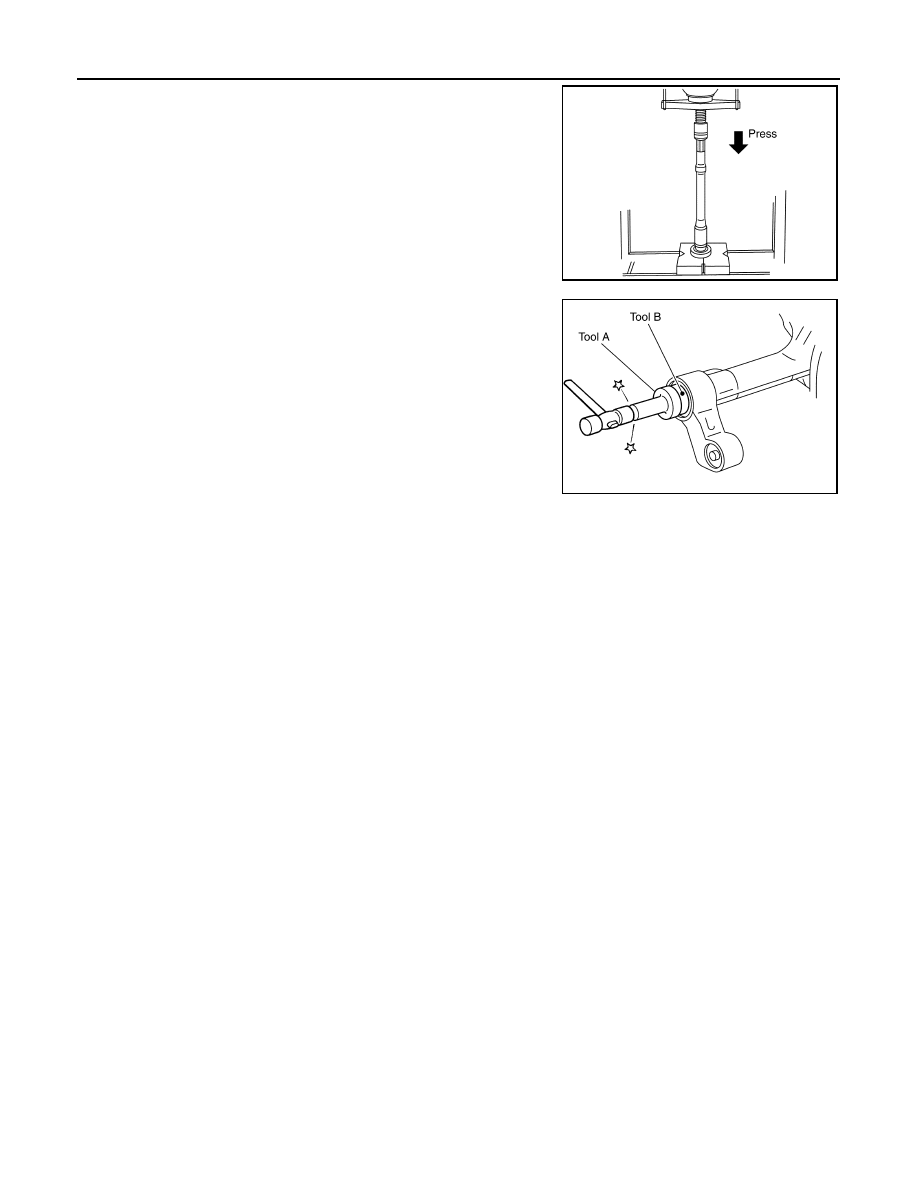

DLN-370 < UNIT DISASSEMBLY AND ASSEMBLY > [FRONT FINAL DRIVE: R180A] FRONT FINAL DRIVE 11. Correct the drive pinion height adjusting washer size by referring to the drive pinion “head number”. There are two numbers painted on the drive pinion. The first one refers to the drive pinion and drive gear as a matched set. This number should be the same as the number on the drive gear. The second number is the drive pinion “head number”. It refers to the ideal drive pinion height from stan- dard for quietest operation. Use the following chart to determine the correct drive pinion height adjusting washer. 12. Select the correct drive pinion height adjusting washer. Refer to DLN-377, "Inspection and Adjustment" 13. Remove the Tool from the gear carrier and disassemble to retrieve the drive pinion bearings. ASSEMBLY Drive Pinion Assembly Head number Add or remove from the standard drive pinion height adjusting washer thickness measurement - 6 0 +1 Add 0.06 mm (0.0024 in) Use the selected washer thickness Subtract 0.01 mm (0.0004 in) Tool number : — (J-34309) SPD542 SPD205A 2011 Pathfinder |
