B1017 – B1022 OCCUPANT CLASSIFICATION SYSTEM

SRC-63

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

3.

WIRING HARNESS

Is there any visible damage to the harness?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 4

4.

DTC

Does CONSULT-III indicate B1022?

YES or NO

YES

>> GO TO 6

NO

>> GO TO 5

5.

REPLACE RH FRONT SEAT BELT ASSEMBLY

Replace the RH front seat belt assembly.

>> GO TO 6

6.

REPLACE RH FRONT SEAT CUSHION ASSEMBLY

Replace the RH front seat cushion assembly.  Refer to

SE-30, "Removal and Installation"

.

>> GO TO 7

7.

AIR BAG DIAGNOSIS SENSOR UNIT

Replace the air bag diagnosis sensor unit.  Refer to

SR-16, "Removal and Installation"

.

>> END.

2009 Pathfinder

SRC-64

< COMPONENT DIAGNOSIS >

B1209 – B1211 COLLISION DETECTION

B1209 – B1211 COLLISION DETECTION

Description

INFOID:0000000003937635

DTC B1209 - B1211 COLLISION DETECTION

The air bag diagnosis sensor unit will set this DTC if it has detected a collision or rollover which has resulted in
a deployment of one or more air bags or pre-tensioners.  If this DTC is detected after a SRS repair, the air bag
diagnosis sensor unit has not yet been replaced.  This DTC can not be erased.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000003937636

DTC DETECTION LOGIC

With CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT-lll.

Is the DTC detected?

YES

>> Refer to

SRC-64, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000003937637

Refer to

SR-18, "For Frontal Collision"

 or

SR-19, "For Side and Rollover Collision"

.

CONSULT-III name

DTC

DTC detecting condition

Repair order

FRONTAL COLLISION

DETECTION

B1209

Driver and/or front passenger air bag mod-
ules are deployed.

Refer to

SR-18, "For Frontal Collision"

.

SIDE COLLISION DE-

TECTION

B1210

Side and/or curtain air bag modules are
deployed.

Refer to

SR-19, "For Side and Rollover Collision"

.

ROLLOVER DETEC-

TION

B1211

Curtain air bag module and seat belt pre-
tensioner are deployed.

2009 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-65

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ECU DIAGNOSIS

DIAGNOSIS SENSOR UNIT

Wiring Diagram

INFOID:0000000003937638

ABHWA0016GB

2009 Pathfinder

SRC-66

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

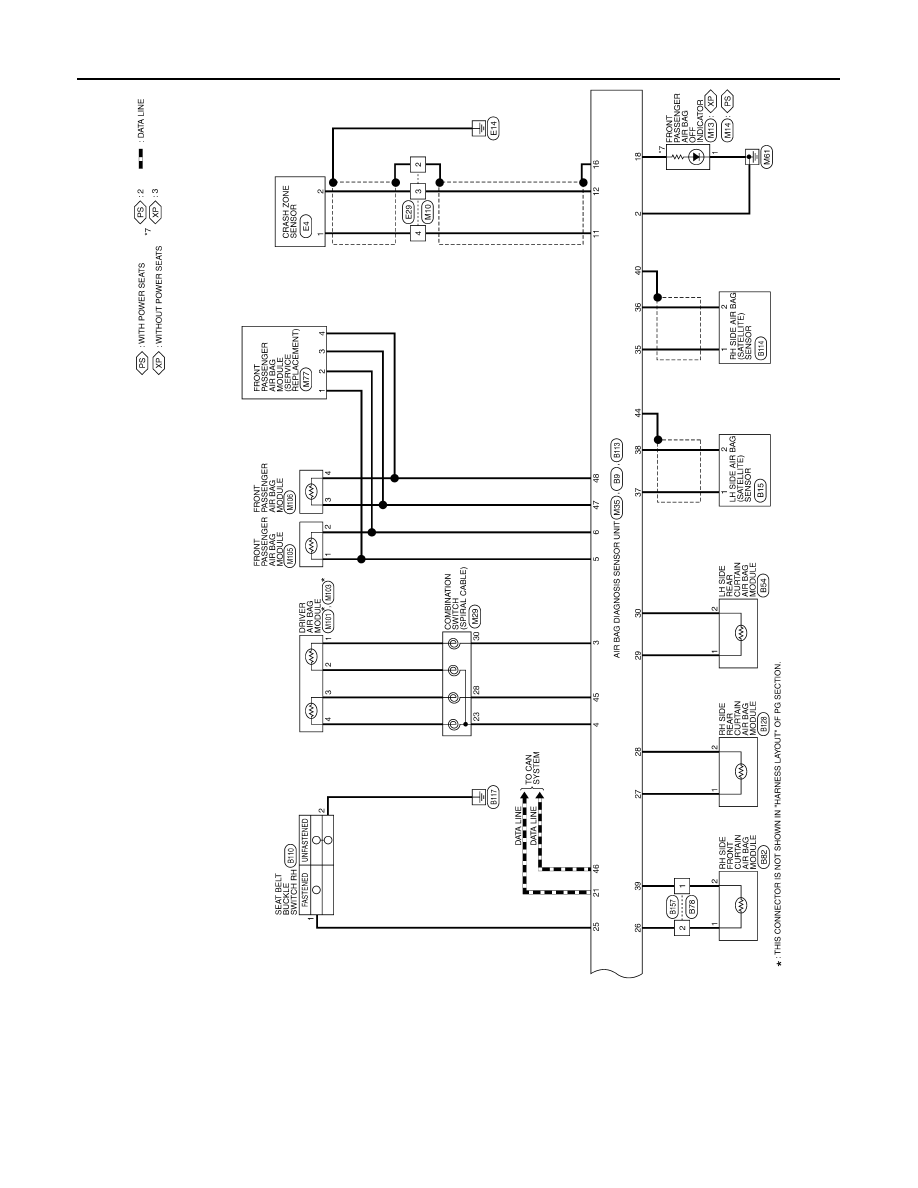

ABHWA0017GB

2009 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-67

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

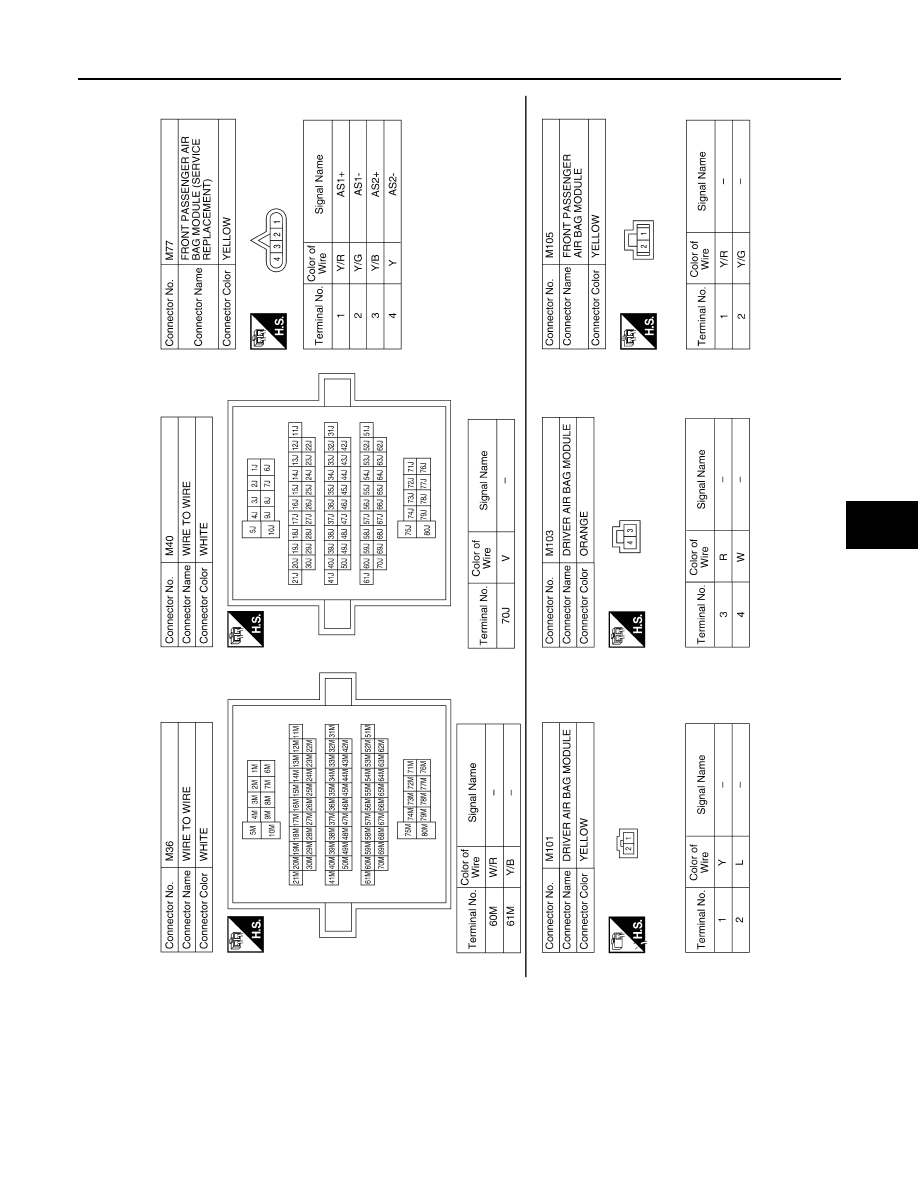

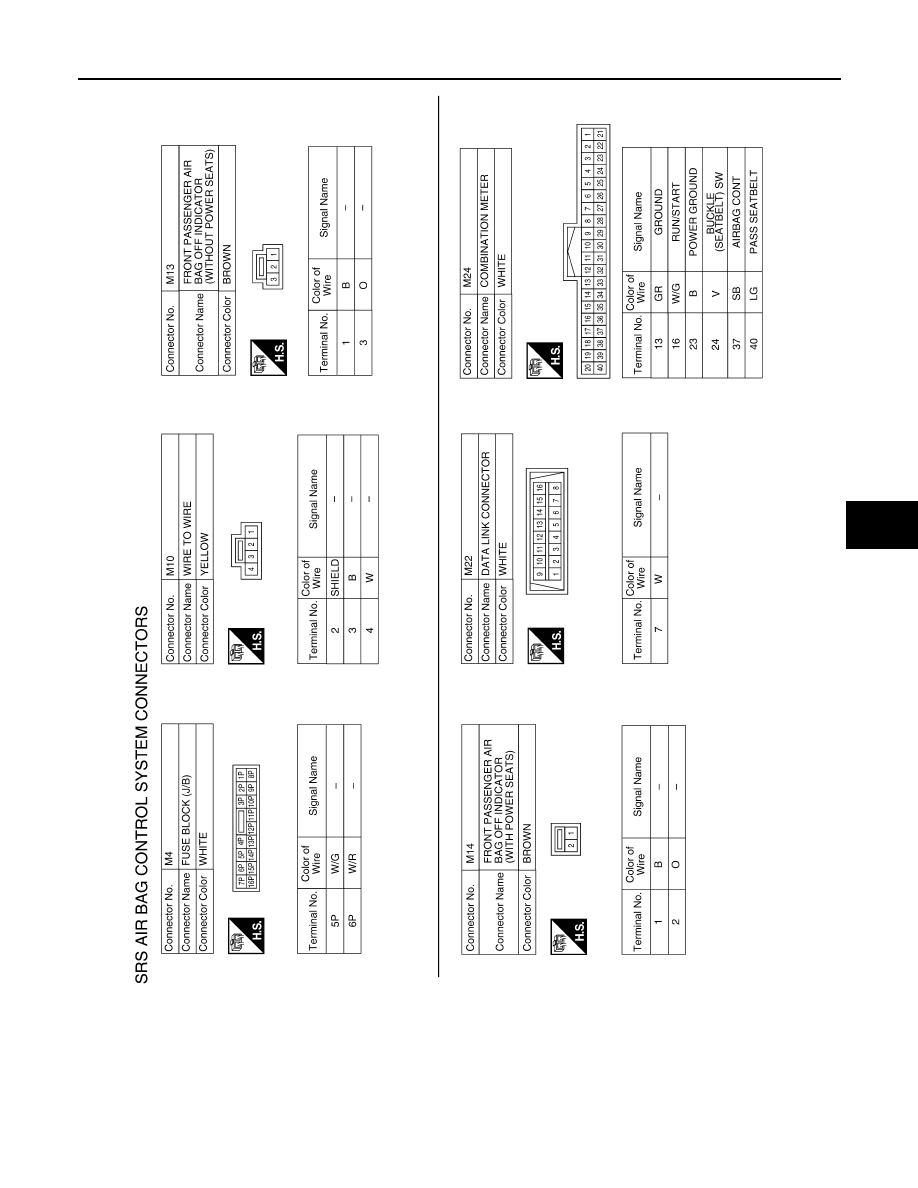

ABHIA0058GB

2009 Pathfinder

SRC-68

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

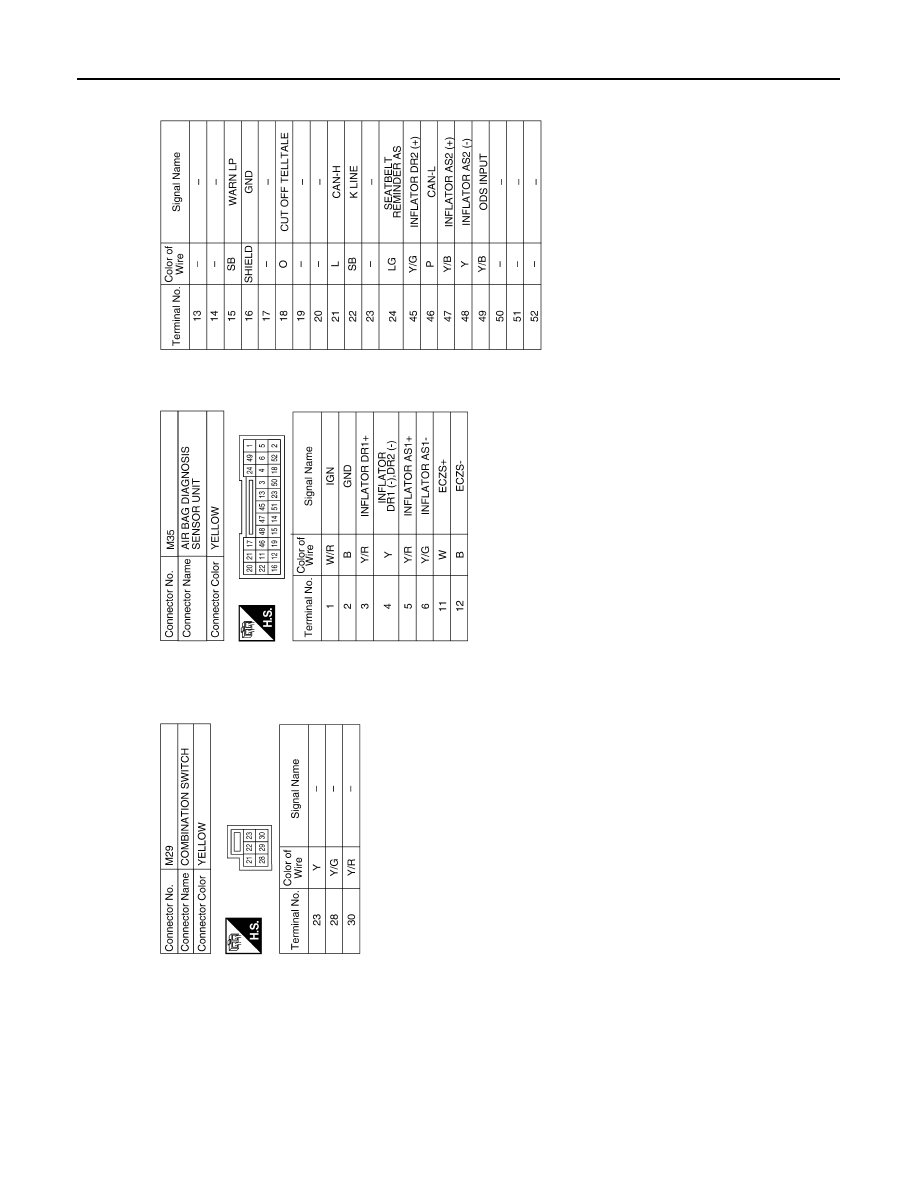

ABHIA0059GB

2009 Pathfinder

DIAGNOSIS SENSOR UNIT

SRC-69

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

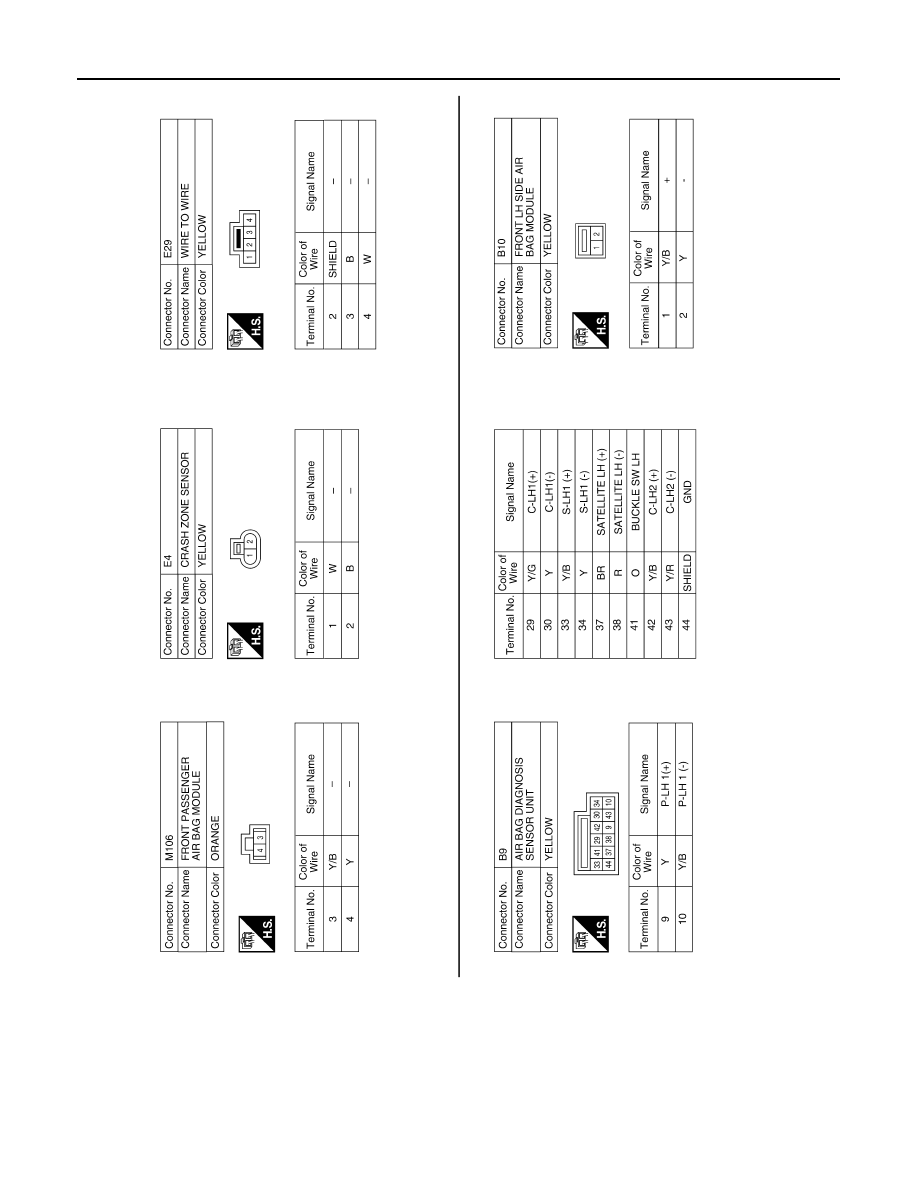

ABHIA0060GB

2009 Pathfinder

SRC-70

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

ABHIA0061GB
