SEC-190

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

VEHICLE SECURITY SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000003938557

*: Check the system is in the armed phase.

Procedure

Diagnostic procedure

Refer to page

Symptom

1

Vehicle security sys-
tem cannot be set by
····

Door switch

Check door switch (LF, RF, LR, RR, back)

DLK-226

Glass ajar switch

Check glass hatch ajar switch

DLK-229

Key cylinder switch

Check key cylinder switch

DLK-237

—

Check Intermittent Incident

GI-49

Security indicator does not turn ON.

Check vehicle security indicator

SEC-150

Check Intermittent Incident

GI-49

2

* Vehicle security
system does not
sound alarm when ····

Any door is opened.

Check door switch (LF, RF, LR, RR, back)

DLK-226

Glass ajar switch

Check glass hatch ajar switch

DLK-229

—

Check Intermittent Incident

GI-49

3

Vehicle security
alarm does not acti-
vate.

Horn alarm

Check horn switch

HRN-3

Check Intermittent Incident

GI-49

4

Vehicle security sys-
tem cannot be can-
celed by ····

Key cylinder switch

Check key cylinder switch

SEC-145

Check Intermittent Incident

GI-49

2009 Pathfinder

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

SEC-191

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

Symptom Table

INFOID:0000000003938558

NOTE:
• Before performing the diagnosis in the following table, check “

SEC-121, "Work Flow"

”.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

• If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

• Mechanical key is not inserted into key cylinder.
• Ignition knob switch is not depressed.

Symptom

Diagnosis/service procedure

Reference page

Security indicator does not turn ON or flash.

1. Check vehicle security indicator

SEC-150

2. Check Intermittent Incident

GI-49

2009 Pathfinder

SEC-192

< ON-VEHICLE MAINTENANCE >

[WITHOUT INTELLIGENT KEY SYSTEM]

PRE-INSPECTION FOR DIAGNOSTIC

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000003938559

1.

INSPECTION START

Turn ignition switch “OFF”.
NOTE:
Before starting operation check, open front windows.

>> GO TO 2

2.

CHECK SECURITY INDICATOR LAMP

1.

Lock doors using keyfob or mechanical key.

2.

Check that security indicator lamp illuminates for 30 seconds.

Does the security indicator lamp illuminate?

YES

>> GO TO 3

NO

>> Perform diagnosis and repair. Refer to

SEC-128, "System Description"

.

3.

CHECK ALARM FUNCTION

1.

After 30 seconds, security indicator lamp will start to blink.

2.

Open any door before unlocking with keyfob or mechanical key, or open back door or glass hatch without
keyfob.

Does the alarm function properly?

YES

>> GO TO 4

NO

>>

Check the following.

• The vehicle security system does not phase in alarm mode. Refer to

SEC-190, "Symptom

Table"

.

• Alarm (horn and headlamps) does not operate. Refer to

SEC-190, "Symptom Table"

.

4.

CHECK ALARM CANCEL OPERATION

Unlock any door using keyfob or mechanical key.

Alarm (horn and headlamps) should stop.

YES

>> Inspection End.

NO

>> Check door lock function. Refer to

DLK-213, "DOOR LOCK AND UNLOCK SWITCH : System

Description"

.

2009 Pathfinder

PRECAUTIONS

SEC-193

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000004448903

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004448904

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

2009 Pathfinder

SEC-194

< ON-VEHICLE REPAIR >

[WITHOUT INTELLIGENT KEY SYSTEM]

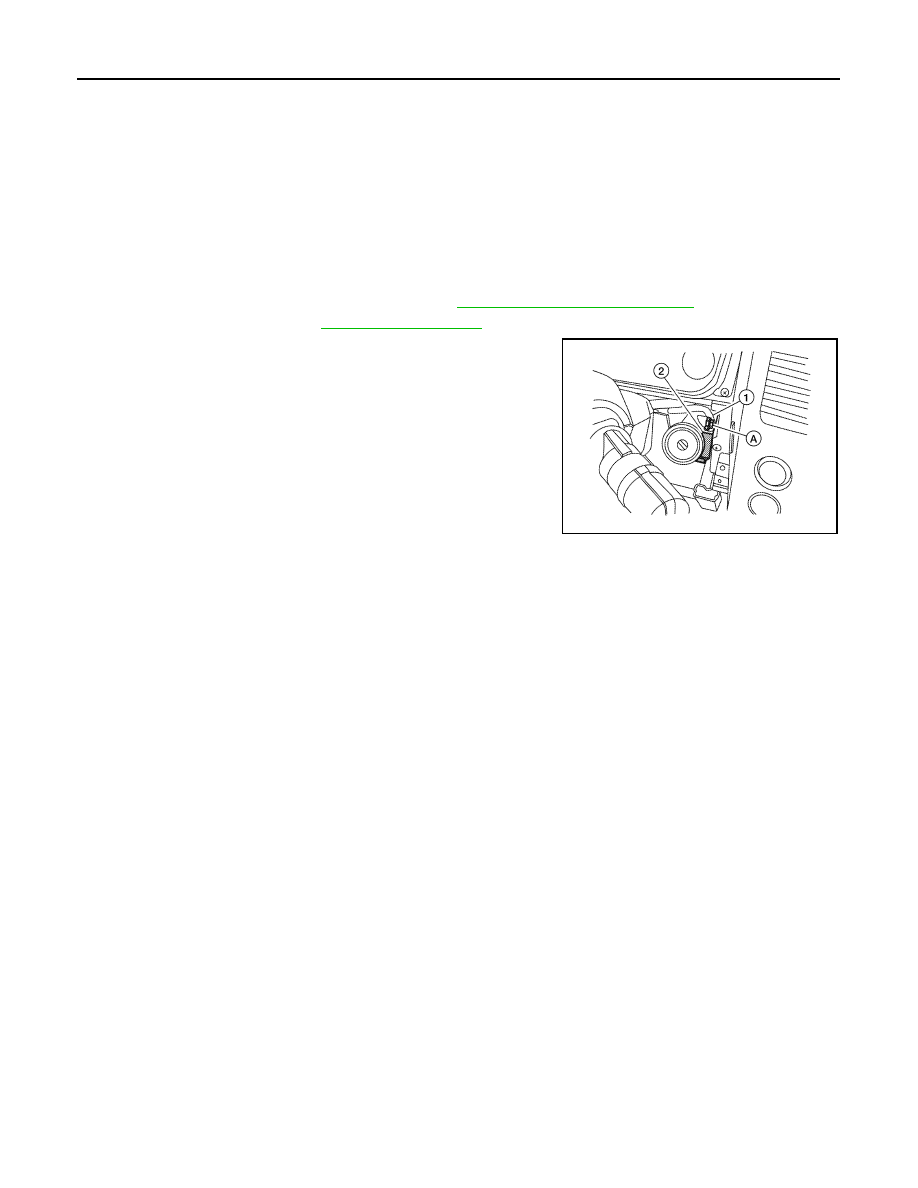

NATS ANTENNA AMP.

ON-VEHICLE REPAIR

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000003938561

NOTE:
• If NATS antenna amp. is not installed correctly, NVIS (NATS) system will not operate properly and "SELF-

DIAG RESULTS" on CONSULT-III screen will show "LOCK MODE" or "CHAIN OF IMMU-KEY".

• Initilization is not necessary when only the NATS antenna amp. is replaced with a new one.

REMOVAL

1.

Disconnect the battery negative terminal. Refer to

PG-76, "Removal and Installation"

.

2.

Remove cluster lid A. Refer to

IP-10, "Exploded View"

.

3.

Remove the bolt (A), disconnect the electrical connector (1) and
remove the NATS antenna amp (2).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA1481ZZ

2009 Pathfinder

REMOTE KEYLESS ENTRY RECEIVER

SEC-195

< ON-VEHICLE REPAIR >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

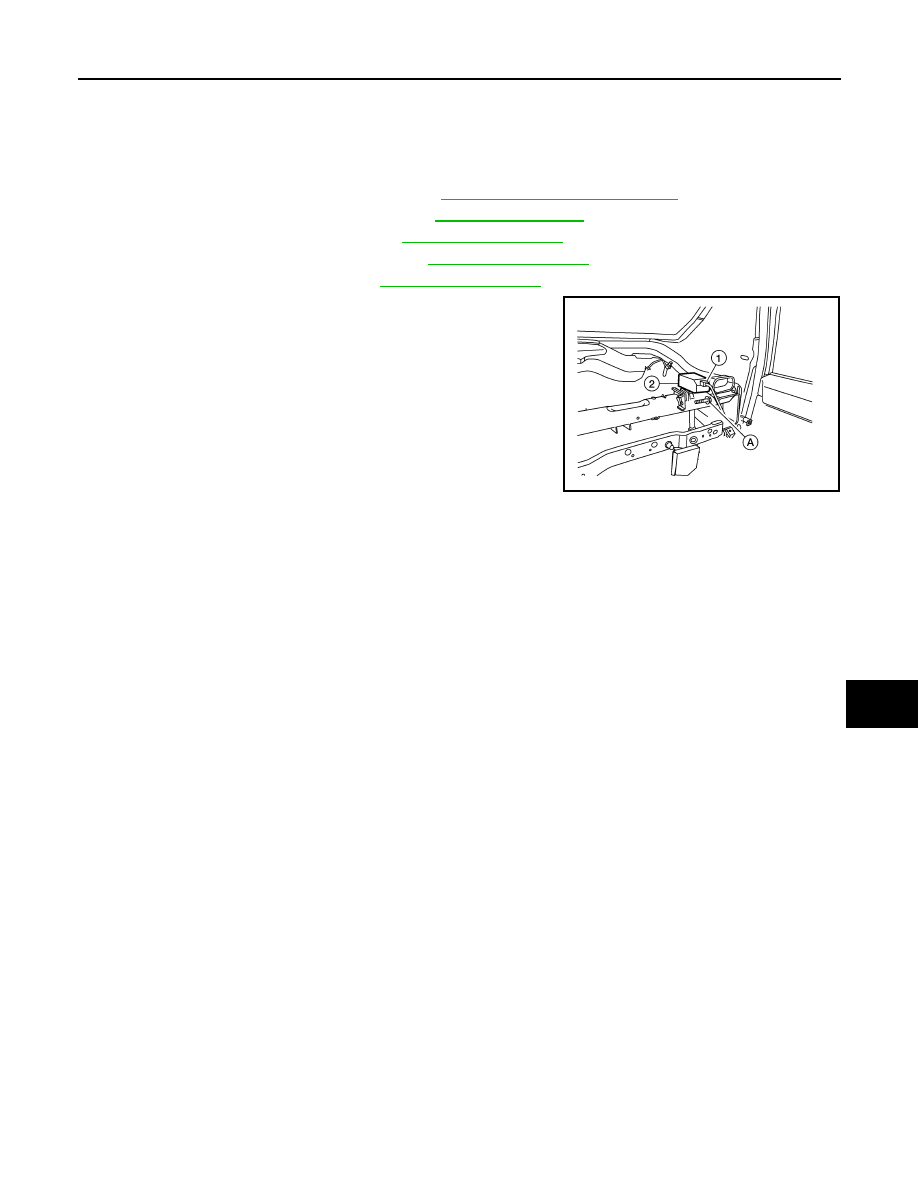

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation

INFOID:0000000004422009

1.

Disconnect the battery negative cable. Refer to

PG-76, "Removal and Installation"

.

2.

Remove the front pillar upper finisher. Refer to

INT-16, "Component"

.

3.

Remove the side ventilator grille. Refer to

IP-10, "Exploded View"

.

4.

Remove the instrument side finisher. Refer to

IP-10, "Exploded View"

.

5.

Remove the upper glove box. Refer to

IP-10, "Exploded View"

.

6.

Remove the bolt (A), disconnect the harness connector (1) and
remove the remote keyless entry receiver (2).

Installation is in the reverse order of removal.

AWKIA1480ZZ

2009 Pathfinder

SR-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SR

A

B

SR

N

O

P

CONTENTS

SRS AIRBAG

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for SRS "AIR BAG" and "SEAT BELT
PRE-TENSIONER" Service  ......................................

2

Occupant Classification System Precaution  .............

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

ON-VEHICLE REPAIR ..................................

5

DRIVER AIR BAG MODULE ...............................

5

Removal and Installation ...........................................

5

SPIRAL CABLE  ..................................................

7

Removal and Installation ...........................................

7

FRONT PASSENGER AIR BAG MODULE  .......

9

Removal and Installation  ..........................................

9

SIDE CURTAIN AIR BAG MODULE  ................

12

Removal and Installation  .........................................

12

CRASH ZONE SENSOR ...................................

13

Removal and Installation  .........................................

13

SIDE AIR BAG (SATELLITE) SENSOR  ...........

14

Removal and Installation  .........................................

14

FRONT SEAT BELT PRE-TENSIONER  ...........

15

Removal and Installation  .........................................

15

DIAGNOSIS SENSOR UNIT  .............................

16

Removal and Installation  .........................................

16

OCCUPANT CLASSIFICATION SYSTEM
CONTROL UNIT ................................................

17

Removal and Installation  .........................................

17

COLLISION DIAGNOSIS  ..................................

18

For Frontal Collision  ................................................

18

For Side and Rollover Collision  ...............................

19

2009 Pathfinder

SR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003937536

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for SRS "AIR BAG" and "SEAT BELT PRE-TENSIONER" Service

INFOID:0000000003937537

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-

utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have
passed.

• The air bag diagnosis sensor unit must always be installed with the arrow mark “

⇐

” pointing toward the front

of the vehicle for proper operation. Also check the air bag diagnosis sensor unit for cracks, deformities or
rust before installation and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to

turn steering wheel or column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.

Occupant Classification System Precaution

INFOID:0000000003937538

Replace control unit and passenger front seat cushion as an assembly.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004427399

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.

2009 Pathfinder
