SEC-182

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

43

G

Wiper auto stop signal

Input

ON or

START

Wiper switch

OFF, LO, INT

Battery voltage

44

R

Daytime light relay
control

Input

ON

Daytime light system active

0V

Daytime light system inactive

Battery voltage

45

LG

Horn relay control

Input

ON

When door locks are operated
using keyfob or Intelligent Key
(if equipped) (OFF

→

 ON)*

Battery voltage

→

 0V

46

V

Fuel pump relay con-
trol

Input

—

Ignition switch ON or START

0V

Ignition switch OFF or ACC

Battery voltage

47

O

Throttle control motor
relay control

Input

—

Ignition switch ON or START

0V

Ignition switch OFF or ACC

Battery voltage

48

R

Starter relay (inhibit
switch)

Input

ON or

START

Selector lever in "P" or "N"

0V

Selector lever any other posi-
tion

Battery voltage

49

GR

Front RH parking and
front side marker lamp

Output

OFF

Lighting
switch 1st po-
sition

OFF

0V

ON

Battery voltage

50

W

Front fog lamp (LH)

Output

ON or

START

Lighting
switch must
be in the 2nd
position
(LOW beam
is ON) and
the front fog
lamp switch

OFF

0V

ON

Battery voltage

51

V

Front fog lamp (RH)

Output

ON or

START

Lighting
switch must
be in the 2nd
position
(LOW beam
is ON) and
the front fog
lamp switch

OFF

0V

ON

Battery voltage

52

P

LH low beam head-
lamp

Output

—

Lighting switch in 2nd position

Battery voltage

54

R

RH low beam head-
lamp

Output

—

Lighting switch in 2nd position

Battery voltage

55

G

LH high beam head-
lamp

Output

—

Lighting switch in 2nd position
and placed in HIGH or PASS
position

Battery voltage

56

L

RH high beam head-
lamp

Output

—

Lighting switch in 2nd position
and placed in HIGH or PASS
position

Battery voltage

57

GR

Parking, license, and
tail lamp

Output

ON

Lighting
switch 1st po-
sition

OFF

0V

ON

Battery voltage

59

B

Ground

Input

—

—

0V

60

GR

Rear window defog-
ger relay

Output

ON or

START

Rear defogger switch ON

Battery voltage

Rear defogger switch OFF

0V

61

R/B

Fuse 32

Output

OFF

—

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value

(Approx.)

Igni-

tion

switch

Operation or condition

2009 Pathfinder

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

SEC-183

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

*: When horn reminder is ON

Wiring Diagram

INFOID:0000000004432115

ABMWA0004GB

2009 Pathfinder

SEC-184

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

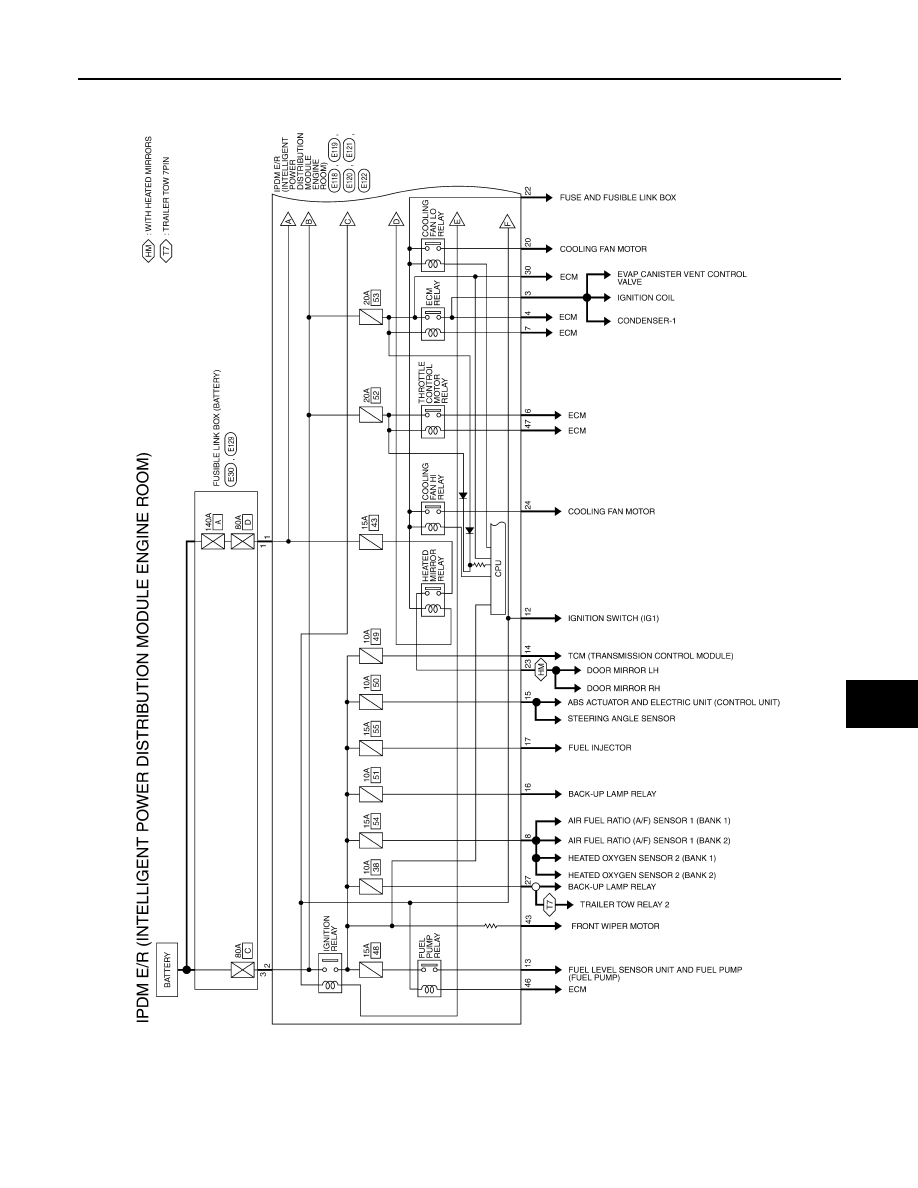

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

ABMWA0005GB

2009 Pathfinder

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

SEC-185

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

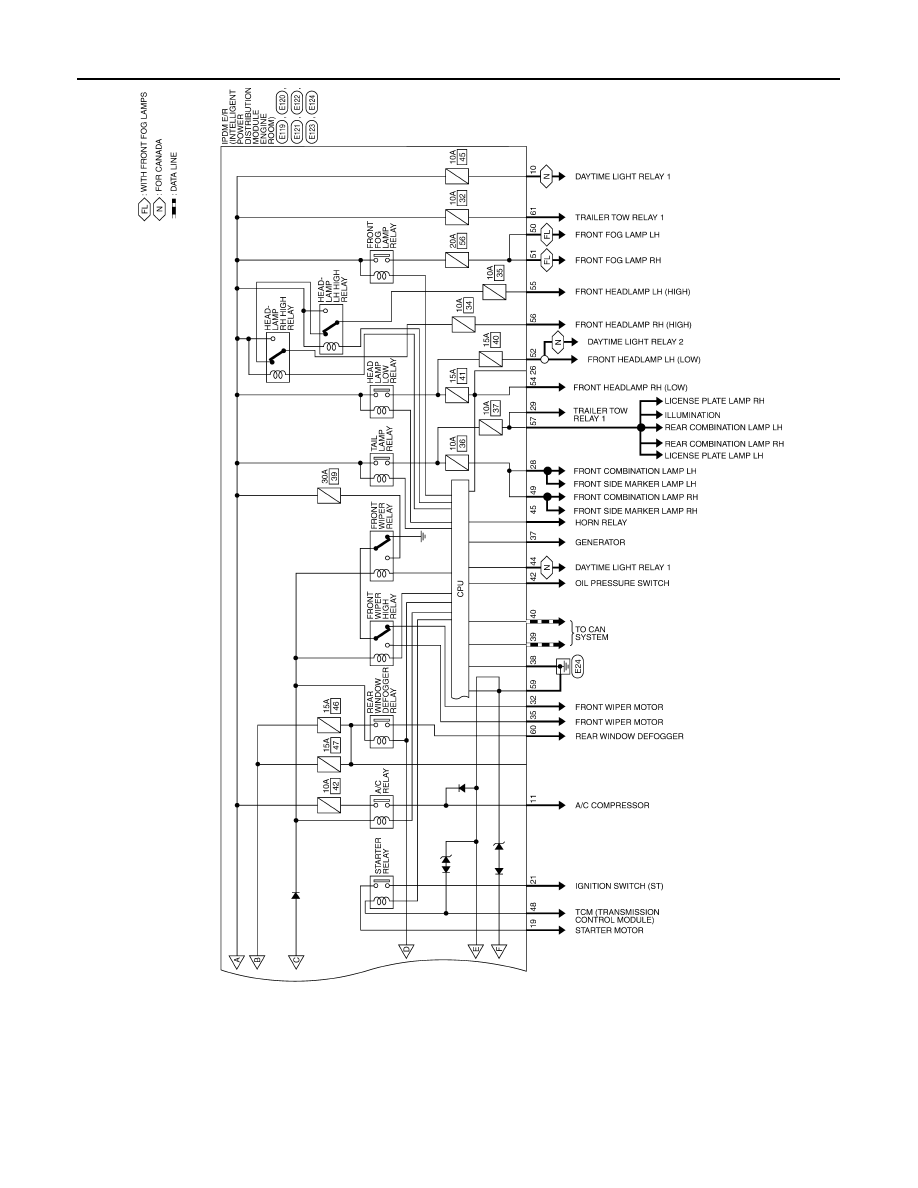

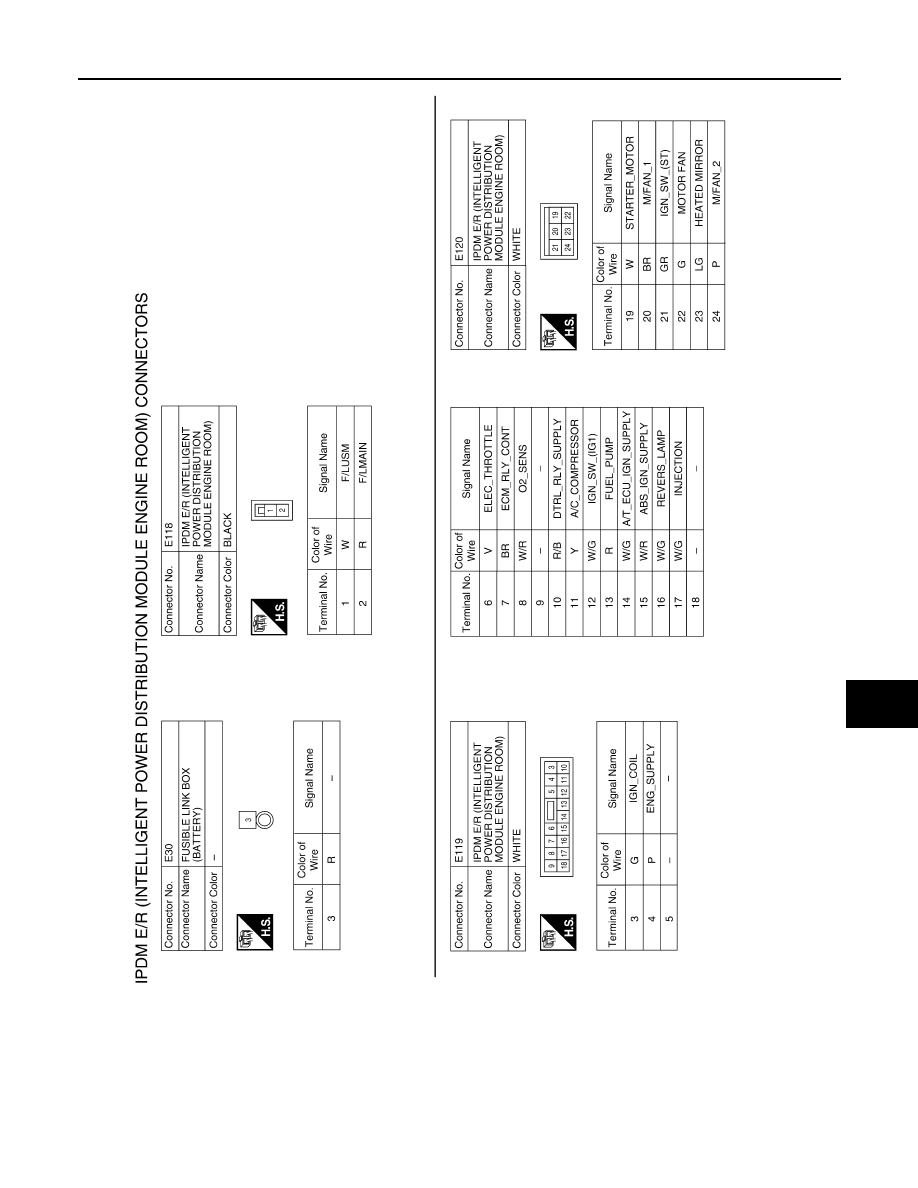

ABMIA0008GB

2009 Pathfinder

SEC-186

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

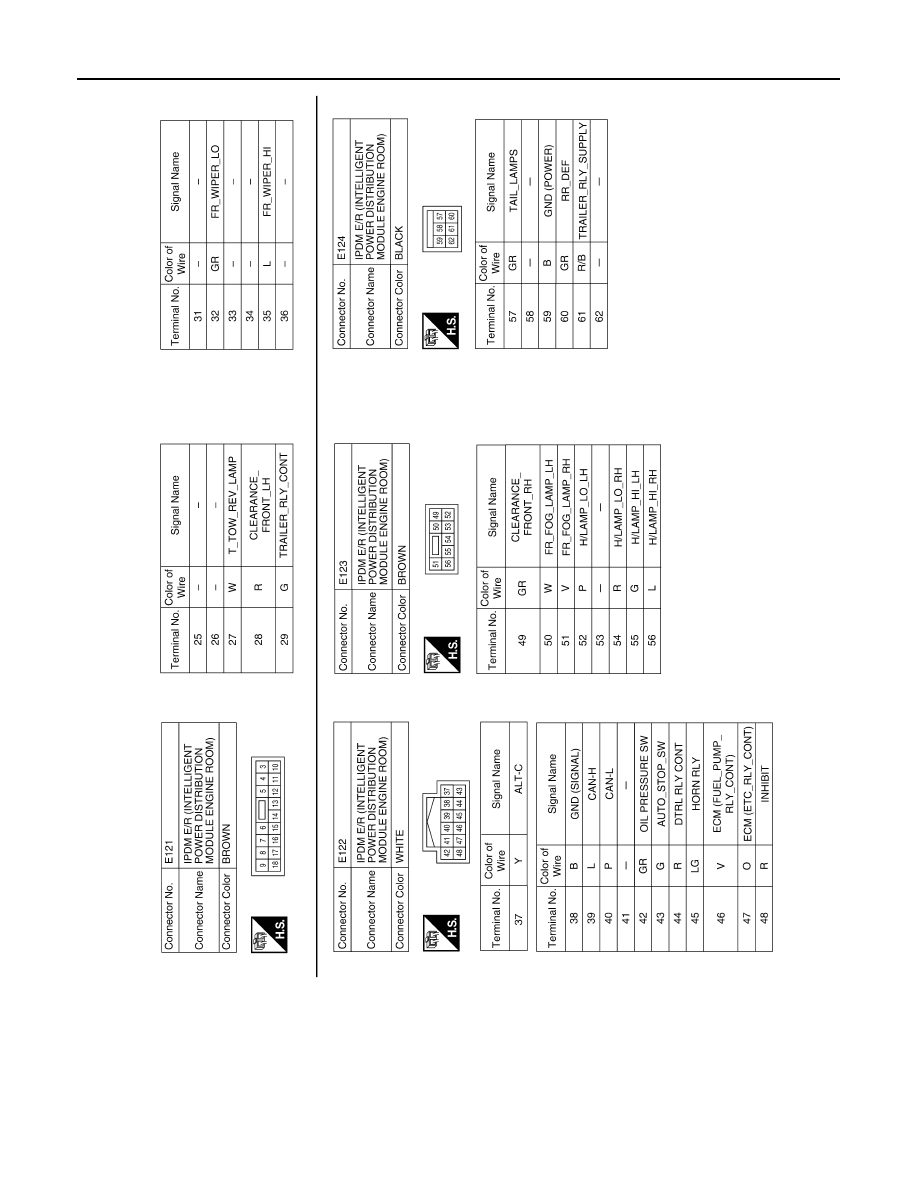

ABMIA0262GB

2009 Pathfinder

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

SEC-187

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Fail Safe

INFOID:0000000004432116

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

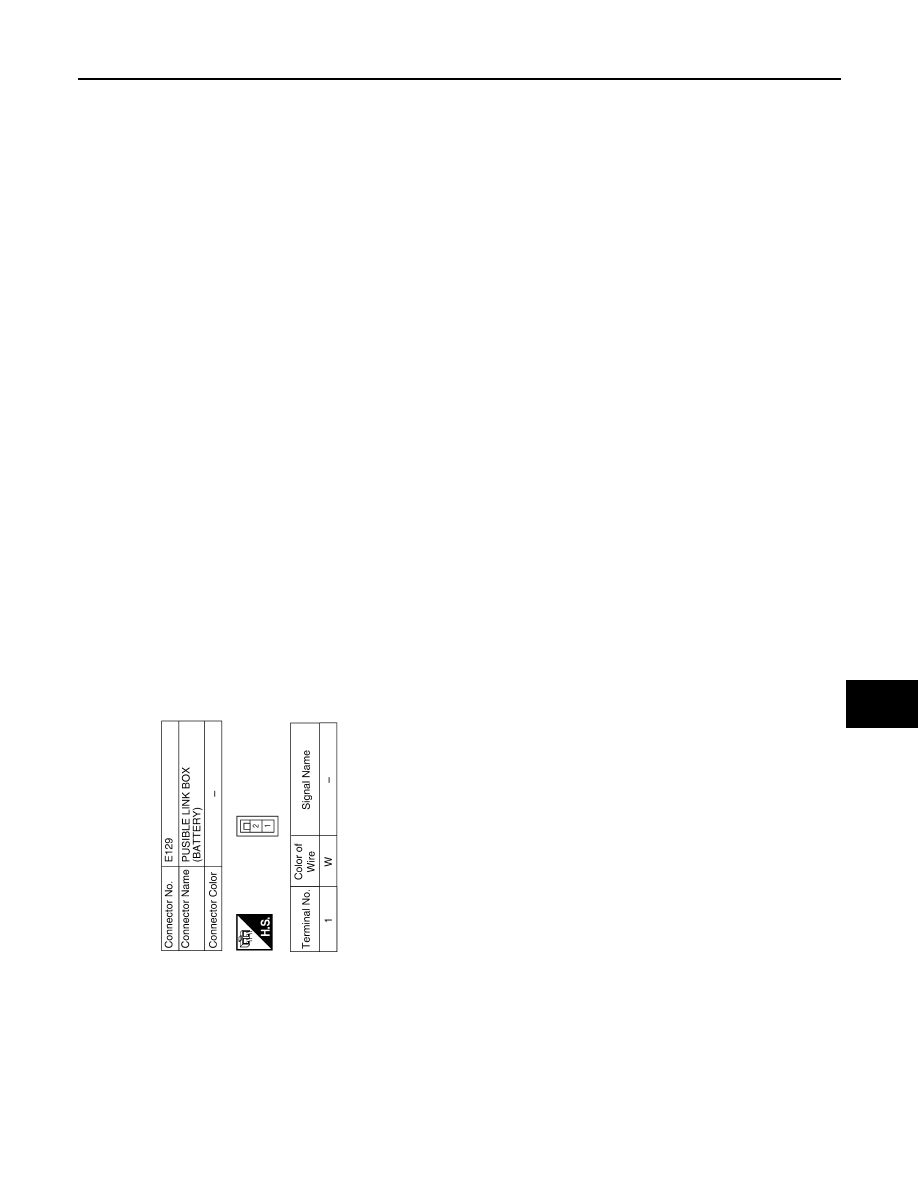

ABMIA0338GB

2009 Pathfinder

SEC-188

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

If No CAN Communication Is Available With BCM

IGNITION RELAY MALFUNCTION DETECTION FUNCTION

• IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.
• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation

coil circuit.

• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to

alert the user to the ignition relay malfunction when the ignition switch is turned OFF.

NOTE:

The tail lamp turns OFF when the ignition switch is turned ON.

FRONT WIPER CONTROL

IPDM E/R detects front wiper stop position by a front wiper auto stop signal.
When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper
after repeating a front wiper 10 second activation and 20 second stop five times.

NOTE:
This operation status can be confirmed on the IPDM E/R “DATA MONITOR” that displays “Block” for the item
“WIP PROT” while the wiper is stopped.

STARTER MOTOR PROTECTION FUNCTION

IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains
active for 90 seconds.

Control part

Fail-safe in operation

Cooling fan

• Turns ON the cooling fan relay when the ignition switch is turned ON
• Turns OFF the cooling fan relay when the ignition switch is turned OFF

Control part

Fail-safe in operation

Headlamp

• Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp (LH/RH) high relays OFF

• Parking  lamps
• License plate lamps
• Tail lamps

• Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF

Front wiper

• The status just before activation of fail-safe control is maintained until the ignition

switch is turned OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-

safe control is activated while the front wiper is set in the INT mode and the front wiper
motor is operating.

Rear window defogger

Rear window defogger relay OFF

A/C compressor

A/C relay OFF

Front fog lamps (if equipped)

Front fog lamp relay OFF

Ignition switch

Ignition relay

Tail lamp relay

ON

ON

—

OFF

OFF

—

Ignition switch

Front wiper switch

Auto stop signal

ON

OFF

Front wiper stop position signal cannot be
input 10 seconds.

ON

The signal does not change for 10 seconds.

2009 Pathfinder

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

SEC-189

< ECU DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DTC Index

INFOID:0000000004432117

NOTE:
The details of TIME display are as follows.
• CRNT: The malfunctions that are detected now
• 1 - 39: The number is indicated when it is normal at present and a malfunction was detected in the past. It

increases like 0

→

 1

→

 2 ··· 38

→

 39 after returning to the normal condition whenever IGN OFF

→

 ON. It is

fixed to 39 until the self-diagnosis results are erased if it is over 39. It returns to 0 when a malfunction is
detected again in the process.

CONSULT-III display

Fail-safe

TIME

NOTE

Refer to

No DTC is detected.
further testing
may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

×

CRNT

1 – 39

PCS-17
