Nissan Pathfinder (2009 year). Manual - part 578





SEC-46

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

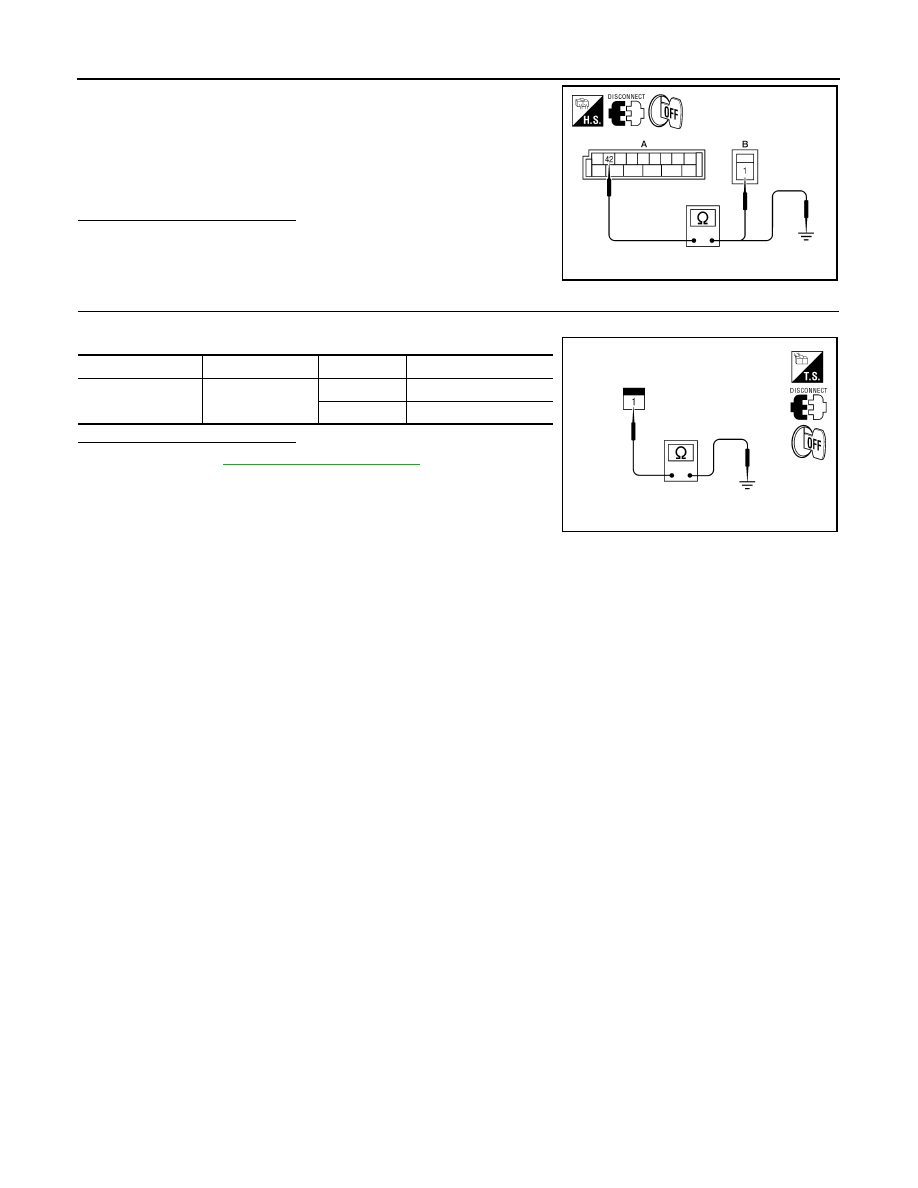

GLASS HATCH AJAR SWITCH

4.

Check continuity between BCM connector (A) M19 terminal 42
and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

CHECK GLASS HATCH AJAR SWITCH

Check continuity between glass hatch ajar switch connector terminal 1 and ground.

Is the inspection result normal?

YES

>> Refer to

GI-49, "Intermittent Incident"

.

NO

>> Replace glass hatch ajar switch.

42 - 1

:Continuity should exist

42 - Ground

:Continuity should not exist

ALKIA1709ZZ

Terminals

Condition

Continuity

Glass hatch ajar

switch

1 – Ground

Open

Yes

Closed

No

ALKIA0668ZZ

2009 Pathfinder

IGNITION KNOB SWITCH

SEC-47

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

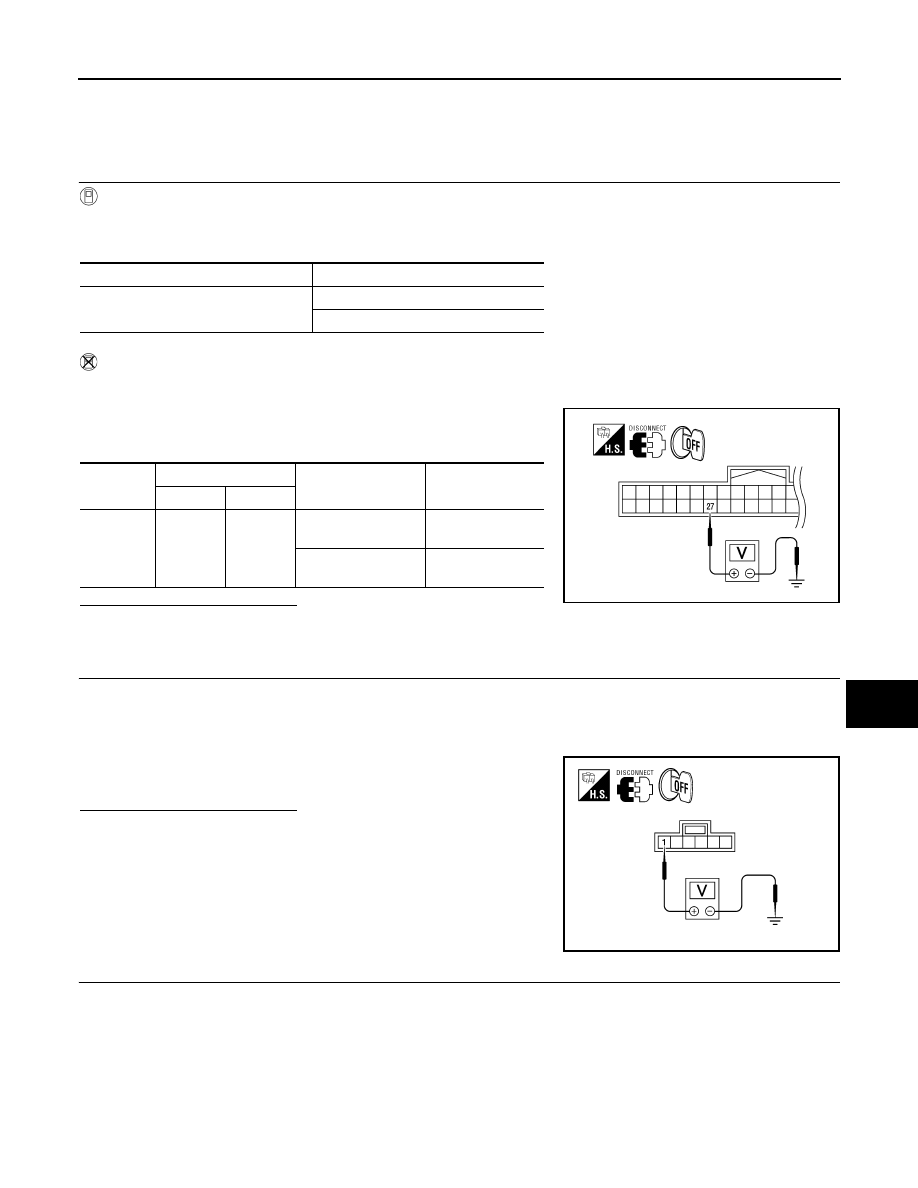

IGNITION KNOB SWITCH

Ignition Knob Switch Check

INFOID:0000000003938474

1.

CHECK IGNITION KNOB SWITCH

With CONSULT-III

Display “PUSH SW” on DATA MONITOR screen, and check if ON/OFF display is linked to ignition switch oper-
ation.

Without CONSULT-III

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key unit connector.

3.

Check voltage between Intelligent Key unit harness connector
M164 terminal 27 and ground.

Is the inspection result normal?

YES

>> Ignition knob switch is OK.

NO

>> GO TO 2

2.

CHECK IGNITION KNOB SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect key switch and ignition knob switch connector.

3.

Check voltage between key switch and ignition knob switch harness connector M66 terminal 1 and
ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace key switch and ignition knob switch

power supply circuit.

3.

CHECK IGNITION KNOB SWITCH OPERATION

Check continuity between key switch and ignition knob switch terminals 1 and 2.

Monitor item

Condition

PUSH SW

Ignition switch is pushed: ON

Ignition switch is released: OFF

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

M164

27

Ground

Ignition switch is
pushed

Battery voltage

Ignition switch is re-
leased

0

WIIA1175E

1 - Ground

: Battery voltage

ALKIA1217ZZ

2009 Pathfinder

SEC-48

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

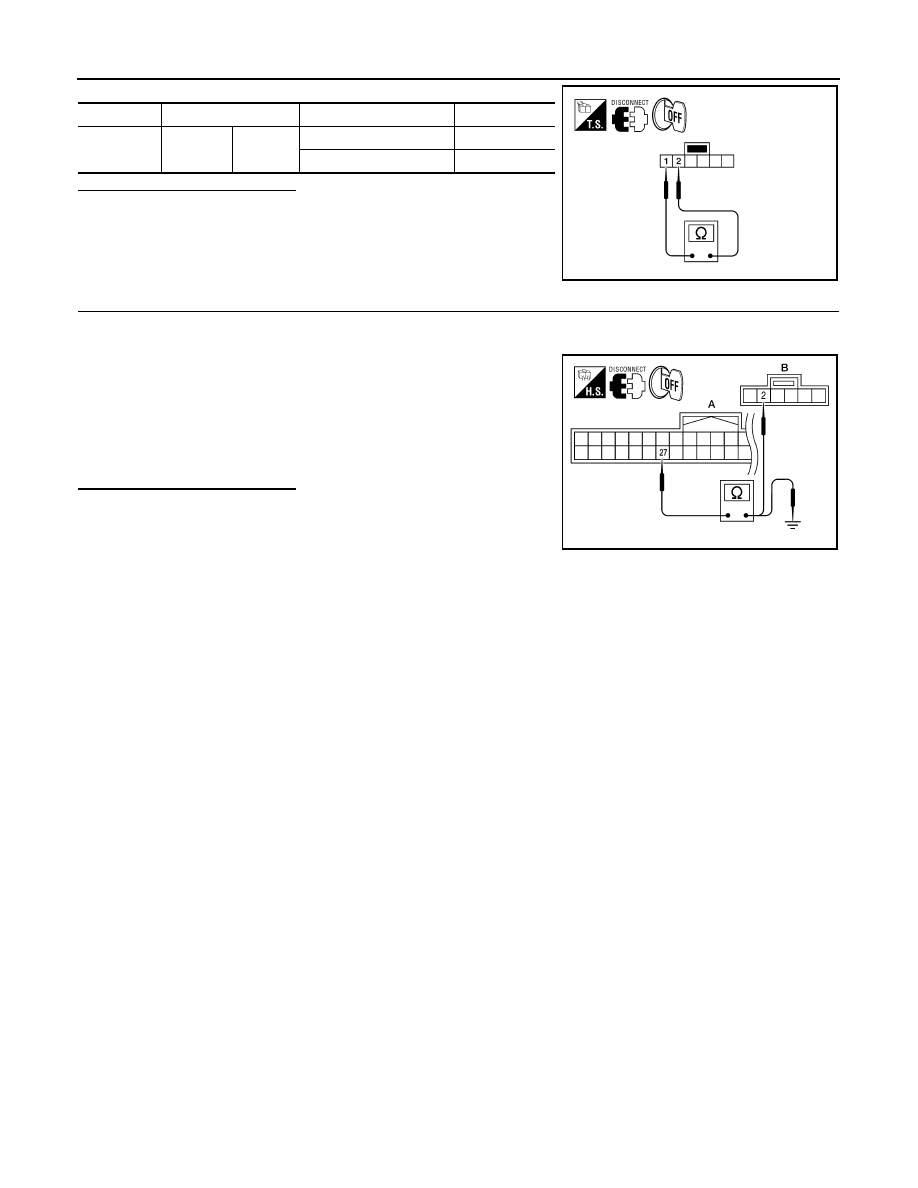

IGNITION KNOB SWITCH

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace key switch and ignition knob switch.

4.

CHECK IGNITION KNOB SWITCH CIRCUIT

1.

Check continuity between Intelligent Key unit harness connector (A) M164 terminal 27 and key switch and
ignition knob switch harness connector (B) M66 terminal 2.

2.

Check continuity between Intelligent Key unit harness connector
M164 terminal 27 and ground.

Is the inspection result normal?

YES

>> Check the condition of harness and harness connector.

NO

>> Repair or replace harness between Intelligent Key unit

and key switch and ignition knob switch.

Component

Terminals

Condition

Continuity

Ignition

knob switch

1

2

Ignition switch is pushed

Yes

Ignition switch is released

No

ALKIA1218ZZ

27 - 2

: Continuity should exist.

27 - Ground

: Continuity should not exist.

ALKIA1219ZZ

2009 Pathfinder

HORN FUNCTION

SEC-49

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

HORN FUNCTION

Symptom Table

INFOID:0000000003938475

HAZARD AND HORN REMINDER FUNCTION MALFUNCTION

NOTE:
• Before performing the diagnosis in the following table, check “Work flow”. Refer to

SEC-5, "Work Flow"

.

• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Conditions of Vehicle (Operating Conditions)

• “ANSWER BACK FUNCTION” is ON when setting on CONSULT-III.
• Ignition switch is in OFF position.
• All doors are closed.

Symptom

Diagnosis/service procedure

Reference

page

Hazard reminder does not operate by request switch.
(Horn reminder operate.)

1.

Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”.

DLK-43

2.

Check hazard function.

EXL-4

3.

Check Intermittent Incident.

GI-49

Hazard reminder does not operate by Intelligent Key.
(Horn reminder operate.)

1.

Check “HAZARD ANSWER BACK” setting in “WORK
SUPPORT”.

DLK-43

2.

Check hazard function.

EXL-4

3.

Check Intelligent Key battery inspection.

DLK-102

Horn reminder does not operate by request switch.
(Hazard reminder operate.)

1.

Check “ANSWER BACK WITH I-KEY LOCK” or “AN-
SWER BACK WITH I-KEY UNLOCK” setting in “WORK
SUPPORT”.

DLK-43

2.

Check Intelligent Key warning buzzer.

DLK-88

3.

Check Intermittent Incident.

GI-49

Horn reminder does not operate by Intelligent Key.
(Hazard reminder operate.)

1.

Check “HORN WITH KEYLESS LOCK” setting in
“WORK SUPPORT”.

DLK-41

2.

Check horn function.

HRN-3

3.

Check Intermittent Incident.

GI-49

2009 Pathfinder

SEC-50

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY INDICATOR

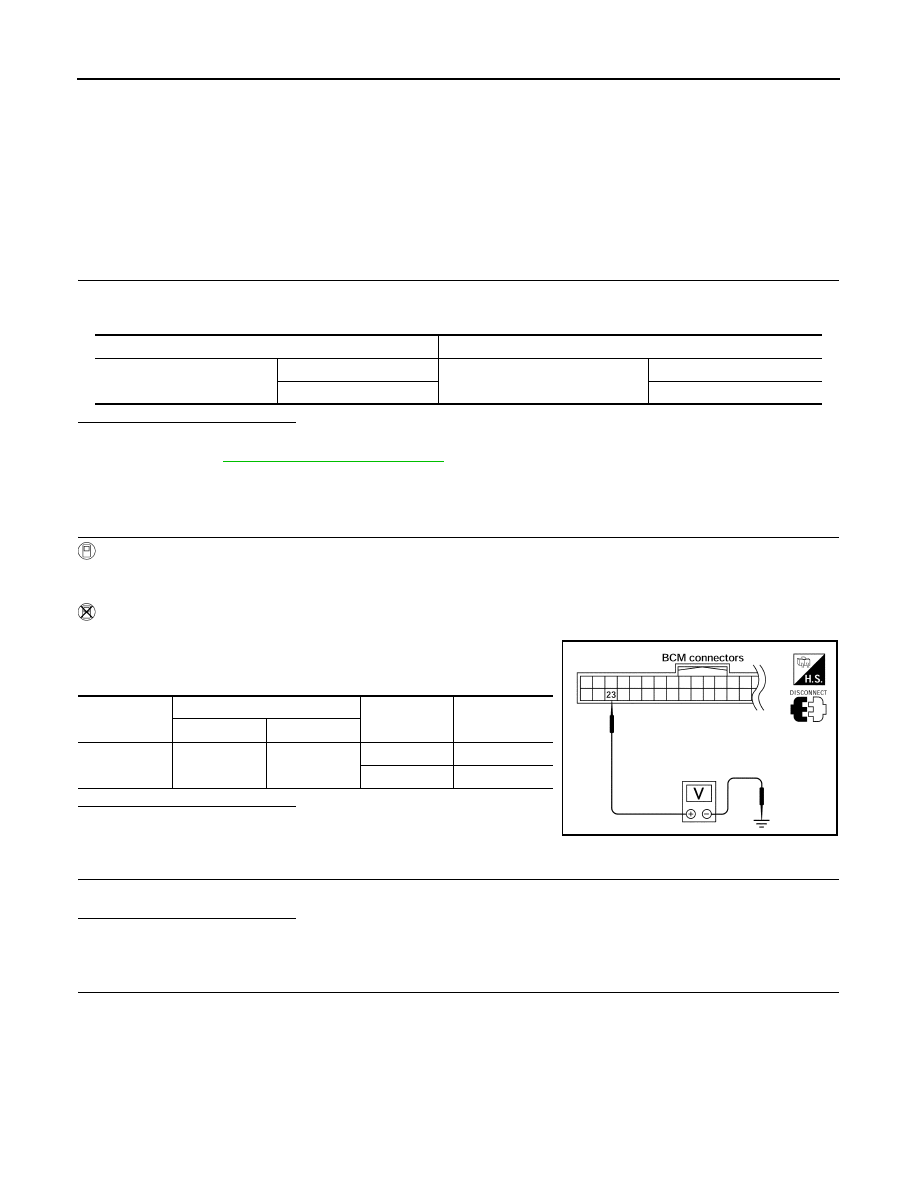

VEHICLE SECURITY INDICATOR

Description

INFOID:0000000003938476

• Vehicle security indicator is built in combination meter.
• NATS (Nissan Anti-Theft System) and vehicle security system conditions are indicated by blink or illumina-

tion of vehicle security indicator.

Component Function Check

INFOID:0000000003938477

1.

CHECK FUNCTION

1.

Perform “THEFT IND” in the “Active Test” mode with CONSULT-III.

2.

Check vehicle security indicator operation.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Refer to

SEC-50, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003938478

1.

SECURITY INDICATOR LAMP ACTIVE TEST

With CONSULT-III

Check "THEFT IND” in "ACTIVE TEST" mode with CONSULT-III.

Without CONSULT-III

1.

Disconnect BCM.

2.

Check voltage between BCM harness connector M18 terminal
23 and ground.

Is the inspection result normal?

YES

>> Security indicator lamp is OK.

NO

>> GO TO 2

2.

SECURITY INDICATOR LAMP CHECK

Check security indicator lamp condition.
Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace security indicator lamp.

3.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect BCM and security indicator lamp connector.

Test item

Description

THEFT IND

ON

Vehicle security indicator

ON

OFF

OFF

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M18

23

Ground

ON

0

OFF

Battery voltage

LIIA0523E

2009 Pathfinder

VEHICLE SECURITY INDICATOR

SEC-51

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

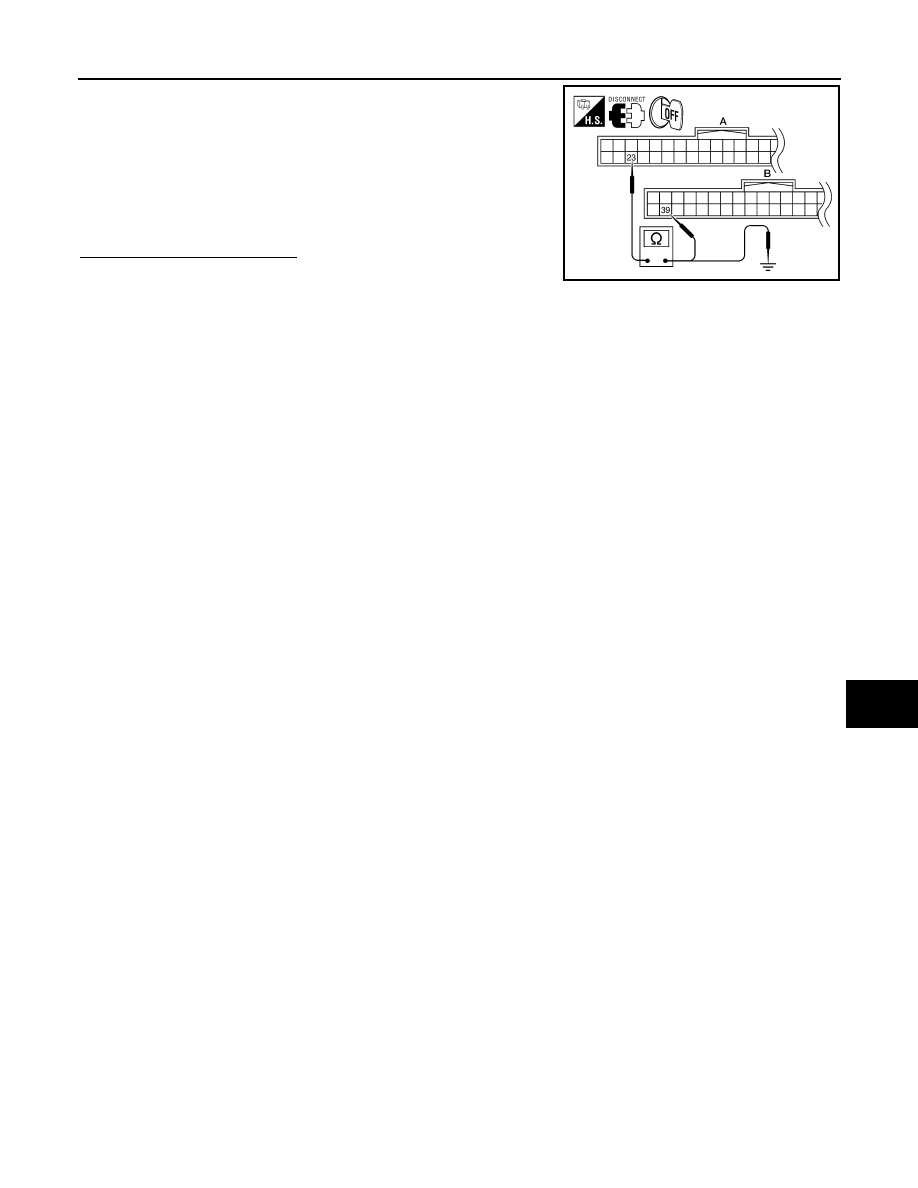

3.

Check continuity between BCM connector (A) M18 terminal 23
and combination meter connector (B) M24 terminal 39.

4.

Check continuity between BCM connector (A) M18 terminal 23
and ground.

Is the inspection result normal?

YES

>>

Check the following:

• 10A fuse [No. 19, located in fuse block (J/B)]
• Harness for open or short between security indicator lamp and fuse

NO

>> Repair or replace harness.

23 - 39

: Continuity should exist.

23 - Ground

: Continuity should not exist.

ALKIA1273ZZ

2009 Pathfinder

SEC-52

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000004432080

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

AIR COND SW

A/C switch OFF

OFF

A/C switch ON

ON

AUT LIGHT SYS

Outside of the room is dark

OFF

Outside of the room is bright

ON

AUTO LIGHT SW

Lighting switch OFF

OFF

Lighting switch AUTO

ON

BACK DOOR SW

Back door closed

OFF

Back door opened

ON

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the LOCK side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the UNLOCK side

ON

DOOR SW-AS

Front door RH closed

OFF

Front door RH opened

ON

DOOR SW-DR

Front door LH closed

OFF

Front door LH opened

ON

DOOR SW-RL

Rear door LH closed

OFF

Rear door LH opened

ON

DOOR SW-RR

Rear door RH closed

OFF

Rear door RH opened

ON

ENGINE RUN

Engine stopped

OFF

Engine running

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER LOW

Front wiper switch OFF

OFF

Front wiper switch LO

ON

FR WIPER HI

Front wiper switch OFF

OFF

Front wiper switch HI

ON

FR WIPER INT

Front wiper switch OFF

OFF

Front wiper switch INT

ON

FR WIPER STOP

Any position other than front wiper stop position

OFF

Front wiper stop position

ON

HAZARD SW

When hazard switch is not pressed

OFF

When hazard switch is pressed

ON

LIGHT SW 1ST

Lighting switch OFF

OFF

Lighting switch 1st

ON

2009 Pathfinder

BCM (BODY CONTROL MODULE)

SEC-53

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

HEADLAMP SW1

Headlamp switch OFF

OFF

Headlamp switch 1st

ON

HEADLAMP SW2

Headlamp switch OFF

OFF

Headlamp switch 1st

ON

HI BEAM SW

High beam switch OFF

OFF

High beam switch HI

ON

H/L WASH SW

NOTE:
The item is indicated, but not monitored

OFF

IGN ON SW

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

IGN SW CAN

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

I-KEY LOCK

1

LOCK button of Intelligent Key is not pressed

OFF

LOCK button of Intelligent Key is pressed

ON

I-KEY UNLOCK

1

UNLOCK button of Intelligent Key is not pressed

OFF

UNLOCK button of Intelligent Key is pressed

ON

KEY ON SW

Mechanical key is removed from key cylinder

OFF

Mechanical key is inserted to key cylinder

ON

KEYLESS LOCK

2

LOCK button of key fob is not pressed

OFF

LOCK button of key fob is pressed

ON

KEYLESS UNLOCK

2

UNLOCK button of key fob is not pressed

OFF

UNLOCK button of key fob is pressed

ON

OIL PRESS SW

• Ignition switch OFF or ACC
• Engine running

OFF

Ignition switch ON

ON

PASSING SW

Other than lighting switch PASS

OFF

Lighting switch PASS

ON

PUSH SW

1

Return to ignition switch to LOCK position

OFF

Press ignition switch

ON

REAR DEF SW

Rear window defogger switch OFF

OFF

Rear window defogger switch ON

ON

RKE LOCK AND

UNLOCK

2

NOTE:
The item is indicated, but not monitored

OFF

ON

RR WASHER SW

Rear washer switch OFF

OFF

Rear washer switch ON

ON

RR WIPER INT

Rear wiper switch OFF

OFF

Rear wiper switch INT

ON

RR WIPER ON

Rear wiper switch OFF

OFF

Rear wiper switch ON

ON

RR WIPER STOP

Rear wiper stop position

OFF

Other than rear wiper stop position

ON

TAIL LAMP SW

Lighting switch OFF

OFF

Lighting switch 1ST

ON

Monitor Item

Condition

Value/Status

2009 Pathfinder















Content      ..     576      577      578      579     ..
