SEC-38

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2552 INTELLIGENT KEY

B2552 INTELLIGENT KEY

Description

INFOID:0000000003938458

Intelligent Key unit performs engine start operation and steering lock control by crosschecking ID with the
Intelligent Key.

DTC Logic

INFOID:0000000003938459

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Refer to

SEC-38, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000003938460

1.

REPLACE INTELLIGENT KEY UNIT

1.

Replace Intelligent Key unit.

2.

Perform initialization with CONSULT-III. Re-register all mechanical keys. Refer to “CONSULT-III Opera-
tion Manual”.

3.

Start the engine.

Does the engine start?

YES

>> Inspection End.

NO

>> Perform “DTC confirmation procedure”. Refer to

SEC-38, "DTC Logic"

.

Special Repair Requirement

INFOID:0000000003938461

1.

REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT

Initialize control unit. Refer to CONSULT-III Operation Manual.

>> Work End.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2552

INTELLIGENT KEY
UNIT

Malfunction is detected inside Intelligent
key unit.

Intelligent Key unit

2009 Pathfinder

B2590 ID DISCORD BCM-I-KEY

SEC-39

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2590 ID DISCORD BCM-I-KEY

Description

INFOID:0000000003938462

Intelligent Key unit performs the ID verification with BCM that allows the engine to start. BCM starts the engine
if the ID is OK and prevents the engine from starting if the ID is not registered.

DTC Logic

INFOID:0000000003938463

DTC DETECTION LOGIC

NOTE:
• If DTC B2590 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-25, "DTC Logic"

.

• If DTC B2590 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-26, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Refer to

SEC-39, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000003938464

1.

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all mechanical keys.
For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.

Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> ID was unregistered.

NO

>>

BCM is malfunctioning.

• Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

• Perform initialization again

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2590

ID DISCORD BCM-I-
KEY

The ID verification results between BCM and Intel-
ligent Key unit are NG. The registration is neces-
sary.

• BCM
• Intelligent Key unit

2009 Pathfinder

SEC-40

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

P1610 LOCK MODE

P1610 LOCK MODE

Description

INFOID:0000000003938465

When the starting operation is carried more than five times consecutively under the following conditions, NATS
will shift to the mode which prevents the engine from being started.
• Unregistered mechanical key is used.
• BCM or ECM's malfunctioning.

DTC Logic

INFOID:0000000003938466

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Refer to

SEC-40, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000003938467

1.

CHECK ENGINE START FUNCTION

1.

Perform the check for DTC except DTC P1610.

2.

Use CONSULT-III to erase DTC after fixing.

3.

Check that engine can start with registered mechanical key.

Does the engine start?

YES

>> Inspection End.

NO

>> GO TO 2

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-49, "Intermittent Incident"

.

>> Inspection End.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P1610

LOCK MODE

When the starting operation is carried out
five or more times consecutively under the
following conditions.
• Unregistered mechanical key
• BCM or ECM's malfunctioning.

—

2009 Pathfinder

POWER SUPPLY AND GROUND CIRCUIT

SEC-41

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

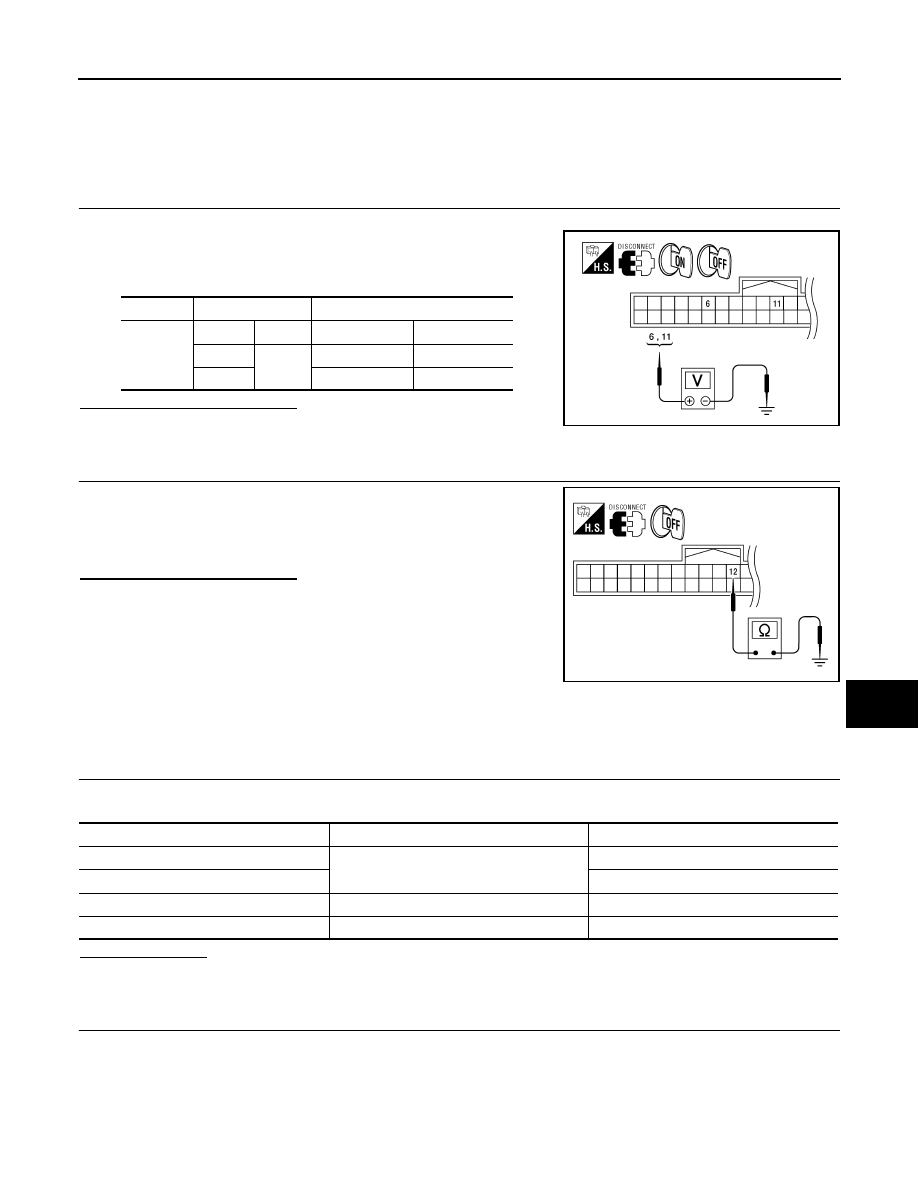

POWER SUPPLY AND GROUND CIRCUIT

INTELLIGENT KEY UNIT

INTELLIGENT KEY UNIT : Diagnosis Procedure

INFOID:0000000004432075

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key unit connector.

3.

Check voltage between Intelligent Key unit harness connector
M70 terminals 6, 11 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace Intelligent Key power supply circuit.

2.

CHECK GROUND CIRCUIT

Check continuity between Intelligent Key unit harness connector
M70 terminal 12 and ground.

Is the inspection result normal?

YES

>> Power supply and ground circuits are OK.

NO

>> Repair or replace the Intelligent Key unit ground circuit.

BCM

BCM : Diagnosis Procedure

INFOID:0000000004432076

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

Connector

Terminals

Ignition switch position

M70

(+)

(–)

OFF

ON

6

Ground

0V

Battery voltage

11

Battery voltage

Battery voltage

WIIA1171E

12 - Ground

: Continuity should exist.

WIIA1172E

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

18 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

2009 Pathfinder

SEC-42

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

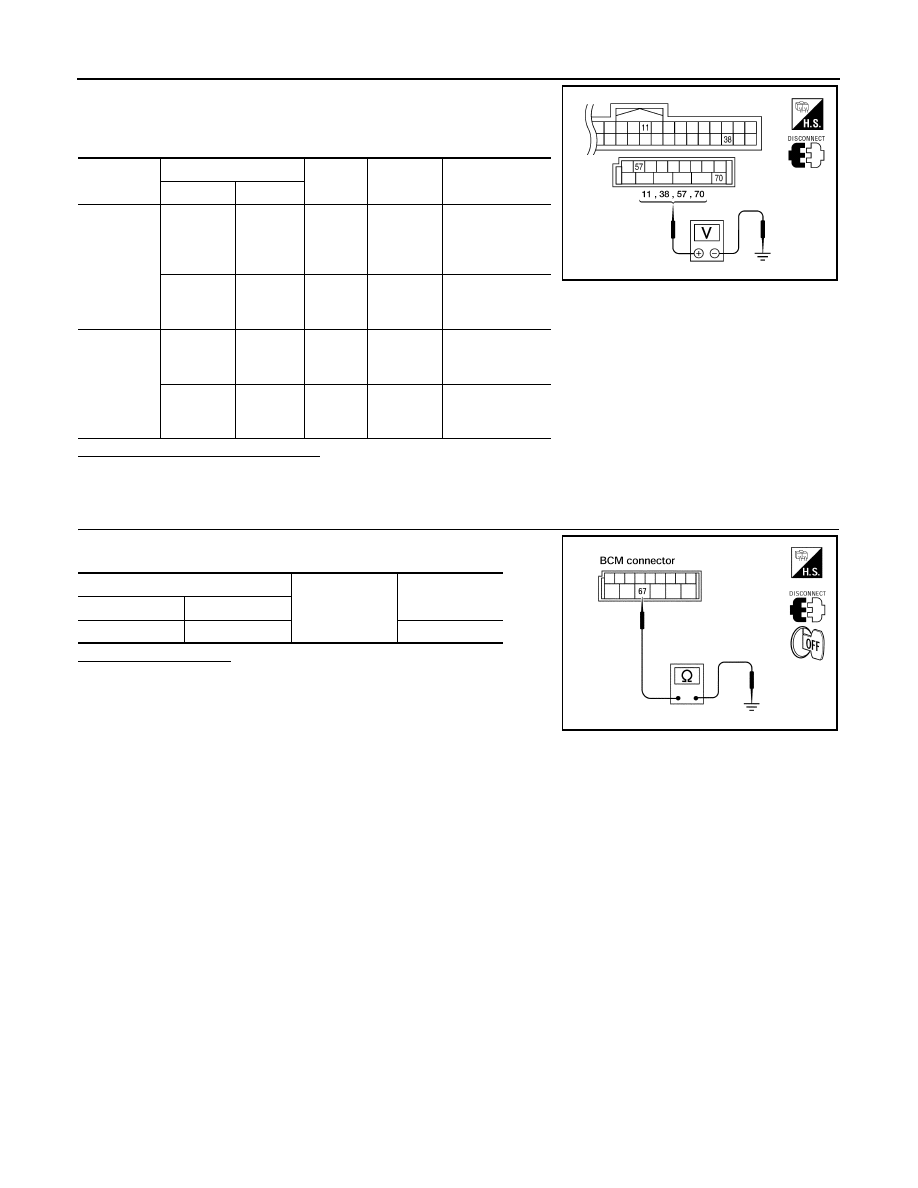

POWER SUPPLY AND GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM.

3.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E

2009 Pathfinder

KEY CYLINDER SWITCH

SEC-43

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

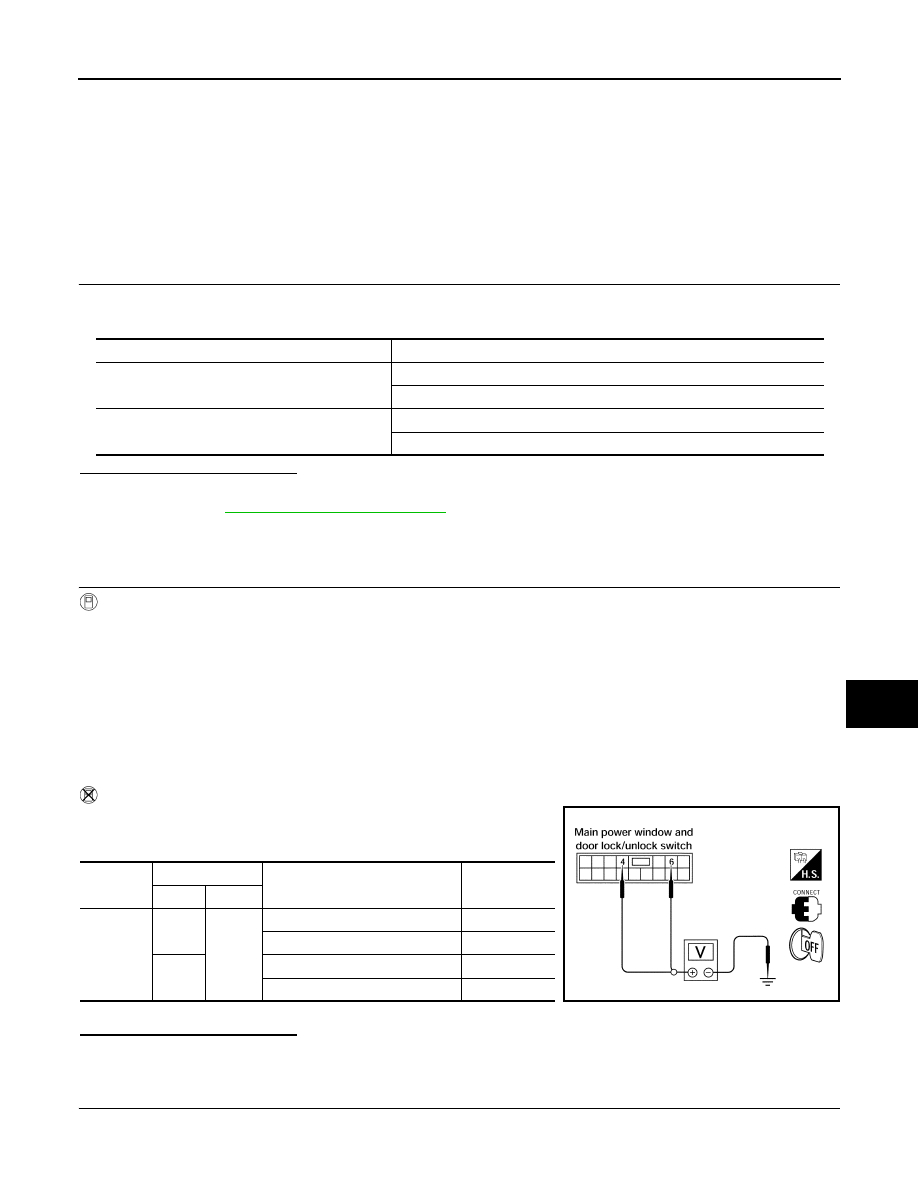

KEY CYLINDER SWITCH

Description

INFOID:0000000003938470

The main power window and door lock/unlock switch detects condition of the door key cylinder switch and
transmits to BCM as the LOCK or UNLOCK signal.

Component Function Check

INFOID:0000000003938471

1.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

Check "KEY CYL LK-SW" AND "KEY CYL UN-SW" in DATA MONITOR mode for “POWER DOOR LOCK
SYSTEM” with CONSULT-III.

Is the inspection result normal?

YES

>> Key cylinder switch is OK.

NO

>> Refer to

SEC-43, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003938472

1.

CHECK DOOR KEY CYLINDER SWITCH LH

With CONSULT-III

Check front door lock assembly LH (key cylinder switch) ("KEY CYL LK-SW") and ("KEY CYL UN-SW) in
DATA MONITOR mode with CONSULT–III.
• When key inserted in left front key cylinder is turned to LOCK:

• When key inserted in left front key cylinder is turned to UNLOCK:

Without CONSULT-III

Check voltage between main power window and door lock/unlock
switch connector D7 terminals 4, 6 and ground.

Is the inspection result normal?

YES

>> Key cylinder switch signal is OK.

NO

>> GO TO 2

2.

CHECK DOOR KEY CYLINDER SWITCH LH GROUND HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect front door lock assembly LH (key cylinder switch).

Monitor item

Condition

KEY CYL LK-SW

Lock

: ON

Neutral / Unlock

: OFF

KEY CYL UN-SW

Unlock

: ON

Neutral / Lock

: OFF

KEY CYL LK-SW

: ON

KEY CYL UN-SW

: ON

Connector

Terminals

Condition of left front key cylinder

Voltage (V)

(Approx.)

(+)

(–)

D7

4

Ground

Neutral/Unlock

5

Lock

0

6

Neutral/Lock

5

Unlock

0

LIIA0566E

2009 Pathfinder

SEC-44

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

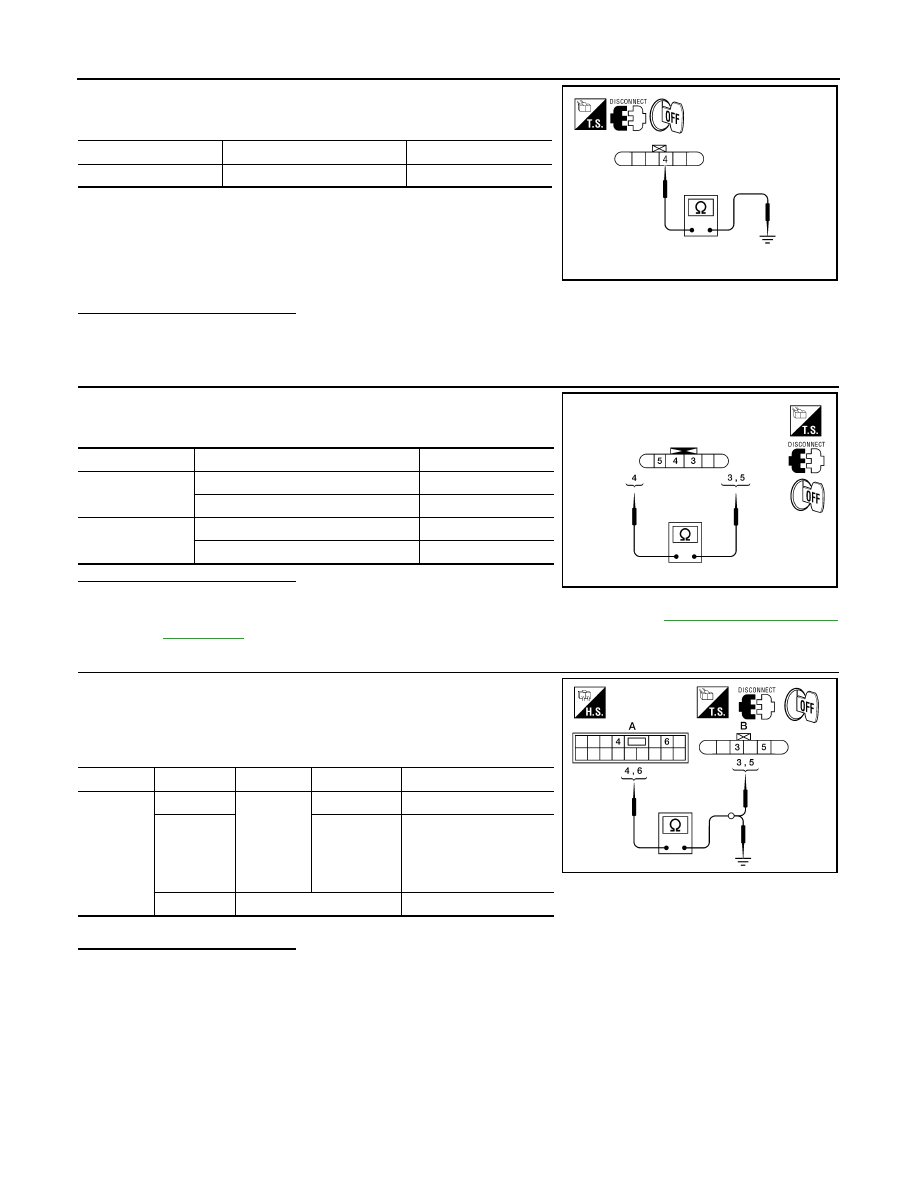

KEY CYLINDER SWITCH

3.

Check continuity between front door lock assembly LH (key cyl-
inder switch) connector (A) D14 terminal 4 and body ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

CHECK DOOR KEY CYLINDER SWITCH LH

Check continuity between front door lock assembly LH (key cylinder
switch) terminals.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace front door lock assembly LH (key cylinder switch). Refer to

DLK-200, "Removal and

Installation"

.

4.

CHECK DOOR KEY CYLINDER HARNESS

Check continuity between main power window and door lock/unlock
switch connector (A) D7 terminals 4, 6 and front door lock assembly
LH (key cylinder switch) connector (B) D14 terminals 3, 5 and body
ground.

Is the inspection result normal?

YES

>> Replace main power window and door lock/unlock switch.

NO

>> Repair or replace harness.

Connector

Terminals

Continuity

D14

4 – Ground

Yes

ALKIA1186ZZ

Terminals

Condition

Continuity

3 – 4

Key is turned to LOCK or neutral.

No

Key is turned to UNLOCK.

Yes

4 – 5

Key is turned to UNLOCK or neutral.

No

Key is turned to LOCK.

Yes

ALKIA1183ZZ

Connector

Terminals

Connector

Terminals

Continuity

A: Main

power win-

dow and

door lock/

unlock

switch

4

B:  Front

door lock

assembly

LH (key
cylinder

switch)

5

Yes

6

3

Yes

4, 6

Ground

No

ALKIA1184ZZ

2009 Pathfinder

GLASS HATCH AJAR SWITCH

SEC-45

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

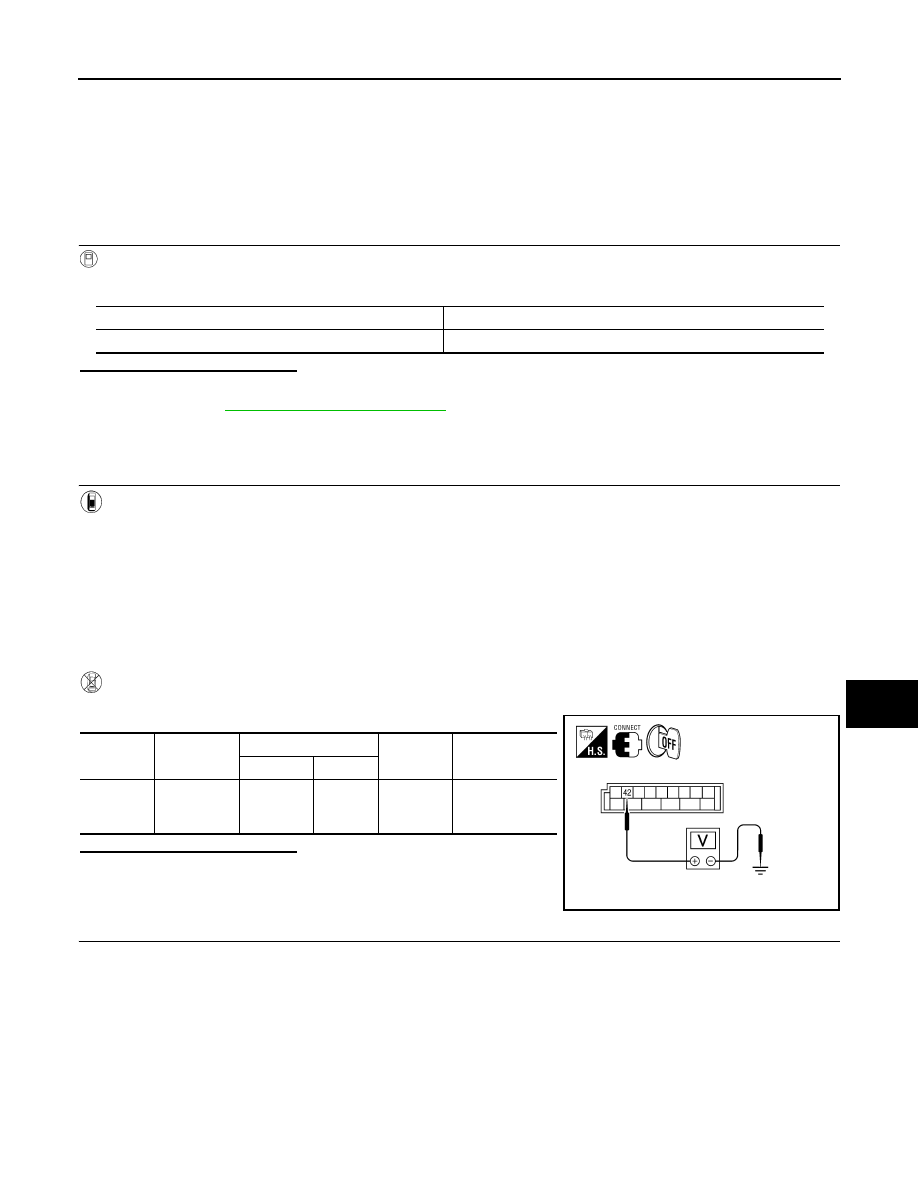

GLASS HATCH AJAR SWITCH

Description

INFOID:0000000004432077

Detects glass hatch open/close condition.

Component Function Check

INFOID:0000000004432078

1.

CHECK FUNCTION

With CONSULT-III

Check glass hatch switch in data monitor mode with CONSULT-III.

Is the inspection result normal?

YES

>> Glass hatch switch is OK.

NO

>> Refer to

SEC-45, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004432079

1.

CHECK GLASS HATCH AJAR SWITCH INPUT SIGNAL

With CONSULT-III

Check glass hatch ajar switch "GLASS HATCH SW" in DATA MONITOR mode with CONSULT–III.
• When glass hatch is open:

• When glass hatch is closed:

Without CONSULT-III

Check voltage between BCM connector M19 terminals 42 and ground.

Is the inspection result normal?

YES

>> Glass hatch ajar switch circuit is OK.

NO

>> GO TO 2

2.

CHECK GLASS HATCH AJAR SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect glass hatch ajar switch and BCM.

3.

Check continuity between BCM connector (A) M19 terminal 42 and glass hatch ajar switch connector (B)
D503 terminal 1.

Monitor item

Condition

GLASS HATCH SW

CLOSE

→

 OPEN: OFF

→

 ON

GLASS HATCH SW

:ON

GLASS HATCH SW

:OFF

Connector

Item

Terminals

Condition

Voltage (V)

(Approx.)

( + )

( – )

M19

BCM

42

Ground

Open

↓

Closed

0

↓

Battery voltage

ALKIA1708ZZ

2009 Pathfinder
