Nissan Pathfinder (2009 year). Manual - part 513

MIR-14

< REMOVAL AND INSTALLATION >

INSIDE MIRROR

INSIDE MIRROR

Removal and Installation

INFOID:0000000003938586

INSIDE MIRROR

1.

Remove inside mirror finisher.

2.

Remove inside mirror screw and slide the mirror upward to remove.

3.

Disconnect the connector.

Installation is in the reverse order of removal.

1.

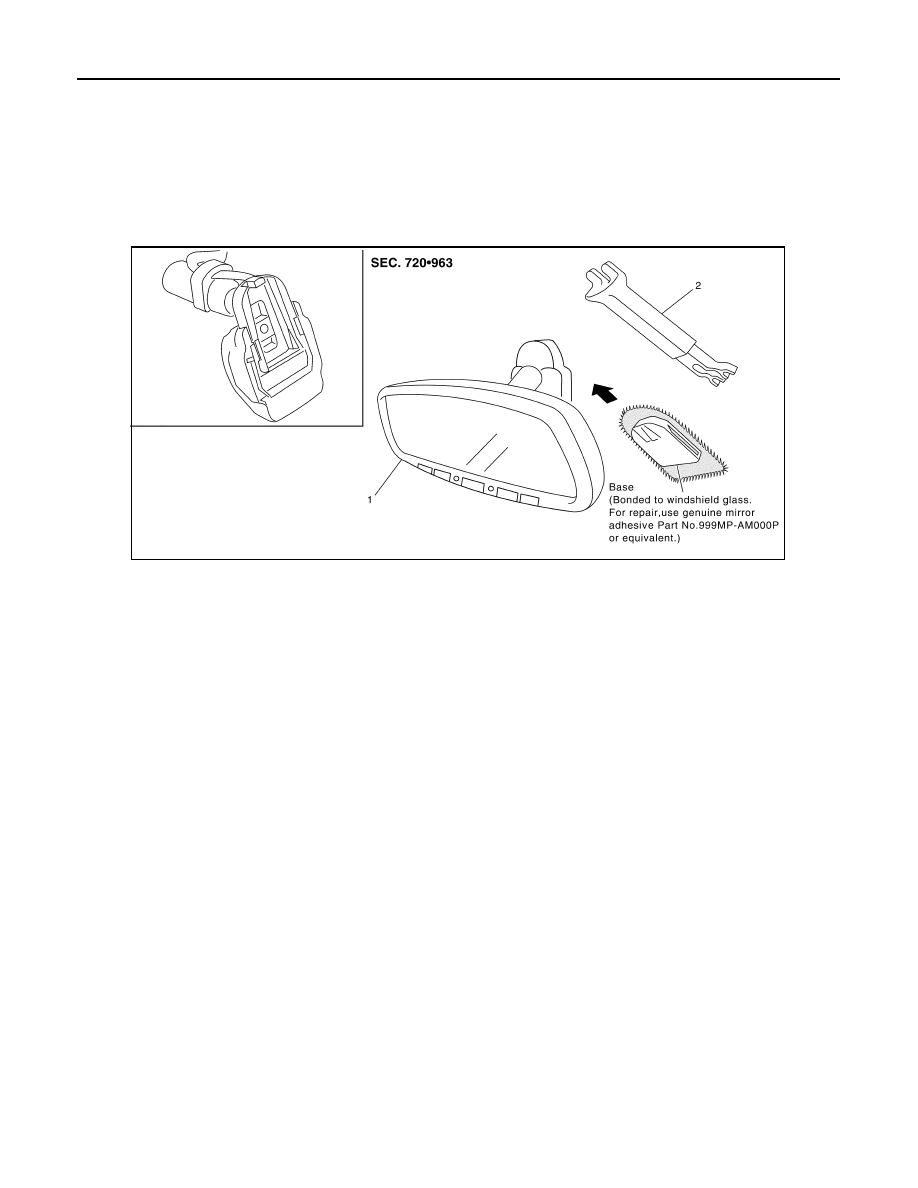

Inside mirror

2.

Inside mirror finisher

LIIA0277E

2009 Pathfinder

DOOR MIRROR

MIR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

Door Mirror Assembly

INFOID:0000000003938587

REMOVAL

NOTE:
Be careful not to damage the mirror bodies.
1.

Remove the front door sash cover.

2.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Position the front door seal aside.

4.

Disconnect the door mirror harness connector.

5.

Remove the nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

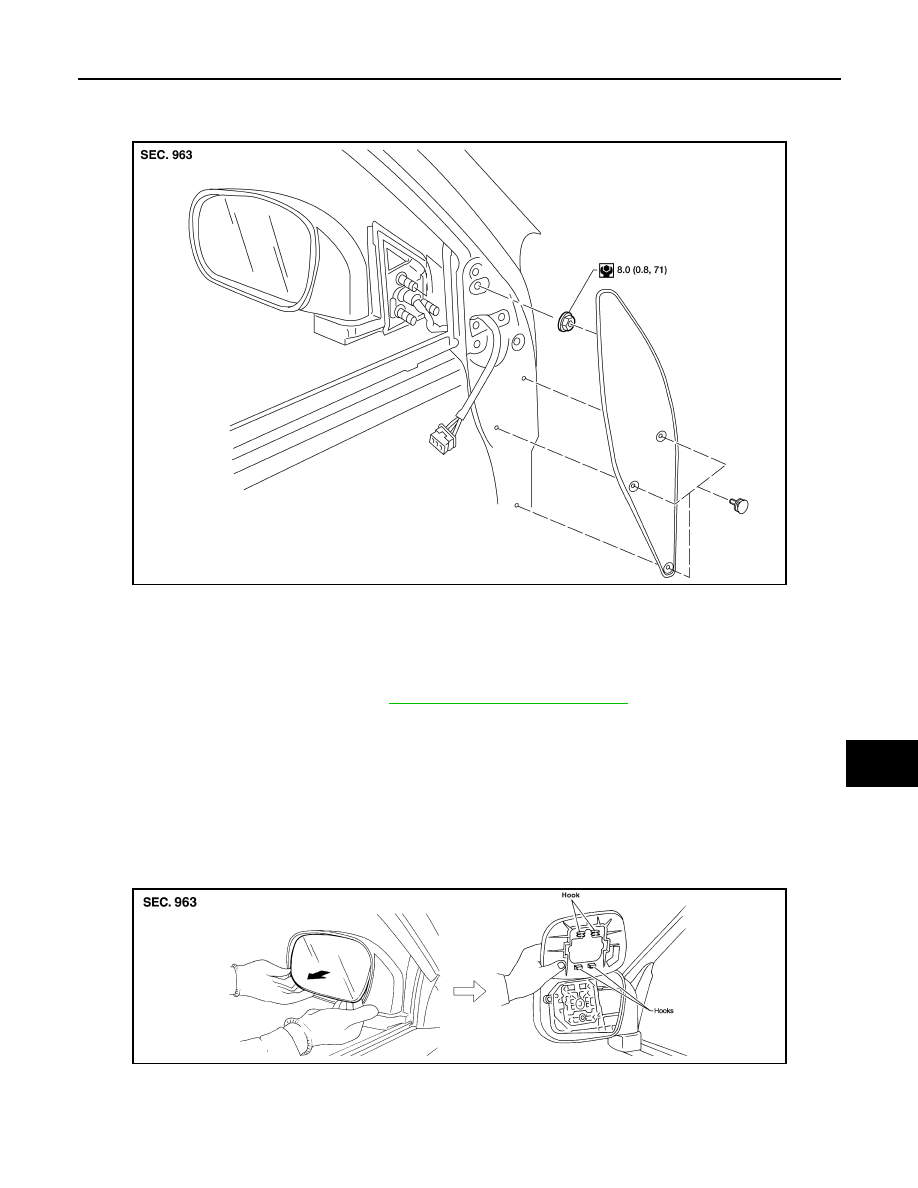

Door Mirror Glass

INFOID:0000000003938588

REMOVAL AND INSTALLATION

1.

Angle the mirror fully up.

2.

Remove the mirror.
• Pull from the bottom to disengage the clips.
• Continue to pivot the mirror upward from the bottom to separate the hooks.

AWIIA1222GB

ALLIA0647ZZ

2009 Pathfinder

MIR-16

< REMOVAL AND INSTALLATION >

DOOR MIRROR

3.

If equipped, disconnect the electrical connectors and remove the mirror glass.

Installation is in the reverse order of removal.

2009 Pathfinder

DOOR MIRROR

MIR-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

Mirror Actuator

INFOID:0000000004410617

DISASSEMBLY AND ASSEMBLY

Disassembly

1.

Remove the mirror glass. Refer to

MIR-15, "Door Mirror Glass"

.

2.

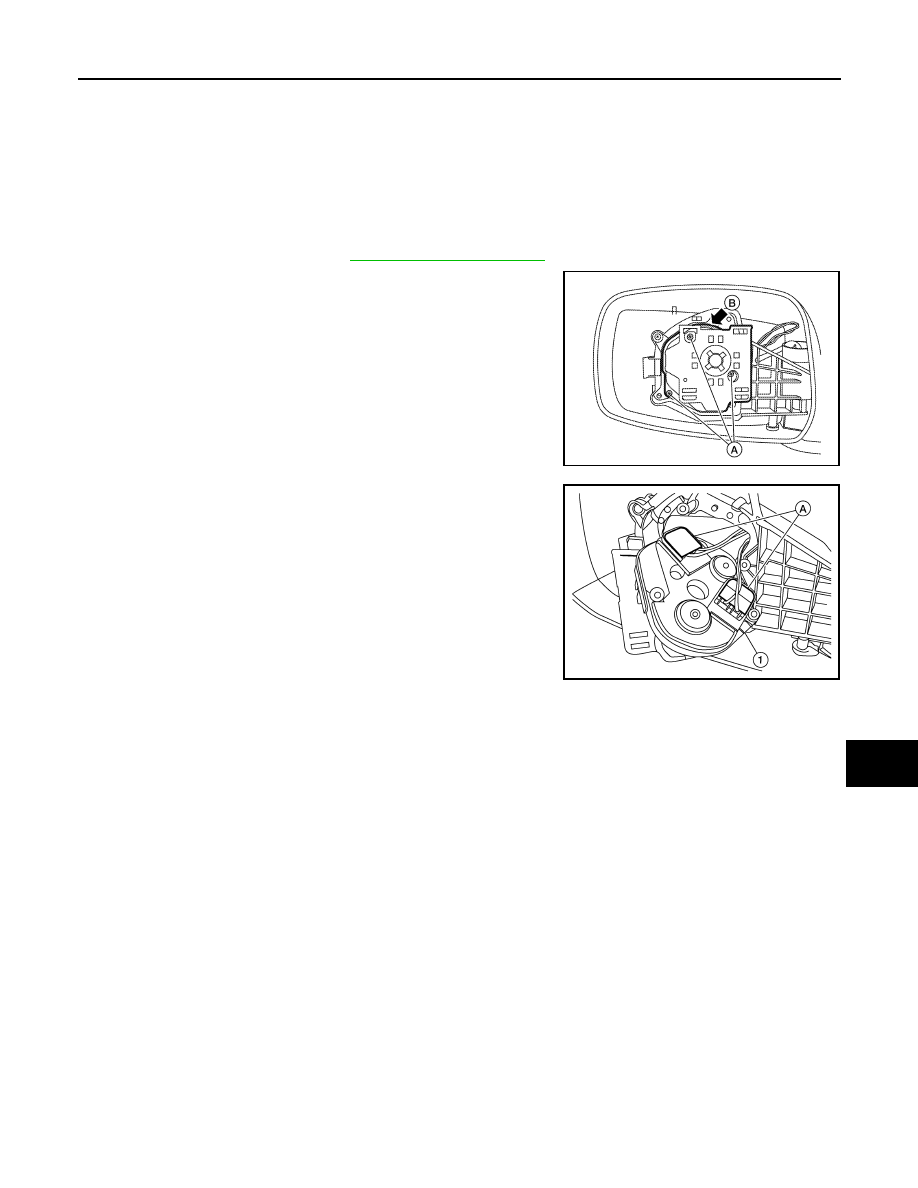

Remove the screws (A) and release the actuator from housing
(B).

3.

Disconnect the connectors (A) and remove the actuator (1).

Assembly

Assembly is the reverse order of disassembly.

ALIIA0357GB

ALIIA0358GB

2009 Pathfinder

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

METER SYSTEM .................................................

4

METER SYSTEM  .........................................................

4

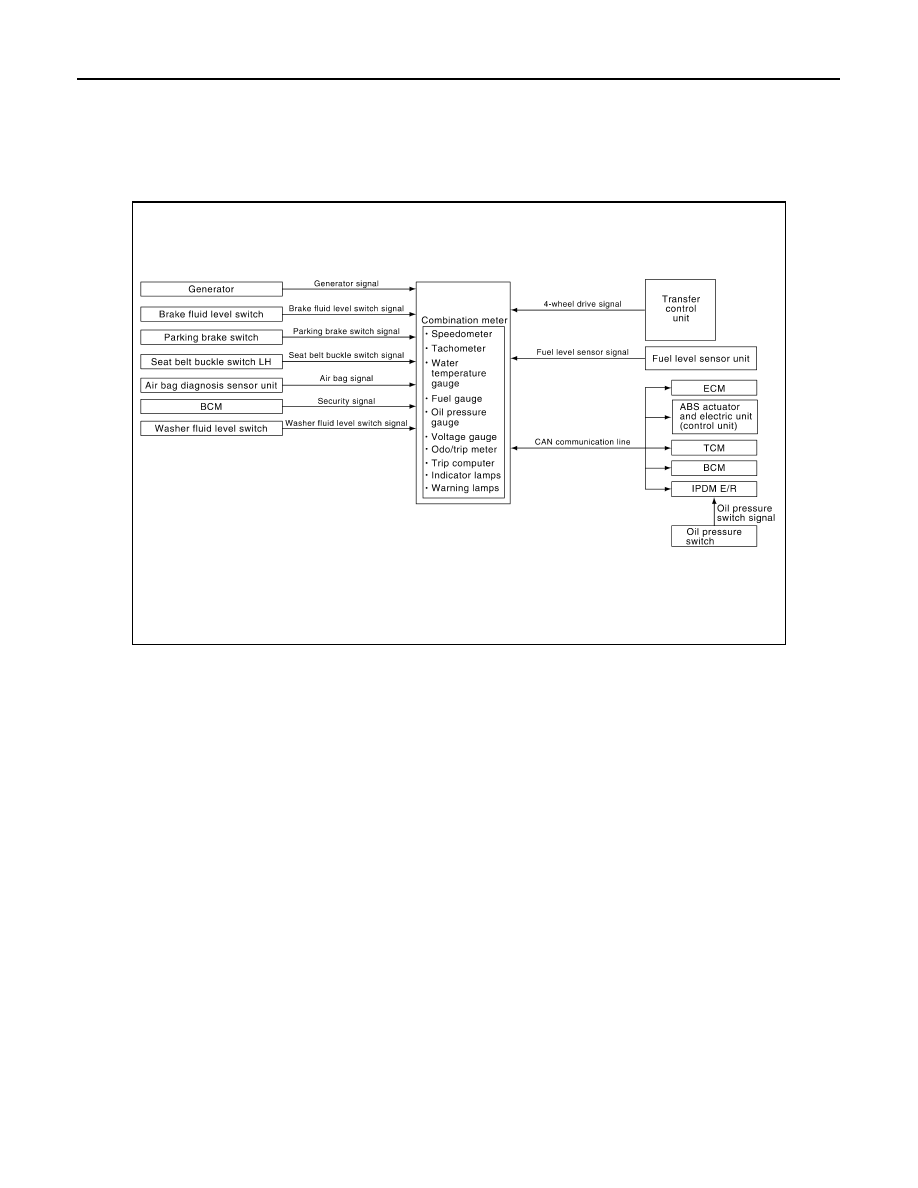

METER SYSTEM : System Diagram ........................
