CHASSIS AND BODY MAINTENANCE

MA-45

< ON-VEHICLE MAINTENANCE >

• Check the strut and shock absorber for oil leakage or other damage.
• Check suspension ball joints for grease leakage and ball joint dust cover for cracks or other damage.

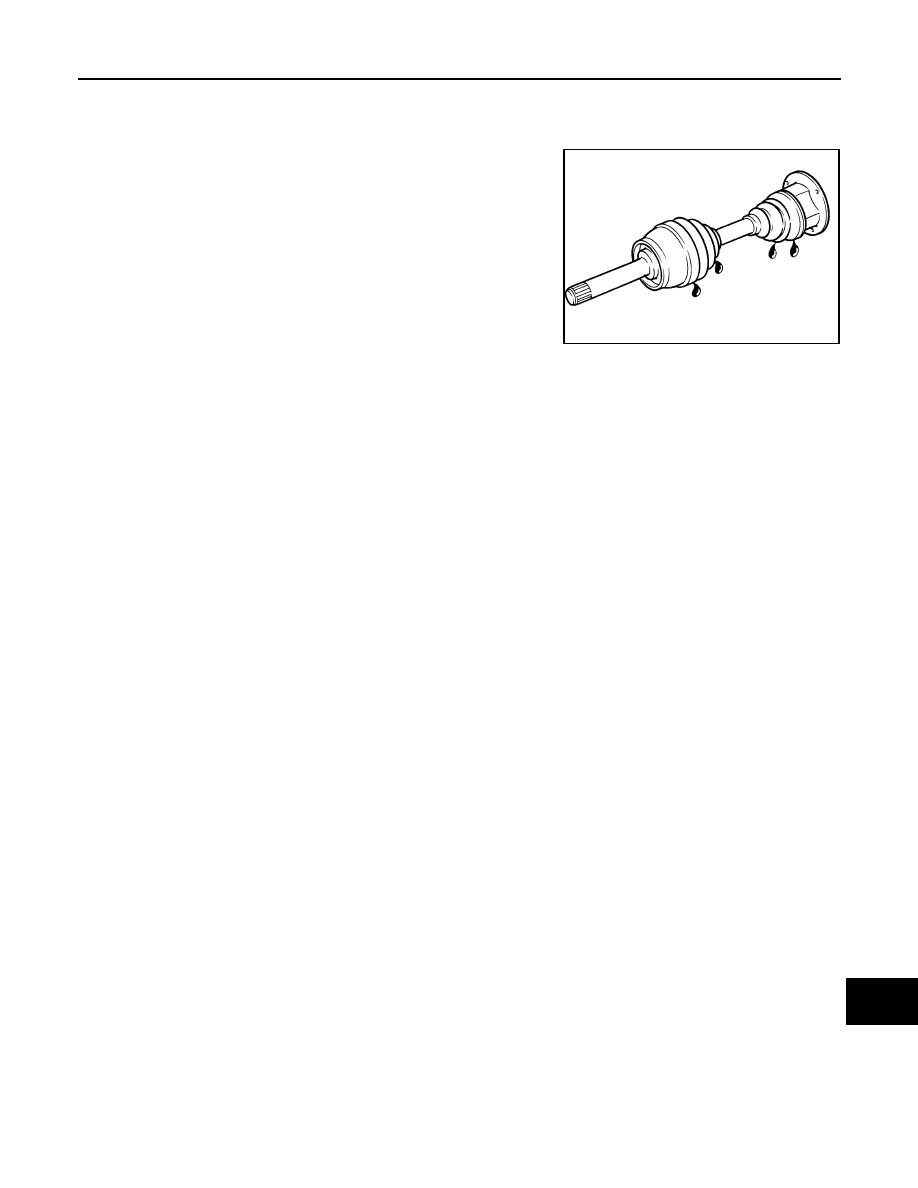

FRONT AND REAR DRIVE SHAFT

Check the boots and drive shaft for cracks, wear, damage, and
grease leakage.

LOCKS, HINGES AND HOOD LATCH

SFA901

2009 Pathfinder

MA-46

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

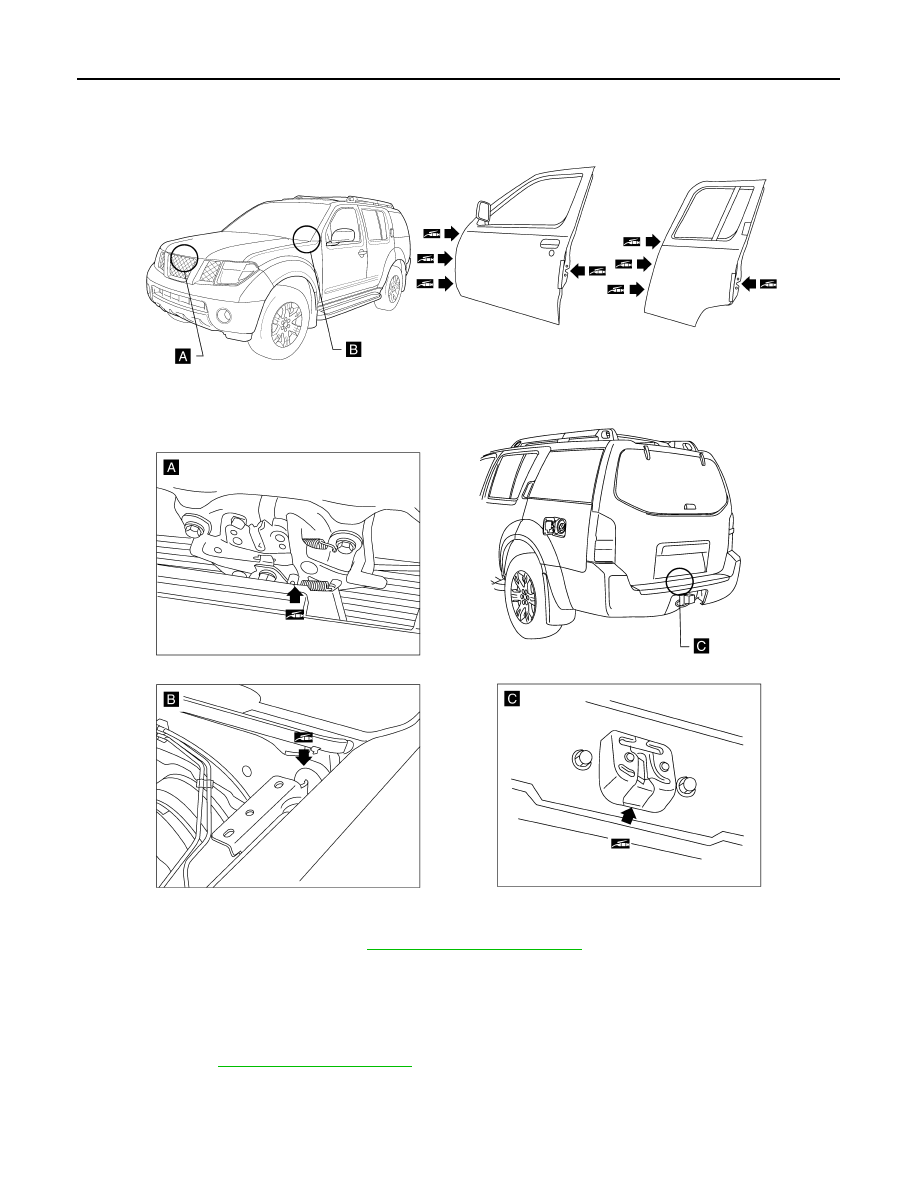

LOCKS, HINGES AND HOOD LATCH : Lubricating Locks, Hinges and Hood Latches

INFOID:0000000003938635

• Lubricate the locations shown. Refer to

MA-12, "Fluids and Lubricants"

SPARK PLUG

SPARK PLUG : Checking Seat Belts, Buckles, Retractors, Anchors and Adjusters

INFOID:0000000003938636

Check the seat belt buckles, webbing, retractors, anchors and adjusters. Replace any seat belt assembly as
necessary. Refer to

SB-9, "Seat Belt Inspection"

• Check the seat belt anchors for loose mounting bolts, damage, or excessive wear.
• Check the seat belt webbing for any damage, cuts, fraying, or excessive wear.
• Check the retractor for smooth operation.

WLIA0021E

2009 Pathfinder

CHASSIS AND BODY MAINTENANCE

MA-47

< ON-VEHICLE MAINTENANCE >

• Check the function of the buckles by inserting the seat belt tongue and checking for proper engagement of

the buckle and press the button on the buckle to check for proper release of the seat belt tongue.

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached compo-

nents, such as the guide rail set. NISSAN recommends replacing all seat belt assemblies in use dur-
ing a collision, unless they are not damaged and are inspected to confirm they are operating
properly after a minor collision.
Also inspect all seat belt assemblies that are not in use during a collision, and replace any compo-
nents if damaged or not operating properly. The seat belt pre-tensioner should be replaced even if
the seat belts are not in use during a frontal collision where the driver and passenger air bags have
been deployed.

• If any component of the seat belt assembly is suspected of being damaged or not operating prop-

erly, do not repair the component. Replace the components as an assembly.

• If the seat belt webbing is cut, frayed, or damaged then replace the seat belt assembly.
• Never lubricate the seat belt buckle or tongue.
• When replacing any seat belt assembly always use a Genuine NISSAN seat belt assembly.

2009 Pathfinder

MIR-1

DRIVER CONTROLS

SECTION

MIR

MIR

CONTENTS

MIRRORS

COMPONENT DIAGNOSIS ..........................

DOOR MIRROR ...................................................

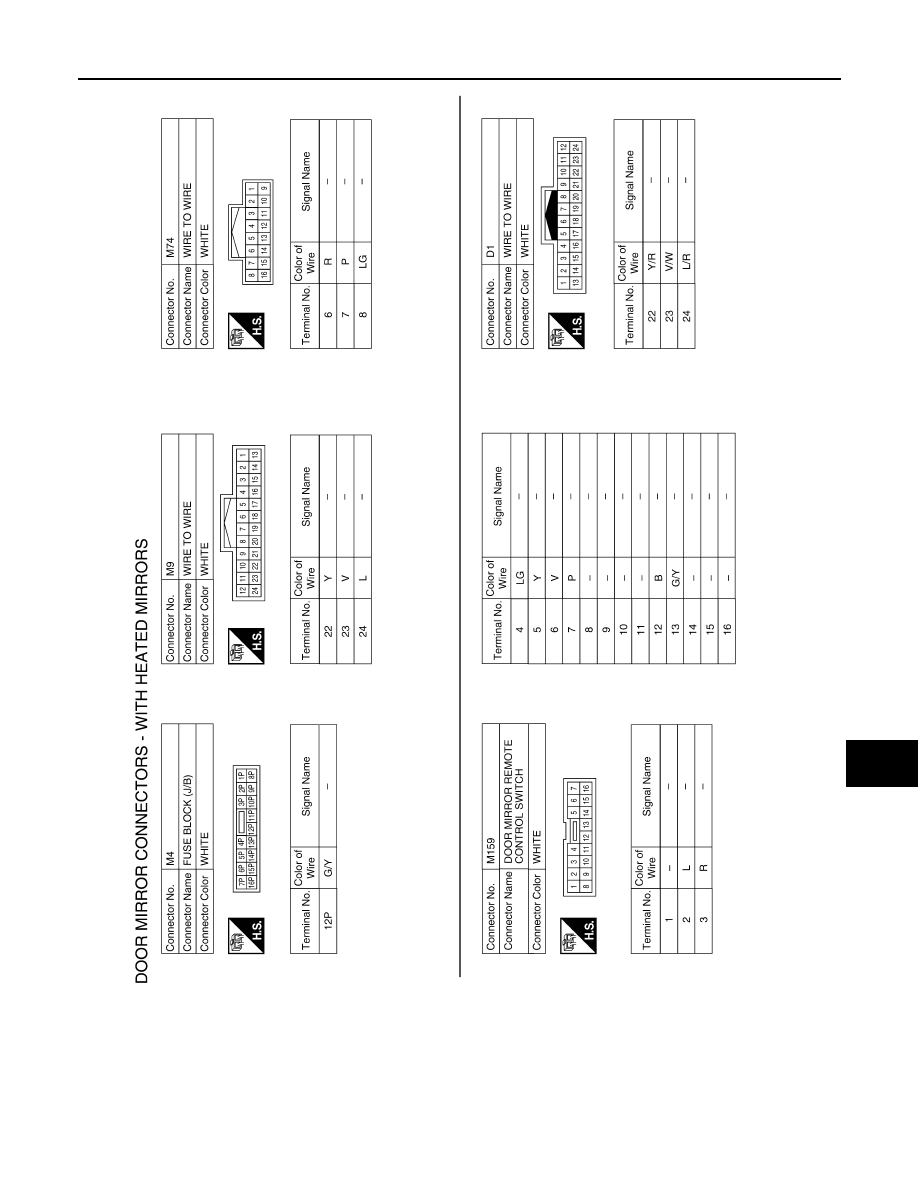

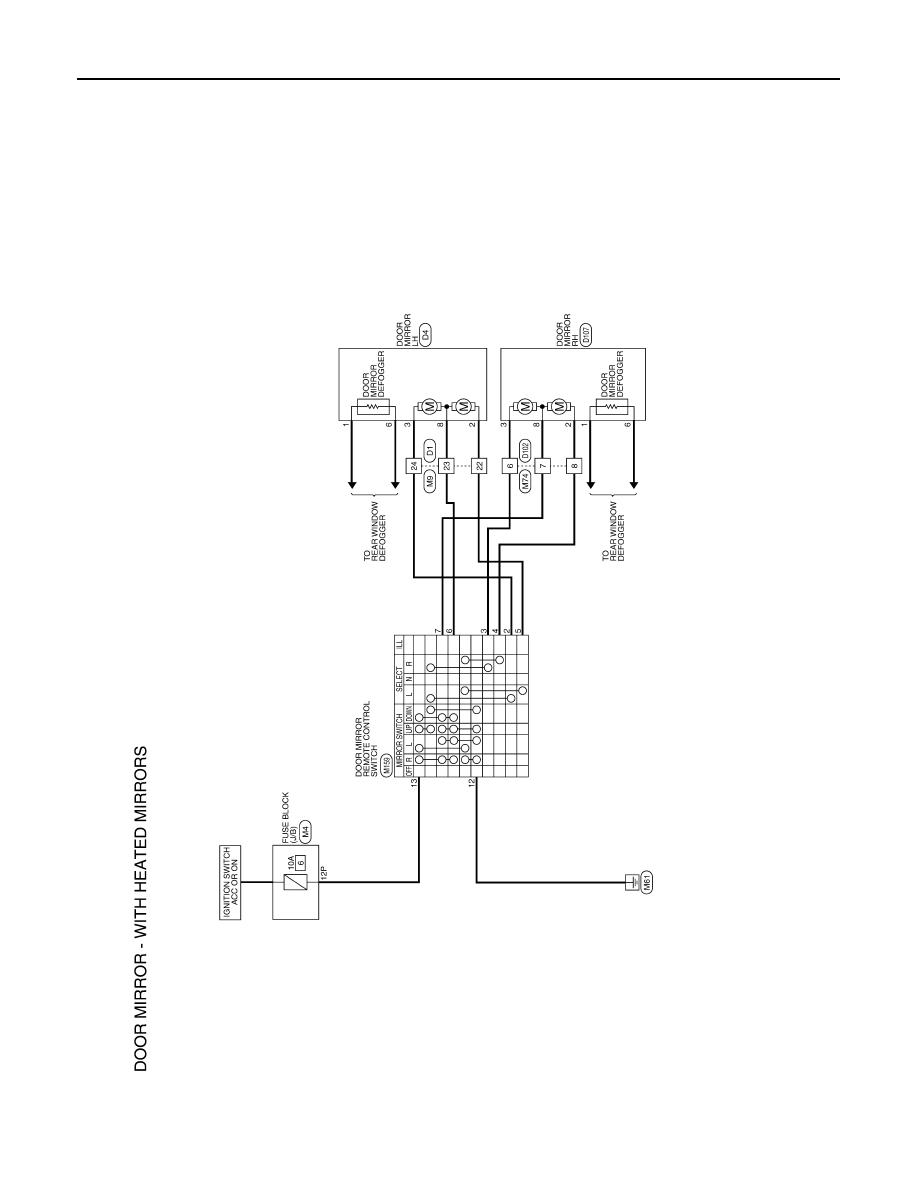

Wiring Diagram — Door Mirror (With Heated Mir-
rors) — ......................................................................

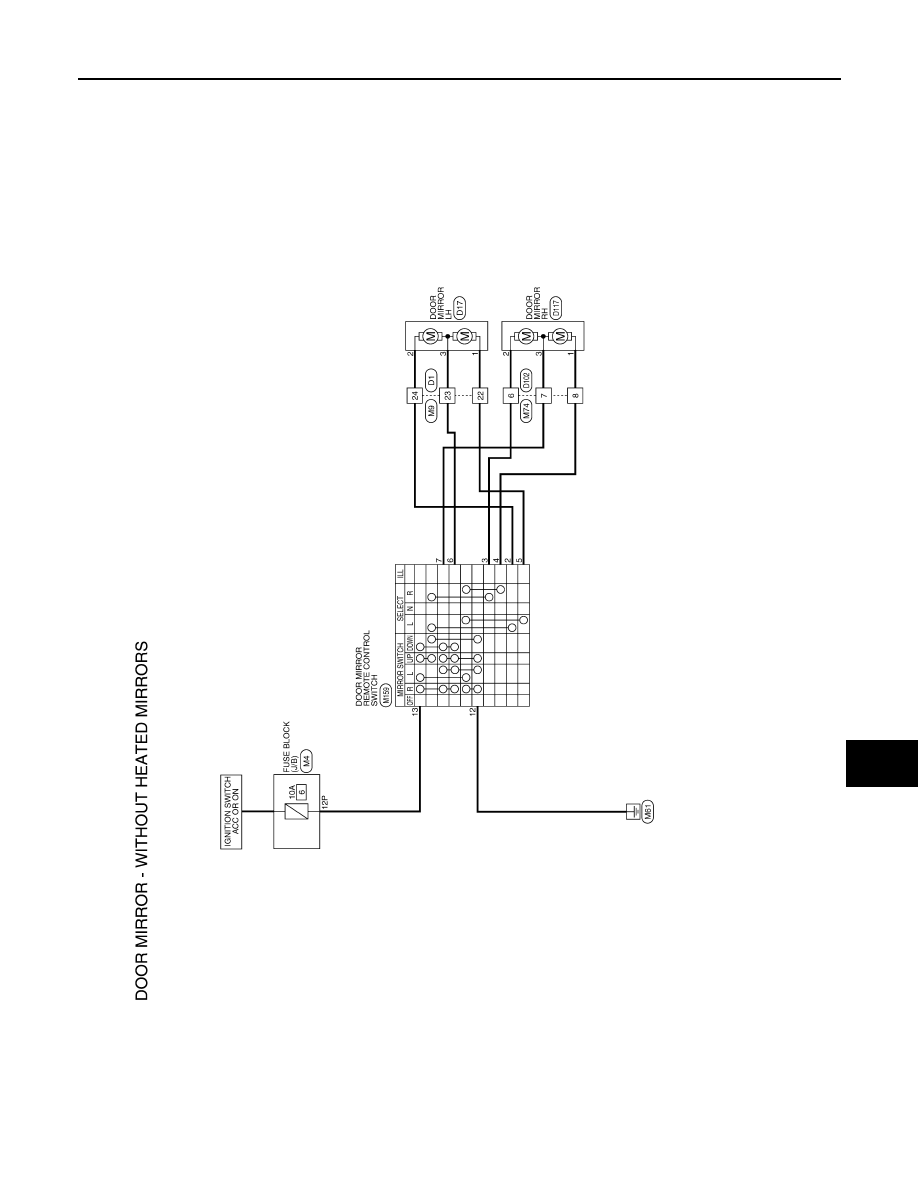

Wiring Diagram — Door Mirror (Without Heated
Mirrors) — .................................................................
