Nissan Pathfinder (2009 year). Manual - part 494

LAN-38

< PRECAUTION >

[CAN]

PRECAUTIONS

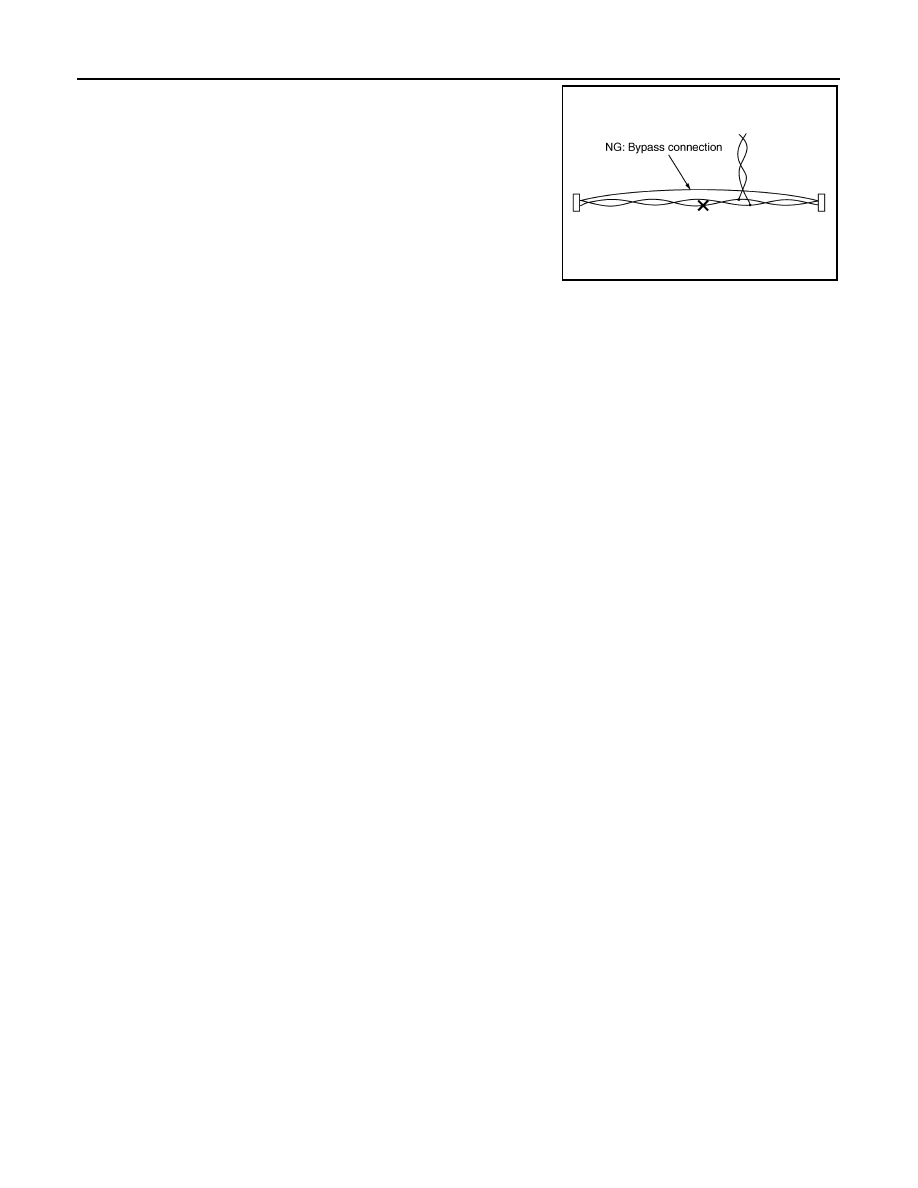

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of twisted
line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8767E

2009 Pathfinder

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-39

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

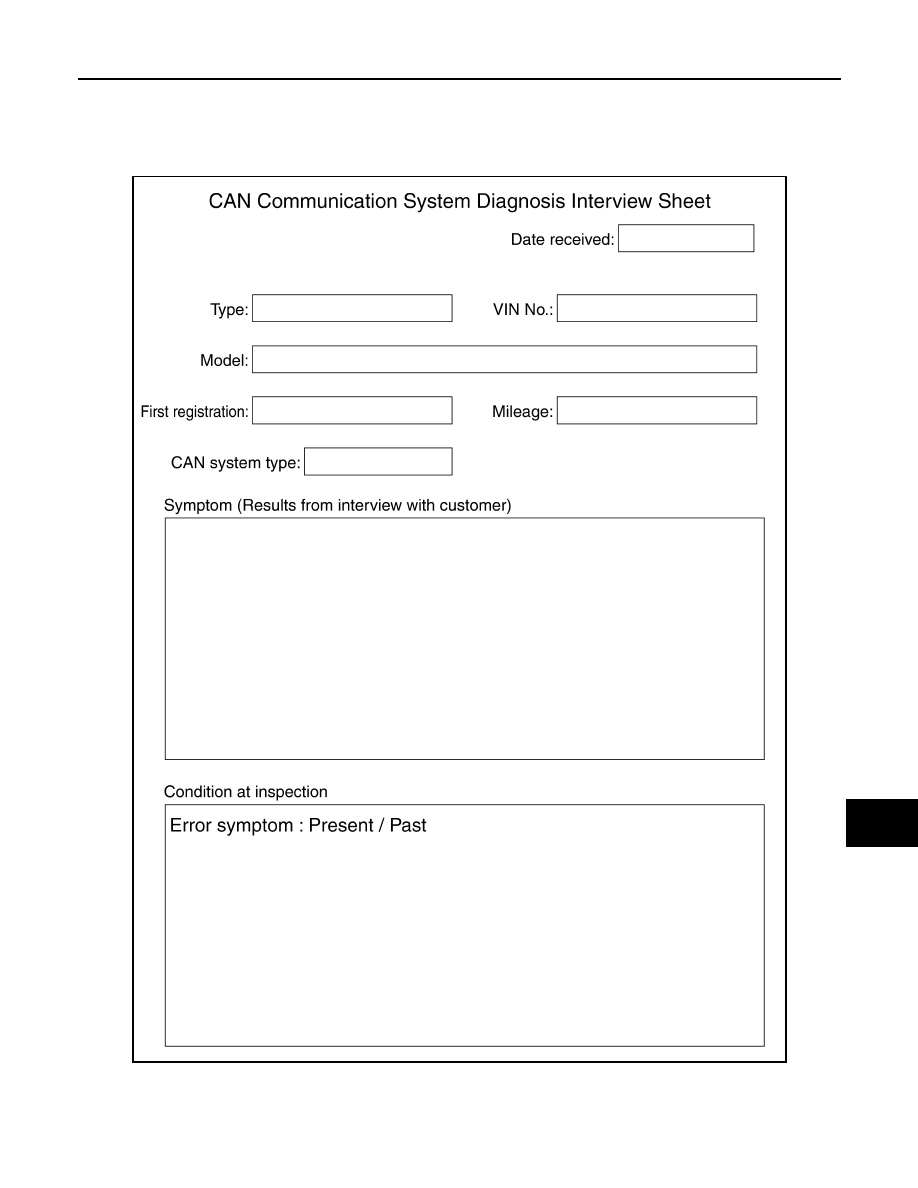

Interview Sheet

INFOID:0000000003938727

SKIB8898E

2009 Pathfinder

LAN-40

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

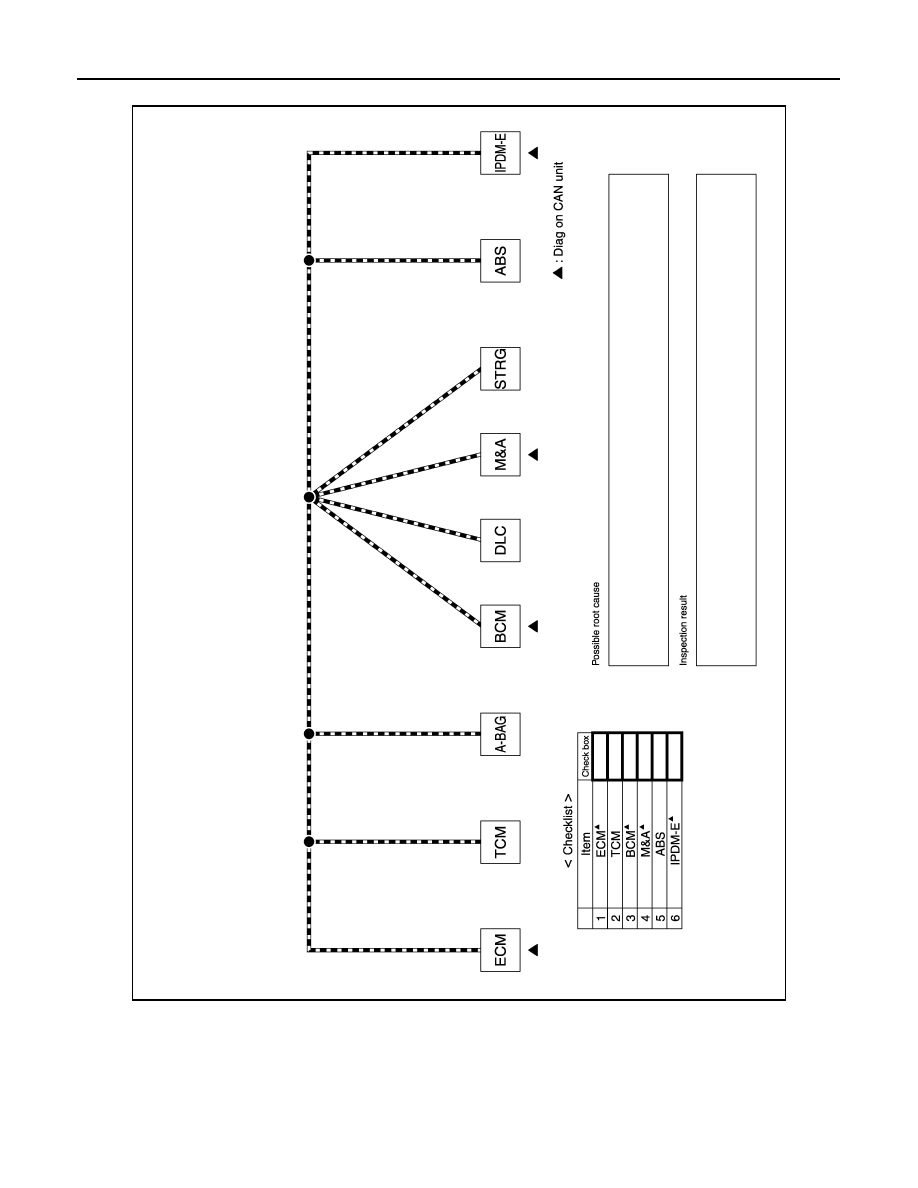

Diagnosis Sheet (CAN Type 1)

INFOID:0000000003938728

JPMIA1273GB

2009 Pathfinder

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-41

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Diagnosis Sheet (CAN Type 2)

INFOID:0000000003938729

JPMIA1274GB

2009 Pathfinder

LAN-42

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

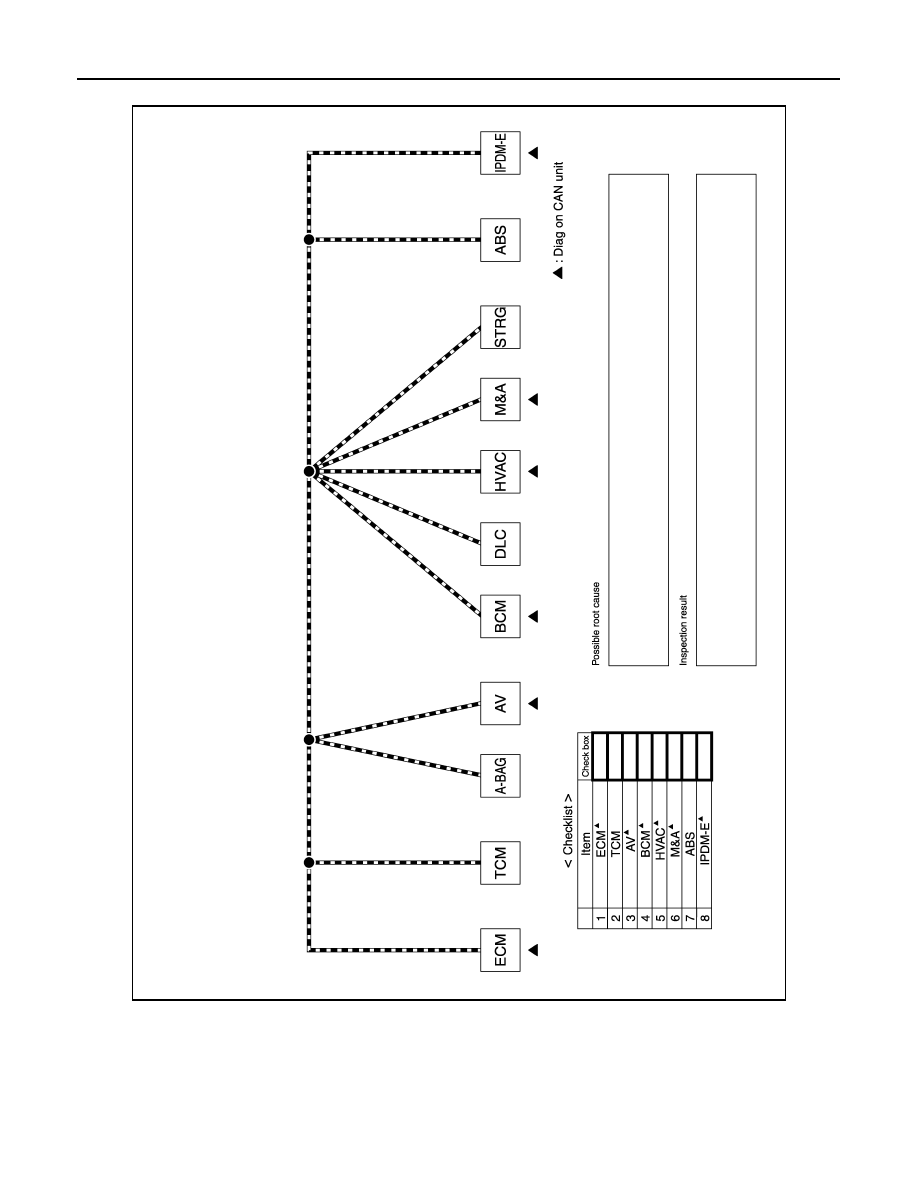

Diagnosis Sheet (CAN Type 3)

INFOID:0000000003938730

JPMIA1275GB

2009 Pathfinder

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-43

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

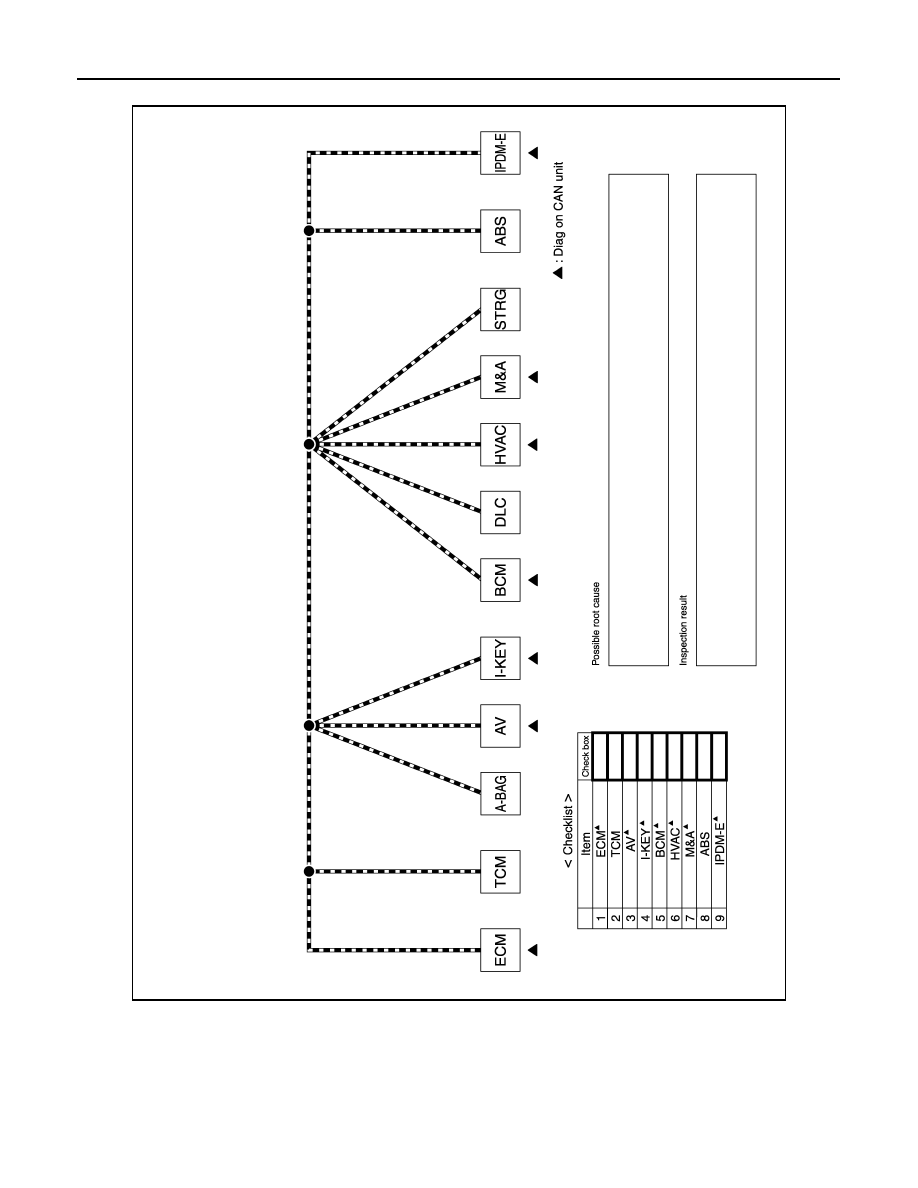

Diagnosis Sheet (CAN Type 4)

INFOID:0000000003938731

JPMIA1276GB

2009 Pathfinder

LAN-44

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

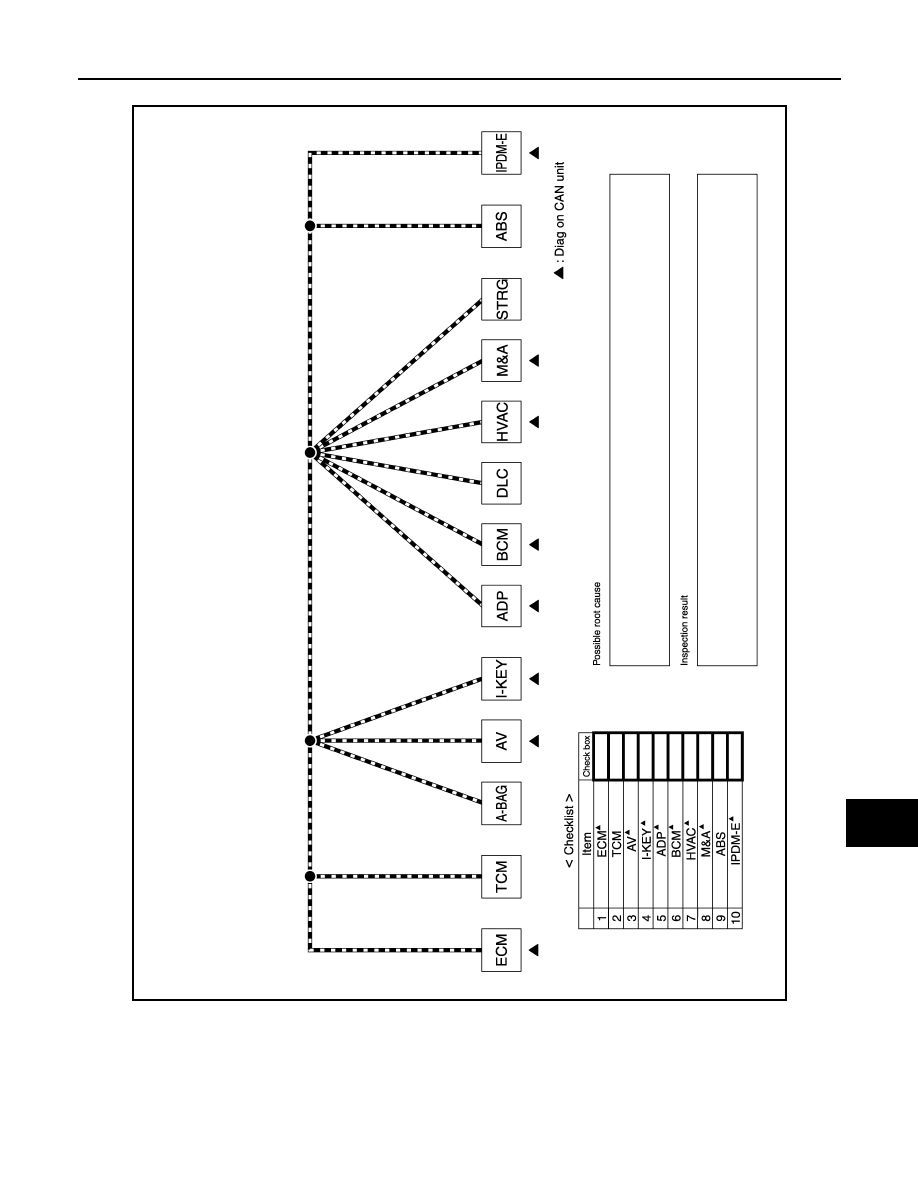

Diagnosis Sheet (CAN Type 5)

INFOID:0000000003938732

JPMIA1274GB

2009 Pathfinder

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-45

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

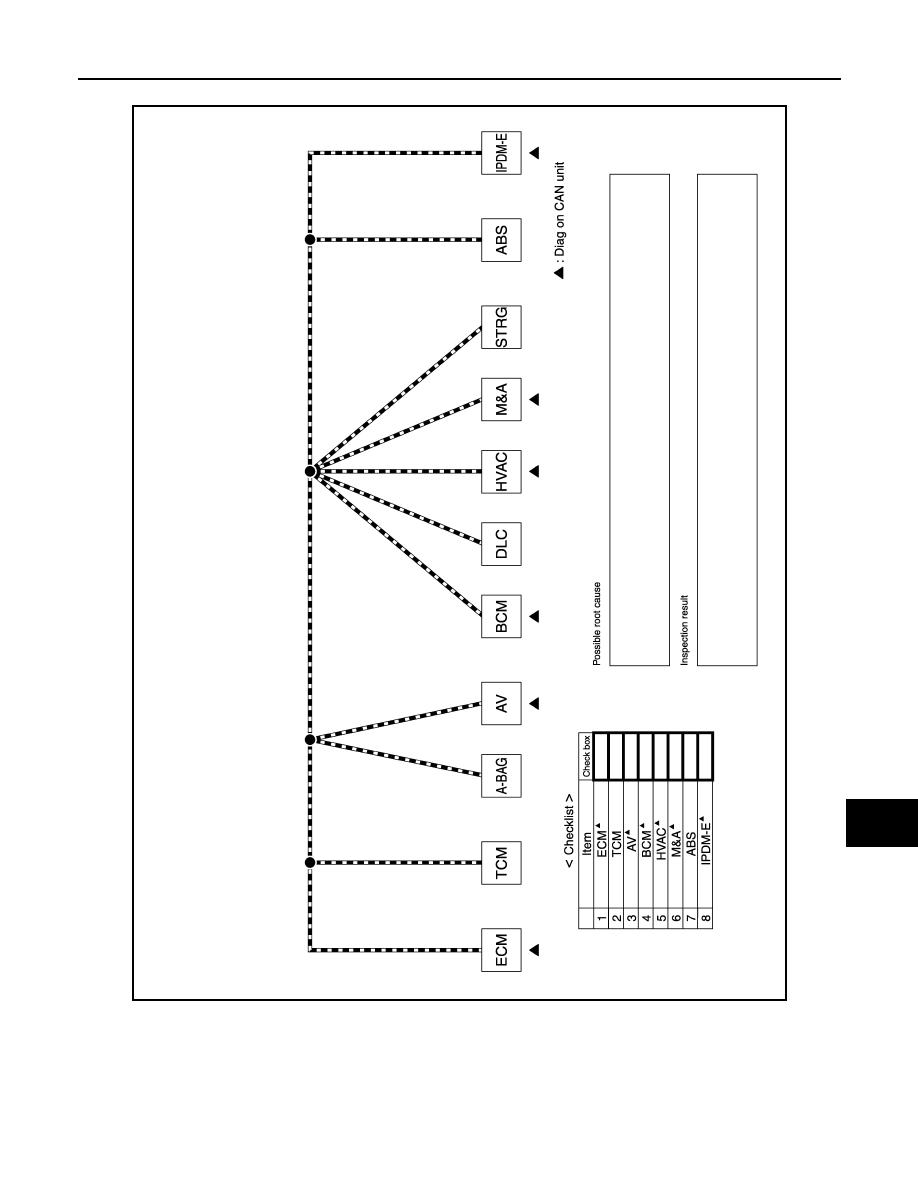

Diagnosis Sheet (CAN Type 6)

INFOID:0000000003938733

JPMIA1275GB

2009 Pathfinder
