CONTENTS

ADJUSTABLE PEDAL

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORKFLOW  ..........

2

Repair Work Flow ......................................................

2

INSPECTION AND ADJUSTMENT .....................

4

Preliminary Check  .....................................................

4

FUNCTION DIAGNOSIS ...............................

5

ADJUSTABLE PEDAL SYSTEM ........................

5

Automatic Drive Positioner Interlocking Adjustable
Pedal .........................................................................

5

Component Parts Location ........................................

5

Component Description .............................................

5

COMPONENT DIAGNOSIS  ..........................

6

ADJUSTABLE PEDAL SYSTEM ........................

6

Pedal Adjusting Switch Power Supply and Ground
Circuit Inspection .......................................................

6

Pedal Adjusting Motor Circuit Inspection ..................

6

Wiring Diagram .........................................................

8

SYMPTOM DIAGNOSIS  ..............................

11

ADJUSTABLE PEDAL SYSTEM ......................

11

Symptom Table  .......................................................

11

PRECAUTION ..............................................

12

PRECAUTIONS .................................................

12

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

12

Precaution for Work .................................................

12

ON-VEHICLE REPAIR .................................

13

ADJUSTABLE PEDAL SYSTEM ......................

13

Removal and Installation  .........................................

13

2009 Pathfinder

AP-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Repair Work Flow

INFOID:0000000003938083

WORK FLOW

DETAILED FLOW

1.

 CUSTOMER INFORMATION

Talk to the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

 PRELIMINARY CHECK

Perform preliminary check.  Refer to

AP-4, "Preliminary Check"

.

>> GO TO 3

3.

 SYMPTOM

Check for symptoms.  Refer to

AP-11, "Symptom Table"

.

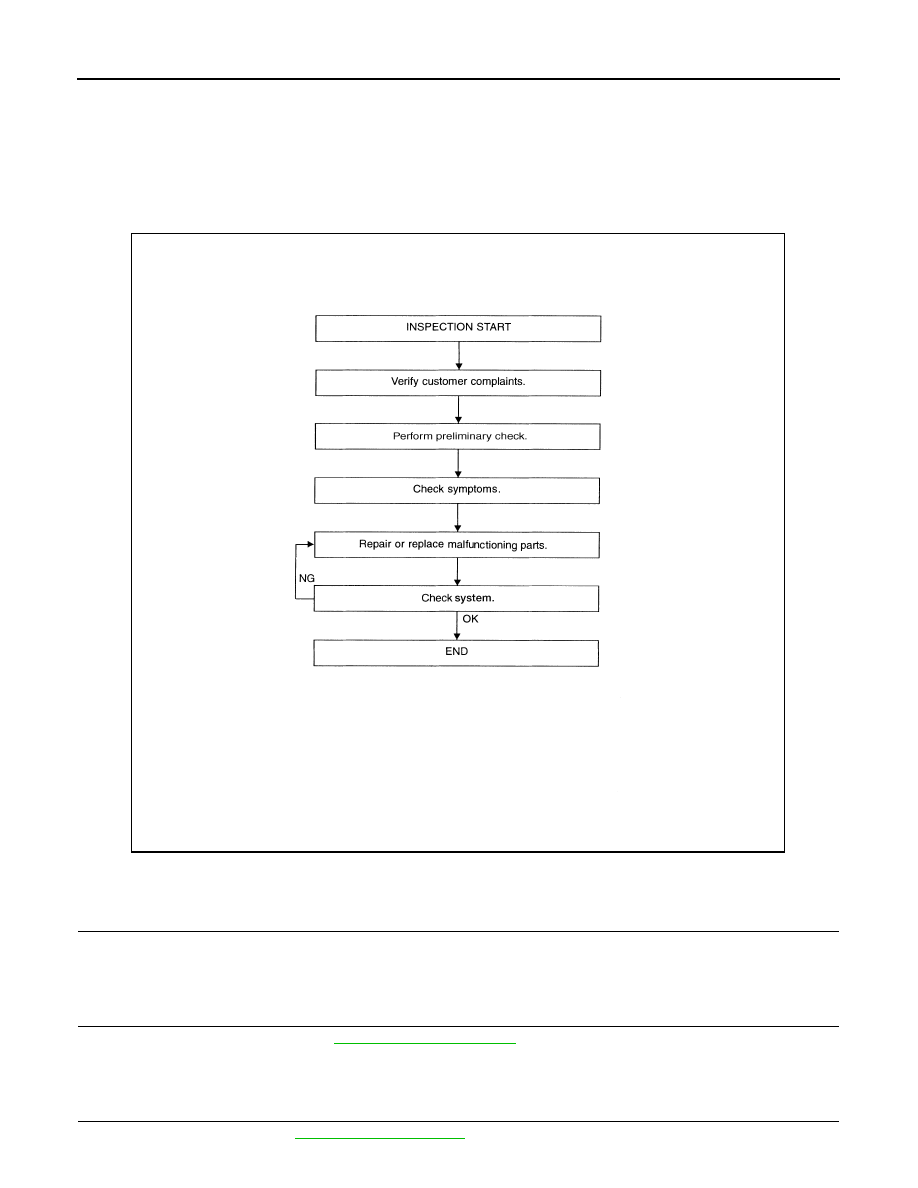

AWJIA0001GB

2009 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

AP-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

>> GO TO 4

4.

 MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 5

5.

 SYSTEM CHECK

Operate the pedal adjusting switch to ensure that the pedals move completely forward and backward.
Does the system operate normally?

YES

>> Inspection End.

NO

>> Refer to

GI-49, "Intermittent Incident"

.

2009 Pathfinder

AP-4

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000003938084

1.

 FOREIGN OBJECTS

Check the following:
• objects on or behind the pedals that could cause binding

Are there any foreign objects that could be causing interference with the pedals?

YES

>> Remove objects.

NO

>> GO TO 2

2.

 WIRING CONNECTIONS

1.

Disconnect pedal adjusting motor.

2.

Check terminals for damage or loose connections.

3.

Reconnect harness connectors.

Are any connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 3

3.

 POWER AND GROUND

Check power supply and ground circuits for pedal adjusting switch.  Refer to

AP-6, "Pedal Adjusting Switch

Power Supply and Ground Circuit Inspection"

.

Is the inspection result normal?

YES

>> Refer to

AP-11, "Symptom Table"

.

NO

>> Repair or replace as necessary.

2009 Pathfinder

ADJUSTABLE PEDAL SYSTEM

AP-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

FUNCTION DIAGNOSIS

ADJUSTABLE PEDAL SYSTEM

Automatic Drive Positioner Interlocking Adjustable Pedal

INFOID:0000000003938085

Automatic drive positioner interlocking adjustable pedal. Refer to

ADP-10, "AUTOMATIC DRIVE POSI-

TIONER SYSTEM : System Description"

.

Component Parts Location

INFOID:0000000003938087

Component Description

INFOID:0000000003938088

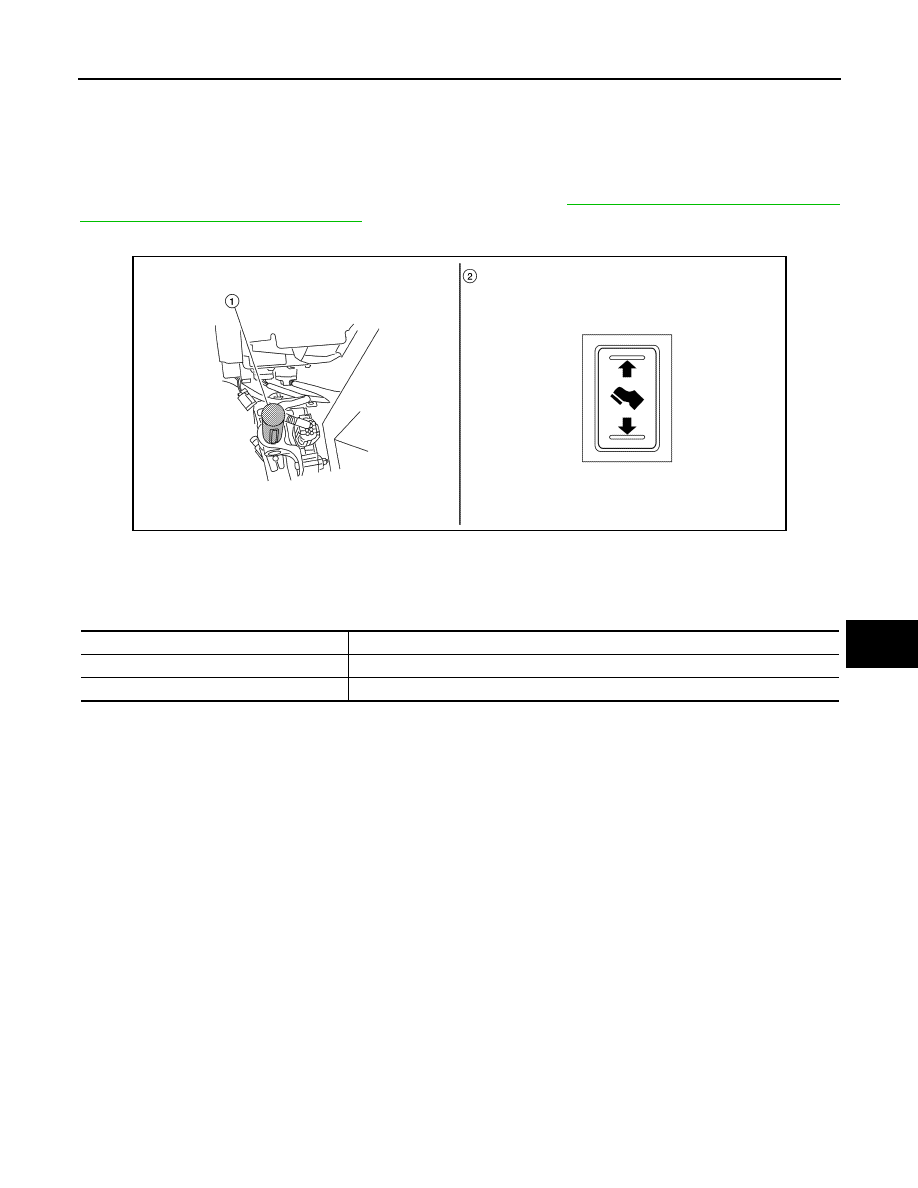

ALJIA0465ZZ

1.

A. Pedal adjusting motor E167 (view with lower instrument panel LH removed) 2.

Pedal adjusting switch M84

Component

Function

Pedal adjusting switch

Provide move forward/backward signals to pedal adjusting motor

Pedal adjusting motor

Move pedal assembly forward and backward

2009 Pathfinder

AP-6

< COMPONENT DIAGNOSIS >

ADJUSTABLE PEDAL SYSTEM

COMPONENT DIAGNOSIS

ADJUSTABLE PEDAL SYSTEM

Pedal Adjusting Switch Power Supply and Ground Circuit Inspection

INFOID:0000000003938092

1.

 CHECK PEDAL ADJUSTING SWITCH POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect pedal adjusting switch.

3.

Check voltage between pedal adjusting switch connector M84
terminal 1 and ground.

Is inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK PEDAL ADJUSTING SWITCH GROUND CIRCUIT

Check continuity between pedal adjusting switch connector M84 ter-
minal 4 and ground.

Is inspection result normal?

YES

>> Pedal adjusting switch power supply and ground circuit

is OK.

NO

>> Repair or replace harness.

Pedal Adjusting Motor Circuit Inspection

INFOID:0000000003938093

1.

 CHECK PEDAL ADJUSTING SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect pedal adjusting switch.

3.

Check continuity between pedal adjusting switch terminals as
follows.

Is inspection result normal?

YES

>> GO TO 2

NO

>> Replace pedal adjusting switch.

2.

 CHECK PEDAL ADJUSTING MOTOR HARNESS

1 - Ground

: Battery voltage

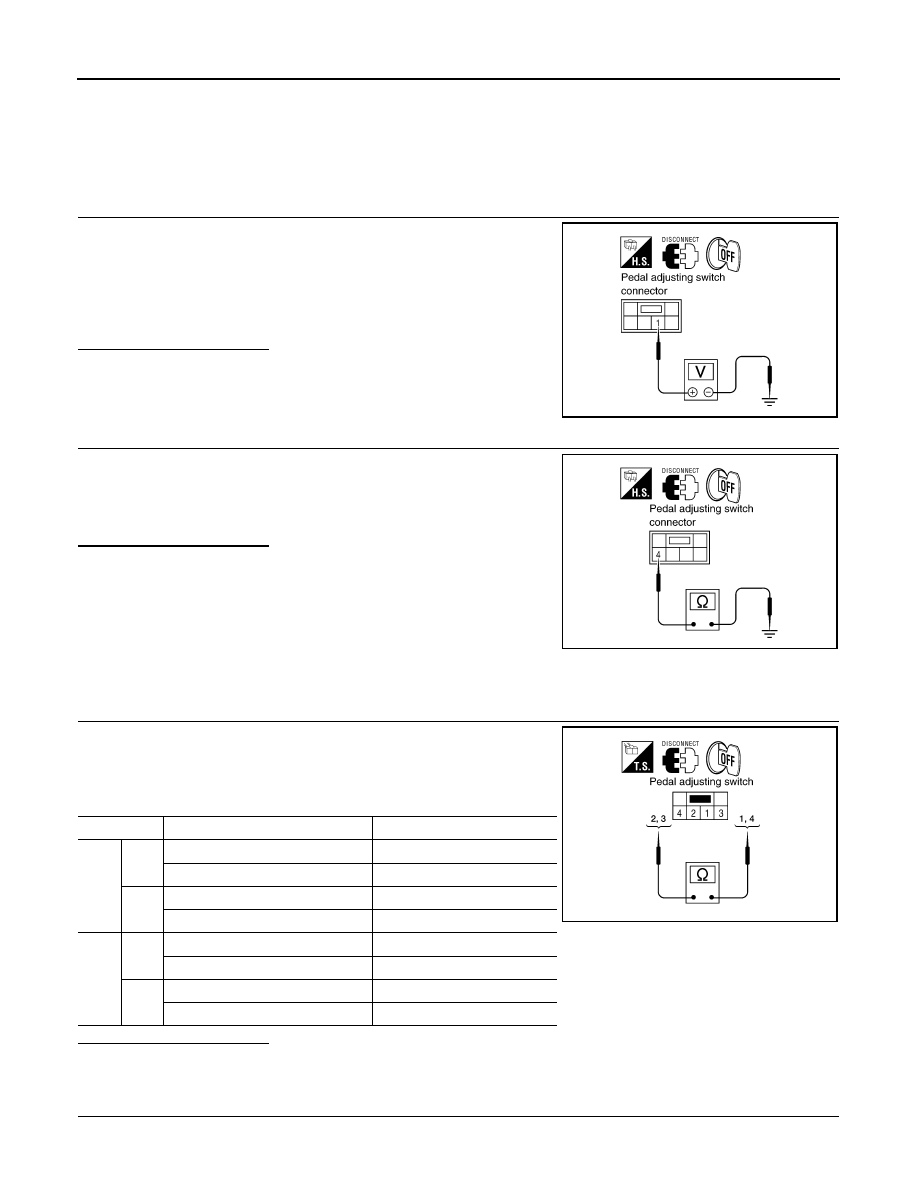

LIIA0894E

4 - Ground

: Continuity should exist.

LIIA0896E

Terminals

Condition

Continuity

3

1

Pedal adjusting switch forward.

Continuity should exist.

Pedal adjusting switch neutral.

Continuity should not exist.

4

Pedal adjusting switch backward.

Continuity should exist.

Pedal adjusting switch neutral.

Continuity should not exist.

2

1

Pedal adjusting switch backward.

Continuity should exist.

Pedal adjusting switch neutral.

Continuity should not exist.

4

Pedal adjusting switch forward.

Continuity should exist.

Pedal adjusting switch neutral.

Continuity should not exist.

LIIA0897E

2009 Pathfinder

ADJUSTABLE PEDAL SYSTEM

AP-7

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

AP

N

O

P

1.

Disconnect pedal adjusting motor.

2.

Check continuity between pedal adjusting switch connector M84
terminals 2, 3 and pedal adjusting motor connector E167 termi-
nals 1, 2.

3.

Check continuity between pedal adjusting switch connector M84
terminals 2, 3 and ground.

Is inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK PEDAL ADJUSTING MOTOR POWER SUPPLY

1.

Connect pedal adjusting switch.

2.

Check voltage between pedal adjusting motor connector E167
and ground.

Is inspection result normal?

YES

>> Replace pedal adjusting motor. Refer to

ACC-4, "Removal and Installation"

.

NO

>> Repair or replace harness.

2 - 1

: Continuity should exist.

3 - 2

: Continuity should exist.

2 - Ground

: Continuity should not exist.

3 - Ground

: Continuity should not exist.

LIIA1679E

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

E167

1

Ground

Pedal adjusting switch back-
ward

Battery voltage

Other than above

0

2

Pedal adjusting switch forward

Battery voltage

Other than above

0

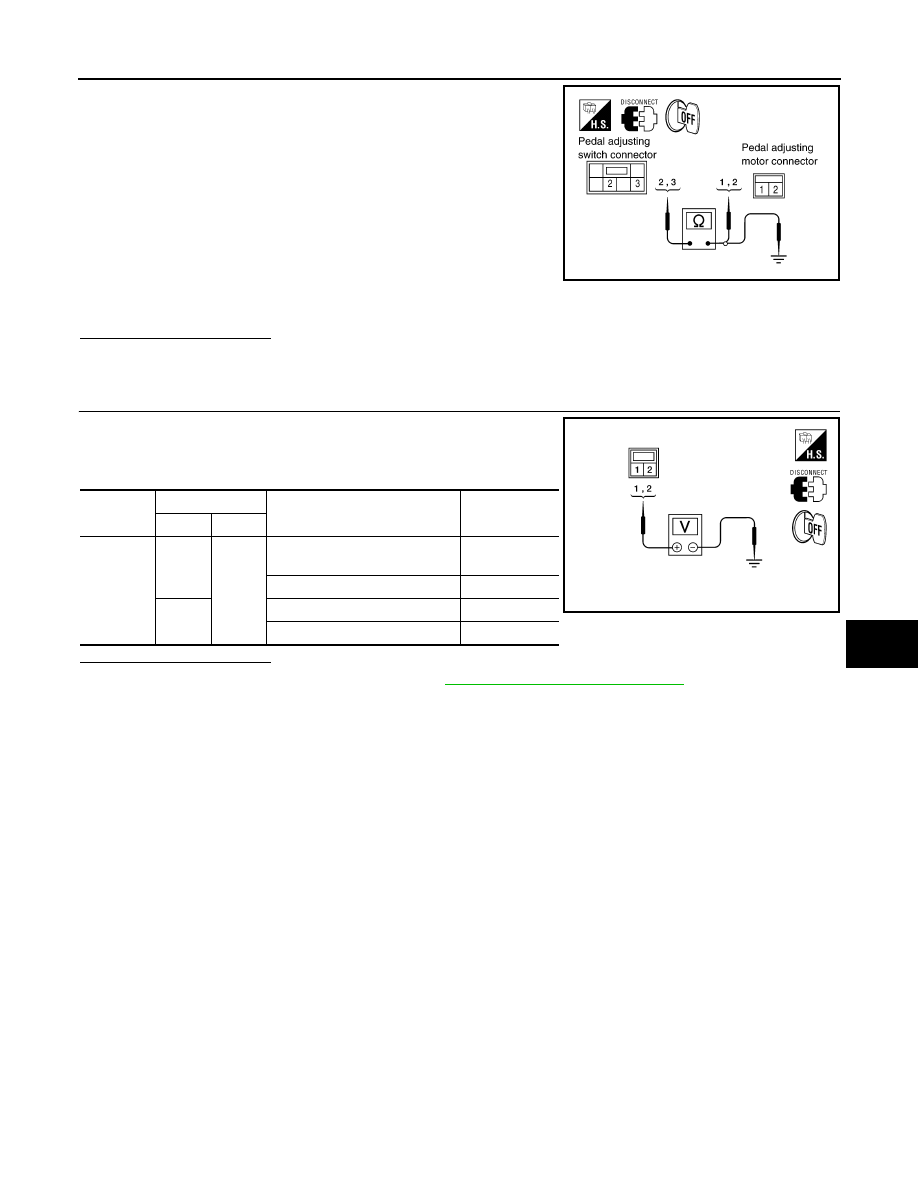

ALJIA0244ZZ

2009 Pathfinder

AP-8

< COMPONENT DIAGNOSIS >

ADJUSTABLE PEDAL SYSTEM

Wiring Diagram

INFOID:0000000003938095

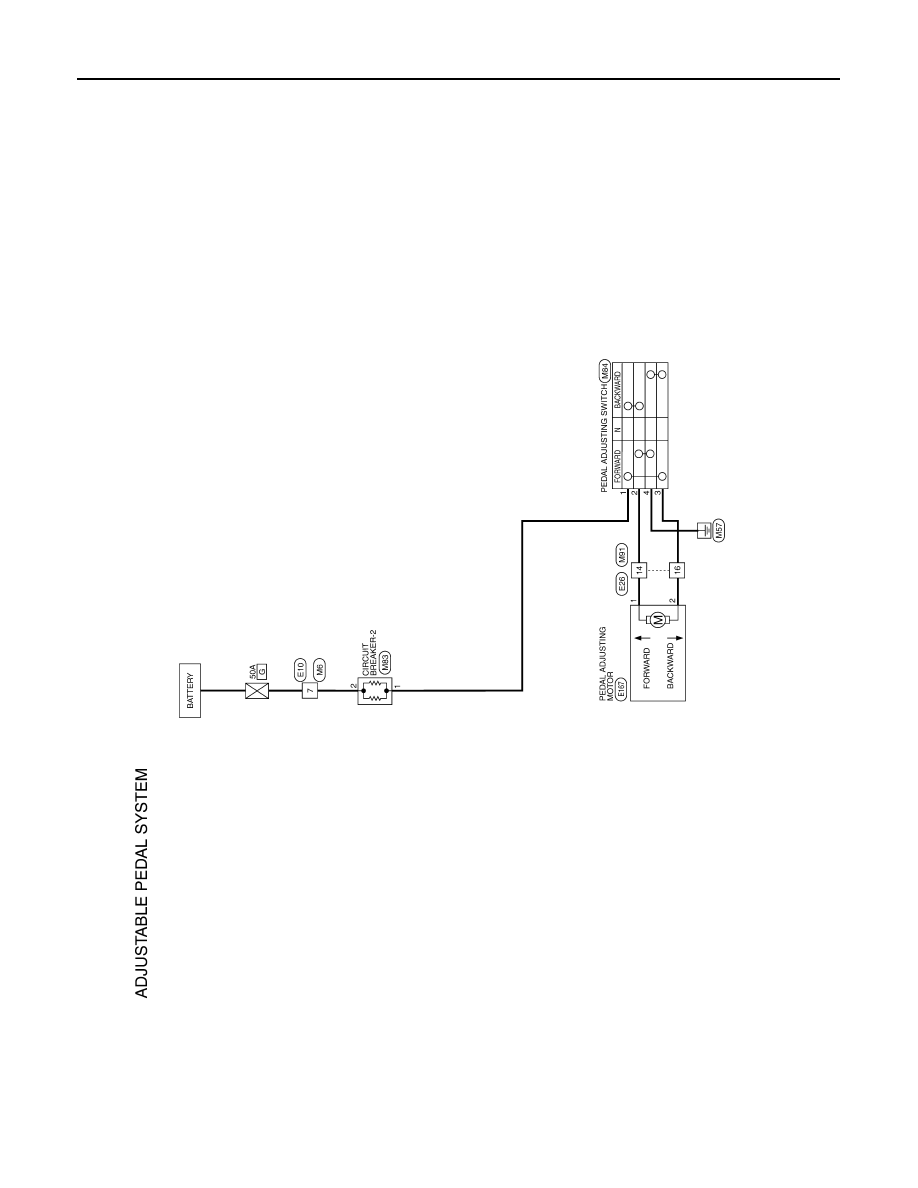

ABJWA0002GB
