Nissan Pathfinder (2008 year). Manual - part 612

TM-238

< DISASSEMBLY AND ASSEMBLY >

OVERHAUL

VK56DE models

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Snap ring

27. Return spring

28. O-ring

29. Servo assembly

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. A/T fluid temperature sensor 2

35. Terminal cord assembly

36. O-ring

37. Retaining pin

38. Transmission case

OVERHAUL

TM-239

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

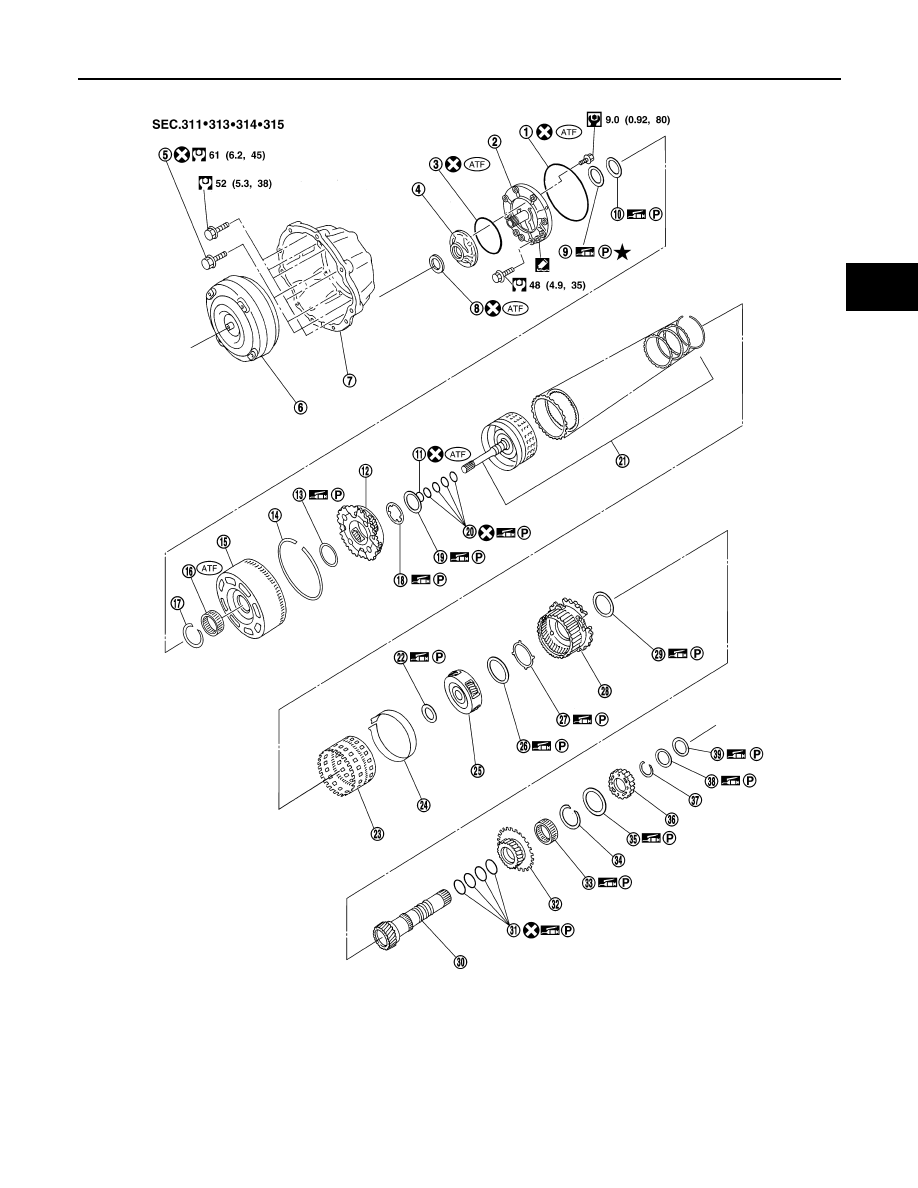

Bell Housing Components

WCIA0661E

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolts

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11.

O-ring

12. Front carrier assembly

13. Needle bearing

14. Snap ring

15. Front sun gear

16. 3rd one-way clutch

17. Snap ring

18. Bearing race

TM-240

< DISASSEMBLY AND ASSEMBLY >

OVERHAUL

19. Needle bearing

20. Seal ring

21. Input clutch assembly

22. Needle bearing

23. Rear internal gear

24. Brake band

25. Mid carrier assembly

26. Needle bearing

27. Bearing race

28. Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31. Seal ring

32. Rear sun gear

33. 1st one-way clutch

34. Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37. Snap ring

38. Bearing race

39. Needle bearing

OVERHAUL

TM-241

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

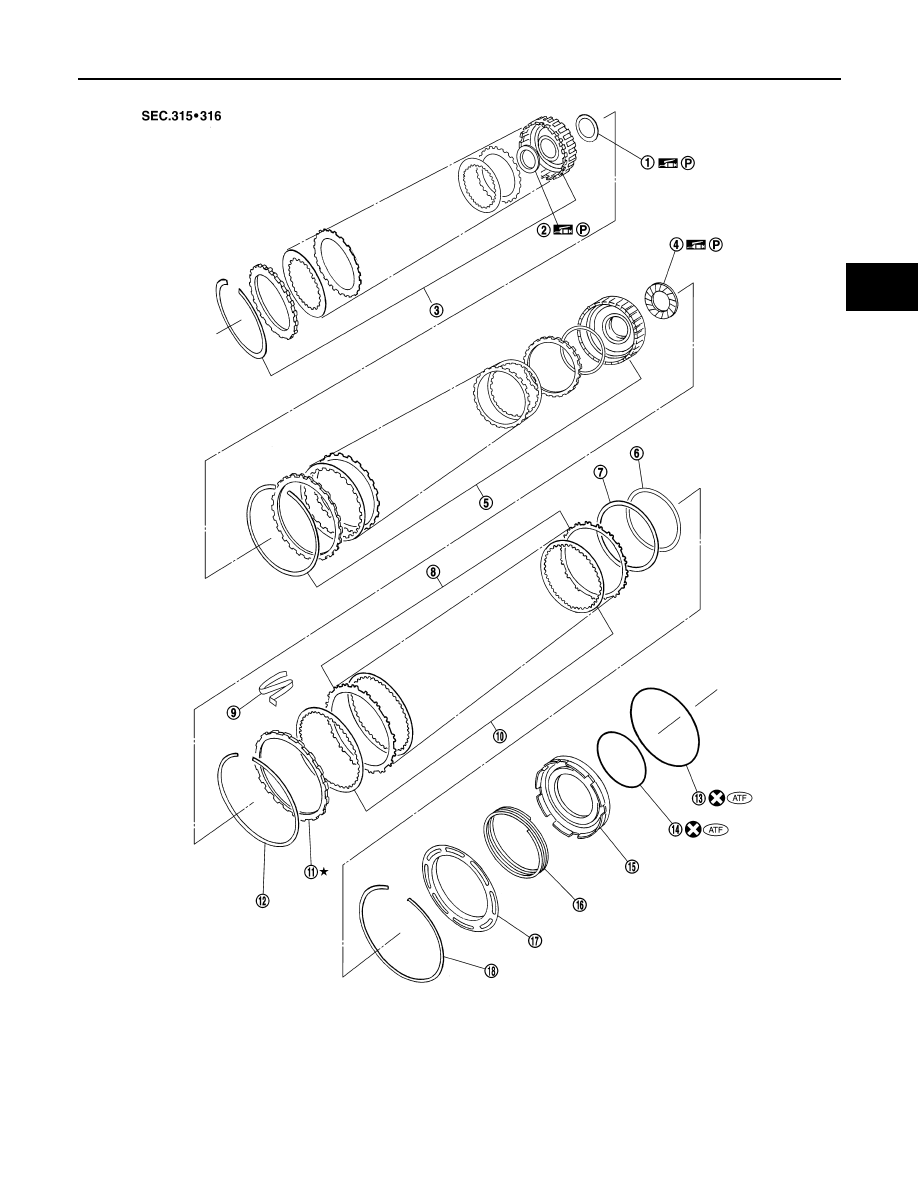

Clutch Pack Components

SCIA7001E

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assem-
bly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Reverse brake drive plate

11.

Reverse brake retaining plate 12. Snap ring

TM-242

< DISASSEMBLY AND ASSEMBLY >

OVERHAUL

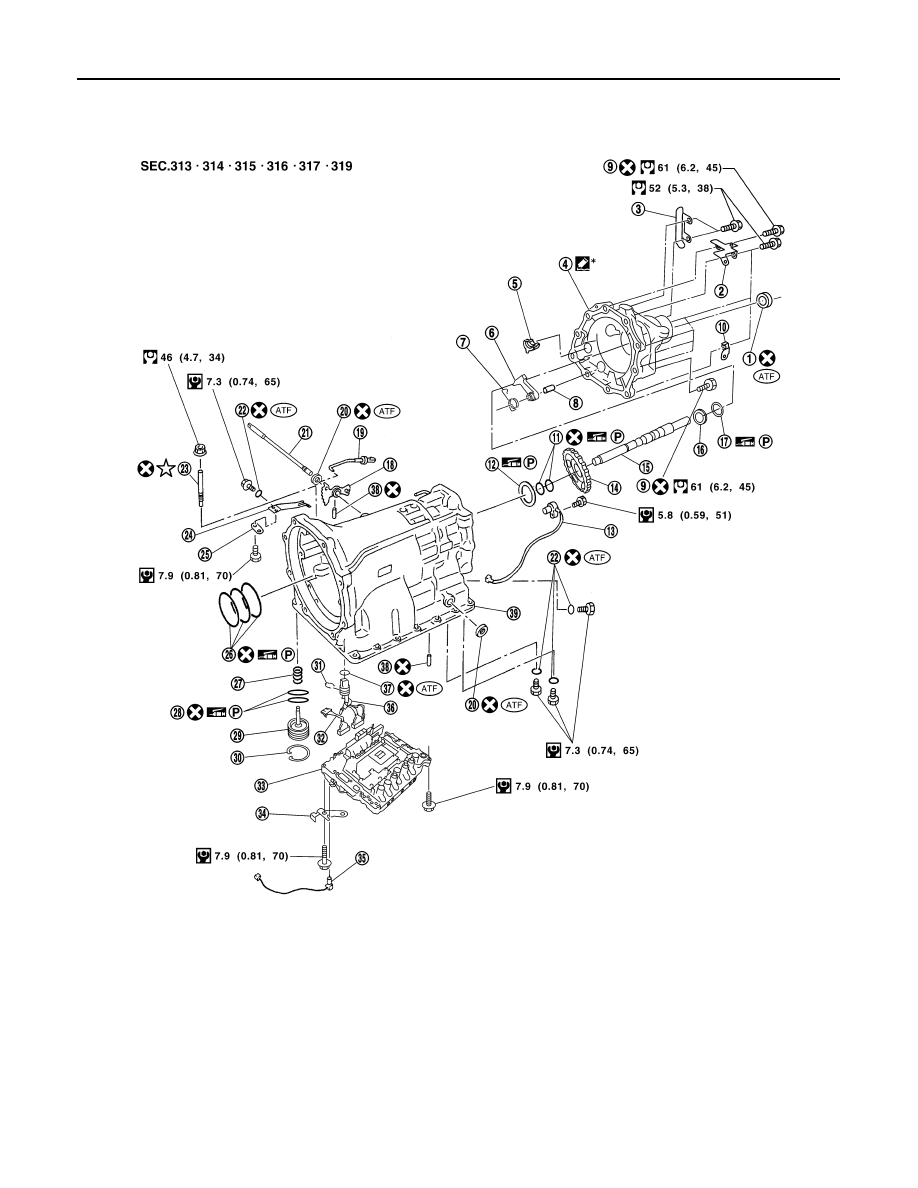

Transmission Case Components for 2WD

13. D-ring

14. D-ring

15. Reverse brake piston

16. Return spring

17. Spring retainer

18. Snap ring

AWDIA0027GB

1.

Rear oil seal

2.

Bracket

3.

Bracket

4.

Adapter case

5.

Parking actuator support

6.

Parking pawl

7.

Return spring

8.

Pawl shaft

9.

Self-sealing bolt

10. Seal ring

11.

Needle bearing

12. Gasket

OVERHAUL

TM-243

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

13. Revolution sensor

14. Parking gear

15. Output shaft

16. Bearing race

17. Needle bearing

18. Manual plate

19. Parking rod

20. Manual shaft oil seal

21. Manual shaft

22. O-ring

23. Band servo anchor end pin

24. Detent spring

25. Spacer

26. Seal ring

27. Snap ring

28. Return spring

29. O-ring

30. Servo assembly

31. Snap ring

32. Sub-harness

33. Control valve with TCM

34. Bracket

35. A/T fluid temperature sensor 2 36. Terminal cord assembly

37. O-ring

38. Retaining pin

39. Transmission case

TM-244

< DISASSEMBLY AND ASSEMBLY >

OVERHAUL

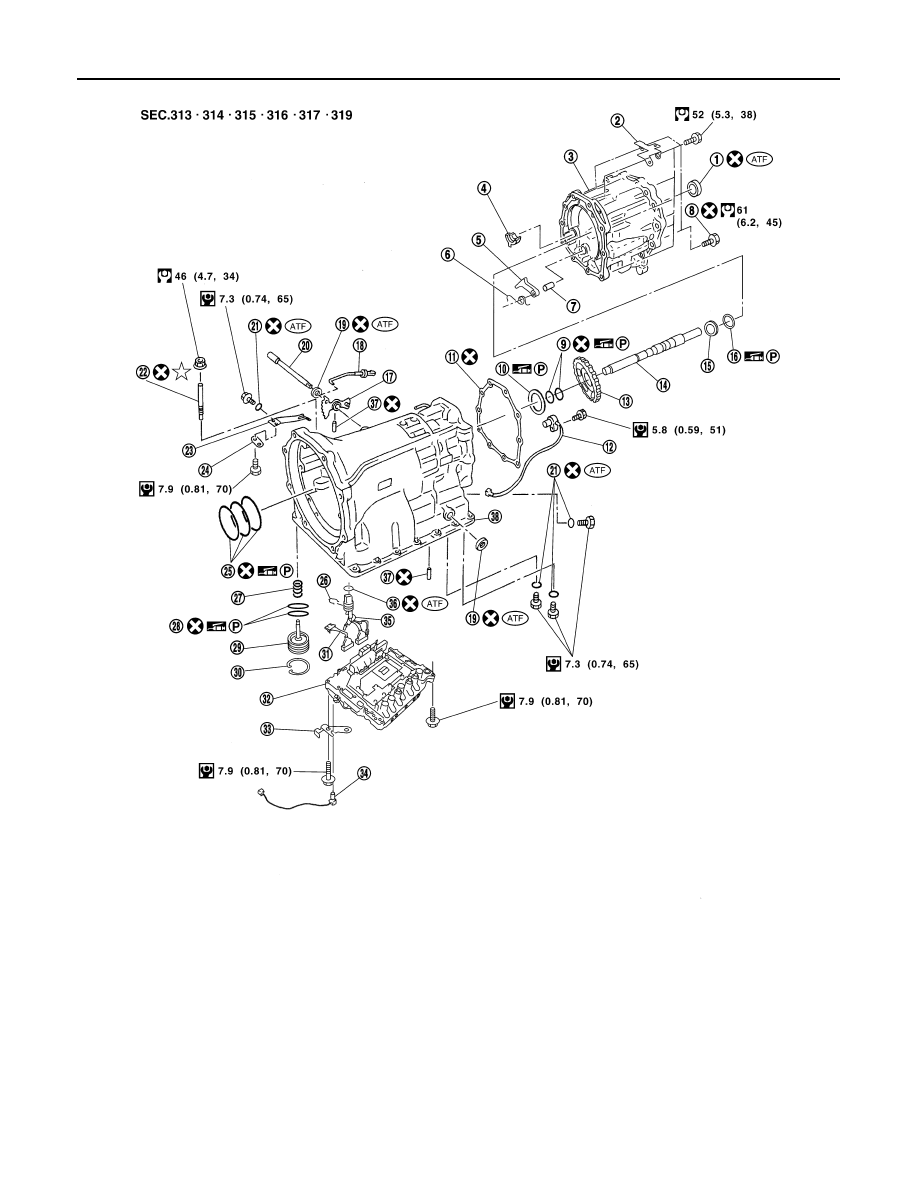

Transmission Case Components for 4WD

AWDIA0026GB

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Self-sealing bolt

9.

Seal ring

10. Needle bearing

11.

Gasket

12. Revolution sensor

13. Parking gear

14. Output shaft

15. Bearing race

16. Needle bearing

17. Manual plate

18. Parking rod

OVERHAUL

TM-245

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

19. Manual shaft oil seal

20. Manual shaft

21. O-ring

22. Band servo anchor end pin

23. Detent spring

24. Spacer

25. Seal ring

26. Snap ring

27. Return spring

28. O-ring

29. Servo assembly

30. Snap ring

31. Sub-harness

32. Control valve with TCM

33. Bracket

34. A/T fluid temperature sensor 2

35. Terminal cord assembly

36. O-ring

37. Retaining pin

38. Transmission case
