Nissan Pathfinder (2008 year). Manual - part 564

PCS-17, "Reference Value"

TERMINAL LAYOUT

PCS-19, "Terminal Layout"

Fail Safe

INFOID:0000000001689642

PCS-26, "Fail Safe"

DTC Index

INFOID:0000000001689643

PCS-28, "DTC Index"

SEC-146

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

VEHICLE SECURITY SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000001689644

*: Check the system is in the armed phase.

Procedure

Diagnostic procedure

Refer to page

Symptom

Vehicle security sys-
tem cannot be set by
····

Door switch

Check door switch (LF, RF, LR, RR, back)

DLK-214

Glass ajar switch

Check glass hatch ajar switch

SEC-122

Key cylinder switch

Check key cylinder switch

DLK-221

—

Check Intermittent Incident

Security indicator does not turn ON.

Check vehicle security indicator

SEC-124

Check Intermittent Incident

* Vehicle security
system does not
sound alarm when ····

Any door is opened.

Check door switch (LF, RF, LR, RR, back)

DLK-214

Glass ajar switch

Check glass hatch ajar switch

SEC-122

—

Check Intermittent Incident

Vehicle security
alarm does not acti-
vate.

Horn alarm

Check horn switch

HRN-3

Check Intermittent Incident

Vehicle security sys-
tem cannot be can-
celed by ····

Key cylinder switch

Check key cylinder switch

SEC-120

Check Intermittent Incident

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

SEC-147

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

Symptom Table

INFOID:0000000001689645

NOTE:
• Before performing the diagnosis in the following table, check “

SEC-97, "Work Flow"

”.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

• If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

• Mechanical key is not inserted into key cylinder.
• Ignition knob switch is not depressed.

Symptom

Diagnosis/service procedure

Reference page

Security indicator does not turn ON or flash.

1. Check vehicle security indicator

SEC-124

2. Check Intermittent Incident

SEC-104, "System Description"

SEC-148

< ON-VEHICLE MAINTENANCE >

[WITHOUT INTELLIGENT KEY SYSTEM]

PRE-INSPECTION FOR DIAGNOSTIC

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001689646

INSPECTION START

Turn ignition switch “OFF”.
NOTE:
Before starting operation check, open front windows.

>> GO TO 2.

CHECK SECURITY INDICATOR LAMP

Lock doors using keyfob or mechanical key.

Check that security indicator lamp illuminates for 30 seconds.

Does the security indicator lamp illuminate?

YES

>> GO TO 3.

>> Perform diagnosis and repair. Refer to

CHECK ALARM FUNCTION

After 30 seconds, security indicator lamp will start to blink.

Open any door before unlocking with keyfob or mechanical key, or open back door or glass hatch without
keyfob.

Does the alarm function properly?

YES

>> GO TO 4.

Check the following.

• The vehicle security system does not phase in alarm mode. Refer to

SEC-146, "Symptom

Table"

• Alarm (horn and headlamps) does not operate. Refer to

SEC-146, "Symptom Table"

CHECK ALARM CANCEL OPERATION

Unlock any door using keyfob or mechanical key.

Alarm (horn and headlamps) should stop.

>> INSPECTION END.

>> Check door lock function. Refer to

DLK-199, "DOOR LOCK AND UNLOCK SWITCH : System

Description"

VEHICLE SECURITY SYSTEM

SEC-149

< ON-VEHICLE REPAIR >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

ON-VEHICLE REPAIR

VEHICLE SECURITY SYSTEM

Removal and Installation

INFOID:0000000001689647

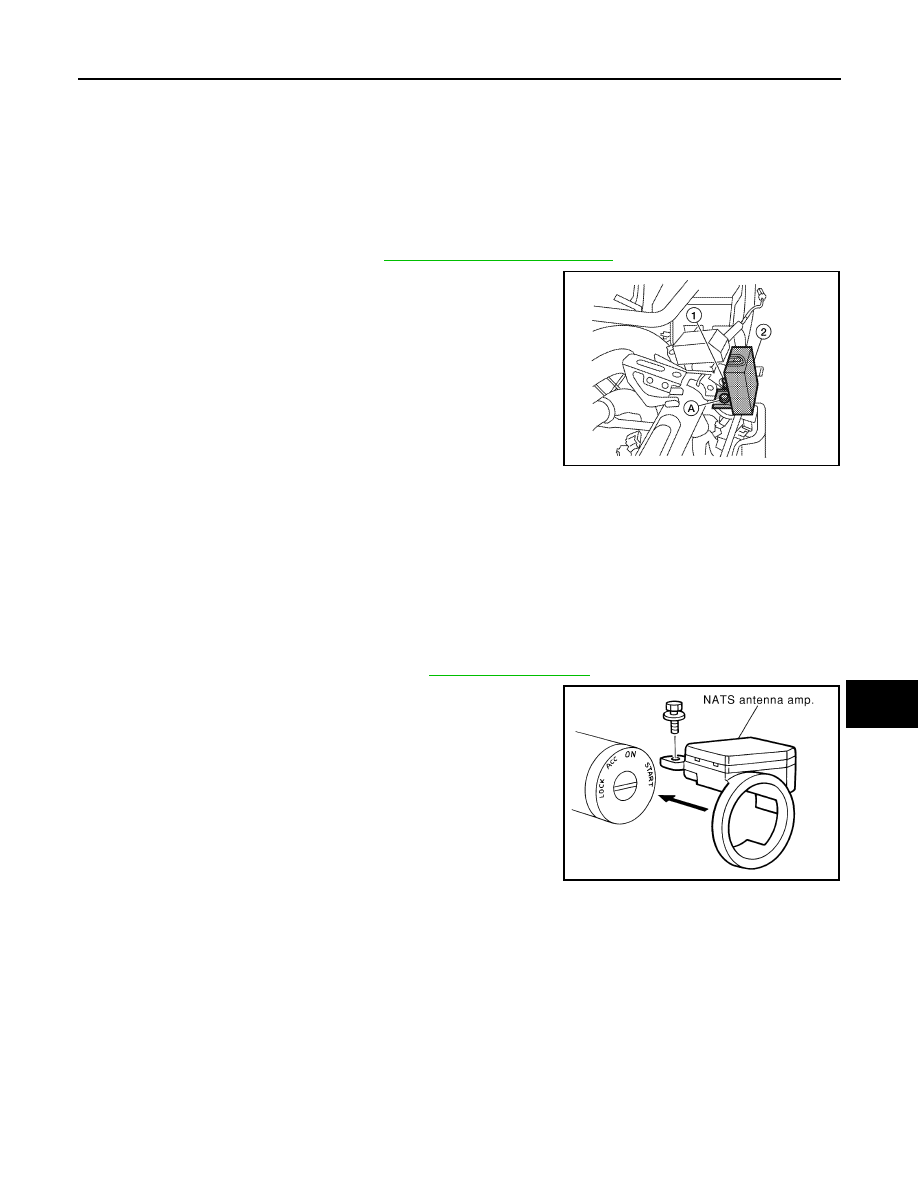

REMOTE KEYLESS ENTRY RECEIVER

Removal

Remove the instrument panel. Refer to

IP-10, "Removal and Installation"

Disconnect the wire harness (1), remove the bolt (A), and the
RKE receiver (2).

Installation

Installation is in the reverse order of removal.

NATS ANTENNA AMP

NOTE:
• If NATS antenna amp. is not installed correctly, NVIS (NATS) system will not operate properly and "SELF-

DIAG RESULTS" on CONSULT -III screen will show "LOCK MODE" or "CHAIN OF IMMU-KEY"

• Initilization is not necessary when only the NATS antenna amp. is replaced with a new one.

Removal

Disconnect the battery negative terminal.

Remove the steering column covers. Refer to

IP-10, "Exploded View"

Remove the bolt, disconnect the electrical connector, and
remove the NATS antenna amp.

Installation

Installation is in the reverse order of removal.

ALKIA0537ZZ

SIIA1683E

SEC-150

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

NATS ANTENNA AMP.

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000001683794

NOTE:
• If NATS antenna amp. is not installed correctly, NVIS (NATS) system will not operate properly and "SELF-

DIAG RESULTS' on CONSULT-III screen will show "LOCK MODE" or "CHAIN OF IMMU-KEY'.

• Initilization is not necessary when only the NATS antenna amp. is replaced with a new one.

REMOVAL

Disconnect the battery negative terminal.

Remove cluster lid A. Refer to

IP-10, "Exploded View"

Remove the bolt, disconnect the electrical connector, and remove the NATS antenna amp.

INSTALLATION

Installation is in the reverse order of removal.

REMOTE KEYLESS ENTRY RECEIVER

SEC-151

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

REMOTE KEYLESS ENTRY RECEIVER

Removal

INFOID:0000000001730846

Disconnect the battery negative cable.

Remove the upper glove box. Refer to

IP-10, "Exploded View"

Remove the bolt, disconnect and remove the remote keyless entry receiver.

Installation

INFOID:0000000001730847

Installation is in the reverse order of removal.

SRC-1

RESTRAINTS

SECTION

SRC

SRC

CONTENTS

SRS AIRBAG CONTROL SYSTEM

BASIC INSPECTION ....................................

DIAGNOSIS AND REPAIR WORK FLOW .........

Work Flow .................................................................

INTERMITTENTS INCIDENT ..............................

Inspection Procedure ...............................................

Trouble Diagnosis with CONSULT-III .......................

FUNCTION DIAGNOSIS ...............................

SRS AIR BAG SYSTEM ......................................

SRS Configuration ....................................................

SRS Component Parts Location ...............................

Driver Air Bag Module ...............................................

Front Passenger Air Bag Module ..............................

Front Side Air Bag .....................................................

Side Curtain Air Bag ..................................................

Front Seat Belt Pre-tensioner with Load Limiter .......

Direct-connect SRS Component Connectors ............

OCCUPANT CLASSIFICATION SYSTEM .........

System Diagram ......................................................

Occupant Classification System (OCS) ..................

PASSENGER SEAT BELT WARNING SYS-
TEM ....................................................................

System Diagram ......................................................

System Description .................................................

Component Parts Location ......................................

ON BOARD DIAGNOSTIC (OBD) SYSTEM ......

Trouble Diagnosis Introduction ...............................

SRS Operation Check .............................................

Trouble Diagnosis without CONSULT-III ................

CONSULT-III Function (AIR BAG) ..........................

Self-Diagnosis Function (Without CONSULT-III) ....

COMPONENT DIAGNOSIS .........................

B1049 – B1052, B1054 – B1057 DRIVER AIR-
BAG MODULE ...................................................

Description ...............................................................

DTC Logic ................................................................

B1065 – B1068, B1070 – B1073 PASSEN-
GER AIRBAG MODULE ...................................

Description ...............................................................

DTC Logic ................................................................

B1134 – B1137 SIDE AIRBAG MODULE LH ...

Description ...............................................................

DTC Logic ................................................................

B1129 – B1132 SIDE AIRBAG MODULE RH ...

Description ...............................................................

DTC Logic ................................................................

B1198 – B1201 SIDE CURTAIN AIR BAG
MODULE LH (FRONT) ......................................

Description ...............................................................

DTC Logic ................................................................

B1193 – B1196 SIDE CURTAIN AIR BAG
MODULE RH (FRONT) .....................................

Description ...............................................................

DTC Logic ................................................................

B1150 – B1153 SIDE CURTAIN AIR BAG
MODULE LH (REAR) ........................................

Description ...............................................................

DTC Logic ................................................................
